Champion 90034 Manual

90034
Rev90034-20090416
10006SantaFeSpringsRoad
SantaFeSprings,CA90670USA
MadeinChina
GasolinePowered
HYDRAULICAUGER
Owner’sManualandOperatingInstructions

Table of Contents
Introduction ..................................... 1
Portable Hydraulic Auger/Post Hole
Digger........................................................ 1
Accessories................................................ 1
This Booklet.............................................. 1
Manual Conventions.........................2
Safety Rules......................................3

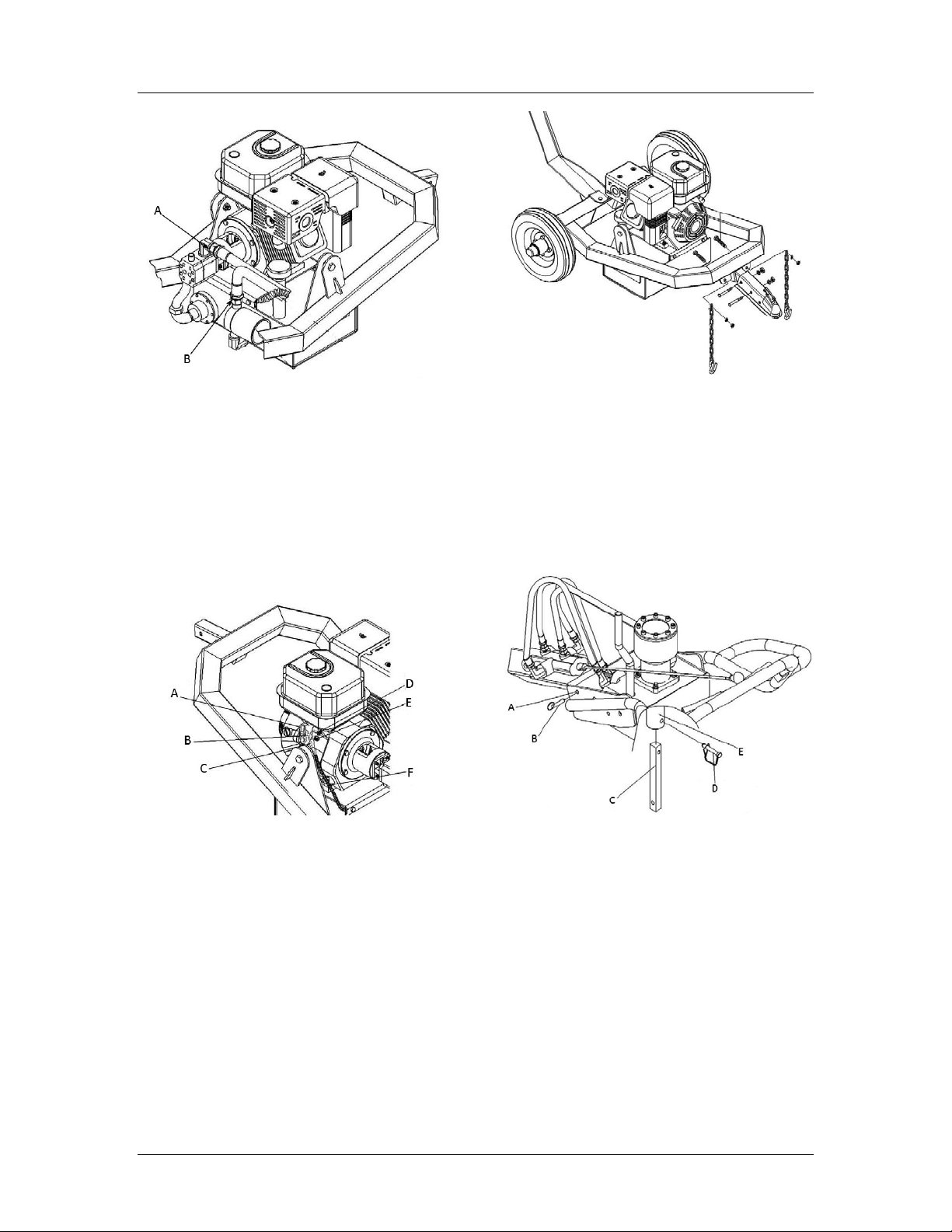

Controls and Features.......................5
Auger/Post Hole Digger...........................5
Assembly ..........................................6
Open Shipping Crate ................................6
For parts reference see pages 16-18 in
the manual. ...........................................6

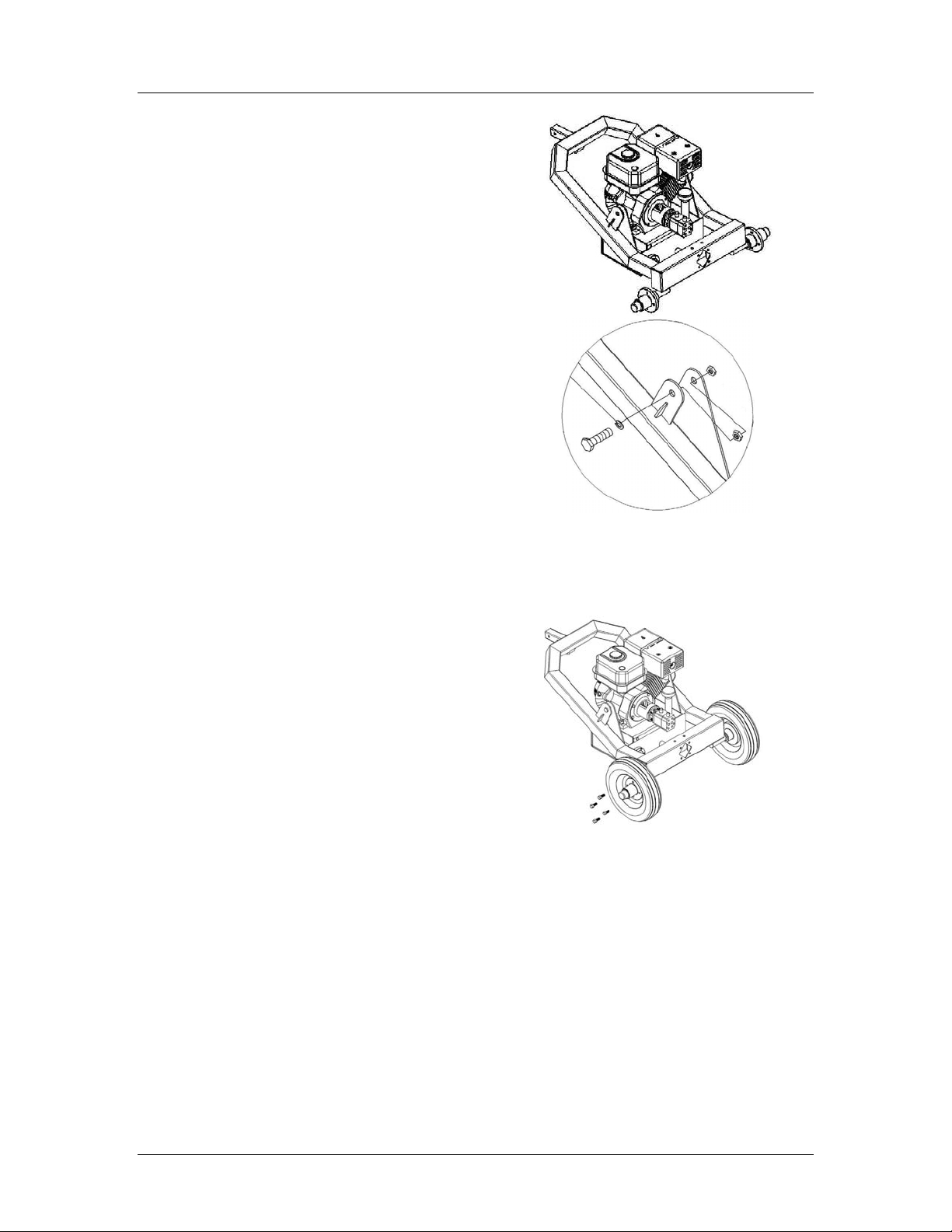

Step 1 – Engine Carriage Assembly..........6
Step 2 – Attach Wheels ............................6
Step 3 – Attach Boom...............................7
Step 4 – Attach hose retaining bracket.... 7
Step 5 – Feed the hydraulic hoses and
wires through the boom ...........................7
Step 6 – Attach handle assembly to boom7
Step 7 – Connect hydraulic hoses ............7
Step 8 – Wire connections .......................8
Step 9 – Attach the towing coupler..........8
Step 10 – Attach the Auger coupler..........8
Add Engine Oil .........................................9
Add Engine Fuel.......................................9
Add Hydraulic Oil.....................................9
Operation .......................................10
Auger/Post Hole Digger Location..........10
Starting the Engine.................................10
Stopping the Engine...............................10
Digging Operation..................................10
See Following Diagrams. .....................11
Maintenance................................... 12
Engine Maintenance...............................12
Oil ........................................................12
Spark Plugs..........................................12
Air Filter..............................................12
Cleaning...............................................13
Maintenance Schedule........................13
Auger/Post Hole Digger Maintenance ...13
Storage ...........................................14
Engine Storage........................................14
Specifications ................................. 15
Auger/Post Hole Digger Specifications..15
Hydraulic Oil...........................................15

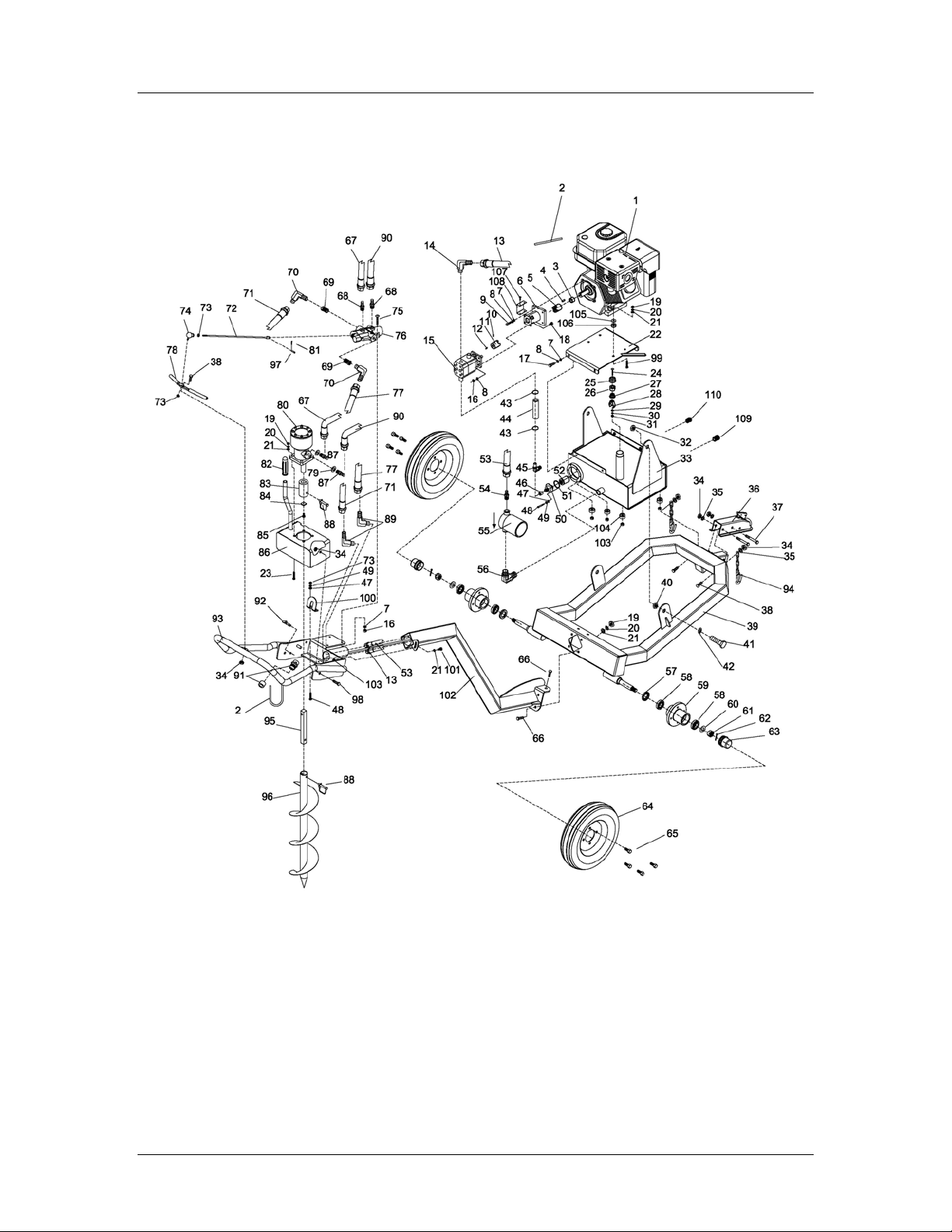

Auger/Post Hole Digger Parts Diagram.16
Auger/Post Hole Digger Parts List......... 17
Engine Parts Diagram.............................19
Engine Parts List.................................... 20
Troubleshooting .............................23
Warranty ........................................24
Warranty Qualifications .........................24
Repair/Replacement Warranty..............24
Do not return the unit to the place of
purchase..................................................24
Warranty Exclusions...............................24
Normal Wear.......................................24
Installation, Use and Maintenance.....24
Other Exclusions.................................24
Limits of Implied Warranty and
Consequential Damage...........................24
Contact Information ...............................24
Address................................................24
Customer Service ................................24
Technical Service.................................24
Notes ..............................................25

Introduction
Rev 90034-20090416 1
Introduction
Congratulations on your purchase of a
Champion Power Equipment Auger/Post
Hole Digger. CPE designs and builds Augers
to strict specifications. With proper use and
maintenance, this Auger/Post Hole Digger
will bring years of satisfying service.
This Owner’s Manual contains important
safety instructions and information. SAVE
THESE INSTRUCTIONS FOR FUTURE
REFERENCE.

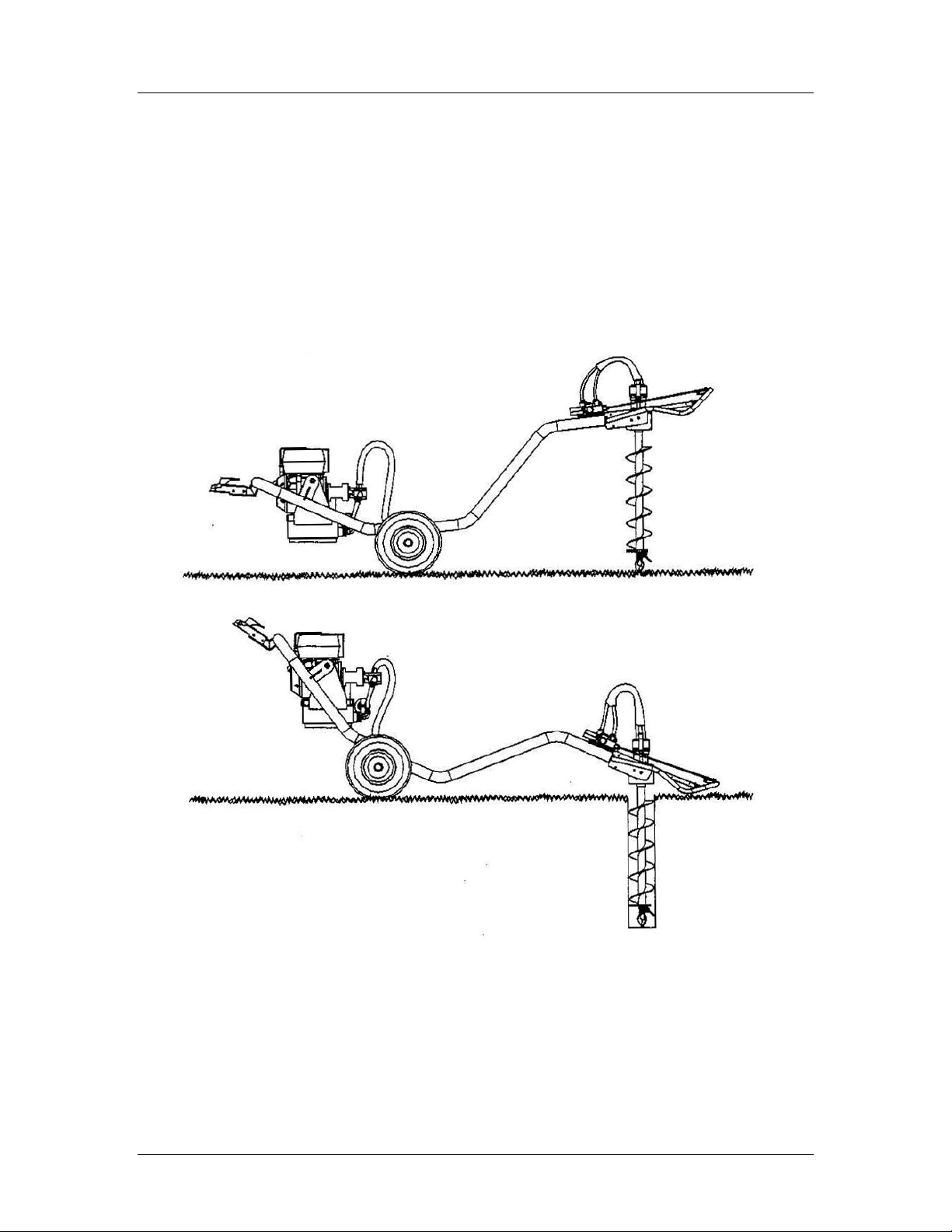

Portable Hydraulic
Auger/Post Hole Digger
This unit is a gasoline engine driven
Auger/Post Hole Digger. It is designed to
dig post holes. Engine is shipped without oil
and requires oil SAE10w-30 motor oil before
starting. Before starting the engine fill the
hydraulic tank with 10W AW 32 anti wear
hydraulic fluid (3.9 gal/15 L)
Accessories
Champion Power Equipment manufactures
and sells accessories designed to help you
get the most from your purchase. To find out
more please visit our web site at
www.championpowerequipment.com
This Booklet
Every effort has been made to ensure the
accuracy and completeness of the
information in this manual. We reserve the
right to change, alter and/or improve the
product and this document at any time
without prior notice.
Record the model and serial numbers as well as date and place of purchase for future reference.
Have this information available when ordering parts and when making technical or warranty
inquiries.
Champion Power Equipment Support
1-877-338-0999
Model Number
90034
Serial Number
Date of Purchase
Purchase Location

Manual Conventions
2 Rev 90034-20090416
Manual Conventions
This manual uses the following symbols to
help differentiate between different kinds of
information. The safety symbol is used with
a key word to alert you to potential hazards
in operating and owning power equipment.
Follow all safety messages to avoid or reduce
the risk of serious injury or death.
DANGER
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in death
or serious injury.
WARNING
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate injury.
CAUTION
CAUTION used without the safety alert symbol
indicates a potentially hazardous situation which,
if not avoided, may result in property damage.
NOTE
If you have questions regarding your Auger/Post
Hole Digger, we can help. Please call our help
line at 1-877-338-0999.

Safety Rules
Rev 90034-20090416 3
Safety Rules
WARNING
Read this manual thoroughly before operating
your Auger/Post Hole Digger. Failure to follow
instructions could result in serious injury or
death.
WARNING
The engine exhaust from this product contains
chemicals known to the state of California to
cause cancer, birth defects, or other reproductive
harm.
DANGER
Auger/Post Hole Digger engine exhaust contains
carbon monoxide, a colorless, odorless, poison
gas. Breathing carbon monoxide will cause
nausea, dizziness, fainting or death. If you start
to feel dizzy or weak, get to fresh air
immediately.
Operate Auger/Post Hole Digger outdoors only in
a well ventilated area.
DO NOT operate the Auger/Post Hole Digger
inside any building, enclosure or compartment.
DO NOT allow exhaust fumes to enter a confined
area through windows, doors, vents or other
openings.
DANGER CARBON MONOXIDE, using a
Auger/Post Hole Digger indoors CAN KILL YOU
IN MINUTES.
DANGER
Rotating parts can entangle hands, feet, hair,
clothing and/or accessories.
Traumatic amputation or severe laceration can
result.
DO NOT remove hitch pin or Auger Pin when the
engine is running.
Keep hands and feet away from rotating parts.
Tie up long hair and remove jewelry.
Operate equipment with guards in place.
DO NOT wear loose-fitting clothing, dangling
drawstrings or items that could become caught.
WARNING
Sparks can result in fire or electrical shock.
When servicing the engine:
Disconnect the spark plug wire and place it
where it cannot contact the plug.
DO NOT check for spark with the plug removed.
Use only approved spark plug testers.
WARNING
Running engines produce heat.
Severe burns can occur on contact.
Combustible material can catch fire on contact.
DO NOT touch hot surfaces.
Avoid contact with hot exhaust gases.
Allow equipment to cool before touching.
Maintain at least three feet of clearance on all
sides to ensure adequate cooling.
Maintain at least five feet of clearance from
combustible materials.
WARNING
Skin Injection Hazard. High pressure hydraulic
oil can inject under your skin.
Make sure all fittings are tightly secure before
applying pressure. Relieve system of pressure
before servicing.
WARNING
Rotating Hazard
Entanglement in Auger/Post Hole Digger will
cause serious injury or death. Keep away from
Auger when engine is running.

Safety Rules
4 Rev 90034-20090416
WARNING
Cables and Pipelines Hazard
Auger/Post Hole Digger will cut through buried
electrical cables and gas pipelines resulting in
serious injury or death. Contact your local utilities
company before drilling holes in the ground.
WARNING
Incline Hazard
Do not operate machine on hills or inclines that
are steeper than 15 degrees.
Machine can roll away and tip over.
WARNING
Projectile Hazard
Rock, dirt, and debris may fly out of work area.
Wear safety glasses and protective clothing.
Keep bystanders away from work area.
WARNING
Towing Hazard
Review towing safety warnings in your towing
vehicle manual.
Drive safely. Be aware of the added length of the
Auger/Post Hole Digger.
NEVER ride or transport cargo on the Auger/Post
Hole Digger.
Choose a level surface to operate the Auger/Post
Hole Digger.
NEVER EXCEED MAX. Towing Speed 45 MPH
DANGER
Fuel and fuel vapors are highly flammable and
extremely explosive.
Fire or explosion can cause severe burns or
death.
Unintentional startup can result in entanglement,
traumatic amputation or laceration.
When adding or removing fuel
Turn the engine off and let it cool for at least two
minutes before removing the fuel cap. Loosen
the cap slowly to relieve pressure in the tank.
Only fill or drain fuel outdoors in a well-ventilated
area.
DO NOT overfill the fuel tank.
Always keep fuel away from sparks, open flames,
pilot lights, heat and other sources of ignition.
DO NOT light or smoke cigarettes.
When starting the engine
DO NOT attempt to start a damaged engine.
Make certain that the gas cap, air filter, spark
plug, fuel lines and exhaust system are properly
in place.
Allow spilled fuel to evaporate fully before
attempting to start the engine.
When storing the Auger/Post Hole
Digger:
Store away from sparks, open flames, pilot lights,
heat and other sources of ignition.
WARNING
Rapid retraction of the starter cord will pull hand
and arm towards the engine faster than you can
let go.
Unintentional startup can result in entanglement,
traumatic amputation or laceration.
Broken bones, fractures, bruises or sprains could
result.
When starting engine, pull the starter cord slowly
until resistance is felt and then pull rapidly to
avoid kickback.
CAUTION
Improper treatment or use of the Auger/Post
Hole Digger can damage it, shorten its life and
void your warranty.
Use the Auger only for intended uses.
Operate only on level surfaces.
DO NOT expose Auger engine to excessive
moisture, dust, or dirt.
DO NOT allow any material to block the cooling
slots.
DO NOT use the engine if:
Equipment sparks, smokes or emits flames
Equipment vibrates excessively

Controls and Features
Rev 90034-20090416 5
Controls and Features
Read this owner’s manual before operating your Auger/Post Hole Digger. Familiarize yourself
with the location and function of the controls and features. Save this manual for future reference.

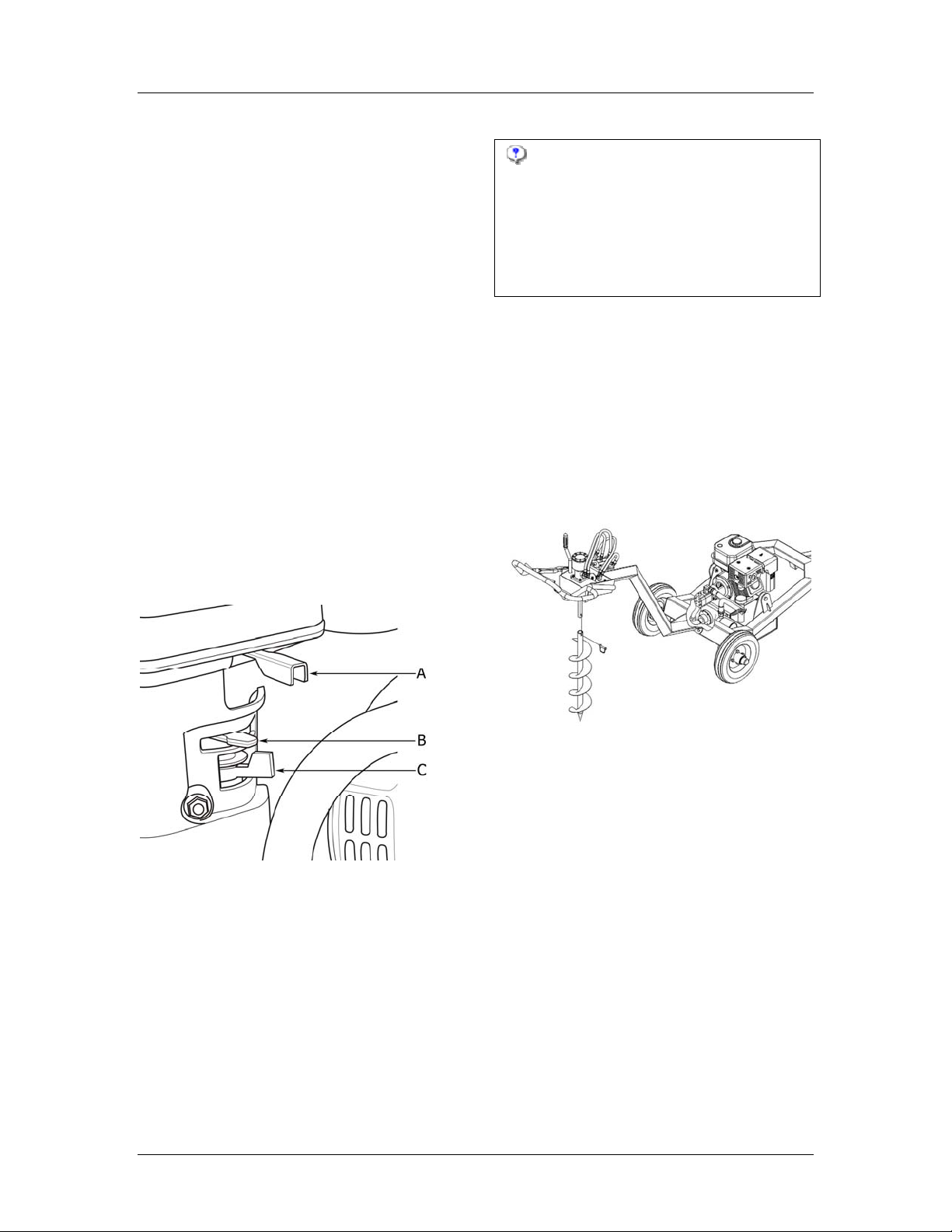

Auger/Post Hole Digger
(1) Trigger – The trigger is used to start,
stop, and reverse the Auger bit.
(2) Emergency Stop Button –
Emergency engine stop button.
(3) Auger Handle – Tilt control for Auger
bit.
(4) Hydraulic Motor – Spins Auger bit.
(5) Control Valve – Directs the hydraulic
oil to the hydraulic motor.
(6) Work port Hydraulic hoses – These
hoses carry the hydraulic oil from the
control valve to the hydraulic motor.
(7) Pivot bolt – Adjust pivot bolt to rotate
the Auger bit and handle when drilling on a
slope.
(8) Hydraulic Oil Breather Cap –
Remove cap to fill hydraulic tank with oil.
(9) Engine – 270cc Gasoline driven
engine.
(10) 2” Ball Coupler – Attaches the Auger
to your vehicle.
(11) Engine Pivot – Allows engine to
swing freely when operating Auger.
(12) Hydraulic tank
(13) Hydraulic filter
(14) Strainer
(15) Hydraulic Pump
(16) Auger Bit

Assembly
6 Rev 90034-20090416
Assembly
The Auger/Post Hole Digger requires some
assembly.
If you have any questions regarding the
assembly of your Auger/Post Hole Digger,
call our help line at 1-877-338-0999. Please
have your serial number and model number
available.
Open Shipping Crate
1. Set the shipping crate on a solid, flat
surface.
2. Carefully cut the shipping bands and
remove lid of shipping crate.
3. Using two people to lift, carefully
remove all parts and components.
4. Locate all hardware before beginning
assembly.
For parts reference see pages
16-18 in the manual.
Step 1 – Engine Carriage
Assembly
The Engine is mounted to the hydraulic tank
– together they make the Engine Carriage.
The Engine Carriage attaches to the frame
and is designed to swing freely when
operating the Auger/Post Hole Digger. This
swinging movement allows the engine and
hydraulic tank to stay level, avoiding fuel
and oil spillage.
1. Use M20x60 bolt, lock washer, nut, and
lock nut to attach engine carriage to
frame
Step 2 – Attach Wheels
1. Attach wheel to axle using 4 M12x25
bolts. Repeat actions for other side
