USER MANUAL

HM202P

Portable Height Stadiometer

Please keep the instruction manual at hand all the time for future reference.

2

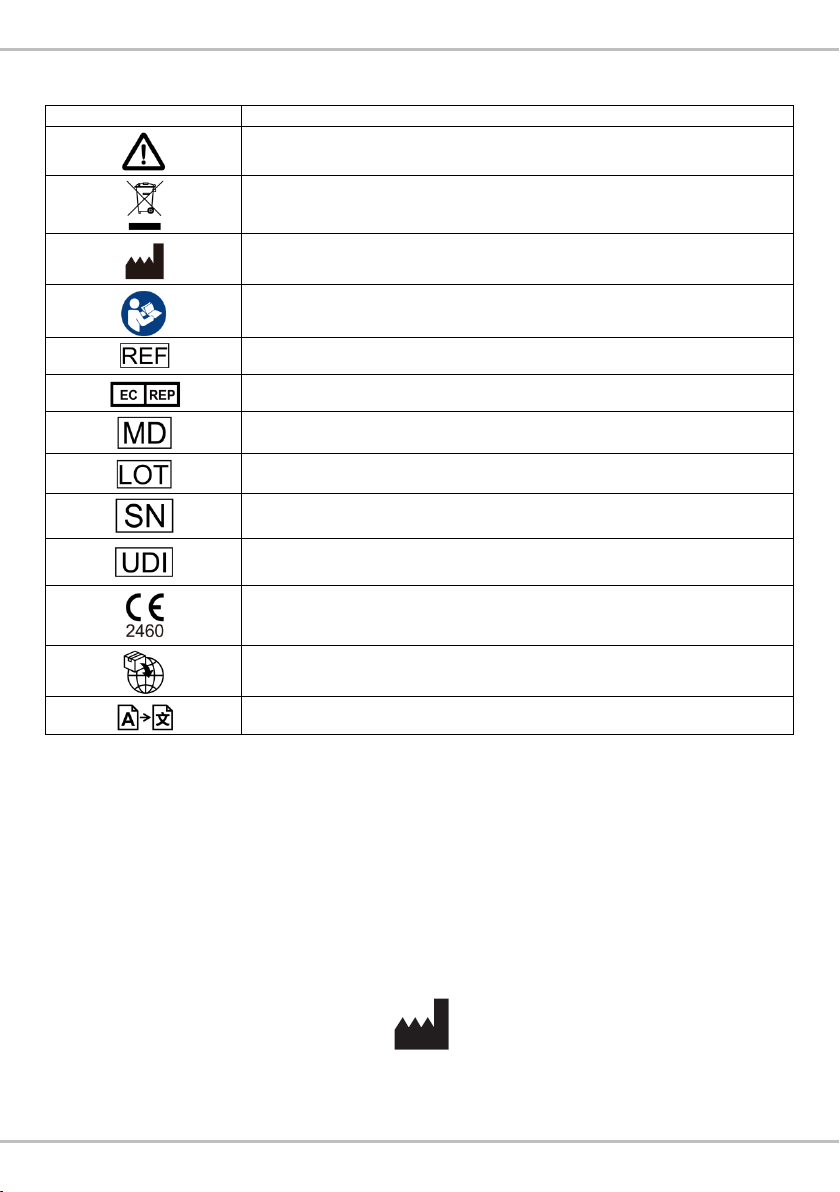

Explanation of Text/Symbols on Device Label/Packaging

Text/Symbol

Meaning

Caution, consult accompanying documents before use

Separate collection for waste of electrical and electronic equipment, in

accordance with Directive 2002/96/EC. Do not dispose of device with

everyday waste

Name and address of device manufacturer, and year/country of manufacture

Carefully read user manual before installation and usage, and follow

instructions for use.

Device catalogue number / model number

Name and address of authorized representative in the European Union

Device is a medical device. Text indicates device category type

Manufacturer's batch or lot number for device

Device's serial number

Device's Unique Device Identifier

Device conforms to 93/42/EEC as amended by 2007/47/EC Medical Device

Directive. Four digit number is identifier for medical device Notified Body

Name and address of entity importing device (if applicable)

Name and address of entity responsible for translating Information For

Use (if applicable)

Copyright Notice

Charder Electronic Co., Ltd.

No.103, Guozhong Rd., Dali Dist., Taichung City 41262 Taiwan

Tel: +886-4-2406 3766 Fax: +886-4-2406 5612

Website: www.chardermedical.com E-mail: info_cec@charder.com.tw

This user manual is protected by international copyright law. All content is licensed, and

usage is subject to written authorization from Charder Electronic Co., Ltd. (hereinafter

Charder) Charder is not liable for any damage caused by a failure to adhere to requirements

stated in this manual. Charder reserves the right to correct misprints in the manual without

prior notice, and modify the exterior of the device for quality purposes without customer

consent.

Charder Electronic Co., Ltd.

No. 103, Guozhong Rd., Dali Dist.,

Taichung City, 41262 Taiwan

3

CONTENTS

I. Safety Notes .......................................................................... 4

A. General Information ............................................................ 4

II. Installation........................................................................... 6

Parts ..................................................................................... 6

Assembly............................................................................... 7

Packing ................................................................................10

III. Using Device ......................................................................11

IV. Product Specifications ................................ 錯誤! 尚未定義書籤。

V. Declaration of Conformity ....................................................16

4

I. Safety Notes

A. General Information

Thank you for choosing this Charder Medical device. It is designed to be

easy and straightforward to operate, but if you encounter any problems

not addressed in this manual, please contact your local Charder service

partner. Before beginning operation of the device, please read this user

manual carefully, and keep it in a safe place for reference. It contains

important instructions regarding installation, proper usage, and

maintenance.

Intended Purpose

This medical device is designed to be used in accordance with national

regulations, to measure height within specifications, for height-related

usage by professionals.

Clinical Benefit

Measurement results can be used by professionals to diagnose (and

monitor) height-related issues.

General Handling

Device should be placed on stable, flat, solid, non-slippery surface.

Ensure all parts are properly locked and tightened before operating

the device.

Safety Instructions

The device has an expected service life of 5 years when correctly

handled, serviced, and periodically inspected in accordance with

manufacturer's instructions.

Cleaning

Device surface should be cleaned using alcohol-based wipes.

Corrosive cleansing liquids should not be used.

Warranty/Liability

The period of warranty shall be eighteen (18) months, beginning on

the date of purchase. Please retain your receipt as proof of purchase.

No responsibility shall be accepted for damage caused through any

of the following reasons: unsuitable or improper storage or use,

incorrect installation or commissioning by the owner or third parties,

natural wear and tear, changes or modifications, incorrect or

negligent handling.

5

Incident Reporting

Any serious incident that has occurred in relation to the device

should be reported to the manufacturer, EU representative (if device

is used in EU member state), and competent authority of

user/subject's member state.

6

II. Installation

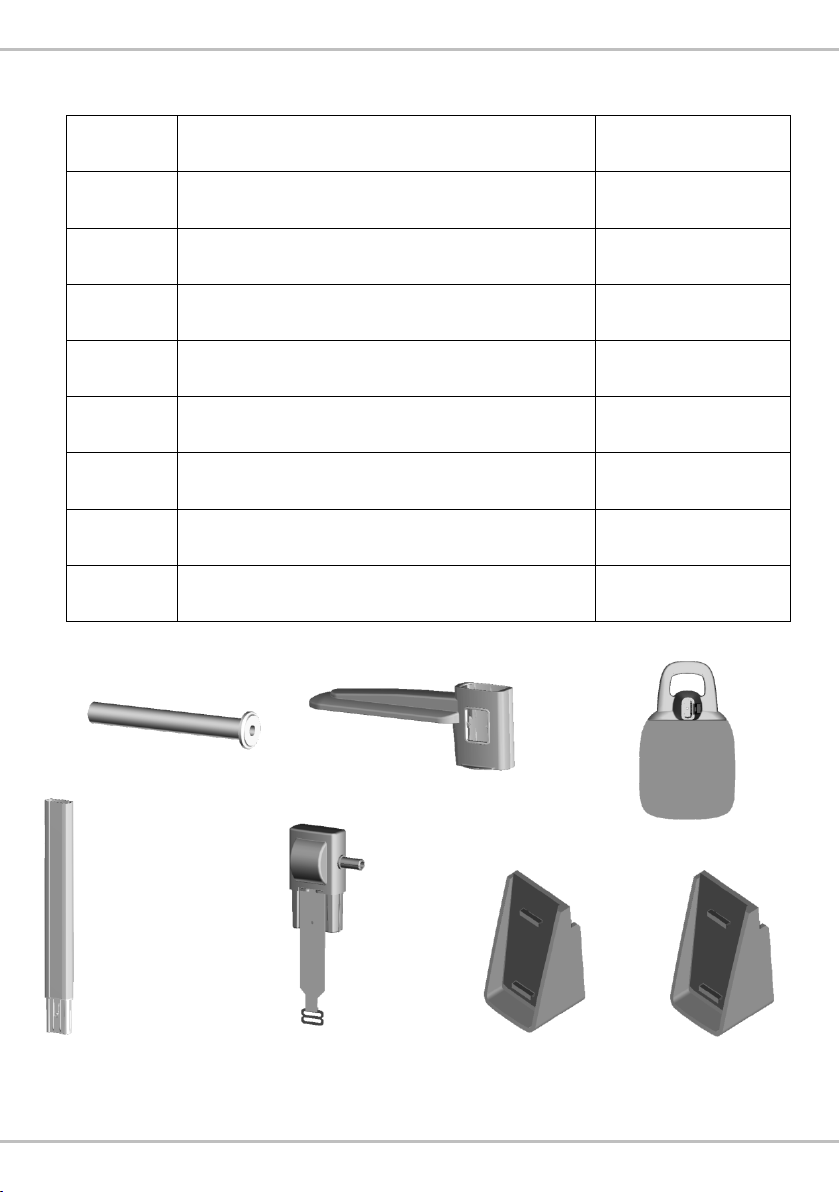

Parts

No.

Item

Quantity

1.

Wall stabilizer

1

2.

Head Stopper

1

3.

Base Platform

1

4.

Height rod

4

5.

Measuring tape kit

1

6.

MS6111 standard slider (red)

OR

1

7

MS6110 slider (white)

1

8

User Manual

1

6. slider (red)

1. Wall stabilizer

2. Head stopper

3. Base Platform

4. Height Rod

5. Measuring tape kit

7. slider (white)

7

Assembly

Head Stopper

Height Rod

segments

Base Platform

Wall Stabilizer

Measuring Tape Kit

optional white slider

Red Slider

8

1. Insert wall stabilizer into

measuring tape kit

2. Pull down measuring tape, and

attach measuring tape kit with

height rod

3. Attach head stopper to

measuring tape kit and rod

9

4. Assemble height rods,

measuring tape kit, and platform

together

5. Hitch measuring tape to hook at

slider to complete assembly.

With scale: upper hook

Without scale: lower hook

10

Packing

Carefully re-pack HM202P in box as seen in image above, to avoid

damaging device.

11

III. Using Device

Height measurement only

If a compatible Charder floor scale (MS6110 or MS6111) is not used

together with the HM202P, the measuring tape

should be connected to lower hook.

Height and weight measurement (with

MS6110 or MS6111)

Measuring tape should be connected to upper hook.

If HM202P is used with MS6110 (adjustable feet), the white slider should

be used.

If HM202P is used with MS6111 (without adjustable feet), the red slider

should be used.

Conducting measurement

With scale: upper hook

Without scale: lower hook

12

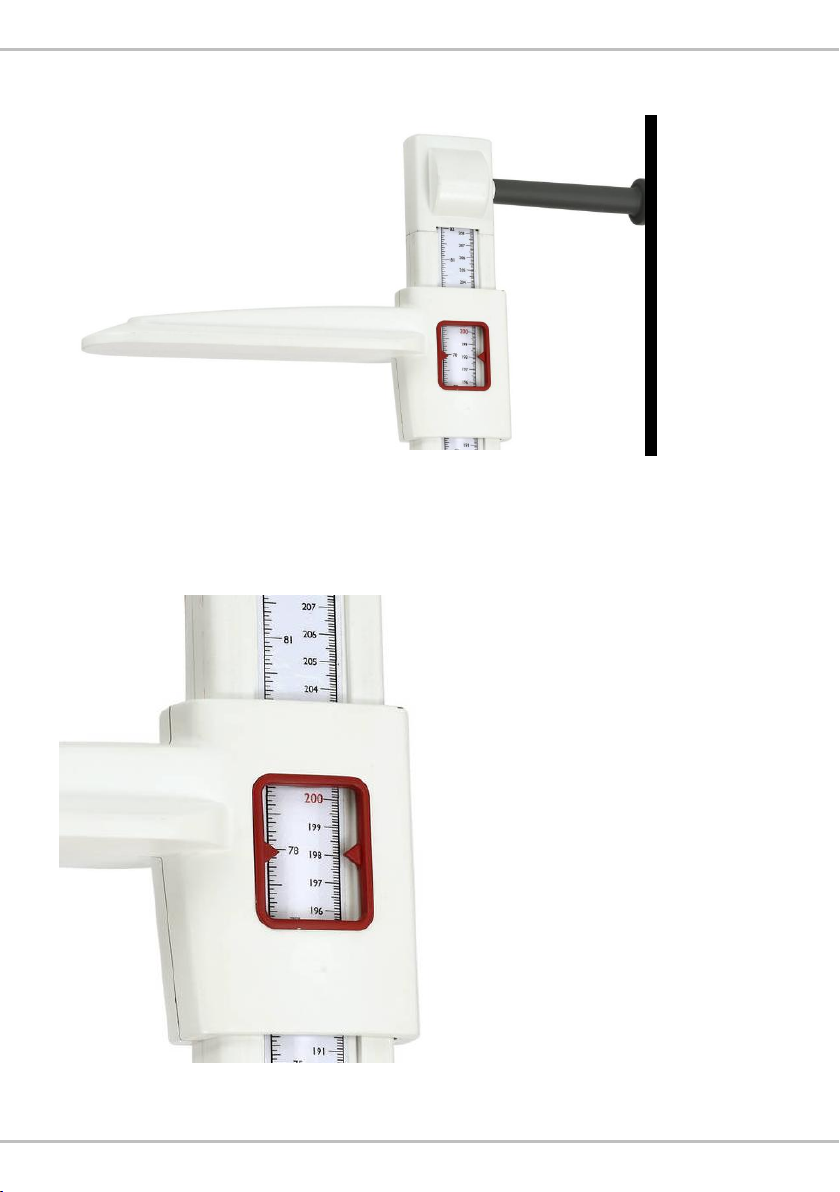

1. Place wall stabilizer against wall

2. Ensure that subject is standing up straight. Slide head stopper down

until it touches top of subject's head.

View height measurement in window

13

IV. Product Specifications

Model

HM202P

Height

Measurement

Range

20-205 cm

8-81 in

Graduation

1 mm

1/16 in

Accuracy

± 10 mm

Dimensions

Overall

406(W) x 585(D) x 2200(H) mm

Base

406(W) x 365(D) mm

Device Weight

(approximate)

3.8 kg / 8.4 lb

(Carry case 1.1 kg / 2.4 lb)

Operation Temperature &

Humidity

5℃~35℃

14

Notes

_______________________________________________________

15

Notes

_______________________________________________________

16

V. Declaration of Conformity

Manufacturer hereby declares that this product is in conformity with the

regulations and standards outlined in the following directives:

93/42/EEC as amended by 2007/47/EC

Medical Device Directive

Classification: Class I with measuring function

RoHS Directive 2011/65/EU and Delegated Directive (EU)

2015/863

Authorized EU Representative:

Manufactured by:

Charder Electronic Co., Ltd.

No.103, Guozhong Rd., Dali Dist.,

Taichung City, 41262 Taiwan (R.O.C.)

CD-IN-1365 15247G 2022/06
