Charmate CM140-051 User manual

1
4157-07/15
Important: The installer or seller must leave these instructions with the consumer.
Modern Cast Iron Chimenea
Model No. CM140-051
FOR OUTDOOR USE ONLY
DO NOT OPERATE THIS APPLIANCE BEFORE READING THE INSTRUCTION BOOKLET
DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE
DO NOT STORE CHEMICALS OR FLAMMABLE MATERIALS OR SPRAY AEROSOLS NEAR THIS APPLIANCE
DO NOT OPERATE THE APPLIANCE INDOORS
DO NOT OPERATE IN AN ENCLOSED AREA
ACCESSIBLE PARTS MAY BE VERY HOT. KEEP YOUNG CHILDREN AWAY.
Minimum clearance from combustible materials: 3 metres
Retain these instructions for future use.

3
2
IMPORTANT SAFETY WARNINGS
• Only use this Chimenea on a hard, level, non-combustible, stable surface (concrete, ground etc.)
capable of supporting the weight of the Chimenea. Never use on wooden or other surfaces that could
burn.
• Proper clearance of 3m between the Chimenea and combustible material (bushes, trees, wooden
decks, fences, buildings, etc.) or construction should be maintained at all times when Chimenea is
in use. Do not place Chimenea under a roof overhang or other enclosed area. Not adhering to these
clearances will prevent proper ventilation and may increase the risk of a re and/or property damage,
which could also result in personal injury.
• For outdoor use only. Do not operate Chimenea indoors or in an enclosed area.
• For household use only. Do not use this Chimenea for other than its intended purpose.
• Do not use gasoline, kerosene or alcohol for lighting the Chimenea. Use of any of these or similar
products could cause an explosion possibly leading to severe bodily injury.
• Place Chimenea in an area where children and pets cannot come into contact with unit. Close
supervision is necessary when Chimenea is in use.
• Do not leave Chimenea unattended when in use.
• Do not store or use Chimenea near gasoline or other ammable liquids, gases or where ammable
vapors may be present.
• Use caution when assembling and operating your Chimenea to avoid scrapes or cuts from sharp edges
of metal parts. Use caution when reaching into or under Chimenea.
• In windy weather, place Chimenea in an outdoor area that is protected from the wind.
• Never leave ashes in Chimenea unattended. Before Chimenea can be left unattended, remaining
ashes must be removed from Chimenea. Use caution to protect yourself and property. Carefully place
remaining ashes in a non-combustible metal container and saturate completely with water. Allow ashes
and water to remain in metal container 24 hours prior to disposing.
• Extinguished ashes should be placed a safe distance from all structures and combustible materials.
• With a garden hose, completely wet the surface beneath and around Chimenea to extinguish any ashes
which may have fallen during use or the cleaning process.
• After each use, clean the Chimenea thoroughly. Do not allow the Chimenea to ll with rain water. Cover
the Chimenea to protect it from the elements.
• Use caution when lifting or moving Chimenea to prevent strains and back injuries.
• We advise that a re extinguisher be on hand. Refer to your local authority to determine proper size
and type of re extinguisher.
• Store the Chimenea out of reach of children and in a dry location when not in use.
• Although frost resistant, we strongly recommend storing your Chimenea inside during winter.
• Properly dispose of all packaging material.
• Only use dry wood so you can achieve maximum warmth from your Chimenea. Green wood will lead to
a smoky cold re.
• Do not stack over-sized pieces of wood in the Chimenea. Do not load Chimenea above the solid base
area of the re bowl. It is not a furnace and roaring res are not recommended.
• Do not burn treated or painted wood as this may release toxins harmful to you and the environment.
READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY
BEFORE ASSEMBLING AND OPERATING YOUR CHIMENEA.
WARNING
USE CAUTION AND COMMON SENSE WHEN OPERATING YOUR CHIMENEA.
FAILURE TO ADHERE TO SAFETY WARNING AND GUIDELINES IN THIS MANUAL
COULD RESULT IN BODILY INJURY OR PROPERTY DAMAGE.
SAVE THIS MANUAL FOR FUTURE REFERENCE.

3
2

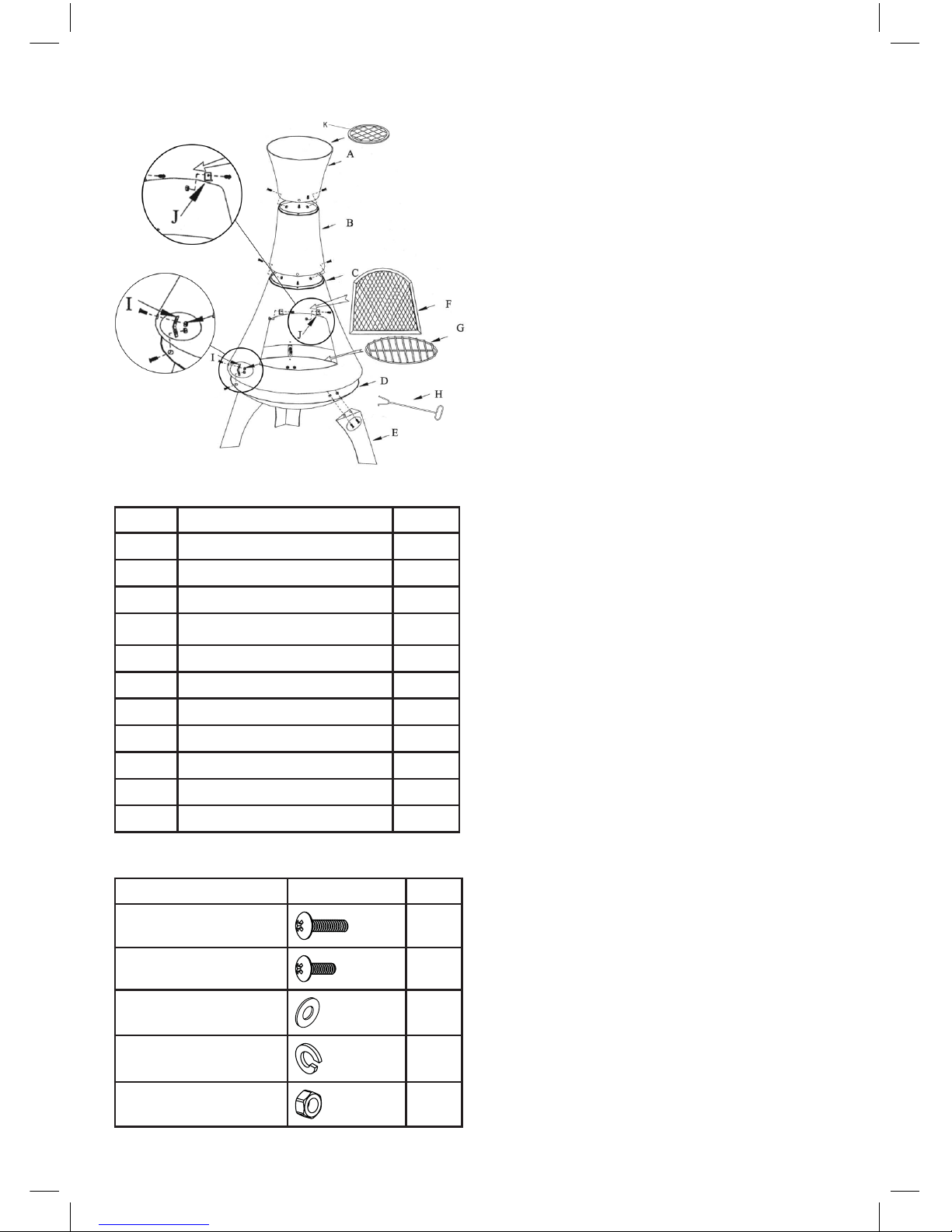

EXPLODED DIAGRAM ASSEMBLY INSTRUCTIONS
For Easiest Assembly:
• To avoid losing any small components or
hardware, assemble your product on a hard
level surface that does not have cracks or
openings. You may wish to lay down a blanket
or similar, to avoid possible damage to the nish
during assembly.
• Clear an area large enough to layout all
components and hardware.
• Great care has been taken during production to
remove sharp edges but you should handle all
components with care to avoid injury.
• Check you have all components before
beginning.
• When applicable, tighten all hardware
connections by hand rst. Once the step
is completed go back and fully tighten all
hardware.
• Follow all steps in order to properly assemble
your product.
Typical assembly: approximately 1 hour
Tools required:
• Adjustable Spanner or Socket Wrench
• Phillips Screwdriver
Step 1
Secure the three feet (E) to the base (D) using
6pcs M6 x 30 bolts, 6pcs Ø6 washers, 6pcs Ø6
spring washers and 6pcs M6 nuts.
Note: First slide the Ø6 washer onto the M6 x 30
bolt. Then insert the M6 x 30 bolt into the hole
and apply the Ø6 spring washer from the other
side. Now screw the M6 nut onto the M6 x 30 bolt.
When doing this it is important to ensure that the
washer is applied rst and then the spring washer
is attached from the other side.
Step 2
Secure the brackets (J) for the safety grating (F)
to the combustion chamber (C) by using 2pcs
M6 x15 bolts, 2pcs Ø6 washers, 2pcs Ø6 spring
washers and 2pcs M6 nuts.
Step 3
Insert the wood grate (G) into the base.
Step 4
Position the combustion chamber (C) on the base
(D) and then secure in place using the three
connecting plates (I) and 6pcs M6 x 15 bolts, 6pcs
Ø6 washers, 6pcs Ø6 spring washers and 6pcs M6
nuts.
Item Parts Qty
A Flue (upper) 1
B Flue (centre) 1
C Combustion Chamber 1
D Base 1
E Foot 3
F Safety Door 1
G Wood Grate 1
H Fire Tool 1
I Connecting Plate 3
J Fixture for Grid 2
K Spark Guard 1
PARTS LIST
Hardware
Part Diagram Qty
M6x30 12
M6x15 8
Ø6 Washer 20
Ø6 Spring Washer 20
M6 Nuts 20

4
4
ASSEMBLY INSTRUCTIONS
Step 4
Screw the centre ue (B) to the upper ue (A)
using 3pcs M6 x 30 bolts, 3pcs Ø6 washers, 3pcs
Ø6 spring washers and 3pcs M6 nuts.
Step 5
Now position the ue (A+B) on the combustion
chamber (C) and secure in place using 3pcs M6
x 30 bolts, 3pcs Ø6 washers, 3pcs Ø6 spring
washers and 3pcs M6 nuts.
Step 6
Suspend the safety door (F) in the designated
brackets (J).
Step 7
Lay the spark guard (K) in the Flue (A).
OPERATING INSTRUCTIONS
5. Now place a match or lighter to the dry paper
at the base of Chimenea. You can light it in a
couple of places. The volume of smoke and
ame will increase as the paper catches the
match stick thick twigs alight and in turn this
lights the pencil thick twigs.
6. When the ames appear through the top
of the loaded Chimenea fuel then you can
add the thumb thick wood with care, a few
pieces at a time, to build up the fuel supply
in the Chimenea. Once a good ember bed is
established thicker wood can be added.
Note: Split wood generally burns better than
round wood. All wood should be dry. Burning
green wood will lead to a smoky ‘cold’ re. Do not
burn plastic as it gives off harmful smoke for both
you and the environment.
Charmate®is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au
Aber, Hamilton, N.Z. www.charmate.co.nz
CLEANING AND CARE
CAUTION: All cleaning and maintenance should
be done when Chimenea is cool and with the fuel
supply removed.
Check the Chimenea regularly to ensure it is safe
to use. If there is any sign of damage DO NOT use
until repairs are made.
Abrasive cleaners will damage this product. Never
use oven cleaner to clean any part of Chimenea.
1. Wipe surfaces clean with mild dishwashing
detergent or baking soda.
2. For stubborn surfaces use a citrus based
degreaser and a nylon scrubbing brush.
3. Rinse clean with water.
When not in use store in a dry location, and if
possible cover the Chimenea to protect it from the
elements.
It is quite normal for the Chimenea to develop
an aged look after several res. Over time it may
develop surface rust, which is normal and due to
natural weathering, particularly if it is left outdoors
uncovered.
This Chimenea is designed for use only with wood.
Before rst use make sure all labels, packaging
and protective lms have been removed from the
Chimenea.
Lighting
The secret to lighting the Chimenea successfully is
good preparation of the re and using dry fuel.
1. Begin with a base of single sheets of dry
newspaper formed into st sized balls. Place
these into the base of the Chimenea.
2. Get dry kindling about matchstick thickness.
It is important they are dry - manuka twigs
are ideal. Place this kindling on top of the
newspaper taking care not to crush the paper
down as this will reduce the air gap and starve
the re of oxygen.
3. On top of the match stick thick kindling add
two good handfuls of sticks about pencil
thickness.
4. Finally have to hand a good supply of dry wood
about thumb thickness. Keep this to one side
for now.
