Chassisworks VAS 517-HS-H User manual
1
INSTALLATION GUIDE
VAS 517-HS-H
3/4”-Bore Mount with 1/2” Hose Clamp
Description:
Teardrop bracket mounts on 3/4”-thread rod end or adjuster between jam nut and tube.
READ ALL INSTRUCTIONS COMPLETELY AND THOROUGHLY UNDERSTAND THEM BEFORE DOING ANYTHING.
CALL CHASSISWORKS TECH SUPPORT (916) 388-0288 IF YOU NEED ASSISTANCE.
2
PARTS LIST
VAS 517-HS-H - 3/4”-Bore Mount with 1/2” Hose Clamp
Qty Part Number Description
2 3101-025-28C Locknut 1/4-28 nylon insert
2 3104-025F0.50S Button head 1/4-28 x 1/2” stainless steel
2 3475-07-C Cushioned clamp 7/16” OD tube with .281” mount hole
2 899-040-107 Hose clamp 3/4” teardrop mount
1. After unscrewing the rod end and jam nut
from the adjuster, place the mount bracket
over the rod end.
2. The rod end and jam nut are then screwed
back into the adjuster and tightened against
the clamp mount.
3. Slide the cushioned clamp over the 1/2” hose.
Secure the clamp with the button-head screw
and locknut.
NOTE: Verify proper clearance around
moving components and heat sources.
INSTRUCTIONS

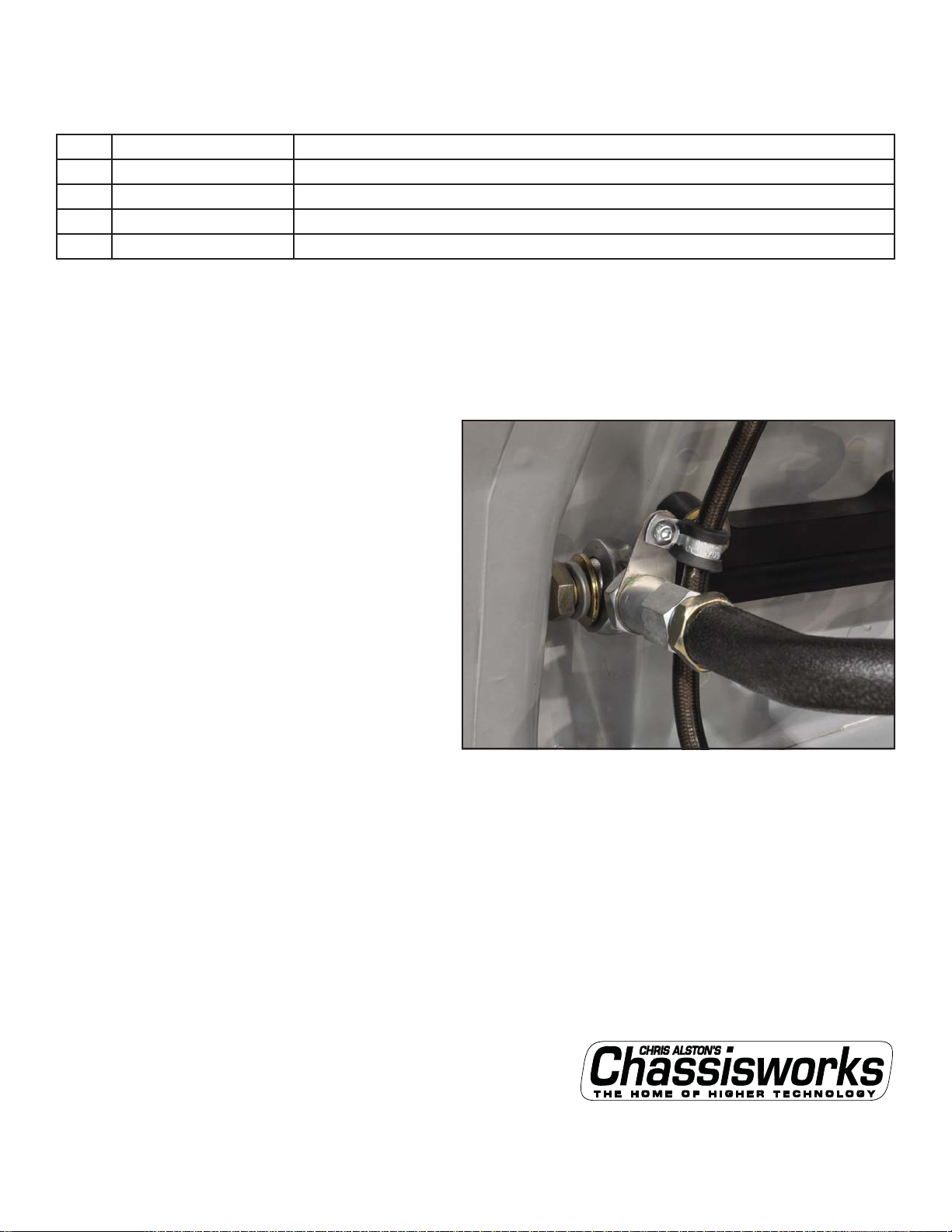

In this example the clamp mount is installed on the TCP upper control arm adjuster to secure the 1/2”-diameter
hose for the shock’s remote reservoir.
WARRANTY NOTICE:
There are NO WARRANTIES, either expressed or implied. Neither the seller nor manufacturer will be liable for any loss, damage
or injury, direct or indirect, arising from the use or inability to determine the appropriate use of any products. Before any attempt
at installation, all drawings and/or instruction sheets should be completely reviewed to determine the suitability of the product for
its intended use. In this connection, the user assumes all responsibility and risk. We reserve the right to change specification
without notice. Further, Chris Alston’s Chassisworks, Inc., makes NO GUARANTEE in reference to any specific class legality of any
component. ALL PRODUCTS ARE INTENDED FOR RACING AND OFF-ROAD USE AND MAY NOT BE LEGALLY USED ON THE
HIGHWAY. The products offered for sale are true race-car components and, in all cases, require some fabrication skill. NO PRODUCT
OR SERVICE IS DESIGNED OR INTENDED TO PREVENT INJURY OR DEATH.
REV 03/08/13
Chris Alston’s Chassisworks
8661 Younger Creek Drive
Sacramento, CA 95828
Phone: 916-388-0288
899-031-260
