Chattanooga 1410 User manual

User Manual
Chattanooga Group is an
ISO 13485 Certified Company
Deluxe Universal
Belt System
REF 1410, 1420, 1430, and 1427

FOREWORD ......................................... 2
ABOUT TRACTION THERAPY ........................... 3
Precautionary Instructions.................................3
Cautions................................................3
SPECIFICATIONS ..................................... 4
NOMENCLATURE .................................... 5
USING THE BELT SYSTEM ............................. 6
Attaching the Universal Pelvic Belt – Supine Position ..........6
Attaching the Universal Thoracic Belt – Supine Position ........7
Attaching the Universal Pelvic Belt – Prone Position ...........8
Attaching the Universal Thoracic Belt – Prone Position .........9
Attaching the Universal Pelvic Belt Extender .................9
MAINTENANCE/WARRANTY .......................... 10
Maintaining the Belt System Unit .........................10
Cleaning the Belt System Unit..............................10
Warranty ..............................................10
TABLE OF CONTENTS

2
This manual has been written for the owners and operators of the Belt System traction
harness. It contains general information on the operation, precautionary practices, safety,
maintenance, and care instructions. In order to maximize use, efficiency and the life of
your system, please read this manual thoroughly and become familiar with it before
using the harness.
Specifications put forth in this manual were in effect at the time of publication. However,
owing to Chattanooga Group's policy of continual improvement, changes to these
specifications may be made at any time without obligation on the part of Chattanooga
Group.
Before administering traction therapy to a patient, the users of this equipment should
read, understand and follow the information contained in this manual concerning the
cautions (page 3). Consult other resources for additional information regarding the
application of traction therapy.
Product Description
The Belt System is a series of traction harnesses designed to be used in conjunction with any number of
traction units that provide static, intermittent, cyclic, or combination traction therapy.
Stay current with the latest clinical developments in the field of traction. Observe all applicable
precautionary measures for traction therapy.
Keep informed on appropriate indications and contraindications for the use of traction.
Performance Characteristics
The Belt System is a series of traction harnesses designed to be used in conjunction with any
number of traction units that provide static, intermittent, cyclic, or combination traction therapy.
User Profile
The intended user should be a licensed medical professional. The user should be
able to:
• Read and understand the operator’s manual, warnings and cautions.
•
Operate the device. Both hands and a foot may be needed to operate the device safely.
• Sense auditory and visual signals.
This equipment is to be used and sold only under the prescription and
supervision of a licensed practitioner.
For a complete list of additional traction products and accessories available from
Chattanooga Group, contact your Chattanooga Group dealer.
©2015 Encore Medical, L.P. and its affiliates, Austin, Texas, USA. Any use of editorial, pictorial, or layout composition of this
publication without expressed written consent from Chattanooga Group of Encore Medical, L.P. is strictly prohibited. This
publication was written, illustrated, and prepared for print by Chattanooga Group of Encore Medical, L.P.
FOREWORD

3
ABOUT TRACTION THERAPY
The precautionary instructions found in this section and throughout this manual are
indicated by specific symbols. Understand these symbols and their definitions
before operating this equipment. The definition of these symbols are as follows:
= CAUTION- Text with a “CAUTION” indicator explains possible safety
infractions that have the potential to cause minor to moderate
injury or damage to equipment.
= WARNING- Text with a “WARNING” indicator explains possible safety
infractions that potentially cause serious injury and equipment
damage.
= DANGER- Text with a “DANGER” indicator explains possible safety
infractions imminently hazardous situations that result in death
or serious injury.
= EXPLOSION HAZARD-
Text with an “Explosion Hazard” indicator explains possible
safety infractions if this equipment is used in the presence of
flammable anesthetics.
NOTE: Throughout this manual, “NOTE” may be found. These Notes are helpful
information to aid in the particular area or function being described.
PRECAUTIONARY INSTRUCTIONS
WARNINGS AND PRECAUTIONS:
• Read, understand, and practice the precautionary and operating instructions.Know the limitations and
hazards associated with using any electrical traction device.
• The harness system should be routinely checked before each use to determine all straps, hooks, and
rings function normally and are not worn.Prolonged wear on the straps and belts will cause them to
break, which may cause sudden release of traction pressure on a patient.
• DO NOT disassemble, modify, or remodel the system or accessories.This may cause damage or
personal injury.
• If you have difficulty operating the system after carefully reviewing this operator's guide, contact your
Chattanooga Group dealer for assistance.
• Failure to use and maintain the Belt System in accordance with the instructions outlined in this manual
will invalidate your warranty (page 9).
• Use of controls or adjustments or performance of procedures other than those specified herein may
result in a hazardous traction related injury.
• Your Belt System should only be used by a qualified medical practitioner in a position of supervision
during traction therapy.For that reason, do not attempt to put yourself in traction with this system.
• Dispose of all products in accordance with local and national regulations and codes.• If pain, swelling,
changes in sensation or other unusual reactions occur while using this product, you should contact your
doctor immediately.
• Do not use the device if it is damaged.
NOTE: Contact manufacturer and competent authority in case of a serious incident arising due to usage of this device.

4
SPECIFICATIONS
CE Mark of conformity with notified body number
Catalogue number
Refer to Instruction Manual/Booklet
Authorized repesentative in the European Community
Manufacturer
Federal Law restricts this unit to sale by, or on the order of, a
physician or licensedpractioner.
DESCRIPTION OF DEVICE MARKINGS
Only
REF

5
5
DELUXE UNIVERSAL BELT SYSTEM

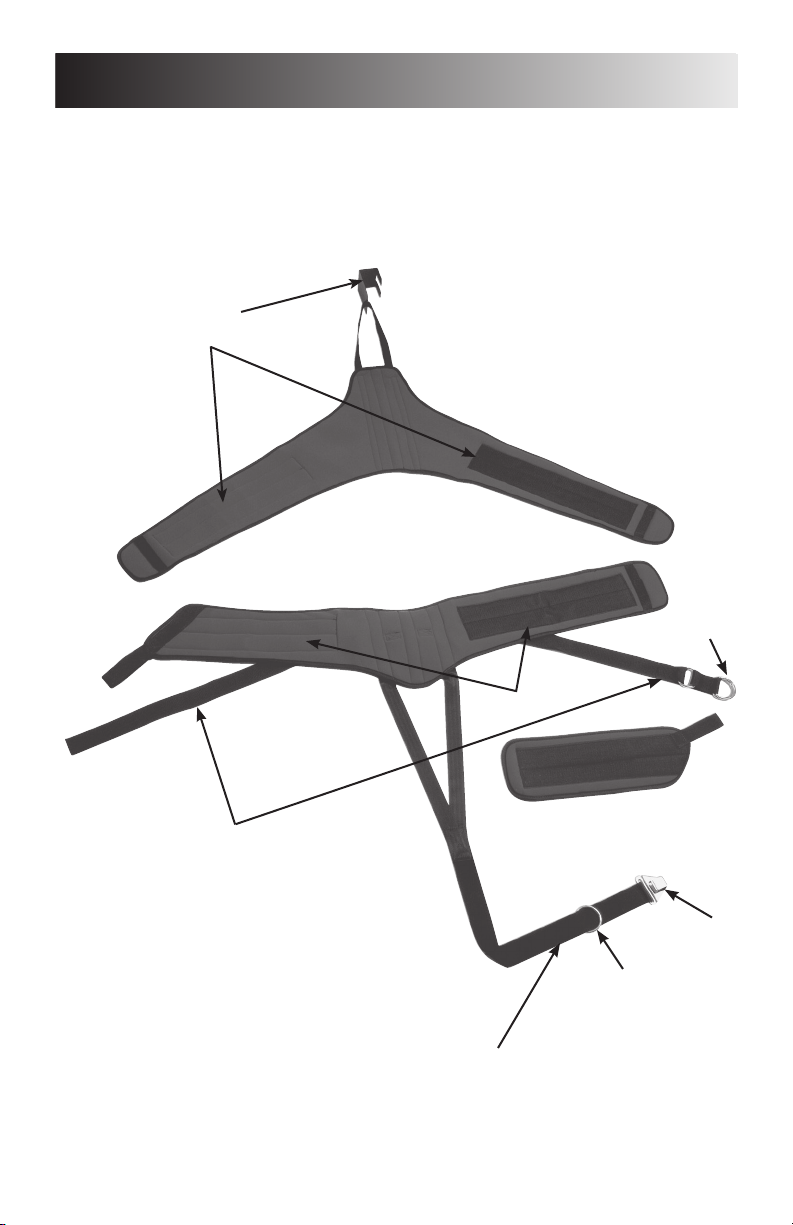

NOMENCLATURE
Deluxe
Universal
Pelvic Belt
Deluxe Universal
Thoracic Belt
Table Hook
Belt Flaps
Deluxe Universal
Pelvic Belt Extender
Large
O Rings
Belt Flaps
J Hook
Small Sliding
O Ring
Anterior/Posterior
Belt
Circumferential
Belt

6
6
USING THE BELT SYSTEM

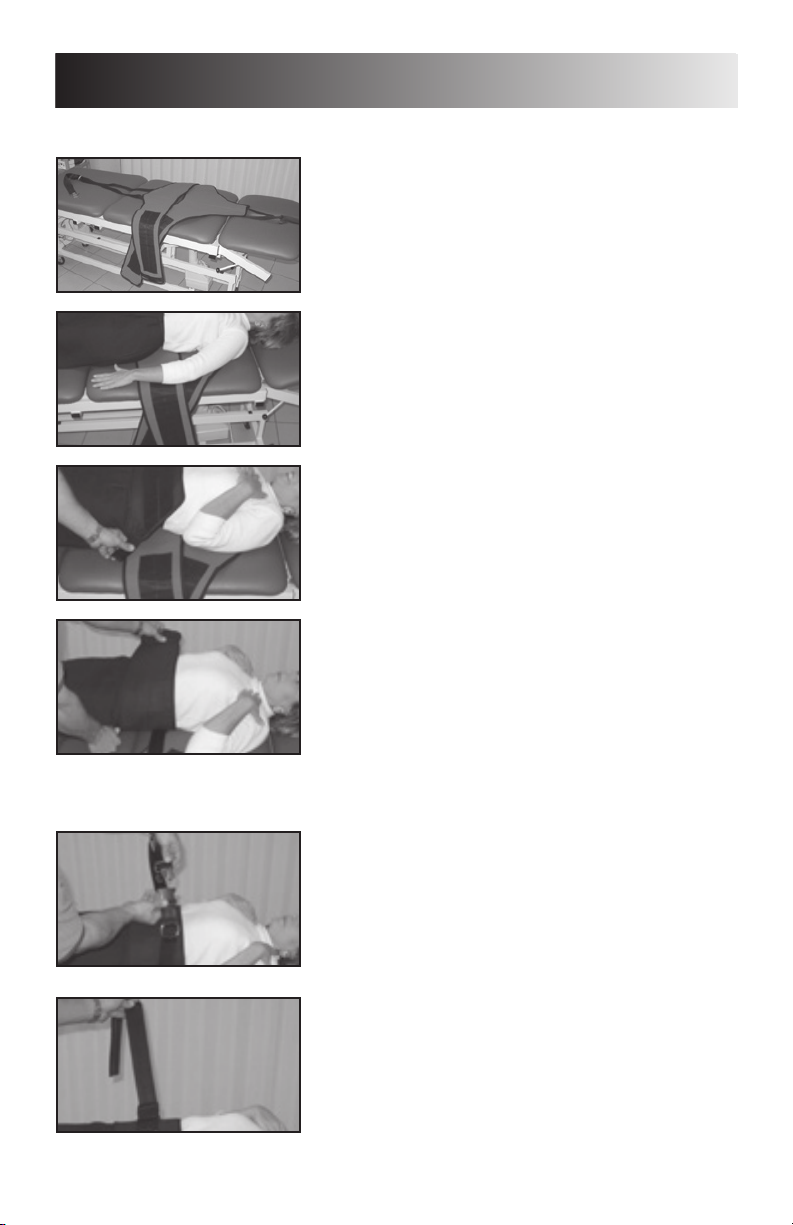

ATTACHING THE PELVIC BELT - SUPINE POSITION
1. Place the belts on the table so that the
blue side faces up, the Pelvic Belt
overlaps the Thoracic Belt, and the
black Table Hook is firmly seated to the
head of the table.
2. Position the patient so the patient’s
waist is in the middle of the Pelvic Belt.
3. Firmly wrap the first flap of the Pelvic
Belt across the patient’s waist, staying
level with the patient’s waistline.
4. While maintaining tension on the first
flap, wrap the second flap over the first
flap, staying level with the patient’s
waistline.
NOTE: The flaps should be
exerting firm pressure
around the patient’s waist.
5. Loop the end of the Circumferential
Belt through both Large O Rings and
thread back into one of the Large O
Rings and tighten.
6. Pull the slack out of the Circumferential
Belt, making sure that the fit is snug.

7
7
USING THE BELT SYSTEM
7. To check the Circumferential Belt
tension, you should be able to pull the
Large O Ring on the Circumferential
Belt and form a “V” at the patient’s
waist.
8. To attach the Pelvic Belt to a traction unit,
connect the J Hook (located at the end of
the Anterior/Posterior Belt) to the Large O
Ring (located on the Circumferential Belt).
Then, connect the rope from the traction
unit to the Small Sliding O Ring (located
on the Anterior/Posterior Belt).
The traction (pulling) force will now be
distributed from the front and back of
the Pelvic Belt.
Before attempting to attach the Thoracic Belt to a patient, make certain you
have followed all the procedures in the previous section.
1. Pull the first flap of the Thoracic Belt
firmly across the patient’s upper body in
a diagonal line. The Thoracic Belt will
overlap the Pelvic Belt.
NOTE: Make sure all edges of the
flap are against the patient’s
body for maximum restraint.
2. While maintaining tension on the first
flap, firmly wrap the second flap
diagonally over the first flap.
NOTE: Make sure all edges of the
flap are against the
patient’s body. This is
important for maximum
restraint.
3. Verify that the Thoracic Belt is firmly
wrapped around the patient’s rib cage.
ATTACHING THE THORACIC BELT - SUPINE POSITION

8
8
USING THE BELT SYSTEM

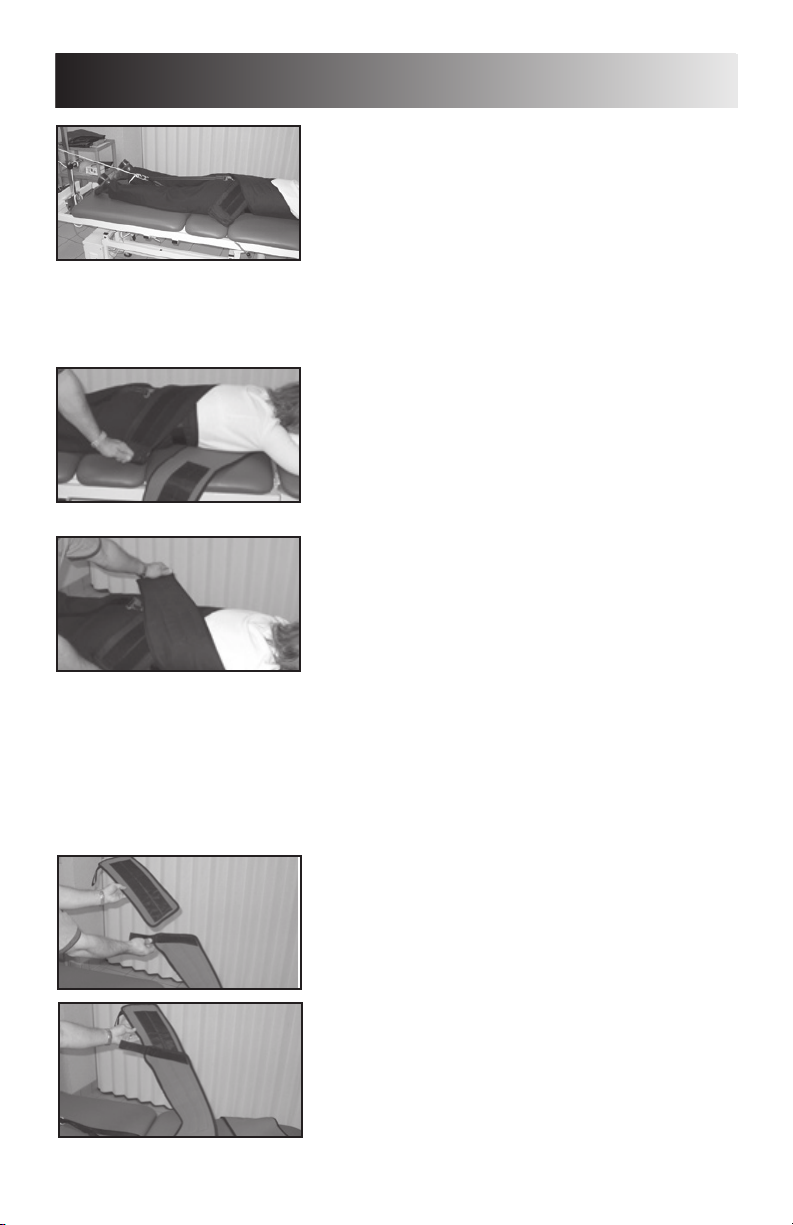

1. Place the belts on the table so the blue
side faces up, the Pelvic Belt overlaps
the Thoracic Belt, and the black Table
Hook is firmly seated to the head of the
table.
2. Position the patient face down with the
patient’s waistline in the middle of the
Pelvic Belt. Firmly wrap the first flap of
the Pelvic Belt across the patient’s waist,
staying level with the patient’s waistline.
NOTE: The patient may require a
pillow due to the fact that the
straps of the Table Hook will
cover the nose slot on some
tables.
3. While maintaining tension on the first flap,
wrap the second flap over the first flap,
staying level with the patient’s waistline.
NOTE: The Belt Flaps should exert
firm pressure around the
patient’s waist.
4. Loop the end of the Circumferential Belt
through both Large O Rings and thread
back into one of the Large O Rings and
tighten.
5. Pull the slack out of the Circumferential
Belt, making sure the fit is snug.
6. To check the Circumferential Belt tension,
you should be able to pull the metal ring
on the Circumferential Belt and form a “V”
at the patient’s waist.
ATTACHING THE PELVIC BELT - PRONE POSITION

9
9
USING THE BELT SYSTEM
7. To attach the Pelvic Belt to a traction
unit, connect the J Hook (located at the
end of the Anterior/Posterior Belt) to the
Large O Ring (located on the
Circumferential Belt). Then, connect the
rope from the traction unit to the Small
Sliding O Ring (located on the Anterior/
Posterior Belt).
1. Pull the first flap of the Thoracic Belt
across the patient’s body in a diagonal line.
NOTE: Make sure all edges of the
flap are against the patient’s
body for maximum restraint.
2. While maintaining tension on the first
flap, wrap the second flap diagonally
over the first flap.
NOTE: Make sure all edges of the
flap are against the patient’s
body for maximum restraint.
1. Making sure the blue side is facing up,
attach the Pelvic Belt Extender to the
Pelvic Belt using the fastening strips.
2. Press the locking flaps firmly to secure
the Pelvic Belt Extender.
ATTACHING THE THORACIC BELT - PRONE POSITION
ATTACHING THE UNIVERSAL PELVIC BELT EXTENDER

10
10
Cleaning the Belt System Unit
The unit can be cleaned with a damp cloth. Do not use abrasive cleansers. Read and follow the
Cautions (page 3) and Precautionary Instructions (page 3).
MAINTENANCE/WARRANTY
Chattanooga Group, a division on Encore Medical,L.P. ("Company"), warrants that the Belt System is free of
defects in material and workmanship. This warranty shall remain in effect for 180 days from the date of
original consumer purchase. If this Product fails to function during the 180 days warranty period due to a
defect in material or workmanship, at the Company's option, the Company or the selling dealer will repair or
replace this Product without charge within a period of thirty (30) days from the date on which the Product is
returned to the Company or the dealer.
All repairs to the Product must be performed by a service center certified by the Company. Any
modifications or repairs performed by unauthorized centers or groups will void this warranty.
To participate in warranty coverage, this Product's warranty registration card (included with Product) must
be filled out and returned to the Company by the original owner within ten (10) business days of purchase.
This Warranty Does Not Cover:
Replacement parts or labor furnished by anyone other than the Company, the selling dealer or a certified
Company service technician.
Defects or damage caused by labor furnished by someone other than Company, the selling dealer or a
certified Company service technician.
Any malfunction or failure in the Product caused by product misuse, including, but not limited to, the failure
to provide reasonable and necessary maintenance or any use that is inconsistent with the Product User's
Manual.
COMPANY SHALL NOT BE LIABLE IN ANY EVENT FOR INCIDENTAL
OR CONSEQUENTIAL DAMAGES.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you.
To Obtain Service From Company or the selling dealer under this warranty:
1. A written claim must be made within the warranty period to the Company or the selling dealer. Written
claims made to the Company should be sent to:
Chattanooga Group
4717 Adams Road
P.O. Box 489
Hixson, TN 37343 USA
Telephone: [phone]
FAX: [phone]
chattgroup.com
and
2. The Product must be returned to the Company or the selling dealer by the owner.
This warranty gives you specific legal rights and you may also have other rights which vary from state to
state.
The Company does not authorize any person or representative to create for it any other obligation or liability
in connection with the sale of the Product. Any representation or agreement not contained in the warranty
shall be void and of no effect.
THE FOREGOING WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED,
INCLUDING ANY WARRANTY OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
WARRANTY
MAINTAINING THE BELT SYSTEM UNIT

ISO 13485 Certified
 Rev E - 
© 2021 Encore Medical, L.P.
DJO, LLC
 Decision Street
Vista, CA .
USA
MDSS GmbH
Schigraben 41
30175 Hannover,
Germany
