1.BEFORE YOU BEGIN
What Is
Included
•COREpar 80 USB
•Power Cord •Warranty Card •Quick Reference Guide
Unpacking
Instructions
Carefully unpack the product immediately and check the container to make sure all the
parts are in the package and are in good condition.
Claims
If the box or the contents (the product and included accessories) appear damaged from
shipping, or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure
to report damage to the carrier immediately may invalidate your claim. In addition, keep the
box and contents for inspection.
For other issues, such as missing components or parts, damage not related to shipping, or
concealed damage, file a claim with Chauvet within 7 days of delivery.
Text
Conventions Convention Meaning
1—512
A range of values
50/60
A set of values of which only one can be chosen
Settings
A menu option not to be modified
Menu > Settings
A sequence of menu options to be followed
<ENTER>
A key to be pressed on the product’s control panel
ON
A value to be entered or selected
Symbols
Symbol Meaning
Electrical warning. Not following these instructions may cause
electrical damage to the product, accessories, or the user.
Critical installation, configuration, or operation information. Not
following these instructions may make the product not work, cause
damage to the product, or cause harm to the operator.
Important installation or configuration information. The product
may not function correctly if this information is not used.
Useful information.
Disclaimer
Chauvet believes that the information contained in this manual is accurate in all respects.
However, Chauvet assumes no responsibility and specifically disclaims any and all liability
to any party for any loss, damage or disruption caused by any errors or omissions in this
document, whether such errors or omissions result from negligence, accident or any other
cause. Chauvet reserves the right to revise the content of this document without any
obligation to notify any person or company of such revision, however, Chauvet has no
obligation to make, and does not commit to make, any such revisions. Download the latest
version from www.chauvetlighting.com.
The works of authorship contained in this manual, including, but notlimited to, alldesign,
text and images are owned by Chauvet.
©Copyright 2015 Chauvet & Sons, LLC.All rights reserved.
Electronically published by Chauvet in the United States of America.
CHAUVET, the Chauvet logo, “COREpar 80 USB”, “D-Fi USB”, and “4BAR Tri USB”
are registered trademarks or trademarks of Chauvet & Sons LLC. (d/b/a Chauvet and
Chauvet Lighting) in the United States and other countries. Other company and product
names and logos referred to herein may be trademarks of their respective companies.
Author
Date
Editor
Updated
M. Trouard 09/18/15 M. Gregory 09/18/15

COREpar 80 USB User Manual Rev. 2 Page 5 of 20
Product at a
Glance
Use on Dimmer
x
Auto Programs
P
Outdoor Use
x
Auto-ranging Power Supply
P
Sound-Active
P
Replaceable Fuse
P
DMX
P
User-Serviceable
x
Master/Slave
P
Safety Notes
Please read the following Safety Notes carefully before working with the product. The
Notes include important safety information about installation, usage, and maintenance.
•Always connect the product to a grounded circuit to avoid the risk of electrocution.
•Always disconnect the product from the power source before cleaning or replacing
the fuse.
•Avoid direct eye exposure to the light source while the product is on.
•Make sure the power cord is not crimped or damaged.
•Never disconnect the product from power cord by pulling or tugging on the cord.
•If mounting the product overhead, always secure to a fastening device using a
safety cable.
•Make sure there are no flammable materials close to the product when operating.
•
Do not touch the product’s housing when operating because it may be very hot.
•The product is not intended for permanent installation.
•Always make sure that the voltage of the outlet to which you are connecting the
product is within the range stated on the decal or rear panel of the product.
•The product is for indoor use only! (IP20) To prevent risk of fire or shock, do not
expose the product to rain or moisture.
•Always install the product in a location with adequate ventilation, at least 20 in
(50 cm) from adjacent surfaces.
•Be sure that no ventilation slots on the product’s housing are blocked.
•Never connect the product to a dimmer.
•Make sure to replace the fuse with another of the same type and rating.
•Never carry the product from the power cord or any moving part. Always use the
hanging/mounting bracket.
•The maximum ambient temperature (Ta) is 104 °F (40 °C). Do not operate the
product at higher temperatures.
•In the event of a serious operating problem, stop using the product immediately.
•Never try to repair the product. Repairs carried out by unskilled people can lead to
damage or malfunction. Please contact the nearest authorized technical assistance
center.
•To eliminate unnecessary wear and improve its lifespan, during periods of non-use
completely disconnect the product from power via breaker or by unplugging it.
Keep this User Manual for future use. If you sell the product to someone else, be
sure that they also receive this document.

Page 6 of 20 COREpar 80 USB User Manual Rev. 2
2.INTRODUCTION
Product Overview
WARNING! DO NOT plug anything other than a D-Fi USB into the USB port. Doing so may
cause damage to the product.
Front View
Bracket Adjustment Knob
Mounting Brackets
IR Sensor
Back Panel View
Power Out
LCD Display
Fuse holder
Power In
D-Fi USB Port
DMX In
DMX Out
Menu Buttons
Safety Cable
Pass Through

COREpar 80 USB User Manual Rev. 2 Page 7 of 20
Product Dimensions
5.6 in
143 mm
7.9 in
200 mm
9.9 in
253 mm

Page 8 of 20 COREpar 80 USB User Manual Rev. 2
3.SETUP
Fresnel Lens
This Fresnel lens produces a very even light that is soft at the edges, which makes the
COREpar 80 USB a 2-in-1 light. Attach the Fresnel lens easily with the built-in magnets.
AC Power
The COREpar 80 USB has an auto-
ranging power supply and it can work with an input
voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power
requirements (
circuit breaker, power outlet, and wiring), use the current value listed on
the label affixed to the product’s back panel, or refer to the product’s specifications chart.
The listed current rating indicates the product
’s average current draw under normal
conditions.
•Always connect the product to a protected circuit
(circuit breaker or fuse).
Make sure the product
has an appropriate electrical ground to avoid the risk
of electrocution or fire.
•
To eliminate unnecessary wear and improve its lifespan, during periods of
non-use completely disconnect the product from power
via breaker or by
unplugging it.
Never connect the product
to a rheostat (variable resistor) or dimmer circuit, even
if the rheostat or dimmer channel serves only as a 0 to 100% switch.
Fuse
Replacement
1. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
2. Pry the fuse holder out of the housing.
3. Remove the blown fuse from the holder and replace with a fuse of the exact same
type and rating.
4. Insert the fuse holder back in place and reconnect power.
Disconnect the product from the power outlet before replacing the fuse.
Installed fuse
(held by plastic clip)
Spare fuse holder
(inside safety cap)
Safety cap
Magnetic
Fresnel Lens

COREpar 80 USB User Manual Rev. 2 Page 9 of 20
Power Linking
The product provides power linking via the Edison
outlet located in the back of the
product. Please see the diagram below for further explanation.
Power Linking
Diagram
You can power link up to 7 COREpar 80 USB product
s on 120 VAC or up to
13 COREpar 80 USB products on 230 VAC.
The power linking diagram corresponds to the North American version of the
product ONLY! If using the product
in other markets, you must consult with the
local Chauvet
distributor as power linking connectors and requirements may
differ in your country or region.
1st Product
2nd Product
3rd Product
Additional
Products

Page 10 of 20 COREpar 80 USB User Manual Rev. 2
Mounting
Before mounting the product
, read and follow the safety recommendations indicated in
the Safety Notes.
Orientation
The COREpar 80 USB
may be mounted in any position; however, make sure adequate
ventilation is provided around the product.
Rigging
•Before deciding on a location for the product, always make sure there is easy
access to the product for maintenance and programming purposes.
•Make sure that the structure onto which you are mounting the product
can support
the product’s weight. See the Technical Specifications for weight information.
•When mounting the product overhead, always use a safety cable.
Mount the
product securely to a rigging point, whether an elevated platform or a truss.
•When rigging the product onto a truss, use a mounting clamp
of appropriate weight
capacity.
•When power linking multiple products, mount the products close enough for power
linking cables to reach.
•The bracket adjustment
knobs allow for directional adjustment when aiming the
product to the desired angle. Only loosen or tighten the bracket knobs manually.
Using tools could damage the knobs.

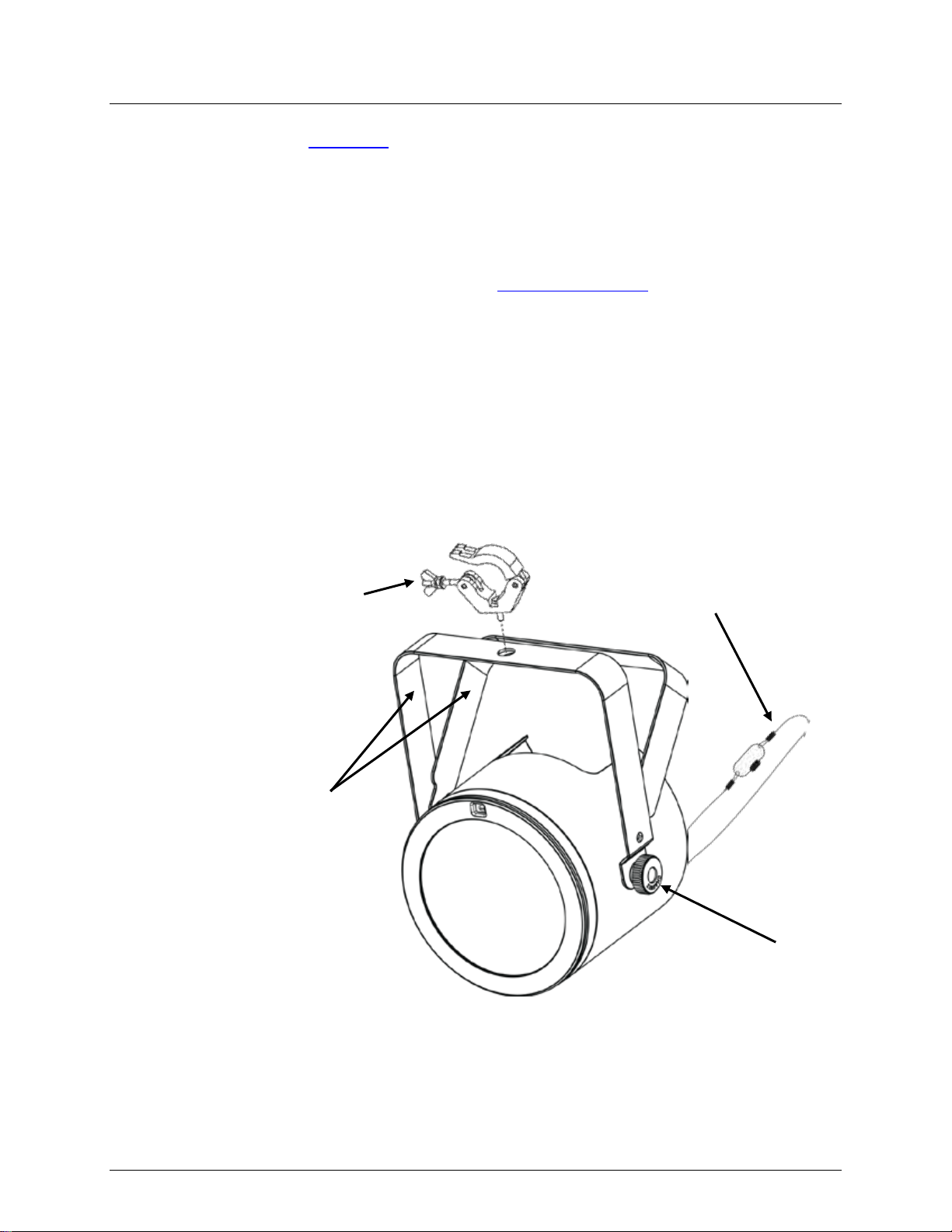

Mounting Diagram
Mounting Clamp
(such as the CLP-
15N
from
Chauvet)
Double-
Bracketed Yoke
Safety Cable
(such as CH-05 from
Chauvet)
Bracket
Adjustment Knob
