Electric Induction hobs Chef’sEH-DIH888/ EH-DIH888P
INSTALLATION AND OPERATIONMANUAL
ELECTRIC INDUCTIONHOBS
(BUILT-IN)
Model:EH-DIH888/EH-DIH888P
Please read the instruction manual carefully beforeusing

Electric Induction hobs Chef’sEH-DIH888/ EH-DIH888P
2
TABLE OFCONTENTS
PREFACE
1. SAFETY INSTRUCTION..……………………………………………………………………
2. INSTALLATION INSTRUCION……………………………………………………………...
3. INDUCTION COOKING………………………………………………………………………
4. PRODUCT SPECIFICTION………………………………………………………………….
5. GETTING FAMILY WITH THE HOB...........................................................................
6.SWITCHINGON/OFF…………………..........................................................................
7. SELECTING POWER LEVEL FOR A COOKINGZONE..............................................
8. RESIDUAL HEAT INDICATION…….............................................................................
9. AUTOMATIC SAFETYOFF...........................................................................................
10. PROTECTION AGAINST UNINTENTIONAL ACTIVATION..................................... ..
11. KEY LOCK …………………..........................................................................................
12. OPERATING THE TIMER …….....................................................................................
13. HEAT UP TIME AUTOMATIC ………..........................................................................
14. PAUSE FUNCTION ………………… ..........................................................................
15. WARMING FUNCTION ..…….....................................................................................
16. BOOSTER FUNCTION …….. ………..........................................................................
17. BRIGDE FUNCTION ……………… ............................................................................
18.POT DETECTION ………………… ............................................................................
19.ERRORSCODE…......................................................................................................

Electric Induction hobs Chef’sEH-DIH888/ EH-DIH888P
3
Preface
Thank you for choosing CHEF’S cookingappliances.
Read this instructions carefully. Only after doing this will you be able to operate
your applianceproperly.
Keep this Instructions in a safe place. If the appliance is given to another person,
ensure the appliance documentation is alsoincluded.
Any defects and losses caused by ignoring the mentioned items and cautions
mentioned in the operation and installation instruction are not covered by our warranty
and any liability. Please keep all document in a safety place for future reference. If you
have any doubt, please contact our local customer service center ordealer.
Check the appliance after removing it from the packaging. If you find the induction
hob (built-in) is visibly damaged, do not useit.
Contact your local Customer Service or dealerimmediately.

Electric Induction hobs Chef’sEH-DIH888/ EH-DIH888P
4
1. SafetyInstructions
The induction hob (built-in) is designed for domestic use only. Only use the
induction hob for food preparation so that it should be installed in thekitchen.
Safeoperation:
To use this appliance safely, adults and children who as a resultof
* physical, sensory or mentaldisability
* or lack of experience or knowledge are not capable of using this appliance
should notdo.
Children must be supervised to ensure that they do not play with theappliance.
Overheated oil, butter ormargarine:
Overheated oil or butter (margarine) can quickly ignite. It may cause a fire!
Ensure that you keep a constant watch when cooking foods with oil orbutter.
In the event that the oil or butter catches fire, never use water to put it out. Put the
fire out quickly by covering the pan with a cover or dish. Switch off thehotplate.
Not to add additional timer or remote control to control thehob.
Hot cookinghob
Risk of burns! Do not touch the hot areas of the hob. It is imperative that children
keep away from the appliance. The residual heat Indicator tells you if the hotplates are
hot (See “Residual heat warning light” section).
It may cause a fire! Never rest flammable objects on the cookinghob.
It may cause a fire! If there is a drawer below the induction hob, this should not be
used to store any flammable objects orsprays.
Wet hotplates and panbases
Risk of injuries! If there is any liquid between the base of the
pan and the hotplate this could generate steam pressure. As a
result, the pan could jumpunexpectedly.
Always ensure that the hotplate and the base of the pan are
keptdry.
Cracks in thehob
Risk of electrocution! Disconnect the appliance from the mains if the induction hob
is broken or cracked. Contact Local Customer Service orDealer.

Electric Induction hobs Chef’sEH-DIH888/ EH-DIH888P
5
The hotplate heats up but the visual indication does notwork
Risk of burns! Disconnect the hotplate if the indicator does not work. Contact Local
Customer Service ordealer.
Do not place metal objects on the Inductionhob
Risk of burns! Do not leave cutlery, lids or other metal
objects on the hob as they can heat up veryquickly.
Taking care of the coolingfan
This induction hob is fitted with a fan in the lowersection.
Risk of malfunction! If a drawer is fitted beneath the hob you must not keep small
objects or paper in it as, if they are Picked up, they could damage the cooling fan or
affect the coolingsystem.
Please, note: there should be a minimum distance of 2 cm between the drawer
contents and the coolingfan.
Incorrectrepairs
Risk of electric shock! Incorrect repairs can be dangerous.
Repairs may only be carried out by the CustomerService.
Powercable
Any work on the appliance, including replacing the power Cable must be carried out
by the CustomerService.
The power cable of the appliance must not touch the hot areas of the hob. The
cable insulation and hob can bedamaged.
This appliance complies with current safety regulations and electromagnetic
compatibilityregulations.
Nevertheless, people with a peacemaker should not use thisappliance.
It is impossible to guarantee that all such devices found on the market comply with
current safety regulations and electromagnetic compatibility regulations, and that
dangerous interference will not occur. It is also possible that people with other types of
device, such as hearing aid, could experience somediscomfort.
Switching the hoboff
AlwaysswitchthehobusingthemainswitchoftheControlPanelaftereachuse.
Do not wait until the hob switches off automatically when the pan isremoved.

Electric Induction hobs Chef’sEH-DIH888/ EH-DIH888P
Causes ofdamage:
The base of thepans
The rough bases of pans may scratch thehob.
Avoid leaving empty pans on the hotplates. These may
causedamage.
Hotpans
Never rest hot pans on the control panel, the indicator area or the hobsurround.
Salt, sugar andsand
salt, sugar and sand may scratch the ceran glass.
Do not lean on the hob or use it as worksurface.
Hard and pointedobjects
Hard or pointed objects may cause damage if they fall onto thehob.
Spiltfood
Sugar and other similar products may damage thehob.
These products should be removed immediately using a
glassscraper.
Inappropriate cleaningproducts
Discolorations in the metal are caused by using unsuitable cleaning products and
wear as a result of contact withpans.
Plastic andfoil
Aluminum foil and plastic containers will melt if placed on the hot areas of thehob
Advice on saving energy
size of thehotplate.
Use a pan with thick flat base. Curved bases increase
energyconsumption.
Place a ruler on the base of the pan, if there are no
gaps, the base of the pan is completelyflat.
Thediameterofthebaseofthepanshouldfitthe
Check if the manufacturer has indicated the upper diameter of the pan. In general,
this is greater than the diameter of the base of thepan.
If the diameter of the pan does not fit the diameter of the hotplate, you are
recommended to use a pan which is larger than the size of the hotplate, or else about
half the energy will belost.

Electric Induction hobs Chef’sEH-DIH888/ EH-DIH888P
7
Choose pans which are the right size for the amount of food to be prepared. A large
pan which is half full will consume a lot ofenergy.
Always centre the pan on the hotplate and always cover the pan with the matching
lid. Cooking without using the lid quadruples energyconsumption.
Cook using small amounts of water. This will save energy and will also help green
vegetables retain their vitamins andminerals.
During their cooking, food such as stews, soups may heat up too quickly without
any indication, spilling out of thecookware.
It is therefore advisable to heat this type of food gently, selecting a suitable power
level and stirring the contents before and duringcooking.
We recommend not to use for Induction hob pots that have been used in a gas hob
fire can deform the flatness of bottom). In case of use, check that bottom isflat.
2. Installationinstructions
EH- DIH888 Cut-outDimension

Electric Induction hobs Chef’sEH-DIH888/ EH-DIH888P
8
Importantnotes
Safety in use is only guaranteed if the technical installation of the hob has been
carried out correctly and in accordance with the installation instructions. The installation
technician shall be liable for any damage cause as a result of incorrectinstallation.
Only an authorized technician is able to connect the appliance. The guidelines set
out by the electricity provider must beobserved.
This appliance should be used only with an earthedconnection.
Using this appliance without an earthed connection or after it has been incorrectly
installated may, in very rare cases, cause seriousharm.
The manufacturer accepts no responsibility for any malfunction or damage which is
caused by incorrect electricalinstallation.
If the appliance is not fitted with an accessible plug, disconnecting means must be
incorporated in the fixed installation, in accordance with the installationregulations.
The power cable must be positioned so that it does not touch any of the hot parts of
thehob.
Refrigerators, dishwashers, ovens, or washing machines must not be installed
under the inductionhob.
Any change to the appliance’s interior, including changing the power cable, must be
performed by the CustomerService.

Electric Induction hobs Chef’sEH-DIH888/ EH-DIH888P
9
Preparing theKitchen
The worktop should be flat and horizontal. The aperture should be cut before the
appliance is installed. Remove any shavings, as these can affect the operation of the
electrical components. When the cutting has been completed, the unit’s stability should
be checkedagain.
Surfaces which have been cut should be sealed so that they are heat resistant and
so that they do not swell whenmoist.
The kitchen units to be fitted must resist temperatures of up to 90oC.
The gap between the aperture and the side wall must be at least: 40mm
It is not recommended that the hob be placed between two side walls but, if this is
the case, a gap of at least 200 mm should also be left on oneside.
If the induction hob is installed above a sterilizer there must be a gap of 70 mm from
the top of worktop to the top of thesterilizer.
If the induction hob is installed without sterilizer or above a drawer, the worktop
thick around the hob must be 20 mm asminimum.
If the interior width of the kitchen unit is less than 700 mm, a 80 mm – long cut must
be made in the side walls from the top section of thehob.
Taking into account the hobventilation:
An aperture must be cut in the top section of the back of the kitchen unit, 680 mm
wide and 45 mmhigh.
There must be a gap of 20 mm between the back of the kitchen unit and the kitchen
wall.
if the hob is installed above a drawer, allow a gap of 65 mm between the drawer
and the top section of theworktop.
Installing and connecting thehob
The earth wire ( green and yellow) should be connected first and disconnected last.
It should also be longer than the others, so that even if the hob is moving the other
wires can be disconnected before the earthwire.
Connection diagram ( seefigure)
1. Brown
2. Blue
3. Green andYellow

Electric Induction hobs Chef’sEH-DIH888/ EH-DIH888P
10
Is required 16A electrical installation at customer’s house (electrical circuit, socket
and fuse).
Do not trap the lead during installation and do not guide it over sharpedges.
The hob and the worktop should not be sealed with silicone as the hob itself has a
seal which serves thisfunction.
Removing thehob
Disconnect the cooker from the power supply.
Push out the hob frombelow
3. Inductioncooking
Advantages of inductioncooking
Ø Greater speed in cooking and frying; as the pan is heateddirectly.
Ø Reduced energyconsumption
Ø Cleaner and easier to use; spilt food does not burn as much on thehob.
Ø
Cooking control and safety; the hob supplies or cuts off the heat as soon
as the controls are operated. The Induction hotplate stops supplying heat if
the pan is removed before the power has been switchedoff.
Suitablepans
Ferromagneticpansaretheonlypanswhicharesuitableforinductioncooking.
They can be madeof:
•enameledsteel
•castiron
•specially designed cookware for induction cooking made from stainlesssteel
Special pans for inductioncooking.
Other types of special pans are available for induction cooking, where the base of
the pan is not entirely ferromagnetic. Check the diameter as this could affect the pan
detection as well as the cookingresults.
Checking pans using amagnet
To find out whether the pans are suitable, check
that they are attracted to amagnet.
The manufacturer will usually indicate if their pans
are suitable for inductioncooking.
Unsuitable pans. Never use pans madefrom:
•standard, high qualitysteel
•glass /earthenware
•copper /aluminum

Electric Induction hobs Chef’sEH-DIH888/ EH-DIH888P
11
Characteristics of the base of thepan
The characteristics of the base of the pan can
affect the evenness of thecooking.
Pans which are made from heat-diffusing materials
( such as “sandwich” pans made from stainless
steel) distribute the heat evenly, saving time and
energy.
No pan or incorrect sizepan
If no pan is place on the hotplate, or the pan is not made of a suitable material or it
is not a suitable size, the heat setting on the hotplate indicator willflash.
Place a suitable pan on the hotplate to stop the indicator flashing. If there is a delay
of more than 90 seconds, the hotplate switches offautomatically.
Empty pans or pans with a thinbase
Do not heat empty pans and do not use pans with thin bases. Although your hob is
equipped with an internal safety system, empty cookware can heat up so quickly that
the “automatic OFF” function does not have time to react and a very high temperature
may be reached. The base of the pan could melt and damage the hob’s glass surface.
If this happens, do not touch the pan and switch off the hotplate. If it does not work
after cooling, contact our Local Service Center ordealer.
Pandetection
Each hotplate has a minimum limit for pan detection which varies according to the
material from which the pan being used is made. It is for this reason you are
recommended to use a hotplate which matches the diameter of thepan.
Pan sizedetection
Cookingzone Pan sizeminimum
220mm 130mm

Electric Induction hobs Chef’sEH-DIH888/ EH-DIH888P
12
4. Product’sspecification
Specification
Model EH-DIH888
Voltage 220VAC
Frequency 50Hz
Individual power(kW)
Left hotplate / Cooking zone(cm) 3700W ( booster) /22cm
Individual power(kW)
Right hotplate / Cooking zone(cm) 3700W ( booster) /22cm
Induction total rated power(KW) 4000W
Dimension (W×D×H)mm 750 x 450 x60
Height above installation tablemm 5.5
Cut-out size (W×D)mm 690 x380
Minimum thickness of
installation tablemm 20
Installationmethod Built-in
Net weight(kg) 6.0
Gross weightkg 7.0
Faceplate Shottcaran Glass,
blackcolor

Electric Induction hobs Chef’sEH-DIH888/ EH-DIH888P
5. Getting family with thehob.
Left burner Rightburner
Glass Touchcontrol
Fig. 1: Touch control for EH-DIH888

Electric Induction hobs Chef’sEH-DIH888/ EH-DIH888P
14
6. SwitchingON/OFF
6. 1 Switching On/Off the Touch control(TC)
After connecting to the mains, the TC unit takes 1 second to prepare for operation.
After a reset all 7-segments displays flashes up for 1 second. After 1 second all 7-
segments displays are switched offagain.
The TC unit may be switched ON by pressing the ON/OFF key after 1sec connected
to mains. All 7-segments display show“0”
If a cooking zone is hot the display toggles between “0” and“H”.
Fig.2:TurnontheTCbypressontheON/OFFkey
After switching on the electronic will be active for 20 seconds. If no cooking zone or
timer is selected within this time the touch control automatically returns to the STAND-
BY Mode with an acoustic buzzersignal.
The touch control can be activated when only the ON/OFF key is pressed. If any
other additional key is pressed, it does not switchON.
Fig.3:TurnofftheTCbypressontheON/OFFkey
If the ON/OFF key is pressed while operating the touch control can be switched
OFF at any time even when the key lock function isactive.

Electric Induction hobs Chef’sEH-DIH888/ EH-DIH888P
15
6. 2 Automatic switchingOff
The TC switches from Power ON to OFF after 20 sec., provided that no cooking
zone is activated or a select key is pressed during thattime.
6. 3 Switching On/Off a Cookingzone
If the touch control is already switched ON, a cooking zone and cooking level can be
selected at once by touching the slider area of the according cooking zone. By “sliding”
the finger on the slider area the cooking level can be increased or decreased. This will
be displayed on the bargraph according to the position of thefinger.
Fig. 4: Switching ON a cooking zone by touch on the sliderarea
Additionally the 7 segment display of the cooking zone will show the cooking level. A
second alternative user philosophy could be designed to first activate a cooking zone
touching the slider area and then in a second step selecting the cookinglevel.
Switching a single cooking zoneOFF:
A single cooking zone can be switched OFF by directly selecting cooking level “0” or
through sliding down to “0”. If a cooking zone is switched OFF but still hot the according
display will show“H”.
Fig. 5: Switching OFF a cooking zone by sliding to “0”level

Electric Induction hobs Chef’sEH-DIH888/ EH-DIH888P
16
Switching OFF all cookingzones:
Immediately switching OFF all cooking zones is always possible by using the
ON/OFFkey.
7. Selecting power level for a cookingzone
The power of the cooking zone is adjustable in 10 different stages; the respective
stage is displayed ([1] to [9] and booster ) viaLED-seven-segment-displays.
The power stages are only determined by the how many keys you slide, but not the
position you slide. All the slider operation should be made within the sliderarea.
To adjust the power level by sliding the finger on slider bar to right ( to increase)
and left ( todecrease).
Fig.6:Adjustingpowerlevelbyslidingfingeronsliderarea.
And the cooking zone is ready for BoostFunction.
Booster as highest cooking level. Display on the bargraph and optionally showing
“P“ on a 7 segmentdisplay.
Booster as special cooking level: Booster can be activated by sliding to the highest
cooking level then remove the finger from the slider and then select the highest cooking
levelagain.
8. Residual heatindication
For induction heating element, after turn off the cooking zone, the residual is
determined by Induction heating element temperaturesensor.
It is to be understood that cooking zone temperatures higher than + 65 °C are
critical on touch. When the temperature is higher than + 65 °C, residual heat indication
will be occurred with“H”.

Electric Induction hobs Chef’sEH-DIH888/ EH-DIH888P
Fig. 7: Residual heat warning aftercooking
The residual heat indication of each cooking zone remains activated until the
calculated temperature is lower than + 60°C.
9. Automatic safety off ( inductioncooking)
For each activated cooking zone a max. operating time is defined in case the user
forget.The max.operating time is depending on the selected cooking stage (see below
table). After the expiration of the max.operating time the cooking zone is automatically
switchedoff.
Each actuation of the cooking zone status (changing the cooking level etc.) resets
the count-down timer to the initial startingvalue.
Timer settings takes priority vs. operating time limitations for high cooking stage
setting, i.e. the cooking zone is deactivated, when the timer has expired and not when
this is requested by the automatic switch-off (e.g. timer 90 minutes to cooking stage9).
Power
Level PowerPercent Power
Operation timelimitation
[min]
P 100.0% 3700 10
9 75.6% 2200 90
8 66.5% 1800
108
7 52.5% 1575
138
6 41.0% 1230
138
5 30.0% 900
210
4 21.0% 630
258
3 12.5% 375
318
2 7.0% 210
402
1 3.0% 90
516
Warm1 1.5% 80
480
Warm2 1.0% 70
480
Warm3 0.5% 60
480
Table 1: Table of working hour limitation (Automatic safetyoff)

Electric Induction hobs Chef’sEH-DIH888/ EH-DIH888P
18
10. Protection against unintentionalactivation
The electronic system cuts off automatically in case of an identified permanent
use of keys for about 10seconds.
Water sprinkled on the glass surface does not always lead to a key actuation
and can not be surelydetected.
The power ON/OFF key has priority over any other key hence the control can be
switched Off even if other keys are pressed or a permanent use of keys isdetected.
11. Keylock
ActivatingKey-Lock:
By pressing on the “key lock” key for 1 seconds in the wait mode will lock the
keyboard and the assigned key-lock LED is steadyilluminated.
The control continues to work in the set mode, but may no longer be operated with
any key, except the key-lock key itself and the on/offkey.

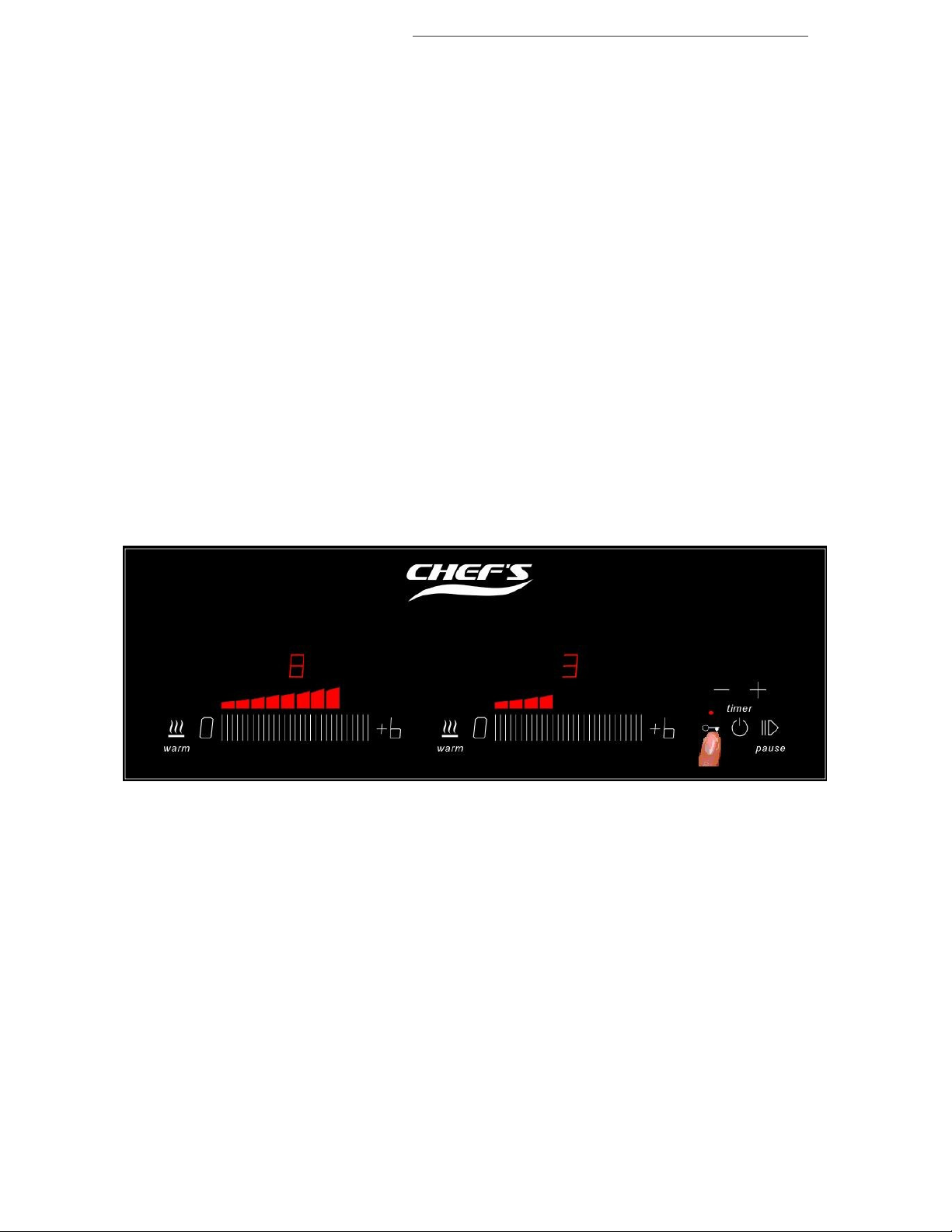

Fig. 8: Lock / Unclockthe TC by press on Key-Lock key in 1second.
The status of the Key-Lock function is not saved in EEPROM (only RAM) and will,
thus, be eliminated in the event of a mainsfailure.
Unlocking / DisablingKey-Lock
The repeated pressing on the “key-lock” key for 1 seconds in active mode to unlock
the keyboard and the assigned key-lock LED off. All sensor keys may be operated as
usualagain.

Electric Induction hobs Chef’sEH-DIH888/ EH-DIH888P
19
12. Operating thetimer
12.1 Basics
The timer module contains up to 3 timers. 2 timer which can be assigned for the
cooking zones and 1 independent timer called “egg-timer”. The three 7-segment
displays show the remaining time until the alarm isactivated.
All timers work as count down timers. The operation range is between 1 min to 1h
59min.
For remaining times less than 9min 59sec the display is exact to the second.
Before activating a timer the control has to be switched on. Switching the control off
deactivates cooking zone relatedtimers.
The “egg timer” stays active after switching the controloff.
Fig.9: Three timer supported forhob
Audible signal with timing, two cooking zones are invidiually programmable cooking
zone-Timer from 0 to 1.59hours.
In order to assure clear assignment of the actual displayed remaining time to a
cooking zone, each cooking zone has a luminous symbol which is fully lighted when the
timer for this cooking zone is displayed in the 3 digit 7-segmentdisplay.
If the timer of a cooking zones is not active the symbol is inactive. If a cooking zone
timer is active but not displayed on the 3 digit 7-segment display the luminous symbol
is illuminated half (dimmed). Alternatively this differentiation can also be done using
flashing or static luminoussymbols.
12.2 Activating Cooking ZoneTimer
A Timer can be activated for each active cooking zone. After selecting the timer by
press simultaneously 2 timer+ and timer– keys ( first time), the cooking zone ( left zone)
Timer is selected and related luminous symbol is fully lighted. The timer display shows
“0.00”.

Electric Induction hobs Chef’sEH-DIH888/ EH-DIH888P
20
For the following 10 sec it is now possible to assign a timer value to the active
cooking zone. After 10sec without input the timer function is deactivate and the display
is switched offagain.
Fig.10: Press simultaneously Timer + and Timer- keys to active theTimer
By pressing simultaneously timer+ and timer- keys again ( second time) (as long as
no value was set), the right cooking zone Timer can be selected and related luminous
symbol is fully lighted. While the symbol of left cooking zone Timer is halflighted.
By pressing simultaneously timer+ and timer- keys again ( third time) (as long as
no value was set), the egg timer can be selected and related luminous symbol is fully
lighted.
Egg timer work as a count down timer for alarmpurpose.
12.3 Setting a timervalue
Pressing the Timer + keys, a timer value can be set. If the Timer+ key is pressed
first the display starts with 1min and can be increased in 1minsteps.
Pressing and hold the keys permanently fastens up the timer adjustment. The
speed will also increase while the key isheld.
Timesetting TimeDisplay
1min – 9min59sec 9.59 ( 9 minutes 59seconds)
10 –59min 0.59 ( 0 hour 59minutes)
1h –1.59h 1.59 ( 1 hours 59minutes)
12.4 Expiration of timer / timer alarm andacknowledgement
If a timer has expired the timer alarm is activated and the assigned cooking zone is
immediately switchedoff.
