Chef CS910CS User manual

RANGEHOOD
User Manual
CS910CS, CRC914SB, CRC914DB

Important safety instructions . . . . . . . . . . . . .
Description of your rangehood. . . . . . . . . . . .
Components list . . . . . . . . . . . . . . . . . .
Technical specifications . . . . . . . . . . . . . . .
Rangehood dimensions . . . . . . . . . . . . . . .
Installation. . . . . . . . . . . . . . . . . . . . .
Using your rangehood . . . . . . . . . . . . . . .
Care & maintenance . . . . . . . . . . . . . . . .
Troubleshooting . . . . . . . . . . . . . . . . . .
Optional ducting accessories . . . . . . . . . . . . 1
Warranty . . . . . . . . . . . . . . . . . . . . . 1
Congratulations and thank you for choosing our canopy
rangehood. We are sure you will find your new rangehood
a pleasure to use. Before you use your rangehood, we
recommend that you read through the whole user manual,
which provides the description of the rangehood and
its function.
To avoid the risks that are always present when you use
an electrical appliance it is important that the canopy
rangehood is installed correctly and that you read the
safety instructions carefully to avoid misuse and hazards.
We recommend that you keep this instruction booklet for
future reference and pass it on to any future owners. After
unpacking the canopy rangehood please check it is not
damaged. If in doubt, do not use the appliance but contact
your local Electrolux Service Centre.
Conditions of use
This appliance is intended to be used in household and
similar applications such as:
working envionments
type environments
Record model and serial number here:
Model:
Serial No:
TIPS & INFORMATION
IMPORTANT– CHECK FOR ANY DAMAGES OR MARKS. If you find
the rangehood is damaged or marked, you must report it
within 7 days if you wish to claim for damage/marks under
the manufacturers warranty. This does not affect your
statutory rights.
UNPACKING
Check that the cooker hood has no damage.Transportation
damage should immediately be reported to the company
responsible for the transportation.
Damage, faults and missing details should immediately be
reported to the retailer. Take care of the packing materials so
that small children cannot play with them.
ENVIRONMENTAL TIPS
INFORMATION ON DISPOSAL FOR USERS
dispose of those materials through your local recycling depot
or byplacing them inappropriate collection containers.
local authorities and ask for the correct method ofdisposal.
CONTENTSCONGRATULATIONS
Adherence to the directions for use in this manual is
extremely important for health and safety. Failure to strictly
adhere to the requirements in this manual may result in
personal injury, property damage and affect your ability
to make a claim under the manufacturer’s warranty provided
with your product. Products must be used, installed and
operated in accordance with this manual. You may not be
able to claim on the manufacturer’s warranty in the event that
your product fault is due to failure to adhere this manual.
IMPORTANT INFORMATION THAT MAY IMPACT
YOURMANUFACTURER’S WARRANTY
2

This manual explains the proper use of your new
rangehood. Please read this manual
the product. This manual should be
handy reference.
This canopyrangehood isa domestic appliance which has
been manufactured and tested to comply with Australian
and New Zealand Standard AS/NZS 60335.2.31.
Meanings of symbols used in this manual are shown below:
CAUTION
This symbol indicates the possibility of injury or damage to property
This symbol indicates never to do this
This symbol indicates always do this
TIPS & INFORMA
TION
This symbol indicates tips and information about use of the appliance
ENVIRONMENTAL TIPS
This symbol indicates tips and information about economical and
ecological use of the appliance
CAUTION
Read the following carefully to avoid an electric shock or fire.
GENERAL WARNINGS
The appliance must be plugged into its own
dedicated 220-240V, 50Hz AC electrical outlet.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning the use of the appliance by
a person responsible for their safety.
Ensure the canopy rangehood is switched off before
carrying out maintenance, to avoid any possibility of
electric shock.
Never carry out flambé cooking under the canopy
rangehood.
This canopy rangehood is not recommended for
barbecues and cannot be installed for external use.
Grease filters must be removed every four weeks
(maximum) for cleaning to reduce the risk of fire.
The exhaust from the canopy rangehood must not
be discharged into any heating flue, which may
carry combustion products from other sources. (Fig1)
Exhaust air must not be discharged into a wall cavity,
unless the cavity is designed for the purpose.
There must be adequate ventilation of the room when
the canopy rangehood is used at the same time as
appliances burning gas or other fuels.
Always cover lit gas burners with pots or pans when
canopy rangehood is in use.
Always switch off gas burners before you remove pots
or pans.
Do not leave lit gas burners exposed due to the risk
of re. (Fig 2)
ELECTRICAL CONNECTION
Check that the mains voltage matches with the voltage on
the data plate inside the canopy rangehood. Check that the
installation complies with standards of local building, gas
and electrical authorities. Before connecting to the mains
supply ensure that the mains voltage corresponds to the
voltage on the rating plate inside the cookerhood.
If the supply cord is damaged, it must be replaced by
the manufacturer or its service agent or similarly qualied
person inorder to avoid a hazard.
SAFETY WARNINGS – FOR THE INSTALLER
When installing the cooker hood, make sure you adhere to
the minimum and maximum distances from the cooker hood
base to the hob surface (refer to page 6).
Exhaust ue installation: The following rules must be
strictly followed to obtain optimal air extraction.
pulled taut to minimise pressure loss.
reduce the performance and increase the noise levels of
the cooker hood.
Exhaust air must not be discharged into a wall cavity, unless
the cavity isdesigned for that purpose.
The exhaust from the cooker hood must not be discharged
into any heating ue, which may carry combustionproducts
from other sources.
NOTE: Some installations may require the telescopic
exhaust cover to be cut to length. Cut with sharp tin snips
or a ne-tooth hack sawblade, taking care not to distort or
dent the exhaust cover.
Fig. 1 Fig. 2
IMPORTANT SAFETY INSTRUCTIONS
This manual explains the proper use of your new canopy
rangehood. Please read this manual carefully before using
the product. This manual should be kept in a safe place for
handyreference.
This canopy rangehood is a domestic appliance which has
been manufactured and tested to comply with Australian
and New Zealand Standard AS/NZS 60335.2.31.
Meanings of symbols used in this manual are shown below:
CAUTION
This symbol indicates never to do this
This symbol indicates always do this
TIPS & INFORMATION
This symbol indicates tips and information about use of the appliance
ENVIRONMENTAL TIPS
This symbol indicates tips and information about economical and
ecological use of the appliance
CAUTION
Read the following carefully to avoid an electric shock or fire.
GENERAL WARNINGS
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning the use of the appliance by
a person responsible for their safety.
Children should be supervised to ensure that they do
not play with the appliance.
Ensure the canopy rangehood is switched off before
carrying out maintenance, to avoid any possibility of
electric shock.
Do not flambé under the range hood.
This canopy rangehood is not recommended for
barbecues and cannot be installed for external use.
Grease filters must be removed every four weeks
(maximum) for cleaning to reduce the risk of fire.
The exhaust from the canopy rangehood must not
be discharged into any heating flue, which may
carry combustion products from other sources. (Fig1)
There must be adequate ventilation of the room when
the canopy rangehood is used at the same time as
appliances burning gas or other fuels.
Always cover lit gas burners with pots or pans when
canopy rangehood is in use.
Always switch off gas burners before you remove pots
or pans.
Do not leave lit gas burners exposed due to the risk
of fire. (Fig 2)
ELECTRICAL CONNECTION
Check that the mains voltage matches with the voltage on
the data plate inside the canopy rangehood. Check that the
installation complies with standards of local building, gas
and electrical authorities. Before connecting to the mains
supply ensure that the mains voltage corresponds to the
voltage on the rating plate inside the cooker hood.
If the supply cord is damaged, it must be replaced by
the manufacturer or its service agent or similarly qualified
person in order to avoid a hazard.
Means for disconnection must be incorporated in the fixed
wiring in accordance with the wiring rules
SAFETY WARNINGS – FOR THE INSTALLER
When installing the cooker hood, make sure you adhere to
the minimum and maximum distances from the cooker hood
base to the hob surface (refer to page 6).
Exhaust flue installation: The following rules must be
strictly followed to obtain optimal air extraction.
pulled taut to minimisepressure loss.
• Failure toobserve these basic instructions will drastically
reduce the performance and increase the noise levels of
the cooker hood.
Exhaust air must not be discharged into a wall cavity, unless
the cavity is designed for that purpose.
NOTE: Some installations may require the telescopic
exhaust cover to be cut to length. Cut with sharp tin snips
or a fine-tooth hack saw blade, taking care not to distort or
dent the exhaust cover.
Fig. 1 Fig.2
IMPORTANT SAFETY INSTRUCTIONS
3
CAUTION: Accessible parts may become hot when
used with cooking appliances.
There is a fire risk if cleaning is not carried out in
accordance with the instructions.
Range hoods and other cooking fume extractors may
adversely affect the safe operation of appliances burning
gas or other fuels (including those in other rooms) due to
back flow of combustion gases. These gases can potentially
result in carbon monoxide poisoning. After installation of a
range hood or other cooking fume extractor, the operation
of open flued gas appliances should be tested by a
competent person to ensure that back flow of combustion
gases does not occur.
WARNING: Failure to install the screws or fixing
device in accordance with these instructions may result
in electrical hazards.

DESCRIPTION OF YOUR RANGEHOOD
1
2
Flue pipe to be sourced locally
3
4
5
6
7
Components list
1. Screws x 2
2. Telescopic flue cover set
3. Upper flue cover mounting bracket
4. Lower flue cover mounting bracket
5. Flue transition duct
6. Main body and fan housing assembly
7. Grease filters
Additional items required for installation
• Fixings required to attach rangehood body and
anti tilt points.
• Fixings required to attach flue cover mounting
brackets to the wall.
• Duct tape or cable ties.
Technical specifications
The manufacturer reserves the right to effect any
technological improvement or modification without
prior notice.
Fig. 3
User manual_CS910CS
• Flue pipe.
4
Height 69-113.5cm
Width 90cm
Depth 50cm
Maximum absorbedpower 330W
Lighting 2 x 50W Halogen
Outlet diameter 150mm
Electrical connection 220-240V, 50Hz
MODEL CS910CS
69-113.5cm
90cm
50cm
330W
2 x 3.5W LED
150mm
220-240V, 50Hz
CRC914SB/CRC914DB

RANGEHOOD DIMENSIONS
56mm
500mm
320mm
900mm
1135mm (maximum)
690mm (minimum)
290mm
538mm
Fig. 4
150mm
NOTE: The fan housing flue transition duct is 150mm in diameter.
(See page 11 for optional ducting accessories).
Fig. 5
5

PRE-INSTALLATION
Before installing the cooker hood, peel off any protective
plastic covering and remove polystyrene from inside behind
the fan motor. See diagram below.
LOCATION
The underside of the hood body must be a minimum
of 600mm* above an electric cooktop and 650mm*
above a gas cooktop and a maximum height of 800mm.
*If the instructions of the hob specify a greater distance than the minimum above,
then that shall be the minimum height for installation.
INSTALLATION
1. Using a spirit level mark a vertical centre line on the
wall where the hood is to be positioned, and a
horizontal line at the hood base position (refer
Fig. 6 below).
2. Mark the location for flue cover wall mounting brackets
and rangehood mounting points and anti-tilt fixing
points above the hood base using the hood base as
the reference point (Fig. 6 below).
3. Install flue cover wall mounting brackets with suitable
fixings. Install suitable screws for rangehood mounting
points (to support a total weight of 30kg) to the wall as
marked (Fig. 7).
INSTALLATION
Fig. 6
6
Top of hob
250mm
580mm
250mm
23.5mm
GAS ELECTRIC
Ceiling
Flue cover
wall mounting
brackets
Rangehood
mounting points
Anti-tilt fixing points
Hood base
Min 600mm
Max 800mm
Min 650mm
Max 800mm
286mm
559mm
36mm
PRE-INSTALLATION
Before installing the cooker hood, peel off any protective
plastic covering and remove polystyrene from inside behind
the fan motor. See diagram below.
LOCATION
The underside of the hood body must be a minimum
of 600mm* above an electric cooktop and 650mm*
above a gas cooktop and a maximum height of 800mm.
*If the instructions of the hob specify a greater distance than the minimum above,
then that shall be the minimum height for installation.
INSTALLATION
1. Using a spirit level mark a vertical centre line on the
wall where the hood is to be positioned, and a
horizontal line at the hood base position (refer
Fig. 6 below).
2. Mark the location for ue cover wall mounting brackets
and rangehood mounting points and anti-tilt xing
points above the hood base using the hood base as
the reference point (Fig. 6 below).
3. Install ue cover wall mounting brackets with suitable
xings. Install suitable screws for rangehood mounting
points (to support a total weight of 30kg) to the wall as
marked (Fig. 7).
INSTALLATION
ceiling
235mm
580mm
25mm
270mm
250mm
36mm
Min. 650mm
Max. 800mm
Fig. 6
250mm

4. Remove the protective plastic film from the hood body
and hang hood on the mounting screws then secure at
the anti-tilt locations as indicated in Fig. 6 & 7.
5. Fix exhaust transition duct using screws supplied
(Fig. 8).
Depending on the preferred installation/ducting mode,
follow step 6a or 6b below.
6a.Recirculating mode (Fig. 9). Using the centre line,
secure the recirculating T-piece to the wall with suitable
pipe between T-piece and the exhaust transition duct.
Use cable ties or suitable duct tape to secure flexible
pipe to T-piece and transition duct (Fig. 11).
NOTE: When installed in recirculating mode, it is
recommended to use a carbon filter (included in
recirculation kit AR910RK) to prevent odours being
emitted back into the room.
6b.Ducted mode (Fig 10.) The rangehood can be
connected with a 150mm diameter non-combustible flue
pipe (rigid or flexible - not included) and fan transition
duct.Continue the centre line to the ceiling. Fit preferred
flue pipe to the fan transition duct. Use cable ties or
suitable duct tape to secure flexible pipe to the transition
duct.
NOTE: For ducted mode, extend the flue pipe through
the roof to external ‘china hat’ to vent exhaust externally.
Do not vent into the ceiling cavity.
NOTE: To ensure optimum performance of the
rangehood, the use of rigid ducting is recommended.
The use of bends should be avoided. Rigid flexible
ducting is suitable, although loose flexible ducting is
unacceptable. All ducting must be fire retardant.
INSTALLATION
Fig. 7
Fig. 9 Fig. 10
Fig. 8
7

CAUTION
Care must be taken to ensure the screws are not cross threaded when
attaching the upper flue cover.
If installed in recirculating mode, insert the optional carbon
filter (included in recirculation kit AR910RK).
To complete the rangehood installation, insert the three
filters to the underside of the hood body. Place back edge
of filter into position and push up front edge so that the
filter clips into place.
Your rangehood is now ready to use.
INSTALLATION
7. Electrical connection
Check that the installation complies with the standards
of local building, gas and electrical authorities. Before
connecting to the mains supply ensure that the mains
voltage corresponds to the voltage on the rating plate
inside the rangehood.
Installation of telescopic flue covers
Separate the inner and outer flue covers, and carefully
remove the protective coating from both. Carefully
reassemble the upper and lower flue covers sections by
sliding the inner into the outer flue cover. Carefully lower
the assembled upper and lower flue covers onto the top
of the rangehood body, and insert the flue cover into the
rangehood body approximately 5mm. Fix upper flue cover
to the wall mounting bracket with screws supplied. Ensure
that the upper section is extended.
Fig. 11
User manual_CS910CS
8

CONTROL PANEL
• Best results are obtained by using a low speed for
normal conditions and a high speed when odours are
more concentrated.
• Turn the hood on for a few minutes before you
start cooking.
• The hood should be left on for 15 minutes after cooking
or until all odours have dispersed.
• The control switches are located on the front panel of the
unit. See Fig. 12 below.
Fig. 12
• The control panel comprises of:
– T: Indicator lamp
– U: Light button
– V: Off button
– W: 3 control switches for the motor
(speed positions 1, 2, and 3)
CONTROL PANEL
28/11/2012
CARE & MAINTENENCE
CAUTION
External surfaces are susceptible to scratches and abrasions, so
please follow the cleaning instructions to ensure the best possible
result is achieved without damage.
Cleaning the hood
• Clean the outside of the hood using a damp cloth and
a solution of water and mild washing up liquid. Clean
the surface using non-abrasive cleaning products. To
ensure best results also use an even pressure. Use of a
soft cloth reduces the risk of scratching. If the cloth is
wet ensure that a dry soft cloth is used to wipe down
the surface again reducing the risk of any surface rust
appearing.
• Never use corrosive, abraisive or flammable cleaning
products or products containing bleach.
• Never insert pointed objects in the motor’s
protective grid.
• Only ever clean the switch panel and filter grill using a
damp cloth and mild washing up liquid.
• It is extremely important to clean the unit and change the
filters at the recommended intervals. Failure to do so will
cause grease deposits that could cause a fire.
Removing the metal grease filters
• Push the grease filter towards the back of the unit and
then pull it down and out.
Hand washing
Soak grease filters for about one hour in hot water with a
grease-loosening cleaner, then rinse off thoroughly with hot
water. Repeat the process if necessary. Refit the grease filters
when they are dry.
Dishwasher
Place grease filters in the dishwasher. Select the most
powerful washing program and highest temperature, at
least 65°C. Repeat the process. Refit the grease filters when
they are dry. When washing the metal grease filter in the
dishwasher a slight discolouration of the filter can occur, this
does not have any impact on it’s performance.
NOTE: The metal grease filters must be removed and washed,
either by hand or in the dishwasher, every four weeks.
ylnonoitulostohdnahagnisugnisuohrenniehtnaelC•
(never use caustic detergents, abrasive powders or brushes).
Charcoal filter
• The charcoal filter should only be used if you want to use
the hood in the recirculation function.
• This filter cannot be cleaned or re-used and as a general
rule, the activated charcoal filter should be changed once
every four months.
Fitting the charcoal filter
Fit one charcoal filter on the left and one on the right so as
to cover the plastic grids that protect the fan wheel.
• Always specify the hood model code number and
serial number when ordering replacement filters. This
information is shown on the registration plate located on
the inside of this unit.
• Replacement charcoal filters can be ordered from your
local Service Centre.
9

CARE & MAINTENENCE
WARNING
IMPORTANT: The hood must always be disconnected from the
electricity supply before beginning any maintenenace work.
Changing the lamps
If the lamps need replacing, they must be replaced by
lamps with an aluminium reflector, never dichronic lamps to
avoid unnecessary overheating in the lamp holders.
Ensure that the appliance is switched off before carrying
out maintenance to avoid any possibility of electric shock.
CAUTION
When handling lamps hold with a cloth or gloves to ensure perspiration
does not come into contact with the lamp as this can reduce the life of
the lamp.
User manual_CS910CS
TROUBLESHOOTING GUIDE
PROBLEM REMEDY
The cooker hood will not start
Check that the hood is connected to an electrical supply
Check that a fan speed has been selected
The cooker hood is not working
Check that the fan speed is set high enough for the task
The grease filters are clean
The kitchen is adequately vented to allow the entry of fresh air
If set up for recirculation, check that the charcoal filter is still effective
If set up for extraction, check that the ducting and outlets are not blocked
The cooker hood has switched off
during operation
The safety cut-out device has been tripped – turn off the hob and wait for the device to reset.
If the hood has been installed below the heights indicated in the installation instructions the
motor will cut out frequently which will damage the hood
If you have completed all of the above checks and are still experiencing difficulty, please contact your local Electrolux
Service Centre.
10
Suitable lamp for replacement
Picture of lamp:
For CRC914SB CRC914DB:
GU10 3.5W LED -> DBR-3.5-H-GU10-50/53
For CS910CS:
GU10 50W Halogen -> HAG-50-230-GU10-50/53

28/11/2012
AR150RC
AR150F
AR610CF
AR910RK
AR150WV
AR610FS
OPTIONAL DUCTING ACCESSORIES
Part Numbers Description
AR150RC 150mm G/Bond Roof Cowl
AR150F 150mm G/Bond Flue 1200mm
AR150WV 150mm Wall Vent & duct
AR910RK Recirculating Kit (150-120mm reducer,
T-piece & carbon filters
AR610CF Replacement carbon filter
AR610FS Stainless steel exhaust cover extension 1200mm
11
For CS910CS / CRC914SB
AR610FD
For CRC914DB
AR610FD Black exhaust cover extension 1200mm

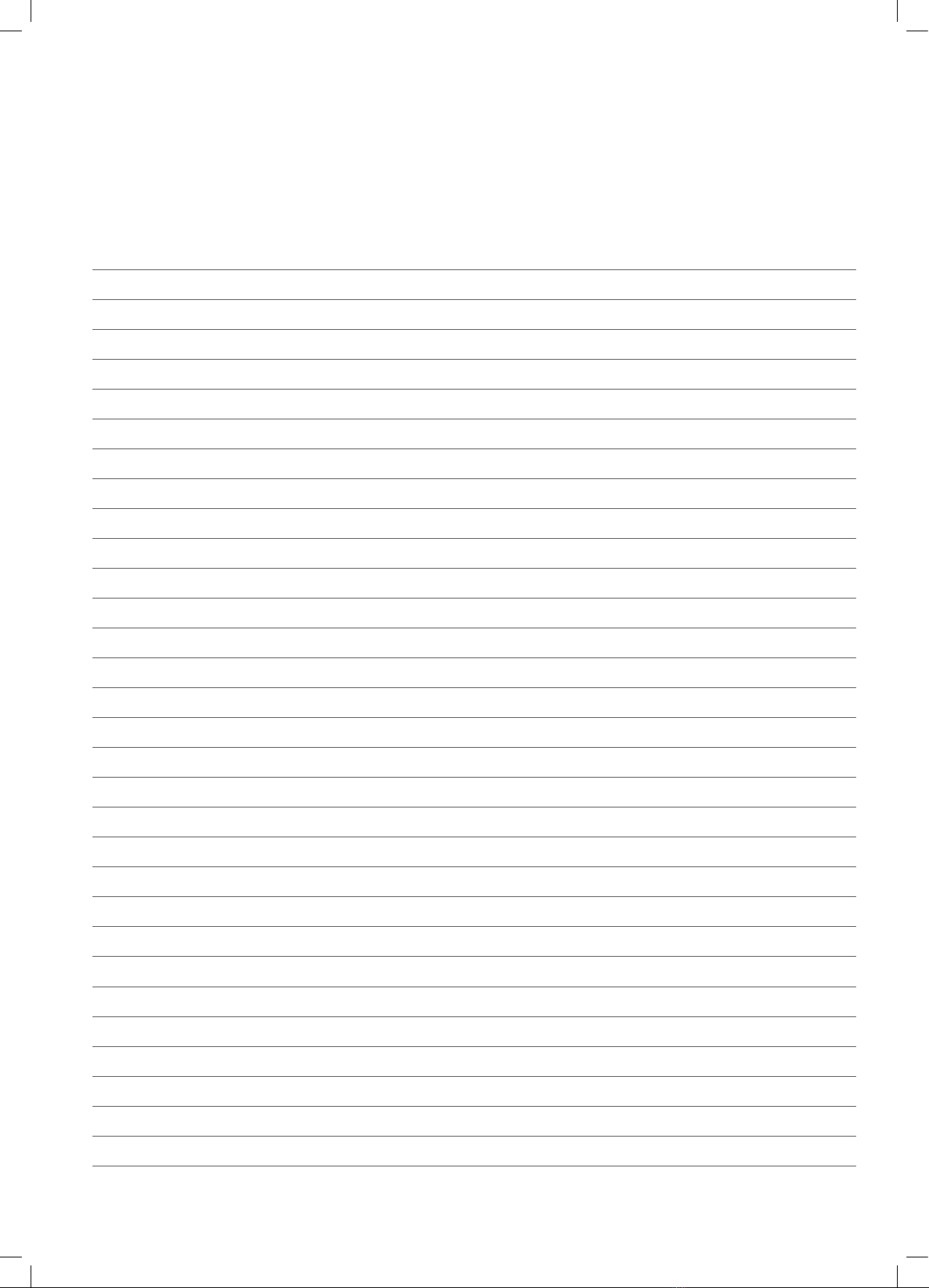

notes
12

13

notes
14

This document sets out the terms andconditions of the product
warranties for Chef Appliances. It is an important document. Please
keep it with your proofofpurchase documents in a safe place for
future reference should there be a manufacturing defect in your
Appliance. This warrantyis in addition to other rights you may have
under the Australian Consumer Law.
1. In this warranty:
(a) ‘ACL’ or ‘Australian Consumer Law’ means Schedule 2 to the
Competition and Consumer Act 2010;
(b) ‘Appliance’ means any Electrolux product purchased by you and
accompanied by this document;
(c) ‘ASC’ means Electrolux’s authorised servicedcentres;
(d) ‘Chef’ is the brand controlled byElectrolux Home Products PtyLtd
of 163 O’Riordan Street, Mascot NSW 2020, ABN51 004 762 341
in respect of Appliances purchased in Australia and Electrolux (NZ)
Limited (collectively “Electrolux”) of 3-5 Niall Burgess Road, Mount
Wellington, in respect of Appliances purchased in New Zealand;
warranty;
(f) ‘you’ means the purchaser of the Appliance not having purchased
theAppliance for re-sale, and ‘your’has a corresponding meaning.
2. Application: This warranty only applies to new Appliances, purchased
and used in Australia or New Zealand and is in addition to (and does not
exclude, restrict, or modify in any way) other rights and remedies under
a law to which theAppliances or services relate, including any non-
excludable statutory guarantees in Australia and New Zealand.
3. WarrantyPeriod:Subject tothese terms and conditions, this warranty
continues for in Australia for a period of 24 months and in New Zealand
for a period of 24 months, followingthedate of originalpurchase of the
Appliance.
4. Repair or replace warranty: Duringthe WarrantyPeriod, Electrolux
or its ASC will, at no extra charge if your Appliance is readily accessible
for service, without special equipment and subject to these terms and
conditions, repair or replace any parts which it considers to bedefective.
Electrolux may, in its absolute discretion, choosewhether the remedy
ASC may use refurbished parts to repair your Appliance. You agree that
any replaced Appliances or parts become the property of Electrolux.
5. Traveland transportation costs:Subject to clause 7, Electrolux will
bear the reasonable cost of transportation, travel and delivery of the
Appliance to and from Electrolux or its ASC. Travel and transportation will
be arranged by Electrolux as part of any valid warranty claim.
6. Proof of purchaseis required before you can make a claim under this
warranty.
7. Exclusions:You may not make a claim under this warranty unless the
defect claimed is due to faulty or defective parts or workmanship. This
warranty does not cover:
(b) parts and Appliances not supplied by Electrolux;
Appliance;
(d) damage to theAppliance caused by:
(i) negligence or accident;
(ii)misuseor abuse, including failure to properly maintain or service;
(iii) improper, negligent or faultyservicing or repair works done by
anyone other than an Electrolux authorised repairer or ASC;
(iv)normal wear and tear;
(v) power surges, electrical storm damage or incorrect power supply;
(vi)incomplete or improper installation;
(vii)incorrect, improper or inappropriate operation;
(viii)insect or vermin infestation;
(ix) failure to complywith any additional instructions supplied with
theAppliance;
In addition, Electrolux is not liable under this warranty if:
(a) theAppliance has been, or Electrolux reasonablybelieves that the
Appliance has been, used for purposes other than those for which
theAppliance was intended, includingwhere the Appliance has
been used for any non-domesticpurpose;
(c) theAppliance’s serial number or warranty seal has been removed
or defaced
8. How toclaim under this warranty: To enquire about claiming under
this warranty, please follow these steps:
(a) carefully check theoperating instructions, user manual and theterms
of this warranty;
(b) have the model and serial number of theAppliance available;
(c) have theproof of purchase (e.g. an invoice) available;
(d) telephone thenumbers shown below.
9. Australia: For Appliances and services provided by Electrolux in
Australia:Electrolux goods come with guarantees that cannot be
excluded under theAustralian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any
other reasonably foreseeableloss or damage. You are also entitled to
have theAppliance repaired or replaced if theAppliance fails to be of
acceptablequality and thefailure does not amount to a major failure.
‘Acceptable quality’ and ‘major failure’ have thesame meaning as
referred to in theACL.
10. New Zealand: For Appliances and services provided by Electrolux
in NewZealand, theAppliances come with aguaranteeby Electrolux
pursuant to theprovisions of theConsumer Guarantees Act, theSale
of Goods Act and theFair Trading Act. Where theAppliance was
purchased in New Zealand for commercial purposes the Consumer
Guarantee Act does not apply.
You accept that if you make a warranty claim, Electrolux
and its agents including ASC may exchange information in relation toyou
to enable Electrolux to meet its obligations under this warranty.
Warranty
FOR SALES IN AUSTRALIA AND NEW ZEALAND
APPLIANCE: CHEF RANGEHOODS
CRange_War_Jul19
Important Notice
Before calling for service, please ensure that the steps listed in clause 8 above have been followed.
AUSTRALIA
FOR SERVICE
authorised service centre in Australia
PLEASE CALL 13 13 49
For the cost of a local call
FOR SPARE PARTS
spare parts centre in Australia
PLEASE CALL 13 13 50
For the cost of a local call
NEW ZEALAND
FOR SERVICE
authorised service centre in New Zealand
PLEASE CALL 0800 10 66 10
FOR SPARE PARTS
spare parts centre in New Zealand
PLEASE CALL 0800 10 66 20
15

Chef. We are part of the Electrolux family.
Share more of our thinking at electrolux.com.au
Part number: 342-1-596 Rev B
