Chef CS601S User manual

installation guide
chef canopy rangehoods
models: CS601S, CS901S, RCD690S, RCD990S
All measurements in millimetres.
Current as at Dec 2006.
© 2006 Electrolux Home Products Pty Ltd. CDIMCANRH
222mm
165mm
470mm (max.)*
1240mm (max.)
540mm
230mm
500mm
600/900mm
20mm
page 1 of 3
canopy rangehood dimensions
*1100mm extension flue cover is available if required where high ceilings are present (model no. ARF500FS).

installation guide
chef canopy rangehoods
models: CS601S, CS901S, RCD690S, RCD990S
All measurements in millimetres.
Current as at Dec 2006.
© 2006 Electrolux Home Products Pty Ltd. CDIMCANRH page 2 of 3
245mm
490mm
Minimum:
Electric
600mm
Gas 650mm
Maximum:
800mm
Hood base
Flue cover mounting brackets
Note: Some installations may require
telescopic flue cover to be cut to length. Cut
with tin snips or fine tooth hack saw blade,
taking care not to distort or dent flue cover.
Top of hob
38mm
65mm65mm
75mm75mm
303mm
(or 203 mm on
600mm wide canopy)
303mm
(or 203 mm on
600mm wide canopy)
Rear Exhaust
to atmosphere Top Exhaust to atmosphere Side Exhaust
to atmosphere Recirculating Exhaust*
canopy rangehood fixing dimensions
canopy rangehood exhaust options
*In recirculating mode you must use a recirculating kit which includes carbon filters to eliminate cooking smells (model no. AR500RK).

ducting accessories
chef canopy rangehoods
models: CS601S, CS901S, RCD690S, RCD990S
All measurements in millimetres.
Current as at Dec 2006.
© 2006 Electrolux Home Products Pty Ltd. CDIMCANRH page 3 of 3
canopy rangehood ducting accessories
AR125FD
Alternative flue connection
AR500RK
AR500CF
AR500FS
AR125RC
AR125F
Flashing
not supplied
AR125B
AR125WV
AR125FJ/AR125FJD
part numbers description
AR125RC roof cowl
AR125B 90° bend
AR125F flue 1200mm long
AR125FD flexible duct – 1 metre long when expanded
AR125WV wall vent kit
AR500FS extra length flue cover 1100mm length brushed stainless steel
AR500RK recirculating kit (includes AR500CF x 2)
AR500CF replacement carbon filters
AR125FJ flue joiner without damper
AR125FJD flue joiner with damper

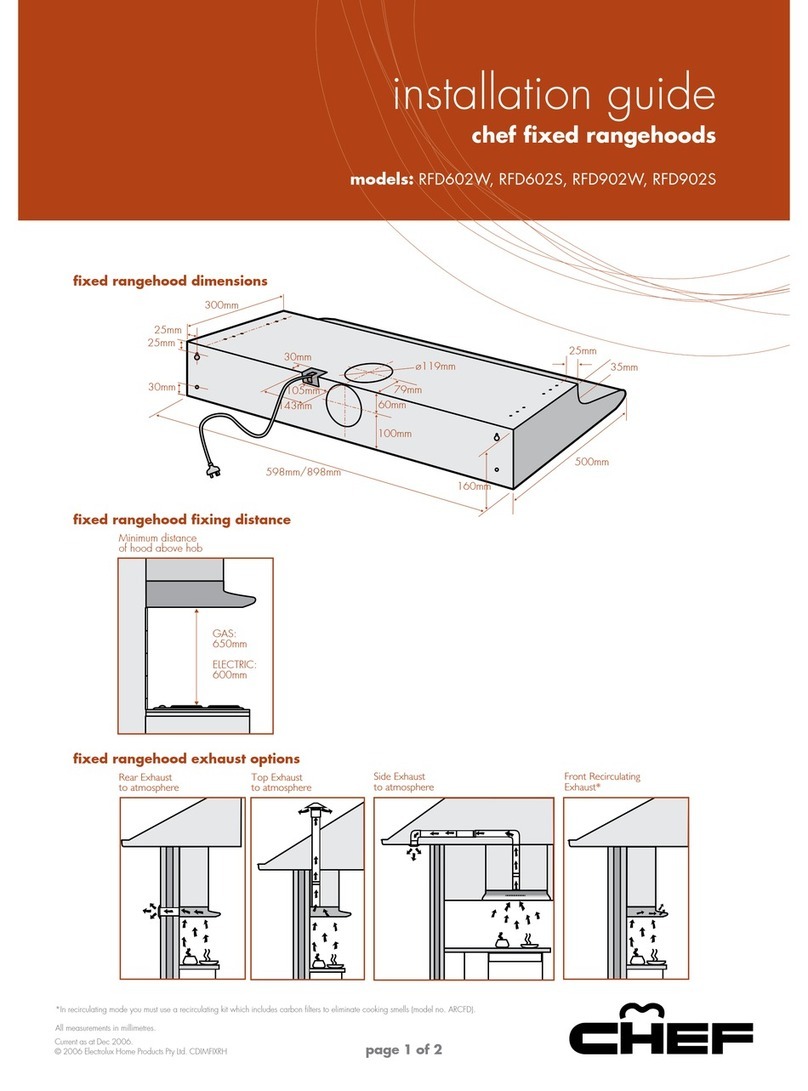

installation guide
chef fixed rangehoods
models: RFD602W, RFD602S, RFD902W, RFD902S
All measurements in millimetres.
Current as at Dec 2006.
© 2006 Electrolux Home Products Pty Ltd. CDIMFIXRH page 1 of 2
fixed rangehood dimensions
160mm
598mm/898mm
100mm
60mm
25mm
25mm
30mm
300mm
79mm
25mm
35mm
143mm
ø119mm
500mm
30mm
105mm
Minimum distance
of hood above hob
GAS:
650mm
ELECTRIC:
600mm
Rear Exhaust
t
o atmosphere
Top Exhaust
to atmosphere
Side Exhaust
to atmosphere
Front Recirculating
Exhaust*
fixed rangehood exhaust options
fixed rangehood fixing distance
*In recirculating mode you must use a recirculating kit which includes carbon filters to eliminate cooking smells (model no. ARCFD).

All measurements in millimetres.
Current as at Dec 2006.
© 2006 Electrolux Home Products Pty Ltd. CDIMFIXRH page 2 of 2
fixed rangehood ducting accessories
part numbers description
AR125RC roof cowl
AR125B 90° bend
AR125F flue 1200mm long
AR125FD flexible duct – 1 metre long when expanded
AR125WV wall vent kit
AR125FJ flue joiner without damper
AR125FJD flue joiner with damper
ARCFD (not illustrated) replacement carbon filters
ducting accessories
chef fixed rangehoods
models: RFD602W, RFD602S, RFD902W, RFD902S
AR125RC
AR125F
AR125FD
AR125WV
Alternative flue connection AR125FJ/AR125FJD
Flashing
Not Supplied
AR125B

installation guide
chef 600mm slideout rangehoods
models: REHR6S, REHR6W, RRE634W, RRE634S
All measurements in millimetres.
Current as at Dec 2006.
© 2006 Electrolux Home Products Pty Ltd. CDIMSLIDRH600MM page 1 of 2
slideout rangehood dimensions
Minimum distance
of hood above hob
GAS:
650mm
ELECTRIC:
600mm
Rear Exhaust
to atmosphere Top Exhaust to atmosphere Side Exhaust
to atmosphere Top Recirculating Exhaust*
slideout rangehood exhaust options
slideout rangehood fixing distance
550mm
470mm
598mm
100mm
80mm
34mm
210mm
42mm
175mm 280mm
158mm
40mm
20mm
458mm
ø121
*In recirculating mode you must use a recirculating kit which includes carbon filters to eliminate cooking smells (model no. ARCFD).

All measurements in millimetres.
Current as at Dec 2006.
© 2006 Electrolux Home Products Pty Ltd. CDIMSLIDRH600MM page 2 of 2
slideout rangehood ducting accessories
part numbers description
AR125RC roof cowl
AR125B 90° bend
AR125F flue 1200mm long
AR125FD flexible duct – 1 metre long when expanded
AR125WV wall vent kit
AR125FJ flue joiner without damper
AR125FJD flue joiner with damper
ARCFD (not illustrated) replacement carbon filters
ducting accessories
chef 600mm slideout rangehoods
models: REHR6S, REHR6W, RRE634W, RRE634S
AR125RC
AR125F
AR125FD
(Alternative flue connection) AR125B
AR125FJ/AR125FJD
AR125WV
Flashing
Not Supplied

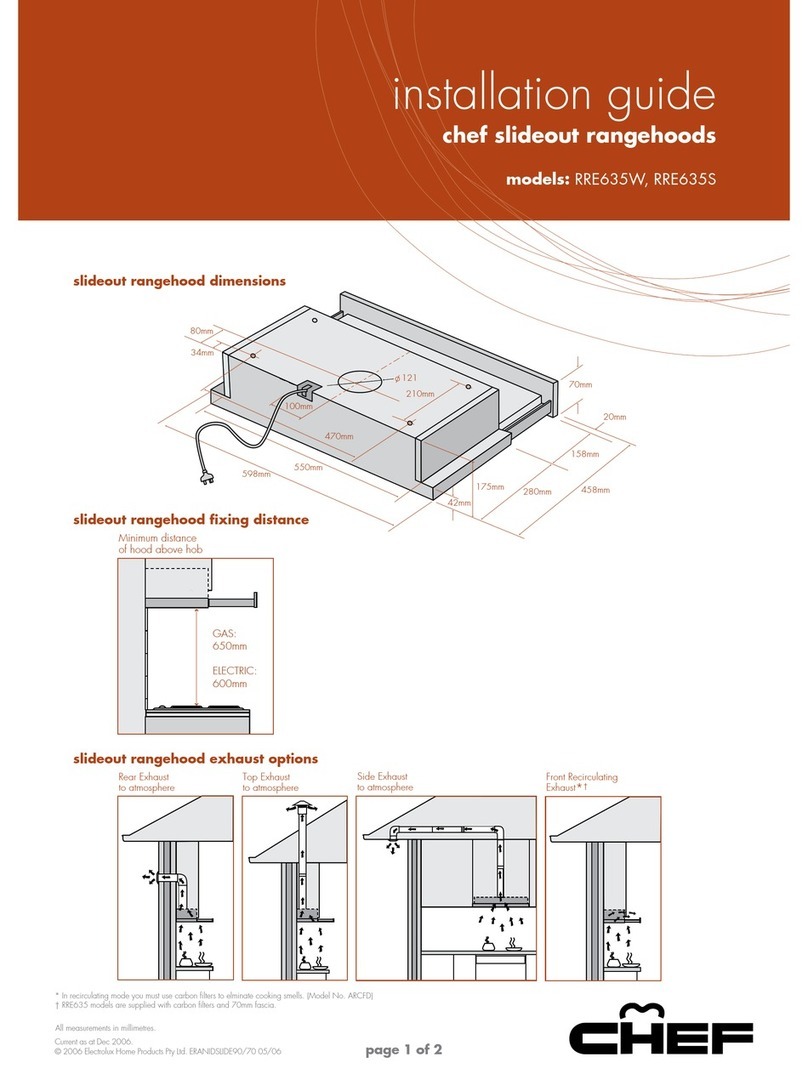

installation guide
chef slideout rangehoods
models: RRE635W, RRE635S
All measurements in millimetres.
Current as at Dec 2006.
© 2006 Electrolux Home Products Pty Ltd. ERANIDSLIDE90/70 05/06 page 1 of 2
slideout rangehood dimensions
Minimum distance
of hood above hob
GAS:
650mm
ELECTRIC:
600mm
Rear Exhaust
to atmosphere Top Exhaust to atmosphere
Side Exhaust
to atmosphere Front Recirculating
Exhaust*†
slideout rangehood exhaust options
slideout rangehood fixing distance
550mm
470mm
598mm
100mm
80mm
34mm
210mm
42mm
175mm 280mm
158mm
70mm
20mm
458mm
121
* In recirculating mode you must use carbon filters to elminate cooking smells. (Model No. ARCFD)
† RRE635 models are supplied with carbon filters and 70mm fascia.

All measurements in millimetres.
Current as at Dec 2006.
© 2006 Electrolux Home Products Pty Ltd. ERANIDSLIDE90/70 05/06 page 2 of 2
slideout rangehood ducting accessories
part numbers description
AR125RC roof cowl
AR125B 90° bend
AR125F flue 1200mm long
AR125FD flexible duct – 1 metre long when expanded
AR125WV wall vent kit
AR125FJ flue joiner without damper
AR125FJD flue joiner with damper
ARCFD (not illustrated) replacement carbon filters
ducting accessories
chef slideout rangehoods
models: RRE635W, RRE635S
AR125RC
AR125F
AR125FD
(Alternative flue connection) AR125B
AR125FJ/AR125FJD
Flashing
not supplied
AR125WV

installation guide
chef 900mm slideout rangehoods
models: REHR9S, REHR9W, RRE934W, RRE934S
All measurements in millimetres.
Current as at Dec 2006.
© 2006 Electrolux Home Products Pty Ltd. CDIMSLIDRH900MM page 1 of 2
slideout rangehood dimensions
Minimum distance
of hood above hob
GAS:
650mm
ELECTRIC:
600mm
Rear Exhaust
to atmosphere Top Exhaust to atmosphere Side Exhaust
to atmosphere Top Recirculating Exhaust*
slideout rangehood exhaust options
slideout rangehood fixing distance
850.5mm
770mm
898.5mm
100mm
80mm
34mm
210mm
42mm
175mm 280mm
158mm
40mm
20mm
458mm
ø121
*In recirculating mode you must use a recirculating kit which includes carbon filters to eliminate cooking smells (model no. ARCFD).

All measurements in millimetres.
Current as at Dec 2006.
© 2006 Electrolux Home Products Pty Ltd. CDIMSLIDRH900MM page 2 of 2
slideout rangehood ducting accessories
part numbers description
AR125RC roof cowl
AR125B 90° bend
AR125F flue 1200mm long
AR125FD flexible duct – 1 metre long when expanded
AR125WV wall vent kit
AR125FJ flue joiner without damper
AR125FJD flue joiner with damper
ARCFD (not illustrated) replacement carbon filters
ducting accessories
chef 900mm slideout rangehoods
models: REHR9S, REHR9W, RRE934W, RRE934S
AR125RC
AR125F
AR125FD
(Alternative flue connection) AR125B
AR125FJ/AR125FJD
AR125WV
Flashing
Not Supplied
