Chesney's Alchemy FB18 Instruction Manual
Installation & User Manual
Model: Alchemy FB18
with Remote Control
Version 001. Oct. 2021
2
Thank you for choosing fully remote control Alchemy Bioethanol replace.
Model: Alchemy FB18
Please read this manual carefully for correct installation, use and maintenance of
the replace and familiarise yourself with the proper use of the product.
Operate the replace in accordance with the instructions provided, so you can
fully enjoy the product for many years.
The company reserves the right to make any product upgrades or improvement
without prior notice.
3
Contents
1. Supplied Parts ........................................................................... 4
2. Safety Information .................................................................... 7
2.1 Explosion/ Hazard ........................................................ 7
2.2 Fire Positioning ............................................................. 7
2.3 Ventilation ..................................................................... 7
2.4 Fuelling the Fire ............................................................ 8
2.5 Hot Surface Hazard ................................................... 8
2.6 Using Accessories ......................................................... 8
3. Installation ................................................................................. 11
3.1 Burner Clearance .......................................................... 11
3.2 Installing & removing appliance from recess................. 13
3.3 Ventilation ..................................................................... 14
3.4 Levelling the Burner ...................................................... 14
4. Quick Start ................................................................................ 15

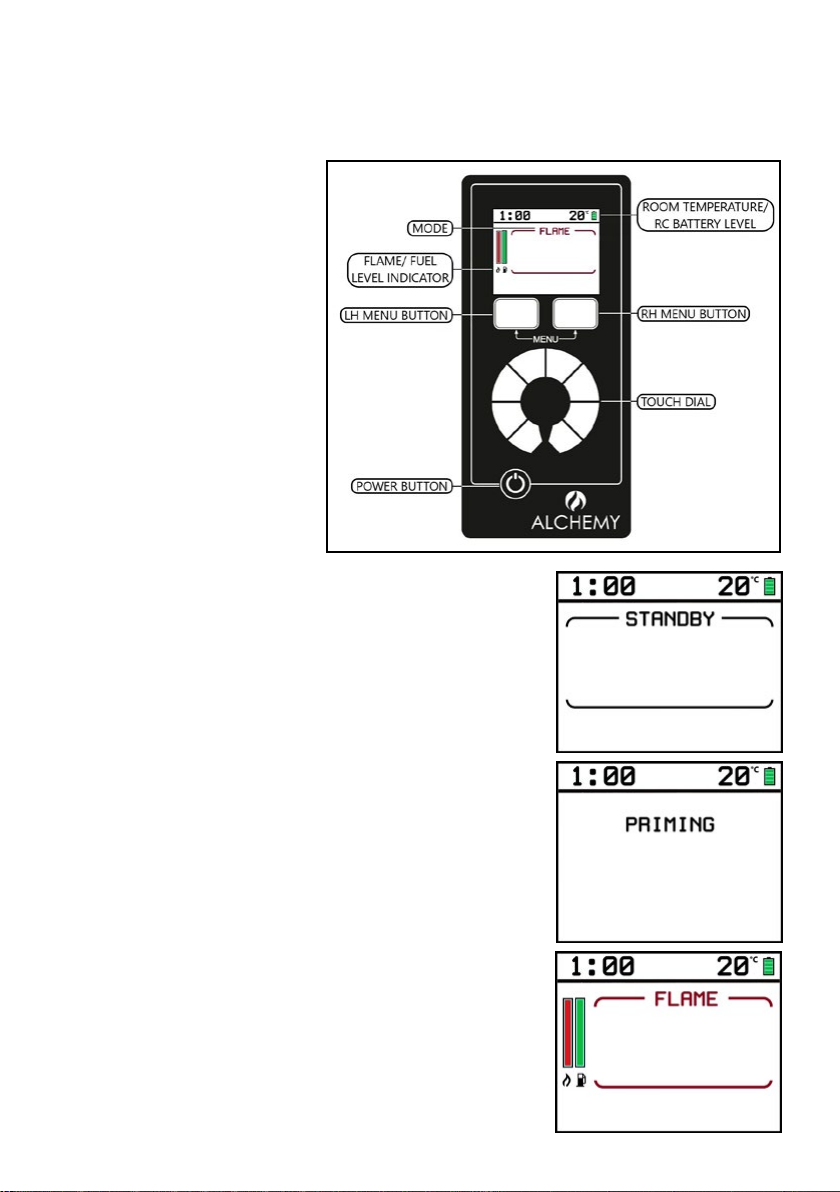

4.1 Operating Remote Control and Turning ON Burner ...... 15

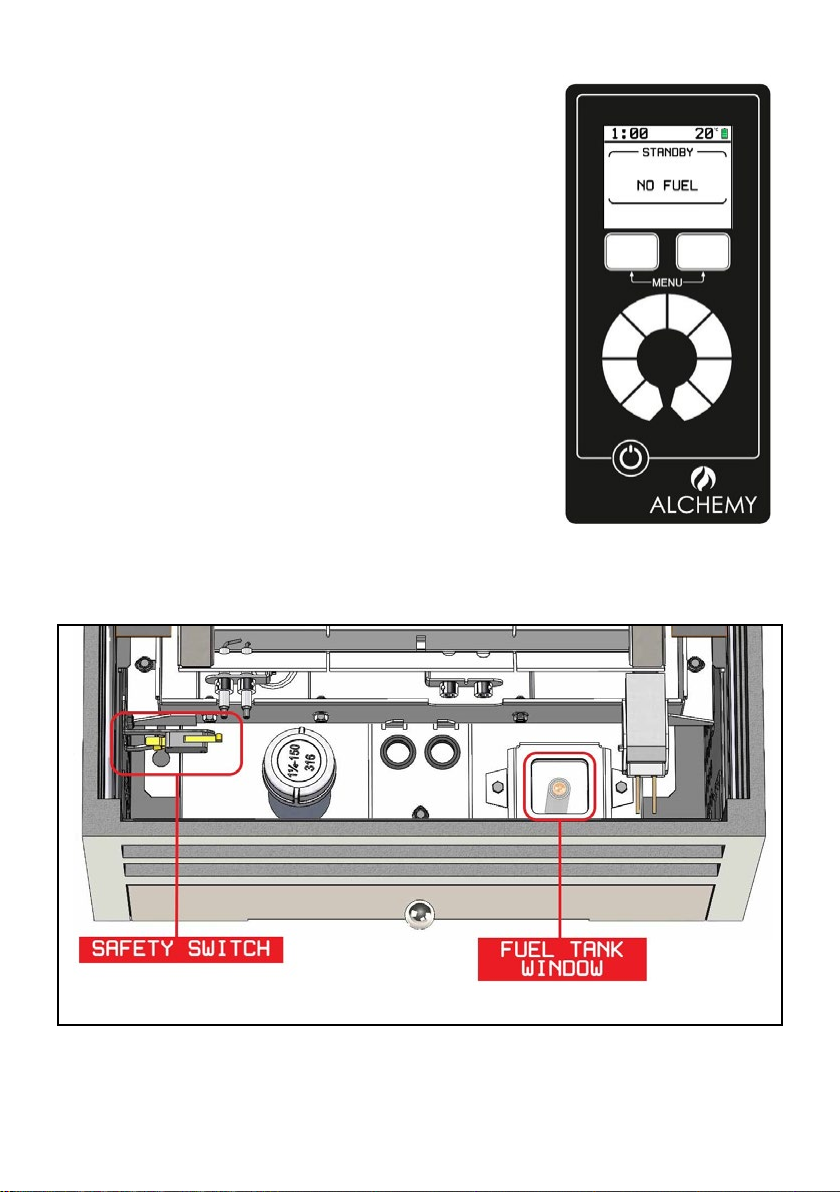

4.2 Out of Fuel Notication and Refuelling ......................... 17
5. Safety Systems ......................................................................... 18
5.1 Leak Detection Sensor .................................................. 18
5.2 Overow Detection Sensor ........................................... 18
5.3 Bioethanol Fuelling Detection Switch ........................... 18
6. Servicing ................................................................................... 19
6.1 Cleaning the Ceramic ................................................... 19
7. Technical Information ................................................................ 19
8. Troubleshooting ......................................................................... 20
Appendix
Appendix 1 – Remote Control (Optional Features) ............. 23
Appendix 2 – Pump Top Change Over ............................... 27
Appendix 3 – Dimensions and Spare Parts ........................ 29
4
1. Supplied and Optional Parts
5. Fuel Filling Funnel
1. Burner
2. Remote Control
3. RC Handset 4 x AAA Batteries
4. AC 220V -240V Mains Power Cable
5

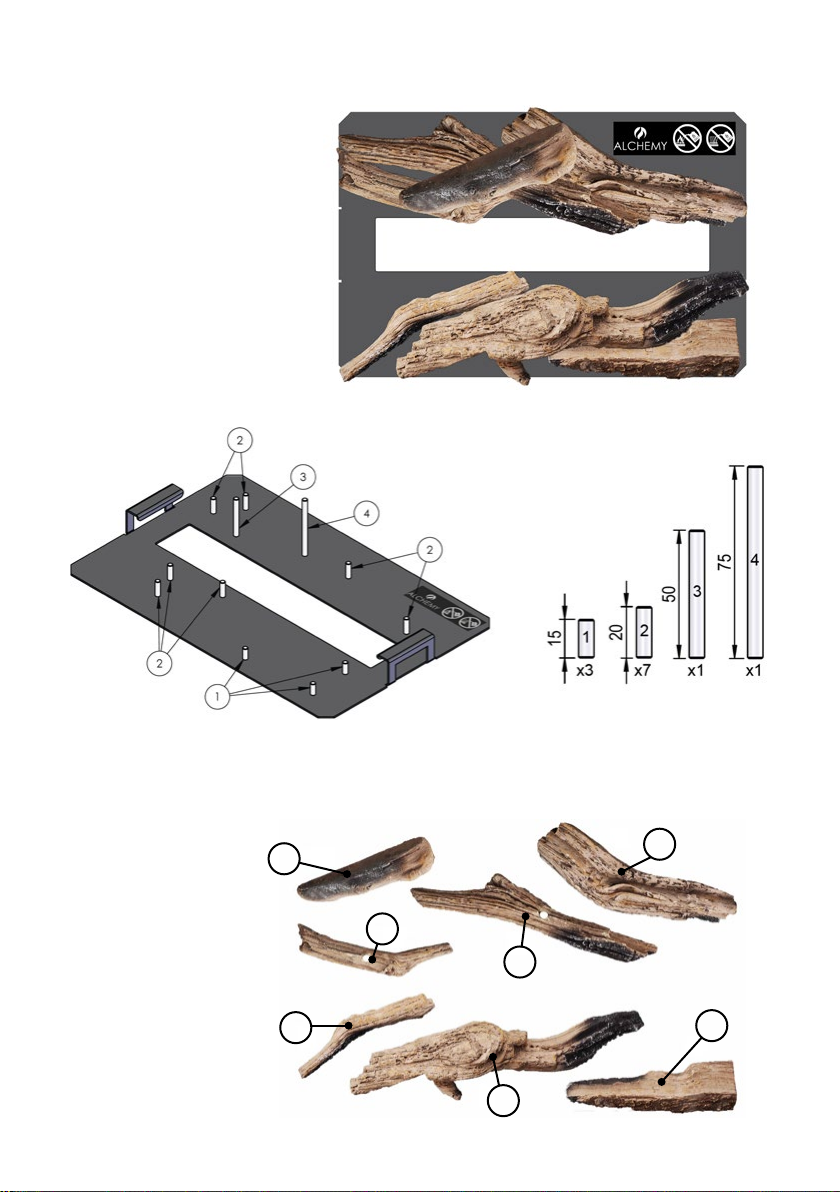

6. Log Plate and Logs Eect (Optional)
Complete Log set
Individual Logs
Log Plate showing pin locations.
A
B
C
D
E
F
G
6
Log Eect oer a more traditional nish to your FB Series. We only recommend the use of our
approved Log Eects to ensure a safe and inviting replace.
While using the optional fuel eects (ceramic logs), please ensure;
• The Log Eects are to be placed on the pins on the top pate as per diagram in the log and top
plate packaging instructions.
• The Log eect does not interact with the ames, this is important or the re will overheat and
damage.
• Do not put fuel on to the log eect.
• IMPORTANT – the log eect must only be place on the log plate, they must not be used
without and must not cover the burning area as this is dangerous and could cause the appliance
to over heat.

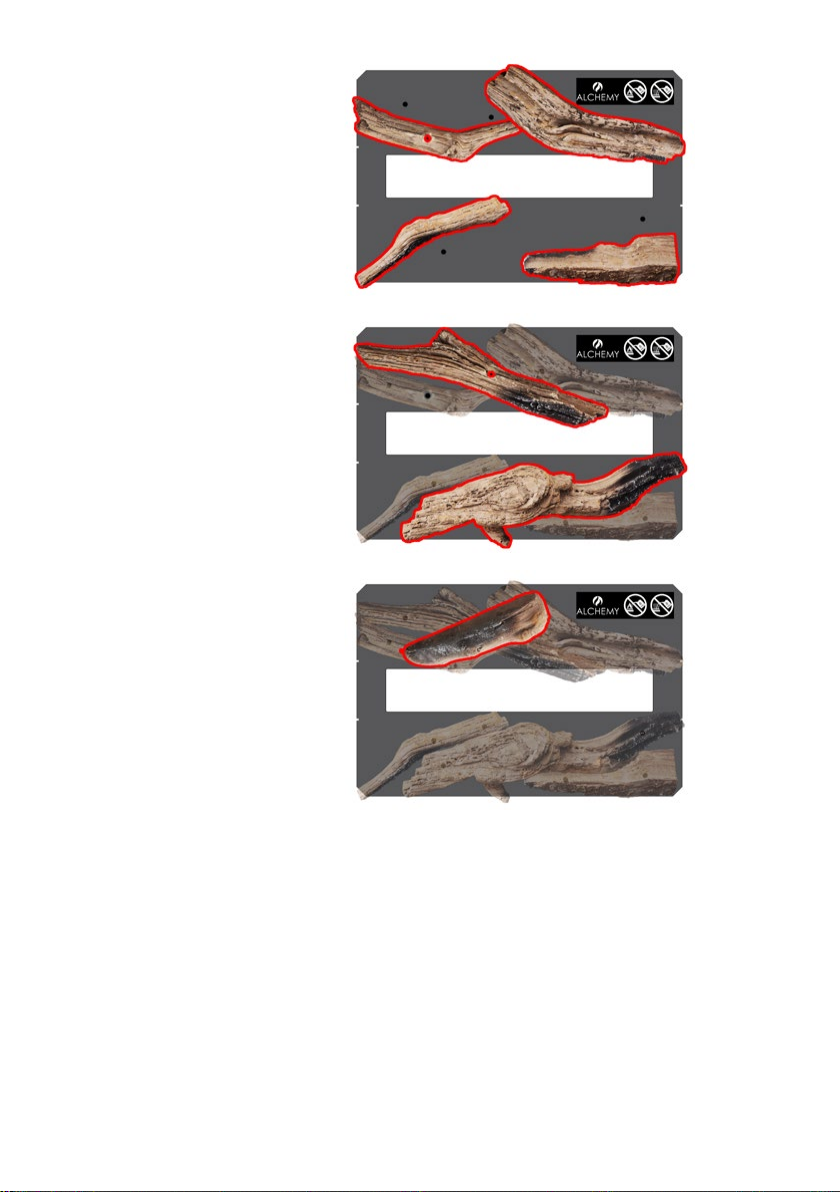

First layer of logs, A, C, F, G.
Place second layer of logs, B, E.
Last log making up third layer D.
7
2. Safety Information
Thank you for choosing an Alchemy Bioethanol replace, fully remote controlled.
Please read this manual carefully for correct Installation, use and maintenance of the replace
and familiarise yourself with the proper use of the product.
Operate the replace in accordance with the instructions provided, so you can fully enjoy the
product for many years.
The company reserves the right to make any product upgrades or improvement without prior
notice.
2.1 EXPLOSION/FIRE HAZARD
I. Use only approved Bioethanol fuel. Never use gasoline.
II. Shut unit o and allow to cool 30 minutes before refuelling. Flame may be dicult to see do not
assume unit is o.
III. Wipe up spills immediately with a dry cloth followed by a cloth dampened with
water. Allow to dry completely before lighting Burner.
IV. Do not operate in a room with oxygen tanks in use or if ammable vapours are
present.
V. Store fuel only in original container. Store away from area where the Fire is located at minimum
distance of 200cm. Transport and/or store fuel only in a plastic or metal container that is acceptable
for use with the fuel and non red in colour.
VI. Never smoke while refuelling or lighting the unit.
2.2 FIRE POSITIONING
I. Keep children and animals away from the re. Never leave children unsupervised when the re
is operating.
II. For decorative purposes only. Not suitable for continuous operation. Do not use the Fire to heat
or boil water or as a cooking appliance. Do not put wood, charcoal, paper or other combustible
objects in the Fire.
III. Do not place replace near windows or doors that can create draughts, this may cause irregular
operation.
2.3 VENTILATION
It is recommended that you keep a good ventilation of the area (see page 14), in order to ensure a
healthy level of oxygen and prevent the risk of indoor air pollution. Improper ventilation can cause
serious injury or death.
Bioethanol combustion releases carbon dioxide (CO2) and water (H2O). The combustion requires
oxygen, therefore the area where the replace is placed, should have adequate ventilation with
air bricks/vents or any other means, to allow for fresh air circulation.
8
2.4 FUELLING THE FIRE
I. This re uses Bioethanol fuel. Bioethanol is a ammable liquid. Store in original container away
from heat and sources of ignition. FOLLOW CONTAINER DIRECTIONS ON USE AND SAFETY
OF LIQUID FUEL.
II. Bioethanol is classied as a ammable liquid class 1B (for ammability) and class 3 PGII
(for transportation) and is regulated by various standards around the world. You must familiarise
yourself and comply with these regulations in order to safely and legally store, handle, decant and
use this fuel.
III. Use only approved Bioethanol fuel that contains 85%-95% Alcohol. Poor quality of fuel may
lead to undesirable results: reduction in reliability, incomplete and inecient combustion, smoke
and odours, residues inside the burner.
IV. Alchemy Ltd is not liable for any damage caused by using the incorrect type of fuel.
2.5 HOT SURFACE HAZARD
I. Due to high surface temperatures, keep children, pets, clothing and furniture away from the
replace, as the appliance is hot while in operation, contact with the re may cause skin burns.
II. After turning o the Burner the unit will be very hot and will stay hot for up to 30 minutes after
use. To avoid injury, do not touch with any parts of your body or with any combustible materials
such as matches or ammable liquids.
2.6 USING ACCESSORIES
I. Use only authorised accessories supplied by Alchemy Ltd.
II. NON-COMBUSTIBLE Pebbles, logs or other refractory decorative re accessories should not
be placed directly over the Burner mouth or interfere with the ame.
III. Do not use ttings or spare parts, other than those available from or recommended by Alchemy
Ltd
IT IS VERY IMPORTANT THAT THE AIR INLET GRILLES ON THE UNDERSIDE OF THE
APPLIANCE ARE NOT OBSTRUCTED.
ALWAYS UNPLUG FROM MAINS SUPPLY BEFORE CLEANING OR UNDERTAKING.
DO NOT POUR OVER LIVE FLAMES DO NOT FILL WHILE HOT
9
INSTALLATION GENERAL INFORMATION
Do
No
Do
Do
No
Do
only.
Do
It2
Installation
Do
Do
Do
• Reduction in reliability;
• Incomplete and inecient combustion;
• Smoke and odours;
• Residues inside the burner.
• Bioethanol is produced from renewable crops, which are environmentally friendly.
• The use of Bioethanol helps in the reduction of the CO2 emissions, therefore contributing for
the reduction of global warming;
• Improved performance of your FB Burner and no odour
• Use only liquid Bioethanol as fuel.
• Keep the fuel away from children and animals, as well as from a working replace;
• Avoid contact with eyes and skin;
• Do not drink Bioethanol and keep away from children.
• Bioethanol should be stored at a minimum distance of 100cm away from the replace;
• Use only Bioethanol, that contains 85%-95% Alcohol
We recommend the use of Alchemy Bioethanol fuel to get the best out of your FB Series.
10
USER INSTRUCTIONS
Your health and safety are paramount; therefore, we have taken all necessary consideration for
the design, production, assembly and transport to ensure a pleasing and excellent performance
for your Bioethanol re.
Please follow these instructions for assembly, use and maintenance as follow:
• Do not cover your replace burner when running or hot;
• Keep it away from ames, ignition sources, and ammable materials;
• Do not place the replace near windows or doors that can create draughts. These draughts may
cause irregular operation;
• Keep children, animals and the inrm away from the replace.
• In the event of spilled Bioethanol, please absorb it with a dry soft paper or cloth and avoid any
naked ame around.
• The replace gets hot during operation, avoid touching it for 10 minutes after the
ame is completely extinguished.
• Do not ll up the Fuel TANK while burner still hot, wait for it to cool down;
• Never pour Bioethanol over live ames;
• After turning o the ames wait at least 3 minutes before attempting to re-ignite;
• In case of uncontrolled ames, please use a re blanket or extinguisher.
• Do not use water to extinguish the re;
• After turning o the re, it will take a few seconds for the ames to completely go out;
• In the event that Bioethanol spelt out while lling up the tank, absorb and dry all parts before
ignition attempt;
• If you use “Fuel Eect” parts of any type then, do not place them on the ames
• The elements of construction above the device must be made of non-combustible materials.
• Do not ll appliance prior to installation.
11
3. Installation
INSTALLATION PARAMETERS
The oor must be level and the Burner positioned on a at surface; this can be perfected with
the adjustable feet. The Burner must only be placed on a non combustible surface and must be
installed in accordance with the outlined safety requirements and clearances.
The basket/ burner must be open and have free air on the front and sides in accordance with the
minimum opening sizes in g.1 and g.2. notably the minimum chamber dimensions are 750mm
wide x 750mm high x 350mm deep.
Ventilation must be around the burner to alleviate any heat build-up on the appliance and its
controls. Excessive heat build-up may cause the appliance to overheat and shut o.
Ensure the enclosure around the appliance is made from non-combustible materials. Any stud
work introduced must be non-combustible materials. Any voids within the breast are recommended
to be ventilated to prevent heat build-up with continuous use.
The Hearth must be within 1mm+/- of levelness to ensure even ame spread across the burner.
3.1 BURNER CLEARANCE
3.1.1 COMBUSTIBLE MATERIALS
• Do not place any kind of combustible materials near the replace, within 1000mm.
• Wood or plastic shelves should be at least at a distance of 1000mm from the replace.
• Non-Combustibles such as stone, metal or ceramics.
• Other non-combustibles such as glass.
Non-Combustible material: A material that does not react to heat.
• Any material which when tested to BS 476-11:1982 (2007) does not ame nor cause any rise
in temperature on the centre (specimen).
• Products classied as non-combustible in tests following the procedures in BS 476-4:1970
(2007).
• Any material classied as class A1 in accordance with BS EN 13501-1:2002 Fire classication
of construction products and building elements. Classication using data from reaction to re
tests.
PLEASE NOTE THAT TIME RATED PLASTER BOARDS OF ANY TYPE ARE NOT SUITABLE
BASED BOARDS RATED TO A1.
12
Ensure
13
DO NOT CONNECT TO MAINS SUPPLY UNTIL AFTER THE APPLIANCE IS SAFELY
INSTALLED.
14
3.3 VENTILATION
It is recommended that you keep a good ventilation of the area in order to ensure a healthy level
of oxygen, please see table below:
Alchemy FB18 Free air under burner (cm²) Minimum Room Size (m³)
50 25
To calculate the room size, measure the Height, length and width and multiply all measurements.
e.g. (L) 6.6m x (W) 3.8m x (H) 2.4m = 60.192m3
Bioethanol combustion releases carbon dioxide (CO2) and water (H2O). The combustion requires
oxygen, therefore the area where the replace is positioned, should have adequate ventilation
with air bricks/vents or any other means, to allow enough fresh air to ensure one room volume
change of air per hour.
While in operation this appliance emits heat, water vapour (H2O) and Carbon Dioxide (CO2),
therefore it is necessary to provide ventilation to the room of the appliance from an external space
as per Document F building regulations.
3.4 LEVELLING THE BURNER
When installing the Bioethanol Fire, level the complete re unit by using the tted adjustable legs.
If the ame does not run along the whole burner side to side while the setting is on high ame,
then it will be necessary to level the burner by adjusting the levelling grub screws.
• A 4mm hex screwdriver or long allen key and a spirit level is required for adjustment of grub
screws.
• If no ame or weaker ames on the left side: Turn the screws of the legs on the right hand side
clockwise from inside the box (to raise the right hand side). Re-ignite the appliance and check
again.
• If no ame or weaker ames on the right side: Turn the screw on the left hand side clockwise
from inside the box (to raise the left hand side). Re-ignite the appliance and check again.
• Repeat the procedure described above until the ames are reasonably level.
15
4.1 OPERATING REMOTE CONTROL AND TURNING ON BURNER
Make sure the remote is loaded
with batteries. Normally the
handset is already paired from
the factory however; if it requires
to be done again follow Pairing
Device instructions (see page
25).
I. Touch power button to awaken handset.
II. To TURN ON hold power button until red bar lls. The
screen will display PRIMING for about 30 seconds, followed
by FLAME.
III. When the ame has established the screen will display the
level of heating.
To INCREASE FLAME touch power button to awaken
handset and rotate touch dial clockwise.
To DECREASE FLAME touch power button to awaken
handset and rotate touch dial anti clockwise. There are 3
levels of ame.
IV. To TURN OFF, touch power button to awaken handset.
Hold power button until red bar lls, and handset once again
displays STANDBY.
16
Burner is priming when the glow
plug is heating up and the fuel starts
pumping out, as shown in the image.
Once the glow plug reaches required
temperature and reached by the fuel,
the ame will ignite.
17
4.3 OUT OF FUEL NOTIFICATION AND REFUELLING
When the tank is empty or does not have sucient amount of
bioethanol, a beep and message will appear on the display
screen. You will not be able to ll up the Fuel Tank while ame
is on, because removing top cover will trigger the safety
switch and will extinguish the ames. Following Fuelling
the Fire safety information (see page 8), the fuel tank can
be relled. Fuel level can be monitored by watching oating
orange ball rise through the fuel tank window as it is being
done.
IMPORTANT - when orange ball reaches window do not add
more fuel. It is recommended that provided funnel is used
lling up the tank to avoid spillage into the rebox.
In order to light the Bio Fire the top access panel must be
replaced in its position covering the fuel tank side.
18

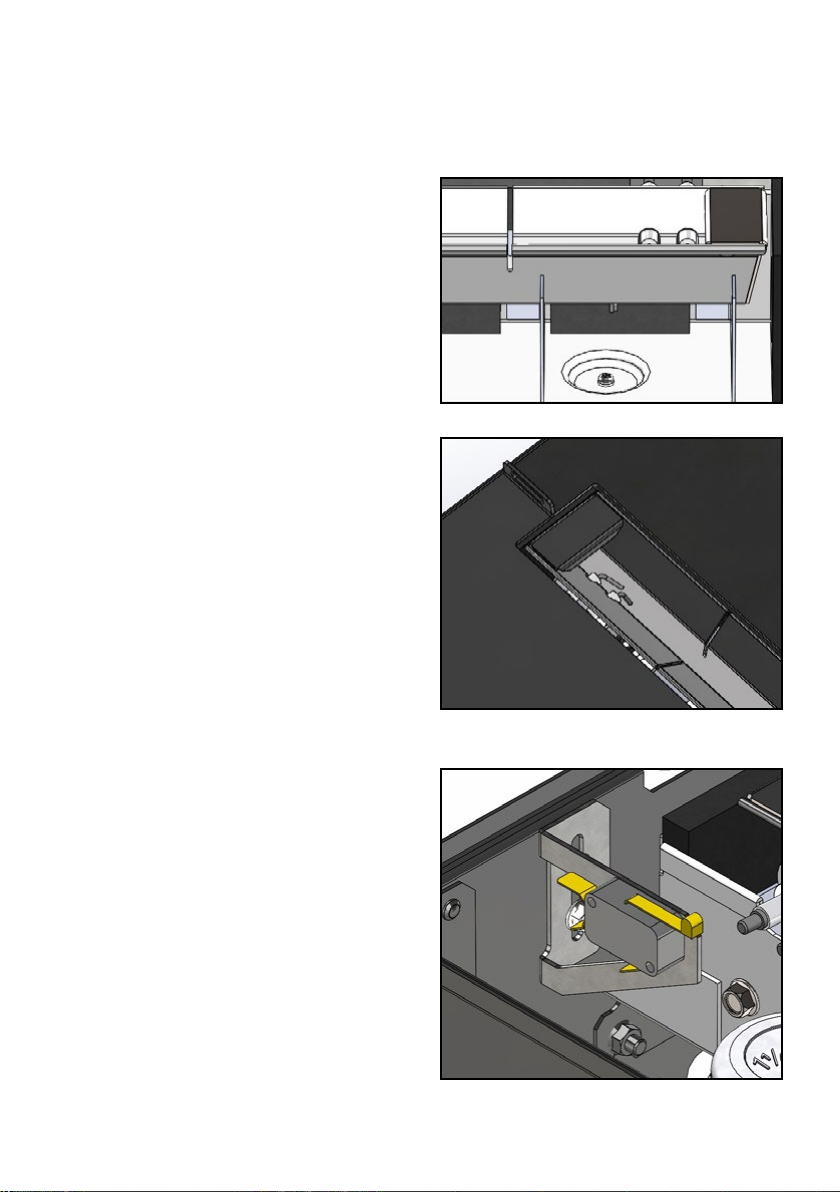

5. Safety Systems
The Alchemy Bioethanol range incorporates several safety systems to ensure a complete peace
of mind.
5.1 LEAK DETECTION SENSOR
The Bio Fires have a leak detection sensor
located underneath the burner on the lowest part
of the sump as per image showing the sensor
location. Thus, if there is a leak the re will turn
o itself. A strong beep will sound by the safety
system on appliance.
5.2 OVERFLOW DETECTION SENSOR
The Bio Fires have a leak detection sensor
located underneath the burner on the lowest part
of the sump as per image showing the sensor
location. Thus, if there is a leak the re will turn
o itself. A strong beep will sound by the safety
system on appliance.
5.3 BIOETHANOL FUELLING DETECTION
SWITCH
You will not be able to ll up the Fuel Tank while
the ame is on due to the safety Micro-switch.
Removing top access panel will trigger the switch
and extinguish the ames. A message ‘Lid Open’
will appear on your handset. In order to light the
Bio Fire you must replace the top access panel
in its position covering the fuel tank side.
19
Turn the appliance OFF and isolate the mains supply. Ensure the appliance is fully cold before
attempting to start servicing the appliance. No liability can be accepted by Alchemy Ltd for injury
caused by burning or scolding by a hot appliance.
A suggested procedure for servicing is listed below.
A. Lay out dust sheet on ooring, mask o any special replace materials.
B. Carefully remove the log plate with logs (if purchased with optional Log Plate).
C. Use a Vacuum cleaner to clean the top of the burner and metal top plate.
D. Remove metal top plate and wipe with a dust cloth.
E. Check fuel system inside the rebox for any damage or leaks.
F. Replace metal top plate or log plate.
G. Check the safe operation of the appliance.
6.1 CLEANING THE CERAMICS
Remove the ceramic top plate as detailed above.
Gently clean the ceramics in the open air, using a soft brush and a vacuum cleaner. Where
necessary replace damaged components only with genuine supplier specied parts. Seal any
scrap ceramics in plastic bags and dispose at proper refuse sites. When using a vacuum cleaner,
it is recommended that one with a HEPA ltering system is used.
Re-t the Fire bed arrangement and check the safe operation of the appliance.
It is recommended that the pump top is replaced biannually as part of the service (see
Appendix 2 on page 27).
Bioethanol Fire FB18
GROSS INPUT on High (Hs) (kW) 3.5
Ethanol Consumption on High (L/Hr) 0.4
GROSS INPUT on Low (Hs) (kW) 2
Ethanol Consumption on Low (L/Hr) 0.19
Fuel Tank Volume Capacity (L) 3.2
20
a. There may be waste burning that should not be in the Burner.
b. You are using the wrong fuel (it is essential that you ONLY use Bioethanol).
c. You have placed something around/above the ame that has not been approved or
recommended.
d. If the Burner is empty (the ame is dying) or you have just turned the re OFF, this is normal.
Like extinguishing candles.
e. The quality of Bioethanol you are using is not good enough.
SOLUTION
Turn the Burner OFF and wait until it cools down. Clean/service the Burner and remove objects/
waste. Contact your local distributor for fuel brand recommendation.
a. You have not put enough fuel in the Burner.
b. You have not used the right fuel (it is imperative that you ONLY use Bioethanol).
c. The Burner opening is obstructed, there needs to be adequate ventilation for the ame to start.
d. The Bioethanol is cold and takes time to ignite.
SOLUTION
Check -Stop Code – in the DEVICE menu on the handset for further guidance. Check fuel level by
inspection through the fuel tank window, check type of fuel used. Repeat starting procedure until
the Burner warms up and remains ignited.
Use the isolation switch to prevent the re turning ON. Keep people away from the area. Wipe
up spilt liquid thoroughly using a dry cloth, wipe again with a cloth dampened with water. Avoid
breathing vapours. Ventilate enclosed space by opening windows and doors. If fuel got spilled on
hands, wash thoroughly. ONLY ignite when the area is completely dry and you are certain that all
spilt fuel has been removed. Please refer to MSDS for Bioethanol.
This is likely to be caused by a strong draught blowing on the ame. Locate and remove the
source of the draught (it may be that you have a window/door open or fan operating that is directly
pushing air towards the re). If you cannot remove the source of the draught and the ame is too
volatile, turn the re OFF. You will need to rethink the positioning of your unit before operating
again or install a re screen to minimise the draught eect. Contact your distributor.
Table of contents
Other Chesney's Indoor Fireplace manuals
Chesney's
Chesney's CUBB18 Alchemy Operating instructions
Chesney's
Chesney's CUBB18 Alchemy Operating instructions
Chesney's
Chesney's Marble User manual
Chesney's
Chesney's EFB1200 Instruction Manual
Chesney's
Chesney's EFB1200 User manual
Chesney's
Chesney's Alchemy GFL850URN Operating instructions
Chesney's
Chesney's CUBB18 Alchemy Operating instructions
Chesney's
Chesney's EFB22 Instruction Manual
Chesney's
Chesney's The Bronze Urn Instruction Manual
Popular Indoor Fireplace manuals by other brands
Kingsman
Kingsman ZDV6000 installation instructions
Majestic fireplaces
Majestic fireplaces VF Collection UVS36 Specifications
FireplaceXtrordinair
FireplaceXtrordinair 864 See-Thru Brochure & specs
Canvas
Canvas HANOVER 064-4016-8 Assembly instructions
RAIS
RAIS attika Visio 2 Assembly instructions
Heatilator
Heatilator HB36A Installation & operation instructions
Valor
Valor Black Beauty Unigas II Installer's guide
Hearth & Home
Hearth & Home Outdoor Lifestyles ODCOUG-36NR installation manual
Cheminees Philippe
Cheminees Philippe RADIANTE 700 3V Installation & user manual
Remii
Remii WM-50-XS Assembly, installation and operation instructions
Uberhaus
Uberhaus W914F-35CRC user manual
DeLonghi
DeLonghi SAN MARCO LILAC Instructions for use
