Stuv 16-58 User manual

STÛV16-IN
INSTALLATION MANUAL
EN
Wall and floor
finishing
Stûv handle Chimney kit
Protective fabric or
cardboard
Ø4’’ clamping collar
and flexible duct
(option)
Black no. 10 x ½"
self-drilling screw
REQUIRED HARDWARE
7mm
3mm
8 mm
hex socket
7 mm
hex socket
No. 2
square bit
Torx 20 bit
10 mm
hex socket
5 mm
hex bit
Torx 25 bit
T25
5mm
10mm
Torx 30 bit
#2
T20
8mm
No. 2
Phillips bit
PH2
Wrench
REQUIRED TOOLS
Impact drillLevel
Knife with
retractable blade Measuring tape Crowbar
Flat screwdriver
Keep these instructions for future reference
REQUIRED MATERIAL

2
STÛV 16-IN
THIN EDGE FRAME
9310400021
PICTURE-TYPE FRAME
9310400020
AIR DAMPER
9310400019
This manual explains how to carry out a standard installation of a Stûv 16-cube
and 16-H unit. To install a frame or the air damper, certain particularities, which are
outlined in the additional manuals provided, must be followed as applicable. If the
appendices are missing, contact our customer service department and request
the manual(s) needed, mentioning the code under the icon(s) below.
Look for these symbols. They signal a change from the standard installation. It is
very important to look through the installation manual and the additional manuals
before getting started and to follow the instructions closely during installation to
ensure that no steps are omitted.
Keep all instruction manuals provided close at hand to have all the information
needed and to ensure proper and safe installation.
IMPORTANT
Before installing this Stûv unit, contact the local authorities and/or your
insurance company to obtain a building permit and inquire about all the
requirements that need to be met.
For information on all the applicable regulatory requirements, contact your
local fire department before starting the installation.
!
THANK YOU! APPENDICES
Thank you for choosing a Stûv wood-burning insert! It has been designed
to provide maximum pleasure, comfort and safety. The utmost care has
been taken in manufacturing this product. If, despite this, you still find a flaw,
please contact your dealer.

STÛV 16-IN 3
1. CERTIFICATION 4
1.1 Certification
1.2 Technical Characteristics
1.3 Marking Labels
1.4 Safety Instructions
2. COMPONENTS 8
2.1 List of Components
2.2 Air Intake Accessories
2.3 Frames
VISSERIE À PRÉVOIR
6. USE 34
7. MAINTENANCE 39
VISSERIE À PRÉVOIR
8. WARRANTY 45
6.1 Fuel Selection
6.2 Starting the Fire
6.3 Reloading the Fire
6.4 Ash Removal
7.1 Regular Maintenance
7.2 Replacing Components
7.3 Creosote and Chimney-Sweeping
8.1 Warranty Details
8.2 WarrantyForm
3. DIMENSIONS 13
3.1 Stûv 16-in Dimensions
3.2 Hearth Opening
3.3 Non-Combustible Materials
3.4 Risk Area
3.5 Air Supply
VISSERIE À PRÉVOIR
4. INSTALLATION 21
4.1 Unpacking
4.2 Base Plate and Connection
4.3 Removing the Door
4.4 Moving the Insert
4.5 Connecting to the Smoke Outlet
4.6 Finishing
4.7 Adjusting the Door
5. CHIMNEY 31
5.1 Dimensions and Certification
5.2 Typical Installation
TABLE OF CONTENTS
5
5
6
7
9
11
12
35
36
38
38
40
41
44
46
47
14
15
16
18
19
22
23
25
26
27
28
29
32
33

1
CERTIFICATION
1.1 CERTIFICATION ............................................................................................................................. 5
1.2 TECHNICAL SPECIFICATIONS .................................................................................................... 5
1.3 MARKING LABELS......................................................................................................................... 6
1.4 SAFETY INSTRUCTIONS .............................................................................................................. 7

5
1
CERTIFICATIONSTÛV 16-IN
.1 CERTIFICATION
Tested and certified by CSA
according to these standards:
ULC-S628-93 & UL 1482 - 7th Edition
CSA B415.1-10
16-58 in & 16-68 in EPA 2020 CRIB WOOD
16-78 in EPA 2015 CRIB WOOD
6" ou 7" LINER listed per:
UL 1777, ULC S-635 ou ULC S-640
!
STÛV 16-in 16-58 16-68 16-78
Average fine particle emission rate,
in g/h and g/MJ (output)
1.47 g/h
0.058 g/MJ 1.94 g/h 0.089 g/MJ 3.1 g/h 0.111 g/MJ
Fine particle emission rate in first hour,
in g/h (output) 2.49 g/h 4.37 g/h 5.63 g/h
Average efficiency of the appliance (%) 70.3% 61.6% 66.6%
Minimum heat output rate (BTU/h) 22 432* 24 080* 23 256*
Maximum heat output rate (BTU/h) 27 015* 24 818* 28 765*
Max. log length 17" 21" 25"
Stûv 16-in weight 180 lb. 205 lb. 228 lb.
Combustion chamber volume 1.59 pi31.94 pi32.19 pi3
Wood consumption⁄H 1.87 kg⁄h 2.12 kg⁄h 2.16 kg⁄h
Tested fuel Crib wood
.2 TECHNICAL SPECIFICATIONS
1
This wood heater must be installed in
accordance with standard CSA B365
(Canada) or N.F.P.A. 211 (United
States), the Installation Code for
Solid-Fuel-Burning Appliances and
Equipment, the applicable building
code and standards applicable to
the structure in which the insert will be
installed.
The instructions for the installation
of this wood heater comply with the
above-mentioned standards.They must
be closely followed to eliminate the risk
of serious problems.
This Stûv unit must be installed by
a qualified professional. Improper
installation could result in a fire.
To reduce the risk of fire, read this ma-
nual carefully before installing or using
the wood heater. If the installation ins-
tructions are not followed and the wood
heater is improperly installed, the risk of
incident increases. This can result in fire,
property damage, bodily injury and even
death.
Keep these instructions for future
reference.
This manual describes the installation and operation of the Stûv 16-in wood heater.
Models 16-58 and 16-68 meet the 2020 U.S. Environmental Protection Agency's
fine particle emission limits for wood heaters sold after May 15, 2020.
*Value calculated under specific test conditions (calculated according to standard
CSA B415.1). The results are calculated according to the wood's high calorific value.
Efficiency can be affected by the appliance's location in the building, the
geographic location, outdoor temperatures and the wood used. See the FUEL
SELECTION section for more information.
NOTE
We strongly recommend that our products be installed
and maintained by professionals certified by the
Association des Professionnels du Chauffage if you are
in Quebec or by Wood Energy Technical Training for the
rest of Canada, and by the National Insert Institute
in the United States.
USC
Energy Verified
US Energy Verified
16-78
16-58 & 16-68

6
1
CERTIFICATIONSTÛV 16-IN

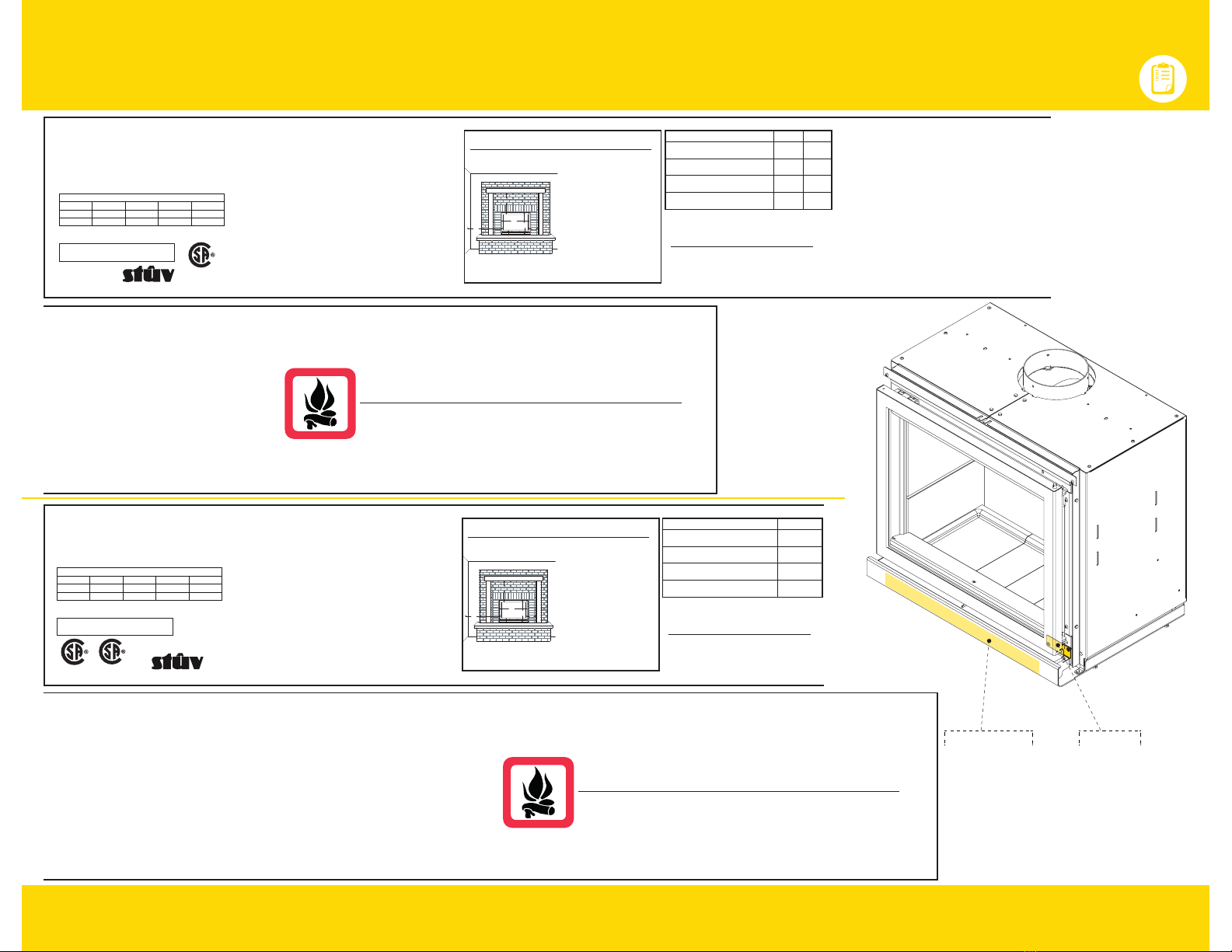

Serial
number
Marking
label
.3 MARKING LABELS
MODEL/MODÈLE :
STÛV 16-78 in
MANUFACTURED BY / FABRIQUÉ PAR :
STÛV AMERICA 34, Boul. de l'Aéroport
Bromont QC Canada J2L 1S6 [stuvamerica.com]
CERTIFIED AND CONFORMS TO / CERTIFIÉ CONFORMÉMENT SELON :
ULC-S628-93 & UL 1482 - 7th Edition, EPA 2015 CRIB WOOD, CSA B415.1-10
16-78 in : 3.1 G/H (B415.1-10)
LISTED FACTORY BUILT STOVE FOR USE IN CANADA AND THE U.S.A.
NOT SUITABLE FOR MOBILE HOME INSTALLATION
POÊLE PRÉ-FABRIQUÉ HOMOLOGUÉ POUR LE CANADA ET LES É-U.
NE PAS INSTALLER DANS UNE MAISON MOBILE
U.S. ENVIRONMENTAL PROTECTION AGENCY
Certified to comply with 2020 particulate emission standards for single burn rate heaters.
This single burn rate wood heater is not approved for use with a flue damper.
AGENCE DE PROTECTION DE L’ENVIRONNEMENT É-U
Conforme aux standards d’émissions pour foyers à combustion constante 2020. Ce foyer à
vitesse de combustion constante n’est pas approuvé pour utilisation avec un clapet de fumée.
CHIMNEY TYPE (See manual for appropriate choice)
Use rigid or flexible liner. Use only a 6 or 7 inches liner
listed per UL 1777; ULC S-635 or ULC S-640.
TYPE DE CHEMINÉE (Voir la notice d'installation pour les bons choix)
Utilisez une gaine rigide ou flexible. Utilisez seulement une gaine de 6 ou 7 pouces
certifiée selon les normes UL 1777; ULC S-635 ou ULC S-640.
- Fuel : Cord wood Only.
- This fireplace has been altered to accommodate a fireplace insert and should
be inspected by a qualified person prior to re-use as a conventional fireplace.
- Refer to local building code for heart extension dimensions. For safe operation
and in accordance to federal regulations follow the manufacturer's instructions.
- For safe operation and in accordance to federal regulations follow the
manufacturer's instructions.
- Replace glass only with Stûv's ceramic glass 4 mm thick.
- Do not operate unit with doors open and load on open fire door.
- Components used with fireplace must be listed. See owners manual.
- Contact your local building or fire officials about restrictions and installation
inspections in your area.
- Do not overfire - If stove or chimney connector glows, you are overfiring.
- Do not obstruct the combustion and convection air openings.
- Do not connect this unit to a chimney flue serving another appliance.
- Inspect and clean chimney frequently - Under certain conditions of use,
creosote buildup may occur rapidly.Inspect and repair wood heater for proper
operation
- Do not use grate or elevate fire. Build wood fire directly on hearth.
- This wood heater needs periodic inspection and repair for proper operation.
Consult the owner’s manual for further information. It is against federal
regulations to operate this wood heater in a manner inconsistent with the
operating instructions in the owner’s manual.
- CAUTION : Hot parts. Do not operate unit with damper removed.
- Combustible : Bois de corde seulement.
- Ce foyer a été équipé d’un insert récupérateur de chaleur et devra être inspecté par
une personne qualifiée pour être à nouveau utilisé comme un foyer conventionnel.
- Se référer au code du batiment local pour le prolongement de l'âtre.
- Pour un fonctionnement sécuritaire et conformément au règlements fédéraux, suivre
directives d’installation du fabricant.
- Remplacer le verre uniquement par un verre de céramique Stûv de 4 mm d'épaisseur.
- Ne pas utiliser l'appareil les portes ouvertes et charger seulement à feu ouvert.
- Les composantes utilisées dans l'appareil doivent être répertoriées. Voir la notice
d'utilisation.
- Communiquer avec les autorités locales en matière de construction ou d'incendie
pour connaître les restrictions et inspections d'installation dans votre région.
- Ne pas chauffer au point ou des parties deviennent rougeoyantes.
- Ne pas obstruer les ouvertures d'air de combustion et de convection.
- Ne pas relier cet appareil à un conduit de cheminée servant un autre appareil.
- Inspecter et nettoyer la cheminée fréquemment
- Dans certaines conditions d'utilisation, l’accumulation de créosote peut se faire
rapidement. Inspecter et réparer l’insert pour assurer le bon fonctionnement.
- Ne pas utiliser de chenet. Ne pas surélever le feu. Brûler le bois directement au fond
de l'âtre.
- Cet insert a besoin d'inspection et d'entretien périodiques pour sa bonne utilisation.
Consultez le manuel d'utilisation pour davantage d'informations. L'utilisation
contraire au manuel d'utilisation représente une violation de la loi fédérale.
- ATTENTION : Pièces chaudes. Ne pas faire fonctionner avec le clapet retiré.
PW9310302701_R4
! CAUTION - ATTENTION !
HOT WHILE IN OPERATION DO NOT TOUCH, KEEP CHILDREN,
CLOTHING AND FURNITURE AWAY. CONTACT MAY CAUSE
SKIN BURNS. SEE NAME-PLATE AND INSTRUCTIONS.
DO NOT REMOVE THIS LABEL / NE PAS RETIRER CETTE ÉTIQUETTE
CHAUD LORSQU’EN FONCTION. GARDER LES ENFANTS,
VÊTEMENTS ET MEUBLES HORS DE PORTÉE. TOUCHER
L’APPAREIL POURRAIT CAUSER DES BRÛLURES.
VOIR LA FICHE SIGNALÉTIQUE ET
INSTRUCTIONS.
The minimum clearances indicated bellow are from the glass and for all
types of combustible materials (e.g.: wood, drywall, etc.).
Les dégagements minimaux indiqués ci-dessous sont à partir de la vitre
et pour tous matériaux combustibles (ex. : bois, gypse, etc.).
For more details, consult the installation manual
Pour plus de détails, consulter la notice d'installation
A : 16-78 : 31 /"
B : 24 /"
C : 12"
D : 8"
E : 27" for 8" shelf or TV
27" pour une tablette de 8" ou TV
Floor protection / protection au sol :
G : 4 /" - 6 /" 2.56 R
G : 6 /" - 8 /" 1.29 R
G : 8 /" - 11 /" 0.28 R
G : 11 /" + (No R value / Sans facteur R)
Projection : 16" (USA) / 18" (Canada)
C
E
A
B
G
D
Check STÛV’s installation instructions for precautions
required for passing a chimney or chimney connector
through a combustible wall or ceiling and reference to
local building code for details
Se référer au code du bâtiment et aux instructions
STÛV avant de traverser le mur ou le plafond avec
votre conduit de cheminée.
MADE IN CANADA / FABRIQUÉ AU CANADA
STÛV 16 16-78
Average particulate emission rate (output)
Émission particules fines moyenne (sortie)
Average efficiency of the appliance (%)
Rendement moyen de l'appareil (%)
Minimum heat output rate (BTU/h)
Puissance minimum (BTU/h)
Maximum heat output rate (BTU/h)
Puissance maximum (BTU/h)
66.6%
23 256
28 765
3.1 g/h
0.111 g/MJ
DATE OF MANUFACTURE / DATE DE FABRICATION
2022
2023
2024
JAN
MAY
SEP
FEB
JUN
OCT
MAR
JUL
NOV
APR
AUG
DEC
US
STÛV 16 _ 000 000
LABEL NO. / NO. D’ÉTIQUETTE :
Energy Verified
MODEL/MODÈLE :
STÛV 16-78 in
MANUFACTURED BY / FABRIQUÉ PAR :
STÛV AMERICA 34, Boul. de l'Aéroport
Bromont QC Canada J2L 1S6 [stuvamerica.com]
CERTIFIED AND CONFORMS TO / CERTIFIÉ CONFORMÉMENT SELON :
ULC-S628-93 & UL 1482 - 7th Edition, EPA 2015 CRIB WOOD, CSA B415.1-10
16-78 in : 3.1 G/H (B415.1-10)
LISTED FACTORY BUILT STOVE FOR USE IN CANADA AND THE U.S.A.
NOT SUITABLE FOR MOBILE HOME INSTALLATION
POÊLE PRÉ-FABRIQUÉ HOMOLOGUÉ POUR LE CANADA ET LES É-U.
NE PAS INSTALLER DANS UNE MAISON MOBILE
U.S. ENVIRONMENTAL PROTECTION AGENCY
Certified to comply with 2020 particulate emission standards for single burn rate heaters.
This single burn rate wood heater is not approved for use with a flue damper.
AGENCE DE PROTECTION DE L’ENVIRONNEMENT É-U
Conforme aux standards d’émissions pour foyers à combustion constante 2020. Ce foyer à
vitesse de combustion constante n’est pas approuvé pour utilisation avec un clapet de fumée.
CHIMNEY TYPE (See manual for appropriate choice)
Use rigid or flexible liner. Use only a 6 or 7 inches liner
listed per UL 1777; ULC S-635 or ULC S-640.
TYPE DE CHEMINÉE (Voir la notice d'installation pour les bons choix)
Utilisez une gaine rigide ou flexible. Utilisez seulement une gaine de 6 ou 7 pouces
certifiée selon les normes UL 1777; ULC S-635 ou ULC S-640.
- Fuel : Cord wood Only.
- This fireplace has been altered to accommodate a fireplace insert and should
be inspected by a qualified person prior to re-use as a conventional fireplace.
- Refer to local building code for heart extension dimensions. For safe operation
and in accordance to federal regulations follow the manufacturer's instructions.
- For safe operation and in accordance to federal regulations follow the
manufacturer's instructions.
- Replace glass only with Stûv's ceramic glass 4 mm thick.
- Do not operate unit with doors open and load on open fire door.
- Components used with fireplace must be listed. See owners manual.
- Contact your local building or fire officials about restrictions and installation
inspections in your area.
- Do not overfire - If stove or chimney connector glows, you are overfiring.
- Do not obstruct the combustion and convection air openings.
- Do not connect this unit to a chimney flue serving another appliance.
- Inspect and clean chimney frequently - Under certain conditions of use,
creosote buildup may occur rapidly.Inspect and repair wood heater for proper
operation
- Do not use grate or elevate fire. Build wood fire directly on hearth.
- This wood heater needs periodic inspection and repair for proper operation.
Consult the owner’s manual for further information. It is against federal
regulations to operate this wood heater in a manner inconsistent with the
operating instructions in the owner’s manual.
- CAUTION : Hot parts. Do not operate unit with damper removed.
- Combustible : Bois de corde seulement.
- Ce foyer a été équipé d’un insert récupérateur de chaleur et devra être inspecté par
une personne qualifiée pour être à nouveau utilisé comme un foyer conventionnel.
- Se référer au code du batiment local pour le prolongement de l'âtre.
- Pour un fonctionnement sécuritaire et conformément au règlements fédéraux, suivre
directives d’installation du fabricant.
- Remplacer le verre uniquement par un verre de céramique Stûv de 4 mm d'épaisseur.
- Ne pas utiliser l'appareil les portes ouvertes et charger seulement à feu ouvert.
- Les composantes utilisées dans l'appareil doivent être répertoriées. Voir la notice
d'utilisation.
- Communiquer avec les autorités locales en matière de construction ou d'incendie
pour connaître les restrictions et inspections d'installation dans votre région.
- Ne pas chauffer au point ou des parties deviennent rougeoyantes.
- Ne pas obstruer les ouvertures d'air de combustion et de convection.
- Ne pas relier cet appareil à un conduit de cheminée servant un autre appareil.
- Inspecter et nettoyer la cheminée fréquemment
- Dans certaines conditions d'utilisation, l’accumulation de créosote peut se faire
rapidement. Inspecter et réparer l’insert pour assurer le bon fonctionnement.
- Ne pas utiliser de chenet. Ne pas surélever le feu. Brûler le bois directement au fond
de l'âtre.
- Cet insert a besoin d'inspection et d'entretien périodiques pour sa bonne utilisation.
Consultez le manuel d'utilisation pour davantage d'informations. L'utilisation
contraire au manuel d'utilisation représente une violation de la loi fédérale.
- ATTENTION : Pièces chaudes. Ne pas faire fonctionner avec le clapet retiré.
PW9310302701_R4
! CAUTION - ATTENTION !
HOT WHILE IN OPERATION DO NOT TOUCH, KEEP CHILDREN,
CLOTHING AND FURNITURE AWAY. CONTACT MAY CAUSE
SKIN BURNS. SEE NAME-PLATE AND INSTRUCTIONS.
DO NOT REMOVE THIS LABEL / NE PAS RETIRER CETTE ÉTIQUETTE
CHAUD LORSQU’EN FONCTION. GARDER LES ENFANTS,
VÊTEMENTS ET MEUBLES HORS DE PORTÉE. TOUCHER
L’APPAREIL POURRAIT CAUSER DES BRÛLURES.
VOIR LA FICHE SIGNALÉTIQUE ET
INSTRUCTIONS.
The minimum clearances indicated bellow are from the glass and for all
types of combustible materials (e.g.: wood, drywall, etc.).
Les dégagements minimaux indiqués ci-dessous sont à partir de la vitre
et pour tous matériaux combustibles (ex. : bois, gypse, etc.).
For more details, consult the installation manual
Pour plus de détails, consulter la notice d'installation
A : 16-78 : 31 /"
B : 24 /"
C : 12"
D : 8"
E : 27" for 8" shelf or TV
27" pour une tablette de 8" ou TV
Floor protection / protection au sol :
G : 4 /" - 6 /" 2.56 R
G : 6 /" - 8 /" 1.29 R
G : 8 /" - 11 /" 0.28 R
G : 11 /" + (No R value / Sans facteur R)
Projection : 16" (USA) / 18" (Canada)
C
E
A
B
G
D
Check STÛV’s installation instructions for precautions
required for passing a chimney or chimney connector
through a combustible wall or ceiling and reference to
local building code for details
Se référer au code du bâtiment et aux instructions
STÛV avant de traverser le mur ou le plafond avec
votre conduit de cheminée.
MADE IN CANADA / FABRIQUÉ AU CANADA
STÛV 16 16-78
Average particulate emission rate (output)
Émission particules fines moyenne (sortie)
Average efficiency of the appliance (%)
Rendement moyen de l'appareil (%)
Minimum heat output rate (BTU/h)
Puissance minimum (BTU/h)
Maximum heat output rate (BTU/h)
Puissance maximum (BTU/h)
66.6%
23 256
28 765
3.1 g/h
0.111 g/MJ
DATE OF MANUFACTURE / DATE DE FABRICATION
2022
2023
2024
JAN
MAY
SEP
FEB
JUN
OCT
MAR
JUL
NOV
APR
AUG
DEC
US
STÛV 16 _ 000 000
LABEL NO. / NO. D’ÉTIQUETTE :
Energy Verified
MODELS/MODÈLES :
STÛV 16-58 in, 16-68 in
MANUFACTURED BY / FABRIQUÉ PAR :
STÛV AMERICA 34, Boul. de l'Aéroport
Bromont QC Canada J2L 1S6 [stuvamerica.com]
DATE OF MANUFACTURE / DATE DE FABRICATION
JAN
MAY
SEP
FEB
JUN
OCT
MAR
JUL
NOV
APR
AUG
DEC
PW9310302702_R4
STÛV 16 _ 000 000
LABEL NO. / NO. D’ÉTIQUETTE :
CERTIFIED AND CONFORMS TO / CERTIFIÉ CONFORMÉMENT SELON :
ULC-S628-93 & UL 1482 - 7th Edition, CSA B415.1-10, EPA 2020 CRIB WOOD
16-58 in : 1.47 G/H (EPA 2020) | 16-68 in : 1.94 G/H (EPA 2020)
LISTED FACTORY BUILT STOVE FOR USE IN CANADA AND THE U.S.A.
NOT SUITABLE FOR MOBILE HOME INSTALLATION
POÊLE PRÉ-FABRIQUÉ HOMOLOGUÉ POUR LE CANADA ET LES É-U.
NE PAS INSTALLER DANS UNE MAISON MOBILE
U.S. ENVIRONMENTAL PROTECTION AGENCY
Certified to comply with 2020 particulate emission standards for single burn rate heaters.
This single burn rate wood heater is not approved for use with a flue damper.
AGENCE DE PROTECTION DE L’ENVIRONNEMENT É-U
Conforme aux standards d’émissions pour foyers à combustion constante 2020. Ce foyer à
vitesse de combustion constante n’est pas approuvé pour utilisation avec un clapet de fumée.
CHIMNEY TYPE (See manual for appropriate choice)
Use rigid or flexible liner. Use only a 6 or 7 inches liner listed
per UL 1777; ULC S-635 ou ULC S-640.
TYPE DE CHEMINÉE (Voir la notice d'installation pour les bons choix)
Utilisez une gaine rigide ou flexible. Utilisez seulement une gaine de 6 ou 7 pouces
certifiée selon les normes UL 1777; ULC S-635 ou ULC S-640.
- Fuel : Cord wood Only.
- This fireplace has been altered to accommodate a fireplace insert and should
be inspected by a qualified person prior to re-use as a conventional fireplace.
- Refer to local building code for heart extension dimensions. For safe operation
and in accordance to federal regulations follow the manufacturer's instructions.
- For safe operation and in accordance to federal regulations follow the
manufacturer's instructions.
- Replace glass only with Stûv's ceramic glass 4 mm thick.
- Do not operate unit with doors open and load on open fire door.
- Components used with fireplace must be listed. See owners manual.
- Contact your local building or fire officials about restrictions and installation
inspections in your area.
- Do not overfire - If stove or chimney connector glows, you are overfiring.
- Do not obstruct the combustion and convection air openings.
- Do not connect this unit to a chimney flue serving another appliance.
- Inspect and clean chimney frequently - Under certain conditions of use,
creosote buildup may occur rapidly.Inspect and repair wood heater for proper
operation
- Do not use grate or elevate fire. Build wood fire directly on hearth.
- This wood heater needs periodic inspection and repair for proper operation.
Consult the owner’s manual for further information. It is against federal
regulations to operate this wood heater in a manner inconsistent with the
operating instructions in the owner’s manual.
- CAUTION : Hot parts. Do not operate unit with damper removed.
- Combustible : Bois de corde seulement.
- Ce foyer a été équipé d’un insert récupérateur de chaleur et devra être inspecté par
une personne qualifiée pour être à nouveau utilisé comme un foyer conventionnel.
- Se référer au code du batiment local pour le prolongement de l'âtre.
- Pour un fonctionnement sécuritaire et conformément au règlements fédéraux, suivre
directives d’installation du fabricant.
- Remplacer le verre uniquement par un verre de céramique Stûv de 4 mm d'épaisseur.
- Ne pas utiliser l'appareil les portes ouvertes et charger seulement à feu ouvert.
- Les composantes utilisées dans l'appareil doivent être répertoriées. Voir la notice
d'utilisation.
- Communiquer avec les autorités locales en matière de construction ou d'incendie
pour connaître les restrictions et inspections d'installation dans votre région.
- Ne pas chauffer au point ou des parties deviennent rougeoyantes.
- Ne pas obstruer les ouvertures d'air de combustion et de convection.
- Ne pas relier cet appareil à un conduit de cheminée servant un autre appareil.
- Inspecter et nettoyer la cheminée fréquemment
- Dans certaines conditions d'utilisation, l’accumulation de créosote peut se faire
rapidement. Inspecter et réparer l’insert pour assurer le bon fonctionnement.
- Ne pas utiliser de chenet. Ne pas surélever le feu. Brûler le bois directement au fond
de l'âtre.
- Cet insert a besoin d'inspection et d'entretien périodiques pour sa bonne utilisation.
Consultez le manuel d'utilisation pour davantage d'informations. L'utilisation
contraire au manuel d'utilisation représente une violation de la loi fédérale.
- ATTENTION : Pièces chaudes. Ne pas faire fonctionner avec le clapet retiré.
! CAUTION - ATTENTION !
HOT WHILE IN OPERATION DO NOT TOUCH, KEEP CHILDREN,
CLOTHING AND FURNITURE AWAY. CONTACT MAY CAUSE
SKIN BURNS. SEE NAME-PLATE AND INSTRUCTIONS.
DO NOT REMOVE THIS LABEL / NE PAS RETIRER CETTE ÉTIQUETTE
CHAUD LORSQU’EN FONCTION. GARDER LES ENFANTS,
VÊTEMENTS ET MEUBLES HORS DE PORTÉE. TOUCHER
L’APPAREIL POURRAIT CAUSER DES BRÛLURES.
VOIR LA FICHE SIGNALÉTIQUE ET
INSTRUCTIONS.
The minimum clearances indicated bellow are from the glass and for all
types of combustible materials (e.g.: wood, drywall, etc.).
Les dégagements minimaux indiqués ci-dessous sont à partir de la vitre
et pour tous matériaux combustibles (ex. : bois, gypse, etc.).
For more details, consult the installation manual
Pour plus de détails, consulter la notice d'installation
A : 16-58 : 23 /" 16-68 : 27 /"
B : 24 /"
C : 12"
D : 8"
E : 27" for 8" shelf or TV
27" pour une tablette de 8" ou TV
Floor protection / protection au sol :
G : 4 /" - 6 /" 2.56 R
G : 6 /" - 8 /" 1.29 R
G : 8 /" - 11 /" 0.28 R
G : 11 /" + (No R value / Sans facteur R)
Projection : 16" (USA) / 18" (Canada)
C
E
A
B
G
D
Check STÛV’s installation instructions for precautions
required for passing a chimney or chimney connector
through a combustible wall or ceiling and reference to
local building code for details
Se référer au code du bâtiment et aux instructions
STÛV avant de traverser le mur ou le plafond avec
votre conduit de cheminée.
MADE IN CANADA / FABRIQUÉ AU CANADA
USC
Energy Verified
STÛV 16 16-58 16-68
Average particulate emission rate (output)
Émission particules fines moyenne (sortie)
Average efficiency of the appliance (%)
Rendement moyen de l'appareil (%)
Minimum heat output rate (BTU/h)
Puissance minimum (BTU/h)
Maximum heat output rate (BTU/h)
Puissance maximum (BTU/h)
61.6%
24 080
24 818
70.3%
22 432
27 015
1.47 g/h
0.058g/MJ
1.94 g/h
0.089g/MJ
2022
2023
2024
MODELS/MODÈLES :
STÛV 16-58 in, 16-68 in
MANUFACTURED BY / FABRIQUÉ PAR :
STÛV AMERICA 34, Boul. de l'Aéroport
Bromont QC Canada J2L 1S6 [stuvamerica.com]
DATE OF MANUFACTURE / DATE DE FABRICATION
JAN
MAY
SEP
FEB
JUN
OCT
MAR
JUL
NOV
APR
AUG
DEC
PW9310302702_R4
STÛV 16 _ 000 000
LABEL NO. / NO. D’ÉTIQUETTE :
CERTIFIED AND CONFORMS TO / CERTIFIÉ CONFORMÉMENT SELON :
ULC-S628-93 & UL 1482 - 7th Edition, CSA B415.1-10, EPA 2020 CRIB WOOD
16-58 in : 1.47 G/H (EPA 2020) | 16-68 in : 1.94 G/H (EPA 2020)
LISTED FACTORY BUILT STOVE FOR USE IN CANADA AND THE U.S.A.
NOT SUITABLE FOR MOBILE HOME INSTALLATION
POÊLE PRÉ-FABRIQUÉ HOMOLOGUÉ POUR LE CANADA ET LES É-U.
NE PAS INSTALLER DANS UNE MAISON MOBILE
U.S. ENVIRONMENTAL PROTECTION AGENCY
Certified to comply with 2020 particulate emission standards for single burn rate heaters.
This single burn rate wood heater is not approved for use with a flue damper.
AGENCE DE PROTECTION DE L’ENVIRONNEMENT É-U
Conforme aux standards d’émissions pour foyers à combustion constante 2020. Ce foyer à
vitesse de combustion constante n’est pas approuvé pour utilisation avec un clapet de fumée.
CHIMNEY TYPE (See manual for appropriate choice)
Use rigid or flexible liner. Use only a 6 or 7 inches liner listed
per UL 1777; ULC S-635 ou ULC S-640.
TYPE DE CHEMINÉE (Voir la notice d'installation pour les bons choix)
Utilisez une gaine rigide ou flexible. Utilisez seulement une gaine de 6 ou 7 pouces
certifiée selon les normes UL 1777; ULC S-635 ou ULC S-640.
- Fuel : Cord wood Only.
- This fireplace has been altered to accommodate a fireplace insert and should
be inspected by a qualified person prior to re-use as a conventional fireplace.
- Refer to local building code for heart extension dimensions. For safe operation
and in accordance to federal regulations follow the manufacturer's instructions.
- For safe operation and in accordance to federal regulations follow the
manufacturer's instructions.
- Replace glass only with Stûv's ceramic glass 4 mm thick.
- Do not operate unit with doors open and load on open fire door.
- Components used with fireplace must be listed. See owners manual.
- Contact your local building or fire officials about restrictions and installation
inspections in your area.
- Do not overfire - If stove or chimney connector glows, you are overfiring.
- Do not obstruct the combustion and convection air openings.
- Do not connect this unit to a chimney flue serving another appliance.
- Inspect and clean chimney frequently - Under certain conditions of use,
creosote buildup may occur rapidly.Inspect and repair wood heater for proper
operation
- Do not use grate or elevate fire. Build wood fire directly on hearth.
- This wood heater needs periodic inspection and repair for proper operation.
Consult the owner’s manual for further information. It is against federal
regulations to operate this wood heater in a manner inconsistent with the
operating instructions in the owner’s manual.
- CAUTION : Hot parts. Do not operate unit with damper removed.
- Combustible : Bois de corde seulement.
- Ce foyer a été équipé d’un insert récupérateur de chaleur et devra être inspecté par
une personne qualifiée pour être à nouveau utilisé comme un foyer conventionnel.
- Se référer au code du batiment local pour le prolongement de l'âtre.
- Pour un fonctionnement sécuritaire et conformément au règlements fédéraux, suivre
directives d’installation du fabricant.
- Remplacer le verre uniquement par un verre de céramique Stûv de 4 mm d'épaisseur.
- Ne pas utiliser l'appareil les portes ouvertes et charger seulement à feu ouvert.
- Les composantes utilisées dans l'appareil doivent être répertoriées. Voir la notice
d'utilisation.
- Communiquer avec les autorités locales en matière de construction ou d'incendie
pour connaître les restrictions et inspections d'installation dans votre région.
- Ne pas chauffer au point ou des parties deviennent rougeoyantes.
- Ne pas obstruer les ouvertures d'air de combustion et de convection.
- Ne pas relier cet appareil à un conduit de cheminée servant un autre appareil.
- Inspecter et nettoyer la cheminée fréquemment
- Dans certaines conditions d'utilisation, l’accumulation de créosote peut se faire
rapidement. Inspecter et réparer l’insert pour assurer le bon fonctionnement.
- Ne pas utiliser de chenet. Ne pas surélever le feu. Brûler le bois directement au fond
de l'âtre.
- Cet insert a besoin d'inspection et d'entretien périodiques pour sa bonne utilisation.
Consultez le manuel d'utilisation pour davantage d'informations. L'utilisation
contraire au manuel d'utilisation représente une violation de la loi fédérale.
- ATTENTION : Pièces chaudes. Ne pas faire fonctionner avec le clapet retiré.
! CAUTION - ATTENTION !
HOT WHILE IN OPERATION DO NOT TOUCH, KEEP CHILDREN,
CLOTHING AND FURNITURE AWAY. CONTACT MAY CAUSE
SKIN BURNS. SEE NAME-PLATE AND INSTRUCTIONS.
DO NOT REMOVE THIS LABEL / NE PAS RETIRER CETTE ÉTIQUETTE
CHAUD LORSQU’EN FONCTION. GARDER LES ENFANTS,
VÊTEMENTS ET MEUBLES HORS DE PORTÉE. TOUCHER
L’APPAREIL POURRAIT CAUSER DES BRÛLURES.
VOIR LA FICHE SIGNALÉTIQUE ET
INSTRUCTIONS.
The minimum clearances indicated bellow are from the glass and for all
types of combustible materials (e.g.: wood, drywall, etc.).
Les dégagements minimaux indiqués ci-dessous sont à partir de la vitre
et pour tous matériaux combustibles (ex. : bois, gypse, etc.).
For more details, consult the installation manual
Pour plus de détails, consulter la notice d'installation
A : 16-58 : 23 /" 16-68 : 27 /"
B : 24 /"
C : 12"
D : 8"
E : 27" for 8" shelf or TV
27" pour une tablette de 8" ou TV
Floor protection / protection au sol :
G : 4 /" - 6 /" 2.56 R
G : 6 /" - 8 /" 1.29 R
G : 8 /" - 11 /" 0.28 R
G : 11 /" + (No R value / Sans facteur R)
Projection : 16" (USA) / 18" (Canada)
C
E
A
B
G
D
Check STÛV’s installation instructions for precautions
required for passing a chimney or chimney connector
through a combustible wall or ceiling and reference to
local building code for details
Se référer au code du bâtiment et aux instructions
STÛV avant de traverser le mur ou le plafond avec
votre conduit de cheminée.
MADE IN CANADA / FABRIQUÉ AU CANADA
USC
Energy Verified
STÛV 16 16-58 16-68
Average particulate emission rate (output)
Émission particules fines moyenne (sortie)
Average efficiency of the appliance (%)
Rendement moyen de l'appareil (%)
Minimum heat output rate (BTU/h)
Puissance minimum (BTU/h)
Maximum heat output rate (BTU/h)
Puissance maximum (BTU/h)
61.6%
24 080
24 818
70.3%
22 432
27 015
1.47 g/h
0.058g/MJ
1.94 g/h
0.089g/MJ
2022
2023
2024

7
1
CERTIFICATIONSTÛV 16-IN
1. It is essential that this Stûv be installed by a qualified professional. For information
on all the applicable regulatory requirements, contact the local fire department
before beginning the work.
2. The instructions for the installation of this unit comply with the aforementioned
standards. They must be closely followed to eliminate the risk of serious
problems. Any use contrary to the installation manual is a violation of federal
law.
3. Improper installation of this Stûv unit could result in a fire.To reduce the risk of fire,
follow the installation instructions to the letter. Failure to follow the instructions in
this manual may result in property damage, bodily injury and even death.
4. Any modifications made to this unit may pose a hazard and will void the
warranty. Should repairs be necessary, use only Stûv replacement parts.
5. Combustible materials such as firewood, wet clothing, etc. placed too close to
the unit could catch fire. Objects placed in front of the unit must be kept at a
distance of at least 48’’ (4’) from the unit’s glass face.
6. We recommend storing solid fuel in a clean, dry place. Do not place this type of
fuel within the risk area or in the loading/ash removal area.
7. Do not operate this appliance with the door open.
8. Never leave the insert unattended when the door is open. Always close the
door after the ignition period.
9. Do not burn garbage, plastic, petroleum-based products, gasoline, rubber,
industrial solvents, flammable liquids like naphtha and motor oil, paper,
cardboard, wood extracted from salt water and dried, painted wood or any
substance that emits dense fumes and strong odours.
10. Do not overfire the unit. Raising the temperature outside of the combustion
chamber can result in a chimney fire.
11. Never use chemicals or other liquids such as gasoline, gasoline-based lantern
fuel, kerosene, charcoal lighter fluid or similar liquids to start or fuel a fire in the
insert. Keep all such liquids away from the unit while it is in operation.
12. Make sure the home is equipped with a smoke and carbon monoxide monitor
kept near the insert to prevent carbon monoxide poisoning. We recommend
keeping a type A or ABC fire extinguisher on hand in the event of a chimney fire.
13. Do not connect this appliance to a chimney pipe serving another appliance, or
to a hot air distribution system.
14. This unit is hot when in use. Keep children, pets, clothing and furniture at a safe
distance. Touching the appliance while it is in operation may cause burns.
15. Some parts of the insert can be very hot when operated at rated capacity. Do
not allow the insert to heat to the point where parts become red.
16. Do not use a grate or other method to elevate the fuel. Burn firewood directly
on the firebricks. Do not elevate the fire.
17. This appliance needs periodic inspections and maintenance for proper
operation (minimum twice during the heating season).
18. Conduct regular maintenance of the insert as previously recommended.
19. Do not install this unit in a mobile home or in a transportable building.
20. The air inlets and outlets must remain unobstructed at all times.
21. The installation of the unit must comply with all local and national regulations.
22. Inspect and sweep the chimney frequently to ensure that it is in good condition.
Creosote can build up quickly in certain operating conditions. Inspect and
repair the chimney pipe as needed to ensure proper operation
23. This wood heater has a manufacturer-set minimum low burn rate that must
not be altered. It is against federal regulations to alter this setting or otherwise
operate this wood heater in a manner inconsistent with operating instructions
in this manual.
1.4 SAFETY INSTRUCTIONS
!
IMPORTANT
This Stûv appliance must be registered to be covered by the warranty.
Please refer to the last section of this document for guidance.
The self-adhesive marking label is located in the back of the flap and
the riveted label with the serial number is located under the door, on the
combustion chamber. They contain all the information needed to register
this product. See previous page.
WARNING
!

2
COMPOSANTS
2.1 LIST OF COMPONENTS ............................................................................................................... 9
2.2 AIR INTAKE ACCESSORIES ....................................................................................................... 11
2.3 FRAMES ....................................................................................................................................... 12

9
2
COMPONENTSSTÛV 16-IN
.1 LIST OF COMPONENTS
Option
7
4
10
11
12
1
2
3
Included
9
13
8
6
5

10
2
COMPONENTSSTÛV 16-IN
.1 LIST OF COMPONENTS
16-58 IN FW1011601200 16-68 IN FW1011601300
16-78 IN FW1011601400 ACCESSORIES
# DESCRIPTION PRODUCT
CODE
INCLUDED
OR OPTION QTY
9Stûv 16-in outside air intake
connector AW1200200500 Option
1
10 Stûv 16-in outside air intake
connector with 90° bend AW1200202900 Option
11 Outside air kit AW1200200001 Option 1
12 4"air damper AW1200100300 Option 1
13 Ø 7" chimney adaptor AW1200500800 Option 1
# DESCRIPTION PRODUCT
CODE
INCLUDED
OR OPTION QTY
1 Insert N/A Included 1
2 Flap PW1499762402 Included 1
3 Base plate PW1499721100 Included 1
4 Leveling feet PW1499700008 Included 4
5 Thin edge frame AW1300411700
Required
option 1
6 Picture type frame 2" AW1300411400
7 Picture type frame 4" AW1300411401
8 Picture type frame 6" AW1300411402
# DESCRIPTION PRODUCT
CODE
INCLUDED
OR OPTION QTY
1 Insert N/A Included 1
2 Flap PW1499762502 Included 1
3 Base plate PW1499723500 Included 1
4 Leveling feet PW1499700008 Included 4
5 Thin edge frame AW1300411800
Required
option 1
6 Picture type frame 2" AW1300411500
7 Picture type frame 4" AW1300411501
8 Picture type frame 6" AW1300411502
# DESCRIPTION PRODUCT
CODE
INCLUDED
OR OPTION QTY
1 Insert N/A Inclus 1
2 Flap PW1499762602 Inclus 1
3 Base plate PW1499725900 Inclus 1
4 Leveling feet PW1499700008 Inclus 4
5 Thin edge frame AW1300411900
Required
option 1
6 Picture type frame 2" AW1300411600
7 Picture type frame 4" AW1300411601
8 Picture type frame 6" AW1300411602

11
2
COMPONENTSSTÛV 16-IN
OUTSIDE AIR KIT
Follow the instructions provided with the air damper.
Ø4"
Installation p.24 Follow the instructions provided with the air damper.
CONNECTORS (STÛV 16-Z) For outside air intake AIR DAMPER For outside air intake
WIRE
4’
THREADED ROD
M10 x 3 ½’’
HANDLE
1’’ x ⁄’’
NUT
M10
WASHER
M10
FINISHING WASHER
M5 int.
Ø
4"
4"
5’’
.2 AIR INTAKE ACCESSORIES

12
2
COMPONENTSSTÛV 16-IN
THIN EDGE FRAME PICTURE TYPE FRAME
2" | 4" | 6"
27 "
A
1 " to 2 "
"
1 "
A
3 "
0,1345"
23 "
2" CODE A
16-58 AW1300411400 26 "
16-68 AW1300411500 30 "
16-78 AW1300411600 34 "
4" CODE A
16-58 AW1300411401 30 "
16-68 AW1300411501 34 "
16-78 AW1300411601 38 "
6" CODE A
16-58 AW1300411402 34 "
16-68 AW1300411502 38 "
16-78 AW1300411602 42 "
THIN EDGE CODE A
16-58 AW1300411700 22 "
16-68 AW1300411800 26 "
16-78 AW1300411900 30 "
Follow the instructions provided with the thin edge frame
.3 FRAMES (REQUIRED OPTION)
Follow the instructions provided with the picture type frame

3
DIMENSIONS
3.1 STÛV 16-IN DIMENSIONS .......................................................................................................... 14
3.2 HEARTH OPENING ...................................................................................................................... 15
3.3 NON-COMBUSTIBLE MATERIALS ........................................................................................... 16
3.4 RISK AREA .................................................................................................................................... 18
3.5 AIR SUPPLY ................................................................................................................................. 19

14
3
DIMENSIONSSTÛV 16-IN
.1 STÛV 16-IN DIMENSIONS
C
B
16 ½"
1 ⁄ "
1 ⁄ "
3 ¼"
 2 ½"
D
9 ⁄"
⁄"
23 ⁄"
⁄" (± ¾)
16-in B C D
16-58 in 17 /" 22 /" 11 /"
16-68 in 21 /" 26 /" 13 /"
16-78 in 25 /" 30 /" 15 /"
Glass pane
Glass
pane
Front
17"
Front
17"
11 ½"
D
4 ⁄ "
TOP VIEW
FRONT VIEW
BOTTOM VIEW
SIDE VIEW

15
3
DIMENSIONSSTÛV 16-IN
NOTE
The masonry will not always be perfectly level. We suggest adding at least
/" of play to the dimensions in the applicable table.
!
TIP
To validate whether the insert will fit into the masonry hearth,
order the installation template (PW9399700001).
!
THIN EDGE FRAME
2" Width
min. to max.
Depth
min. to max.
Height
min. to max.
16-58 in 23 /" to 26"
17 /" to 18 /" 24 /" to 25 /"16-68 in 27 /" to 30"
16-78 in 31 /" to 33 /"
PICTURE TYPE FRAME
Thin frame Width Depth Height
16-58 in 23 /"
17 /" 23 /"16-68 in 27 /"
16-78 in 31 /"
6" Width
min. to max.
Depth
min. to max.
Height
min. to max.
16-58 in 23 /" to 34"
17 /" to 18 /" 24 /" to 29 /"16-68 in 27 /" to 38"
16-78 in 31 /" to 41 /"
4" Width
min. to max.
Depth
min. to max.
Height
min. to max.
16-58 in 23 /" to 30"
17 /" to 18 /" 24 /" to 27 /"16-68 in 27 /" to 34"
16-78 in 31 /" to 33 /"
Width
Height
Depth
.2 HEARTH OPENING

16
3
DIMENSIONSSTÛV 16-IN
MASONRY HEARTH
The Stûv 16-in is designed to be installed in a masonry hearth. The dimensions
specific to each frame can be found on the previous page. For larger hearths,
larger picture type frames are available, or a painted steel plate can be cut out in
the shape of the hearth.
This insert must be installed in a masonry hearth that is in compliance with the
building code.
The minimum distance from a perpendicular combustible wall is 14" from the insert's
glass pane.
TELEVISION OR SHELF MADE OF A COMBUSTIBLE MATERIAL
It is possible to install a shelf, a television or a decorative object made of a
combustible material starting at 25" from the top of the insert, as well as on the
sides of the insert, at a lateral distance of 5 ½".
To plan the installation of such items, it is important to take into account the
minimum and maximum dimensions indicated below by always measuring from
the outside of the insert. If increasing the depth of the shelf, calculate at a 45°angle
from the minimum measurements indicated. The same goes for the thickness of
the side edges.
H =
min.
Height under the shelf from the
top of the insert
The minimum height is 25"
P =
max.
Depth of the shelf from the door to
the minimum height
The maximum depth is 8"
- 17"
P =
max.
For a specific depth:
H
+ 17"
H =
min.
For a specific height:
P
E =
max.
Maximum thickness at the mini-
mum lateral distance of 5 ½"
The maximum thickness is 4"
+ 1 ½"
E =
max.
For a specific thickness:
D
D =
min.
Minimum lateral distance fom the
side of the insert
The minimum distance is 5 ½"
- 1 ½"
D =
min.
For a specific lateral distance:
E
25"
min.
8" max.
P
H
25"
min.
12"
min.
4" (E)
5 ½"
(D)
television
combustible shelf
NOTE
No combustible materials may be installed within the dimensions indicated in
red.
!
.3 NON-COMBUSTIBLE MATERIALS

17
3
DIMENSIONSSTÛV 16-IN
P
Z
X
8"
L
X
X
8"
P
8"
L
Z*
*
To be compliant with the building code, floor protection from embers is mandatory.
The floor area in front of the insert must be protected by a non-combustible
material.
This protection must extend the entire width of the glass pane, plus 8" on each
side, on the projection (P in the table) according to the standards applicable in the
country concerned. The projection muse be calculated starting from the front
of the door.
*The floor protection must be installed all the way up to the wall, no matter its
distance from the insert's door, and a sealing strip must be added at the junction to
keep embers from entering the wall.
FLOOR PROTECTION AGAINST EMBERS
The hearth extension must comply with standards N.F.P.A 211, CAN/CSA A405 or
the National Building Code of Canada. If not, the R value must be calculated and
respected to install the Stûv 16.
In all cases, the masonry hearth and chimney must comply with the above-
mentioned standards.
Respect the minimum distances applicable in the country concerned and use
materials that respect the minimum R value.
The X dimension must be calculated from under the unit.
HEARTH EXTENSION
Floor protection
18" (Canada)
16" (U.S.A,)
MODEL P S T
16-58
Canada: 18"
USA: 16"
17 ⁄" 33 ⁄"
16-68 21 ⁄" 37 ⁄"
16-78 25 ½" 41 ½"
HR VALUE EXAMPLES
11 ½" + 0 All non-combustible materials
8 ½" to ⁄ à 11 ½" 0.28 ½" cement board (0.26) + ¼" ceramic (0.02) = 0.28 R
6 ½" to ⁄ à 8 ½" 1.29 ½" Micore® SB (1.47) + ¼" ceramic (0.02) = 1.49 R
4 ½" to ⁄ à 6 ½" 2.56 1" Micore® SB (2.94) + ¼" ceramic (0.02) = 2.96 R
.4 NON-COMBUSTIBLE MATERIALS

18
3
DIMENSIONSSTÛV 16-IN
The heat radiating from the glass will be significant. Any combustible object must
be placed a minimum of 48’’ by 90° away from the glass face to avoid any fire risk.
CAUTION - FIRE HAZARD
To avoid major damage, no combustible material should be placed near
the insert's door or near the hot air outlet. Blocking the latter may cause the
unit to overheat and, in some cases, cause a fire.
Avoid heat traps. Materials exposed to the radiant heat must be able to
withstand high temperatures.
!
48"
45°45°
risk area
combustible
.5 RISK AREA
masonry hearth
non-combustible
obligatoire

19
3
DIMENSIONSSTÛV 16-IN
.6 APPROVISIONNEMENT EN AIR
The insert is supplied
by two types of air:
1
2
3
4
5
6
NOTE
Active air extraction systems (range hood, air conditioning, controlled
mechanical ventilation, another insert, etc.) in the same space or in an
adjacent room also consume a large amount of air, which could create
negative pressure in the room and hamper the insert's operation (risk of
backdraft). They can disrupt the insert's operation even if connected to an
outside air intake.
!
COMBUSTION AIR
The air required for combustion arrives directly from under the appliance via an
outside air intake connector specially designed for the Stûv 16-in model (see
next page for details).
The air injected into the top of the combustion chamber allows the gases to be
burned a second time, preventing fine particles from being released into the air.
The air flow along the glass pane helps keep it free of combustion dust, for an
impeccable view of the fire.
Once the gases have been burned, they are evacuated through the chimney
pipe (see CHIMNEY section for details).
The air combustion inlet can be configured in three ways. See next page for details.
The convection air system is incorporated in the insert. No connection is needed
for its operation.
The ambient air gathered from the room moves along the combustion
chamber, absorbing heat
Once heated, this air exits naturally through the appliance's upper frame,
spreading a comforting warmth throughout the room.
CONVECTION AIR
1
2
4
5
3
6
CAUTION
The air intake must never be adjusted. This wood heater has a manufacturer-
set minimum low burn rate that must not be altered. It is against federal
regulations to alter this setting or otherwise operate this wood heater in a
manner inconsistent with operating instructions in this manual.
!
Combustion air
Convection air

20
3
DIMENSIONSSTÛV 16-IN
CONNECTORS
Air intake connector
16-in version
AW1200200500
Air intake connector
with a 90° bend
16-in version
AW1200202900
4"
2 /"
4"
2 /"
.11 AIR SUPPLY
Option 1: Connected to the outside air with a kit
Although recommended, this setup is mandatory in some places.
Whether it is connected to the insert or not, the duct leading to the outside air must:
• be protected outdoors by a grille whose clear passage section is at least 4" in
diameter. Beware of water infiltration, snow accumulation and wind impacts,
which can damage the system or hinder its operation
Option 2: Connected to the inside air, in another location near the insert.
This air inlet must have a sufficient air intake (minimum ø 4"), from a crawl space,
ventilated room (basement) or another room in which the air exchange will always
be sufficient.
The criteria for the length of the duct and the bends are the same as for the
option 1.
Option 3: Without a connector, air taken from the same room as the insert
This option is not recommended for an airtight house.
If it is not possible to connect the insert to the outside air, it is important to ensure
that the air exchange in the room will always be sufficient when the insert is in
operation.
The air damper keeps the house from cooling down when the insert is not in use. It
has a 100% open and a 100% closed position, which cannot affect combustion. It is
recommended when installing in a highly energy-efficient house.
It should ideally be placed as close to the outer wall as possible. Validate that the
air damper dimensions meet the installation's needs. The damper's control cable
is 48" long and the damper is ø4" in diameter.
AIR DAMPER (OPTIONAL)
Duct length Max. number of 90° bends
authorized
0 to 8' 4 bends
8' to 10' 2 bends
12' and + 1 bend
COMBUSTION AIR (OPTIONS)
If our standard ø 4’ flexible duct is used,
we recommend a maximum length of
12' with no more than 4 bends (see table
to the right). If these recommendations
are exceeded, it will be necessary to
compensate with a larger diameter
and/or a smoother duct.
• not be crushed
• ideally be equipped with an air
damper (optional)
• be at least 8' long , ideally insu-
lated, and form a loop in the wall
to prevent condensation (in places
with winter temperatures).
Outside air kit
AW1200200001
Air damper
AW1200100300
4"
4"
For more information, see the Air
Damper Installation Manual
(9310400019).
