Chesney's BEAUMONT Instruction Manual

CHESNEY’S
GAS EFFECT STOVES
STANDARD & LARGE
INSTALLATION & USER MANUAL
chesneys.co.uk
Version 005. Sept 2016

2
Technical Manual
User and Installation Instructions
Model No.
Standard Gas Stoves:
Salisbury
Beaumont
Shoreditch
Shoreditch LS (Available at a later date)
Shoreditch XLS (Available at a later date)
Large Gas Stoves:
Salisbury
Beaumont
Shoreditch
Belgravia
Shipton (Available at a later date)
IMPORTANT:
Please read these instructions
carefully before installation or use.
These instructions are only valid if the following country
code is on the appliance. If this code is not present on
the appliance, it is necessary to refer to these technical
instructions which will provide the necessary information
concerning the modification of the appliance to the conditions
of use for the country.
This appliance must be installed and serviced by a qualified
person in accordance with local and national regulations.
The flue system must be installed and inspected by a qualified
person in accordance with local and national regulations.

3
Contents
Section Pages
1 Unpacking 5
2 Technical Data 7
3 Installation Parameters 8
4 Construction Information 11
5 Appliance Details 16
6 Preparing the Appliance for Installation 17
7 Installation 18
8 Placement of Fibre Logs, Chippings and Embers 23
9 Commissioning the Fire Unit 28
10 Briefing and Handover to the Customer 30
11 Servicing and Maintenance 31
12 Fault Finding 33
13 User Instructions 35
14 Control System Information 39
15 Installer Checklist 45
16 Dealer and Installer Information 46
17 Annual Service Record 47
18 Chesney’s Warranty Registration 51

4

5
1. Unpacking
Remove the appliance from its packaging, check that it is complete and
undamaged.
If satisfied by the condition and the contents is as specified, proceed with the
installation.
The installation should only be carried out by a competent person and all gas
work must be carried out by a Gas Safe registered person in accordance with
national and local regulations for both gas and electricity (If required).
The installation must comply with local and national building regulations.
For the Republic of Ireland, reference should be made to IS813 and ICP3 and any
guidance notes from Board Gais.
Failure to comply with the regulations nullifies ALL guarantees.
Parts:
Fig.1 Gas Stove Appliance Fig.2 Installation Manual / Warning Label
Fig.3 Burner Assembly
Standard Stove Large Stove

6
Fig.6 Remote Control Handset
(Please refer to page 40)
Fig.4 Logs
Fig.5 Bag of embers
Fig.8 Interior Panel Boards
Standard Stove Large Stove
Fig.7 Stainless steel panels for
the Large Stove models

7
2.Technical Data
GasType Natural Gas
Gas Connection Size 8.0mm O.D. tubing
Pilot Assembly THERMACO PG 82
Control System THERMACOTESCO1 Radio Frequency
Appliance Mass Range (kilograms) 79kg – 155kg
Gas
Type
Gas Category,Type
and Supply Pressure
Countries of Destination
AT
BG
CH
CY
CZ
DE
DK
EE
ES
FI
FR
GB GR
NG I2H - G20
at 20mbar 
Gas
Type
Gas Category,
Type and Supply
Pressure
Countries of Destination
HR
IE IT
LT
LU
LV
NO
PL
PT
RO
SE
SI
SK
TR
NG I2H - G20
at 20mbar 
Appliance Gas
Type
Gas Category,
Type and Supply
Pressure
Injector
(1 per appliance) Nominal
Heat
Input
kW,
(Gross)
Gas
Rate
m3/h
Efficiency
Class
Marking
Size
(Single
hole)
Standard Stoves:
Salisbury
Beaumont
Shoreditch
Shoreditch LS
Shoreditch XLS
NG
I2H G20 at 20mbar
I2E G20 at 20mbar
I2E+ G20/G25 at
20/25mbar
1.45 1.45mm 3.4 0.315 2
Large Stoves:
Salisbury
Beaumont
Shoreditch
Belgravia
Shipton
NG
I2H G20 at 20mbar
I2E G20 at 20mbar
I2E+ G20/G25 at
20/25mbar
2.0 2.0mm 5.6 0.53 2
Appliance NOx Class NOx Concentration /
Limits mg/kWh
Standard 4 111
Large 3 172

8
3. Installation Parameters
This appliance must be installed in accordance with the rules in force, and used only
in a sufficiently ventilated space. Consult instructions before installation and use of
this appliance.
NOTE - Wear protective clothing when fitting or carrying works out on the appliance.
For your safety it is law that all gas appliances must be installed by a competent
person, in accordance with the current gas safety regulations applicable in the country
of use.
The installation must be carried out in accordance with the relevant local and national
specifications and comply with current Building Regulations.
Chesney’s recommend the fitting of a Carbon Monoxide detector that conforms to
EN 50291 wherever a gas appliance is installed.
Due to the unpredictability of the draught in existing flues and chimneys Chesney’s
recommends the use of a liner for this product in accordance with local and national
regulations.
NOTE -The flue must not be shared with any other appliance.
If the chimney has been used for solid fuel, the chimney must be swept before
installation.
The flue must be fitted in accordance with local and national regulations.
Damper plates or restrictor plates must not be fitted in the flue.
The flue must be inspected by a competent person and passed for use with the
appliance.
It is advised that a flue specialist inspect the flue system on an annual basis to ensure
that the flue system is sound and the combustion products outlet (terminal) is clear of
obstruction.
The flue system should only be fitted to the appliance where the chimney serving the
appliance:
a) Has passed a flue flow test to ensure that the flue is sound and without leaks; and
b) Has been swept if previously used for solid fuel.
Do not install the appliance in a bathroom or a room that contains a bath or shower.
It is advised that provisions be made for the removal of the appliance without the
need to dismantle the flue system.
Before installation, ensure that the local distribution conditions (identification of the
type of gas and pressure) and the adjustment of the appliance are compatible.

9
Before the appliance is installed, the flue / chimney must be inspected to ensure that it
is structurally sound and free from obstructions.
Ensure the builders opening and supports are made of non combustible and heat
resistant material.
Do not cover the appliance and or do not wrap it in an insulation blanket or any other
material
Do not make any changes to the appliance.
The gas connection must be in accordance with local and national regulations.
This appliance is intended for use on a gas installation with a governed meter.
Ventilation – GB appliances over 7kW (net) requires permanent ventilation and should
be fitted in accordance with BS 5440-2 (latest version).
NOTE - Other countries may vary ensure ventilation requirements are in accordance
with national regulations.
WARNING - SPILLAGE MONITORING SYSTEM
The pilot light and flame sensing device fitted to this appliance is also an atmospheric
sensing device, this is not adjustable and must not be put out of action. If the pilot
light is damaged or faulty it should only be replaced with an original genuine unit
supplied by Chesney’s.
When using stone like materials and or plaster finishing, the chimney breast should
dry for at least 6 weeks to prevent cracks.
The appliance is not fitted with an integral guard. It is recommended that a guard be
used for the protection of young children, the elderly or infirm and also for normal use
conforming to BS8423:2002, such that access to the hot appliance is minimised.
Do not place combustible materials directly in front of the appliance.
In case of a damaged or broken glass, do not use the appliance and isolate the gas to
the appliance.
Clean the glass before you use the appliance in order to prevent dirt from burning on
the glass.

10

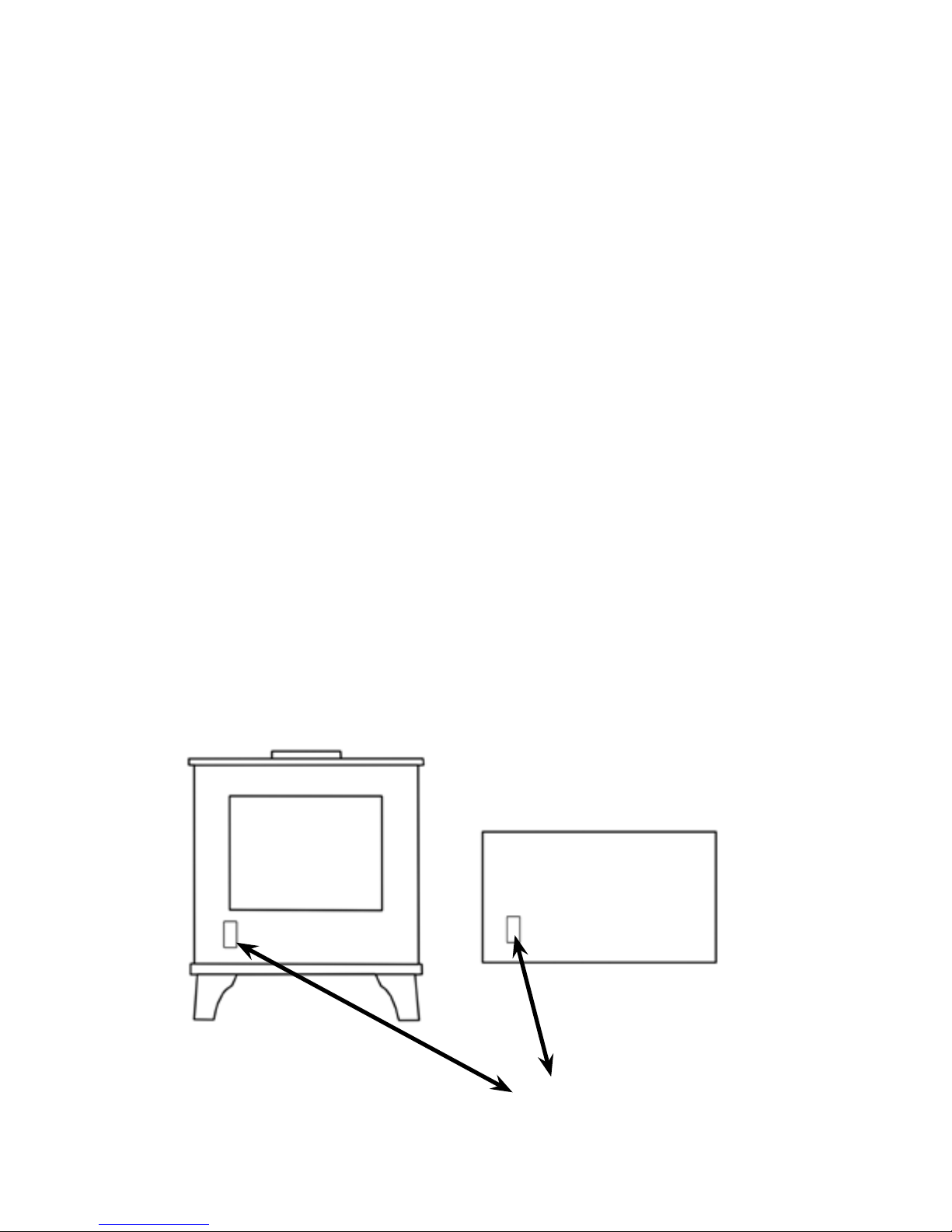

All appliances are supplied with a metal data plate attached to it and must remain with
the appliance for annual services.
The data plate is attached to the rear of the appliance (see fig.9)
NOTE: DO NOT attempt to remove the data plate while the appliance is HOT!
Fig.9

11
4. Construction Information
Hearths
A hearth conforming to national regulations shall be provided for the stove extending
to at least the front of the supporting legs, and to at least each side of the stove.
Chesney’s recommend a hearth footprint 50mm more on all 4 sides than the footprint
of the appliance. The hearth shall have a minimum thickness of 12mm.
Emissions Exit Connection Types
The minimum chimney height is 3 meters from the spigot.
A smoke pellet can be used to test the flue for effectiveness of the draw, light the
smoke pellet and place to the base of the chimney / liner. Check other parts of the
dwelling (including loft areas) for leakage, down draught etc. If the smoke is drawn
into the chimney / liner without problem, continue with the installation.
If there is little or no flow into the chimney preheat the chimney and repeat the smoke
test. If there are still issues with the draw seek expert advice.
NOTE –The smoke test gives a fair idea on the draw, but is no guarantee that the
products of combustion from the appliance will clear. A spillage test is also required
after the installation.
If spillage occurs after installation contact the manufacturer for advice.
The appliance is designed to be installed into a Class 1 Conventional flue system
that has been lined with a minimum 4” flue liner, or a factory made flue system
conforming to BS 5440-1.
NOTE-The minimum flue liner is 3 meters from the spigot.
If the chimney exceeds 9m consideration must be given to condensation and the liner
should be insulated.The maximum height should be governed by the draw on the
individual flue during the effectiveness of smoke removal/testing of the flue.

12
Conventional Class 1 Chimney (lined only) / Factory made flue system conforming to
BS 5440-1.
Fig.10 Installed into a chimney recess / builders opening.
Flue pipe connection
direct to a flexible
flue liner
Flue system
to terminate
with a flue
terminal
conforming to
BS 5440-1
A flexible liner shall always be used to
line the entire chimney
Flue pipe
sealed to
debris or
register
plate
Dilution air through
integral draught divert
Integral chimney liner
(where built)

13
Fig.11 Free standing installation connected to a factory made flue system.
Flue system to
terminate with
a flue terminal
conforming to
BS 5440-1
The flue system used should
be in accordance with the
appliance manufacturer’s
installation requirements
Dilution air
through integral
draught divert

14
The Builders Opening
Use non combustible heat resistant materials for the chimney breast, including the
top of the chimney breast, the material in the chimney breast and the back wall of the
chimney breast.The construction must comply with all relevant regulations.
The appliance can be used with a sound Class 1 lined flue with a minimum 4”
diameter. If the appliance is used with an existing lined chimney the minimum flue
diameter must be 6” (152.4mm) or above to accommodate the 4” liner. (see fig. 12)

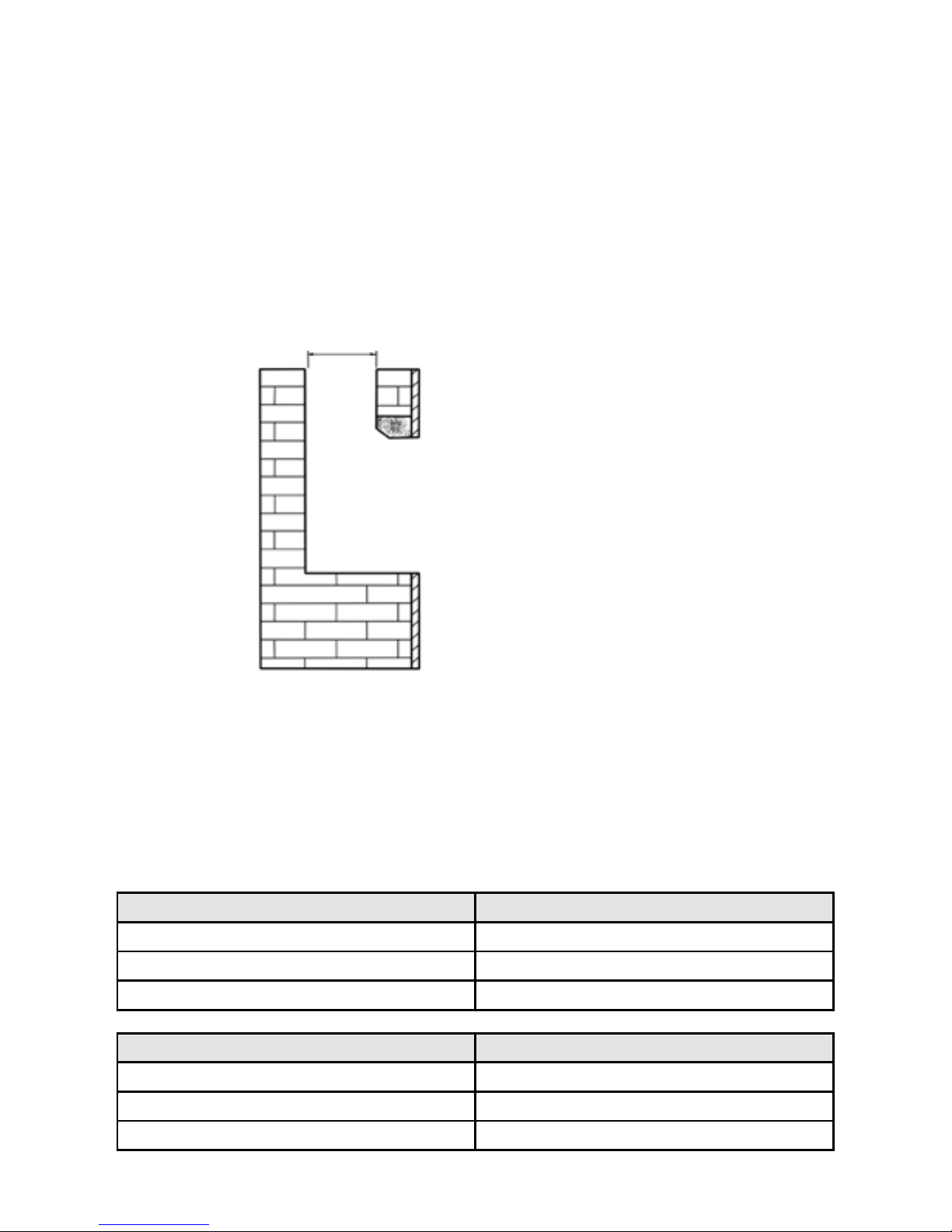

Fig.12 Minimum 7” unlined / Minimum 6” lined
Appliance distances and clearances
The minimum distances to combustibles are given in the table below. Distances to
non-combustibles should conform to local and national building regulations.
Due to the nature of the appliance most part of it will become hot during normal
operation, therefore the entire appliance is classed as a working surface.
Standard Gas Stove COMBUSTIBLES
Rear of appliance 150mm
Side of appliance 50mm
Above the appliance 250mm
Large Gas Stove COMBUSTIBLES
Rear of appliance 150mm
Side of appliance 120mm
Above the appliance 200mm

15
Gas Route
For your safety it is law that all gas appliances must be installed by a competent
person, in accordance with the current Gas Safety regulations applicable in the
country of use.
Ensure that the gas supply is capable of delivering the required amount of gas, and is
in accordance with the rules in force.
When laying the gas pipe work check the fire unit’s gas inlet location to ensure a
smooth run.
Lay the appliance in the desired area to note where the appliance’s gas inlet location
to ensure a smooth run.
The gas inlet connection is mounted towards the front left of the appliance, this can
be accessed via the stove door. The pipe should run under the appliance and connect
into the inlet connection of the combined isolation / pressure test point valve. The gas
pipe can be routed from any direction below the appliance.
An isolation valve or valves must be fitted near to the appliance in an accessible area,
meeting all local and national regulations this is to allow the complete removal of the
burner control assembly, for maintenance or repair.
Fig.13 Gas route
FRONT VIEW PLAN
GAS CONNECTION

16
5. Appliance Details
Fig.14 Appliance dimensions
Standard Gas Stoves A mm B mm C mm D mm
Beaumont 552 535 108 307
Salisbury 534 482 108 335
Shoreditch 543 478 108 294
Shoreditch LS 687 478 108 294
Shoreditch XLS 787 478 108 294
Large Gas Stoves A mm B mm C mm D mm
Beaumont 704 642 155 395
Belgravia 704 626 155 389
Shipton 634 608 155 379
Salisbury 653 570 155 428
Shoreditch 685 568 155 378
A
B
C
D

17
6. Preparing the Appliance for Installation
The appliance is supplied in separate boxes, stove, burner assembly, logs set. The
interior panels are pre-fitted to the appliance.The installer is required to install the
burner and logs into the appliance.
Important Notes
• Ensure the glass is clean on both sides before lighting as dirt, oils etc. can etch the
glass.
• Do not clean with abrasive materials as this can accelerate dirt accumulation and
weaken the glass.
The appliance should be placed in the correct installation position, taking into account
the flue connection and gas connection.
The door can be opened by turning the handle clockwise by a quarter of a turn and
swing open.
Fig.15
The interior panels have been pre-fitted into the appliance, these must be inspected
for any damage during transit.The stainless steel sides will patinate (mellow) over
a period of time this can be cleaned with a hob type cleaner if a high reflection is
preferred.

18
7. Installation
IMPORTANT Please ensure the gas pipe has been routed and the flue connection is
terminated in a suitable position ready for connection.
Fixing of the appliance
The gas stove is a free standing appliance and does not require any additional fixing
to the floor or walls.
Flue connection
Place the appliance in the installation position ensuring the top lid is installed. The
appliance spigot should only be connected to a suitable Conventional Class 1 chimney
system conforming to local and national regulations.
At this stage the decorative collar should be cut to the desired length and positioned
over the flue pipe, ensuring there is a clearance above that will allow the decorative
collar to slide up to enable the access for connecting the flue pipe.
The flue pipe will need to be placed over the appliance spigot, ensuring a minimum
insertion depth of 50mm. The joint between the flue pipe and the appliance spigot is
to be sealed with a suitable high temperature sealant. The flue must be sealed to the
appliance to ensure the products of combustion do not enter the room.
Gas Connection
NOTE – All gas work must be carried out by a qualified gas installer to all relevant
regulations.
Ensure that the gas supply is capable of delivering the required amount of gas, and is
in accordance with the rules in force.
An isolation valve or valves must be fitted near to the appliance in accordance with
national regulations to allow the complete removal for maintenance or repair.
The appliance is supplied with a combined isolation / pressure test point valve, this is
located on the front left hand side of the appliance, connect the gas inlet to the correct
connection shown with 8mm rigid pipework.
Fig. 16

19
Fitting or replacing the interior panel boards
For correct installation of the interior panel boards please follow these instructions.
If the panels are to be replaced, remove the burner assembly from the unit, to allow
for removal of the existing panels. Prior to fitting the new panels please ensure the
internal surfaces are clean and free from any dirt and debris.
Fig.18
The bottom of the panel has a flat surface and should rest firmly on the shelf. The top
of the rear panel is angled, with the front face of the panel being the taller side. Please
ensure the top of the rear panel is placed firmly against the rear of the stove.
The rear panel board is
to sit on the shelf at the
rear of the stove.
Fig.17
SIDE ELEVATION

20
The rear end of the top panel board has an angled edge that is to be placed at the rear
of the stove.The top board must be inserted at an angle, then it is to be swivelled so
that the rear of the board rests on the top of the rear panel board. Keep the top panel
elevated until one of the side panel boards has been fitted, allowing clearance for
installing the side panels.
Fig.19
Panel retaining point
Fig.20
The side panels sit on the side shelves, with the taller side towards the front of the
stove. Locate the side panels so that they sit upright against the sides and rear of the
stove.The panel locates between the rear panel and the panel retaining point on the
front part of the shelves.
SIDE ELEVATION
