SDR-5900 Dual-Channel 2-Way Sync True Diversity Receiver
Thank you for choosing this wireless microphone system! For more details, please take a few
moments to read this operating manual to have a thorough understanding of the function and
operation of both transmitter and receiver.

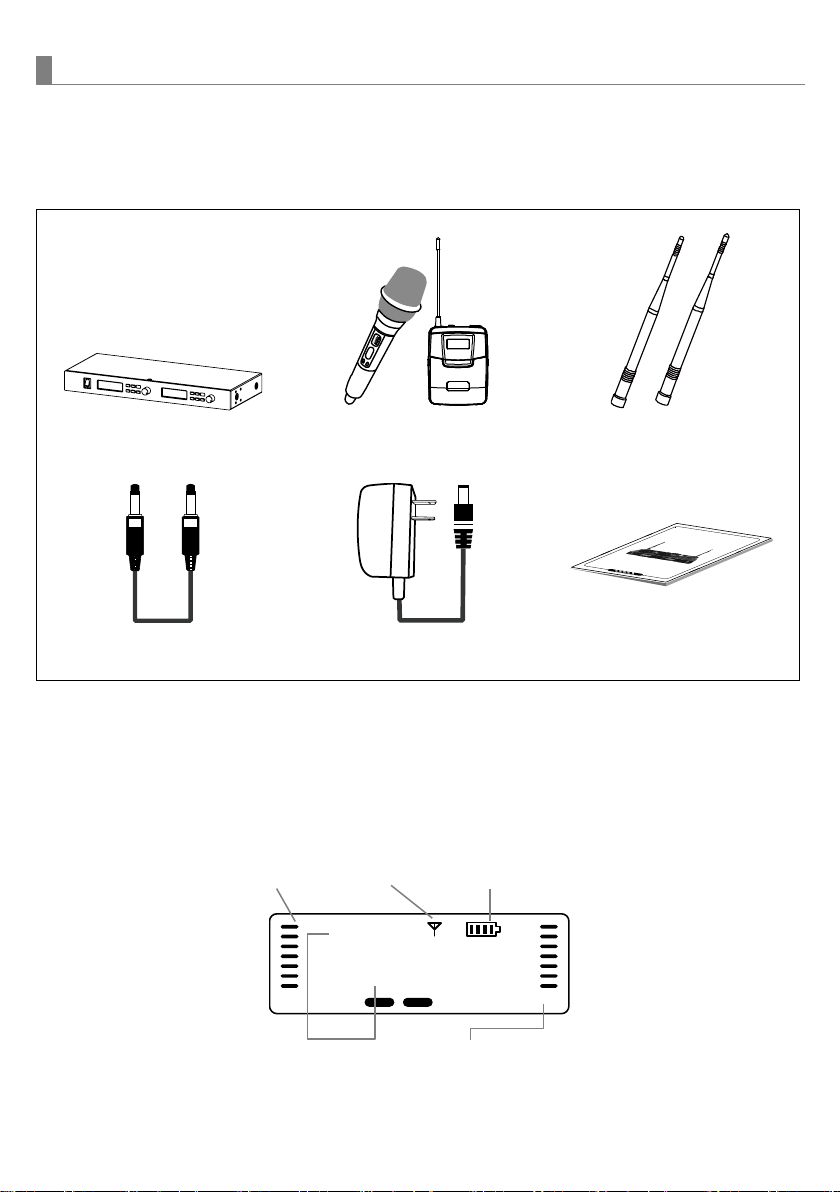

In the box
SDR-5900 receiver
two transmitters
(handheld / belt-pack)
a pair of antennas
audio cable
switching adaptor
operation manual
** Remark: The above specifications are subject to change without prior notice.
Important
1.Please make sure that the output DC voltage range of the switching power covers that
specified by the receiver before turning it on.
2.The RF meter bars and antenna diversity indicator will appear to denote RF signal received
after turning on the transmitter.
3.The receiver and transmitter must be the same frequency.
4.While using the transmitter, the audio meter bars will appear to denote audio signal received.
RF meter Antenna selection Transmitter battery
Channel / frequency Audio meter
S
D
R
-
590
0
UH
F雙頻
道數位鎖
定
自動
對
頻自動
選
訊無線麥克風
系
統
SQ
RF AF
MHz
BA
650.250
C H 00 2
FREQ

2
Instructions
Parts and functions
►front panel
1. Power switch
2. LCD
3. UP button
4. MENU button
5. IR sensor area
6. DOWN button
7. ENTER button
8. IrDA synchronization button
9. Volume control
10.LCD
11.UP button
12.MENU button
13.IR sensor area
14.DOWN button
15.ENTER button
16.IrDA synchronization button
17.Volume control
►rear panel
18.Antenna B (TNC type)
19.Channel 2’s balanced audio output
20.Mixed unbalanced audio output
21.Mixed MIC/LINE audio output
impedance switch
22.Channel 1’s balanced audio output
23.DC input
24.Antenna A (TNC type)
FRE Q S Q
R F A F
MHz
C H BA
MENUMENU
ENTERENTER SYNCSYNC MAXMINMIN FREQ SQ
R F A F
MHz
C H BA
MENUMENU
ENTERENTER SYNCSYNC MAXMINMIN
POWERPOWER
TRUE DIVERSITY RECEIVERTRUE DIVERSITY RECEIVER
SDR-5900SDR-5900
1 2 3 4 5
6 7 8
910 11 12 13
14 15 16
17
A N T. B M IC 2 O U T
1.G
2.
3.
M IX E D O U T
MIC LINE
M I C 1 O U T
1.G
2.
3.
DC IN
12V
AN T. A
18 19
20 21
22
23
24
Channel 1
Channel 2

3
SDR-5900 Dual-Channel 2-Way Sync True Diversity Receiver
CHANNEL scanning
For an interference- free operation, a cleaner channel might be necessary if the current one
receives too much interference. To operate the scanning:
1 Press MENU button to make the frequency icon appear on the bottom.

2 Press ENTER button until this icon flashes to denote readiness for setting.

3 Press ▲(up) or ▼(down) button to find and locate a clear, interference- free channel.

4 After a channel is chosen, press ENTER button or wait 5 seconds to store the setting.

FREQ S Q
RF AF
MHz
C H BA
MENUMENU
ENTERENTER SYNCSYNC MAXMINMIN
RF AF
MHz
BA
650.250
C H 002
FREQ
FREQ S Q
RF AF
MHz
C H BA
MENUMENU
ENTERENTER SYNCSYNC MAXMINMIN
RF AF
MHz
BA
650.250
C H 002
FREQ
FREQ S Q
RF AF
MHz
C H BA
MENUMENU
ENTERENTER SYNCSYNC MAXMINMIN
FREQ
RF AF
MHz
BA
652.000
C H 009
FREQ S Q
RF AF
MHz
C H BA
MENUMENU
ENTERENTER SYNCSYNC MAXMINMIN
FREQ
RF AF
MHz
BA
652.000
C H 009

4
Instructions
Channel synchronizing between receiver and transmitter
Align infrared areas of the receiver and transmitter within 10~30cm.
Changing the receiver’s channel
1 Press the synchronizing button of the
transmitter.
2 The transmitter's LED will glow to denote
synchronizing signal transmitted.
3 The channel/frequency of the receiver will
change and then the synchronization is
complete.
Changing the transmitter’s channel
1 Press the SYNC button of the receiver
2 The receiver’s LCD will show to
denote synchronizing signal being sent.
3 The channel/frequency of the transmitter will
change and then the synchronization is
complete.
If it doesn’t work check that you have the IR sensor panels aligned, that they are facing each
other, devices are within 10~30cm of each other, and try again.
FRE Q SQ
RF AF
MHz
C H BA
MENUMENU
ENTERENTER SYNCSYNC MAXMINMIN
FRE Q SQ
RF AF
MHz
C H BA
MENUMENU
ENTERENTER SYNCSYNC MAXMINMIN
10~30cm

5
SDR-5900 Dual-Channel 2-Way Sync True Diversity Receiver
SQUELCH (SQ) adjusting
When interference is encountered try reducing the sensitivity of the receiver, thus less
susceptible to interference. To operate the squelch setting:
1 Press MENU button to turn to the squelch setting page.

2 Press ENTER button until this icon flashes to denote readiness for setting.

3 Press ▲(up) or ▼(down) button to select a new squelch (sensitivity) level between 1
and 10.

4 After a squelch (sensitivity) level is chosen, press ENTER button or wait 5 seconds to
store the setting.

FREQ S Q
RF AF
MHz
C H BA
MENUMENU
ENTERENTER SYNCSYNC MAXMINMIN
SQ
LE-02
FREQ S Q
RF AF
MHz
C H BA
MENUMENU
ENTERENTER SYNCSYNC MAXMINMIN
SQ
LE-02
FREQ S Q
RF AF
MHz
C H BA
MENUMENU
ENTERENTER SYNCSYNC MAXMINMIN
SQ
LE-06
FREQ S Q
RF AF
MHz
C H BA
MENUMENU
ENTERENTER SYNCSYNC MAXMINMIN
SQ
LE-06

6
Instructions
Audio output connection
There are three audio outputs on the back of the receiver, Mic-level balanced (channel 1 and
channel 2), and Line-level unbalanced (mixed). Use shielded audio cable for the connection
between the receiver and the amplifier/mixer. If the amplifier/mixer has a 1/4"(6.3mm) phone
jack, connect a cable from the 1/4"(6.3mm) unbalanced audio output from the receiver to the
amplifier/mixer. If the amplifier/mixer has an XLR input, connect a cable from the balanced XLR
audio output from the receiver to the amplifier/mixer input.
Mixed unbalanced audio output
MIC/LINE output impedance level switch ► ►
Individual balanced audio output
Rack mounting
The receiver can be cabinet-mounted with accompanied kit as illustrated below.
ANT. B MIC 2 OUT
1.G
2.
3.
MIXED OUT
MI C LI N E
MIC 1 OUT
1.G
2.
3.
DC IN
12 V
ANT. A
ANT. B MIC 2 OUT
1.G
2.
3.
MIXED OUT
MIC LINE
MIC 1 OUT
1.G
2.
3.
DC IN
12V
ANT. A
ANT. B MIC 2 OUT
1.G
2.
3.
MIXED OUT
MI C LI N E
MIC 1 OUT
1.G
2.
3.
DC IN
12 V
ANT. A

MIC level for connecting to MIC IN.
LINE level for connecting to LINE IN or AUX IN
