Chicago Electric 92455 User manual

GENERATOR SET
5.5 HP - RECOIL START - 2200W/2400W RATED
Model 92455
OPERATING INSTRUCTIONS
®
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at http://www.harborfreight.com
Copyright©2004 by Harbor Freight Tools®. All rights reserved. No portion
of this manual or any artwork contained herein may be reproduced in any
shape or form without the express written consent of Harbor Freight Tools.
For technical questions and replacement parts, please call 1-800-444-3353
TO PREVENT SERIOUS INJURY OR DEATH,
READ AND UNDERSTAND ALL WARNINGS
AND INSTRUCTIONS BEFORE USE.
REV 03/06

SKU 92455 For technical questions, please call 1-800-444-3353. Page 2
PRODUCT SPECIFICATIONS
SAVE THIS MANUAL
You will need this manual for the safety warnings and precautions, operating, inspec-
tion, maintenance and cleaning procedures, parts list and assembly diagram. Keep your
invoice with this manual. Write the invoice number on the inside of the front cover. Keep
this manual and invoice in a safe and dry place for future reference.
Electrical Specifications 115 VAC @ 19 Amps Current Output
60 Hz
Continuous/Rated Wattage: 2,200
Peak Wattage: 2,400
Two 115 VAC, 3-Prong Grounding Outlets
One 19 Amp Circuit Breaker
VDC Electrical Specifications 12 VDC @ 10 Amps Current Output
Voltmeter Equipped 0-150 Volts / 50 Volt Increments
Display Lights Red (Run)
Generator Type Brushless / Revolving Field / Self Exciting
Two Pole / Single Phase
Gasoline Engine 5.5 HP / Unleaded Gasoline Powered
Recoil Start / 4-Cycle / OHV Air Cooled
163 CC Displacement / 3600 RPM
0.63 Quart (0.6 Liter) Oil Capacity
CARB and EPA Certified
Fuel Tank Capacity 3.96 Gallons (15 Liters) / Includes Fuel Gauge
Estimated Run Time 11.8 Continuous Running Hours
Weight 103.5 Pounds
This product requires oil and fuel to be added before starting.
Attempting to start the engine without oil WILL ruin the engine and void
the warranty.
Caution: This generator is not intended to power sensitive electronic
equipment without the addition of an appropriate line conditioner
(sold separately).
The Emission Control System for this generator’s engine is warranted
for standards set by the U.S. Environmental Protection Agency and by the
California Air Resources Board (also known as CARB). For warranty informa-
tion, refer to the back two pages of this manual.
The engine’s carburetor may need to be adjusted by a qualified mechanic
for efficient high-altitude use.
REV 11/06

SKU 92455 For technical questions, please call 1-800-444-3353. Page 3
WORK AREA
1. Keep your work area clean and well lit. Cluttered benches and dark areas invite
accidents.
2. Do not operate power tools in explosive atmospheres, such as in the presence
of flammable liquids, gases, or dust. Generators create sparks which may ignite
the dust or fumes.
3. Keep bystanders, children, and visitors away while operating a generator.
Provide barriers or shields as needed.
ELECTRICAL SAFETY
4. Grounded tools must be plugged into an outlet properly installed and grounded
in accordance with all codes and ordinances. Never remove the grounding
prong or modify the plug in any way. Do not use any adapter plugs. Check with
a qualified electrician if you are in doubt as to whether the outlet is properly
grounded. If the tools should electrically malfunction or break down, grounding
provides a low resistance path to carry electricity away from the user.
5. Double insulated tools are equipped with a polarized plug (one blade is wider
than the other). This plug will fit in a polarized outlet only one way. If the plug
does not fit fully in the outlet, reverse the plug. If it still does not fit, contact
a qualified electrician to install a polarized outlet. Do not change the plug in
any way. Double insulation eliminates the need for the three wire grounded
power cord and grounded power supply system.
GENERAL SAFETY RULES
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS
Failure to follow all instructions listed below may result in
electric shock, fire, and/or serious injury.
SAVE THESE INSTRUCTIONS
UNPACKING
When unpacking, check to make sure all the parts shown on the Parts Lists on
pages 18 and 20 are included. If any parts are missing or broken, please call Harbor
Freight Tools at the number shown on the cover of this manual as soon as possible.

SKU 92455 For technical questions, please call 1-800-444-3353. Page 4
6. Avoid body contact with grounded surfaces such as pipes, radiators, ranges,
and refrigerators. There is an increased risk of electric shock if your body is
grounded.
7. Do not expose power tools to rain or wet conditions. Water entering a
generator will increase the risk of electric shock.
8. Do not abuse the Power Cords. Never use a Power Cord to carry tools or
pull the Plug from an outlet. Keep Power Cords away from heat, oil, sharp
edges, or moving parts. Replace damaged Power Cords immediately. Dam-
aged Power Cords increase the risk of electric shock.
9. When operating a power tool outside, use an outdoor extension cord
marked “W-A” or “W”. These extension cords are rated for outdoor use, and
reduce the risk of electric shock.
PERSONAL SAFETY
10. Stay alert. Watch what you are doing, and use common sense when operat-
ing a generator. Do not use a generator while tired or under the influence
of drugs, alcohol, or medication. A moment of inattention while operating
generators may result in serious personal injury.
11. Dress properly. Do not wear loose clothing or jewelry. Contain long hair.
Keep your hair, clothing, and gloves away from moving parts. Loose clothes,
jewelry, or long hair can be caught in moving parts.
12. Avoid accidental starting. Make sure the Power Switch is in its “OFF” posi-
tion, and disconnect the Spark Plug Wire when not in use.
13. Remove adjusting keys or wrenches before turning the generator on. A
wrench or a key that is left attached to a rotating part of the generator may result
in personal injury.
14. Do not overreach. Keep proper footing and balance at all times.
15. Use safety equipment. Always wear eye protection. Wear ANSI approved
safety impact eye goggles. Dust mask, nonskid safety shoes, hard hat, or hear-
ing protection must be used for appropriate conditions.
16. Do not force the generator. Use the correct generator for your application.
The correct generator will do the job better and safer at the rate for which it is
designed.

SKU 92455 For technical questions, please call 1-800-444-3353. Page 5
17. Do not use the generator if the Power Switch does not turn it on or off. Any
generator that cannot be controlled with the Power Switch is dangerous and must
be replaced.
GENERATOR USE AND CARE
18. Make sure the Power Switch is in its “OFF” position and disconnect the
spark plug wire before making any adjustments, changing accessories,
or storing the generator. Such preventive safety measures reduce the risk of
starting the generator accidentally.
19. Store idle generators out of reach of children and other untrained persons.
Generators are dangerous in the hands of untrained users.
20. Maintain generators with care. Do not use a damaged generator. Tag dam-
aged generators “Do not use” until repaired.
21. Check for misalignment or binding of moving parts, breakage of parts, and
any other condition that may affect the generator’s operation. If damaged,
have the generator serviced before using. Many accidents are caused by
poorly maintained generators.
22. Use only accessories that are recommended by the manufacturer for your
model. Accessories that may be suitable for one generator may become hazard-
ous when used on another generator.
SERVICE
23. Maintain labels and nameplates on the Generator and Engine. These carry
important information. If unreadable or missing, contact Harbor Freight Tools for
a replacement.
24. Generator service must be performed only by qualified repair personnel.
Service or maintenance performed by unqualified personnel could result in a risk
of injury.
25. When servicing a generator, use only identical replacement parts. Follow
instructions in the “Inspection, Maintenance, And Cleaning” section of this
manual. Use of unauthorized parts or failure to follow maintenance instructions
may create a risk of electric shock or injury.

SKU 92455 For technical questions, please call 1-800-444-3353. Page 6
HEART PACEMAKER PRECAUTION
SPECIFIC PRODUCT WARNINGS AND PRECAUTIONS
1. WARNING! People with pacemakers should consult their physician(s) be-
fore using this product. Electromagnetic fields in close proximity to a heart pace-
maker could cause interference to or failure of the pacemaker.
INSTALLATION PRECAUTIONS
1. Ensure installation meets all applicable safety, and local and national electrical
codes. Have installation performed by a qualified, licensed electrician and building
contractor.
2. All electrical work, including the earth-ground connection, should be completed by
a licensed electrician.
3. Any separate fuel storage Generator supply facility must be built or installed in full
compliance with all relevant local, state, and federal regulations.
4. If the generator is installed indoors, exhaust fumes must be piped out of the
building using leak-free, heat-resistant piping. Use the Generator only in
well ventilated outdoor areas. Carbon monoxide fumes are a color-
less, odorless gas that, if inhaled, can cause serious injury or death.
Pipes and silencer should not use any flammable materials, nor should they
be installed near the same. Generator exhaust fumes must be within legal
limits.
5. If the generator is installed outdoors, it must be weatherproofed and should be
soundproofed. It should not be run outdoors without protection to the Generator
and wiring conduit.
6. Never lift the Generator using the engine or alternator lifting lugs. Connect lifting
equipment to the Frame of the Generator.
7. Before lifting the Generator, ensure the lift rigging and supporting structure are in
good condition, and are rated to lift such a load.
8. Keep all personnel away from the suspended generator while relocating.
9. The supporting floor/ground surface should be level, and strong enough to safely
hold the weight of the Generator. If the floor/ground surface is not level, strong cross
members should be placed under the full length of the Generator Frame at its low
side.

SKU 92455 For technical questions, please call 1-800-444-3353. Page 7
1. Gasoline fuel and fumes are flammable, and potentially explosive. Use proper
fuel storage and handling procedures. Always have multiple ABC class fire extin-
guishers nearby.
2. Keep the Generator and surrounding area clean at all times.
3. When spills of fuel or oil occur, they must be cleaned up immediately. Dispose of
fluids and cleaning materials as per any local, state, or federal codes and regula-
tions. Store oil rags in a covered metal container.
4. Never store fuel or other flammable materials near the Generator.
5. Do not smoke, or allow sparks, flames or other sources of ignition around the
Engine and Fuel Tank. Fuel vapors are explosive.
6. Keep grounded conductive objects, such as tools, away from exposed, live elec-
trical parts and connections to avoid sparking or arcing. These events could
ignite fumes or vapors.
7. Do not refill the Fuel Tank while the Engine is running or while the Engine is still
hot. Do not operate the Generator with known leaks in the fuel system.
8. Excessive buildup of unburned fuel gases in the exhaust system can create a
potentially explosive condition. This buildup can occur after repeated failed start
attempts, valve testing, or hot engine shutdown. If this occurs, open exhaust sys-
tem drain plugs, if equipped, and allow the gases to dissipate before attempting
to restart the Generator.
9. Use only engine manufacturer recommended fuel and oil.
10. For trailer installation, the Generator should be mounted on the center point of the
trailer, over the wheels.
11. Install sound and weather proofing only when it is not raining or snowing to avoid
trapping moisture within the Generator’s area.
FIRE AND EXPLOSION PRECAUTIONS

SKU 92455 For technical questions, please call 1-800-444-3353. Page 8
MECHANICAL PRECAUTIONS
1. ALWAYS make sure the Power Switch is in its “OFF” position. Disconnect the
spark plug wire, and allow the Engine to completely cool before carrying out
maintenance.
2. Check for damaged parts. Before using the Generator, any part that appears
damaged should be carefully checked to determine that it will operate properly
and perform its intended function. Check for alignment and binding of moving
parts, any broken parts or mounting fixtures, and any other condition that may
affect proper operation. Any part that is damaged should be properly repaired or
replaced by a qualified technician.
3. The Generator is designed with guards for protection from moving parts. In any
case, care must still be taken to protect personnel and equipment from other me-
chanical hazards when working around the generator.
4. Do not operate the Generator with safety guards removed. While the Generator
is running, do not attempt to reach around the safety guards for maintenance or
any other reason.
5. Keep hands, arms, long hair, loose clothing, and jewelry away from moving parts.
Be aware that when engine parts are moving fast they cannot be seen clearly.
6. Keep access doors on enclosures closed and locked when access is not re-
quired.
7. When working on or around the Generator always wear protective clothing includ-
ing ANSI-approved safety gloves, safety eye goggles, and safety hat.
8. Do not alter or adjust any part of the Generator that is assembled and supplied
by the manufacturer.
9. Always follow and complete scheduled Engine and Generator maintenance.
CHEMICAL PRECAUTIONS
1. Avoid contact with hot fuel, oil, exhaust fumes, and solid surfaces.
2. Avoid body contact with fuels, oils, and lubricants used in the Generator. If swal-
lowed, seek medical treatment immediately. Do not induce vomiting if fuel is
swallowed. For skin contact, immediately wash with soap and water. For eye
contact, immediately flush eyes with clean water.

SKU 92455 For technical questions, please call 1-800-444-3353. Page 9
NOISE PRECAUTIONS
1. Prolonged exposure to noise levels above 85 dBA is hazardous to hearing. Al-
ways wear ANSI approved ear protection when operating or working around the
Generator when it is running.
ELECTRICAL PRECAUTIONS
1. All connections and conduits from the Generator to the load must only be in-
stalled by trained and licensed electricians, and in compliance with all relevant
local, state, and federal electrical codes and standards, and other regulations
where applicable.
2. The Generator must be earth-grounded in accordance with all relevant electrical
codes and standards before operation.
3. If an extension cord (not included) is used, make sure to use only UL®approved
cords having the correct gauge and length. (See Figure A.)

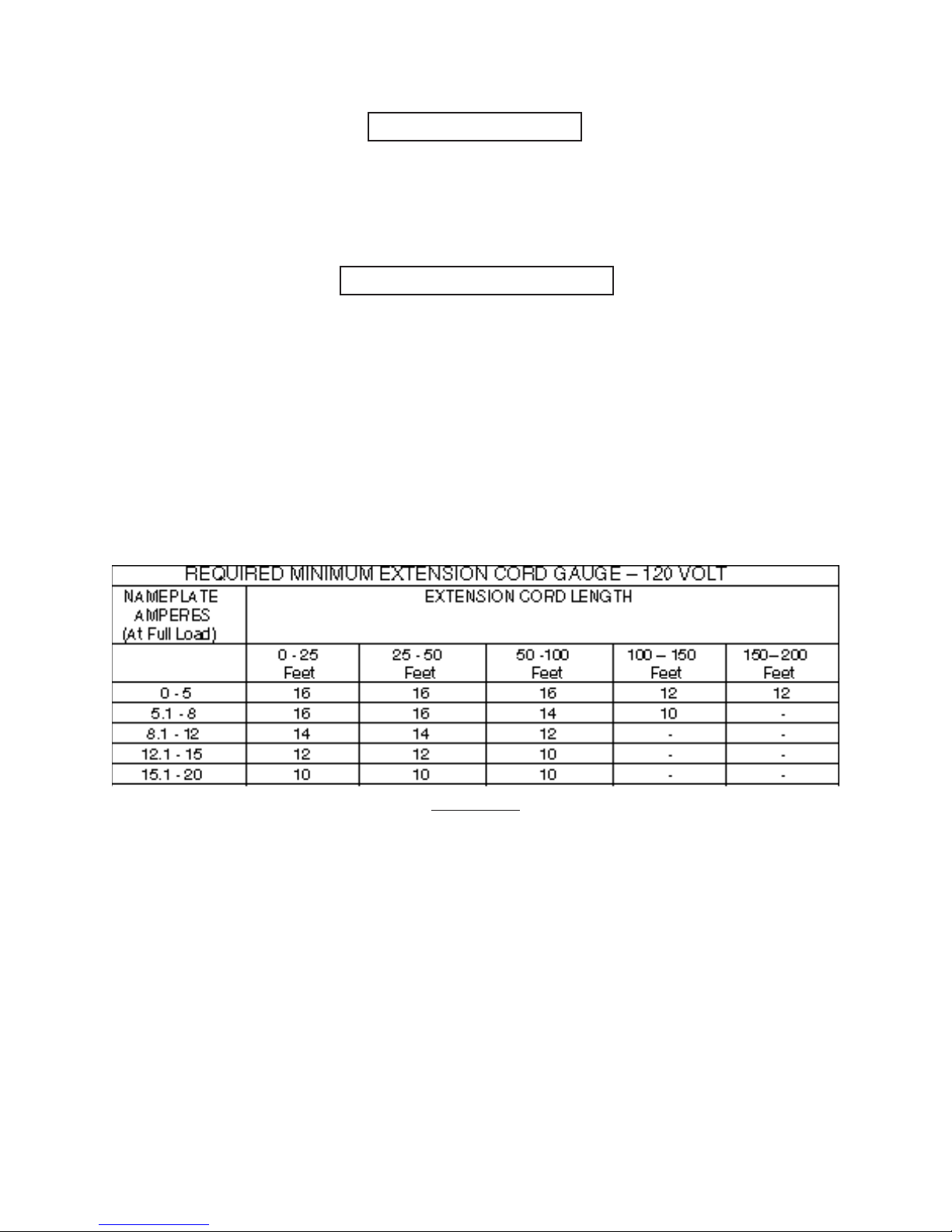

FIGURE A
4. Do not attempt to connect or disconnect load connections while standing in wa-
ter, or on wet or soggy ground.
5. Do not touch electrically energized parts of the Generator and interconnecting
cables or conductors with any part of the body, or with any non-insulated conduc-
tive object.
6. Connect the generator only to a load or electrical system (115 volt) that is com-
patible with the electrical characteristics and rated capacities of the Generator.
7. Before servicing equipment powered by the Generator, disconnect the equipment
from its power input.

SKU 92455 For technical questions, please call 1-800-444-3353. Page 10
8. Keep all electrical equipment clean and dry. Replace any wiring where the insu-
lation is cracked, cut, abraded or otherwise degraded. Replace terminals that are
worn, discolored, or corroded. Keep terminals clean and tight.
9. Insulate all connections and disconnected wires.
10. Guard against electric shock. Prevent body contact with grounded surfaces such
as pipes, radiators, ranges, and refrigerator enclosures.
11. Use only Class BC or Class ABC fire extinguishers on electrical fires.
INSTALLATION
1. NOTE: Prior to powering tools and equipment, make sure the Generator’s rated
voltage, wattage, and amperage capacity (115 V - 20 Amps) is adequate to
supply all electrical loads that the unit will power. If powering exceeds the Gen-
erator’s capacity, it may be necessary to group one or more of the tools and/or
equipment for connection to a separate Generator.
2. Electrical and other permits may be required for the installation of emergency
power systems. Investigate the local building and electrical codes before install-
ing this unit. Installation must be completed by licensed contractors.
3. WARNING! The Generator weighs 103.6 pounds. Use care and the proper
lifting or hoisting equipment when moving it to the installation location. Always
connect hoist lines to the Frame (41) of the Generator.
GENERAL LOCATION
1. It is recommended to locate and install the Generator outdoors where cooling air
is readily available.
2. Install the Generator so that the air inlets and outlets are not blocked by obstruc-
tions such as bushes, trees, or snow drifts. Locating it in the path of heavy winds
or snowdrifts may require the placement of a barrier for protection. The air inlet,
in normal weather conditions, should face the prevailing wind direction.
3. Install the Generator on a concrete slab or other area where rain drainage or
flood waters can not reach it.
4. Generator placement should allow four feet of access to all sides for mainte-
nance.

SKU 92455 For technical questions, please call 1-800-444-3353. Page 11
5. Place the Generator as close as possible to the electrical tools and equipment
being powered to reduce the length of extension cords.
6. If the Generator in located indoors the Engine exhaust must be ventilated to the
outdoors using leakproof, heat resistant, flexible, metal, flex tubing.
GENERATOR SUPPORT AND MOUNTING
1. Mount the Generator on a concrete slab capable of supporting the weight of the
Generator. The slab must extend on all sides beyond the Frame (41) by at least
one foot. Contact a cement contractor for slab specifications if necessary. Attach
the Frame to the concrete slab using 3/8” diameter expansion anchor bolts (not
supplied).
GROUNDING THE GENERATOR
1. NOTE: It is recommended that only a trained and licensed electrician perform
this procedure.
2. Connect a #6 AWG grounding wire (not included) from the Ground Connector (8)
on the Generator to a grounding rod (not included) that has been driven at least
24 inches deep into the earth. The grounding rod must be an earth-driven copper
or brass rod (electrode) which can adequately ground the Generator.
(See Figure B, next page.)
OPERATING INSTRUCTIONS
NOTE: For additional references to the parts listed in the following pages, refer to the

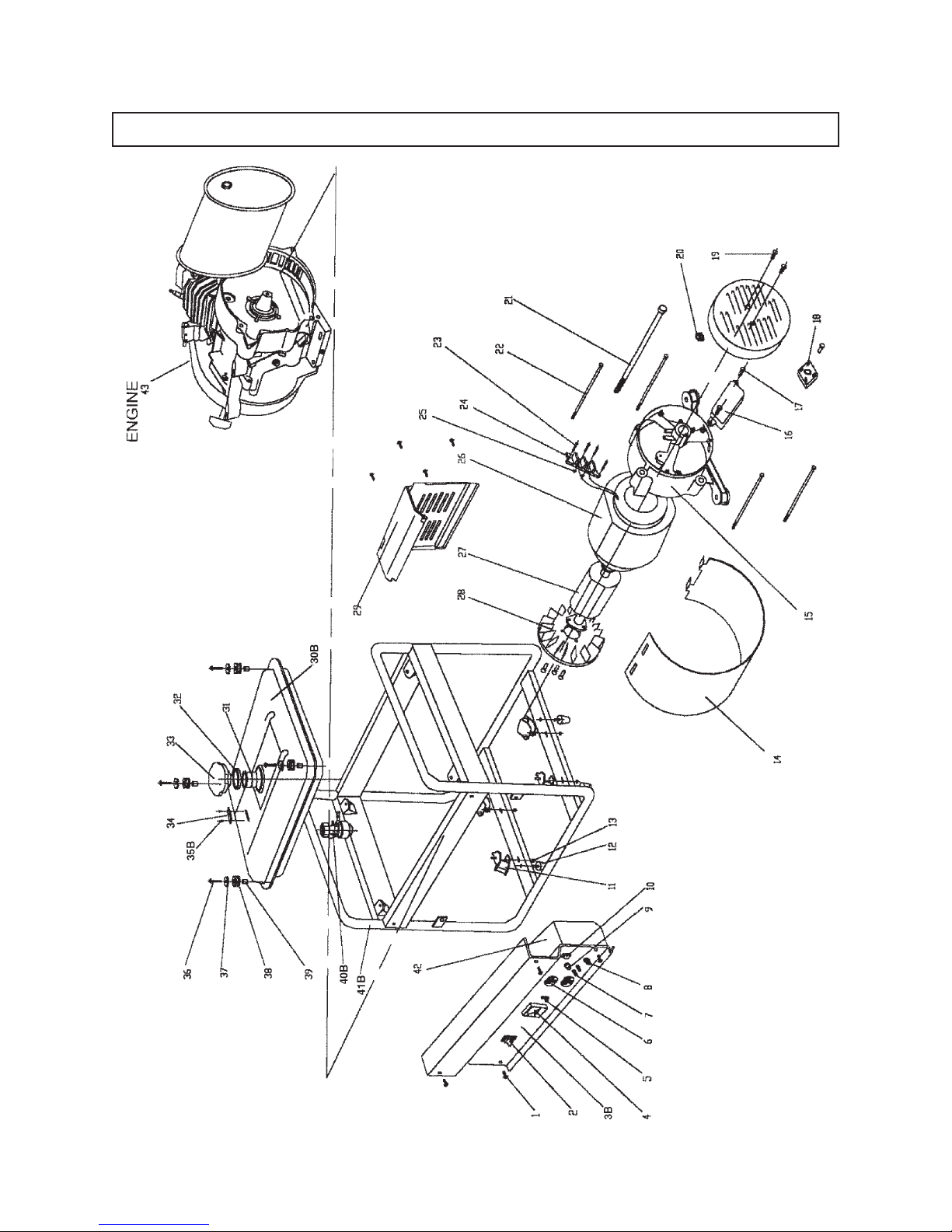

Assembly Diagrams on pages 19 and 21.
Pre-Start Checks:
1. Check to make sure the Engine’s Power Switch (2) is in its “OFF” position.
(See Figure B, next page.)
2. IMPORTANT ! Prior to first using the Generator, the Engine MUST be filled
with approximately 3/4 (0.63) quart of a high quality SAE 10W-30 grade en-
gine oil. To do so, unscrew and remove the Engine’s Oil Dipstick (65A) located
at the bottom of the Engine Crankcase. Fill the Engine’s Crankcase until the oil
level is level with the upper marked line on the Dipstick. Then, screw the Dip-
stick back into the Oil Fill Hole. (See Figure C, next page.)

SKU 92455 For technical questions, please call 1-800-444-3353. Page 12
GROUND CONNECTOR
(8)
#6 AWG
GROUNDING WIRE
(NOT INCLUDED)
GROUNDING ROD
(NOT INCLUDED)

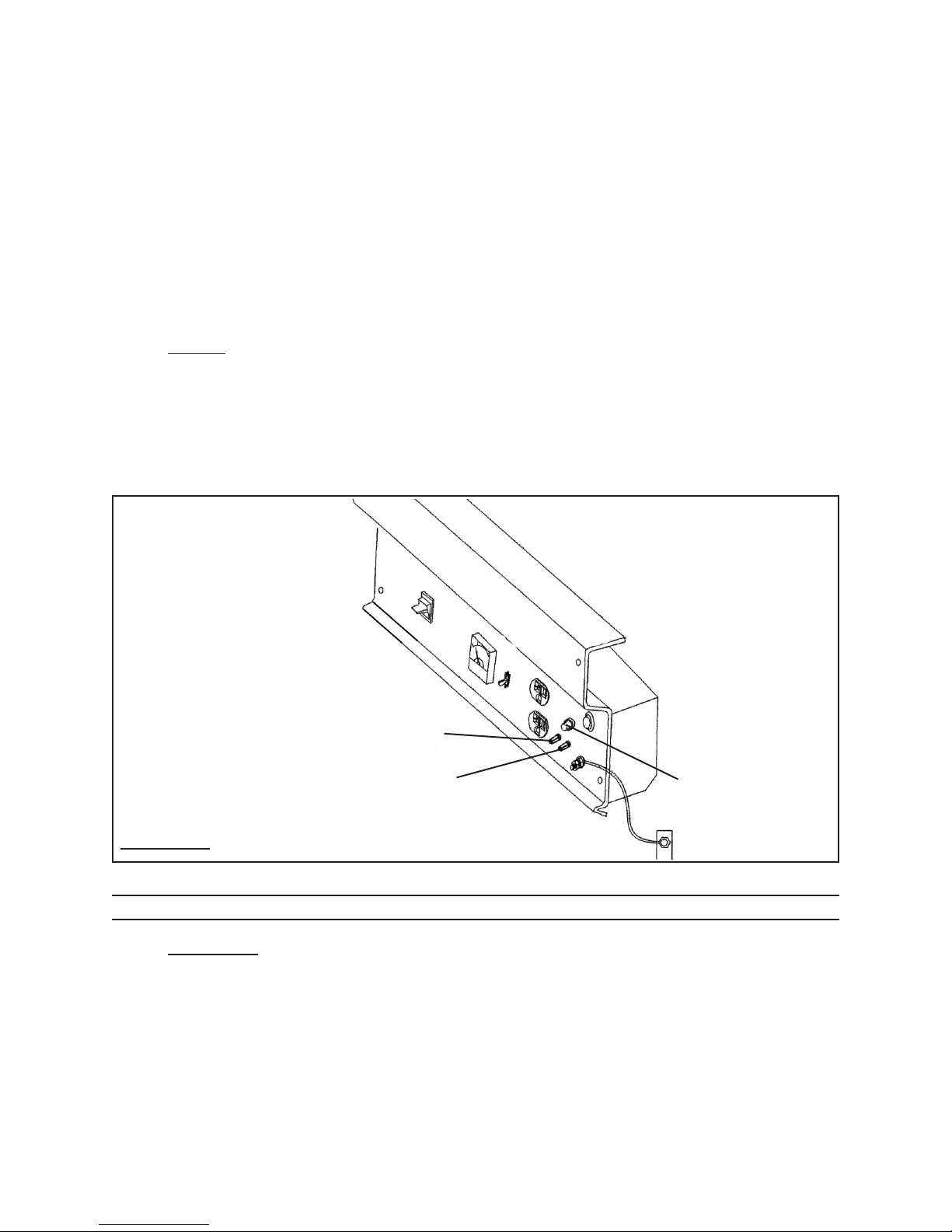

FIGURE B
OIL DIPSTICK
(65A)
FIGURE C
FUEL TANK
(30B)
FUEL TANK CAP
(33)
FUEL GAUGE (34)
ENGINE
POWER
SWITCH
(2)

SKU 92455 For technical questions, please call 1-800-444-3353. Page 13
3. Before the first use, remove the Fuel Tank Cap (33) and fill the Fuel Tank (30B)
with unleaded gasoline. Then, replace the Fuel Tank Cap. Thereafter, check the
Engine’s Fuel Gauge (34) for the amount of unleaded gasoline in the Fuel Tank.
If necessary, refill the Fuel Tank with unleaded gasoline. (See Figure C.)
To Start The Engine:
1. Make sure the electrical powered tools/equipment that will be used is not
plugged in to the Generator.
2. Turn the 115 volt AC Circuit Breaker (5) to its “ON” position. (See Figure D.)
3. Turn on the Fuel Valve (40B). (See Figure E.)
4. Close the Choke Lever (21A) to about 1/8” clearance. (See Figure E.)
OFF
ON
CIRCUIT BREAKER
(5)

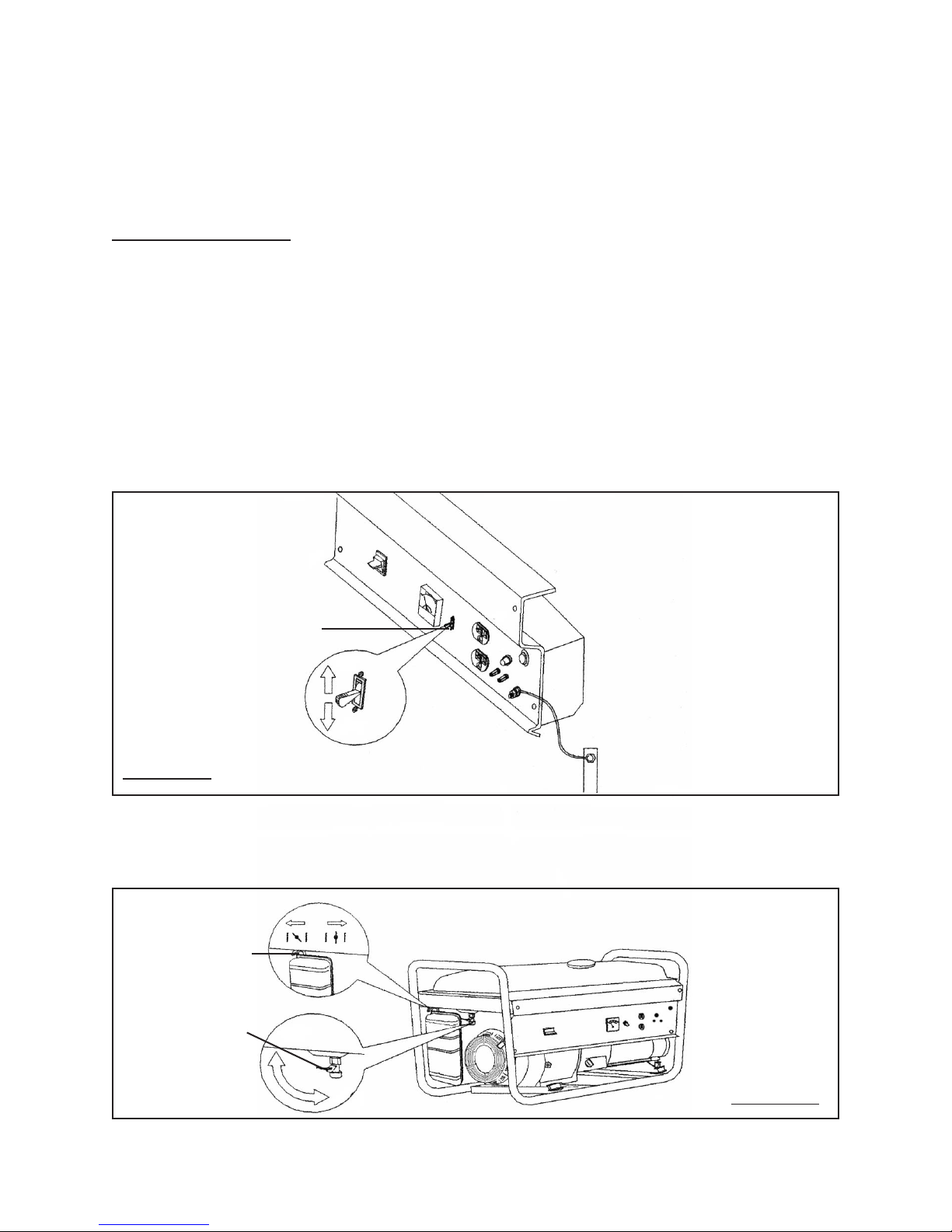

FIGURE D
OFF
ON
CLOSED OPEN
FUEL VALVE
CHOKE LEVER
(21A)
FIGURE E
REV 03/06

SKU 92455 For technical questions, please call 1-800-444-3353. Page 14
5. Turn the Engine Power Switch (2) to its “ON” position. (See Figure F.)
ENGINE
POWER
SWITCH
(2)
ON
OFF
FIGURE F
6. Hold the Start Handle (41A) loosely and pull it slowly several times to allow the
gasoline to flow into the Engine’s carburetor. Then hold the Start Handle firmly
and pull the rope hard and fast. Pull the rope all the way out, using two hands if
necessary. If necessary pull the rope several times until the Engine starts.
(See Figure G.)
7. Allow the Engine to run for several seconds. Then, open the Choke Lever (21A)
all the way. (See Figure E.)
FIGURE G
START
HANDLE
(41A)
120 VOLT
Dual
OUTLETS
(6)

SKU 92455 For technical questions, please call 1-800-444-3353. Page 15
Powering 120 Volt AC Tools And Equipment:
1. Prior to powering tools and equipment, make sure the Generator’s rated voltage,
and amperage capacity (115 VAC / 20 Amps) is adequate to supply all electri-
cal loads that the unit will power. If powering exceeds the Generator’s capacity, it
may be necessary to group one or more of the tools and/or equipment for con-
nection to a separate generator.
2. Once the Generator is running, simply connect the Power Cords of 115 volt AC
powered tools and equipment into the 115 volt AC Dual Outlets (6).
(See Figure G.)
3. NOTE: The Generator features an AC Non-Fuse Circuit Breaker (5) to protect the
AC circuit in case of an overload. Should an overload occur the Breaker will “trip”
to its “OFF” position, causing the Generator to automatically shut down. In this
case, refer to Step #1 above in this section. Then, reset the circuitry system by
turning the Circuit Breaker to its “ON” position. Restart the Generator and con-
tinue powering the remaining tools and equipment. (See Figure D.)
4. When finished using the Generator, turn the Engine Power Switch (2) to its “OFF”
position. Turn the Fuel Valve (40B) to its “OFF” position. Then, disconnect all
electrical powered tools and equipment from the Generator’s 115 volt AC Dual
Outlets (6). (See Figures E, F, and G.)
5. After the Engine and Generator have completely cooled, store the Generator in a
safe, clean, dry location (if not already installed in one).
Powering 12 Volt DC Tools And Equipment:
1. Prior to powering a tool or equipment, make sure the Generator’s rated voltage,
and amperage capacity (12 VDC / 10 Amps) is adequate to supply all electrical
loads that the unit will power. If powering exceeds the Generator’s capacity, it
may be necessary to group one or more of the tools and/or equipment for con-
nection to a separate generator.
2. Connect the Power Cord of a 12 VDC powered tool or equipment to the DC Ter-
minals (7). NOTE: Make sure to connect the positive (+) lead of the Power Cord
to the positive (+) Terminal on the Generator, and connect the negative (-) lead
of the Power Cord to the negative (-) Terminal on the Generator.
(See Figure H, next page.)
3. If using only a 12 volt DC tool or equipment, turn the 120 volt AC Circuit Breaker
(5) to its “OFF” position. (See Figure D.)

SKU 92455 For technical questions, please call 1-800-444-3353. Page 16
4. Start and run the Engine as previously discussed in this manual.
5. When finished using the Generator, turn the Engine Power Switch (2) to its
“OFF” position. Turn the Fuel Valve (40B) to its “OFF” position. Then, discon-
nect the electrical powered tool or equipment from the Generator’s DC Terminals
(7). (See Figure H.)
6. After the Engine and Generator have completely cooled, store the Generator in a
safe, clean, dry location (if not already installed in one).
7. NOTE: The Generator features a 10 AMP DC Fuse (9) to protect the DC circuit
in case of an overload. Should an overload occur the Fuse will burn out, causing
the Generator to automatically shut down. In this case, refer to Step #1 in this
section. Then, reset the circuitry system by replacing the burnt Fuse with a new
10 AMP DC Fuse. Restart the Generator and continue powering the remaining
tool or equipment. (See Figure H.)
10 AMP
DC FUSE
(9)
POSITIVE (+) DC TERMINAL (7)
NEGATIVE (-) DC TERMINAL (7)
FIGURE H
INSPECTION, CLEANING, AND MAINTENANCE
CAUTION! Always make sure the Engine Power Switch (2) is in its “OFF” po-
sition. Disconnect the spark plug wire from the engine and allow sufficient
time for the Engine and Generator to completely cool before performing any
inspection, maintenance, or cleaning.
Before each use, inspect the general condition of the Generator. Check for loose
screws, misalignment or binding of moving parts, cracked or broken parts, dam-
aged electrical wiring, and any other condition that may affect its safe operation. If
1.
2.

SKU 92455 For technical questions, please call 1-800-444-3353. Page 17
abnormal noise or vibration occurs, have the problem corrected before further use.
Do not use damaged equipment.
Follow all maintenance procedures as outlined in the Engine Maintenance Sched-
ule below at the specified intervals. In addition, observe the following details:
Before each use: check to make sure the Engine’s oil level is adequate. If neces-
sary, fill the Engine’s Crankcase until the oil level is even with the Oil Fill Hole.
Before each use: with a soft brush, cloth, or vacuum, remove all debris from the
Generator and engine. Then, use a premium quality, lightweight machine oil to
lubricate all moving parts.
After the initial 20 hours of use and every 100 hours of use thereafter: drain
the old Engine oil and replace with approximately 3/4 (0.63) quart of a high quality
SAE 10W-30 grade engine oil.
Engine Maintenance Schedule
Interval
(More frequent maintenance
will be necessary in dusty or
severe conditions.)
8 hours or
daily, before
use
50 hours
or
weekly
100 hours
or
biweekly
200 hours
or
monthly
500 hours
or every 6
months
1000 hours
or
yearly Details
Clean engine and
check bolts & nuts
Check and refill engine
oil
Change engine oil* *Initial change immediately
after 20 hour break-in period
Clean spark plug (28A)
Clean and adjust spark
plug (28A) electrodes
Replace spark plug
(28A)
Clean air cleaner
element (19A)
Wear dust mask and vacuum or
blow clean with compressed air.
Replace air cleaner
element (19A)
Clean/replace fuel
filter(s)^
^QUALIFIED TECHNICIAN/
MECHANIC ONLY
Replace fuel lines and
filter(s)^
^QUALIFIED TECHNICIAN/
MECHANIC ONLY
Remove carbon from
cylinder head (11A)^
^QUALIFIED TECHNICIAN/
MECHANIC ONLY
Check and adjust valve
clearance^
^QUALIFIED TECHNICIAN/
MECHANIC ONLY
Clean and adjust
carburetor^
^QUALIFIED TECHNICIAN/
MECHANIC ONLY
Overhaul engine^ ^QUALIFIED TECHNICIAN/
MECHANIC ONLY
Storage: Before storing, drain all fuel out of the generator’s gas tank. If this is not
followed, old fuel in the generator’s fuel tank may clog the generator and prevent it
from starting until cleaned out.
3.
4.
REV 10/06

SKU 92455 For technical questions, please call 1-800-444-3353. Page 18
NOTE: Some parts are listed and shown for illustration purposes only, and are not avail-
able individually as replacement parts.
PARTS LIST
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR
DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD
BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE
BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE
ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER
INSTALLATION OF REPLACEMENT PARTS THERETO.
Part Description Q’ty
1 Bolt (M6 x 12) w/Lock Washer 9
2 Engine Power Switch 1
3B Control Panel 1
4 Voltmeter 1
5 Circuit Breaker 1
6 Outlet 2
7 DC Terminal 2
8 Ground Connector 1
9 DC Fuse 1
10 Pilot Light 1
11 Shock Absorber 4
12 Shock Absorber Foot 4
13 Lock Washer Nut 4
14 Stator Cover 1
15 Alternator Back Cover 1
16 Capacitor 1
17 Bolt (M5 x16) 4
18 Rectifier 1
19 Bolt (M5x16) 3
20 Cable Sheath 1
21 Bolt (M8 x 242) 1
22 Bolt (M6 x 172) 4
Part Description Q’ty
23 Bolt (M5 x 20) 4
24 Connection Board 1
25 Nut (M5) 4
26 Stator 1
27 Rotor 1
28 Cooling Fan 1
29 Heat Insulation Board 1
30B Fuel Tank 1
31 Fuel Filter 1
32 Seal Ring 1
33 Fuel Tank Cap 1
34 Fuel Gauge 1
35B Bolt (M6 x 12) 2
36 Lock Washer Bolt (M6x12) 4
37 Spacer 4
38 Rub Washer 4
39 Bush 4
40B Fuel Valve 1
41B Frame 1
42 Switch Box Cover 1
43 Engine 1
REV 06/06

SKU 92455 For technical questions, please call 1-800-444-3353. Page 19
ASSEMBLY DIAGRAM
REV 06/06

SKU 92455 For technical questions, please call 1-800-444-3353. Page 20
PARTS LIST - CONTINUED
NOTE: Some parts are listed and shown for illustration purposes only, and are not avail-
able individually as replacement parts.
Part Description Q’ty
1A Muffler 1
2A Cylinder Head Bolt 4
3A Cylinder Head Cover Bolt 4
4A Cylinder Head Cover 1
5A Lock Nut 2
6A Adjusting Screw 2
7A Rocker Arm 3
8A Rocker Arm Bolt 2
9A Valve Push Rod Guiding Board 1
10A Valve Push Rod 2
11A Cylinder Head 1
12A Carburetor Shield 1
13A Carburetor Packing I 1
14A Carburetor Assembly 1
15A Air Cleaner Case 1
16A Air Cleaner Seal 1
17A Bolt (M6) 4
18A Air Cleaner Cover 1
19A Air Cleaner Element 1
20A Air Cleaner Separator 1
21A Choke Lever 1
22A Carburetor Packing II 1
23A Stud Bolt (M6 x 109) 2
24A Intake Valve 1
25A Exhaust Valve 1
26A Cylinder Head Gasket 1
27A Exhaust Pipe Stud 2
28A Spark Plug 1
29A Valve Guide 2
30A Valve Spring 2
31A Rocker Shaft C-clip 2
32A Anti-Wear Valve Stem Protector 2
33A Cylinder Head Cover Packing 1
34A Governor Spring 1
35A Bolt 1
36A High Tension Line 1
37A Ignition Coil 1
38A Nut (Special 14mm) 1
39A Starter Ratchet Spring 2
40A Start Rope 1
41A Start Handle 1
Part Description Q’ty
42B Starting Case Assy. 1
43A Spiral Spring 1
44A Starting Wheel 1
45A C-clip 1
46A Starting Ratchet 2
47A Friction Plate Screw 1
48B Cover 1
49A Starter Pulley 1
50A Cooling Fan 1
51A Flywheel Magneto 1
52A Cylinder Block 1
53A Speed Control Lever 1
54A Governor Arm 1
55A Governor Spring 1
56A Governor Support 1
57A Bolt (M6 x 15) 2
58A Oil Alert Nut 1
59A Plug (M10 x 15) 2
60A Plug Washer 2
61A Oil Alert 1
62A Bolt (M6) 2
63A Crankshaft 1
64A Crankshaft Gear 1
65A Oil Dipstick 2
66A Oil Dipstick Seal Ring 2
67A Gear Casing 1
68A Bolt (M8 x 35) 6
69A Gear Case Packing 2
70A Bearing 2
71A Camshaft Assy. 1
72A Locating Pin 4
73A Oil Seal 2
74A Connecting Rod Bolt 2
75A Connecting Rod Cap 1
76A Connecting Rod 1
77A Piston 1
78A Compression Ring I 1
79A Compression Ring II 1
80A Oil Scraper Ring 1
81A Piston Pin 1
82A Piston Pin C-clip 2
REV 06/06
