Operator’s Manual
CP9104Q
Pencil Grinder
To reduce risk of injury, everyone using, installing, repairing,
maintaining, changing accessories on, or working near this tool
must read and understand these instructions before performing
any such task.
WARNING

LOCAL SALES AND SERVICE LOCATIONS
Please  nd your local contact at: www.cp.com
Busque su contacto local en: www.cp.com
Votre contact local sur : www.cp.com
Per trovare il contatto CP nella vostra zona,
visitate: www.cp.com
Du kan hitta din lokala kontakt på: www.cp.com
Ihren Ansprechpartner  nden Sie auch unter:
www.cp.com
Por favor, encontre o seu distribuidor local em:
www.cp.com
Du kan  nne din lokale kontakt på: www.cp.com
U kunt uw plaatselijke contact vinden op:
www.cp.com
Find din lokale kontakt på: www.cp.com
Katso paikallisia yhteystietoja osoitteesta:
www.cp.com
Информация, необходимая для связи с
местным представителем компании, может
быть найдена на следующем веб-сайте:
www.cp.com
请上网站www.cp.com查询本地联系单位。
Παρακαλούμε βρείτε τον τοπικό σας αντιπρόσωπο
στη διεύθυνση: www.cp.com
A helyi elérhetőségek megtalálhatók itt:
www.cp.com
EN
ES
FR
IT
SV
DE
PT
NN
NL
DA
FI
RU
EL
ZH
HU
Lūdzu, atrodiet vietējās kontaktpersonas:
www.cp.com
Najbliższą placówkę można znaleźć po adresem:
www.cp.com
Svůj místní kontakt laskavě vyhledejte na adrese:
www.cp.com
Prosím, vyhľadajte svoj miestny kontakt na
adrese: www.cp.com
Prosimo, najdite svoj lokalni kontakt na:
www.cp.com
Vietinį kontaktą rasite svetainėje: www.cp.com
最寄りの連絡先については、当社ウェブサイトを
ご覧ください： www.cp.com
За контакт с местен представител, моля,
посетете: www.cp.com
Svojega lokalnog predstavnika pronađite na:
www.cp.com
Puteţi găsi informaţiile reprezentantului autorizat
local din regiunea dumneavoastră la: www.cp.com
Yerel temsilcinizi şu adresden bulabilirsiniz:
www.cp.com
귀하 지역의 대리점은 다음 사이트에서 찾으실 수
있습니다: www.cp.com
LV
PL
CS
SK
SL
LT
JA
BG
HR
RO
TR
KO
8940168669
KEK 06/10

CP9104Q
Pencil Grinder
Original Instructions
Copyright 2010, Chicago Pneumatic Tool Co. LLC
All rights reserved. Any unauthorized use or copying of the contents
or part thereof is prohibited. This applies in particular to trademarks,
model denominations, part numbers and drawings. Use only
authorized parts. Any damage or malfunction caused by the use of
unauthorized parts is not covered by Warranty or Product Liability.
Noise & Vibration Declaration
Sound pressure level 71 dB(A), uncertainty 3 dB(A), in
accordance with EN ISO 15744. For sound power, add 11
dB(A).
Vibration value;
<2.5 m/s2, re. ISO 20643.
Declaration of noise and vibration emission
All values are current as of the date of this publication. For the
latest information please visit cp.com.
These declared values were obtained by laboratory type testing
in accordance with the stated standards and are suitable for
comparison with the declared values of other tools tested in
accordance with the same standards. These declared values are
not adequate for use in risk assessments and values measured in
individual work places may be higher. The actual exposure values
and risk of harm experienced by an individual user are unique
and depend upon the way the user works, the workpiece and
the workstation design, as well upon the exposure time and the
physical condition of the user.
We, Chicago Pneumatic, cannot be held liable for the
consequences of using the declared values, instead of values
reecting the actual exposure, in an individual risk assessment in a
work place situation over which we have no control.
This tool may cause hand-arm vibration syndrome if its use is
not adequately managed. An EU guide to managing hand-arm
vibration can be found at http://www.humanvibration.com/EU/
VIBGUIDE.htm
We recommend a programme of health surveillance to detect early
symptoms which may relate to noise or vibration exposure, so that
management procedures can be modied to help prevent future
impairment.
MANUFACTURER’S LIMITED WARRANTY
Limited Warranty: The “Products” of the Chicago Pneumatic Tool
Co. LLC (“CP”) are warranted to be free from defects in material and
workmanship for one year from the date of purchase. This Warranty
applies only to Products purchased new from CP or its authorized dealers.
Of course, this Warranty does not apply to products which have been
abused, misused, modied, or repaired by someone other than CP or its
Authorized Service Representatives. If a CP Product proves defective in
material or workmanship within one year after purchase, return it to any
CP Factory Service Center or Authorized Service Center for CP tools,
transportation prepaid, enclosing your name and address, adequate
proof of date of purchase, and a short description of the defect. CP will,
at its option, repair or replace defective Products free of charge. Repairs
or replacements are warranted as described above for the remainder of
the original warranty period. CP’s sole liability and your exclusive remedy
under this Warranty is limited to repair or replacement of the defective
Product. (There Are No Other Warranties Expressed Or Implied And
CP Shall Not Be Liable For Incidental, Consequential, Or Special
Damages, Or Any Other Damages, Costs Or Expenses Excepting
Only The Cost Or Expense Of Repair Or Replacement As Described
Above.)
INSTRUCTION MANUAL
Machine Type:
Power tool equipped with 1/8in. or 3mm collet chuck for use
with various burrs for polishing and grinding - No other use is
permitted.
Air Supply Requirements
1. Supply tool with 90 psig (6.3 bar) of clean, dry air. Higher
pressure drastically reduces tool life.

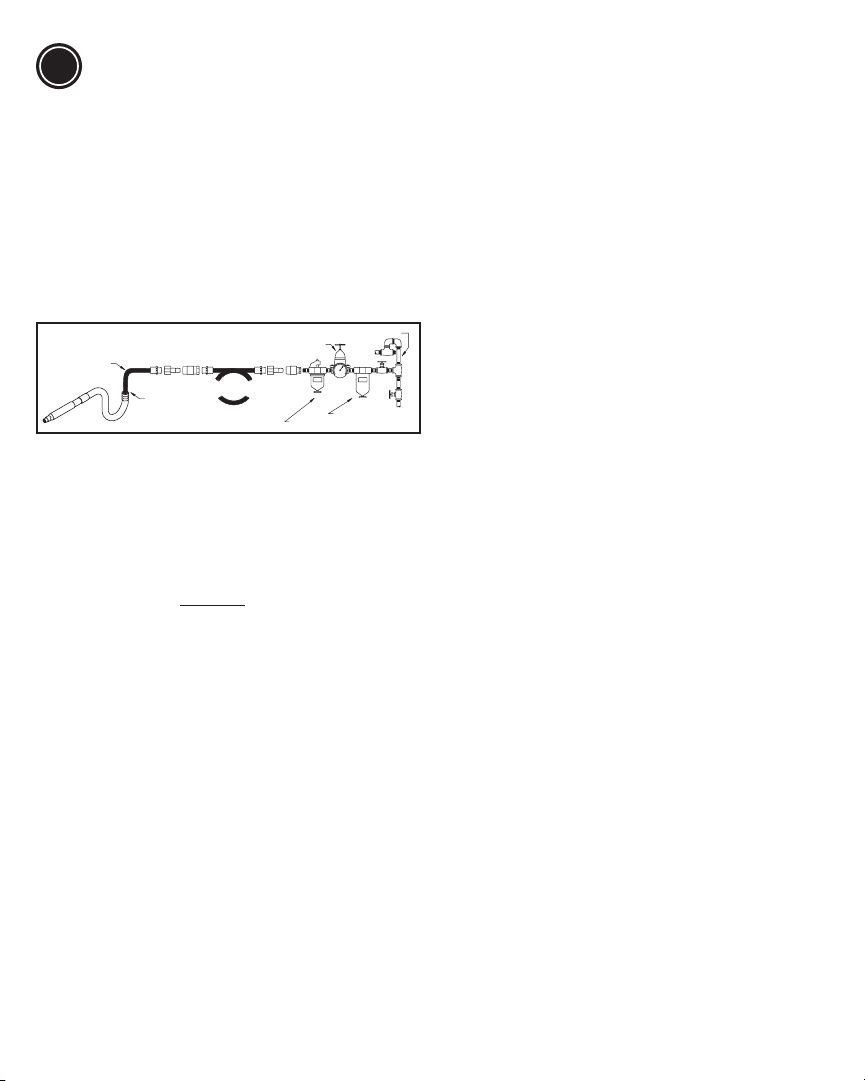

2. Connect tool to air line using pipe, hose and tting sizes
shown in the diagram below.
3. Do not install a quick coupler directly into the sander
throttle handle.
Lubrication
Use an air line lubricator with SAE #10 oil, adjusted to two
drops per minute. If an air line lubricator cannot be used,
add air motor oil to the inlet once a day.
Maintenance
1. After rst year disassemble and inspect tool every three
months if the tool is used every day. Replace damaged or
worn parts.
2. High wear parts are underlined in the parts list
Technical Data
1/8in. or 3mm Collets
Free speed; 60,000 RPM
Air pressure 90 psi (6.3 bar)
Air comsumption; 7 cfm (3.3 l/s)
English
EN
1/2" (12mm)
1/2" (12mm)
CA048361 (1/2") NPT
CA048362 (1/2") NPT
CA048360 (1/2") NPT
3/8" (10mm)
1/4 NPT
130
90
0
