Chilli Penguin The Stock Cube Series User manual

www.chillipenguin.co.uk
CSP 9768 17/01/2022
Installation and Operating Manual
The Stock Cube Series
Penguin 7 Series
The Seventy Ate “78” Series

Your stove should arrive with...
• A pair of heat resistant gloves
• Air control tool
• This instruction manual
• An aerosol of spray paint - coloured stoves only
• A warm fuzzy feeling indicating that you are now part
of the penguin family
www.chillipenguin.co.uk

Contents
Section 1
Introduction
Description
Simple guide to your first fire
Read before first fire
The Charter of the Penguin
P. 01
Section 2
The plans & technical details
P. 06
Section 4
Instructions for use
P. 30
a)
b)
c)
d)
e)
f)
g)
Diagram of the Outside of the Stove
Diagram of the Inside of the Stove
Warnings and Pre-lighting Checks
Simple Guide to your First Fire
Principles of Combustion
MAKING A FIRE - WOOD
Cooking on a Penguin
Section 5
Maintenance
P. 40
a)
b)
c)
d)
e)
f)
g)
h)
i)
Routine Checks and Cleaning
Painting your Stove or Stove Pipe
Keeping your Stove Glass Clear
Door Seal
Door Glass Replacement
Removing the Throat Plate
on the Stock Cube Series
Removing the Throat Plate
on the Stock Cube Series
Vermiculite Bricks
Trouble Shooting
Section 6
Energy efficiency & Warranty
P. 49
a)
b)
c)
d)
Energy Eciency Labels
Warranty
Disposal / Recycling
Commissioning, Stove and Installation Details
Section 3
Installation instructions
P. 18
a)
b)
c)
d)
e)
f)
g)
h)
i)
j)
k)
l)
m)
n)
o)
p)
q)
Warning
Health and Safety Precautions
Smoke Control Areas and
Exemption of Appliances
Hearth
Floors
Clearance to Combustible Walls
Clearance to Non Combustible Walls
Base Heat Shield
CO Alarms
Flue Dampers
Heat Shielding
Ventilation
Plinth Clamp
Rear Fluing
Direct Air Kit
(Non room- sealed only)
The Flue Pipe (single wall)
Chimney and Access for Sweeping
Your stove should arrive with
Contents

Page 01 of 52 www.chillipenguin.co.uk
Introduction
Thank you for purchasing a Chilli Penguin Stove. You have
purchased a high quality eco design stove that has been built
to last. It has been designed and manufactured in the UK with
a cleanburn system to ensure a clean and ecient performance.
We put a lot of time and energy into developing and improving our stoves to enable
them to run as eciently as possible and be simple to use. Please spend a few minutes
familiarising yourself with this manual, so you can get the best possible performance
out your stove.
We love to hear how the penguins get on in their new homes, if you have any
comments or questions, please get in touch or share a picture on social media.
If you have a quiet moment and want to make a penguin very happy, our penguins
love good reviews - we have a review area on our website, we would love to hear your
comments:
www.chillipenguin.co.uk/reviews

Page 02 of 52
This manual is for the following eco design stove.
Description
Spares are available through your local Chilli stockist or
our online shop. There are diagrams online to help you
identify the correct parts and advice about how to fit:
www.chillipenguin.co.uk/FAQ/looking-after-your-penguin
The Stock Cube Series
Model The Stock Cube
Output 4.8kW
Fuel Type Wood only
Stock Cube Convector
4.8kW
Wood only
The Fubsy
4.8kW
Wood only
The Seventy Ate “78” Series (The Oven Models)
Model The Seventy Ate “78”
Output 7.2kW
Fuel Type Wood only
The Seventy Ate “78” Shorty
7.2kW
Wood only
Penguin 7 Series
Model Penguin 7
Output 7.1kW
Fuel Type Wood only
Penguin 7 Convector
7.1kW
Wood only
Penguin Idris
7.1kW
Wood only

We recommend the goldilocks and the 3 bears method: small fire, medium
fire, hot fire. This can be done in one session, rather than three separate fires.
We have illustrated the tee pee method, but you can also use the top down
method, illustrated later in this manual.
Simple guide to your first fire
read this manual and a warnings carefuy
The A, B & C of lighting your 1st stove fire are:
A = air control
B = burn dry wood
C = cure paint carefully
prepare a sma kindling fire
• place one or two firelighters in the centre, kindling over
the top, light the fire, close the stove door
• open air control fully
• ventilate room
• maintain this SMALL FIRE for 15 minutes
• this warms up the stove components gently to prevent
the paint from being “shocked”
medium fire
• add a few split logs
• maintain medium fire for one hour
• close air control by approx. 10mm when burning well,
use air control tool for guidence
• aim to raise the surface temp to 450°F/230°C
hot fire
• add additional wood
• adjust control to allow additional air flow to achieve a hot fire
• aim to achieve 600°F/315°C
• maintain hot fire for one hour
Page 03 of 52 www.chillipenguin.co.uk

Important - read before first fire
The painted surface must be cured or set properly during your first fire.
We use a high temperature stove paint on all of our stoves. It is extremely important
that the paint is cured properly the first time that you light the stove. This is done to
ensure the paint finish will be able to withstand the high temperatures needed. Curing
is done by following the three step process on the facing page. If this process is not
completed properly you may experience issues with the paint. Be aware that curing will
cause a very slight colour change, the hotter areas will change colour the soonest, pay
extra attention to the curing of lighter colours.
We want your penguin to be perfect, so give it the attention it deserves!
To Set / Cure the Paint
Once this initial process has been completed, the paint will be properly cured and you
can operate your stove normally according to the instructions provided in this manual.
If any problems arise with the painted surface of the stove, this is a result of incorrect
curing or misuse of the stove such as over fuelling or running the stove too hot.
Therefore any problems with the painted surface are not covered by your warranty.
This penguin is a living, breathing, hard working appliance. Expect to touch up the
painted surface occasionally over its lifetime.
Note: During the final higher temperature burn phase there may be some visible smoke
near the stove surface. There may also be an unpleasant odour. To mitigate this eect,
ventilate the room with open windows and doors to provide airflow.
Health warning: The smoke from the curing process displaces oxygen. Small children,
the elderly and people with existing breathing problems should vacate the area during
the hot burn to avoid discomfort. The smoke is primarily Carbon Dioxide, it is non-toxic
but can feel uncomfortable.
You’ve bought an amazing stove,
let it be amazing
Page 04 of 52

The charter of the penguin
We guarantee that your stove is good quality and well made
We guarantee that your stove will give you years of warm and ecient heating
We know this because we design and make them ourselves here in Wales
We are convinced that stoves make the autumn fabulous and the winter sublime
We hope that your stove will make the bad days bearable and the good days great
We think that human beings with stoves are happier than those without
We believe that your life has just got better
Page 05 of 52 www.chillipenguin.co.uk

Page 06-17
The plans &
technical details
Section 2

2. The Plans (The Stock Cube Series)

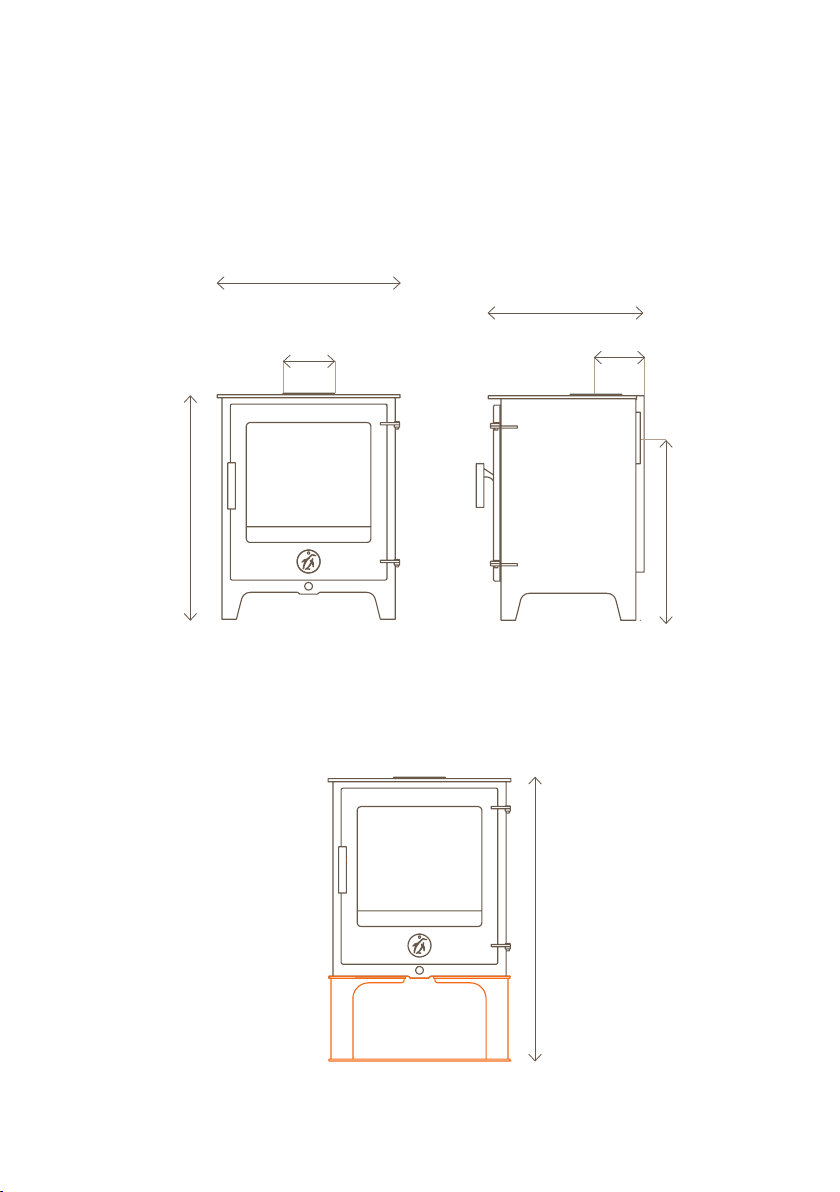

The Stock Cube (Y Ciwb Stoc)
733mm
475mm
127mm
583mm
125mm
405mm
473mm
Optional
Plinth
Page 07 of 52 www.chillipenguin.co.uk

Stock Cube Convector (Ciwb Stoc Darfudol)
555mm
127mm
583mm
405mm
473mm
125mm
2. The Plans (The Stock Cube Series)
Page 08 of 52

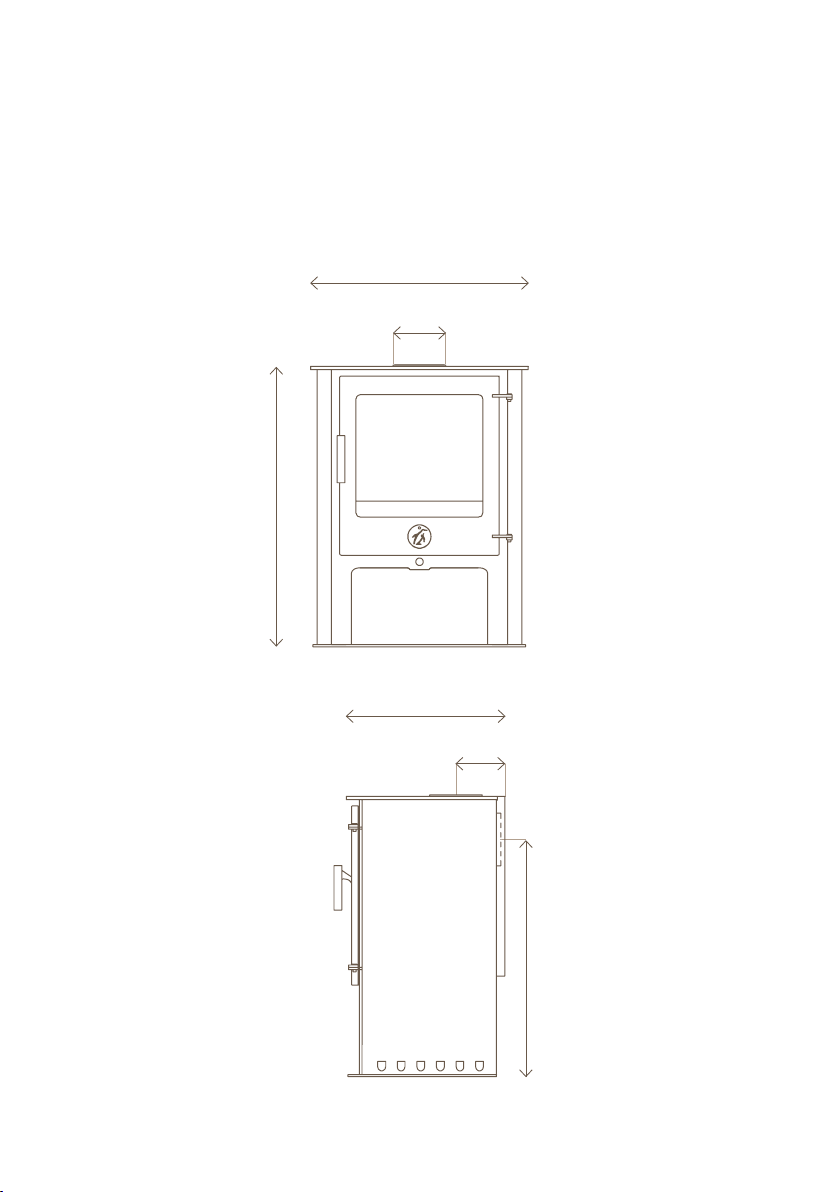

The Fubsy
555mm
127mm
714mm
405mm
473mm
125mm
2. The Plans (The Stock Cube Series)
Integral
Plinth
Page 09 of 52 www.chillipenguin.co.uk

WOOD ONLY
Nominal Output 4.8kW
Total Energy Eciency % (wood) 76.9%
CO Content @13% O2(wood) 0.12%
NOx mg/m3114mg/m3
Cx Hy mg/m3116mg/m3
Energy Rating / Energy Index A / 102
Smoke Particulates @ 13% O227mg/m3
Flue Gas g/s (wood) 5.3g/s
Mean Flue Gas Temp. °C (wood) 243°C
Smoke Control / Defra Testing Complete Yes
Seasonal Eciency 66.9%
Max. Log Length x Average Diameter 300mm x 100mm
Max. Fuel Load 2.5kg
Flue Collar Diameter 127mm / 5”
Flue Size Required Ideal 152mm / 6” - Min. 127 mm / 5”
Top Exit Standard
Rear Exit Fit blanking plate to top exit
Hearth Type Min. 12mm
Hearth Type with Plinth Min. 12mm
Chimney Draught Required 12Pa
Construction Welded steel
Weight Stock Cube = 85kg / Stock Cube Convector = 95Kg / The Fubsy 5 = 101Kg
Tested to EN 13240:2001 / EN 13240-A2:2004 / BS 3841-2:1994
For distances to combustibles / non-combustibles see section 3
The Stock Cube Series
2. The Tech Details
Page 10 of 52

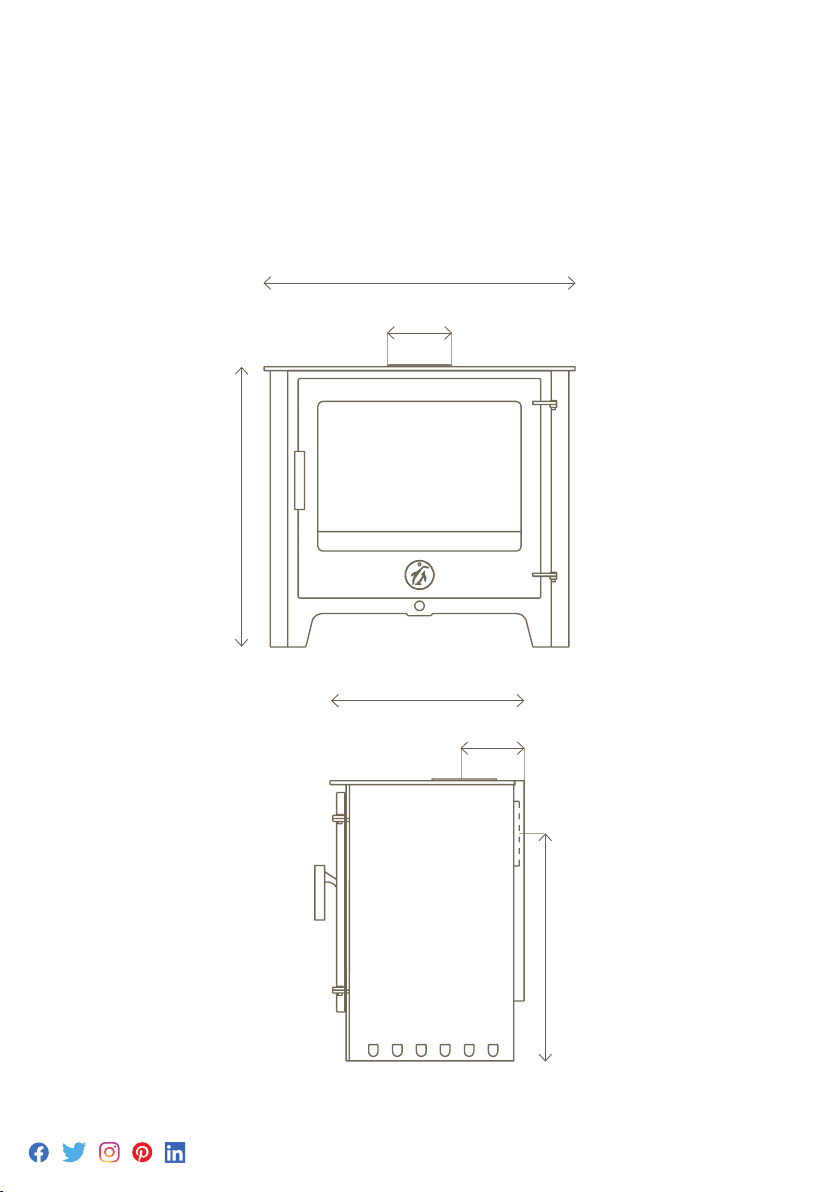

Penguin 7(Pengwin 7)
575mm
127mm
583mm
125mm
405mm
473mm
110mm
2. The Plans (Penguin 7 Series)
733mm
Optional
Plinth
Page 11 of 52 www.chillipenguin.co.uk

Penguin 7 Convector (Pengwin 7 Darfudol)
649mm
127mm
583mm
405mm
473mm
125mm
2. The Plans (Penguin 7 Series)
Page 12 of 52

Penguin Idris
649mm
127mm
791mm
405mm
681mm
125mm
(Pengwin Idris)
2. The Plans (Penguin 7 Series)
Page 13 of 52 www.chillipenguin.co.uk
Integral
Plinth

WOOD ONLY
Nominal Output 7.1kW
Total Energy Eciency % (wood) 75.8%
CO Content @13% O2(wood) 0.11%
NOx mg/m398mg/m3
Cx Hy mg/m3101mg/m3
Energy Rating / Energy Index A / 100
Smoke Particulates @ 13% O225mg/m3
Flue Gas g/s (wood) 7.0g/s
Mean Flue Gas Temp. °C (wood) 284°C
Smoke Control / Defra Testing Complete Yes
Seasonal Eciency 65.8%
Max. Log Length x Average Diameter 450mm x 100mm
Max. Fuel Load 3.5kg
Flue Collar Diameter 127mm / 5”
Flue Size Required Ideal 152mm / 6” - Min. 127 mm / 5”
Top Exit Standard
Rear Exit Fit blanking plate to top exit
Hearth Type Min. 12mm
Hearth Type with Plinth Min. 12mm
Chimney Draught Required 12Pa
Construction Welded steel
Weight Penguin 7 = 111kg / Penguin 7 Convector = 121Kg / Penguin Idris = 127Kg
Tested to EN 13240:2001 / EN 13240-A2:2004 / BS 3841-2:1994
For distances to combustibles / non-combustibles see section 3
Penguin 7 Series
2. The Tech Details
Page 14 of 52

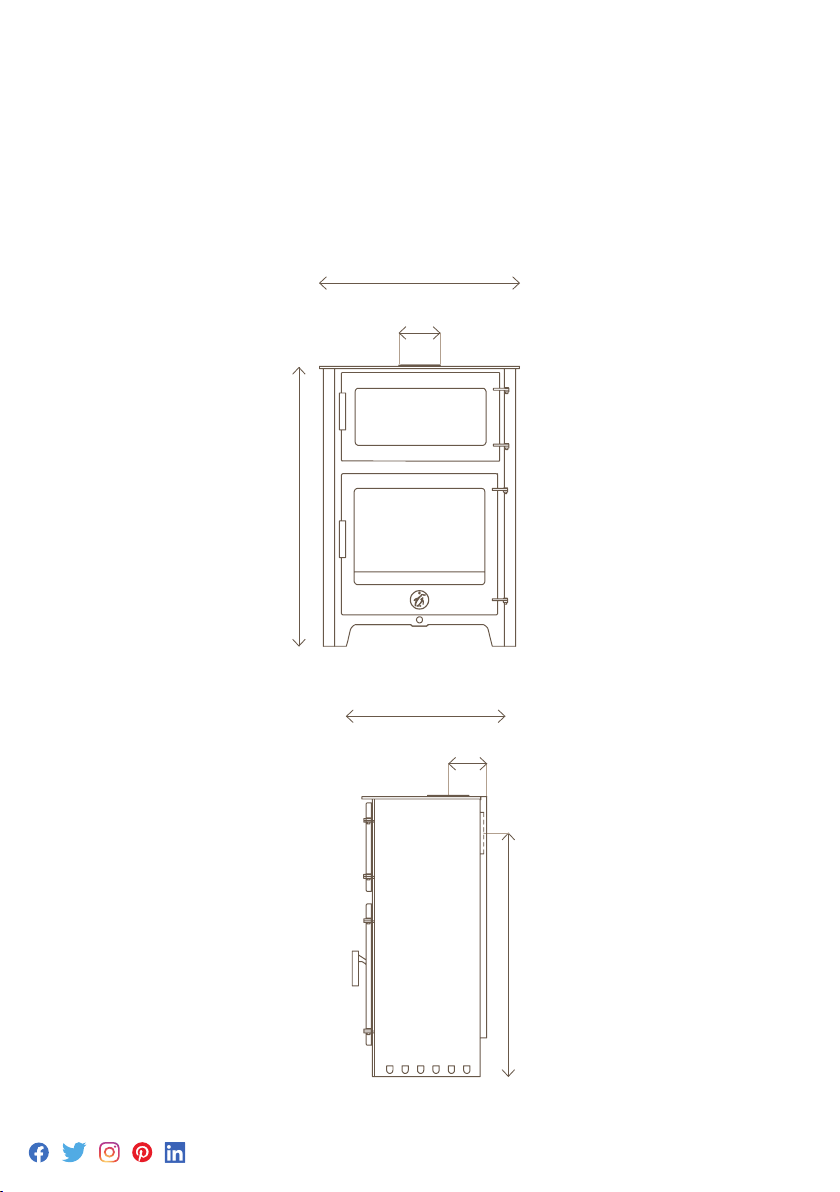

The Seventy Ate “78”
649mm
127mm
1115mm
405mm
997mm
125mm
(Pengwin 78)
118mm
2. The Plans (The Seventy Ate “78” Series)
Page 15 of 52 www.chillipenguin.co.uk
Integral
Plinth

The Seventy Ate “78” Shorty
649mm
127mm
906mm
405mm
788mm
125mm
(Pengwin 78 Bach)
2. The Plans (The Seventy Ate “78” Series)
Page 16 of 52

WOOD ONLY
Nominal Output 7.2kW
Total Energy Eciency % (wood) 75.4%
CO Content @13% O2(wood) 0.11%
NOx mg/m3116mg/m3
Cx Hy mg/m382mg/m3
Energy Rating / Energy Index A / 100
Smoke Particulates @ 13% O240mg/m3
Flue Gas g/s (wood) 9.9g/s
Mean Flue Gas Temp. °C (wood) 211°C
Smoke Control / Defra Testing Complete Yes
Seasonal Eciency 65.4%
Max. Log Length x Average Diameter 450mm x 100mm
Max. Fuel Load 3.5kg
Flue Collar Diameter 127mm / 5”
Flue Size Required Ideal 152mm / 6” - Min. 127 mm / 5”
Top Exit Standard
Rear Exit Fit blanking plate to top exit
Hearth Type Min. 12mm
Hearth Type with Plinth Min. 12mm
Chimney Draught Required 12Pa
Construction Welded steel
Weight The Seventy Ate “78” = 191kg / The Seventy Ate “78” Shorty = 171Kg
Tested to EN 13240:2001 / EN 13240-A2:2004 / BS 3841-2:1994
For distances to combustibles / non-combustibles see section 3
Page 17 of 52 www.chillipenguin.co.uk
The Seventy Ate “78” Series
2. The Tech Details
