chinesport Koln User manual

BA No.: 02.06.083/01-12
Shower and Commode Stationary Chairs
User Instructions
Commode Chair
“Köln“
Art. No.: 01811 / 130 kg
Serial Number
Shower Chair
“Zwickau“
Art. No.: 01815 / 130 kg
Serial Number
Shower & Commode
Chair “Konstanz“
Art. No.: 01819 / 130 kg
Serial Number
Commode Chair
“Kiel“
Art. No.: 01812 / 130 kg
height-adjustable
Serial Number
Shower Chair
“Würzburg“
Art. No.: 01816 / 130 kg
height-adjustable
Serial Number
Shower & Co
mmode
Chair “Ulm“
Art. No.: 01820 / 130 kg
height-adjustable
Serial Nu
mber
Important adviso
ries
!
•Read this User Instructions before first time use of the chair and keep it at hand for the user.
•Adhere to all advisories, especially the safety advisories.
•Keep this User Instructions booklet at hand for future use and subsequent sales.
GB
CHINESPORT SPA
Via Croazia 2 – 33100 UDINE
(Italy)
Tel. ++39 0432 621621
Fax ++39 0432 621620
www.chinesport.com

CHINESPORT SPA / BA No.: 02.07.083/01-12 GB
- 2 -

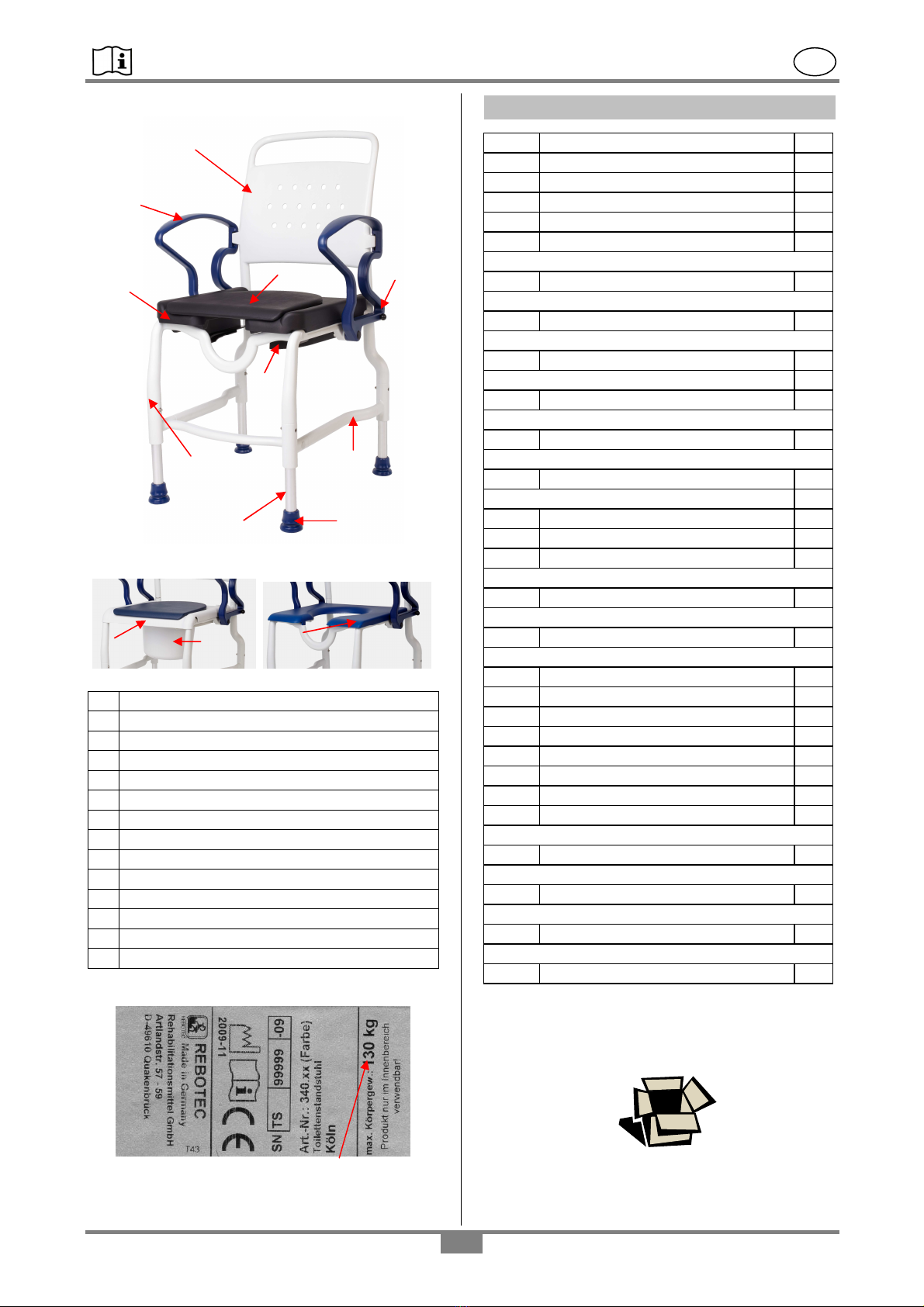

Product description
Kiel / Köln Würzburg / Zwickau
Chair picture shows:
A Backrest
B Armrest (swingable)
C Locking pins
D Chair frame with braces
E PUR seat with or without hygiene opening
F Shower seat
G Toilet seat
I Leg caps
K PUR seat cushion (removable)
R PUR back cushion
T Height adjustment-legs/seat height
V Commode pan with lid
W
Pan receptacle
Z Nameplate for product
Nameplate (Z)-Example: Chair -Köln
Always observe allowable
maximum patient body weight !
The name-plate is very important for product
identification and thus must not be removed.
Table of Contents
1. General advisories 3
1.1 Introduction 3
1.2 Intended proper use, advisories 3
1.3 Shower chair 3
1.4 Commode chair 3
1.5 Shower/Commode chair 3
2. Warranty 3
3. Spare parts orders, complaints 3
4. Re-use, lifetime 3
5. Disposal 3
6. Symbol advisory 3
7. Safety advisories, use 4
8. Product specifications 4
8.1 Scope of delivery 4
8.2 Technical specifications 4
9. Spare parts, accessories 5
10. Setting up the chair for use 5
11. Using the chair 5
11.1 Sitting down 5
11.2 Getting up 6
11.3 Swiveling the armrests outwards 6
11.4 Removing the seat
showershoer/commodeseat
6
11.5 Removing the back cushion 6
11.6 Handling the commode pan 6
11.7 Adjusting the seat height 6
12. Troubleshooting 7
13. Care 7
14. Maintenance 7
Accessories 8
We reccomend, if possible, keeping the packaging
for later transport. This will allow secure packaging
in the event of a return transport.
F
G V
Z
A
B
C
E
D
W
I
T
K

CHINESPORT SPA / BA No.: 02.07.083/01-12 GB
- 3 -
1. General advisories
1.1 Introduction
In these User Instructions you will find information
and advisories for start-up, use, operation,
maintenance and care of the shower/commode
stationary chair.
1.2 Intended proper use, advisories
The shower/commode stationary chair is for
household and out-patient purposes. The chair is
to be used exclusively for assistance during
showering or bathing and using a toilet inside
buildings. It is nor suitable for sitting on over a long
period of time.
The chair is not suitable for use in wet areas
(e.g. for saunas, areas with swimming pool-
like conditions), as surface discoloration and
adverse effects on the mechanical strength
can result.
Store the chair only in a dry condition!
The chairs are made of a corrosion-resistant frame
and tubes and four fixed legs. The armrests can be
swivelled back. For some models, the seat height
is adjustable to three levels, and the back rests are
cushioned in addition.
Pay attention to the ambient conditions when using
the chair. The chair may be used only for very
short times in conditions that are outside the limits.
Ambient temperature: 0 – 40°C (104
0
F)
Relative humidity: 30% - 70%
1.3 Shower chair
The shower chair may be used where the use of or
access to a conventional shower or bathtub is no
longer possible due to patient physical limitations.
The shower must be designed so that the chair is
stable.
1.4 Commode chair
The commode chair may be used where the use of
or access to a conventional toilet is no longer
possible due to patient physical limitations. The
seat surface has a toilet-like cut-out under which a
toilet pan with a lid that can be pushed in.
1.5 Shower/Commode chair
A shower and commode chair is a combination of
both applications.
2. Warranty
There is a 2-year warranty on our shower and
commode chairs.A prerequisite for the warranty is
use in accordance to the requirements outlined
herein, as well as conducting regular maintenance.
Excluded are all wear parts. Not observing the
User Instructions, improper maintenance,
unauthorised modifications done to the product
without the manufacturer’s permission
automatically lead to the immediate nullification of
warranty and product liability (see Maintenance).
The delivery date written on the delivery note
applies as the valid start date of the warranty
period.
3. Spare parts orders, complaints
To exclude incorrect spare parts deliveries and to
ensure rapid processing of complaints, always
provide the product name, serial number (SN) and
the product’s year of manufacture. You can find
this information on the chair’s nameplate.
4. Re-use, lifetime
The product is designed for re-use. The re-use
(lifetime) depends on the product’s condition.
Before re-use, maintenance of the chair must be
conducted and the applicable instructions
concerning safety care and maintenance must be
fully adhered to.
The expected lifetime of the chair can be up to 5
years when used properly and the safety
instructions, maintenance intervals and care
instructions are followed.
Beyond this time period, the product can be used
further if it is still in a safe condition (after a
complete inspection).
5. Disposal
Products that can no longer be used are to be
disposed of separately from regular household
rubbish. This must be done according to the local
and national regulations for environmental
protection and raw material recycling. Please
contact your local disposal company or officials for
further information.
6. Symbol advisories
Symbol - nameplate
Read the User Instructions!
Product conforms to the Medical
Products Directive 93/42/EEC
Year of Manuf. Serial No
Product Product
Symbols in the User Instructions:
Important advisory Language
or information!
Caution – Follow safety advisories!
Care Maintenance
SN
GB

CHINESPORT SPA / BA No.: 02.07.083/01-12 GB
- 4 -
7. Safety advisories for use
When using the chair, the following safety
advisories must be observed:
Danger of slipping!
•Before using, check to be sure the seat is
securely pressed into the seat frame.
•When sitting down into the chair, the user must
not sit on the front edge of the seat or seat
cushion. Be sure the user sits all the way back
on the seat
Danger of tipping over!
•The chair may be used when sitting only when
the armrests are locked into position.
•The chair may be used only on solid, even
surfaces.
•Do not lean out of the chair.
•For the height adjustable chair, follow the height
adjustment instructions when adjusting the
height.
•Adjust all four 4 chair legs to the same height.
•When adjusting the height of the chair, always
observe the applicable instructions.
•Do not use the chair when the leg suction caps
are worn!
Danger of breakage!
•Never attempt to carry or lift the chair while a
patient is sitting in it.
•The chair is suitable only for sitting on by
persons. Be sure to observe the maximum
allowable patient body weight (specified on
the nameplate).
•Never expose the chair to wide temperature
variations. Observe the instructions concerning
the temperature range of use (see: 1.2).
•Do not grab hold of or pull on attached objects,
such as armrest cushions.
Danger of pinching!
•To prevent body parts or objects from getting
pinched, never reach into the hinge area when
turning the armrests up or down. Be sure to
check that the hinge areas are unobstructed
before moving the armrests!
•To prevent body parts from getting pinched, do
not reach between the seat and the frame when
pressing the seat into the seat frame.
Danger of falling!
•Sitting down, standing up and moving the patient
should be supervised by a qualified care-worker,
as to the health condition of the patient.
•Use of the chair by patients who do not have
complete physical control and normal movement
must be done with supervision.
Warning! Danger of Injury!
•At surface temperatures over 40°C (104°F),
there’s a risk of injury. Therefore do not expose
the chair to any source of heat (exposure to the
sun, storing near a heater, cleaning with hot
water) just before the chair is used. Before using
the chair, allow it to cool down.
8. Product specifications
8.1 Scope of delivery
The product has been carefully inspected in the
factory for freedom of defects and for
completeness. After having received it, carefully
check over the product for possible transport
damages and for completeness .
•1 shower / commode chair
•1 back-rest
•1 seat
•1 commode pan (optional)
•1 back cushion (optional)
•1 Allen wrench (optional)
•1 User Instructions
8.2. Technical specifications
We reserve the right to make technical developments
and improvements with respect to the design shown
in the User Instructions.
Dimensions (ca.) Köln Kiel
A. height 101 cm 99-104 cm
B. width 57 cm 57 cm
C. depth 63 cm 63 cm
D. seat height 52 cm 51-56 cm
E. seat width 46 cm 46 cm
F. seat depth 45 cm 45 cm
G1. clearance * 44 cm 43-47 cm
G2. clearance * 48 cm 46-51 cm
Body weight max. 130 kg max. 130 kg
Product weight ** 11.2 kg 11.2 kg
Dimensions (ca.) Zwickau Würzburg
A. height 101 cm 99-104 cm
B. width 57 cm 57 cm
C. depth 63 cm 63 cm
D. seat height 51 cm 50-55 cm
E. seat width 46 cm 46 cm
F. seat depth 45 cm 45 cm
G1 clearance * 43 cm 42-47 cm
G2 clearance * 48 cm 46-51 cm
Body weight max. 130 kg max. 130 kg
Product weight ** 9.2 kg 9.2 kg

CHINESPORT SPA / BA No.: 02.07.083/01-12 GB
- 5 -

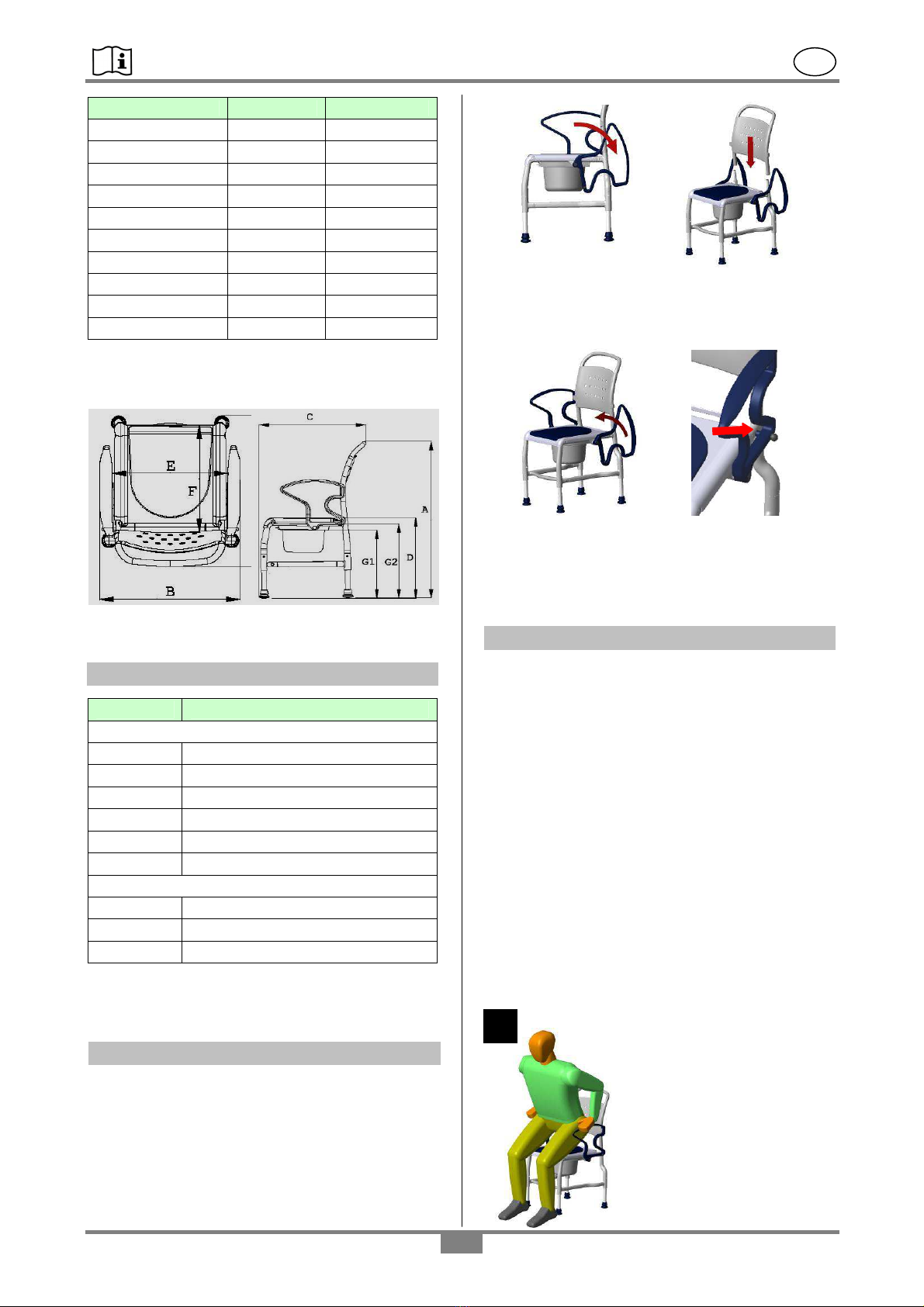

Dimensions (ca.) Konstanz Ulm
A. height 101 cm 99-104 cm
B. width 57 cm 57 cm
C. depth 63 cm 63 cm
D. seat height 54 cm 52-57 cm
E. seat width 46 cm 46 cm
F. seat depth 45 cm 45 cm
G1. clearance * 43 cm 41-46 cm
G2. clearance * 48 cm 46-51 cm
Body weight max. 130 kg max. 130 kg
Product weight ** 11.8 kg 11.8 kg
* G1= with commode pan receptacle
* G2= without commode pan receptacle
** Figure: product weight without accessories
9. Spare parts, accessories
Article No. Name
Spare parts list
301.00 Commode pan with lid, grey
307. * Comm. seat - Standard (2-pc.)
440. * .04 PUR seat with opening
440. * .62 PUR seat cover
169. * .30 Suction caps 30 mm
02.07.083 User Instructions
Accessories
440. * .60 PUR back cushion, oval
440.10.32 PUR armrest cushion (1 piece)
02.10.071 Maintenance instructions - chairs
* Provide colour
10. Setting up the chair for use
The product is delivered partially pre-assembled.
The following assembly instructions must be
carried out before first-time use:
1. Swivel the armrests to the back, insert the
backrest into the tubes of the chair frame and
push it down until it hits the striker of the lower
frame.
2. Swivel the armrests forwards until they click
into the slots of the backrest and the locking
pins click into the lower frame. Be sure they
are securely in place.
3. For chairs with height adjustment, the seat
height of the chair is set at its lowest position
for delivery (Base setting). Adjust the height as
necessary (see: 11.7).
11. Using the chair
When using the chair, the following points
must be adhered to:
Before use it must be assured that the chair is in a
proper condition for safe use. If possible,
depending on the physical and strength limitations
of the user (patient’s ability to move and muscle
strength), sitting down and getting up should not
be done without assistance from a care worker.
The chair may not be used for long patient
transport times.
11.1 Sitting down
Before sitting down in the chair, be sure it is
secured against slipping away (see: 11.9) and
tipping over, that the armrests are locked into
position, and that the shower/commode seat is
properly mounted.
The patient should stand as
closely as possible near the
chair. He should then sit down
slowly on the whole seat while
supporting himself using both
armrests
If this is not possible due to his
physical limitations, then a
care-worker must assist him. If
necessary a patient lifter may
have to be used.
1

CHINESPORT SPA / BA No.: 02.07.083/01-12 GB
- 6 -
Caution – danger of falling!
To prevent the patient from
falling out of the chair, be sure
the patient is seated
completely on the chair, and
not just on the edge.
Be sure he is leaned back
against the seat back.
11.2 Getting up
Before getting up, be sure the chair is stable and
secured against slipping away and tipping over,
and that the armrests are locked in position.
The patient should then move his body forward
until his feet are flat on the floor.
The patient must then place
both hands on the armrests
and slowly lift himself up.
The patient must not lean too
far forwards, in order to avoid
falling.
The patient should have the
care worker assist him when
getting up.
11.3 Swivelling the armrests outwards
By pulling out the locking pin, the locking
mechanism is disengaged and the armrests may
be swivelled back. When swivelling the armrests
up, check to be sure that the armrests are properly
seated in the locking position of the backrest and
locked by the locking pin.
Check the locking mechanism on a regular basis
for impaired function arising from calcium deposits,
which can impair the movement.
11.4 Removing the shower / commode seat
The seat can be removed from its receptacles on
the chair frame for the purpose of cleaning or
exchanging simply by pulling it up.
11.5 Removing the seat back cushion
The back cushion is fastened to the cross-brace or
backrest with studs. Press the buttons to remove
the back cushion.
11.6 Handling the commode pan
Push the commode pan under the seat from
behind the chair. To remove the pan, lift it up
slightly and pull it out.
For the model with a 2-piece toilet seat, the
commode pan can also be removed from above by
lifting the seat and put back as well.
11.7 Adjusting the seat height
For adjusting the seat for the patient or for placing
over a toilet, the chair models Würzburg, Ulm, Kiel
are height adjustable.
The height-adjustment (2 stages: each 25 mm) is
done through the 4 leg inserts in the chair frame.
Danger of tipping over!
Be sure that all four chair legs are adjusted to
the same height and that the screws are
tightened by hand.

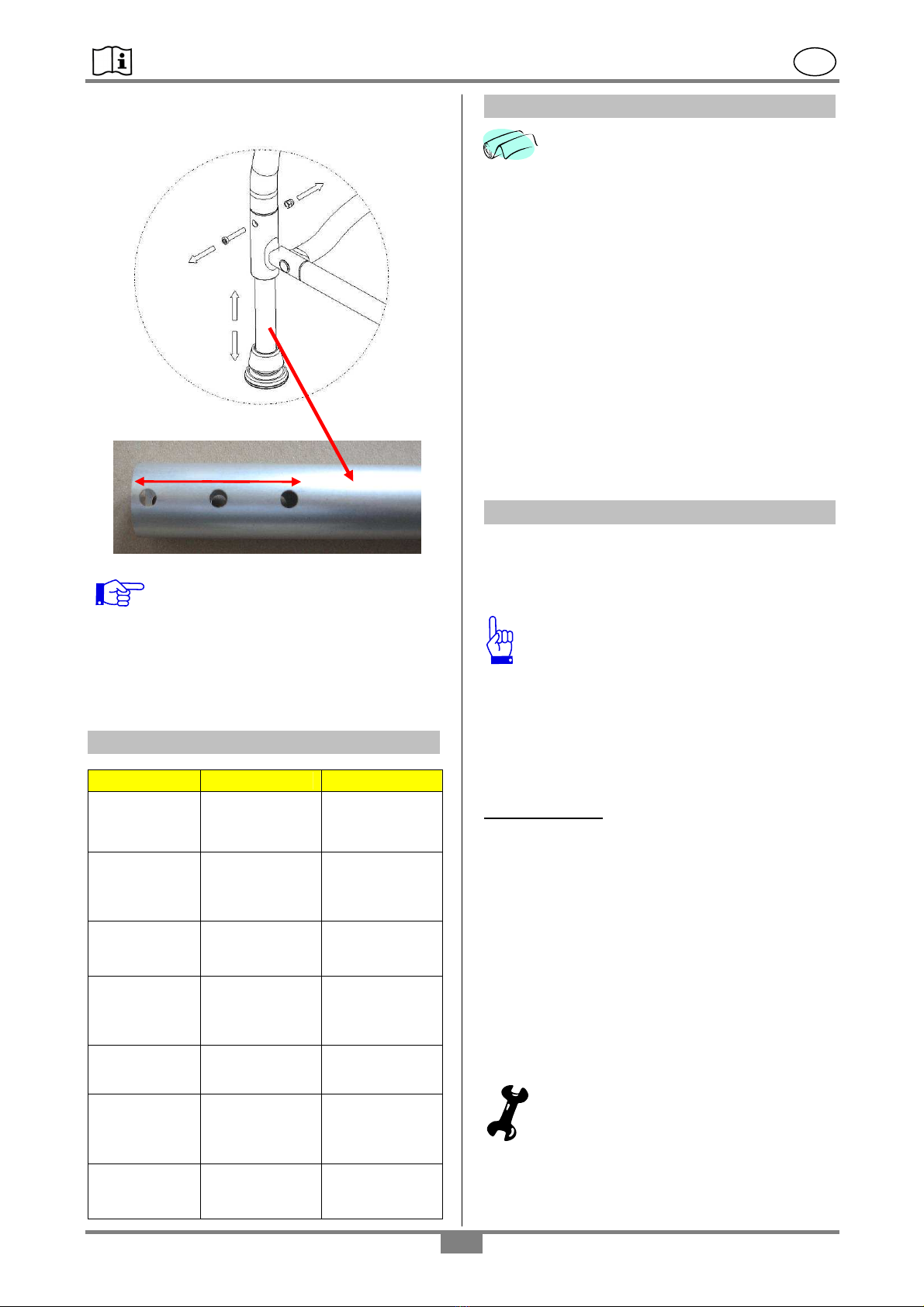

Step 1
To do the adjustment, we recommend laying the
chair on its side. First remove the commode pan (if
at hand) and the seat unit.
Step 2
Using an (SW 5) Allen wrench, completely remove
the screws (LH rotation) in the frame. When
loosening the screws, press against the locking nut
(underside).
Step 3
Pull the leg out or push it in until the hole lines up
with the next adjustment position.
Using the locking nut, screw the leg (right hand
rotation) until tight (back side).
2
3
3

CHINESPORT SPA / BA No.: 02.07.083/01-12 GB
- 7 -
Clean the chair before re-using (see
care instructions).
12. Troubleshooting
Fault Poss. cause Correction
Armrests do
not swivel
properly
Locking pins are
caked up with
deposits
Clean, check
periodically
Locking pins
cannot be
pulled out
Caked up,
tension spring is
jammed or
defective
Clean,
replace locking
pin
Chair rocks Suction caps are worn or
damaged
Replace suction
caps
(always is pairs!)
Chair rocks Legs are not set
at equal heights
Check heights
and adjust as
necessary
Adjustable legs
are jammed.
Calcium
deposits,
gumming up
Pull out legs and
clean
Chair frame
too unstable Screws are loose
Tighten frame
and castor
screws
Chair frame or
other parts are
defective
Overloading,
wear See maintenance!
13. Care
In general the chair can be cleaned using
a mild conventional cleaning and
disinfecting agent. Next simply wipe the
chair with clean water and cloth, and then
wipe dry with a clean cloth.
Do not use an abrasive scouring agent or cleaner
(read the product instructions!) that contain
aggressive solvents (acids, thinners). Do not use
stiff cleaning brushes, as these will damage the
plastic surfaces or cause deposits to build up on
the plastic parts and other materials.
When using the product in a clinical area, the
shower/commode chair must be cleaned on a
regular basis at 85°C for 3 minutes in a cleaning
machine, in addition to general cleaning. First
remove any loose accessories.
14. Maintenance
The cause of accidents or damage may be due to
the late detection of wear and/or improper use, as
well as irregular maintenance.
For safety reasons and for preventing
accidents, the chair must undergo a
complete maintenance at least once a
year. (Refer to the Medical Products Act and
local the MPBetreibV))
For documenting maintenance, REBOTEC
supplies a Maintenance Book – Chairs (see: 9.).
Here you will find information on maintenance and
forms for documentation. You can order these
User instructions or download via our website at
www.rebotec.de.
Maintenance extent
Check at regular time intervals:
The intervals depend on the frequency the product
is used and on the condition of the product.
•Check for apparent damage:
(cracks, fractures, loose parts).
•All screwed connections for tightness
(especially the frame).
•Function of the armrests and locking pins.
•Check accessories for defects.
If you have questions concerning
maintenance and repairs to the chair, then
contact an authorized dealer or medical
equipment supply outlet.
When making repairs, use only original spare parts
from REBOTEC. Observe all advisories concerning
guarantee and warranty.
Adjustment levels

CHINESPORT SPA / BA No.: 02.07.083/01-12 GB
- 8 -
Never make any unauthorized modifications or
conversions to the chair. These will only adversely
affect the safety and function of the chair.
In such cases manufacturer overtakes no
liability!
Follow all the instructions when ordering spare
parts, re-use and product lifetime of the chair.
After a complete maintenance or repair of the chair
is done, we recommend a complete cleaning for
assuring hygiene. Follow the cleaning instructions.

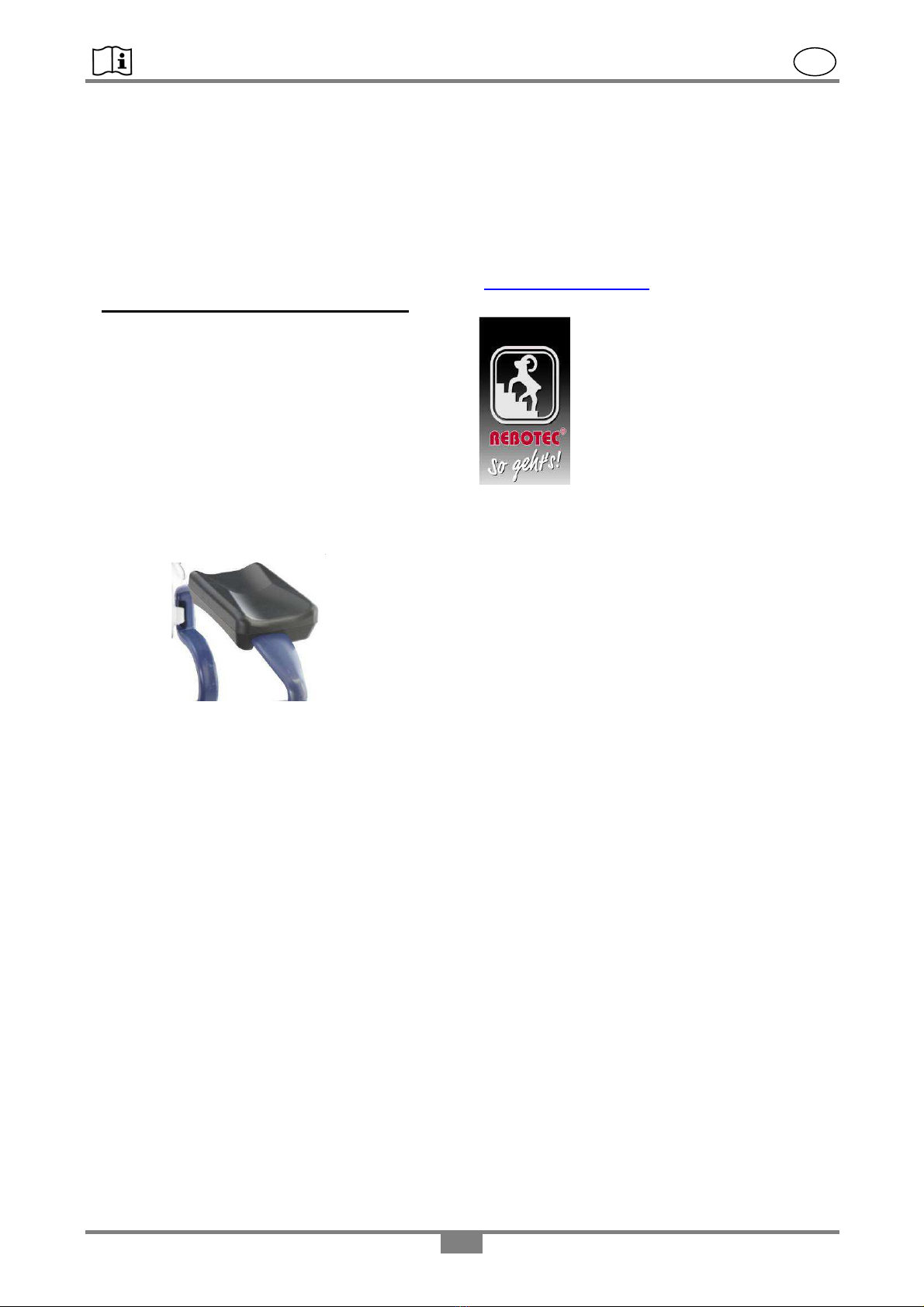

Accessories
Armrest cushion
Armrest cushions can be clamped onto the
armrests, retroactively, on both the right and left
sides. The armrest cushion allows better handling
when administering infusions or taking blood
samples. (Weight: 0.250 kg).
Manufacturer:
REBOTEC
®
Rehabilitationsmittel GmbH
DE-49610 Quakenbrück, Artlandstr. 57-59
Telephone: [phone]
Telefax: (+49) 5431/9416-66
http://www.rebotec.de
E-mail: [e-mail]
