Chipsee PPC-A72-236 User manual

Industrial PC
PPC-A72-236
PN: CS19108R236P
Content can change at anytime, check documentation website for latest information.
www.chipsee.com

Contents
31. PPC-A72-236
41.1. Product Overview
51.2. Ordering Options
51.2.1. Operating System
61.2.2. Optional Features
61.3. Hardware Features
71.4. Power Input
81.5. Touch Screen
91.6. Connectivity
91.6.1. RS232+RS485+CAN+GPIO Connector
111.6.2. USB Connectors
121.6.3. LAN Connectors
121.6.4. WiFi & BT Module
131.6.5. 4G/LTE Module
141.7. TF Card Slot
151.8. Audio Connectors
151.9. Power Button
161.10. Mounting Procedure
161.11. Mechanical Specications
171.12. Disclaimer
171.13. Technical Support
Chipsee IPC Page 2 of 17

PPC-A72-236
Front View
Rear View
PPC-A72-236
Chipsee IPC Page 3 of 17

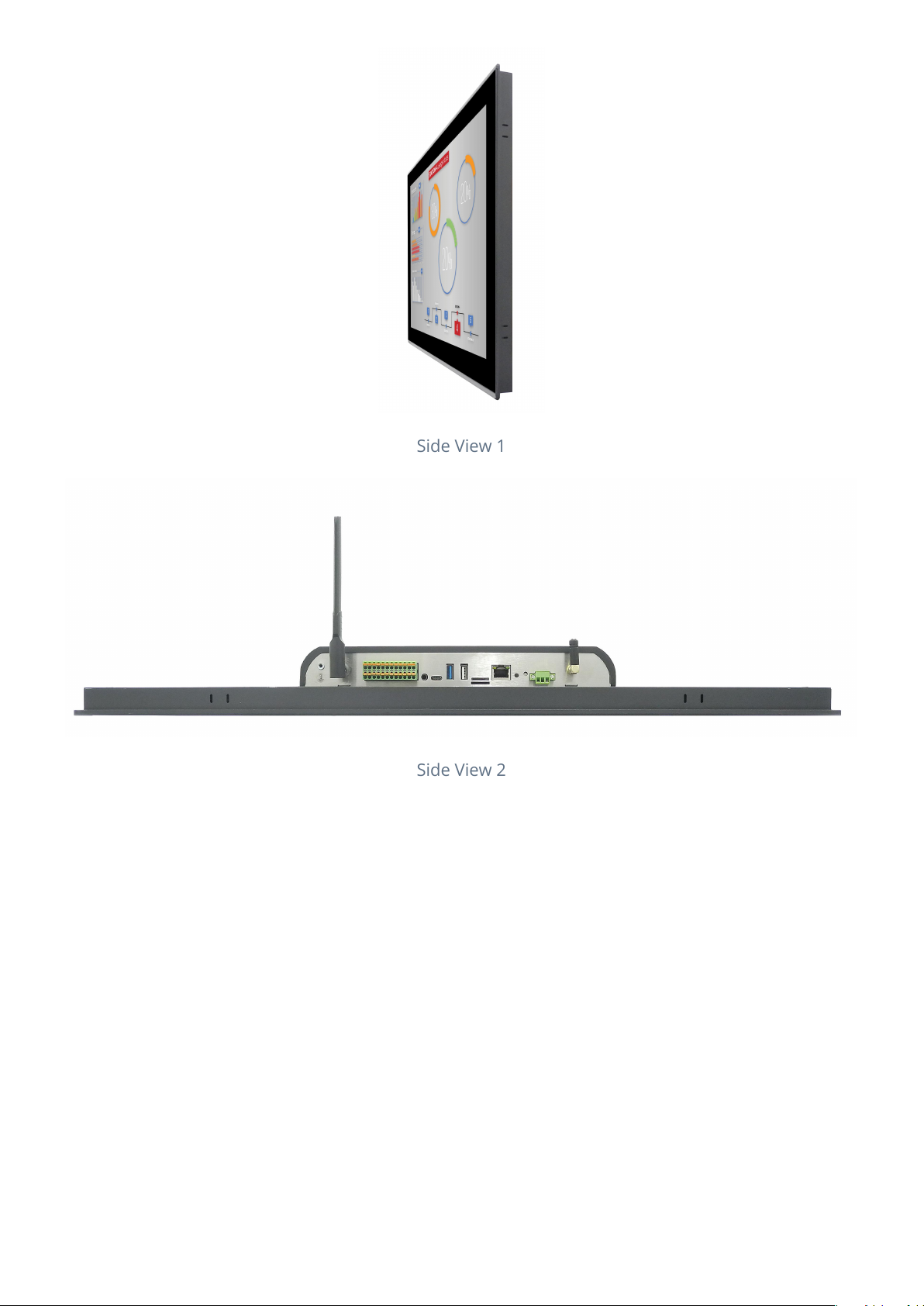

Side View 1
Side View 2
Product Overview
The Cortex -A72/53 series PPC-A72-236 (PN: CS19108R236P) is a high-quality industrial
panel PC. It features a 23.6” ten-point capacitive touch screen with a resolution of 1920 x
1080 pixels and brightness of 400 cd/m .
Key Applications
Human Machine Interface HMI
Mobile Applications
Video Processing
Machine Learning
Video Gaming
Process Control
®
2
•
•
•
•
•
•
PPC-A72-236 Product Overview
Chipsee IPC Page 4 of 17

*
Process Monitoring
ATM…
It is available both as an embedded solution and as a device hosed in an aluminum casing
with bezels, thus facilitating dierent installation options:
Installation on an industrial cabinet
Integration with the existing equipment
The PPC-A72-236 Industrial Panel PC is based around the powerful CS-SOM-RK3399 System
on Module (SoM), powered by the Rockchip RK3399 low-power processor which integrates a
dual-core Cortex -A72 and a quad-core Cortex -A53 with a separate NEON coprocessor.
The RK3399 supports multi-format video decoders and has a high-performance dual-
channel external memory interface (DDR3/DDR3L/LPDDR3/LPDDR4) capable of sustaining
demanding memory bandwidths. It also provides a complete set of peripheral interfaces.
Ordering Options
Chipsee products can be customized during the ordering process. The product will be
shipped with the pre-installed factory defaults if no extra requirements are specied. The
table in the Hardware Features section provides information about the default options
bundled with the product.
Operating System
This product comes with a pre-installed OS of your choice. Please see the list below for the
supported OSes, which can be also obtained from the Software Documentation section,
along with the detailed installation instructions.
Chipsee Linux*
Android 7.1
Debian 10
Chipsee Linux is based on buildroot that has been integrated with:
Chipsee Hardware Test Application
An initialization script for GPIO/Buzzer/Audio
Multiple libraries, such as the libQt5Sql to develop Qt application with SQL
•
•
•
•
® ®
Note
You can order The PPC-A72-236 Industrial Panel PC from the ocial Chipsee Store or from your nearest distributor.

•
•
•
1.
2.
3.
PPC-A72-236 Ordering Options
Chipsee IPC Page 5 of 17

Various packages, such as the ntfs-3g to use NTFS le system
Optional Features
The PPC-A72-236 Industrial Panel PC does not include 4G/LTE module by default. The
module is optional and can be selected at the Chipsee store during the ordering process.
Hardware Features
The PPC-A72-236 Industrial Panel PC oers a broad range of performance and connectivity
options for scalable integration, providing expandability to meet future needs. Some of the
key features are listed in the table below.
4.
Warning
The Software Documentation section provides a detailed instruction on how to install dierent OSes on your own.
However, bear in mind that Chipsee can’t take the responsibility of inadequate installation procedure. If you “brick”
your device, please contact Chipsee Technical Support at [email protected] for further assistance

Warning
Installation, repair, and maintenance tasks should be performed by trained personnel only.
Chipsee does not bear any responsibility for damage caused by inadequate handling of the product.

PPC-A72-236
CPU Rockchip RK3399, Dual-core Cortex-A72 (1.8GHz), Quad-core Cortex-A53
(1.4GHz)
RAM 4GB DDR3
eMMC 16GB
Storage TF Card, Supports up to 128GB SDHC
Display 23.6” LCD, 1920 x 1080, High Brightness: 400 cd/m
Touch 10-point capacitive touch screen
USB 1 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C
LAN 1 x RJ45, GbE
Audio 3.5mm Audio In/Out Connector, 2W Internal Speaker
Buzzer Yes
RTC Yes
RS232 3 x RS232 (Optional 5 x RS232 at most, 1 debug port)1
RS485 2 x RS4851
GPIO 8 Channels
WiFi/BT Integrated WiFi/BT Module
2
PPC-A72-236 Optional Features
Chipsee IPC Page 6 of 17

1(1,2)This product has 5 x UART channels in total. The default conguration is 3 x RS232 and 2 x RS485, including 1
debug port. UART can be swapped between RS232 and RS485 modes easily, so if you need a dierent RS232/
RS485 conguration, please get in touch with the Chipsee Technical Support at [email protected]
Power Input
The PPC-A72-236 Industrial Panel PC can be powered by a wide range of input voltages:
From 12V to 36V DC. The power input connector is a 3-pin, 3.81mm terminal.
Power Input
Note that the “+” sign represents the positive power input, and it is printed both at the
casing and as a silk-screen on a PCB of the embedded version. The “-” terminal is shorted to
the ground.
PPC-A72-236
4G/LTE Supported, Optional
Power Input From 12V to 36V
Current at 15V 1.68A Max (15V)
Power Consumption 19.56W (15V x 1.30A) Typical, 25.2W (15V x 1.68A) Max
Working
Temperature From 0°C to +50°C
OS Android 7.1, Debian 10, Buildroot Linux Qt5.14
Dimensions PPC-A72-236 (PN: CS19108R236P): 595 x 374 x 57.25mm
Weight PPC-A72-236 (PN: CS19108R236P): 7500g
Mounting PPC-A72-236 (PN: CS19108R236P): Panel, VESA
Table 105 Key Features
Power Input Denition
Pin Number Denition Description
Pin 1 Positive Input DC Power Positive Terminal
PPC-A72-236 Power Input
Chipsee IPC Page 7 of 17

Touch Screen
The PPC-A72-236 Industrial Panel PC uses a 10-point capacitive touch screen.

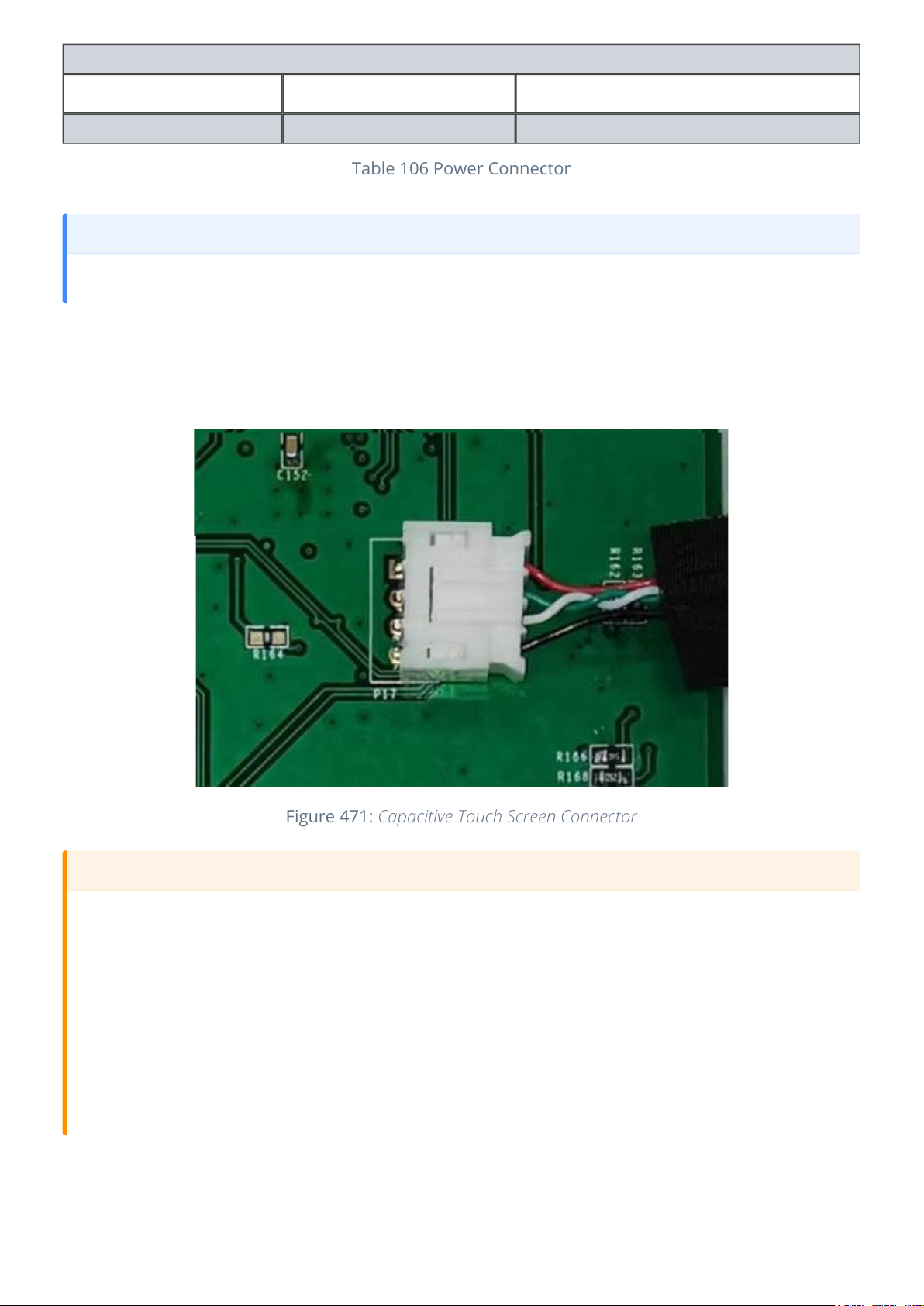

Figure 471: Capacitive Touch Screen Connector
Power Input Denition
Pin 2 Negative Input DC Power Negative Terminal
Pin 3 Ground Power System Ground
Table 106 Power Connector
Note
The system ground “G” is connected to power negative “-” on board.

Attention
A capacitive touch screen is susceptible to power noise and Electromagnetic Radiation (EMR). It may cause LCD ripples
or even capacitive touch malfunction. If using a capacitive multi-touch test application, you might notice the touch
points oat erratically across the display. There are several solutions to this problem:
Use a high-quality Power Adapter Unit (PSU) with low EMR. You can also provide power from a battery.
Make sure that the PPC-A72-236 Power Input connector (pin 3) is properly connected to the Power System
Ground to provide sucient EMI shielding and eliminate the problem entirely.
Bad GND problems can also be conrmed by touching pin 3 of the Power Input connector with one hand while
operating the capacitive touch screen with the other hand. In this case, the operator’s body acts as the Power
System Ground.

1.
2.
3.
PPC-A72-236 Touch Screen
Chipsee IPC Page 8 of 17

Connectivity
There are many connectivity options available on the PPC-A72-236 industrial PC. It has 1 x
USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C, 1 x network connector (RJ45) supporting
up to 1 Gbps, 8 x GPIO and 5 x UART terminals (RS232/485).
RS232+RS485+CAN+GPIO Connector
The serial communication interfaces (RS485, RS232, and CAN) are routed to a 12-pin
3.81mm terminal, as illustrated in the gure below. Serial communication on both RS485
and RS232 interfaces can reach up to 115200 kbps.

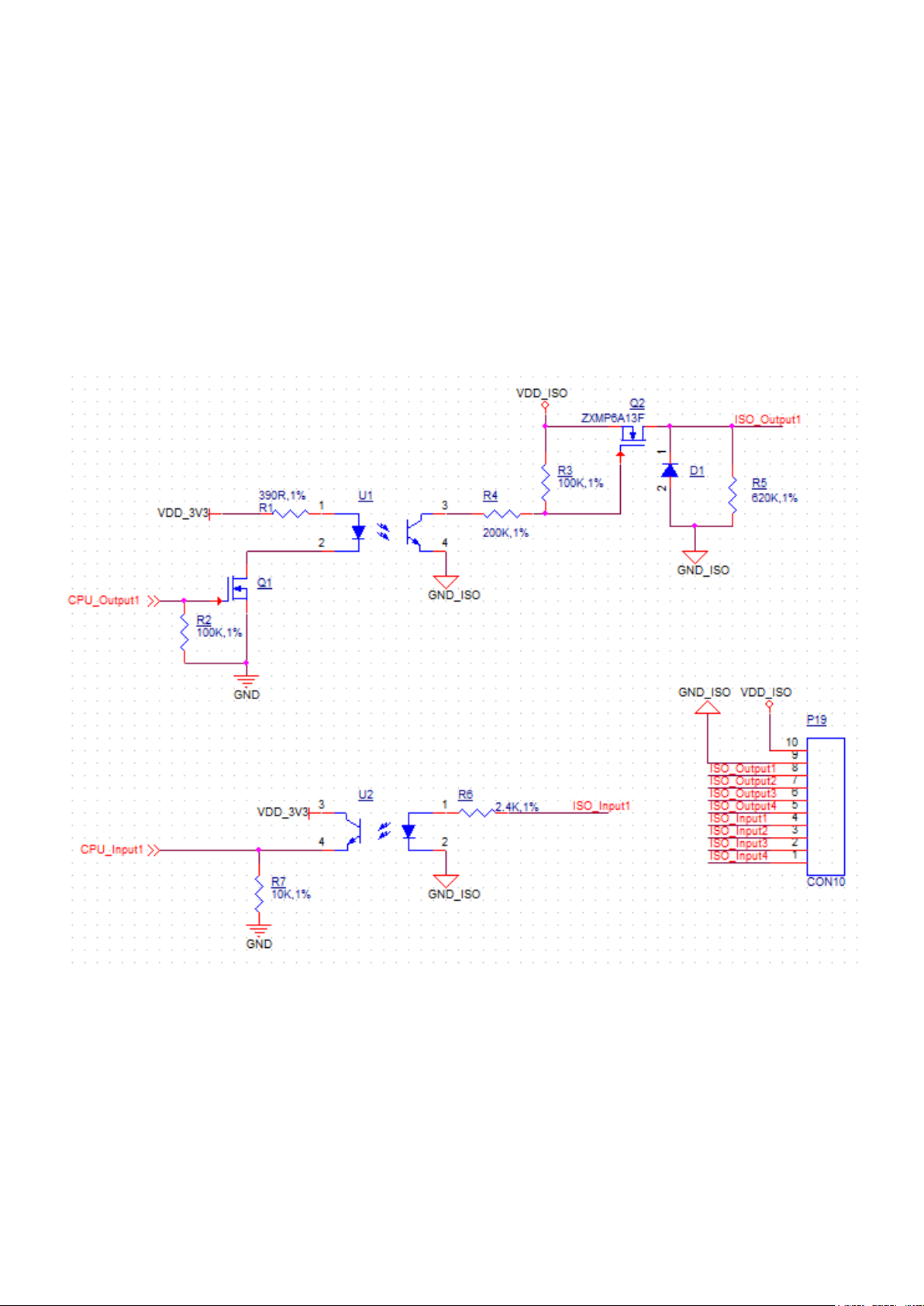

Isolated GPIO reduced schematic
PPC-A72-236 Connectivity
Chipsee IPC Page 9 of 17

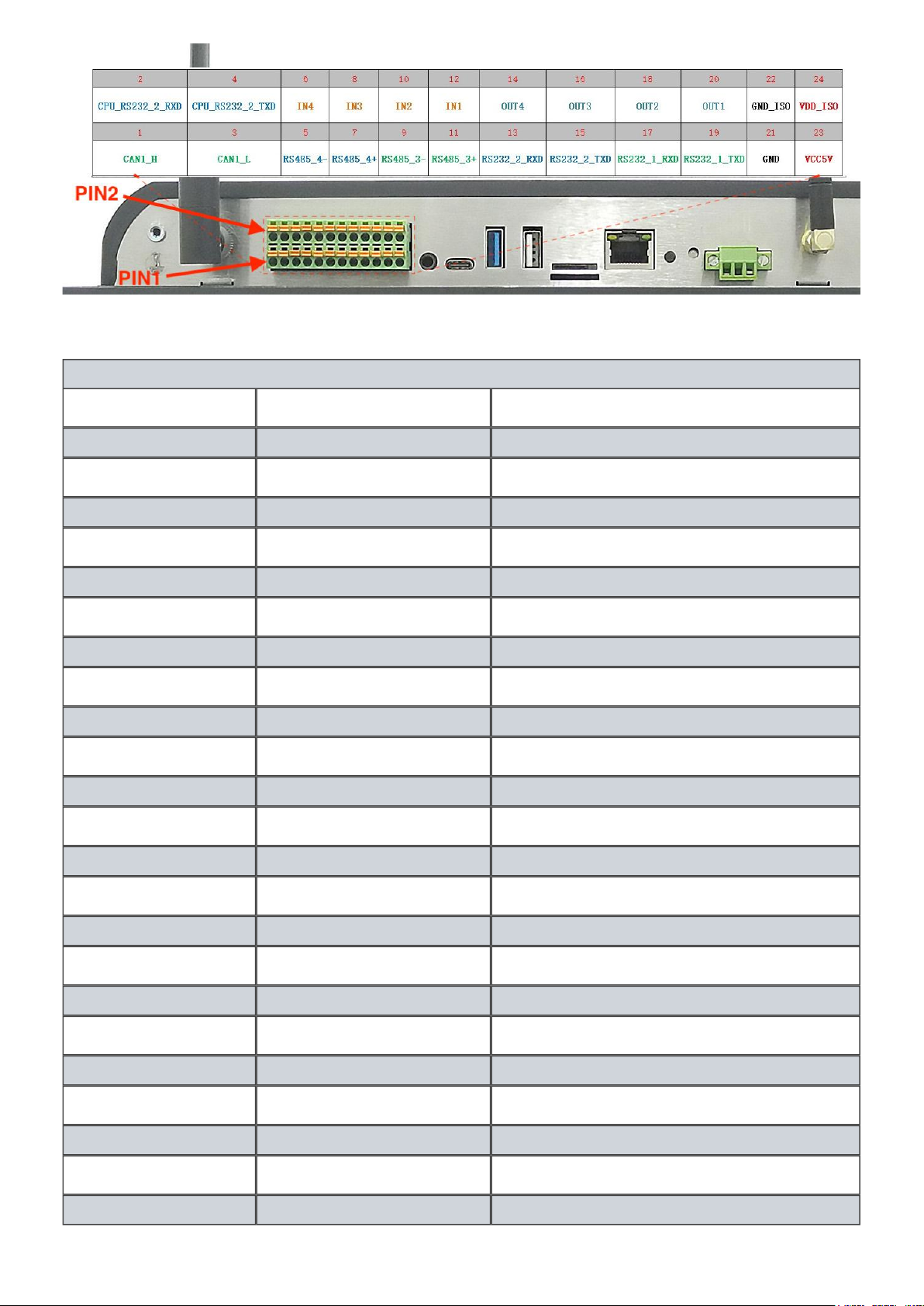

The table below oers more detailed description of every pin and its denition:
RS232 / RS485 / CAN / GPIO Pin Denition:
Pin Number Denition Description
Pin 1 CAN1_H CAN H signal
Pin 2 CPU_RS232_2_RXD CPU UART2, CPU RS232 RXD signal
Pin 3 CAN1_L CAN L signal
Pin 4 CPU_RS232_2_TXD CPU UART2, CPU RS232 TXD signal
Pin 5 RS485_4- USB UART4, RS485 -(B) signal
Pin 6 IN4 Isolated Input 4
Pin 7 RS485_4+ USB UART4, RS485 +(A) signal
Pin 8 IN3 Isolated Input 3
Pin 9 RS485_3- USB UART3, RS485 -(B) signal
Pin 10 IN2 Isolated Input 2
Pin 11 RS485_3+ USB UART3, RS485 +(A) signal
Pin 12 IN1 Isolated Input 1
Pin 13 RS232_2_RXD USB UART2, RS232 RXD signal
Pin 14 OUT4 Isolated Output 4
Pin 15 RS232_2_TXD USB UART2, RS232 TXD signal
Pin 16 OUT3 Isolated Output 3
Pin 17 RS232_1_RXD USB UART1, RS232 RXD signal
Pin 18 OUT2 Isolated Output 2
Pin 19 RS232_1_TXD USB UART1, RS232 TXD signal
Pin 20 OUT1 Isolated Output 1
Pin 21 GND System Ground
Pin 22 GND_ISO Isolated Ground
Pin 23 VCC5V System 5V output, up to 1A
PPC-A72-236 RS232+RS485+CAN+GPIO Connector
Chipsee IPC Page 10 of 17

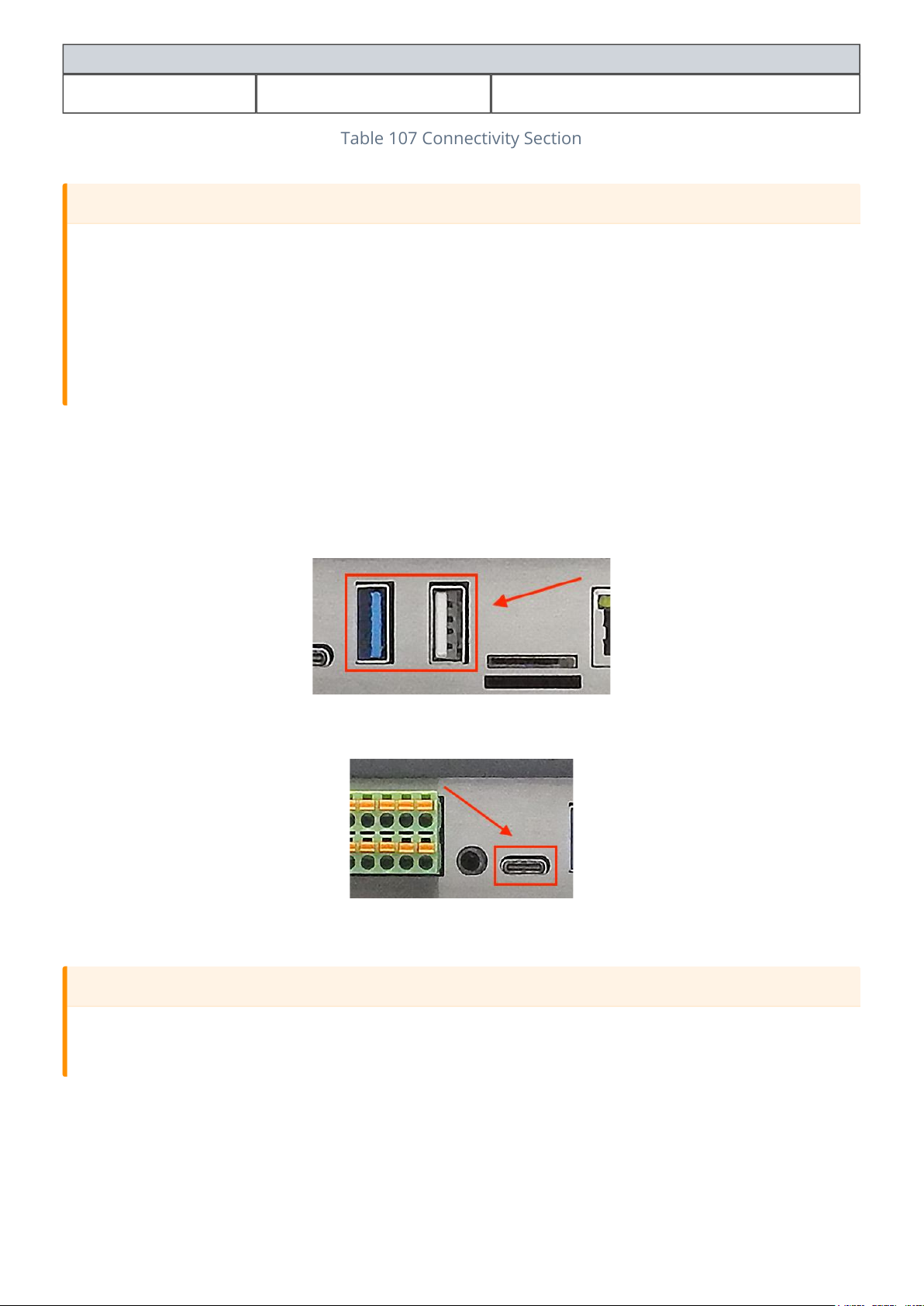

USB Connectors
There are 2 x USB HOST connectors onboard which includes 1 x USB 2.0 HOST, 1 x USB 3.0
HOST, 1 x USB Type-C , as shown in the gures below.
USB 2.0 and USB 3.0 HOST Connectors (enclosed PC version)
USB Type-C Connector (enclosed PC version)
RS232 / RS485 / CAN / GPIO Pin Denition:
Pin 24 VDD_ISO Isolated Power Input,support 5V~24V
Table 107 Connectivity Section
Attention
The 120Ω match resistor for CAN bus is NOT mounted by default.
The 120Ω match resistor for RS485 is already mounted by default.
This product supports changing 2 x RS485 to 2 x RS232 and supports up to 5 x RS232 (include one debug port).
The GPIO has been opt-isolated, you can use an external isolated power input but the power input range should
be from 5V to 24V DC.
The 4 output channels can drive at most 500mA current on each channel.

•
•
•
•
•
Warning
Be careful not to touch surrounding electronic components accidentally while plugging in USB devices into the
embedded IPC version.

PPC-A72-236 USB Connectors
Chipsee IPC Page 11 of 17

LAN Connectors
LAN (RJ45) connector provides Ethernet connectivity over standardized Ethernet cables as
shown in the gure below. The integrated Ethernet interface supports up to 1 Gbps data
throughput.
RJ45 LAN Connector
WiFi & BT Module
The PPC-A72-236 Industrial Panel PC is equipped with the popular Realtek RTL8723 WiFi/
BT module that supports BT/BLE 4.0 (with backward compatibility), as well as 802.11bgn 2.4
GHz Wireless LAN (WLAN).
Figure 472: RTL8273 WiFi/BT Module
The product includes an SMA connector for an external WiFi/BT antenna, as illustrated in
the gure below.
Note
Use CAT5 or better cables to achieve full data throughput over maximum distance dened by the 1000BASE-T
standard (100m).

PPC-A72-236 LAN Connectors
Chipsee IPC Page 12 of 17

WiFi+BT Antenna SMA
4G/LTE Module
The PPC-A72-236 Industrial Panel PC is equipped with a mini-PCIe connector that can
connect to a 4G/LTE module. The customer will also need a SIM Card Holder and a 4G/LTE
Antenna Connector to ensure 4G/LTE works on the PPC-A72-236. SIM card does NOT
support hot plug. Power o before inserting or removing SIM card.
Figure 473: mini-PCIe Connector & 4G Module
Figure 474: SIM Card Holder & 4G Antenna
PPC-A72-236 4G/LTE Module
Chipsee IPC Page 13 of 17

SIM Card Holder
SIM Card Direction
TF Card Slot
The PPC-A72-236 Industrial Panel PC features 1 x TF Card (micro SD) slot. It can address up
to 128GB of memory.
TF (micro SD) Card Slot
Attention
The product does not come shipped with the 4G/LTE module by default.

PPC-A72-236 TF Card Slot
Chipsee IPC Page 14 of 17

Audio Connectors
The PPC-A72-236 Industrial Panel PC features some audio peripherals. It has a 3.5mm
audio input/output jack, an internal speaker, as well as a small buzzer.
Audio Connector (enclosed PC version)
The miniature 2W embedded speaker is handy for audio reproduction, the small buzzer can
play alarm/notication sounds.
Figure 475: 2W Micro Speaker and Buzzer
Power Button
The PPC-A72-236 Industrial Panel PC has a power button, as shown on the gure below. You
can use the button to power ON or OFF the industrial PC.
Power Button
Note
The product does not come shipped with the TF Card by default.

Attention
By plugging in the headphone cable, the internal speaker will be disabled automatically.

PPC-A72-236 Audio Connectors
Chipsee IPC Page 15 of 17

Mounting Procedure
The PPC-A72-236 Industrial Panel PC can be mounted with 4 x M4 (6mm) screws using the
VESA (100x100mm or 75x75mm).
The PPC-A72-236 Industrial Panel PC can be mounted with panel mounting method,
enabling simplied installation onto any standard mounting xture.
You can nd detailed information about mounting in the Mount IPC Guide.
Mechanical Specifications
For PPC-A72-236, the outer mechanical dimensions are 595 x 374 x 57.25mm (W x L x H).
Attention
Please make sure the display is not exposed to high pressure when mounting into an enclosure.

PPC-A72-236 Mounting Procedure
Chipsee IPC Page 16 of 17

Disclaimer
This document is provided strictly for informational purposes. Its contents are
subject to change without notice. Chipsee assumes no responsibility for any errors
that may occur in this document. Furthermore, Chipsee reserves the right to alter the
hardware, software, and/or specications set forth herein at any time without prior
notice and undertakes no obligation to update the information contained in this
document.
While every eort has been made to ensure the accuracy of the information
contained herein, this document is not guaranteed to be error-free. Further, it does
not oer any warranties or conditions, whether expressed orally or implied in law,
including implied warranties and conditions of merchantability or tness for a
particular purpose. We specically disclaim any liability with respect to this
document, and no contractual obligations are formed either directly or indirectly by
this document.
Despite our best eorts to maintain the accuracy of the information in this
document, we assume no responsibility for errors or omissions, nor for damages
resulting from the use of the information herein. Please note that Chipsee products
are not authorized for use as critical components in life support devices or systems.
Technical Support
If you encounter any diculties or have questions related to this document, we encourage
you to refer to our other documentation for potential solutions. If you cannot nd the
solution you’re looking for, feel free to contact us. Please email Chipsee Technical Support at
[email protected], providing all relevant information. We value your queries and
suggestions and are committed to providing you with the assistance you require.
PPC-A72-236 Disclaimer
Chipsee IPC Page 17 of 17
