ChoiceMMed MDBP13 User manual

- 1 -
Ver 2.0
Owner's Manual
Arm-type Fully Automatic
Digital Blood Pressure Monitor
Model:MDBP13

Contents
Safety Notice....................................................................................... 1
Unit Illustration ................................................................................... 3
Important Testing Guidelines............................................................. 6
Quick Start .......................................................................................... 7
Unit Operation..................................................................................... 8
Blood Pressure Information ............................................................... 14
Blood Pressure Q & A ......................................................................... 16
Maintenance ......................................................................................... 17
Specifications ...................................................................................... 19
Declaration ............................................................................................ 21
Warranty ............................................................................................... 25

- 1 -
Digital Blood Pressure Monitor
MDBP13
Safety Notice
Thank you for purchasing the MDBP13 Blood Pressure Monitor. The unit has been
constructed using reliable circuitry and durable materials. Used properly, this unit
will provide yeas of satisfactory use.
This device is intended for non-invasive measuring an adult individuals’systolic,
diastolic blood pressure and heart rate using the oscillometric method. The device
is not intended for use on infants and children. The device is designed for home or
clinical use. All values can be read out in one LCD DISPLAY. Measurement position
is on adult upper arm only. Please read this manual thoroughly before using the unit.
Please retain this manual for future reference. For specific information about your
blood pressure, please
CONSULT YOUR DOCTOR.
To avoid risk and damage follow all warning precautions. Operate unit only as in-
tended. Read all instructions prior to use.
Blood pressure measurement determined with this device are equivalent to those
obtained by a trained observer using the cuff/ stethoscope auscultation method,
within the limits prescribed by the American National Standard (ANSI/AAMI SP10)
for electronic Sphygmomanometers.
WARNING SIGNS AND SYMBOLS USED
Date of manufacturer
Manufacturer's
Information
Caution
European Union Approval
Type BF Equipment
Authorized representative
in the European
SN
Serial Number
Storage temperature and
relative humidity
Consult Instructions
For Use
Safety Notice
1. Individuals with serious circulation problems may experience discomfort. Consult
your physician prior to us

- 2 -
Digital Blood Pressure Monitor
MDBP13
2. Contact your physician if test results regularly indicate abnormal readings. Do not
attempt to self-treat these symptoms without consulting your physician first
3. Product is designed for its intended use only. Do not misuse in any way.
4. If you are taking medication, consult with your physician to determine the most
appropriate time to measure your blood pressure. NEVER change a prescribed
medication without first consulting with your physician
5. People suffering from vascular constriction, liver disorders or diabetes, people
with cardiac pacemakers or a weak pulse, and women who are pregnant should
consult their physician before measuring their blood pressure themselves. Different
values may be obtained due to their condition.
6. For persons with irregular or unstable circulation resulting from diabetes, liver
disease, arteriosclerosis or other medical conditions, there may be variations in
blood pressure values measured at the wrist versus at the upper arm. Monitoring
the trends in your blood pressure taken at either the arm or the wrist is nevertheless
useful and important.
7. People suffering from arrhythmias such as atrial or ventricular premature beats or
atrial fibrillation only use this blood pressure monitor in consultation with your doctor.
In certain cases oscillometric measurement method can produce incorrect readings.
8. Product is not intended for infants or individuals who cannot express their intentions.
9. Do not disassemble or attempt to repair.
10. Do not use cell phones and other devices, which generate strong electrical or
electromagnetic fields, near the device, as they may cause incorrect readings and
interference or become interference source to the device.
11. Any hazards associated with prolonged over inflation of the bladder.
12. Only use a recommended AC adaptor complying with EN 60601-1 and EN 60601-
1-2(see page 6). An unauthorized adaptor may cause fire and electric shock
Battery Precautions
Do not mix new and old batteries simultaneously.
Replace batteries when Low Battery Indicator ““ appears on screen.
Be sure battery polarity is correct.
Do not mix battery types. Long-life alkaline batteries are recommended.
Remove batteries from device when not in operation for more than 3 months.
Dispose batteries properly; observe local laws and regulations.

- 3 -
Digital Blood Pressure Monitor
MDBP13
Unit Illustration
Monitor Unit
LCD
Systolic Blood Pressure
Diastolic Blood Pressure
“STOP/START” Button
“MEM” Button
AC Adapter Jack
Battery Cover

- 4-
Digital Blood Pressure Monitor
MDBP13
ArmCuff
Display
Low Battery Indicator
Systolic
Blood
Pressure
Diastolic
Blood
Pressure
Time
Date Pulse Rate

- 5 -
Digital Blood Pressure Monitor
MDBP13

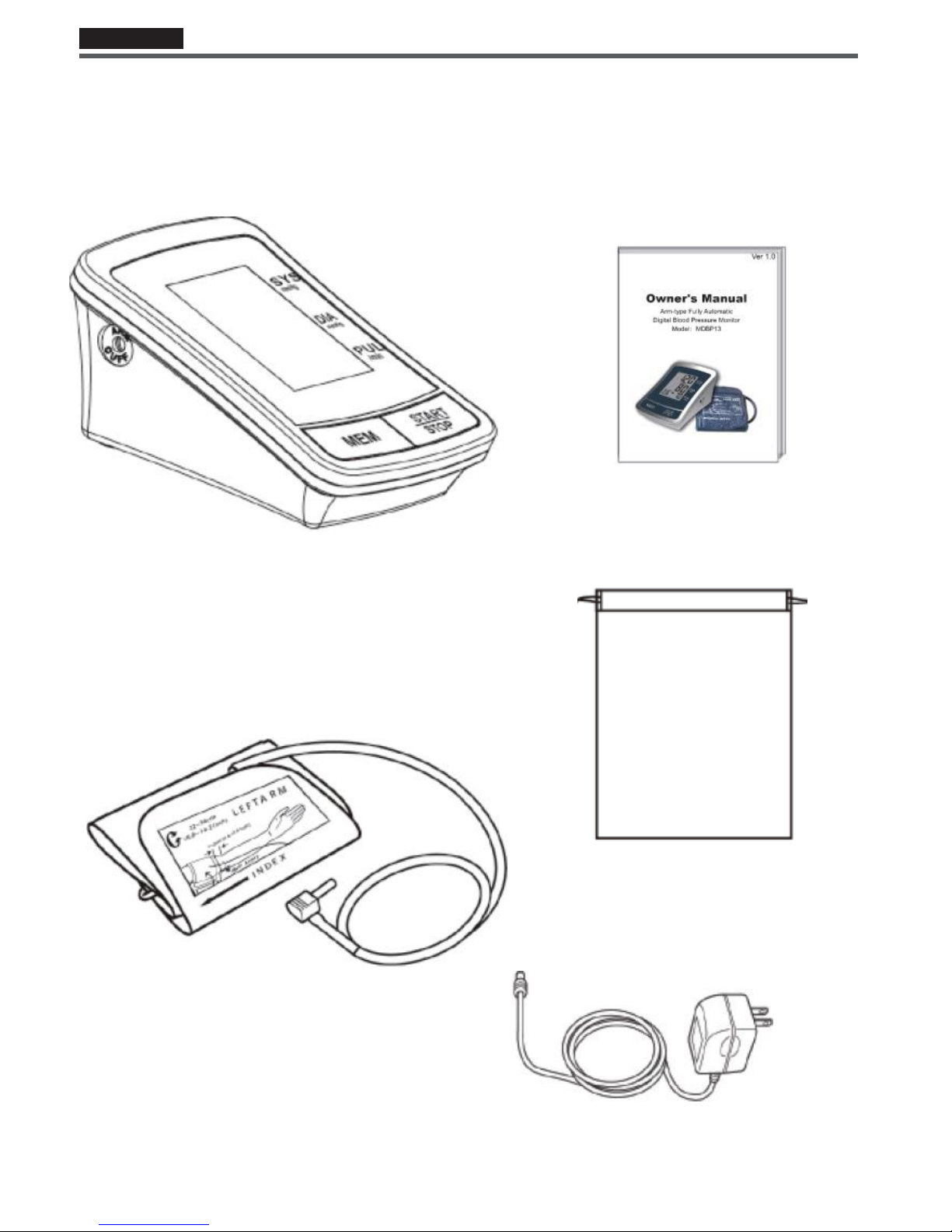

Contents
3. Arm Cuff
4. Storage Case
5. Medical AC Adapter (DC6.0V,600mA)
( recommended,notprovided)
1. Monitor Unit
2. Owner’s Manual

- 6 -
Digital Blood Pressure Monitor
MDBP13
Important Testing Guidelines
1. Avoid eating, exercising, and bathing for 30 minutes prior to testing.
2. Sit in a calm environment for at least 5 minutes prior to testing.
3. Do not stand while testing. Sit in a relaxed position while keeping your arm level
with your heart.
4. Avoid speaking or moving body parts while testing.
5. While testing, avoid strong electromagnetic interference such as microwave ov-
ens and cell phones.
6. Wait 3 minutes or longer before re-testing.
7. Try to measure your blood pressure at the same time each day for consistency.
8. Test comparisons should only be made when monitor is used on the same arm, in
the same position, and at the same time of day.
9. This blood pressure monitor is not recommended for people with severe arrhythmia.
Any blood pressure recording can be affected by the following factors:
1. The position of the subject, his or her physiologic condition;
2. The performance and accuracy of the device;
3. Cuff size: too small cuff (bladder) will produce a higher blood pressure value than
usual, too big cuff (bladder) will produce a lower blood pressure value;
4. Measuring position does not keep level with your heart;
5. Speaking or moving body parts while testing;
6. Not relaxing for about 5 minutes before taking the measurement.

- 7 -
Digital Blood Pressure Monitor
MDBP13
Quick Start
1. Install batteries. (See Figure A )
2. Insert cuff air plug into the left side of monitor unit.(See Figure B)
3. Remove thick clothing from the arm area.
4. Rest for several minutes prior to testing. Sit down in a quiet place, preferably at a
desk or table, with your arm resting on a firm surface and your feet flat on the fl .
(See Figure C )
5. Apply cuff to your left arm and keep level with your heart. Bottom of cuff should
be placed approximately 1-2cm (0.4-0.8’’) above elbow joint. (See Figures D&E)
6. Press “START/STOP” Button to start testing.

- 8 -
Digital Blood Pressure Monitor
MDBP13
Unit Operation

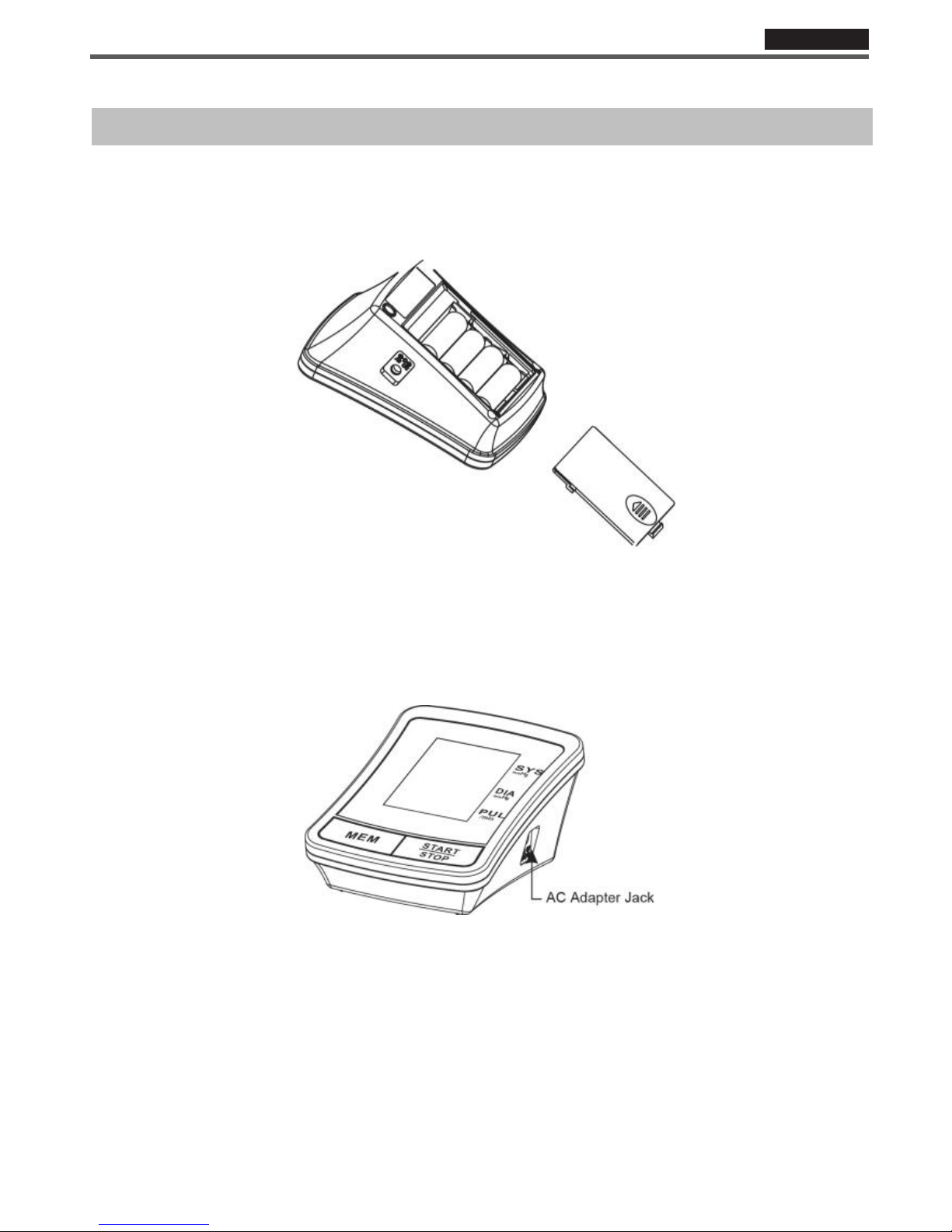

BatteryInstallation
Slide battery cover off as indicated by arrow.
Install 4 new AA alkaline batteries according to polarity.
Close battery cover.
AC Adapter jack is on the right side of the monitor. Medical AC adapter(DC 6.0 V,
600mA) can be used with the device (recommended, not provided). The adapter con-
nect pin should be positive inside and negative outside with a 2.1mm coaxial joint.
Do not use any othertype of AC adaptor as it mayharm the unit.
Time/Date Setting
With power off, press “START/STOP” button about 3 seconds to set the
Time/ Date mode. Set month first by adjusting the “MEM” button, Press
“STOP/START ”button setting the day, hour, and minute in same fashion.
Which in any setting mode. Press “START/ STOP” button to turn the unit off.. All
information will be saved.

- 9 -
Digital Blood Pressure Monitor
MDBP13
Note: if unit is left on and not in use for 3 minutes, it will automatically save all infor-
mation and shut of .
Applying the Arm Cuff
1. Firmly insert air plug into opening located on left side of monitor unit.
2. With sticky nylon section facing outward, insert end of cuff underneath metal ring
of cuff
3. Fasten cuff about 1-2cm (0.4-0.8’’) above the elbow joint. For best results apply
cuff to bare arm and keep level with heart while testing.
Note: Do not insert air plug into opening located on right side of monitor unit.
This opening is designed for an optional power supply only.

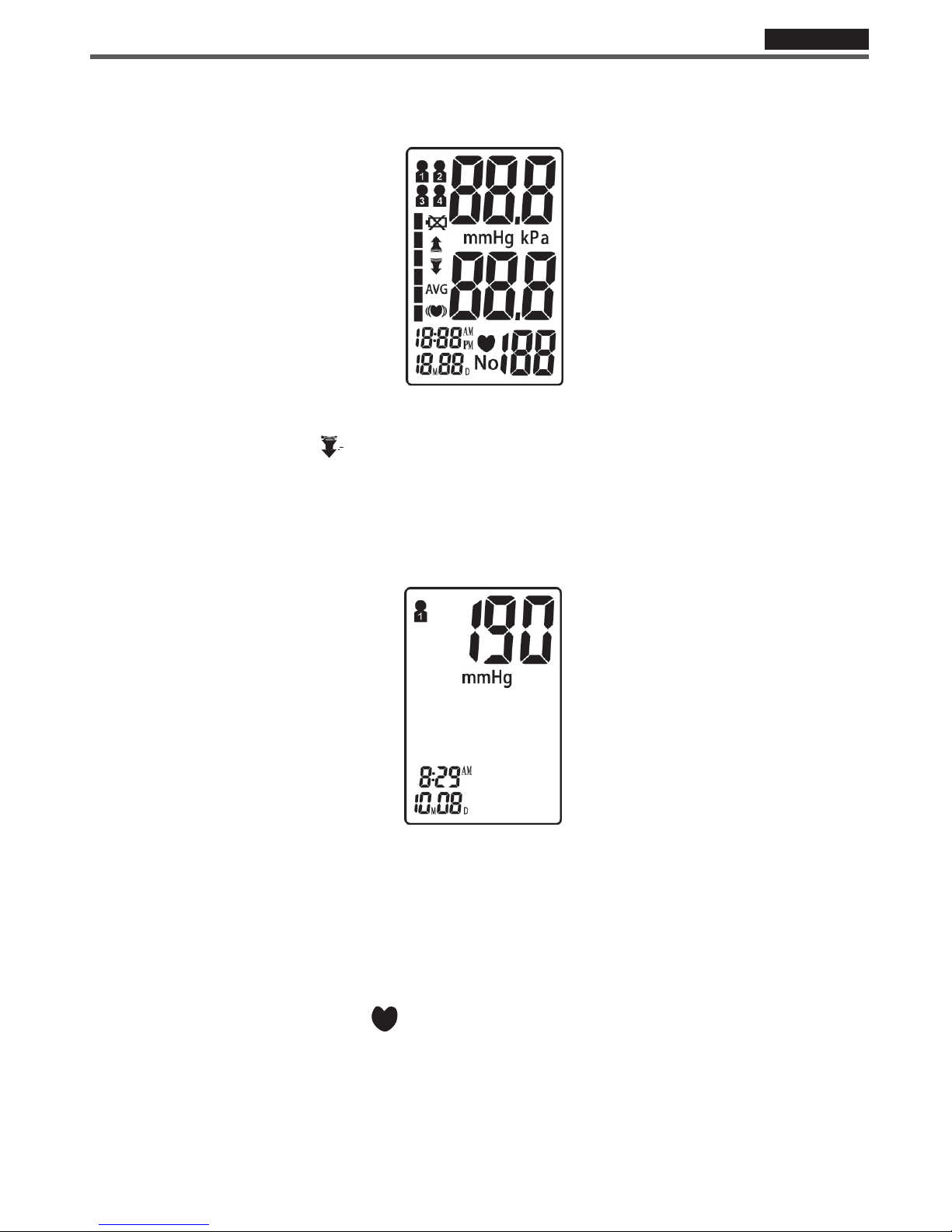

Testing
1. Power On
Press and hold “START/STOP “button until a beep sounds. The LCD screen will

- 10 -
Digital Blood Pressure Monitor
MDBP13
appear for one second as unit performs a quick diagnosis. A long tone indicates
device is ready for testing.
Note: Unit will not function if residual air from previous testing is present in cuff.
The LCD will flash “ “ until pressure is stabilized. .
2. Pressurization
Initial pressure is first pumped to 190mmHg. If the current user’s systolic blood
pressure is over 190mmHg, the unit will automatically re-inflate to the proper shelf
Note: Pressurization will gradually subside and ultimately stop when cuff is not
properly applied to the arm. If this occurs, press “START/STOP ”button to turn the
unit off.

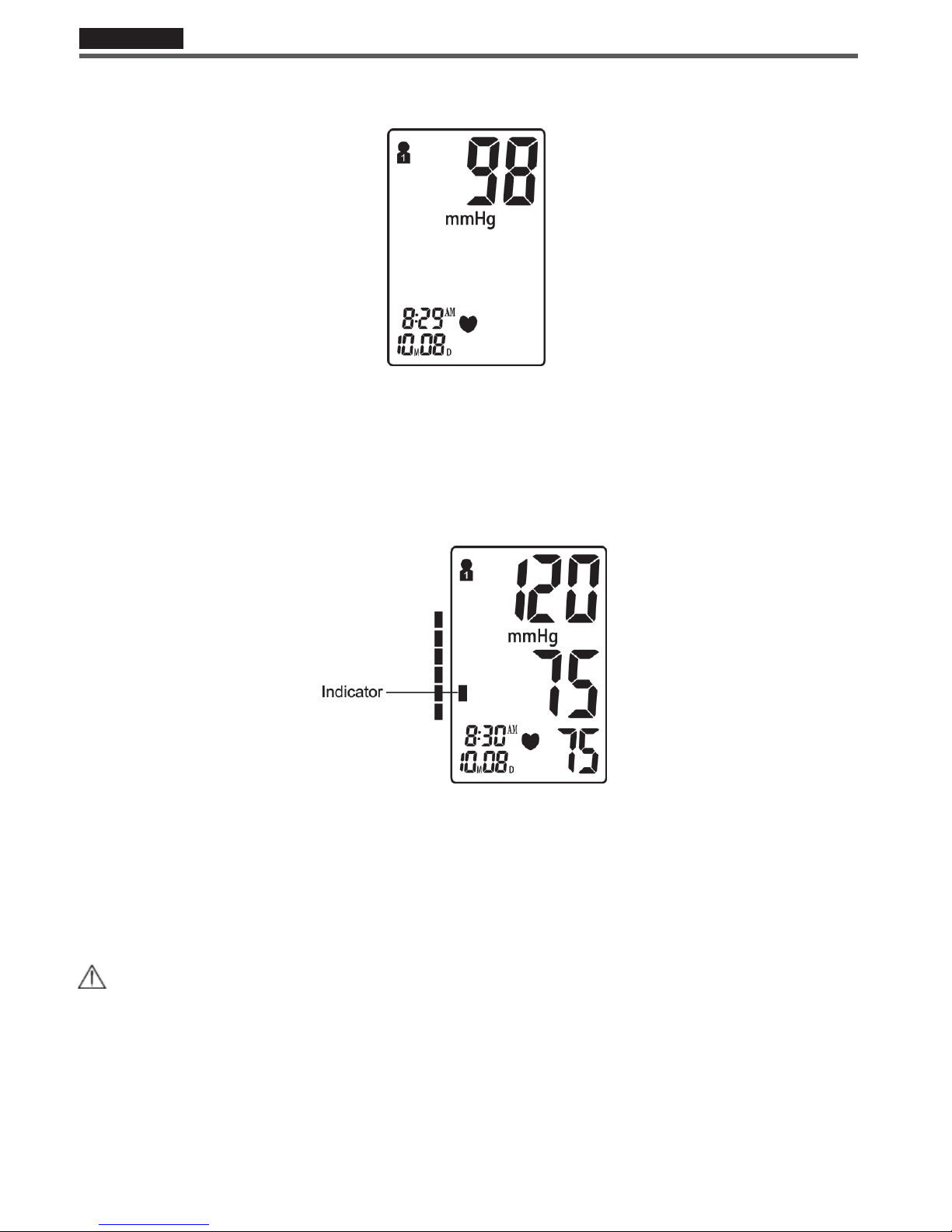

3. Testing
After cuff inflation, air will slowly subside as indicated by the corresponding cuff
pressure value. A flashing ““ will appear simultaneously on screen signaling
heart beat detection.

- 11 -
Digital Blood Pressure Monitor
MDBP13
MDBP13
Note: Keep relaxed during testing. Avoid speaking or moving body parts.
4. Result Display
Three short beeps sound when testing is complete. The screen will display mea-
surements for systolic and diastolic blood pressure.
Note: Refer to Page 17 for detail Blood Pressure Information.
Power Off
The “START/STOP” button can be pressed to turn off the unit in any mode. The
unit can turn off the power itself about 3 minutes no operation in any mode.
Safety Precaution: If pressure in arm cuff becomes too extreme while
testing, press the “ START/STOP “button to turn power off. The cuff pressure will
rapidly dissipate once the unit is off.

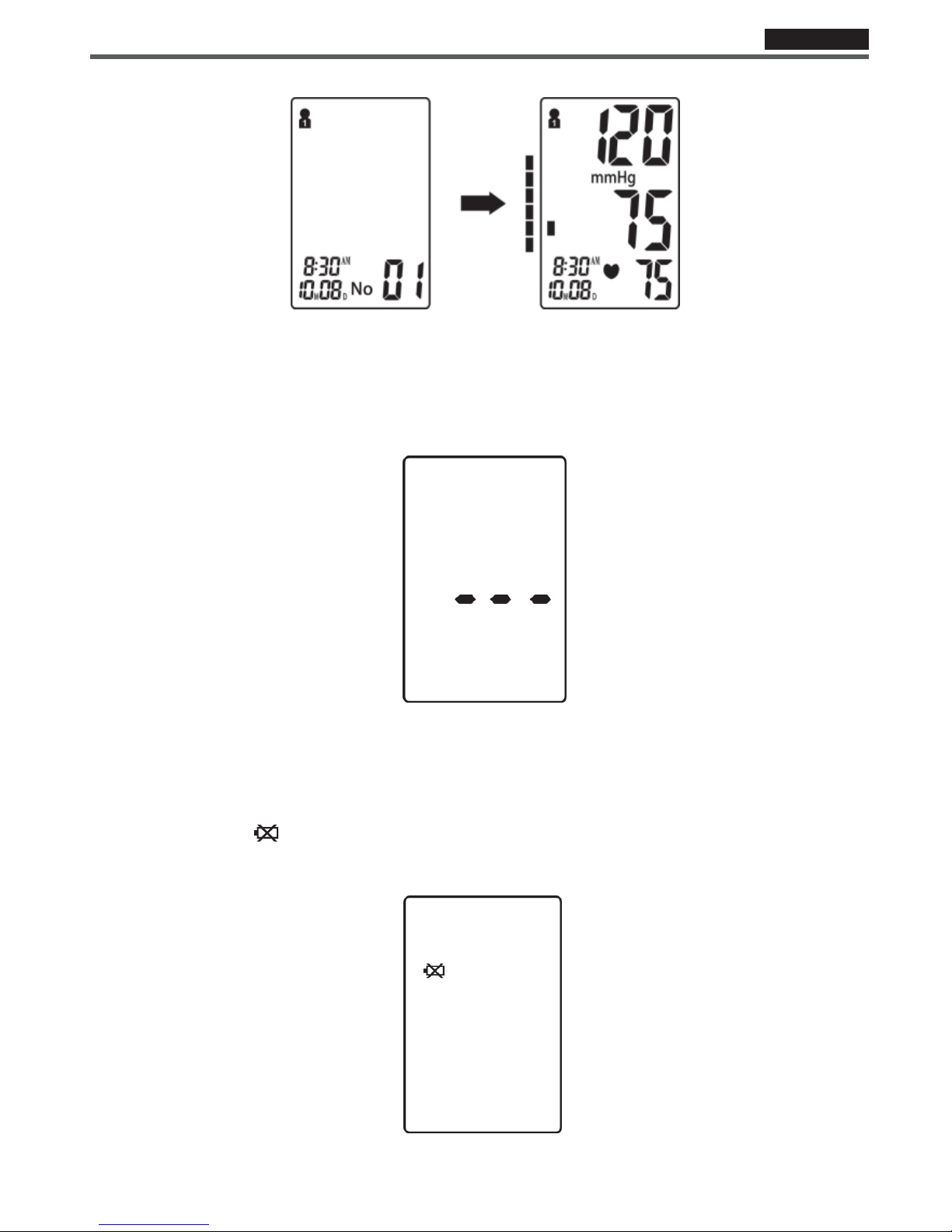

Memory Check
With power off, press and hold “MEM ”butt0n to turn the unit on. The LCD will dis-
play the last measurement memory as NO:1 reading . Older test result in
memory can be viewed by pressing the “MEM” button.

- 12 -
Digital Blood Pressure Monitor
MDBP13
Memory Deletion
Which in memory check made. Press " START / STOP" and hold on for about
3 seconds to delete all history results and the LCD screen display“- - -”with
beep sounds: Then press " START/ STOP" button to turn off the unit.
Note: Memory cannot be recovered once it has been deleted.
Low Battery Indicator
4 short warning beeps sound when battery life is depleting and unable to inflate cuff
for testing. The ““appears simultaneously for approximately 5 seconds prior to
shutting off. Replace batteries at this time. No memory loss will occur throughout
this process.

- 13 -
Digital Blood Pressure Monitor
MDBP13
Troubleshooting
Problem
Possible Cause
Solution
Blood pressure
Cuff is too tight or not
Firmly reposition cuff approximate-
properly positioned on
ly 1-2cm (1/2") above the elbow joint
the arm
( See Page 9)
Inaccurate test results
due to body movement
or monitor movement
Sit in a relaxed position with arm
placed near heart. Avoid speaking
or moving body parts while testing.
Make sure the monitor unit is placed
in a stationary position throughout
the testing period.( See Page 7)
results are not
within typical
range
" "displayed
Cufffails toinflate properly
Make sure hose is properly fastened
to cuff and monitor unit
Improper operation
Read user manual carefully and re-
test properly.
Pressurization is over
300mmHg
Read user manual carefully and re-
test properly.

- 14 -
Digital Blood Pressure Monitor
MDBP13
Blood Pressure Information
Blood Pressure
Blood pressure is the force of blood pushing against the walls of arteries. It is typi-
cally measured in millimeters of mercury (mmHg.) Systolic blood pressure is the
maximum force exerted against blood vessel walls each time the heart beats. Dia-
stolic blood pressure is the force exerted on blood vessels when the heart is resting
between beats.
An individual’s blood pressure frequently changes throughout the course of a day.
Excitement and tension can cause blood pressure to rise, while drinking alcohol and
bathing can lower blood pressure. Certain hormones like adrenaline (which your
body releases under stress) can cause blood vessels to constrict, leading to a rise in
blood pressure.
If these measuring numbers become too high, it means the heart is working harder
than it should.
Health Reminder
Hypertension is a dangerous disease that can affect the quality of life. It can lead
to a lot of problems including heart failure, kidney failure, and cerebral hemorrhag-
ing. By maintaining a healthy lifestyle and visiting your physician on a regular basis,
hypertension and relative diseases are much easier to control when diagnosed in
their early stages.

- 15 -
Digital Blood Pressure Monitor
MDBP13

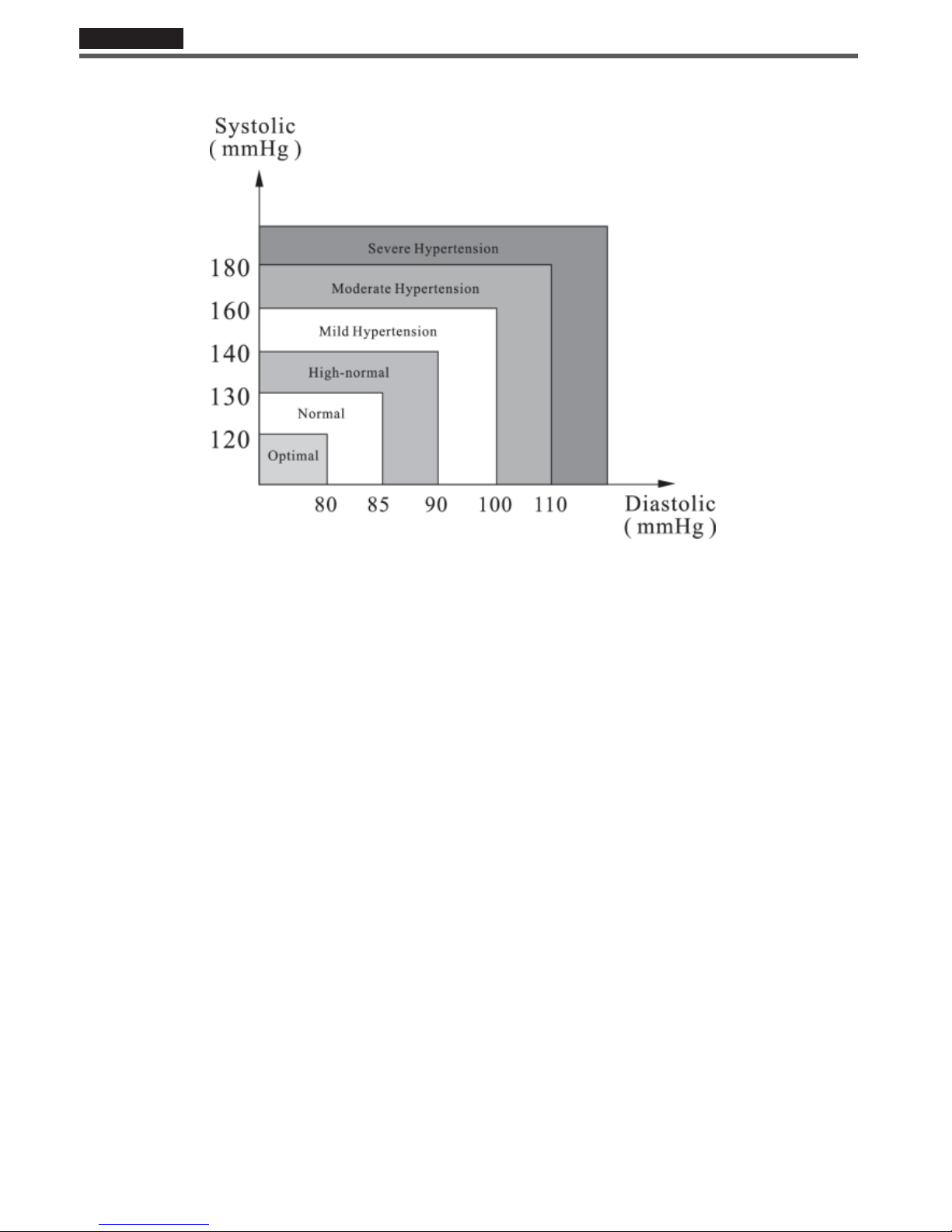

Note: Do not be alarmed if an abnormal reading occurs. A better indication of an in-
dividual’s blood pressure occurs after 2-3 readings are taken at the same time each
day over an extended period of time. Consult your physician if test results remain
abnormal.

- 16 -
Digital Blood Pressure Monitor
MDBP13
M
Blood Pressure Q & A
Q: What is the difference between measuring blood pressure at home or at a pro-
fessional healthcare clinic?
A: Blood pressure readings taken at home are now seen to give a more accurate
account as they better reflect your daily life. Readings can be elevated when taken
in a clinical or medical environment. This is known as White Coat Hypertension and
may be caused by feeling anxious or nervous.
Note: Abnormal test results may be caused by:
1. Improper cuff placement
Make sure cuff is snug-not too tight or too loose.
Make sure bottom of the cuff is approximately 1-2cm (1/2’’) above the elbow joint.
2. Improper body position
Make sure to keep your body in an upright position.
3. Feeling anxious or nervous
Take 2-3 deep breaths, wait a few minutes and resume testing.
Q: What causes different readings?
A: Blood pressure varies throughout the course of a day. Many factors including
diet, stress, cuff placement, etc. may affect an individual’s blood pressure.
Q: Should I apply the cuff to the left or right arm? What is the difference?
A: Either arm can be used when testing, however, when comparing results, the
same arm should be used. Testing on your left arm may provide more accurate re-
sults as it is located closer to your heart.
Q: What is the best time of day for testing?
A: Morning time or any time you feel relaxed and stress free.

- 17 -
Digital Blood Pressure Monitor
MDBP13
Maintenance
1. Avoid dropping, slamming, or throwing the unit.
2. Avoid extreme temperatures. Do not expose unit directly under sunshine.
3. When cleaning the unit, use a soft fabric and lightly wipe with mild detergent. Use
a damp cloth to remove dirt and excess detergent.

- 18 -
Digital Blood Pressure Monitor
MDBP13
MDBP13
4. Cuff Cleaning: Do not soak cuff in water! Apply a small amount of rubbing alcohol
to a soft cloth to clean cuff’s surface. Use a damp cloth (water-based) to wipe clean.
Allow cuff to dry naturally at room temperature.
5. Do not use petrol, thinners or similar solvents.
6. Remove batteries when not in operation for an extended period of time.
7. Do not disassemble product.
8. It is recommended the performance should be checked every 2 years.
9. Expected service life: Approximately three years at 10 tests per day.
