Chongqing Xinfeng Medical Instruments CQ-12 User manual

INSTRUCTION MANUAL
INFRARED THERAPEUTIC LAMPS
Chongiqng Xinfeng Medical Instruments Co.,Ltd.

TABLE OF CONTENTS
1. Introduction............................................................................错误！未定义书签。
2. Intended use............................................................................错误！未定义书签。
3. Warnings.................................................................................错误！未定义书签。
4. Contraindications...................................................................错误！未定义书签。
5. Package and assembling of device........................................错误！未定义书签。
6. Operation Instruction:...........................................................错误！未定义书签。
7. Position for Treatment. .........................................................错误！未定义书签。
8. Treatment Time. ....................................................................错误！未定义书签。
9. Protection of Skin...................................................................错误！未定义书签。
10. Safety Shield.........................................................................错误！未定义书签。
11. Cleaning and Maintenance..................................................错误！未定义书签。
12. Specification..........................................................................错误！未定义书签。
13. Explanation of Symbols.......................................................错误！未定义书签。
14. Disposal.................................................................................错误！未定义书签。
15. CE Compliance.....................................................................错误！未定义书签。
16. Trouble shooting ..................................................................错误！未定义书签。
17. EMC Information ................................................................错误！未定义书签。
18. Limited Warranty................................................................错误！未定义书签。
19. Manufacture Date, Manufacturer’s and ER address.......错误！未定义书签。

1.Introduction
1.1 The Infrared therapeutic lamp features a plate coated with a proprietary
mineral formulation consisting of 33 elements. When activated by a built-in
electric heating element, this mineral plate emits a special band of
electro-magnetic waves ranging from 2 to 22 microns in wavelength and
25 mw/sq. mm in intensity.
Easy to use, the Infrared therapeutic lamp requires no gel, no electro-stim
and may be used through clothing or directly on the skin.
It is effective when deep heating of body tissue is desired.
Beneficial effects include decreased joint stiffness, increased vasodilation,
muscle spasm relief and reduced pain from ligamentous sprains and
strains. It works by increasing the local circulation of blood, lymph and the
activity of the nervous system.
1.2 Features:
*The Infrared therapeutic lamp built in with a mechanical or digital timer to
allow user in selecting treatment time as decided.
*Mechanical timer is easy to operate by simply turn it clockwise to adjust the
operation time.
*Digital timer has accumulative timing function to check up the accumulated
working time to remind user to change new mineral coated plate, installed
in the TDP headlamp.
*An open metal mesh type safety shield to protect and prevent accidental
contact with the heating plate.
*With extension arm provides a wide range of lifting and extension distance
of supporter and stability of headlamp in position.
*Five-leg with double caster base for higher stability to reduce the tip-over
hazard.
Caution:
• This manual explains how to use the device, safety precautions and
maintenance procedures. Only general information is provided. Should
you have questions or if unusual problems arise, do not hesitate to contact
your practitioner.

• Please read the instruction manual before use and use only according to
this manual. As the installation and operation for this device are very
simple,the intended operator only need to follow this Introduction Manual
to operate,not necessary for professional training.
• Do not leave the device on when unattended. Unplug from outlet when not
in use.
• To disconnect from the Power source outlet, must switch off the power
switch to the "OFF" position of device and then remove the power plug
from the power source outlet.
•When treating a patient on the facial area, the patient should wear a
sunglasses or goggles, in order to protect the eyes from dryness.
1.3 Intended Operator
●Professional doctor or health care provider
●The device can not be used without approval.
1.4 The Infrared therapeutic lamp (the device) can be used at
clinic and hospital under the environment of:
Temperature: 10°C - 40°C (50℉-104℉)
Humidity: 35-75 %RH, 800-1060hPa
2. Intended use
The device is an infrared lamp that emits energy in the infrared spectrum to
provide topical heating for the purpose of elevating tissue temperature, to
temporarily increase local blood circulation, and temporarily relief of pain
and stiffness associated with minor muscle and joint.
Simply direct the heater probe of device toward but keep away the surface
of the bare skin or over the afflicted part of the body, hands, legs, Knee,
shoulder etc. for the following purpose:
●Decrease painful
●Reduces pain in joints, muscles
●Relaxes muscle spasms
●Improves microcirculation
There are, in fact, no hard and fast ways when using the device as different

people responds to the treatment in different ways. We recommend you
experiment with the device to discover the best way in which it can help you.
The treatments described are for guidance only. For more specific
problems consult your doctor. Timings are approximate and are intended to
be flexible to suit your own comfort.
3.Warnings
To prevent and avoid the risk of burns, fire, electric shock, or injury, the
following warnings must be observed during all phases of operation,
service and repair of this equipment.
3.1Warning against heat
● Operation personnel must not remove the system covers or safety shield
of the device.
● Do not use the device directly on wet skin.
● The heater is prohibited to touch onto the bare skin when operation.
● Keep the heater away from the skin at an advisable distance (minimum
20 cm or 8”) and limit the treatment time to 30 minutes maximum for
adults and 15 minutes for children to avoid skin burn.
● For protection against fire: Never operate this device with the protected
heater opening blocked. Keep this opening free of lint, hair, etc. Never
operate on or near a soft surface such as a pillow, blanket, or bed where
this air opening may be blocked.
● Do not touch the heater or safety shield when it is switch ON, as the
temperature of the heater is very hot.
● Keep out of reach from children and do not allow children to operate the
device. Do not let children operate this apparatus or get access to the
heater when it is being heated.
3.2Warning against risk of fire
●Unplug from outlet when not in use.
●Do not use the device in small space, or near anything flammable
including bedmattresses, carpet, and curtain.
●This device shall not be used in conjunction with high concentration of

oxygen or with flammable anaesthetics.
3.3 Warning against electric shock
● The Device supply must be in accordance with the rating on marking
label of device.
● Do not substitute parts or modify or repair equipment yourself. Servicing
should be performed by authorized personnel only.
● Do not modify equipment without authorization of the manufacturer.
● To avoid risk of electric shock, this equipment must only be connected to
supply mains with protective earth.
● The operator must not touch the patient or any charged parts, such as
the fuse holder at the same time, during operation of the device.
3.4Warning for other device using problem
● Explosion warning: Do not operate the equipment in an explosive
atmosphere.
● Do not operate where aerosol (spray) products are being used or where
oxygen is being administered.
● Do not hold the device by the cord or pull the cord sharply.
● Do not touch the internal of the device during working.
● Do not storage in any location where there is excessive moisture, such as
the bathroom.
● Let the device cool down for approx. 20 minutes before cleaning or
storing it.
● The Device can easily be damaged by improper handling.
● To safely turn off the device, reset the timer to “OFF”position (for
models CQ-12, CQ27 & CQ29) or press “PAUSE”on the panel of the
timer (for models CQ-33, CQ-36). Switch off the power switch to the
"OFF" position of device and then remove the power plug from the power
source outlet.
3.5Warning for Maintenance
●When the mineral element plate becomes white,replace lamp head by
professional in time to avoid possible risk of radiation.

●Daily maintenance needs to pay attention to the service life of element board and
heating plate.
3.6Warning for possible exposure to hazardous optical
radiations
●To avoid possible exposure to hazardous radiation,during the
treatment,both eyes should be avoided direct exposure to the lamp.If it’s
necessary to irradiate tothe eyes,wear sunglasses or cover it with cotton
fabric.
●Avoid irradiation to the area where metal materials are installed in the
body.
●Patient in special case and condition patient please use the device under
the guidance of your practitioner.
4. Contraindications
● IR Therapeutic Lamp should not be used where cardiac pacemakers are
located or directly over area where a metal or plastic plate has been fitted.
Adequate precaution should be taken in the case of persons with
suspected heart problems.
● Do not use over insensitive skin areas or in the presence of poor
circulation. Adequate precaution should be taken in the case of some
persons may experience skin irritation or hypersensitivity due to the heat
treatment.
● Do not use if patient has a high fever.
● Unattended use of heat by children or incapacitated persons may be
dangerous.
● If pregnant, ill, or have suffered injury, consult your physician before use.
● Adequate precautions should be taken in the case of persons with
suspected or diagnosed epilepsy.
● Electronic monitoring equipment such as electrocardiograms, EKG
monitors and alarms may not operate properly when this device is in use.
● This device should not be used over swollen, infected, or inflamed areas
or skin eruptions, e.g. phlebitis, varicose veins.

5. Package and assembling of device
Contentsof the “Model CQ-12, CQ-27, CQ-29, CQ-33, CQ-36” IR
Therapeutic Lamps
Model:CQ-36 Model:CQ-12 Model:CQ-27
Model:CQ-29 Model:CQ-32

5.1 Package:
IR Therapeutic Lamps
Control Panel Box & Stand 1 pc
Headlamp 1 pc
Extension Rod 1 pc
Five Point Base with Castors 1 pc
Instruction Manual 1 pc
The device and its accessories are packed in a strong paper box.
Model
Long (cm)
Wide (cm)
High(cm)
CQ-12(2 In 1)
49
35
51
CQ-27
62
50
25
CQ-29
CQ-33
CQ-36
A) Eachshipped device is individual packed into a 3-ply Carton Box.
B)EachCarton is strapped by machine tapes to lock in as safe as protective
to prevent from damage during transportation.
C) The shipping marks to be printed at front side of the 3- ply carton.
D) The transportation & storage environment together with Model & Serial
No. to be printed at side of the 3- ply Carton.
(Example as below)
Storage environment
30°C to 55°C (-22℉to 131℉), 15-95% RH,

700hPa to 1060hPa
Transportation environment
-30°C to 55°C (-22℉to 131℉), 15-95% RH,
700hPa to 1060hPa
Model
CQ-XXX
Serial No.
xxxxxxxx
Manufacturer: Chongqing Xinfeng Medical Instruments Co., Ltd.
1st floor, NO.8 group ,Industrial factory Zone B,
Nanxi Group ,Industrial Zone , Hechuan District,
401520,Chongqing, PEOPLE’S REPUBLIC OF CHINA
EC-Representative: Novasan.S.A.
C/Churruca,18 28004 MADRID SPAIN

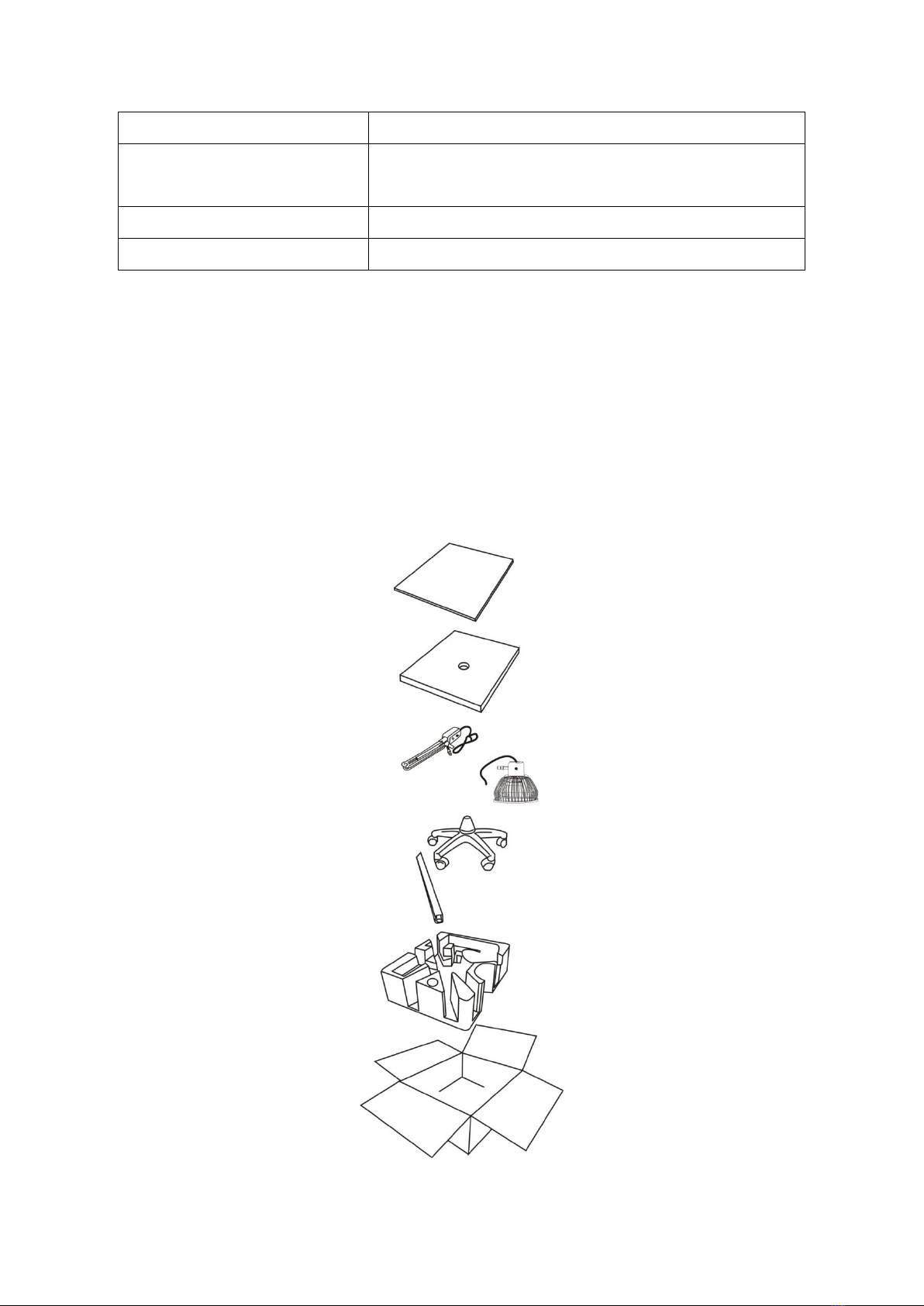

5.2 Explode diagram of Packaging:

5.3 Assembling: (Floor Type)
Open the packaging box with care and
check the contents of the device. It should
consist of:
-Device headlamp (installed with mineral
coated plate), with spring loaded arm and
control box.
-Extendable Stand Pole
-Five Point Base with Castors
Assemble the device according to Figure
1 (see right diagram). InsertA to B and
tighten C. Insert D to E and tighten F.
Insert 5 to 6 and tighten G.
6. Operation Instruction:
6.1 Illustrations of parts :
Description of Parts
Part No.
Description
1
Headlamp (with mineral
coated plate)
2
Safety Shield
3
Extension Arm
4
Control Panel Box
5
Power Cord
6
Extension Rod
7
Power Plug
8
Five Point Base with
Castors

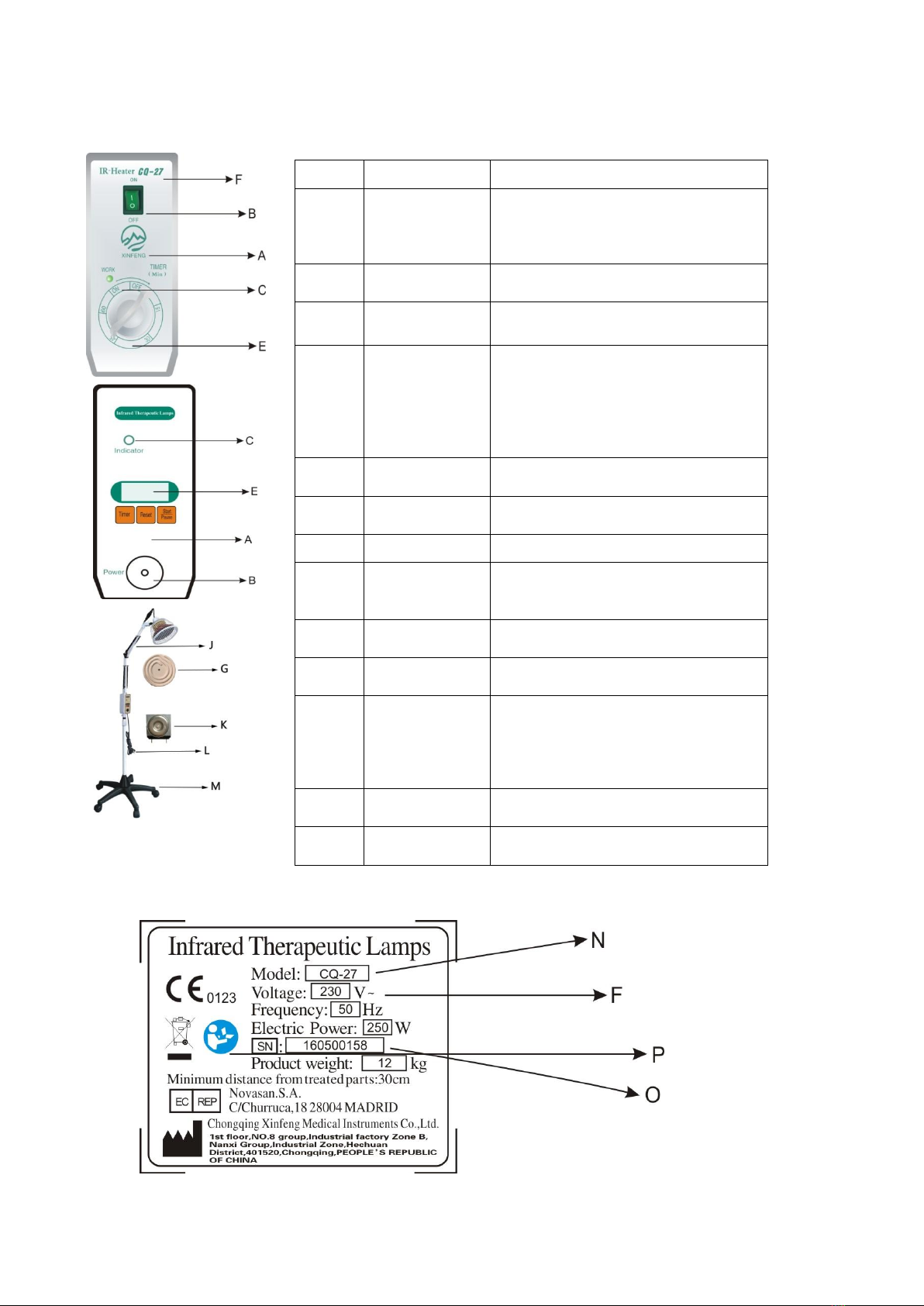

Item
Description
Illustration
A
Top panel
On-Off power switch, Power on
indicator(white), timer switch Timer
ON indicator(green) are installed in
this panel
B
On-Off power
switch
Press the On-Off switch to turn On
thedevice
C
Power on
Indicator
White Power indicator pilot is lighting
while the power is switchedOn.
E
Timer
Choose the time for treatment by
adjusting the timer. Mechanical timer
iseasy to operate by simply turn it
clockwise to adjust the operation
timeDigital timer by pressing buttons
on thepanel, see instruction 6.4
F
Model name
The Model Name of the device is
printed here.
G
Heater
The headlamp must be plugged into
the socket of the Control Panel box.
J
Stand
To support the lamp.
K
Beeper/Buzzer
When the set time is completed, the
beeper or buzzer will sound and the
heater stops working.
L
DC Power
Socket
To plug in AC wall socket
M
5-Point Base
Base with 5 wheels to move around
thelamp to suitable area for treatment.
N
Rating Label
Device name, model, specifications,
manufacture date, manufacturer’s
andER address, CE 0123, symbols,
“Seeinstruction for use” detail to be
marked on.
O
Serial No.
Label
To identify the device for warranty
P
See Instruction
Label
“See instruction for use”

Caution:
●Before the device is ready for use, the heater will warm up after 5 minutes
after switching ON.
●Do not use the device directly on wet skin.
6.2 Turning Unit On: For Mechanical Timer, model CQ-12
a) Insert the plug into a grounded 230±10 volt AC output (wall) socket and
the “white” POWER indicator lit, indicates the power is connected. At this
time, the “green” (WORK) indicator is not lit.
b) Turn the timer clockwise to “ON” position or select treatment time, for
example 45 minutes. The “green” (WORK) indicator lit, indicates the unit is
warming up and countdown for operation is started.
c) After pre-heating for 10 to 15 minutes, the unit will be ready for use. Do
not leave unit on when unattended.
6.3 Turning Unit On: For Mechanical Timer, models CQ-27，CQ-29
a) Insert the plug into a grounded 230±10 voltAC output (wall) socket and
turn unit on by depressing the POWER switch to “|” position. The “green”
POWER indicator lit means the power is ON and connected. At this time, the
“green” (WORK) indicator is not lit.
b) Turn the timer clockwise to “ON” position or select treatment time, for
example 45 minutes. The “green” (WORK) indicator lit, indicates the unit is
warming up and countdown for operation is started.
c) After pre-heating for 10 to 15 minutes, the unit will be ready for use. Do
not leave unit on when unattended.
6.4 Turning Unit On: For Digital Timer, models CQ-33, CQ-36
a) Insert the plug into a grounded 230±10 volt AC output (wall) socket and
turn unit on by depressing the POWER switch to“|” position. The “green”
POWER indicator lit means the power is ON and connected. At this time,
the “green” (WORK) indicator is not lit. The display shown on the screen
is the accumulated working time. Unit: hour.
b) Setting the treatment time:
i)For Continuous treatment - Push “Start/Pause” button. The screen
shall display “CONT” which means “continue” and the “green” (WORK)

indicator lit.
ii)For preset time of treatment - Push “Reset”, the screen will display
“00:00”. Then push “Timer” to set working time. (The increments of each
pushing of Button is 5 mins)
c) Now Push “Start/Pause” and “green” (WORK) indicator lit, indicates the
unit is warming up and countdown for operation is started. By pressing
the “RESET” and “TIMER” button, the treatment time can be reset.
d) After pre-heating for 10 to 15 minutes, the unit will be ready for use. Do
not leave unit on when unattended.
e) Aim the device head directly towards the body area to be treated. The
heating shuts off once the timing reaches “00:00”.
f) The heating can be canceled any time by pushing “Reset”.
The appropriate distance from the device headlamp to the area to be
treated is 30 cm. The best result is obtained when the body surface
temperature is heated to and kept at 40°C-42°C after preheating for 15
minutes.
When skin temperature is below 40°C, it is only for comfort
warming.The following table shows the appropriate skin temperatures
at different distances from the head lamp to skin surface after
preheating for 15 minutes:
Distance from the headlamp
25 cm
30 cm
35 cm
Skin temperature
42°C
40°C
38°C
Treatment time period: Limit the treatment time to 30 minutes maximum
for adults and 15 minutes for children.
Once or twice treatments per day.
Note: if the indicator light (green) is not on and the lamp fails to heat,
check the fuse on the back of the controller. Replace if necessary.

7. Position for Treatment
As a general guideline, adjust the distance between the treatment
surface and the headlamp at an advisable distance (minimum 20 cm or
8”) to produce a warm and comfortable feeling. Actual placement must
be dictated by patient comfort.
Note that an advisable distance will provide therapeutic heating of 40°C
-45°C at room temperature. For reference, 40°C to 45°C (104˚F to
113˚F) is the temperature range for therapeutic heating at room
temperature. The skin may become pink during treatment, this is
normal.
If heater distance is too far away from treatment surface will only
provide warmth and comfort.
Do not place the headlamp directly onto the body or treatment surface,
otherwise a possible burn may result.
8.Treatment Time
The treatment time for a given session may vary depending on the
condition being treated.
As a general guideline, treatment times of 30 minutes may be used.
Limit the treatment time to 30 minutes maximum for adults and 15
minutes for children.
It is also recommended to limit treatment sessions to no more than 2
times per day.
Depending on the condition being treated, shorter times and
frequencies of treatment may also be used.
9.Protection of Skin
Application should be pleasant and comfortable. Be aware of the
comfort and how the patient is feeling. If pain or discomfort is felt, move

the headlamp further away or discontinue treatment. If the headlamp
touches onto the body during treatment, the temperature may become
too high and the skin may overheat and cause a skin burn.
To minimize the impact of dry skin after treatment, apply moisturizing
lotion to the treatment area after each session.
10.Safety Shield
This device features with a safety shield to protect and prevent
accidental contact with the bare skin. This shield is prohibited to remove
when the device is in operation. Do not touch the headlamp after
operation - the headlamp will remain hot for a period of time after it is
turned off.
11.Cleaning
Caution: Let the device cool down for approx. 20 minutes before
cleaning or storing it.
Do not immerse the device in any cleaning solution or water.
IR Therapeutic Lamp should be periodically wiped clean using a damp
cloth and a solution of mild soap and water. Use of any other cleaning
solution may damage the device.
Wipe the cable & plug clean with a cloth dampened in a mild soap
solution, then wipe them dry. (Do not use thinner, benzene of similar
solvents to clean the equipment. Do not use alcohol or Freon to clean
the cable)
It should be stored in a location free from dampness and extreme cold.

12. Specification
1
Model
CQ-12, CQ-27, CQ-29, CQ-33, CQ-36
2
Optimum skin temperature
40°C-45°C at room temperature (an advisable
distance from the heater to surface of bare Skin)
3
Power Source
Voltage: 230V~
Frequency: 50 Hz
4
Electrical Power
250 Watts
5
Timer
Continuous, and 60 minutes
6
Buzzer
Will be sound and stopped to work automatically
when the set time is up.
7
“OFF-ON” switch
“OFF” to turn off the device
“ON” to turn on the device
8
Current Fuse
2 pcs. type F3. 15AH 250V
9
Transportation and
storage environment
-30°C to 55°C(-22℉to 131℉),15% RH to 95%
RH,700hPa to 1060hPa
10
Operation environment
10°C -40°C(50℉- 104℉),RH: 35-75% ,
800hPa to 1060hPa
11
Device Classification
Class IIa (Rule 6 of Directive 93/42/EEC,Annex IX)
12
Pollution Degrees
Degrees 2
13
Overvoltage Category
Category II
14
High Altitudes (m)
≤2000m
15
Spectral irradiance
0W.m-2
16
Spectral radiant
0W.m-2
17
Maximum output of optical
radiation
〈0.001 W.m-2
18
Emission apertures location
Head lamp
19
Service life
3 Years
Specifications are nominal and subject to variation from the listed values due
to production tolerances (+/-10％).

Mechanical Speciation of different models of IR Therapeutic Lamp

13. Explanation of Symbols
The following symbols are used in this device.
14. Disposal
There is generally no restricted “shelf-life” of the device. The device
contains substances that can be harmful to the environment. When you
discard the device, do not throw it away with the normal household waste
but hand it in at an official collection point.
Attention: When dispose the device, please follow the local environment
requirement to minimize contamination risk.

15. CE Compliance
Model CQ-12/CQ-27/CQ-29/CQ-33/CQ-36 Infrared Therapeutic Lamp
conforms to the requirements of Medical Device MDD 93/42/EEC. It is in
compliance with the standards IEC 60601-1:2012 reprint and IEC
60601-1-2:2014.
16. Trouble shooting
If your device does not seem to be operating properly, please check as:
●Check the plugging method to be sure it is properly placed.
●Replace 2 pieces new fuses of 3.15A
When replacing the fuse, please pay attention to the following steps:
a) Power OFF and unplug the device from the mains.
b) There are two fuse holders at the back side of the Control Panel Box,
unscrew one of the fuse holder caps (in counter clockwise direction).
c) Take away the faulty fuse and change a new one (fuse of 3.15A).
d) Put back the fuse holder cap in position by screw it in clockwise
direction.
e) Replace the other fuse in the second fuse holder as mentioned in the
above steps b),c) and d).
f ) The fuses are now properly replaced and operation of the device can
be proceeded again.
If none of these steps improve operation, do not operate this device,
return the device to your professional or call your nearest authorized
service center who will return it to the manufacturer.
The device should be serviced or checked once a year by
authorized dealer, service center or manufacturer to ensure
continued safe use of the equipment.
A double pole switch is installed in the control panel of the device to
ensure Mains Isolation, this isolates the circuits electrically from the
supply mains on all poles simultaneously.
It complies with the protection against electrical Hazards according
to IEC 60601-1: 2006 standards.
