Christie D4K40-RGB Guide

4K-RGB Laser Optical
Subsystem
Replacement
Instructions
These instructions explain how to replace the 4K-RGB laser optical subsystem (LOS) using the H1LOS
service kit (P/N: 163-123107-XX).
Affected products
These instructions apply to the following products:
• Christie D4K40-RGB
• Christie Mirage 4K40-RGB
• Christie Roadie 4K40-RGB
• Christie CP4325-RGB
• Christie CP4330-RGB
Required tools
The following tools are required:
• 3 mm hex screwdriver
• 2.5 mm hex screwdriver
Optional tools
The following optional tools can be used to install the service kit:
• Foot adjustment tool (011-104952-XX)
• Calibrated torque driver
4K-RGB Laser Optical Subsystem Replacement Instruction Sheet 1
020-103107-02 Rev. 1 (07-2019)
Copyright © 2019 Christie Digital Systems USA, Inc. All rights reserved.

H1LOS Kit contents
The H1LOS service kit (P/N: 163-123107-XX) contains the following components and tools.
Table 1: Kit Content Functionality
A Bench jack (1), shown packed and
extended
Use the bench jack to raise and lower the LOS. Do not use
the bench jack to raise or lower the projector
.
B Riser blocks (4) Use the riser blocks to raise a 4K40-RGB series unit to the
minimum height required to pull the bench jack and LOS out
from under the projector. Although not required, the riser
blocks can be used for CP43XX-RGB series.
C 4mm driver (1) Use the 4m driver for the LOS retaining screws only.
D Foot adjustment tool (1) Use the foot adjustment tool to rapidly spin the projector feet
to the desired height. The front notch of the foot adjustment
tool can also be used as a wrench.
E LOS grip handles (1) Attach the LOS grip handles to the projector as an alternative
to the bench jack, if manually turning over the projector to
access the LOS for replacement is preferable to raising it with
the riser blocks and working underneath.
4K-RGB Laser Optical Subsystem Replacement Instructions
4K-RGB Laser Optical Subsystem Replacement Instruction Sheet 2
020-103107-02 Rev. 1 (07-2019)
Copyright © 2019 Christie Digital Systems USA, Inc. All rights reserved.

Setting up for LOS removal
Before LOS removal can start, the projector must be powered down, the area under and around the
projector must be clear of debris, the projector must be level and stable, and the service person must
be grounded. Follow the instructions provided below before removing covers or projector parts.
1. Remove power from the projector:
a) Turn off the projector's breakers.
b) Disconnect the AC input cable at the projector power source or open the breaker at the
external breaker box.
2. To prevent shocks and protect sensitive circuitry, ground yourself.
3. Ensure the projector stand, pedestal, or rack is stable and level. This is important to prevent
equipment damage.
4. Retain the projector feet using a Series II Rack Adapter kit. If no rack adapter kit is available,
it is still important to ensure the projector's feet are retained.
5. Clear all objects from under and around the projector.
4K-RGB Laser Optical Subsystem Replacement Instructions
4K-RGB Laser Optical Subsystem Replacement Instruction Sheet 3
020-103107-02 Rev. 1 (07-2019)
Copyright © 2019 Christie Digital Systems USA, Inc. All rights reserved.

Removing projector components to allow for
LOS access
Carefully remove/disconnect the following items to gain access to and allow for safe removal of the
LOS.

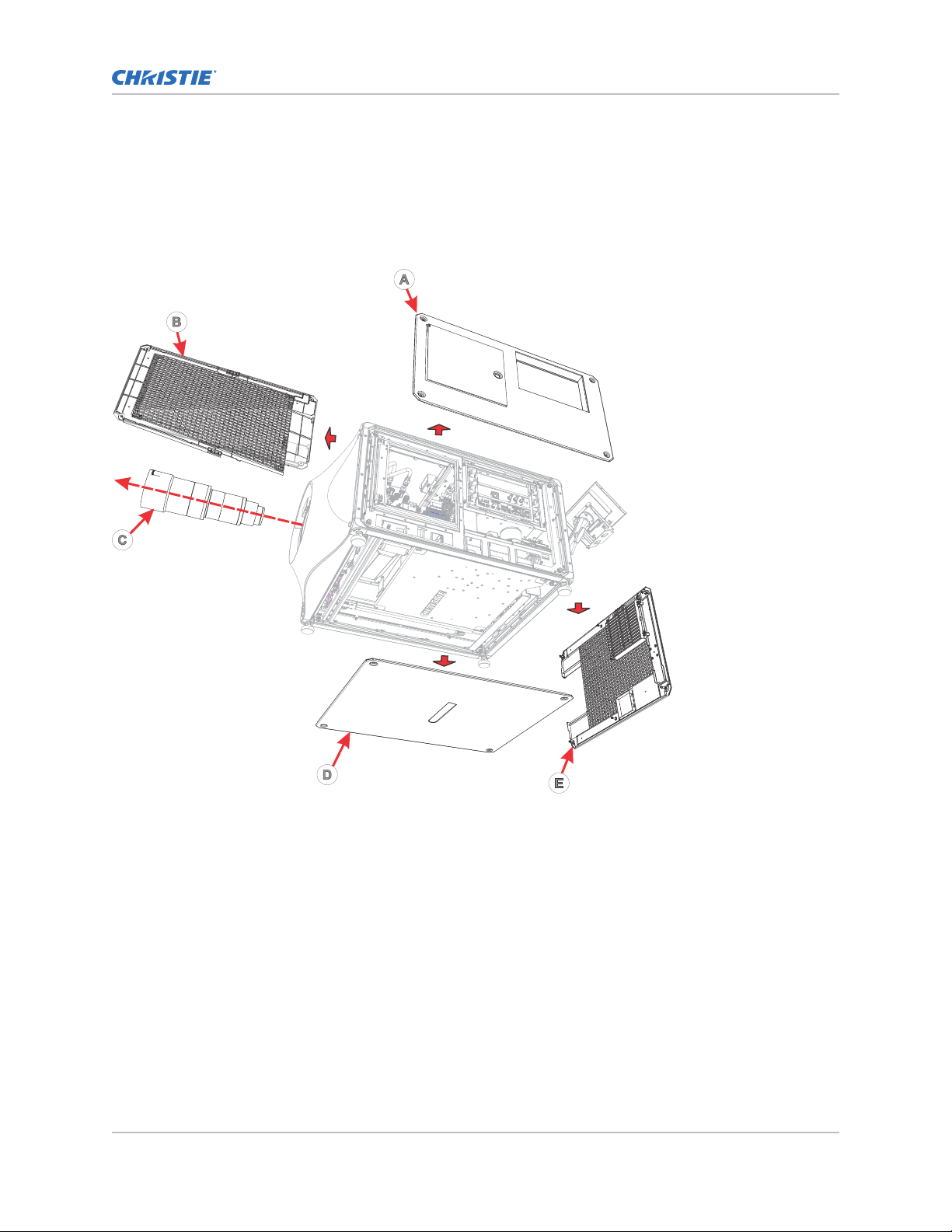

1. Remove the lens shown on callout C.
2. Remove the right-side cover (intake side) shown on callout B.
3. Remove the left-side cover (electronics side) shown on callout A.
4. Remove the bottom cover shown on callout D.
5. Remove the rear cover shown on callout E.
4K-RGB Laser Optical Subsystem Replacement Instructions
4K-RGB Laser Optical Subsystem Replacement Instruction Sheet 4
020-103107-02 Rev. 1 (07-2019)
Copyright © 2019 Christie Digital Systems USA, Inc. All rights reserved.

6. Disconnect the LOS cooling tube shown on callout F.
7. Disconnect the radiator cooling tubes at the three disconnects shown on callout G.
4K-RGB Laser Optical Subsystem Replacement Instructions
4K-RGB Laser Optical Subsystem Replacement Instruction Sheet 5
020-103107-02 Rev. 1 (07-2019)
Copyright © 2019 Christie Digital Systems USA, Inc. All rights reserved.

8. Disconnect the radiator harness (at the panel mount, coming from the HKBB) as shown on
callout H.
9. Remove the radiator as shown on callout I by first removing the handles from the projector
frame, then by reattaching them in their lift positions.
10. Disconnect the two fan harnesses shown on callout J.
11. Remove the fan module assembly.
4K-RGB Laser Optical Subsystem Replacement Instructions
4K-RGB Laser Optical Subsystem Replacement Instruction Sheet 6
020-103107-02 Rev. 1 (07-2019)
Copyright © 2019 Christie Digital Systems USA, Inc. All rights reserved.

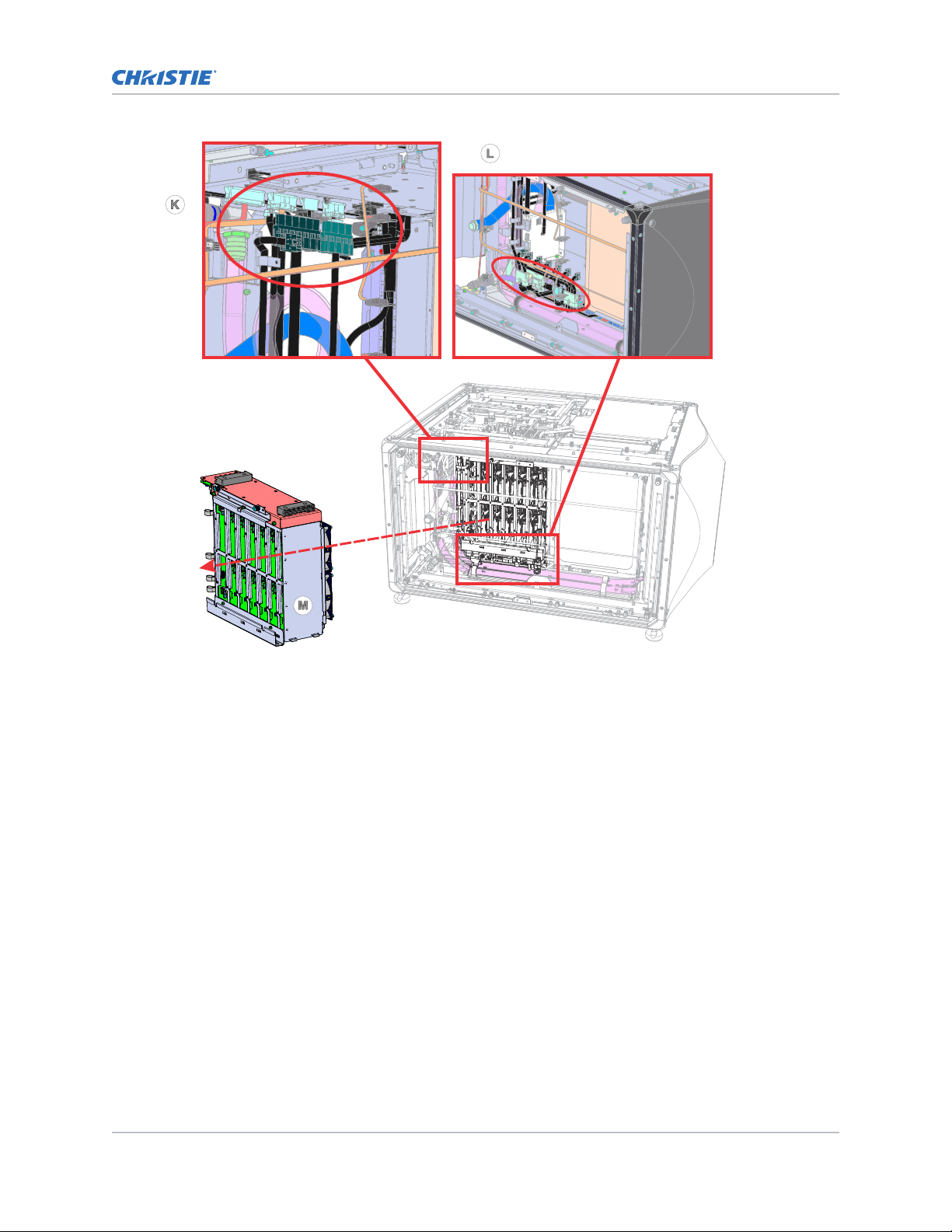

12. Disconnect the laser driver card cage (LDCC) harnesses shown on callouts K and L.
13. Remove the LDCC (callout M).
4K-RGB Laser Optical Subsystem Replacement Instructions
4K-RGB Laser Optical Subsystem Replacement Instruction Sheet 7
020-103107-02 Rev. 1 (07-2019)
Copyright © 2019 Christie Digital Systems USA, Inc. All rights reserved.

N
14. Disconnect the laser optical subsystem (LOS) harnessing shown on callout N.
The photographs above show the side view of the bracket in the left photo, and the front view
on the right.
15. Remove the rear left bottom cover mounting bracket.
Do not remove the coupling elbow within the rear IOS. The pins on the bottom of the coupling
elbow are required for LOS realignment later in the installation procedure.
4K-RGB Laser Optical Subsystem Replacement Instructions
4K-RGB Laser Optical Subsystem Replacement Instruction Sheet 8
020-103107-02 Rev. 1 (07-2019)
Copyright © 2019 Christie Digital Systems USA, Inc. All rights reserved.

Removing the LOS
The height of the bench jack during removal of the LOS is important. The LOS must not drop or fall.
Exercise due diligence and caution when performing the following procedure.
1. To begin, carefully evaluate and set the projector's elevation.
a) Measure the distance between the projector chassis and the surface the projector is
resting on.
b) If the distance measured is less than 250 mm (10 inches), use the jacking nut on each
foot of the projector to raise the projector chassis. The 250 mm distance is for clearance,
to prevent LOS damage and to accommodate the bench jack during LOS removal and
replacement.
CP4325-RGB and CP4330-RGB (Cinema 4K-RGB) projectors are equipped with
feet that raise the projector the entire 250mm distance. If replacing the LOS on a
Cinema 4K-RGB projector, raise and level the projector as described in Steps 1
and 2 in this procedure, then proceed to Step 5.
Do not raise each foot the entire length of travel as this can destabilize the system and
potentially cause damage or injury. Rather, raise each foot sequentially, using a cross or
diagonal pattern, in 25 mm increments per foot, then repeat the entire sequence until the
required height for each foot has been achieved.
2. Level the projector, using the jacking nuts to adjust.
4K-RGB Laser Optical Subsystem Replacement Instructions
4K-RGB Laser Optical Subsystem Replacement Instruction Sheet 9
020-103107-02 Rev. 1 (07-2019)
Copyright © 2019 Christie Digital Systems USA, Inc. All rights reserved.

3. Manually lift one end of the projector (either front or back) and position the stands (black)
under the feet. Christie recommends that two people perform this task.
4. Repeat Step 3 on the other end of the projector. Again, two people should work together for
both personnel and projector safety.
If replacing the LOS of a D4K40-RGB, Mirage 4K40-RGB, or Roadie 4K40-RGB unit,
use of the stands is mandatory to achieve the required 250mm height. The projector
feet must also be set to maximum height for these projector models.
5. Position the bench jack in the approximate center of the LOS cold plate.
4K-RGB Laser Optical Subsystem Replacement Instructions
4K-RGB Laser Optical Subsystem Replacement Instruction Sheet 10
020-103107-02 Rev. 1 (07-2019)
Copyright © 2019 Christie Digital Systems USA, Inc. All rights reserved.

6. Raise the jack until the top surface of the bench just touches the bottom of the cold plate.
7. Loosen the four captive M5 screws securing the LOS to the baseplate (four corners).
Exercise caution before and during removal of the screws. The jack must be high enough to
prevent the LOS falling or dropping.
8. Slowly lower the bench jack until sufficient clearance is achieved above the LOS to safely
remove the jack from under the projector without any contact occurring.
9. Move the bench jack out from under the projector and remove the LOS.
Take great care when sliding the LOS off of the bench jack, as the upper platform surface of the
bench jack is slippery.
Optional method for removing the LOS
An optional method for accessing the LOS is to place the projector on its top face, rather than use the
bench jack method.
To use the alternate method, follow these steps.
1. Gently lift and place the projector on its top face. Two people are required to do this.
2. Attach the two handles, included in the service kit, into the locations shown by the callout
arrows in the graphic above and tighten the two screws per handle (total of four screws).
3. Loosen four captive M5 screws securing the LOS to the baseplate (four corners).
Exercise caution before and during removal of the screws. The LOS must not be allowed to fall
or drop.
4. Carefully remove the LOS.
4K-RGB Laser Optical Subsystem Replacement Instructions
4K-RGB Laser Optical Subsystem Replacement Instruction Sheet 11
020-103107-02 Rev. 1 (07-2019)
Copyright © 2019 Christie Digital Systems USA, Inc. All rights reserved.

Installing the replacement LOS
This procedure reverses the LOS removal procedure.
To avoid unnecessary repetition, refer to the previous procedure (on page 9) for graphical
representations (not shown in this segment).
1. Position the cold plate of the replacement LOS in the center of the bench jack.
2. Remove the dust cap from the LOS output coupling (if not already removed).
3. Slide the jack under the projector into the approximate location for LOS re-installation.
Ensure the LOS output coupling dust cap is removed before raising the jack.
4. Raise the bench jack and LOS into position for re-installing the four M5 screws.
During raising, the LOS may hang up on several base plate corners and edges. If this occurs,
carefully reposition the bench jack and LOS but do not force the LOS into position. The
installation path of the LOS must be free of any obstructions.
5. Look through the sight holes shown on the graphic above to ensure the LOS has successfully
mated to the coupling elbow. If not, remove the LOS using the LOS removal instructions, and
repeat this installation procedure until mating occurs.
6. To secure the LOS, tighten the four captive M5 screws.
4K-RGB Laser Optical Subsystem Replacement Instructions
4K-RGB Laser Optical Subsystem Replacement Instruction Sheet 12
020-103107-02 Rev. 1 (07-2019)
Copyright © 2019 Christie Digital Systems USA, Inc. All rights reserved.

7. Lower and remove the bench jack.
8. Re-install all other system components and connections that were removed/disconnected in
previous steps.
9. Power the system on.
10. Adjust the LOS coupling mirror.
11. Perform the LiteLOC v1 calibration.
Adjusting the LOS coupling mirror
Understand how to adjust the LOS coupling mirror.
1. Decrease the red laser power to low (30% to 40%).
To access the laser power settings, in the left navigation pane, tap Laser Settings > Laser
Power/LiteLOC Setup.
2. On a tripod in front of the lens, set up an illuminance meter (such as the Konica Minolta T10
Illuminance Meter) aimed at the center of the projection beam sent to the screen.
The illuminance meter must be facing the lens.
3. Set the green and blue laser power levels to 0.
4. Turn on the light source.
5. Wait 1 minute for the lasers to stabilize.
6. Remove the electronics-side cover.
7. Using a small, flat-head screwdriver, adjust the LOS coupling mirror to maximize the lux
reading on the illuminance meter.
8. To set the white point to DCI white, increase the green and blue power levels.
Make sure the red laser power is still set to low.
9. Visually check for uniformity and fine tune the elbow mirror adjustment.
10. Once the adjustment is complete, adjust the laser power to the preferred level.
11. Replace the electronics-side cover and, using a 3 mm driver, secure the cover using the four
quick-access fasteners.
12. Proceed to adjusting the integrator rod and fold mirror.
Performing the LiteLOC v1 calibration
Due to the manufacturing tolerance of the color sensor board and the LOS system, calibrate the
LiteLOC v1 response to the light intensity as the temperature of the laser devices changes.
1. Contact Christie Technical Support for a copy of the Horizon Factory Calibration Procedure
spreadsheet.
2. On the projector, display a framing test pattern.
3. Setup the color meter in the same manner as used for creating laser and MCGD files.
4. Login to the projector with Installer access or higher.
5. Navigate to the laser power settings page.
6. Set the following values:
• LiteLOC is disabled
4K-RGB Laser Optical Subsystem Replacement Instructions
4K-RGB Laser Optical Subsystem Replacement Instruction Sheet 13
020-103107-02 Rev. 1 (07-2019)
Copyright © 2019 Christie Digital Systems USA, Inc. All rights reserved.

• Maximum Expected Room temperature: 35 degrees Celsius
• Red power level: 78.3%
• Green power level: 63.2%
• Blue power level: 66.4%
7. Wait 15 minutes for the laser devices to acclimatize to the new values.
8. Adjust the blue and green power levels to achieve a DCI white point, as measured by the color
meter. Do not adjust the red value.
• For CP43XX-RGB series projectors, the DCI white point is x=0.314, y=0.351.
• For 4K40-RGB series projectors, the D65 white point is x=0.313, y=0.329.
Wait a few minutes for the lasers to stabilize and ensure that the white point is not shifting
between measurements.
9. Re-establish the connection to the photon controller using NetTerminal or Kore 10-bit Librarian,
on port 5103.
10. Send the command (RGB + MEAS?) to the photon controller.
The current color sense X, Y and Z values are returned, showing the temperature of the
different devices. For example:
• Red: Color sense X value
• Green: Color sense y value
• Blue: Color sense Z value
• Purple: Red devices temperature * 100
• Brown: Blue devices temperature * 100
11. Enter the returned values into line 27 and line 63 of the spreadsheet.
The temperature values reported in NetTerminal must be divided by 100 before being entered
on line 27 and Line 63.
12. Use Kore Librarian to connect to the projector on port number 5000.
13. Login to the projector with Service access.
14. Switch to the Scripting tab.
15. To lower the fan speed and increases the internal temperature of the laser devices, use the
script for the upgraded projector.
Lowering the fan speed allows for another set of Csense measurements to be collected at a
higher temperature without actually changing the room temperature.
•CP43XX-RGB series projectors
Kore Librarian must be used as NetTerminal is not capable of sending a script.
sub main()
proj.sendstring( "(CAL+FANS 5 45 )" )
proj.sendstring( "(CAL+FANS 6 45 )" )
proj.sendstring( "(CAL+FANS 7 45 )" )
4K-RGB Laser Optical Subsystem Replacement Instructions
4K-RGB Laser Optical Subsystem Replacement Instruction Sheet 14
020-103107-02 Rev. 1 (07-2019)
Copyright © 2019 Christie Digital Systems USA, Inc. All rights reserved.

proj.sendstring( "(CAL+FANS 8 45 )" )
proj.sendstring( "(CAL+FANS 9 45 )" )
proj.sendstring( "(CAL+FANS 10 45 )" )
proj.sendstring( "(CAL+FANS 11 45 )" )
proj.sendstring( "(CAL+FANS 12 45 )" )
proj.sendstring( "(CAL+FANS 13 45 )" )
proj.sendstring( "(CAL+FANS 14 45 )" )
proj.sendstring( "(CAL+FANS 15 45 )" )
proj.sendstring( "(CAL+FANS 16 45 )" )
proj.sendstring( "(CAL+FANS 17 45 )" )
proj.sendstring( "(CAL+FANS 18 45 )" )
proj.sendstring( "(CAL+FANS 19 45 )" )
proj.sendstring( "(CAL+FANS 20 45 )" )
proj.sendstring( "(CAL+FANS 21 45 )" )
proj.sendstring( "(CAL+FANS 22 45 )" )
proj.sendstring( "(CAL+FANS 23 45 )" )
proj.sendstring( "(CAL+FANS 24 45 )" )
proj.sendstring( "(CAL+FANS 25 45 )" )
proj.sendstring( "(CAL+FANS 26 45 )" )
proj.sendstring( "(CAL+FANS 27 45 )" )
proj.sendstring( "(CAL+FANS 28 45 )" )
proj.sendstring( "(CAL+FANS 29 45 )" )
end sub
•4K40-RGB series projectors
On 4K40-RGB series projectors, port 5103 is always opened in Core 4 Software and no
password is required to run the commands required to change the projector fan speed.
TrueLife accepts automation commands on port 3002.
sub main()
proj.sendstring( "(DGN 71 6 1 45 )" )
proj.sendstring( "(DGN 71 7 1 45 )" )
proj.sendstring( "(DGN 71 8 1 45 )" )
proj.sendstring( "(DGN 71 9 1 45 )" )
proj.sendstring( "(DGN 71 10 1 45 )" )
proj.sendstring( "(DGN 71 11 1 45 )" )
proj.sendstring( "(DGN 71 12 1 45 )" )
proj.sendstring( "(DGN 71 13 1 45 )" )
proj.sendstring( "(DGN 71 14 1 45 )" )
proj.sendstring( "(DGN 71 15 1 45 )" )
proj.sendstring( "(DGN 71 16 1 45 )" )
proj.sendstring( "(DGN 71 17 1 45 )" )
proj.sendstring( "(DGN 71 21 1 45 )" )
proj.sendstring( "(DGN 71 22 1 45 )" )
proj.sendstring( "(DGN 71 23 1 45 )" )
proj.sendstring( "(DGN 71 24 1 45 )" )
proj.sendstring( "(DGN 71 25 1 45 )" )
proj.sendstring( "(DGN 71 26 1 45 )" )
proj.sendstring( "(DGN 71 27 1 45 )" )
proj.sendstring( "(DGN 71 28 1 45 )" )
proj.sendstring( "(DGN 71 29 1 45 )" )
proj.sendstring( "(DGN 71 30 1 45 )" )
end sub
On 4K40-RGB series projectors, to change the fan speed to 100% type the following
command: (DNG 71 <fan ID> 1 <speed>). For example, (DNG 71 25 1 100) sets fan 25
to run at 100%.
To run the fan at the normal speed, send the command (DNG 71 <fan ID> 0), or reboot
the projector.
16. To execute the script, click the red arrow.
4K-RGB Laser Optical Subsystem Replacement Instructions
4K-RGB Laser Optical Subsystem Replacement Instruction Sheet 15
020-103107-02 Rev. 1 (07-2019)
Copyright © 2019 Christie Digital Systems USA, Inc. All rights reserved.

A confirmation that the command has been executed is displayed, and the projector noise level
goes down.
17. In the projector software, set the following values:
• LiteLOC is disabled
• Maximum Expected Room temperature: 35 degrees Celsius
• Red power level: 78.3%
• Green power level: 66.3%
• Blue power level: 70%
18. Wait 15 minutes for the laser devices to acclimatize to the new values.
19. Re-establish the connection to the photon controller using NetTerminal or Kore Librarian, on
port 5103.
20. Send the command (RGB + MEAS?) to the photon controller.
21. Compare the new blue temperature to the original value.
If the difference is less than eight degrees wait for a few more minutes and take another
reading until the blue temperature is at least eight degrees higher than the original reading.
22. Adjust the blue and green power levels to achieve a DCI white point, as measured by the color
meter. Do not adjust the red value.
23. Send the command (RGB + MEAS?) to the photon controller.
24. Retrieve the color sensor X, Y and Z values, and the blue and red devices temperatures.
25. Verify line 63 of the spreadsheet has the values identifed in step 10.
26. Enter the values returned in step 23 into line 64 of the spreadsheet.
The spreadsheet automatically calculates the calibration data and populates line 96 on the
calculator.
The temperature values reported in NetTerminal must be divided by 100 before being entered
on line 27 and Line 63.
27. Type the command on line 96 of the spreadsheet into NetTerminal or Kore Librarian and send it
to the photon controller.
The calibration data is saved to the color sensor board.
28. (CP43XX-RGB series projectors only) Close the LOS port. The port must be closed.
a) To close the direct communication to Photon, connect the laptop to the projector using
NetTerminal or Kore Librarian, with port 5000, and send the following command: (CAL
+PASS 0)
b) To verify the port is closed, connect to port 5103 and send the following command: (SST?)
If a response is returned, the port is open and must be closed.
29. To reset all fans to the normal operating speed, reboot the projector.
Technical support
Technical support for Christie products is available at:
• North and South America: [phone] or [email protected]
• Europe, Middle East, and Africa: [phone] or [email protected]
4K-RGB Laser Optical Subsystem Replacement Instructions
4K-RGB Laser Optical Subsystem Replacement Instruction Sheet 16
020-103107-02 Rev. 1 (07-2019)
Copyright © 2019 Christie Digital Systems USA, Inc. All rights reserved.

• Asia Pacific: [phone] or [email protected]
• Christie Managed Services: [phone] or [email protected]
4K-RGB Laser Optical Subsystem Replacement Instructions
4K-RGB Laser Optical Subsystem Replacement Instruction Sheet 17
020-103107-02 Rev. 1 (07-2019)
Copyright © 2019 Christie Digital Systems USA, Inc. All rights reserved.
