Looking for an affordable, easy to set-up, high performance
projector with features that ensure long life and low maintenance?
Look no further than the Christie LX505.
Easy image alignment
Create a perfectly aligned display with 3D Keystone™ technology, a new
four-corner geometry correction tool. This easy-to-use feature allows
you to quickly configure your image, ensuring a geometrically accurate
display for every presentation.
Quality you can trust
The Christie LX505 presents exceptional image quality using advanced
LCD technology that utilizes inorganic 3LCD panels. These inorganic panels
have been designed for improved lifetime performance over conventional
3LCD panels. With a 1000:1 contrast ratio and 10-bit video processing,
the Christie LX505 produces natural, smooth color tone to ensure picture
stability and flawless video playback… a quality image every time.
A versatile communication tool
Christie LX505 provides XGA resolution at 5000 ANSI lumens,
an ideal brightness level for medium-sized venues. You can easily add
the Christie LX505 to a network of projectors via the built-in network
port. This unit offers complete pro AV compatibility by accepting signals
from a variety of sources. The long-life AutoFilter cartridge system and
up to 3000 hour lamp (economy mode) ensures low cost of ownership
over the life of the product.
The Christie LX505 is equipped with motorized lens shift for zoom and
focus, with a center mount lens design and easy one-button lens release
capability. A suite of optional lenses are also available. This quiet,
compact projector is offered in an off-white color to blend with
a variety of surroundings.
The Christie LX505 offers the latest in LCD technology enhancements
in an affordable, easy-to-use package.
An economical, easy-to-use solution
LX505
Classrooms
Houses of worship
Meeting rooms
Small auditoriums
Training rooms

LX505 (103-125108-01)
Image brightness
•
5000 ANSI lumens
contrast
•
1000:1 (full on/off)
uniformity
•
90% brightness uniformity (corner to corner)
Display
technology
type
•
3-chip 0.08" Polysilicon TFT active matrix type LCD – Inorganic
native resolution
•
XGA (1024 x 768)
Lamp type
•
Single 275W NSHA
typical life
•
Normal mode: up to 2000hr
•
Eco mode: up to 3000hr
Input signals
•
UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA, MAC
•
HDTV formats (720p, 1035i,1080i, 1080p)
pixel clock
•
140MHz (analog)/162MHz (digital)
scan rates
•
Horizontal frequency range 15-100kHz
•
Vertical frequency range 48-100Hz
Inputs,
control and
networking
input
•
Input1: DVI-D x 1 (HDCP), D-Sub15x1
•
Input 2: 5-BNC (R, G, B, H, V & Y, Pb/Cb,
Pr/Cr & Composite)
•
Input 3: S-video – Mini DIN 4-pin
•
RCA x 3 (Video/Y, Pb/Cb,
Pr/Cr)
•
Audio In – Mini jack x 2 (1, 2) (stereo)
•
RCA x 2 (R, L-mono)
•
Control port
– Dsub-9 x 1
•
R/C Jack – Mini jack x 1 (wired remote)
•
RJ45 LAN x 1
output
•
D-Sub15 (Monitor out) x 1
•
Audio out – Mini jack x 1 (stereo)
Optical system
•
Motorized zoom, focus and lens shift
•
Vertical and Horizontal lens shift*
Lenses fixed
•
Short 0.8:1 (103-124108-01)
zoom
•
Ships with standard lens – Standard 1.70-2.89:1 (103-126100-01)
•
Short 1.25-1.70:1 (103-125109-01)
•
Long 2.89-4.60:1 (103-127101-01)
•
Long 4.60-7.36:1 (103-128102-01)
offsets
•
Horizontal 50%*
•
Vertical 10%*
Accessories standard
•
Quick set-up manual
•
PIN code Label Registration card
•
UL cable card
•
Lens adaptor
•
Power cord-AC cord UL type (NEMA 6-20P plug type)
•
AC cord (European 2P plug type)
•
Computer cable (Dsub15)
•
Users Manual (CD-ROM)
•
Remote control
•
Lens mount cover
•
Lens anti-theft screw
•
USB Cable
optional
•
CCM-LX for enhanced network options – 103-115108-02
•
AutoFilter cartridge – 003-003084-01
•
Replacement lamp – 003-120507-01
Enhanced
feature sets
•
10-bit image processing
•
Top loading lamp
•
1-button quick lens release
•
Digital keystone h/v and 3D KeystoneTM technology
•
Easy menu navigation
•
Up to 13,000 hour AutoFilter
•
Inorganic 3LCD
•
360 degree on axis rotation
•
Built-in – RJ45
•
Expansion port for advanced networking module (CCM-LX)
•
Customized logo capture
Power
requirements
operating voltage
•
100-120 VAC ±10%
•
200-240 VAC ±10%
operating current
•
In rush: 30A (AC100V); 60A (AC276V)
•
Current: 5.2A (AC100V); 2.5A (AC200V)
power
•
423W max
dissipation
•
1365 BTU/hr max
Dimensions size
•
Body with lens (LxWxH): 19.27 x 6.50 x 17.24" (489.5 x 164.0 x 438.0mm)
weight
•
21.4lbs (9.7kg) with lens
shipping weight
•
34.8lbs (15.8kg)
shipping size
•
(LxWxH): 26.81 x 12.52 x 22.90"(681.0 x 318.0 x 581.0mm)
Noise
•
Standard mode: 38dBA
•
Eco mode: 31dBA
Operating
environment
•
Operating temperature: 41-104˚F (5-40˚C)
•
Storage temperature: -10-60°C / 14-140ºF
•
Humidity (non-condensing): 20-80%
•
Altitude: 0-8858ft (0-2700m)
Regulatory
approvals
This product conforms to the following regulations related to product safety, environ-
mental requirements and electromagnetic compatibility (EMC):
•
FCC Part 15, Subpart B Class B
•
CISPR22/EN55022
•
CISPR24/EN55024
•
UL 60950-1 first edition
•
IEC60950-1:2001
•
2002/95/EC RoHS
Limited
warranty
projector
•
3 years parts and labor
lamp
•
500 hrs or 120 days (whichever comes first)
•
Contact an authorized Christie representative for full details of our limited warranty
Corporate offices Worldwide offices
Christie Digital Systems USA, Inc
USA – Cypress
ph: 714 236 8610
Christie Digital Systems Canada, Inc.
Canada – Kitchener
ph: 519 744 8005
United Kingdom
ph: [phone]
Germany
ph: [phone]
France
ph: [phone]
Eastern Europe and
Russian Federation
ph: [phone]
Dubai
(United Arab Emirates)
ph: [phone]
India
ph: +080 41468941 – 48
Singapore
ph: [phone]
China (Shanghai)
ph: [phone]
China (Beijing)
ph: [phone]
Japan (Tokyo)
ph: [phone]
Independent sales
consultant offices
Spain
ph: [phone]
Italy
ph: [phone]
South Africa
ph: [phone]

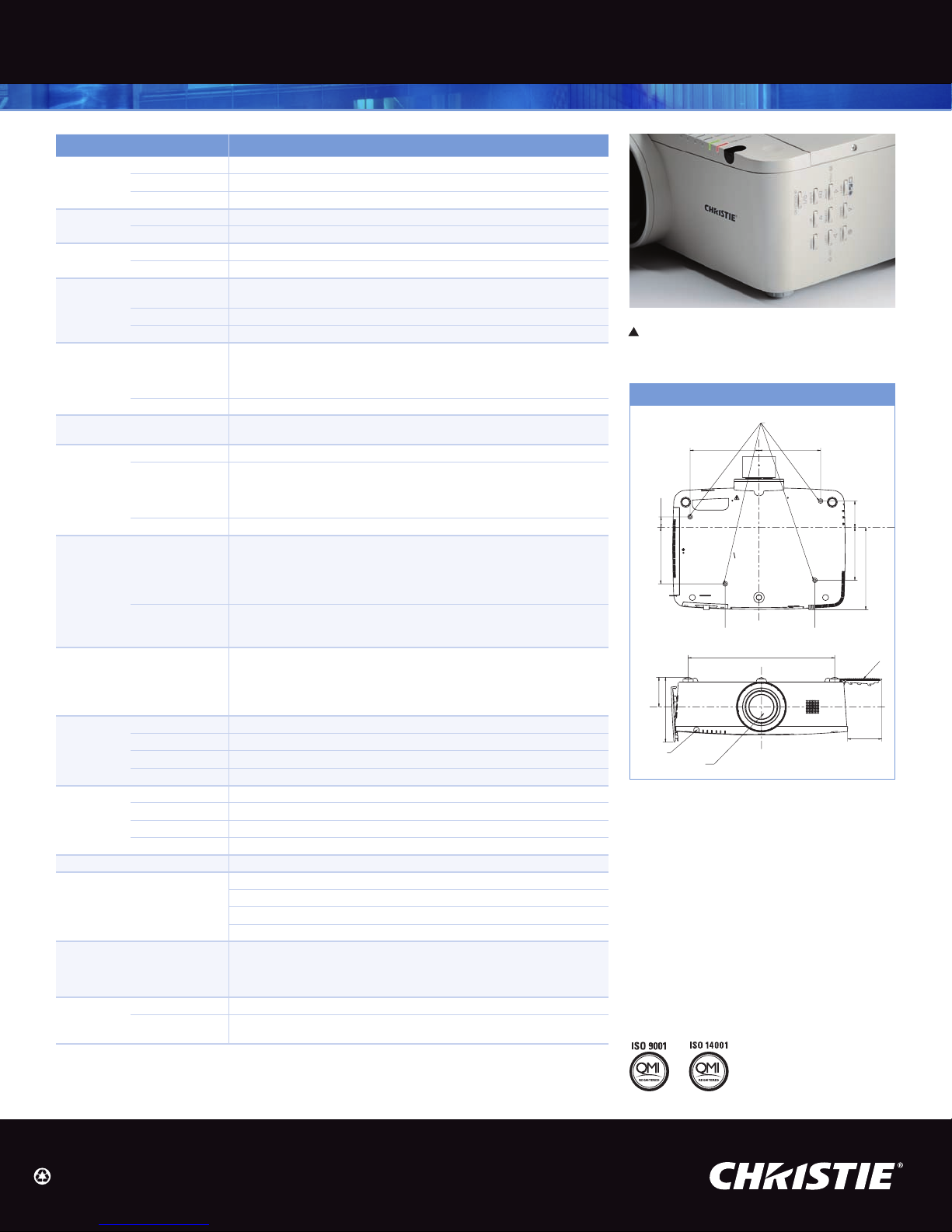

TECHNICAL SPECIFICATIONS
For the most current specification information, please visit www.christiedigital.com
Copyright 2010 Christie Digital Systems USA, Inc. All rights reserved. All brand names and product names are trademarks, registered trademarks
or tradenames of their respective holders. Canadian manufacturing facility is ISO 9001 and 14001 certified. Performance specifications are typical.
Due to constant research, specifications are subject to change without notice. Printed in Canada on recycled paper. 2580 Jan 10
Performance specifications are typical and are subject to change
* Actual range depends on lens used
3D KeystoneTM technology is a new four-corner
geometry correction tool that allows you to quickly
align your image at the touch of a button.
Bottom and front view
4-M6mm DIAMETER
DEPTH MAX 10mm/0.39"
195.5mm/7.70" 175mm/6.89"
75mm/2.95"
30mm/1.18"160mm/6.30"
96mm/3.78" 158.8mm/6.25"
233.6mm/9.2"
150mm/5.91"
LNS S20 (STANDARD)
RC
416.2mm/16.39"
96.6mm/
3.80"
184.2mm/ 7.25"
(PANEL CENTER) 84.0mm/3.31"
FILTER COVER
Inverted view
