Christie Q Series User manual

Q Series
DWU1052/DHD1052
Network Quick Setup Guide
020-000861-01

1
DWU1052/DHD1052
Network Quick Setup Guide 020-000861-01 Rev. 1 (12-2015) LIT GUID SET DWU/DHD1052 NET
Projector
User's Manual - Network
Quick Setup Guide
Thank you for purchasing this product.
This manual is intended to explain only how to setup this product. For proper use
of this product, refer to this manual and the other manuals for this product.
DWU1052/DHD1052
Connecting the projector and the computer using the network, remote control and
status monitoring of the projector can be performed by Web browser.
Two types of interface, Projector Web Control and Crestron e-Control, are
available for this projector.
1.1 Web Control
Projector Web Control Crestron e-Control
1. Features
See the corresponding pages for quick setup.
・Connection Setup (&7)
・System Requirements for Applications (&13)

2
DWU1052/DHD1052
Network Quick Setup Guide 020-000861-01 Rev. 1 (12-2015) LIT GUID SET DWU/DHD1052 NET

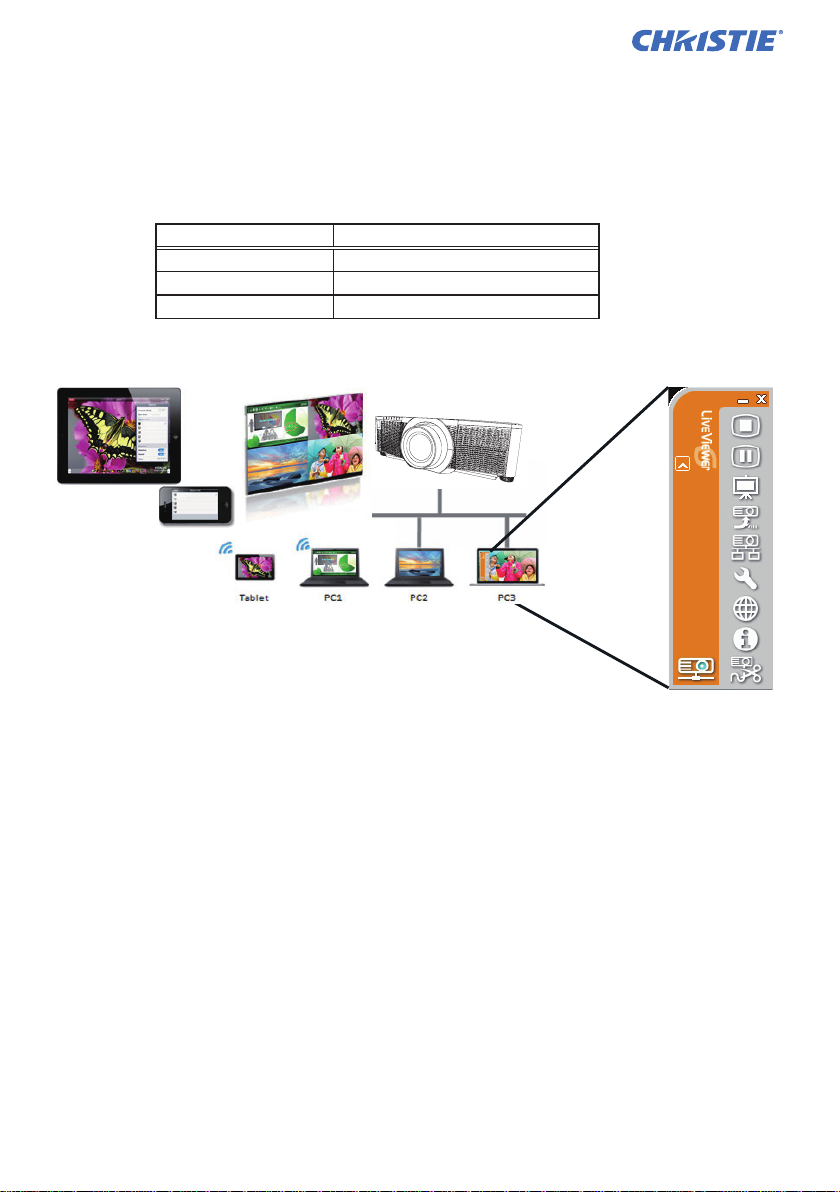

1.2 Network Presentation
The projector can display the computer screen images transmitted through the
network.
To use Network Presentation, an exclusive application, LiveViewer is required.
The following application is required to use Network Presentation.
OS Application
Windows®LiveViewer
iOS(iPhone/iPad) Christie QuickConnect
Android Christie QuickConnect

3
DWU1052/DHD1052
Network Quick Setup Guide 020-000861-01 Rev. 1 (12-2015) LIT GUID SET DWU/DHD1052 NET
1.3 My Image Function
The projector can display still images transferred using the network.
You can allocate up to four image les.
MY IMAGE transmission requires an exclusive application for your computer.
Use the application to transfer the image data.
1
43
2
1
43
2
1
43
2
Transfer image data
Display image data (ex. )

4
DWU1052/DHD1052
Network Quick Setup Guide 020-000861-01 Rev. 1 (12-2015) LIT GUID SET DWU/DHD1052 NET

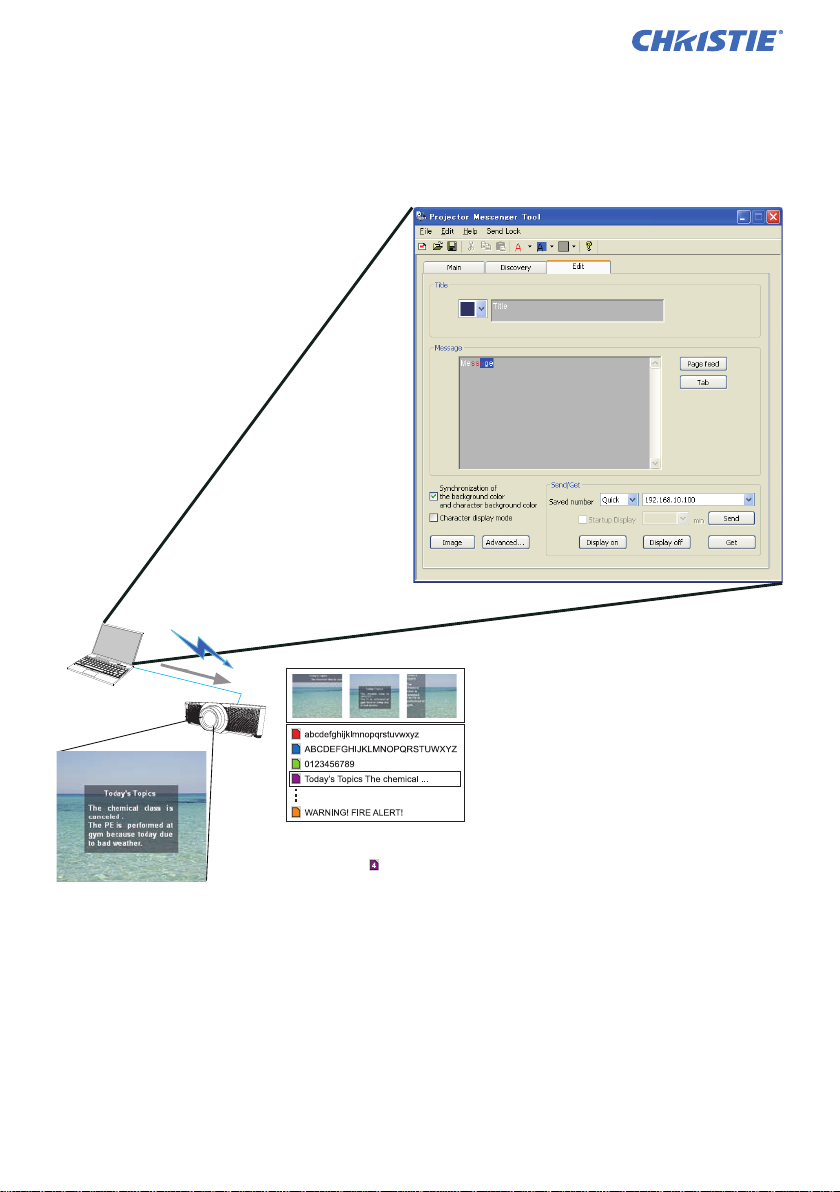

1.4 Messenger Function
The projector can display text data transferred using the network on the screen.
Up to 12 text data can be stored.
Transfer text data
Display text data (ex. )
1
43
2
1
4
3
2
12
1
4
3
2
12

5
DWU1052/DHD1052
Network Quick Setup Guide 020-000861-01 Rev. 1 (12-2015) LIT GUID SET DWU/DHD1052 NET
1.5 Network Bridge Function
This projector is equipped with the NETWORK BRIDGE function to perform
mutual conversion of a network protocol and a serial interface.
By using the NETWORK BRIDGE function, a computer connected to the projector
using wireless or wired LAN can control an external device using
RS-232C communication using the projector as a network terminal.
1.6 Other Functions
The projector can automatically send an alert message to the specied using
addresses when the projector detects a certain condition requiring maintenance
or detected an error.
1.6.1 Email Alerts
The SNMP (Simple Network Management Protocol) manages the projector
information, which is a failure or warning status, from the computer on the
network. The SNMP management software is required on the computer to use
this function.
1.6.2 Projector Management using SNMP
RS-232C
RS-232C cable
CONTROL port
LAN port
External device
Wired LAN
LAN cable
Computer
Protocol change
TCP/IP data Serial data
WIRELESS port
(USB wireless adapter)
Wireless
LAN

6
DWU1052/DHD1052
Network Quick Setup Guide 020-000861-01 Rev. 1 (12-2015) LIT GUID SET DWU/DHD1052 NET
The scheduling function sets up scheduled events including
power on / power off. It allows the projector to be self-managing.
The schedule can be set in Projector Web Control or OPTION-SCHEDULE menu
in the projector.
1.6.3 Event Scheduling
You can congure and control the projector using the network using RS-232C
commands.
1.6.4 Command Control using the Network
1) Press the MENU button on the remote control or the control panel of the projector.
2) From EASY MENU, select LANGUAGE.
Then, select your desired language.
2. Changing the Display Language
Follow the on-screen display (OSD) for proper operation.
MENU
button MENU button

7
DWU1052/DHD1052
Network Quick Setup Guide 020-000861-01 Rev. 1 (12-2015) LIT GUID SET DWU/DHD1052 NET

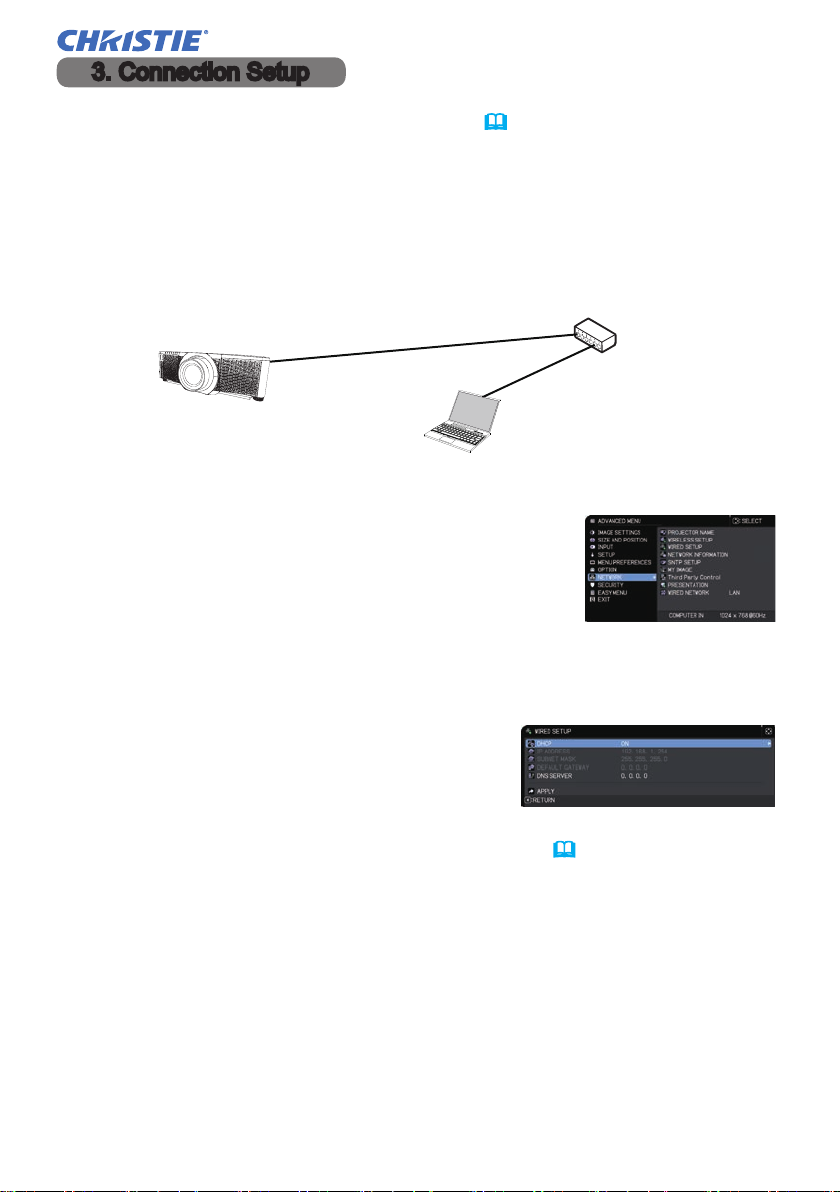

3.1 Connection using Wired LAN
1) Connect the projector to the computer using a hub
with a LAN cable (CAT-5e or higher).
2) Press the MENU button on the remote control or the
control panel of the projector.
The MENU you last used will appear.
Use the cursor button to select the following.
EASY MENU >ADVANCED MENU > NETWORK > WIRED SETUP
3) Set the following items in WIRED SETUP.
・󲹭DHCP
・IPADDRESS
・SUBNET MASK
・DEFAULT GATEWAY
・DNS SERVER
For setting an IP address, refer toAbout IP address. (&8)
Select APPLY, then press the ENTER button to apply the settings.
The connection using wired LAN is available. Set wired LAN for the projector by
following the instructions of your network administrator when connecting to the
existing network.
3. Connection Setup
Refer to System Requirements for Applications (&13) rst before setting up the
connection.
3.2 Connection setup of Wired LAN
hub

8
DWU1052/DHD1052
Network Quick Setup Guide 020-000861-01 Rev. 1 (12-2015) LIT GUID SET DWU/DHD1052 NET
• Although HDBaseT™ and LAN port can be used for wired LAN, they
cannot be used simultaneously. Connect LAN cable to the port set in WIRED
NETWORK on NETWORK menu.
• The same network address cannot be used for both wireless LAN and wired LAN.
• I f the projector and the computer exist in the same network (such as, same
network address), leave the default gateway eld blank.
• When the projector and the computer exist in different networks, the default
gateway must be set. Consult with the network administrator in detail.
NOTE
[About IP address]
■ Setting manually
The Network address portion of the IP address setting on your computer must
be the same as the setting on the projector. Also, the entire IP address on the
computer must not overlap with that of the other devices on the same network,
including the projector.
The projector’s settings are as follows.
IP address: 192.168.1.254
Subnet mask: 255.255.255.0
(Network address: 192.168.1 in this case)
Therefore, specify the computer’s IP address as follows.
IP address: 192.168.1.xxx (xxx shows decimal number.)
Subnet mask: 255.255.255.0
(Network address: 192.168.1 in this case)
For example
Select from 1 to 254 for “xxx” without duplicating any other equipment.
In this case, as the IP address of the projector is “192.168.1.254”, specify
a setting between 1 to 253 for the computer.
■ Setting automatically
When a DHCP server exists in the connected network, it assigns an IP address
to the projector and the computer automatically. If DHCP server is not available,
set IPADDRESS, SUBNET MASK and DEFAULT GATEWAY.

9
DWU1052/DHD1052
Network Quick Setup Guide 020-000861-01 Rev. 1 (12-2015) LIT GUID SET DWU/DHD1052 NET
3.3 Connection using Wireless LAN
Connection using wireless LAN is available with option parts, USB wireless
adapter (USB-WL-11N-NS).
Wireless LAN has two types of connection, Simple Access Point and
Infrastructure.
* Simple Access Point is a mode which connects to computers directly. The
projector can assign IPAddress up to 11 devices.
* Infrastructure is one of the wireless LAN communication methods with having
an access point to communicate. If communicating with existing network, consult
with your network administrator.
Fig. 3.3.a Without an access point communication (Simple Access Point))
Fig. 3.3.b With an access point communication (Infrastructure)
・ Network settings can also be changed in Network Settings of Projector Web Control.
• Wireless LAN initial settings for the projector are as follows.
Mode: Simple Access Point
DHCP: Off
IP address: 192.168.10.1
Subnet Mask: 255.255.255.0
Default Gateway: 0.0.0.0
DNS Server: 0.0.0.0
SSID: SimpleAccessPoint*
SSID Broadcast: ON
Encryption: Off
Channel: 11
*Change default setting before use not to overlap.
• The same network address cannot be used for both wireless LAN and wired LAN.
・Communication speed of the projector may be deteriorated in Simple Access
Point mode depending on the number of connected devices.
・Network communication cannot be available between the devices connected to
the projector in Simple Access Point mode.
NOTE

10
DWU1052/DHD1052
Network Quick Setup Guide 020-000861-01 Rev. 1 (12-2015) LIT GUID SET DWU/DHD1052 NET
3.3.1 Connection in Simple Access Point Mode
Set the following when connecting the projector and the computer in Simple
Access Point mode.
Projector setting
[Restriction on plugging and unplugging the USB wireless adapter]
Before you insert or pull out the USB wireless adapter from the projector, turn off
the power of the projector and pull out the power cord’s plug from the outlet.
Do not touch the USB wireless adapter that is connected to the projector while the
projector is receiving AC power.
Do not use any extension cable or device when connecting the adapter to the projector.
1) Attach the USB wireless adapter to the WIRELESS port of the projector.
2) Turn on the projector.
3) Press the MENU button on the remote control or the
control panel of the projector.
The MENU you last used appears.
Use the cursor button to select the following.
EASY MENU >ADVANCED MENU > NETWORK > WIRELESS SETUP
4) Set the following items in WIRELESS SETUP.
・MODE: SIMPLE ACCESS POINT
・IPADDRESS
・SSID
・SSID BROADCAST
・ENCRYPTION
・CHANNEL
Select APPLY, then press the ENTER button to apply the settings.
About network setting
・The fourth octet of the projector's IP address is xed to 1.
・Subnet mask of the projector is xed to 255.255.255.0.
• As for the procedure of setting network and wireless connection for the computer,
refer to the manual of computer or wireless LAN device.
NOTE
Computer setting
1) The DHCP server function of the projector is always enabled. Enable the DHCP
setting of the computer.
2) Select SSID set for the projector by following the procedure of wireless
connection of the computer. Enter encryption key by following the computer’s
instruction if it is encrypted.

11
DWU1052/DHD1052
Network Quick Setup Guide 020-000861-01 Rev. 1 (12-2015) LIT GUID SET DWU/DHD1052 NET

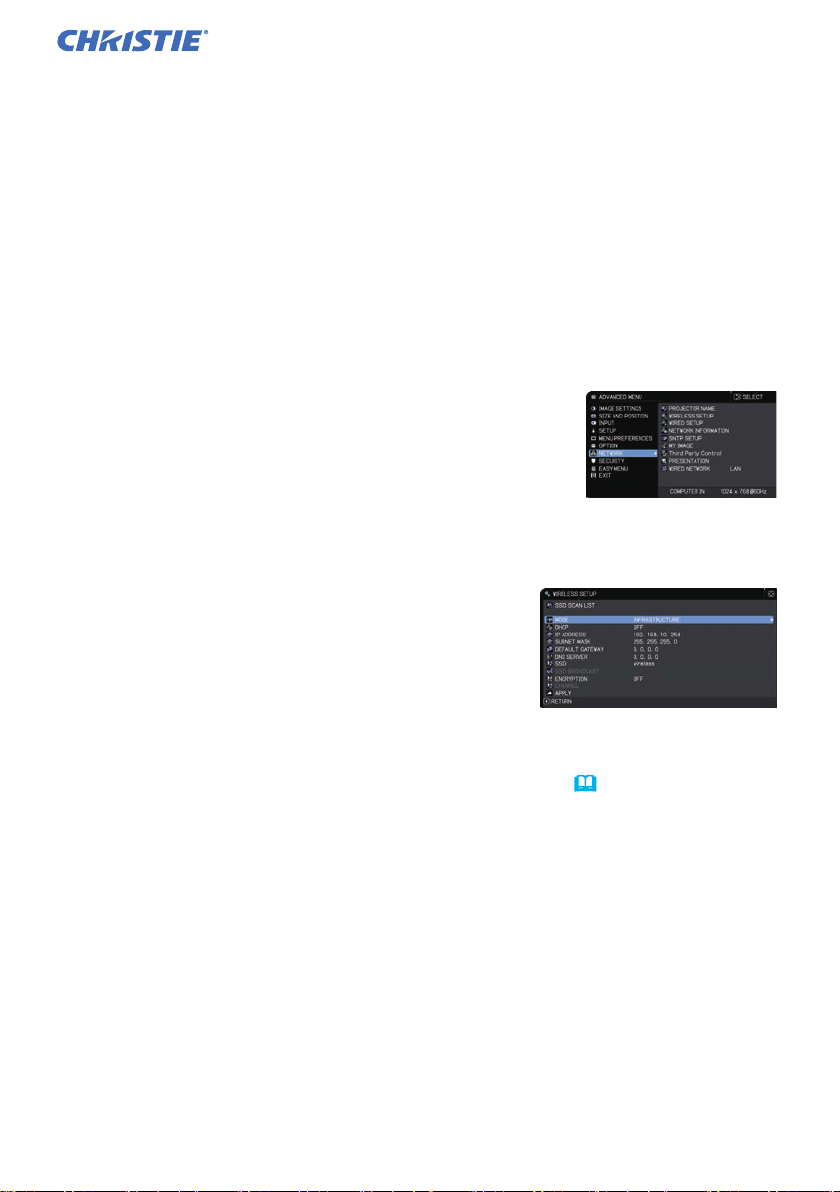

3.3.2 Connection in Infrastructure Mode
Set the following when connecting the projector and the computer in Infrastructure
mode.
Projector setting
[Restriction on plugging and unplugging the USB wireless adapter]
Before you insert or pull out the USB wireless adapter from the projector, turn off
the power of the projector and pull out the power cord’s plug from the outlet.
Do not touch the USB wireless adapter that is connected to the projector while the
projector is receiving AC power.
Do not use any extension cable or device when connecting the adapter to the projector.
1) Attach the USB wireless adapter to the WIRELESS port of the projector.
2) Turn on the projector.
3) Press the MENU button on the remote control or the
control panel of the projector.
The MENU you last used appears.
Use the cursor button to select the following.
EASY MENU >ADVANCED MENU > NETWORK > WIRELESS SETUP
4) Set the following items in WIRELESS SETUP.
・MODE: INFRASTRUCTURE
・󲹭DHCP
・IPADDRESS
・SUBNET MASK
・DEFAULT GATEWAY
・DNS SERVER
・SSID
・ENCRYPTION
As for setting an IP address, refer toAbout IP address. (&8)
Select APPLY, then press the ENTER button to apply the settings.

12
DWU1052/DHD1052
Network Quick Setup Guide 020-000861-01 Rev. 1 (12-2015) LIT GUID SET DWU/DHD1052 NET
•󲹭 Transmission speed may be slow depending on the settings of an access point.
• If the projector and the computer exist in the same network (such as, same
network address), leave the default gateway eld blank.
• When the projector and the computer exist in different networks, the default
gateway must be set. Consult the network administrator for more information.
• Set wireless LAN for the projector by following the instructions of your network
administrator when connecting to the existing network.
• Open System Authentication is used for WEP encryption, and Shared Key
Authentication is not supported. The authentication with an access point succeeds
and it appears that the connection is established normally despite entering an
illegal encryption key due to Open System Authentication, but data cannot actually
be transmitted.
・IPADDRESS, SUBNET MASK, and DEFAULT GATEWAY must be set in
advance when DHCP is set to OFF.
NOTE
The connection can be set up by selecting from SSID SCAN LIST without setting
SSID and ENCRYPTION in WIRELESS SETUP. The procedure of connecting by
SSID SCAN LIST is as follows.
1) Select SSID SCAN LIST in WIRELESS SETUP on NETWORK menu.
The list of SSID in wireless network is displayed.
2) Select SSID in the wireless network you want to connect in the SSID SCAN
LIST. The display to enter the encryption key appears if it is encrypted.
Enter the encryption key by using software keyboard.
3) The icon indicating connected ( ) is displayed in SSID SCAN LIST screen
when the connection is complete.
SSID SCAN LIST function

13
DWU1052/DHD1052
Network Quick Setup Guide 020-000861-01 Rev. 1 (12-2015) LIT GUID SET DWU/DHD1052 NET
4.1 Applications
Download the latest version of the software from the Christie website below.
http://www.christiedigital.com
For iOS/Android Network Presentation software, refer to the URL below for details
and downloads of Christie QuickConnect.
http://www.christiedigital.com
[System Requirements for Applications]
Application Hardware and Software
LiveViewer [Windows]
OS:
Windows Vista®(Service Pack 1 or later)
Windows® 7
Windows®8 /8.1
Windows®10
Graphic card:
VGA: 640x480 or higher (recommended XGA:
1024x768)
CPU:
Pentium 4 (2.8 GHz or higher)
Hard disk space:
100MB or higher
4. Applications

14
DWU1052/DHD1052
Network Quick Setup Guide 020-000861-01 Rev. 1 (12-2015) LIT GUID SET DWU/DHD1052 NET
Application Hardware and Software
Christie QuickConnect [iOS]
iOS6 or later
[Android]
Android OS 4.0 or later
Projector Image
Tool(PJImg) OS: Windows Vista®
Windows®7
Windows®8 /8.1
Windows®10
CPU:
Pentium 3 (500MHz or higher)
Hard disk space:
20MB or higher
Projector Messenger
Tool (PJMessenger) OS: Windows Vista®
Windows®7
Windows®8 /8.1
Windows®10
CPU:
Pentium 3 (500MHz or higher)
Hard disk space:
20MB or higher

15
DWU1052/DHD1052
Network Quick Setup Guide 020-000861-01 Rev. 1 (12-2015) LIT GUID SET DWU/DHD1052 NET
• The information in this manual is subject to change without notice.
• The illustrations in this manual are for illustrative purposes. They may differ
slightly from your projector.
• The manufacturer assumes no responsibility for any errors that may appear in
this manual.
• The reproduction, transfer or copy of all or any part of this document is not
permitted without express written consent.
NOTE
5. Troubleshooting
Check the following web address where you may nd the latest information for
this projector.
http://www.christiedigital.com

11
DWU1052/DHD1052
Réseau Guide de conguration rapide
020-000861-01 Rev. 1 (12-2015)
LIT GUID SET DWU/DHD1052 NET
Projecteur
Manuel d’utilisation - Réseau
Guide de conguration rapide
Merci d’avoir acheté ce produit.
Ce manuel explique uniquement comment congurer ce produit. Veuillez vous
reporter au présent manuel et aux autres manuels relatifs au produit pour garantir
une utilisation correcte de ce produit.
DWU1052/DHD1052

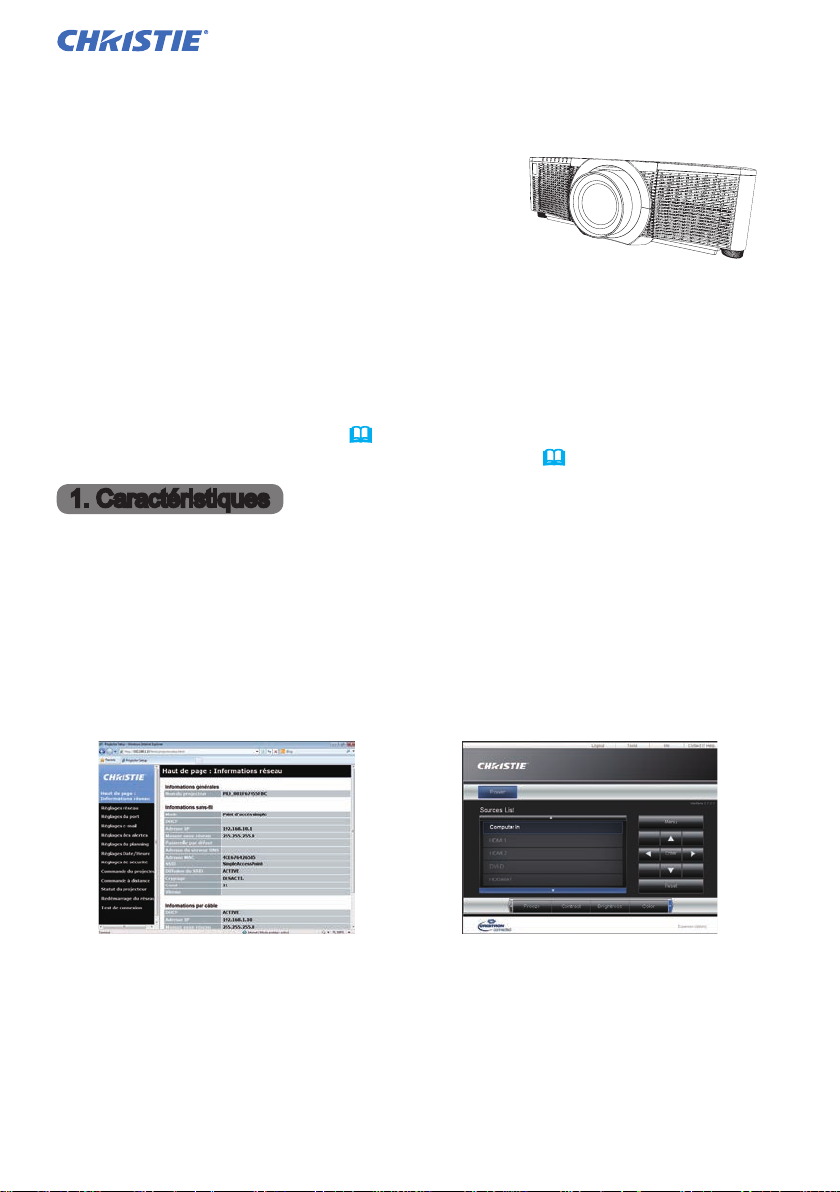

Il est possible de connecter le projecteur et l’ordinateur via le réseau, la
télécommande et le moniteur du statut du projecteur par l’intermédiaire d’un
navigateur Web.
Deux types d’interface, « Contrôle web du projecteur » et « Crestron e-Control »,
sont disponibles pour ce projecteur.
1.1 Contrôle Web
1. Caractéristiques
Voir les pages correspondantes pour la conguration rapide.
・Conguration de la connexion (&7)
・Conguration système requise pour les applications (&13)
Contrôle web du projecteur Crestron e-Control

22
DWU1052/DHD1052
Réseau Guide de conguration rapide
020-000861-01 Rev. 1 (12-2015)
LIT GUID SET DWU/DHD1052 NET
1.2 Présentation en réseau
Le projecteur peut afcher les images de l’écran d’ordinateur transmises via le
réseau.
Pour utiliser la Présentation en réseau, une application exclusive, « LiveViewer »
est nécessaire.
L’application suivante est nécessaire pour utiliser la Présentation en réseau.
Système d’exploita-
tion Application
Windows®LiveViewer
iOS(iPhone/iPad) Christie QuickConnect
Android Christie QuickConnect

33
DWU1052/DHD1052
Réseau Guide de conguration rapide
020-000861-01 Rev. 1 (12-2015)
LIT GUID SET DWU/DHD1052 NET

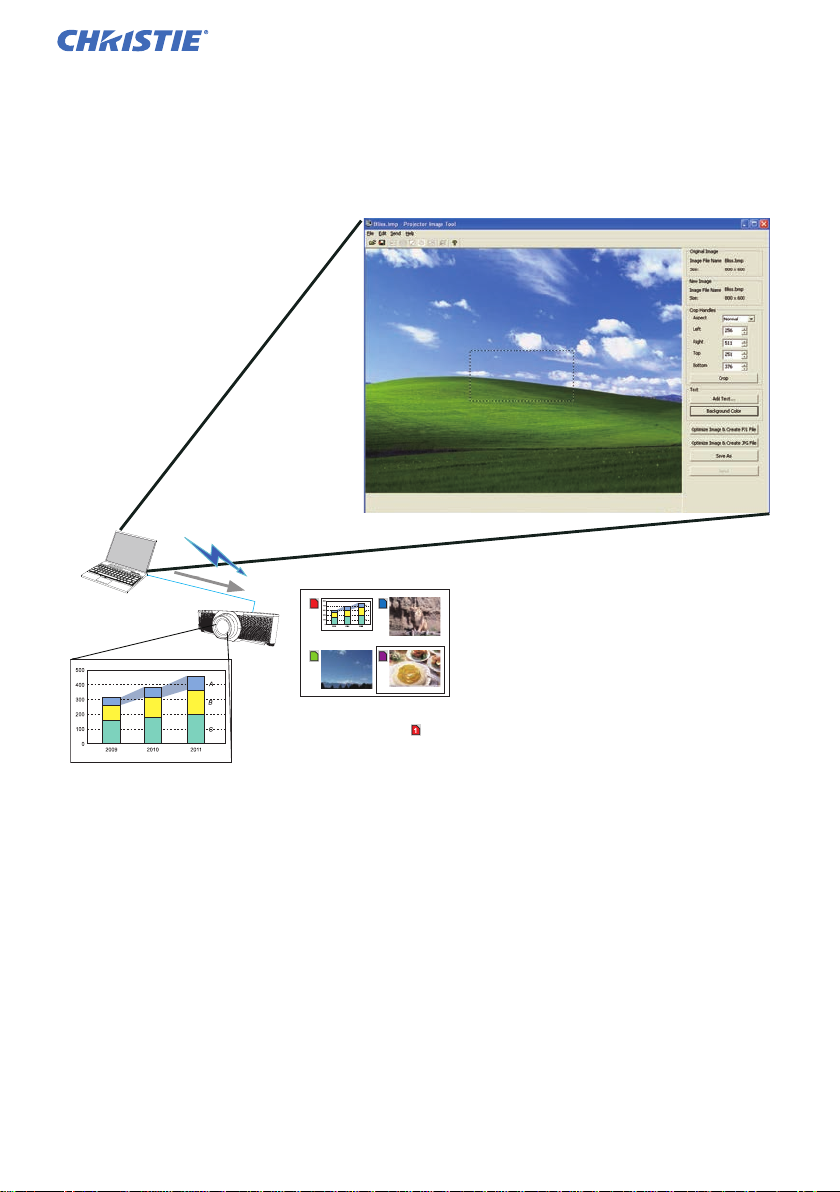

1.3 Fonction Mon image
Le projecteur peut afcher les images xes transférées via le réseau.
Il est possible d’allouer jusqu’à 4 chiers d’image.
La transmission MON IMAGE nécessite une application exclusive pour votre
ordinateur. Utilisez l’application pour transférer les données d’image.
1
43
2
1
43
2
1
43
2
Transférer un chier Image
Afchage du chier image (ex. )

44
DWU1052/DHD1052
Réseau Guide de conguration rapide
020-000861-01 Rev. 1 (12-2015)
LIT GUID SET DWU/DHD1052 NET
1.4 Fonction Messager
Le projecteur peut afcher les données de texte transférées via le réseau sur
l’écran. Il est possible de stocker jusqu’à 12 ensembles de données de texte.
Transférer des données texte
Afcher les données texte (ex. )
1
43
2
1
4
3
2
12
1
4
3
2
12
