Installation Instructions
DTS High Temperature
For use in Electrical Termination
of Mineral Insulated Cables
PJ960
161-511930-012
June 2018

2

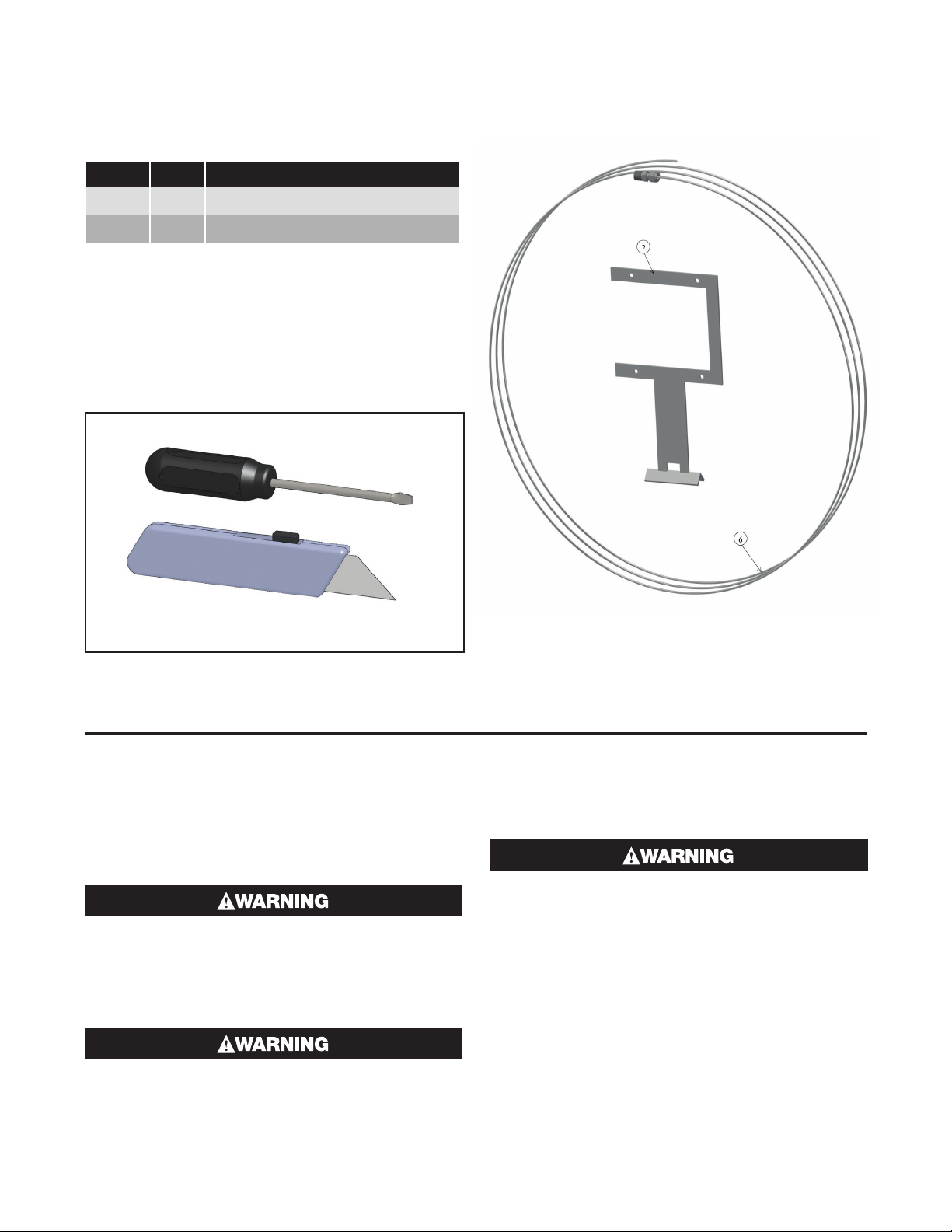

DTS High Temperature Adaptor Kit
Tools Required for Kit Installation
Kit Contents
Item Qty Description
2 1 Bracket
6 1 MI RTD
General
The Chromalox DTS High Temp Adaptor Kit is used in
conjunction with the DTS-HAZ to provide termination
and control for MI series heating cables.
HAZARD OF ELECTRIC SHOCK. Disconnect all
power before opening. All installations must
be effectively grounded in accordance with
the National Electrical Code to eliminate shock
hazard. To avoid electrostatic discharge wipe
with a damp cloth.
Turn off power before removing junction box
cover at all times.
Users should install adequate controls and
safety devices with their electric heating equip-
ment. Where the consequences of failure may
be severe, back-up controls are essential. Al-
though the safety of the installation is respon-
sibility of the user, Chromalox will be glad to
assist in making equipment recommendations.

3
DTS High Temperature Adaptor Kit
For use with MI Mineral Insulated Heating Cables
Caution Label CL-1
(382424)
Pipe Straps
PS - 1 (382352) - 1/2” to 3/4” pipes
PS - 3 (382360) - 1” to 3-1/2” pipes
PS - 10 (382379) - 2-1/2” to 9” pipes
PS - 20 (382265) - 9” to 19-1/2” pipes
Order Separately
Actual Kit Dimensions

4
1. Strap bracket to pipe with pipe strap (Chromalox
type PS not included).
3. Use a CCH-2 (or equivalent) to connect tee condulet.
Attach MI cable and conduit with drain.
2.
Assemble junction box to fitting as shown (fitting
must be properly rated for the area classification).
Tighten locknut until the junction box bottoms out
against the lip of the fitting. Attach RTD MI cable to
fitting for watertight connection.

5
4. Make electrical connections to MI cable and RTD as
shown. For more details on wiring connections see
the DTS-HAZ installation manual (PJ944).
5. Once connections are made, place cover on box
and secure the lid to the box by tightly fastening
screws.
