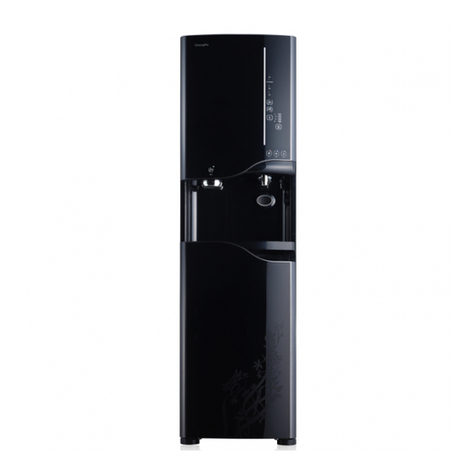

Chungho Super Iguassu ice User manual

SUPER ICESUPER ICE
User’s Manual
ChungHo
- Read instruction manual thoroughly before
using the product
- Product appearance, specification, and etc
are subject to change without prior notice
if necessary for improving product performance
- Design and color of the actual product may
differ from the pictures in this booklet

2
We greatly appreciate your purchase of ChungHo Nais Hot, Cold and Ambient
high-capacity water purification system built-in Ice-Maker, “SUPER
IGUASSU ICE”.
Enjoy the water and ice produced by ChungHo Nais’ SUPER IGUASSU ICE.
SUPER IGUASSU ICE is designed and manufactured according to standard
specification, and is produced with a 95% quality assurance on all integrated
components. The system is tested thoroughly on strict quality guidelines
including temperature, moisture, shock, dust, vibration, drop and etc.
We are sure that SUPER IGUASSU ICE’s subjection to these various produc-
tion processes will provide the utmost customer satisfaction in both quality
and excellence.
Before installing or using this product, please read this instruction manual
thoroughly and save it for future reference.
GREETINGS
TABLE OF CONTENTS
1. Product Features
2. Safety Precautions
3. System Component Identification
4. Installation Precautions
5. Installation
6. Usage
6-1. Display and System Function Settings
6-2. Operation and Water Dispensing Selection
6-3. Operational Beep
6-4. Setting and Releasing Function
6-5. Water & Ice Dispensing Method
6-6. Relocation Precautions
6-7. Understanding Ice Making Process and Operation
7. Cautions during Use
8. Filter Functions and Filter Exchange Schedule
9. Product Specifications
10. Flow Diagram and Power Consumption
11. Please Check these Before Requesting A/S
12. Memo
................................ 3~4
................................5~7
........................8
............................9~10
.....................................11
..................12
...............12
..............................13
....................13~15
.....................15
...........................15
..........16
...............................17
...............18
..............................19
..................20
..............21~22
.......................................23

3
SUPER IGUASSU ICESUPER IGUASSU ICE
1Water purification system providing an integrated ice making function
Super Iguassu Ice is designed for both convenience and practicality, as it utilizes compact ice making system,
designed to obtain cold water for the production of lice. With an ice making mechanism featuring an ice tray,
which utilizes the freezing point method as well as reverse osmotic water purification.
(Patent application: No.2005-99663, 2005-365293, 200510127096.9, 11/342,117)
224 Hour natural water circulation system (N.W.P.W.)
ChungHo purification systems is designed to allow water to continuously flow for 24 hours within the water
purifier by adopting a natural circulation method. This mode, entitle N.W.P.W., applies the natural weight of
water pressure in order to always supply clean and fresh water.(Patent: No.105585)
3 Pure ice production utilizing the freezing point method
The freezing point method produces only the purest ice by supplying purified water to the ice making unit. The
freezing point principle states that purest water freezes at 0° while non-pure water will freeze at a temperature
below that.
4 Energy saving function
Energy-efficiently designed Super Iguassu Ice delivers purified water to the ice making unit in order to make
pure ice while simultaneously sending cooled water to cold water tank. This allows the system to maintain a
constant cold water temperature, thus inherently preventing water waste and helping to conserve energy.
5 Automatic ice dispenser
Upon pressing the ice dispenser touch sensor button, the system then slowly rotates the ice storage plate via an
integrated motor in order to automatically replenish the ice supply within the storage housing.
6 Touch sensor application
Breaking away from traditional button applications, Super Iguassu Ice has a built- in touch sensor application.
This addition has been integrated into the already stellar system with customer convenience in mind. The
easy-to-use sensor application allows for effortless and enjoyable drinking water with ice.
7 Infrared water level detection sensor
With improved detection accuracy, as compared to existing mechanical detection types, the infrared OLC sensor
applies an electronic water level sensor that was developed for stable water level detection. The signal is
connected to a controller in order to automatically adjust purified water levels.(Patent: No.426182)
8 Continuous Flow
When you select the “Continuous Water Dispensing Touch Button”, you can take the ambient water or cold
water continuously. (No Continuous Flow for Hot Water)
9 Safety Function (Ice Dispensing & Hot Water Locking Function)
Setting the safety function using the LOCK/ICE touch sensor button prevents ice cube and hot water from being
dispensed from the unit. This is in order to prevent burns and other unwanted injuries to children, the elderly
and any other vulnerable user.
10 Automated operation via sensor and micom
This system internally provides temperature control for the ice making process/cold water process by way of an
ice detection sensor, so that ice making, ice removal, and cold water operation, via micom, may be automati-
cally controlled in order to maintain an optimum ice making environment.
1. Product Features

4
11 4 H2O(Ambient water/Cold water/Hot water/Ice) 1 product!
With improved convenience, the Iguassu ice offers more production and supply power by providing purified
ambient water, cold water, hot water, and ice from the same product.
12 System Display functions and safety reinforcement
The safety features have been enhanced in order to prevent various problems. The system will inform the
user(s) of abnormal occurrences through a flashing display icon and by automatically stopping the ice making
function, cold water function, and water purification function when an abnormality in the system is detected.
13 Power saving function
The power saving function activates the light detection sensor which functions in accordance with the levels of
light around the unit. Activating the power saving function may reduce power consumption at night.
14 Automatic water dispensing
This system function is convenient to the user because it enables ambient, cold, and hot water to be taken at the
press of a button. The system has a reset function which, shortly after selecting hot or ambient water, will
automatically switch the cooler into cold water mode.
15 Separate water delivery from a single spout
Ambient, cold, and hot water come out from a single spout, but independent water hoses are applied so that
ambient water, cold water, and hot water are not mixed, improving overall satisfaction in preferred temperature
from the first drink.
16 Beep function
This provides customers a convenient reminder that a system setting has been changed as sounded via
beeping(ding~, dingdong~, etc.) along with system touch sensors.
17 Noise prevention
A double noise prevention material and a shock mitigation structure found at ice storage house reduce system-
operating noise.
18 Wire condenser (Natural convection)
Using natural convection, the system wire condensers are rated to reduce noise and thus provide further
convenience for the user.
19 Convenience
Function operations are designed as simply as possible in order to maximize convenience.
20 Environment Friendly Coolant
The Iguassu Ice has adopted an environmentally friendly cooling system. A new coolant, R-134a, does not
affect ozone layer destruction and global warming.
21 Default function
Designed to automatically convert to cold water mode when in queue.
1. Product Features

5
SUPER IGUASSU ICESUPER IGUASSU ICE
2. Safety Precaution
Cautions are divided into 2 categories: 'Warnings' and 'Precautions’.
WARNING ASSOCIATED WITH THE POSSIBILITY FOR SERIOUS INJURY OR DEATH.
Do not use multiple electrical
appliances in one power
outlet simultaneously.
(This can cause a fire due to
abnormal heating in wall
outlet.)
Do not bend the power cable
excessively or put heavy
objects on it.
(There is danger of electric
shock or fire.)
Do not bend the power cable
excessively or put heavy
objects on it.
(There is danger of electric
shock or fire.)
Do not touch the power plug with wet hands.
(There is danger of electric shock.)
Do not install the product near a heating appliance.
(There is danger of fire.)
Insert the power plug in a
stable position in order to
avoid swinging.
(Unstable connection can be
cause of fire.)
Do not put candles, lit
cigarettes, etc. on the product.
Do not put a bowl containing
water, chemicals, small
metals, etc. on the product.
(If these materials enter the
inside of product, there is
danger of electric shock or
fire.)
When the power cord has been damaged, exchange
the power cord in order to prevent danger such as
electric shock, etc.
(Do not use damaged or loose wall outlets.
There is danger of electric shock or fire.)

6
CAUTION
IN ORDER TO AVOID INJURY, PROPERTY DAMAGE, AND REDUCED PRODUCT PERFORMANCE.
To dispense ice, place
container close to the ice
dispenser hole, touch the ICE
touch sensor button, and
attempt to keep ice from
being scattered on the floor.
(Do not allow cups to be
inserted into the ice
dispenser hole.)
Do not put foreign materials
into the ice dispenser hole
or block the dispenser hole
(This can become a cause for
system malfunction.)
Do not attempt to operate
the product if installed at
over a 15。incline.
(This can be the cause of
malfunction or unwanted
troubles.)
Do not tilt the product over
45。during transportation.
(Severe inclination can be
the cause of reduced
performance.)
Do not install the product in
a sloped or unstable position.
(This can be the cause of
reduced performance,
system damaging, or
overall troubles.)
Hot water is extremely hot.
Always use containers
such as cups during hot
water dispensing,
in order to avoid burns.
After transporting the product,
do not supply the product
with power until a minimum
of 30 minutes has
passed for stabilization of
the product.
Do not install the product in
a place where the surrounding
temperature may drop
below 32℉.(0℃)
Before cleaning the inside of
product, always pull out the
power plug.
(There is danger of electric
shock or fire.)
2. Safety Precaution
32F32F

7
SUPER IGUASSU ICESUPER IGUASSU ICE
2. Safety Precaution
This product is for AC
110V/60Hz, 220V/50Hz,
240V/50Hz, and 220V/60Hz
only. After installation,
arrange the power cord so
that it will not be stepped
on or stepped over.
If dust, water, etc. finds its
way onto the power plug,
wipe it off well.
(There is danger of electric
shock or fire.)
Do not remove the power
cord by pulling it out of the
wall. Always remove it by
grasping the power plug.
(Damage to the power cord
can cause danger of electric
shock or fire.)
Do not install the product
in or around largely damp
areas, at a place near
flammable materials, or
at a place exposed to rain
or snow.
(There is danger of electric
shock or fire.)
Do not put any covering,
etc. on the rear and side of
product. Blocking ventilation
holes may raise inside
temperatures allowing for
system malfunction or even
system stoppage.
Fix hoses so that the brine water or the water discharged from the drainage hose may not splash into
surrounding areas.
1. During use of product, a murmuring water-ow sound, a rattling ice dropping sound, etc.
may occur some times during cold water production process or ice production process.
2. Opaque ice may occasionally be dispensed, but there is no abnormality in product performance
or ice quality.
3. TDSs(Total Dissolved Solids) found in ambient water, cold water, and ice may vary from one
another. (This is a phenomenon occurs because the ice is created by way of the freezing point
method.)
4. After the system power source is interrupted and then again restarted, irregular ice cube
sizes may temporarily occur.
Common Issues
(Symptoms from NORMAL operation of the system.)

8
USB Port
Light Detection Sensor
Full Ice Display
Full Water Display
LOCK/ICE Touch Sensor Button
HOT/ECONO Touch Sensor Button
COST. Touch Sensor Button
HOT Water Dispenser Touch Sensor Buttton
COLD Water Dispenser Touch Sensor Button
AMBIENT Water Dispenser Touch Sensor Button
ICE Dispenser Touch Sensor Button
Water Dispenser Hole
Water Dispenser Button
Ice Dispenser Hole
Hot Water Tank
Power Cord
Drainage
Removed
Water (Brine)
Source Water
Upper Covering Ambient Water Tank
Ice Making Unit
Cold Water Tank
Ice Storage
Wire Condenser
Water Purication Filter
Compressor
Pressurizing Pump
Upper Cover
Water Tray
Drainage Valve
Drainage Switch
Lower Cover
3. System Component Identification

9
44..IInnssttaallllaattiioonnPPrreeccaauuttiioonnss
●Our company's technician will perform the installation. You, as the customer should check if the
product was properly installed.
When installing the product, do not install it at the following places.
•Near fire •Near flammable material •Wet place
•A place exposed to rain and snow •A place exposed to direct sunshine
•Near chemicals(volatile material, organic solvent, etc.) •Dark place
•A place below 32℉(0℃) or a place with the possibility of dropping below 32℉(0℃).
※When the product is installed in a dark place, and the power saving function is
set, then hot the water system may not operate even during daytime.
(Install it at bright place.)
1
When transporting the product, do not tilt it over 45°.
※Severe tilting can be the cause of reduced performance.
2
Install the product at a place where the surface is level, and after installation,
always attempt to adjust the level of the product using a level gauge.
※Tilting of the product can reduce water purification performance and ice making
capability.
3
Leave approximately 8 in(20cm). between the wall, sides and rear surfaces of the product
so that ventilation may be smoothly performed for safe operation of product.
※This can be the cause of reduced performance and complications.
4
Do not install the rear of the product near any heat radiating plates at rear surface.
5
Use the following water quality range.
•Water pressure : 7~120psi(0.5~8.4kgf/㎠) •Water temperature : 39~100℉(4~38℃)
•pH : 5~10 •Hardness : 300ppm or less •Evaporated remains : 500ppm or less
•Water quality : Biologically safe water quality
※When using another water quality than the above, discuss it with our company.
※If you do not use water quality within the above range without prior discussion
with our company, the product can be excluded from the stated warranty period.
6
Do not connect hot water(over 100℉(38℃)) to this product.
※This can be the cause of trouble and decline in ice making performance.
7

10
4. Installation Precautions
Raising the brine water and drained water over 1 ft(30cm). above the installation
surface, or connecting them over 9.84 ft(3M). away from the water purier can hin-
der a smooth drainage process. In order to install the product in a location where
the brine water and drained water line are located a distance of over 9.84 ft(3M).
from each, the user will inevitably have to install a separate drainage pump.
10
A bad wall outlet or plug may cause an electric shock or re, so please do not use
them.
11
When installing another product(water purier, dish washer, etc.) at the same
location and the water is derived from the same installation source, prepare an
independent drain line for each product.
12
Adjust the hose so that the water discharged from the drainage hose may not
splash onto the product's surroundings.
Brine water, or the water coming out through drainage lines, can easily be applied
towards other water related needs, such as in bathroom cleaning, house cleaning,
laundering, washing, etc. in order to prevent waste of water.
However, never use the brine water as drinking water or for cooking of food.
9
Drain the product by rst removing the bottom front cover of the product and then draining both the hot and cold
residual tanks completely. This is done by opening the drainage valves located in the middle of the product. Then
drain the remaining cold water completely by pressing the water dispenser button with the product tilted forward.
Then draw all the ice out by touching the ICE(ice dispenser) touch sensor button. When transporting the product in
an inclined position, try to tilt the product backwards at all times.
When moving the product in an inclined position with water not completely drained, the water inside the tank
may come out while moving the product. This could possibly create unwanted damages to the product and sur-
roundings.
Precautions during a Transfer Installation
When connecting tubing hose, take care so that the tubing hose is not be bent
or pressed down by heavy objects, etc.
If tubing hose is blocked, water does not ow smoothly and may cause
malfunction of the product.
8

11
55..IInnssttaallllaattiioonnMMeetthhoodd
Connect tubing hose into the removed water(brine) and drained water connec-
tion part on the rear side of product and then connect tubing hose into the
drainage hole in sink, bathroom, or multi-purpose room, etc.
※Install the removed water(brine) line and drained water line separately.
If drainage does not function properly due to improper installation, then water
may flow back toward waterspout and cause an overflow.
4
Adjust the tubing hose so that the discharged water(brine) and tap water tubing
hose so that they do not splash into surrounding areas.
5
Open the tap water valve supplied into each household, and place the water
source adaptor to the open position.
6
For stabilization of the cooling system and for safe use of this product, insert the
power plug into an AC 110V/60Hz, 220V/50Hz, 240V/50Hz, and 220V/60Hz
power outlet after 30 minutes after the installation of the product.
※This product is for AC 110V/60Hz, 220V/50Hz, 240V/50Hz, and 220V/60Hz only.
8
Check whether water is supplied into the inside of product and whether there is
any leakage in or around the tubing connections.
9
Check to see if water is leaking at each connection part.
7
Check whether water is coming out by pressing the water dispensing button 1
hour after purification has begun.
10
Use after water has flowed into the storage tanks.
11
Install the product on a level surface.(Change product level using the product leg
adjustment and confirm the level surface a level.)
1
Close off the water supply valve as supplied to each household. Then temporari-
ly remove the connector part as provided from your given water source. Then
connect the main water line adaptor.
※If the sealing O-ring at the connection piece is removed or damaged, it can
lead to leakage.
2
Connect tubing hose into water source adaptor and then attach to the water
inlet on the rear side of product.
3

12
USB Port
Light Detection Sensor
ICE FULL
WATER FULL
LOCK/ICE
(Hot water & Ice Lock)
LOCK LED
(Hot water & Ice Lock LED)
ICE LED
(ICE operation LED)
HOT/ECONO
(Hot water operation/power saving)
HOT LED
(Hot water operation LED)
ECONO LED
(Power saving LED)
CONST.
(Continuous Water Selection)
CONST. LEDs
(Continuous Water LEDs)
HOT
(Hot water selection)
HOT LED
(Hot water selection LED)
COLD
(Cold water selection)
COLD LED
(Cold water selection LED)
AMBI
(Ambient water selection)
AMBI LED
(Ambient water selection LED)
Water Dispensing Button
ICE
(Ice dispenser)
ICE LED
(Ice dispense LED)
Detects the intensity of light around the product
(front and side) so that the hot water system may
be automatically turned ON/OFF in transition
from light to dark.(When power save mode is
activated.)
Diagnoses the system using ChungHo’s private
PDA.
Charges the power of cell phones and etc.
(max. 30 min. recommended)
Lights up when ice storage is full. (Yellow green)
Lights up when ambient water tank is full.
(Yellow green)
Used when setting/releasing the hot water &
ice lock function.(Yellow green)
Lights up when setting the locking function.(Red)
Lights up when setting ice operation.(Red)
Used when setting/releasing the hot water power
saving function.
Used when setting/releasing continuous cold/
ambient water dispense operation
Displays that continuous water dispenser at
a certain level of water was set (orange)
Used to dispense hot water.
Displays that hot water dispense was set.(Red)
Used to dispense cold water.
Displays that cold water dispense was set.(Blue)
Used to dispense ambient water.
Displays that ambient water dispense was set.(Yellow green)
Used to dispense ice.
Lights when dispensing ice.(Red)
Used to dispense water into a container such as a cup after selecting the desired
water temperature among ambient water, cold water, and hot water.
Lights up when setting hot water operation.(Red)
Lights up when setting the power saving
operation.(Red)
ICE FULL
CONST.
HOT
COLD
AMBI
ICE
LOCK
ICE
HOT
ECONO
WATER FULL
6. Usage
6-1. Display and System Function Settings (A)
6-2. Operation and Water Dispensing Selection (B)

13
(1) LOCK Function(Lock of ice discharge and hot water selection) Setting
①Touch LOCK/ICE touch sensor button softly for over 3 seconds.
②LOCK lamp (red) is turned on and the hot water & ice lock function is set.
(Setting sound: Ding~ Ding~ Ding~)
③After lock function is set, hot water & ice will not function even though
HOT/ECONO, HOT or ICE touch button has been selected.
LOCK function helps to prevent burns by hot water.
(2) LOCK Function Release
①Touch LOCK touch sensor button softly for over 3 seconds.
②LOCK lamp (red) is turned o and the hot water & ice lock function is released.
(Setting sound: Ding~ Ding~ Ding~)
③After lock function is released, the hot water function operates by touching HOT/ECONO or
HOT touch button, and ice function operates by touching ICE button.
(3) Ice Making Function Setting
①Touch LOCK/ICE touch sensor button for over 10 seconds.
As pressing the button for 10 seconds, LOCK function status will be automatically
changed in 3 seconds. Therefore, LOCK function needs to be set again after ice-making
function setting has been done.
②ICE lamp (red) is turned on and the ice making function is set.
(Setting sound: Ding~ Ding~ Ding~)
(4) Ice Making Function Release
①Touch LOCK/ICE touch sensor button for over 10 seconds.
②ICE lamp (red) is turned o and the ice making function is released. (Setting sound: Ding~)
When it is released, ice-making function will be disabled. However, ice may be dispensed
until the ice storage is emptied.
Division
1
6-3. Operation Beep
BEEP Remarks/occurrence
Ding Dong DangDuring power ON
2
Ding~During key input
3
Ding~Ding~Ding~
Ding~Ding~Ding~
Occurrence one time
Occurrence one time
Occurrence one time
Occurrence one time
During LOCK/ICE , HOT/ECONO
During HOT water LOCK
4
Ding~During water intake start
5
Dong~During water intake ending
6
7
8
Ding~Ding~Ding~Ding~
Ding~
One second intervalDuring overow
During ICE discharge
A beep sounds following applied operations of the IGUASSU ICE.
Occurrence one time
Occurrence one time
Occurrence one time
6-4. Function Settings and Releasing Methods
SUPER IGUASSU ICESUPER IGUASSU ICE
6. Usage
LOCK
ICE
CONST.
CONST.
LOCK
ICE

14
(5) Hot(hot water) Operation Setting
If hot water operation display LED(red) is turned on by continuously touching HOT/ECONO
(hot water operation / power saving selection) touch sensor button for 2 seconds the hot
water system will operate.(Hot water system is operated by a detection sensor which
automatically detects the temperature inside of the hot water tank.)
(6) Hot(hot water) Operation Release
If the hot water operation display LED is turned o by touching HOT/ECONO(hot water
operation/power saving selection) touch sensor button for 2 seconds, then the hot water
system stops.
Cautions during Use of Power Saving Function
If power saving function is selected, the hot water system is automatically turned
on/o according to brightness of the products surroundings, so hot water can not
be immediately used after it becomes bright again around the product. Therefore,
in order to use hot water all the time, do not use the power saving function.
(7) ECONO(power saving) Function Setting
①Touch the HOT/ECONO(hot water operation/power saving selection) touch
sensor button.
②Power saving display LED is turned on and power saving function is set.
Power saving function is automatically set to turn on/o the hot water system
through operation of light sensor detection in accordance to the brightness
around the product while hot water function is set.
(8) ECONO(power saving) Function Release
①Touch the HOT/ECONO(hot water/power saving selection) touch sensor
button.
②Power saving display LED is turned o and power saving function is released.
(9) CONST.(continuous dispensing) Function Setting
①Touch the CONST. (hot water operation/power saving selection) touch sensor
button for approximately 2 seconds.
②When CONST. LED is turned on, select desired water level among which
1l, 1.5l, 4.5l and 8l.
(Upon selection, red LED for the selected water level is lit on.)
Touch COLD/AMBI and water dispenser button for the continuous dispensing function.
(Upon dispensing, red LED for the selected water level is ashing.)
After setting the CONST. function, the setting will be abandoned if water is not
dispensed in 10 seconds.
CONST. function is not available on hot water dispensing.
(10) CONST.(continuous dispensing) Function Release
During continuous dispensing, touching CONST., COLD, AMBI, or water dispenser
button will cancel CONST. function.
(Upon releasing the CONST. function, selected red LED will be turned o.)
3
Operation conversion when
touching the HOT/ECONO(hot
water operation/power saving
selection) touch sensor button.
6. Usage
CONST.

15
SUPER IGUASSU ICESUPER IGUASSU ICE
6. Usage
①This is to be performed with the power plug inserted.
②Remove the lower cover by rst pushing the cover down and then pulling
it forward.Turn on the drainage switch, located at the bottom of the panel,
to remove water remaining in the system.
If the drainage switch is turned on, water purication and ice production
stops.
③Remove cold water by pressing the water dispense button.
In order to remove the water remaining in the cold water tank, tilt the
product forward and do so until cold water does not come out.
④Take out the ice by pressing the ICE(ice dispense) touch sensor button.
If there is no other option but to transport the product in an
inclined position, transport the product in a backwards inclined
position if at all possible.
6-6. Draining the System for Relocation/Installation
(1) Ice Dispensing Mode
If ICE(ice dispense) touch sensor button is pressed, the door of the ice
storage house is opened and ice comes out from the dispensing hole.
(2) Hot Water Dispensing Mode
If HOT(hot water selection) touch sensor button is selected and the water
dispensing button is pressed, hot water comes out.
If LOCK function is set, hot water does not come out even though the water
dispensing button is pressed. Release the LOCK function rst.
If the hot water operation display LED is turned o, the heater does not
operate so the hot water will not come out.
(3) Cold Water Dispensing Mode
If COLD(cold water selection) touch sensor button is selected and water
dispensing button is pressed, cold water comes out.
(4) Ambient Water Dispensing Mode
If AMBI(ambient water selection) touch sensor button is selected and water
dispensing button is pressed, ambient water comes out.
If hot water or ambient water is selected and it is not used for a given time
period, the system will automatically switch into cold water dispense mode.
(Default function)
There is not a separate setting and release method for the use of ambient
water/cold water/ice making operation. They operate automatically as
esignated by the program when the power is supplied.
6-5. Ice and Water Dispensing Method
Drainage Valve Drainage Switch

16
6. Usage
6-7. Understanding the Ice Making Process and Operation
①If power is supplied to the product by inserting the power plug, then ice making automatically operates with
out any manual setting.
②Upon the initial application of power, if the level of puried water goes above proper operating levels, then
all the ice created from the machine will be automatically removed by deicing action.
③In order to be produced cold water, the compressor and circulation pump must operate properly.
(The cold water production process automatically operates according to designated programming.)
•Cold water operation : This refers to an operation that makes cold water by continuously circulating
and supplying water into the cold water tank.
Water temperature in the cold water tank is automatically checked by the cold
water temperature sensor, and if it drops below the set temperature, then the
cold water operation will automatically stop.
④If cold water production is operating properly, the ice making system will produce the ice according to the
given water supply.
•Water supply action : This refers to an action to supply about .25G(1
ℓ
) of cold water every 50 seconds
into ice making mechanism in order to make ice.
•Ice making action : This refers to the making of ice by way of an ice tray by supplying cold refrigerant
onto the ice tray as it is lled with water.
•Harvest action : This refers to an action to separate the ice created in the ice tray by supplying hot
refrigerant onto the tray.
⑤When the ice storage house is full, the ice detection sensor will automatically stop the process.
⑥Cold temperature control is applied to prevent ice cubes from melting by periodically sending cold air into ice
storage house.
⑦If ice in the storage house is not used for long periods of time, it may melt, and during ice dispensing, small ice
cubes can come out.
TDSs(Total Dissolved Solids) of ice may increase according to the environment in which the ice is created.
The ice making system of the IGUASSU ICE automatically operates according to designed program settings
after applying power to the product.
•The lower the surrounding temperatures, the shorter the ice making process will become and
the higher the surrounding temperatures, the longer the ice making process will become.
•Do not install or use the product in temperatures below 32 F(0 C) and above 100 F(38 C).

17
7. Cautions during Use
(1) For safety reasons, insert the power plug into the power outlet 30 minutes after
installation.
(2) This product is for AC 110V/60Hz, 220V/50Hz, 240V/50Hz, and 220V/60Hz only.
Please connect to the proper power source.
(3) Do not connect multiple electric appliances into the same wall outlet.
(This can be lead to re.)
(4) Never move the product while in operation. (This can cause unwanted problems.)
(5) The temperature of the radiator plate on the rear side of product is hot while the
product is in operation, so take care not to touch it.
(6) When power is disconnected to the product due to power outage, etc. wait 5 minutes
and then attempt to re-connect the product.
(7) When the product is not used for long periods of time.
•Pull the power cord out after closing o the source water.
•Do not touch the power plug with wet hands. (There is danger of electric shock or re.)
(8) Avoid the use of chemicals around the product(volatile material, inorganic solvent,
etc.) and do not place chemicals near the product.
(9) Do not supply water above 100°F (38°C) to the product.
(10) If an abnormal sound, smell, or smoke appears from the product during use,
pull out the power plug immediately, close of the source water at the adaptor
valve, and then contact A/S .(There is danger of electric shock or re.)
(11) Even if ice is not dispensed upon pressing the ICE(ice dispense) touch sensor
button, do not shake or strike the product.
(This can cause an immediate reduced product performance.)
(12) When dispensing ice , avoid using a glass cup. (Glass cups can be broken
by abrupt temperature change or as the ice cube strikes the glass.)
(13) You can always reuse this quality ice by placing the ice in a separate storage
vessel and storing it in the refrigerator/freezer.
(14) Do not put foreign elements into the waterspout. This can cause blocking of the
water dispenser.(Blocking the water dispenser can cause reduced performance and
other unwanted consequences.)
(15) If the product does not function properly, even though the touch sensor button
has been pressed, broaden the contact area where the touch sensor button is
pressed.(using your thumb, etc.)
(16) Occasionally ice will not come out because it is stuck in ice dispenser hole. In
such a case, remove the jammed ice in dispenser hole with your(nger, etc.) and
then attempt again.
(17) If the product is not used for many hours, ice may not come out smoothly,
because it can stick to each other. In such a case, please touch ICE(ice dispensing)
touch button twice or three times for 2~3 seconds.
(18) Please use the product 3.28 ft(1M) away from wireless machinery and tools.
(If using the product 3.28 ft(1M) close to wireless machinery and tools, may cause
mis-operation.)
SUPER IGUASSU ICESUPER IGUASSU ICE

18
88..FFiilltteerrssaannddRReeppllaacceemmeenntt
※Filter exchange time is not included within the standard
warranty period. The ideal filter exchange time is based on
the use of 5.28G(20ℓ) per day.
※Exchange time of filters can differ depending on location,
water quality, tap water temperature, quantity of water
used, and seasons(summer, winter).
※
You can only expect to drink clean water by exchanging fil-
ters according to the recommended filter exchange schedule.
8-1. Filter Functions
8-2. Filter Exchange Time
Sediment filter
The Sediment filter removes particles and pollutants that are over 5㎛from the
water. This helps to extend the life of the membrane filter.
Pre-carbon filter
The Pre-Carbon filter, made from high temperature processed carbon, collects
chlorine, THMs and organic chemical contaminants through an absorption process.
This protects the membrane and helps it function properly.
Membrane filter
The Membrane filter removes dissolved pollutants(with a molecular weight over
200, such as heavy metals, bacteria and chemical contaminants) via micro-filtra-
tion through a semi-permeable membrane(0.0001㎛pore.)
Post-carbon filter
The Post-Carbon filter removes dissolved gases and odors to ensure a natural
tasting water.
Filter kind Exchange time
Sediment filter 6 months
Pre-carbon filter 12 months
Membrane filter 24 months
Post-carbon filter 18 months

1 9
9. Product Specification
Product name
Model name
Rated voltage
External dimension
Monthly consumed power quantity
Weather class
Rated consumed power
Hot water/Cold water
Ice making
Power
Consumption
Ambient water
Hot water/Cold water
Ice
Surrounding temperature
Required time
Daily ice making quantity
(60Hz/50Hz)
Daily maximum ice
making quantity
(60Hz/50Hz)
Ice size
Storage
house
Ice making
capability
(This can
dier
depending
on
surounding
tempera-
ture.)
IGUASSU ICE
CHP-5050S
AC 110V/60Hz, 220V/50Hz, 240V/50Hz, and 220V/60Hz
14.71Wx17.91DX56.06H(in)
700W(hot water+ ice making)
500W/170W
200W
1.85G(7ℓ)
.71G/.53G(2.7ℓ/2.2 ℓ)
4.4lbs.(2kg)
53.0kWh/m(Hot + Cold)
59.3kWh/m(ICE + Hot + Cold)
N class(90°F±1°F(32°F± 1°C ))
13g±1gX12ea/one time ice making
(1ea cold water tank submerging)
WIRE CONDENSER TYPE(natural convection)
THERMISTOR
Bimetal(automatic return)
Bimetal(manual return)
Overheating prevention system,
water level detecting system
Capacitance sensor
950G(3,600ℓ)
R-134a(85g±1g)
114.5 lbs.(52kg)
1.8m
IPX1
68°F (20°C ) 86°F (30°C )
12 minutes±1minute/
one time ice making
14 minutes±1minute/
one time ice making
33 lbs(15kg)/day(60Hz)
28 lbs(13kg)/day(50Hz)
22 lbs(10kg)/day(60Hz)
18 lbs(8kg)/day(50Hz)
33 lbs(15kg)/day (60Hz)/28 lbs(13kg)/day(50Hz)
(when surrounding temperature is 68°F(20°C ))
Heat radiation type
Cold water temperature regulation
Hot water temperature regulation
Overheating prevention system
Safety system
Cold water tank water level adjustment
Eective water purication quantity
Refrigerant/Refrigerant weight
Product weight
Power cord
IP class
SUPER IGUASSU ICESUPER IGUASSU ICE

20
Automatic
Source Water
Interruption
Valve
Boost
Pump
Sediment Filter
Precarbon Filter
Membrane Filter Membrane Filter
Postcarbon Filter
Source Water Drainage
Removed Water (brine)
Hot Water Drainage
Drain Valve
Hot
Water
Tank
Water Spout
Water Level Sensor
Water Dispenser Hole
Ice Dispenser
Ice making unit
Cold Water Tank
Ice Storage House
Ambient
Water Tank
Ice
Making
Pump
Sub Tank
10. Flow Diagram and Pow er Consumption
10-1. Flow Diagram
10-2. Power Consumption
Division Operation Status
Not-In-Use Mode In-Use Mode
Power Consumption/
month( ±10%)
Power Consumption/
month( ±10%)
76.7 kWh / month 148.1 kWh / month
66.4 kWh / month 137.3 kWh / month
28.3 kWh / month 58.3 kWh / month
55.3 kWh / month 117.6 kWh / month
LOCK
ICE
HOT
ECONO
HOT
ECONO
HOT
ECONO
HOT
ECONO
LOCK
ICE
LOCK
ICE
LOCK
ICE
Hot/Ice making/Cold
Power saving function
for hot water
Ice making/Cold
Ice making/Cold
Hot/Cold
HOT : ON
ICE : ON
HOT : OFF
ICE : ON
HOT : ON
ICE : OFF
HOT (ECONO)
:ON
ICE : ON
Reference. 1) The above information is measured in terms of real-using environmental condition.(Standard : A family of four)
-Non-operation Condition: The conditions of ice making, cold and hot are under preparation.
-Real-using environmental condition(1 person 3 meals per day)
: Iced water Cold water(150cc) + Ice cube 8pcs(100g) 3 times, Coee & Tea Hot water(150cc) 2 times
2) Small deviation(±10%) may occurs.
If you want to cut down power consumption, as the chart above, you had better turn o Hot water function. The halt
of cold and ice making functions has not noticeable results compared to hot water function. Therefore, this product
does not have an option to disable Cold and Ice making functions.
