CIARRA CAS75206P User manual

INSTALLATION AND USER’S MANUAL

CONTENTS
Safety------------------------------------------------------------3-5
Specifications---------------------------------------------------6
Components-----------------------------------------------------6
Installation---------------------------------------------------7-13
Prepare For Installation---------------------------------7
Recommended Tools For Installation---------------8
Install The Hood--------------------------------------9-12
Activated Carbon Filter Installation-----------------13
Operation--------------------------------------------------------14
Cleaning and Maintenance----------------------------15-17
Motor
Grease Filter
Fan Blade
Activated Carbon Filter
Stainless Steel Cleaning
Painted Finish Cleaning
Bulb Replacement
Troubleshooting ----------------------------------------------18
Environmental Protection----------------------------------19
1

Dear customer:
Congratulations on purchasing this device. This instruction manual is
designed to provide you with all required instructions related to the installation,
use and maintenance of the appliance. In order to operate the unit correctly
and safety, please read this instruction manual carefully before installation and
usage.
The cooker hood use high quality materials, and is made with a streamlined
design. Equipped with large power electric motor and centrifugal fan, it also
provides strong suction power, low noise operation, non-stick grease filter and
easy assembly installation.
Please note that we are constantly updating our manuals.
Due to continuous development, we reserve the right to make technical
changes including errors or other aberrations without notice. This is
particularly true for measurements and cut-out dimensions respectively.
Scan the QR code to get access to contact CIARRA Amazon Service if you
have any question.
2

Safety
READ AND SAVE THESE INSTRUCTIONS
! WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:
◼Use this unit only in the manner intended by the manufacturer. If
you have questions, contact the manufacturer at the address or
telephone number listed in the warranty.
◼Before servicing or cleaning unit, switch power off at service panel
and lock the service disconnecting means to prevent power from
being switched on accidentally. When the service disconnecting
means cannot be locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
◼Installation work and electrical wiring must be done by a qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction.
◼Sufficient air is needed for proper combustion and exhausting of
gases through the flue (chimney) of fuel burning equipment to
prevent back drafting. Follow the heating equipment
manufacturer’s guidelines and safety standards such as those
published by the National Fire Protection Association (NFPA) and
the American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE) and the local code authorities.
◼When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
◼Ducted fans must always be vented to the outdoors.
◼Do not use this unit with any additional solid-state speed control
device.
◼To reduce the risk of fire, use only metal ductwork.
◼This unit must be grounded.
◼As an alternative, this product may be installed with the UL-
approved cord kit designated for the product, following instructions
packed with the cord kit.
◼When applicable local regulations comprise more restrictive
installation and/or certification requirements, the aforementioned
requirements prevail on those of this document and the installer
agrees to conform to these at his own expense.
3

Safety
! WARNING
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
1) Never leave surface units unattended at high settings. Boil overs
cause smoking and greasy spillovers that may ignite. Heat oils
slowly on low or medium settings.
2) Always turn hood ON when cooking at high heat or when
flambeing food.
3) Clean ventilating fan frequently. Grease should not be allowed to
accumulate on fan, filters or in exhaust ducts.
4) Use proper pan size. Always use cookware appropriate for the
size of the surface element.
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT
OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING*:
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet or metal
tray, then turn off the burner. BE CAREFUL TO PREVENT
BURNS. IF THE FLAMES DO NOT GO OUT IMMEDIATELY,
EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN — You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels — This
could cause a violent steam explosion.
4. Use an extinguisher ONLY if:
a) You own a Class ABC extinguisher and you know how to
operate it.
b) The fire is small and contained in the area where it started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.
4

Safety
! CAUTION
◼For indoor use only.
◼For general ventilating use only. Do not use to exhaust hazardous or
explosive materials and vapors.
◼To avoid motor bearing damage and noisy and/or unbalanced fan blade,
keep drywall spray, construction dust, etc. off range hood.
◼Your hood motor has a thermal overload which will automatically shut off
the motor if it becomes overheated. The motor will restart when it cools
down. If the motor continues to shut off and restart, have the hood
serviced.
◼For best capture of cooking fumes, the bottom of the hood MUST NOT BE
LESS than 25.6” and at a maximum of 30” above the cooking surface.
◼Always follows the cooking equipment manufacturer’s requirements
regarding the ventilation needs.
◼To reduce the risk of fire and to properly exhaust air, be sure to duct air
outside — Do not exhaust air into spaces within walls or ceiling or into
attics, crawl space or garage.
◼When installing, servicing or cleaning the unit, it is recommended to wear
safety glasses and gloves.
◼Please read specification label on product for further information and
requirements.
5

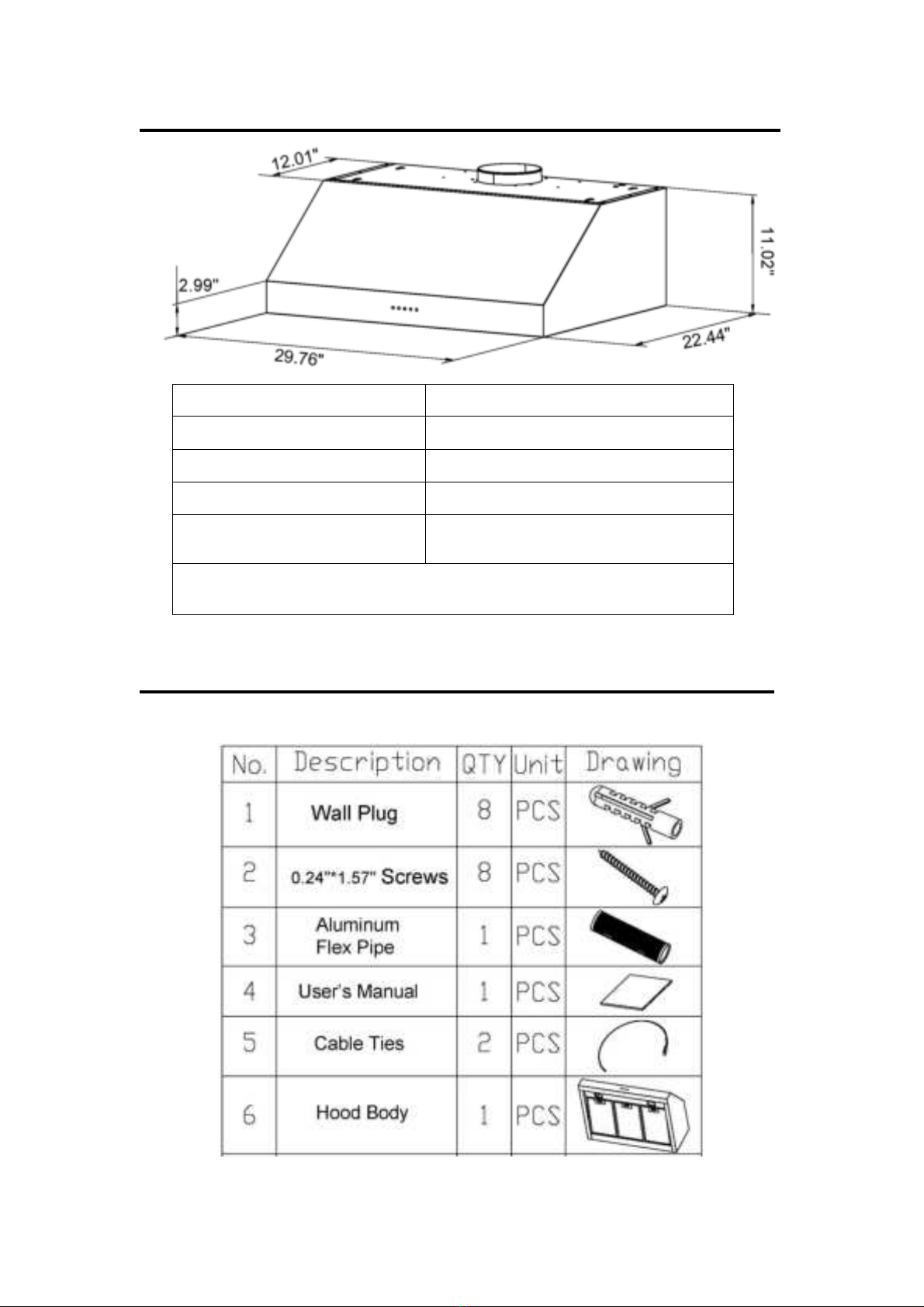

Specifications
Voltage
110-120V~60Hz
Power of Motor
1 x 200W
Power of lamps
2 x 3W
Cable length
1.2M
Appliance Dimension
29.76*22.44*11.02(inch)
(W x D x H)
Note: The manufacturer reserves the right to change any
technological improvement or modification without prior notice.
Components
6

Installation
Prepare for installation:
a) If you have an outlet to the outside, your cooker hood can be connected
as below picture by means of an extraction duct (enamel, aluminum,
flexible pipe or inflammable material with an interior diameter of 150mm).
Choose a straight, short duct run to allow the hood to perform most
efficiently. Long duct runs, elbows and transitions will reduce the
performance of the hood. Use as few of them as possible. When possible,
use at least 2 foot straight runs before any turns. Larger ductwork may be
required for best performance with longer duct runs.
b) Before installation, turn the unit off and unplug it from the outlet.
c) The cooker hood should be placed at a distance of 25.6~30inches above
the cooking plane for best effect.
7

Installation
Recommended Tools for Installation
•Measuring tape
•Phillips screwdriver no. 2
•Flat blade screwdriver (to open knockout holes)
•Drill, 1/8” drill bit and 1½” hole saw (to mark holes for ducting and cut
electrical access hole)
•Wood shims (2) and wood screws (4) (required for standard installation to
framed cabinet)
•Saw (to cut holes for ducted application)
•Sheet metal shears (ducted installation only, for duct adjustment)
•Pliers (ducted installation only, for duct adjustment)
•Metal foil duct tape (for ducted applications)
•Scissors (to cut metal foil duct tape)
•Pencil
•Wire stripper
•Strain relief, 1/2” diameter (to secure house wiring cable to the hood)
CAUTION: Before proceeding to the installation, check the contents of
the box. If items are missing or damaged, contact the manufacturer.
Observe all governing codes and ordinances. Have a qualified
technician install the range hood. It is the installer’s responsibility to
comply with installation clearances specified on the model/serial rating
plate. The manufacturer declines all responsibility for improper
installation and does not accept responsibility for appliance warranty
in the event of damage caused by incorrect installation.
8

Installation
Attention: Observe the warning in the instruction sheet concerning the
operation of the appliance when air is discharged from the room.
When the range hood and appliance supplied with energy other than electricity are
simultaneously in operation, the negative pressure in the room must be not exceed 4
Pa (4×10-5 Bar).
Install the Hood（VENT OUTSIDE）:
If present, remove all protective poly film from the hood and/or parts.

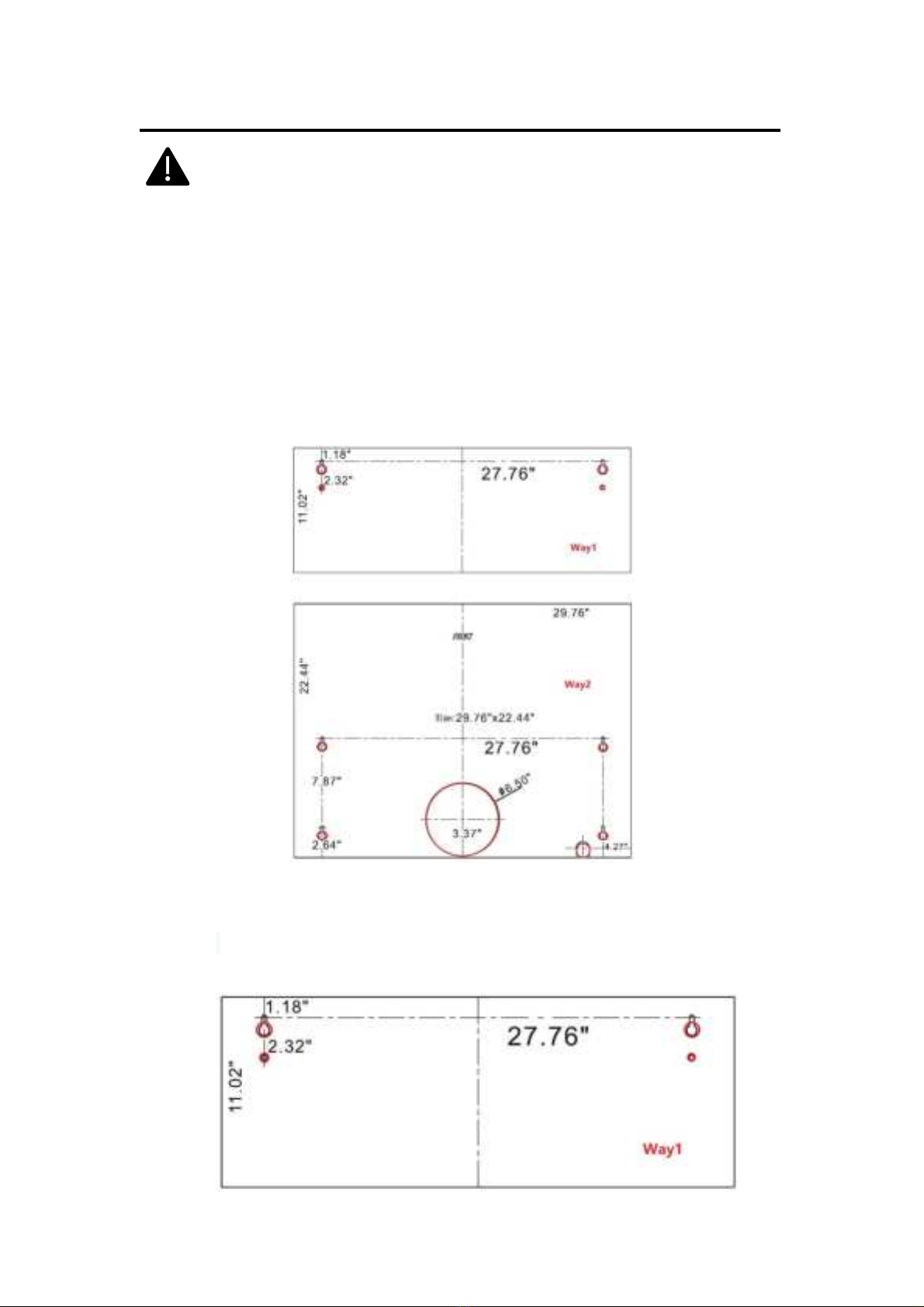

This product can be installed in two different ways (Way 1 and Way 2). Below
picture shows the 1:1 hole drawing of different installation methods.
Way 1:
1) According to the 1:1 hole drawing of Way1, Drill two Ø8mm holes on the
wall;( This step can be ignore if the wall is wooden and instead to use
screws to install directly, no need to drill.)
9

Installation
2) Install the wall plug, insert the upper two wall plugs with 0.24"*1.57"
screws, do not lock too tight them first, and leave a gap of no less than
0.39" ;
3) Put the cooker hood onto the top two screws, and lock the screws tight;
4) Lock the lower two holes with 0.24"*1.57" screws.
10

Installation

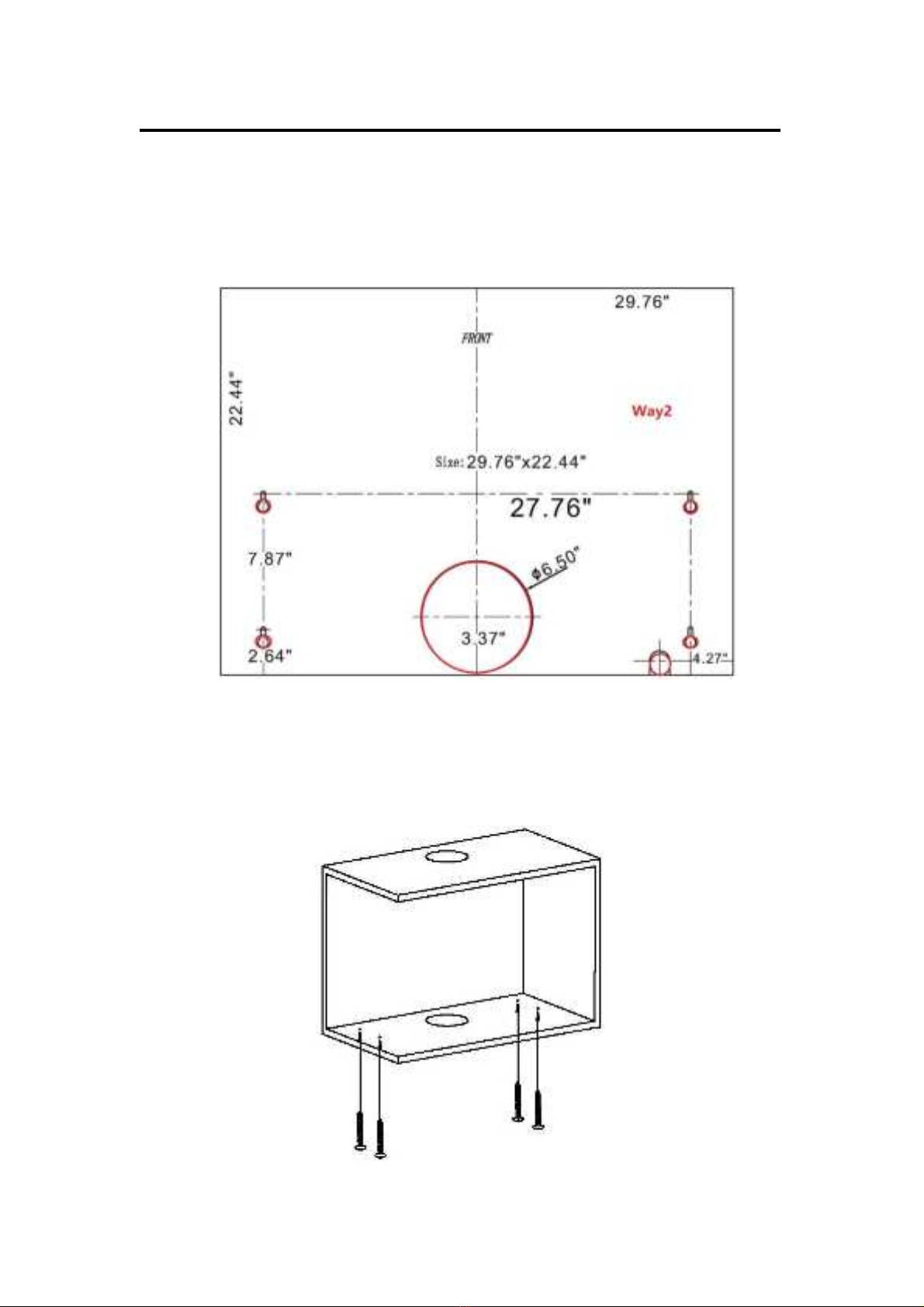

Way 2:
1) According to the 1:1 hole drawing of Way 2, mark the following positions
with pencil under the cabinet, and use the drilling tool to open the air pipe
hole and power cord hole in turn;
2) Align the air ventilation port of the cook hood with the cabinet ventilation
hole at the bottom, pass the power cord through the power hole, and then
use four 0.24"*1.57" screws to lock into the corresponding position of the
pencil marked in the cabinet, and leave a gap of no less than 0.39" ;
11

Installation
3) Put the cooker hood onto the four screws, and lock the screws tight;
4) Lock the lower two holes with 0.24"*1.57" screws;
5) Put the Aluminum Flex Pipe on the air outlet of the cooker hood and fix the
tube with the Cable Ties.
12

Installation

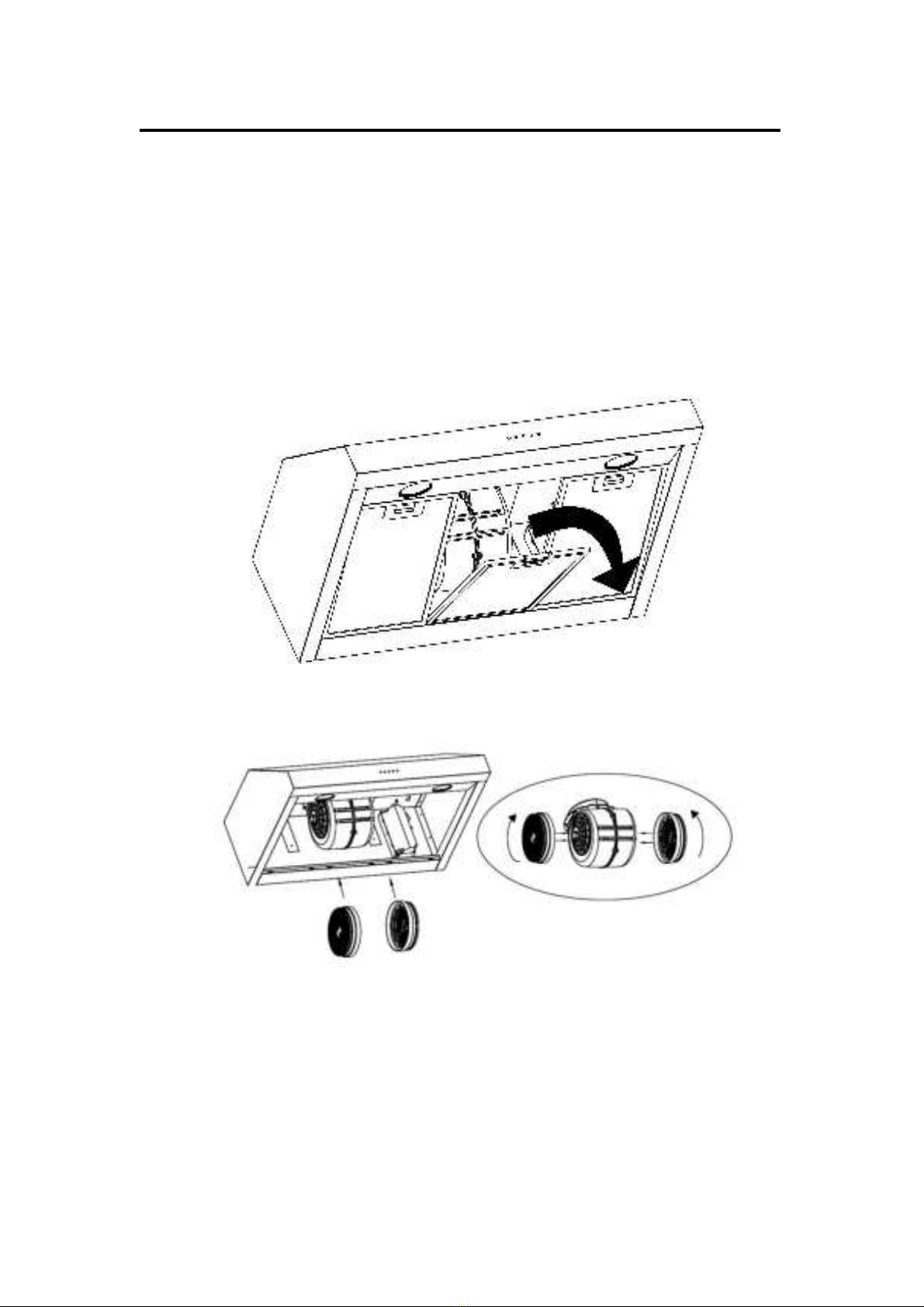

Activated Carbon Filter Installation（VENT INSIDE）:
If you do not have an outlet to the outside, exhaust pipe is not required and
the installation is similar to the one shown in section “Installation (Vent
outside)”
1. Activated carbon filter can be used to trap odors.
In order to install the activated carbon filter, the grease filter should be
detached first. Press the lock and pull it downward.
2. Plug the activated carbon filter into the unit and turn it in clockwise
direction. Repeat the same on the other side.
3. Install the grease filter. If the activated carbon needs to be replaced,
please turn it in anti-clockwise direction.
NOTE:
➢Make sure the filter is securely locked. Otherwise, it would loosen and
cause dangerous.
➢When the activated carbon is installed, the suction of the cooker hood will
be reduced.
13

Operation
Always turn your hood on before you begin cooking to establish an air
flow in the kitchen.
Let the blower run for a few minutes to clear the air after you turn off the
range. This will help keep the whole kitchen cleaner and fresher.
Push button/Electronic button
Operate the hood as follows:
Off button
It's used for turning off the fan.
Low Speed button
It's used for Ventilation on the kitchen. It is suitable for simmering and cooking
which do not make much steam.
Medium Speed button
Airflow speed is ideally for ventilation in standard cooking operation.
High Speed button
When high density of smoke or steam produced, press high-speed button for
highest effective ventilation.
Light button
When lights are OFF, push once on this button to turn ON the lights. Push this
button again to turn OFF the lights.
14

Cleaning and Maintenance
Proper maintenance of the Range Hood will assure proper performance of the
unit.
MOTOR
The motor is permanently lubricated and never needs oiling. If the motor
bearings make excessive or unusual noise, replace the motor with the exact
service motor. The fan blade should also be replaced.
GREASE FILTERS
The grease filters should be cleaned frequently. Use a warm dishwashing
detergent solution. Grease filters are dishwasher safe.
Clean all-metal filters in the dishwasher using a non-phosphate detergent.
Discoloration of the filters may occur if using phosphate detergents, or as a
result of local water conditions - but this will not affect filter performance. This
discoloration is not covered by the warranty. To minimize or prevent
discoloration, hand wash filters using a mild detergent.
FAN BLADE
The fan blade should be cleaned frequently. Use a clean cloth soaked with
warm detergent solution.
ACTIVATED CARBON FILTER
The activated carbon filter should be changed every 3 months depending on
the conditions of use. Replace more often if your cooking style generates
extra grease, such as frying and wok cooking. These filters are not washable
and cannot be restored. Refer to installation instructions included with
activated carbon filter.
STAINLESS STEEL CLEANING
Do:
⚫Regularly wash with clean cloth or rag soaked with warm water and mild
soap or liquid dish detergent.
⚫Always clean in the direction of original polish lines.
⚫Always rinse well with clear water (2 or 3 times) after cleaning. Wipe dry
completely.
⚫You may also use a specialized household stainless steel cleaner.
15

Cleaning and Maintenance
Don't:
⚫Use any steel or stainless steel wool or any other scrapers to remove
stubborn dirt.
⚫Use any harsh or abrasive cleansers.
⚫Allow dirt to accumulate.
⚫Let plaster dust or any other construction residues reach the hood. During
construction/ renovation, cover the range hood to make sure no dust
sticks to the stainless steel surface.
Avoid when choosing a detergent:
⚫Any cleaners that contain bleach will attack stainless steel.
⚫Any products containing: chloride, fluoride, iodide, bromide will
deteriorate surfaces rapidly.
⚫Any combustible products used for cleaning such as acetone, alcohol,
ether, benzol, etc., are highly explosive and should never be used close
to a range.
PAINTED FINISH CLEANING:
Clean with warm water and mild detergent only. If discoloration occurs, use a
finish polish such as automotive polish. (DO NOT use rough abrasive cleaner
or porcelain cleaner.)

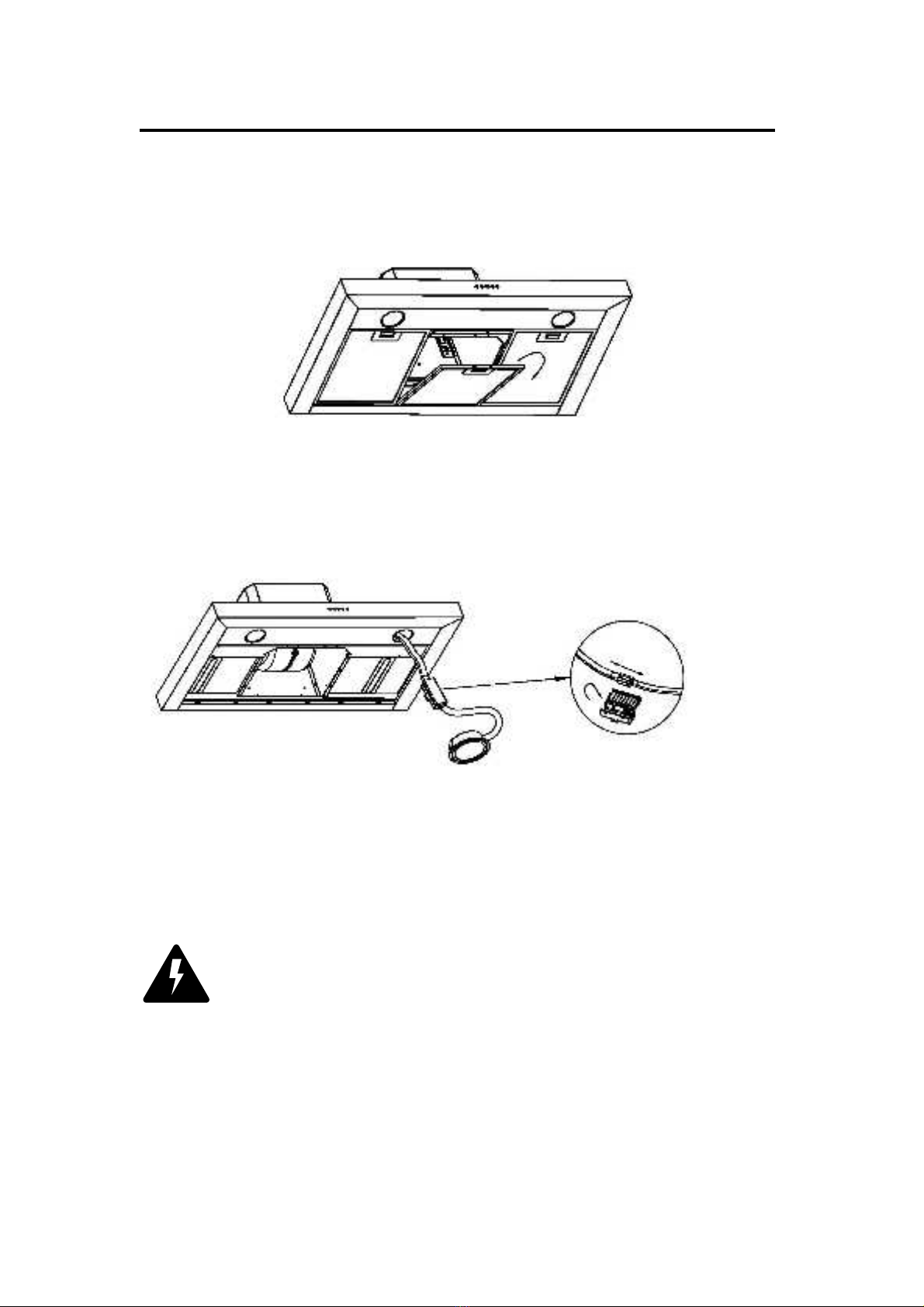

LED REPLACEMENT
◼Circular/ Rectangle LED lamp:
16

Cleaning and Maintenance
1. If need to replacement the LED lamp, the grease filter should be detached
first. Press the lock and pull it downward.
2. Push the LED lamp holder out from the cabinet by hand, pull out the LED
lamp and the wire together, open the power protection cover, pull out the
plug and replace the LED lamp of the corresponding model.
CAUTION ：
Before cleaning or repairing and replacing accessories, please make sure to
shut down the power before operation, so as to avoid electric shock, damage
to human body and even endanger life safety!
17

Troubleshooting
Problem
Possible Cause
Solution
Extractor hood does
not function
No electrical supply
Check that plug is
connected and main
power switch is turned
on
Poor airflow
Grease filters clogged
with grease build-up
Clean the grease filters
and refit when dry
Charcoal filters clogged
with grease build-up
Replace charcoal filters
with new sets
Hood suction is not
effective
Inadequate ventilation
Ensure that the kitchen
is sufficiently ventilated
to allow entry of fresh air
Charcoal filters are not
installed
Install charcoal filters for
setting in recirculation
mode
Motor is running but
no airflow
Poor exhaust
Please contact CIARRA
Customer Care Service
Whirring sound
Foreign object may be in
contact with fan blade
Please contact CIARRA
Customer Care Service
Lights are not
working
Light bars are blown out
Replace the damaged
light
Light bar connection are
loose
Reset the connection
If problem persists after the above checks, please contact CIARRA Customer
Care Centre for assistance.
18

Environmental protection
Waste electrical products should not be disposed of with household
waste. Please recycle where facilities exist. Check with your Local
Authority or retailer for recycling advice.
By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human health,
which could otherwise be caused by inappropriate waste handling of this
product.
The symbol on the product indicates that this product may not be treated as
household waste. Instead it shall be handed over to the applicable collection
point for the recycling of electrical and electronic equipment.
Disposal must be carried out in accordance with local environmental
regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this
product, please contact your local city office, your household waste disposal
service or the shop where you purchased the product.
19
