CIAT DynaCIAT LG User manual

07 - 2023
EN7525593-02
DYNACIATPOWER™
LG - LGP
Instruction manual

DYNACIATPOWER™ EN-2
CONTENTS
1 - INTRODUCTION...................................................................................................................................................................... 3
2 - TRANSPORTING THE UNIT................................................................................................................................................... 3
3 - RECEIPT OF GOODS ............................................................................................................................................................. 4
3.1 - Checking the equipment...................................................................................................................................................... 4
3.2 - Identifying the equipment .................................................................................................................................................... 4
4 - SAFETY INSTRUCTIONS ....................................................................................................................................................... 5
5 - MACHINE COMPLIANCE ....................................................................................................................................................... 5
6 - WARRANTY............................................................................................................................................................................. 5
7 - UNIT LOCATION ..................................................................................................................................................................... 5
8 - HANDLING AND POSITIONING ............................................................................................................................................. 6
9 - LOCATION............................................................................................................................................................................... 7
9.1 - Location of the unit.............................................................................................................................................................. 7
10 - OPERATING LIMITS ............................................................................................................................................................. 8
10.1 - Operating range ................................................................................................................................................................ 8
10.2 - Limits................................................................................................................................................................................. 8
10.3 - Evaporator limits................................................................................................................................................................ 8
10.4 - Minimum/maximum water ow rates................................................................................................................................. 9
11 - LOCATION OF THE MAIN COMPONENTS.......................................................................................................................... 9
12 - MAIN COMPONENTS OF THE REFRIGERATING CIRCUIT ............................................................................................. 10
13 - HYDRAULIC CONNECTIONS..............................................................................................................................................11
13.1 - Diameters of the hydraulic and refrigeration connections ................................................................................................11
13.2 - FLANGE/VICTAULIC adapter kit for DYNACIATPOWER (OPTION).................................................................................. 12
14 - GLYCOL/WATER-MIX ANTIFREEZE PROTECTION ......................................................................................................... 13
15 - ELECTRICAL CONNECTIONS........................................................................................................................................... 14
15.1 - Power connection............................................................................................................................................................ 14
15.2 - Customer connection for remote control functions.......................................................................................................... 14
16 - CONTROL AND SAFETY DEVICES................................................................................................................................... 16
16.1 - Electronic control and display module............................................................................................................................. 16
16.2 - Main functions ................................................................................................................................................................. 16
16.3 - Safety device management............................................................................................................................................. 16
16.4 - Phase controller kit.......................................................................................................................................................... 17
16.5 - Location of the safety sensors and devices .................................................................................................................... 18
16.6 - Adjusting the control and safety devices ......................................................................................................................... 20
17 - COMMISSIONING ............................................................................................................................................................... 21
17.1 - Commissioning................................................................................................................................................................ 21
17.2 - Essential points that must be checked............................................................................................................................ 22
18 - TECHNICAL AND ELECTRICAL SPECIFICATIONS ......................................................................................................... 23
19 - SERVICING AND MAINTENANCE ..................................................................................................................................... 24
19.1 - Operating readings.......................................................................................................................................................... 24
19.2 - Unit maintenance and servicing ...................................................................................................................................... 24
20 - ECODESIGN........................................................................................................................................................................ 27
21 - ERMANENT SHUTDOWN................................................................................................................................................... 27
22 - TROUBLESHOOTING OPERATING PROBLEMS ............................................................................................................. 28
23 - DYNACIATPOWER LG, LGP SCHEMATIC INSTALLATION DIAGRAM ............................................................................... 29
23.1 - Cooling installation with drycooler................................................................................................................................... 29
23.2 - Cooling mode (Heating and cooling)............................................................................................................................... 29
23.3 - Heating mode (Heating and cooling)............................................................................................................................... 30

EN-3 DYNACIATPOWER™
1 - INTRODUCTION
DYNACIATPOWER LG and LGP series water chillers are designed to meet the air conditioning and heating requirements of residential
and ofce buildings as well as the requirements of manufacturing processes, The DYNACIATPOWER LG, LGP units are liquid chillers
with water cooled condensers which guarantee safe and reliable performance in the dened area of application.
All the units are factory tested and checked. They are supplied with a full refrigerant load.
These units meet standard EN 60-204 and standard EN378-2 as well as the following European directives:
■Machinery 2006/42 EC
■EMC 2014/30/EU
■LVD 2014/35/EU
■ROHS 2011/65/CE
■PED 2014/68/EU, see table below
LG – LGP DYNACIATPOWER
700 V to 1000 V 1100 V to 1200 V 1400 V to 1800 V 2100 V to 2400 V
Categories II III II III
Pressure and temperature:
Test pressure (TP): Because of the harmful effects it has on the unit, this test is carried out on a model representative of all 3 x
PS assemblies in compliance with § 5.3.2.2 a and 6.3.3 iii of standard 378-2.
Shipment temperature:
DYNACIATPOWER 700 V to 2400 V → Min. -30 °C - Max. +50 °C.
Storage temperature:
DYNACIATPOWER 700 V to 2400 V → Min. -30 °C - Max. +50 °C.
Operating temperature:
Refer to section 10, "Operating limits", in these instructions.
Technicians who install, start up, operate and service the unit must possess the necessary training and certications, understand
the instructions given in this manual and be familiar with the specic technical characteristics of the installation site.
If they are to work on the unit's refrigeration circuit, such training and certication must meet the requirements of Regulation (EC)
842/2006.
2 - TRANSPORTING THE UNIT
During shipment, the unit must be securely strapped in place to prevent it moving and to protect it from damage.
If the unit is shipped in a container, the container must be easy to load and unload.
Do not lift the unit using these accessories.

DYNACIATPOWER™ EN-4
3 - RECEIPT OF GOODS
3.1 - Checking the equipment
Check the unit for any damage or missing components upon delivery.
Note any damaged or missing parts on the delivery slip.
You must notify the carrier of any damage and/or missing parts by registered letter within three days of the delivery
date.
Furthermore, ensure the unit is not stored in an outdoor location exposed to the elements.
DYNACIATPOWER
A
3.2 - Identifying the equipment

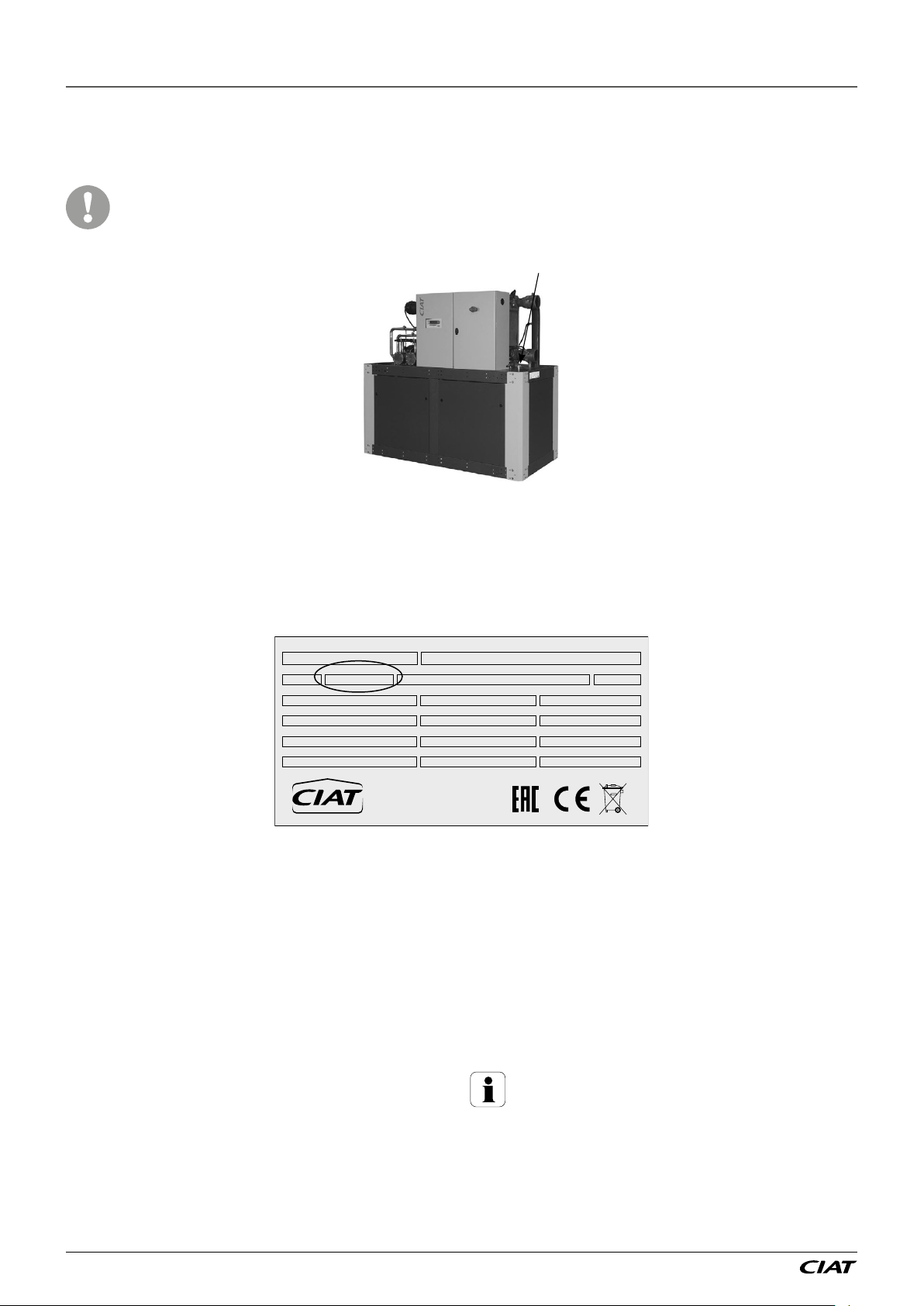

Name plate:
Each unit has a manufacturer's name plate (A) bearing the unit's identication number (serial number) and description.
Make sure this information matches that on the order.
Markings (name plate, punch marks, labels) must remain visible. They must not be altered, removed or modied.
Designation/Description
Ref. produit/Item Nbr
An(Year) N. Serie/Serial Nbr No Produit
Refrigerant kW Absorbee/Imput kW Service/Working kg
Temperature Min/MaxTension/VoltageRefrigerant kg / TeqCO2
BP/LP Mini PSM/MOP Intensite/Current AIP
No CEPression/Pressure TestHP Maxi PSM/MOP
Contient des gaz fluorés à effet de serre / Contains fluorinated greenhouse gases
30, av Jean Falconnier
01300 CULOZ (FRANCE)
Tél.: [phone]
www.ciat.com Made in France
02438040/0001
3025277.286282 LG 1200V R410A
R410A 46.6 1088
CF NOTICE3 50HZ 400V13.5 + 14.0 / 28.2+29.2
2.5 BAR / 29.5 BAR
42 BAR / 42 BAR
140
PT=3XPS CF NOTICE
21
0060
Key:
■Désignation/Description: Unit type.
■An(Year): Year of manufacture.
■N° série/Serial No.: Production number. (to be quoted in all
correspondence)
■Refrigerant: Type of refrigerant.
■Refrigerant kg/TeqCO2:Refrigerant content in kg and in
tonnes of CO2equivalent.
■BP/LP Mini/PSM/MOP: For the low pressure circuit:
-BP/LP. Mini = Minimum operating pressure in bar.
-PSM/MOP = Maximum standard pressure in bar
(SP according to PED 2014/68/EU).
■HP Maxi PSM/MOP: For the high pressure circuit:
-HP. Maxi. = Maximum operating pressure in bar.
-PSM/MOP = Maximum standard pressure in bar
(SP according to PED 2014/68/EU).
■KW Absorbee/Input kW: Power input in kW.
■Tension/Voltage: Power supply.
■Intensité/Current: Nominal current in A.
■Pression/Pressure Test: See "Pressure and temperature"
section on the previous page.
■Poids/Weight kg: Operating weight of the unit, in kg.
■Min/Max Temperatures: See "Pressure and temperature"
section on the previous page.
■IP: Machine electrical protection rating.
■No CE: Notied Body number.
Please include the identification number in all
correspondence with CIAT.

EN-5 DYNACIATPOWER™
4 - SAFETY INSTRUCTIONS
To avoid any risk of accident during installation, start-up and adjustments, the following equipment specics must be taken into
account:
■Pressurised refrigeration circuits
■Presence of refrigerants
■Presence of electrical voltage
Only experienced and qualied persons may work on such equipment.
The recommendations and instructions in this manual and on each drawing provided with the unit must be followed.
In the case of units with pressure equipment or components, we recommend that you contact your professional organisation for
information on the regulations that apply to operators or owners of pressure equipment or components. The characteristics of this
equipment/these components are given on the name plate or in the regulatory documentation supplied with the products.
A re protection device is tted as standard on all units.
Make sure the main disconnect switch in the unit's electrical panel is in the OFF position before working on the
unit.
5 - MACHINE COMPLIANCE
Refer to the "Declaration of conformity" document supplied with your equipment.
6 - WARRANTY
The warranty is effective for a period of 12 months from the date the unit is rst commissioned into service provided said date
occurs within three months of the invoice date.
It is effective for a period of 15 months from the unit invoice date in all other cases.
NOTE: Refer to our general terms and conditions of sale for further information.
7 - UNIT LOCATION
These units are typically used for refrigeration and are not required to withstand earthquakes. Earthquake resistance has therefore
not been checked.
Before setting up the unit in its intended location, the installer must check the following points:
■These units are designed to be installed and stored inside a machine room that is sheltered from frost and the elements. Failure
to do so will incur the loss of the manufacturer's warranty.
■The surface area of the ground or structure must be strong enough to bear the unit's weight.
■The unit must be perfectly level.
■There must be sufcient free space around and above the unit to allow servicing and maintenance (see dimensional drawing
provided with unit).
■The room housing the unit must comply with the requirements of regulation EN 378-3 and other specications applicable at the
installation site.
■The selected location must be above ood level.
■Allow for drainage of defrosting water.
■Sound level:
-Our units are designed to operate quietly.
-In the installation design, you must take into account the interior environment for radiated noise and the building type for airborne
and solid-borne noise transmission.
-To ensure vibrations transmitted by solid materials are reduced as much as possible, it is strongly recommended to t anti-
vibration mounts between the unit support and frame (see the section on anti-vibration mounts), as well as exible couplings
on the hydraulic piping.
-Have an analysis carried out by an acoustics engineer.
The ambient temperature must not exceed 50°C during the unit's off cycles.

DYNACIATPOWER™ EN-6
8 - HANDLING AND POSITIONING
To raise the unit, attach the slings to the designated handling holes.
The data relating to the centre of gravity and the position of the anchorage points are given on the dimensional drawing.
Detailed view of the anchorage point for handling
DYNACIAT
POWER
Holes for handling
Ø 35.2 mm
The unit can be handled with a forklift truck (check the maximum permissible load of the forklift).
In this case, it is important that the necessary precautions be taken to avoid the unit sliding on the forks of the forklift. You must
observe the instructions given on the label afxed to the unit. Failure to observe these instructions may result in the unit tipping
over and causing physical injury.
■Attach the slings only to the anchorage points intended for this purpose and which are designated on the unit.
■Use slings with a suitable lifting capacity and follow the lifting instructions on the drawings provided with the
unit.
■Caution: The centre of gravity is not necessarily at the middle of the unit and the forces applied to the slings
are not always identical.
■Raise and set down the unit carefully. Take care not to tilt it by more than 15°, as this could adversely affect
its operation.
■To avoid damaging the casing, use textile slings with shackles.
■Use a frame with an adjustable centre of gravity to keep the slings away from the top of the unit.
■Always protect the unit casing (panels, posts, front access door) from damage during handling. Only the base
frame is designed to withstand handling.
■Safety when lifting can only be guaranteed if all these instructions are followed.
Otherwise, there is a risk of damage to the equipment and personal injury.
DYNACIATPOWER
These diagrams are provided for illustrative
purposes only.
Always refer to the pictograms on the unit
B
A
C

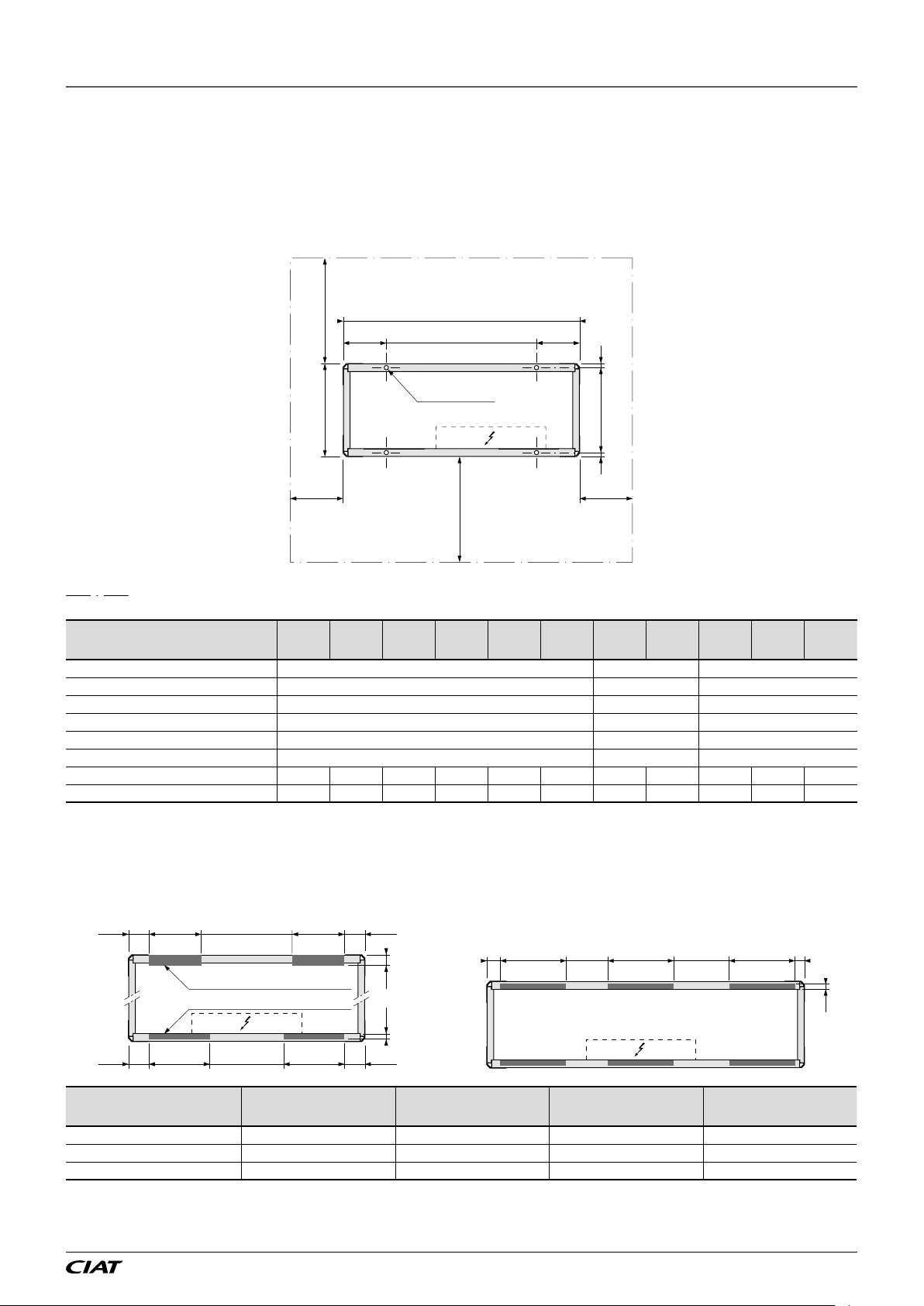

DYNACIATPOWER LG - LGP 700 V 800 V 900 V 1000 V 1100 V 1200 V 1400 V 1600 V 1800 V 2100 V 2400 V
A996
B1400
C2580 2930 2860
For the empty weight, please refer to section 9.1.1

EN-7 DYNACIATPOWER™
9 - LOCATION
9.1 - Location of the unit
9.1.1 - Dimensions and ground mounting of the frame
The frame may be afxed to the ground. (Mounts with studs not supplied by CIAT). The hardness is to be dened according to the
unit's weight and centre of gravity.
DYNACIATPOWER
A
C EE
1 m
1 m
0,5 m
Ø 20,5 mm
0,5 m
B
D FF
Free space to be maintained to allow sufcient room for maintenance of the unit.
It is important that the units are installed with the necessary clearances.
DYNACIATPOWER LG - LGP 700 V 800 V 900 V 1000 V 1100 V 1200 V 1400 V 1600 V 1800 V 2100 V 2400 V
A2099 2499 3350
B984 984 984
C1271 1671 2366
D916 916 916
E414 414 492
F34 34 34
Weight (empty) Kg 1044 1156 1189 1312 1363 1425 1613 1708 2284 2376 2418
Operating weight Kg 1088 1205 1246 1378 1436 1510 1713 1818 2472 2588 2637
9.1.2 - Anti-vibration mounts (optional for DYNACIATPOWER )
Anti-vibration mounts must be installed beneath the unit in the case of applications with extremely low vibrations.
For DYNACIATPOWER models, the mounts must be placed at the locations illustrated below.
DYNACIATPOWER 700 V to 1600 V
4 mounts for
700 V to 1200 V models
4 mounts for
1400 V to 1600 V models
200
200
200
7050
200
400
700
400
700
899
899
DYNACIATPOWER 1800 V to 2400 V
700G H J K700 700
50
DYNACIATPOWER LG - LGP G H J K
1800 V 100 440 585 125
2100 V 100 585 440 125
2400 V 125 440 585 100

DYNACIATPOWER™ EN-8
10 - OPERATING LIMITS
10.1 - Operating range

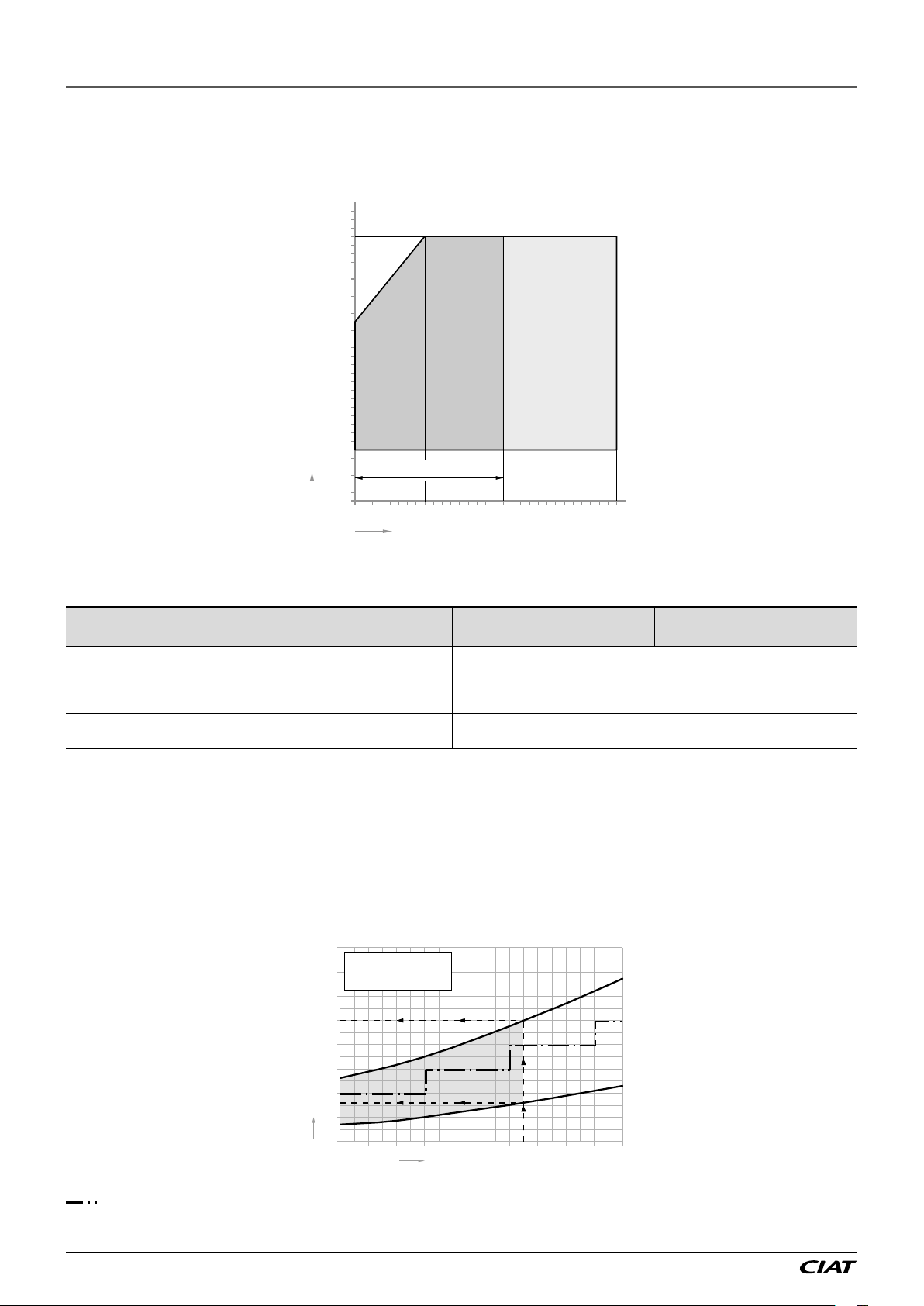

The graph below represents the area of application (under full load) of the units.
DYNACIATPOWER 700 V to 2400 V
Evaporator outlet water temperature
Condenser outlet water temperature
Glycol compulsory
+55
+50
+45
+40
+35
+30
+25
-12 -7 -4 0 +5 +10 +18
10.2 - Limits
DYNACIATPOWER LG LGP
Water-cooled condenser
Min. TΔ°C/max. TΔ°C
Yes – 5/10
The customer should take all means necessary to achieve
a minimum water inlet temperature of 25°C on the condenser side.
Without condenser/Condensation temperature Min. °C / Max. °C No
Evaporator
Min. TΔ°C/max. TΔ°C
Variable according to water outlet temperature. See evaporator limit
curves
10.3 - Evaporator limits
The curves show the minimum and maximum allowable temperature differences for chilled water or glycol/water solution based
on the water outlet temperature.
Example:
For a water outlet temperature of +5°C
■The minimum TΔ is 2.6°C, which gives a water temperature of 7.6/5°C
■The maximum TΔ is 6°C, which gives a water temperature of 11/5°C
If the temperature difference calculated is outside the two curves, contact us.
1
-8 -6 -4 -2 0 24681
012
6
5
2
3
4
7
8
9
Brazed-plate
evaporator
Water outlet temperature (°C)
Δ T maximum
Δ T minimum
Acceptable water inlet/outlet TΔ (°C)
1
-8 -6 -4 -2 0 2 4 6 8 10 12
2
3
4
5
6
7
8
9
DYNACIATPOWER

EN-9 DYNACIATPOWER™
10 - OPERATING LIMITS
10.4 - Minimum/maximum water ow rates
The ow rates in the exchangers must be maintained between the values given below.
DYNACIATPOWER LG - LGP 700 V 800 V 900 V 1000 V 1100 V 1200 V 1400 V 1600 V 1800 V 2100 V 2400 V
Evaporator min. m³/h 22 26 29 33 35 38 44 51 61 68 74
max. m³/h 70 81 92 105 113 124 137 151 150 150 150
Condenser min. m³/h 19 22 25 28 31 33 38 43 52 59 66
max. m³/h 64 74 84 95 103 112 129 143 150 150 153

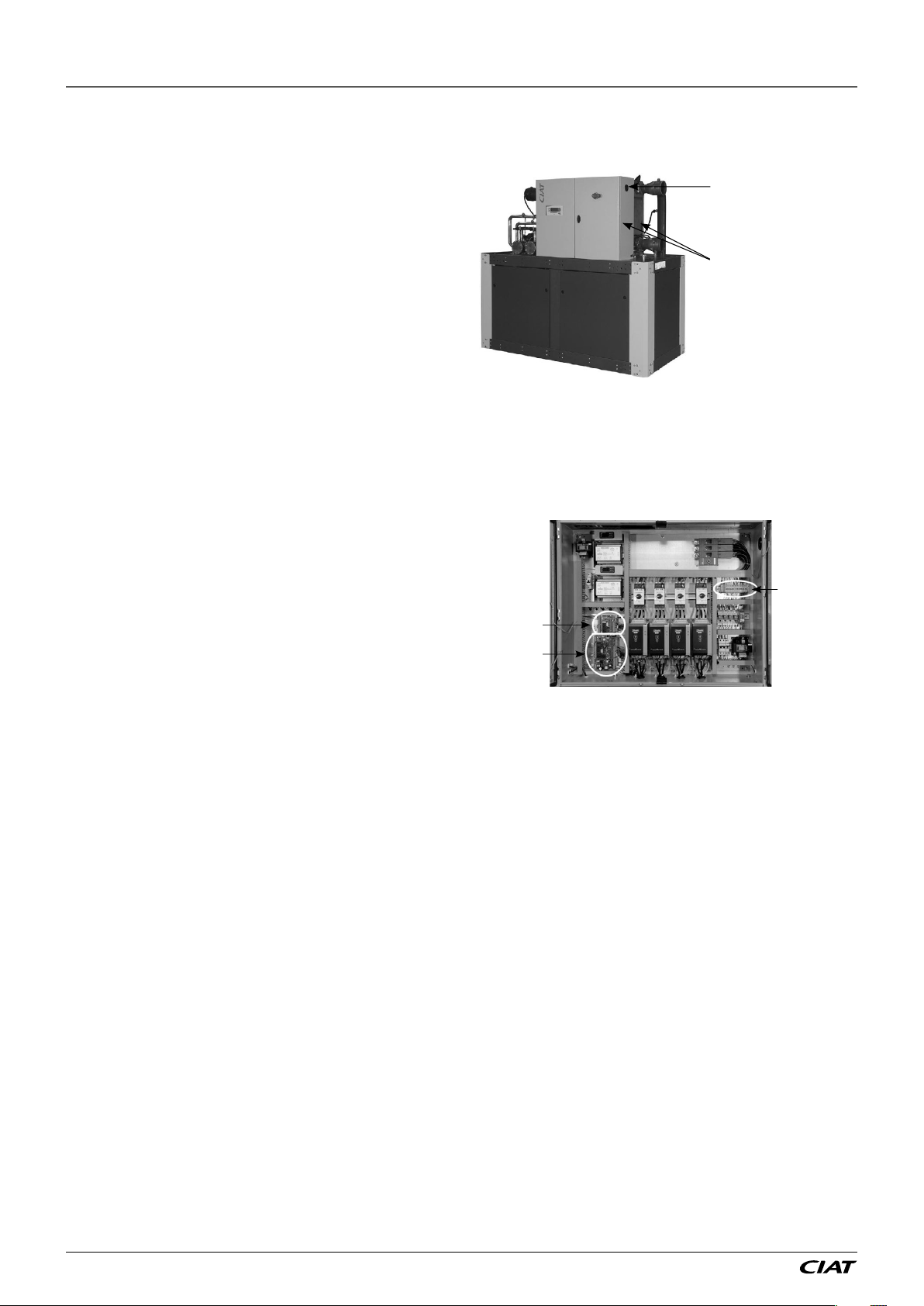

11 - LOCATION OF THE MAIN COMPONENTS
DYNACIATPOWER 700 V to 1600 V
Compressor
No. 4
Electrical cabinet
Electrical cabinet
Condenser
Evaporator
Compressor No. 1
Compressor No. 2Compressor No. 3
Evaporator
DYNACIATPOWER 1800 V to 2400 V
Electrical cabinet
Electrical cabinet
Condenser
Evaporator
Compressor No.
3
Compressor No.
2
Compressor No. 1
Evaporator
Compressor No. 6
Compressor
No. 4
Compressor
No. 5

DYNACIATPOWER™ EN-10
12 - MAIN COMPONENTS OF THE REFRIGERATING CIRCUIT
Compressor
The DYNACIATPOWER units use hermetic SCROLL compressors.
Oil
The compressor is lubricated with a polyester oil, (POE) type
160SZ for the DYNACIATPOWER 700 V to 1200 V chillers. This
oil will be the 3MAF (32 cSt) type for the DYNACIATPOWER 1400
V to 2400 V chillers.
If necessary, top up the compressors with ICI Emkarate RL 32
CF oil or Mobil EAL Arctic 22 CC oil if no 3MAF is available for
R410A models.
Refrigerant
The DYNACIATPOWER 700 V to 2400 V use R410A.
The Global Warming Potential (GWP) is 2088 GWP for R410A,
in compliance with standard EN378-1.
Exchangers
With the DYNACIATPOWER, the evaporators and condensers are
double-circuit brazed-plate heat exchangers.
The evaporators are provided as standard with 19 mm
polyurethane foam insulation, adapted for operation with low-
temperature brine solution below 0 °C.
The heat-transfer medium must be filtered and internal
inspections must be carried out.
Repairs or modications of any kind to the plate heat exchangers
are prohibited. CIAT only authorises replacement of the heat
exchanger by a qualied technician using original equipment. If
the heat exchanger is replaced, this must be noted in the
maintenance booklet.
Expansion valve
Expansion valves have a load for the thermostatic element (MOP)
to obtain the maximum evaporation pressure in order to protect
the compressor.
The DYNACIATPOWER 700 to 1600 models are tted as standard
with one-piece hermetically-sealed thermostatic expansion
valves and the 1800 to 2400 models are tted with electronic
expansion valves that are set in the factory.
Every unit is fitted with one-piece hermetically-sealed
thermostatic expansion valves that are set in the factory to
maintain superheat of 5-7 °C under all operating conditions.
Dryer
Every unit is tted as standard with a dehumidier lter (the lter
unit has a replaceable cartridge) to keep the refrigerating circuit
clean and free of moisture. The dryer lter consists of aluminium
oxide and a molecular sieve that neutralises any acids in the
refrigeration circuit.
Liquid sight glass
Located on the liquid line just after the lter dryer, the liquid sight
glass is used to monitor the charge in the unit and to check for
moisture in the circuit. Bubbles in the sight glass mean that the
refrigerant load is insufcient or that non-condensable gases are
in the refrigeration circuit. If the sight glass indicator paper
changes colour, there is moisture in the circuit.
Some of the sight glasses may turn yellow when the
machine is powered off, as their sensitivity is
affected by the uid temperature.
The sight glasses should return to green after the
unit has been operating for a few hours.
If the sight glasses remain yellow, there is excessive
moisture in the circuit. A specialist intervention is
required.
