cimuka PD Series User manual

1
PD30 SH
/ H
CiMUKA EGG INCUBATORS
P
D6
0 SH
/ H
USER MANUAL
Parts of Models …….. 2 - 4
Quick Guide……..5
Placement of Models……..6
Ventilation…….6
Egg Handling…….7
Temperature Controller….. 7-10
Humidity Adjustment……………11

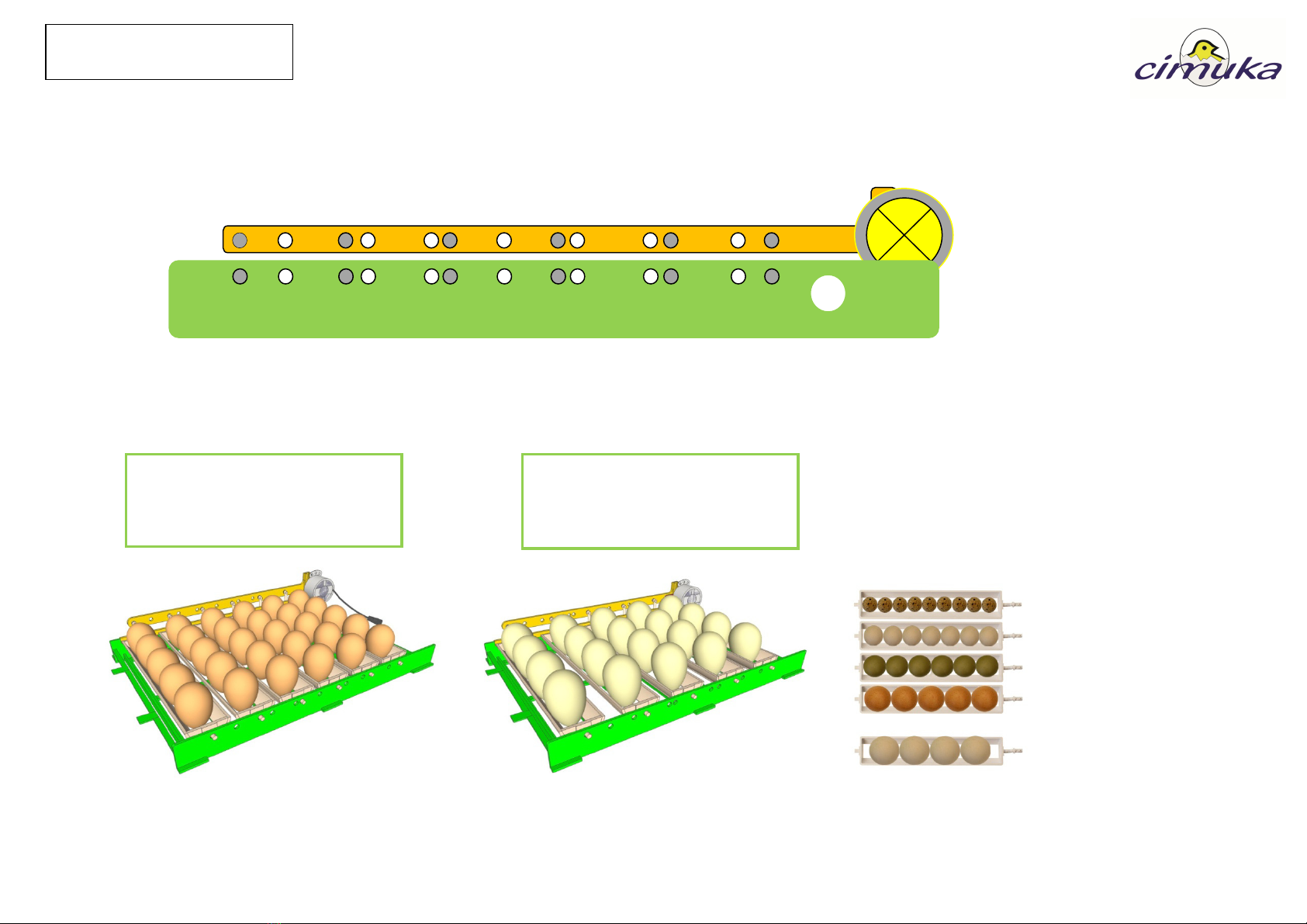

Egg Turning / Conturn
TM
30 …….. 12-15

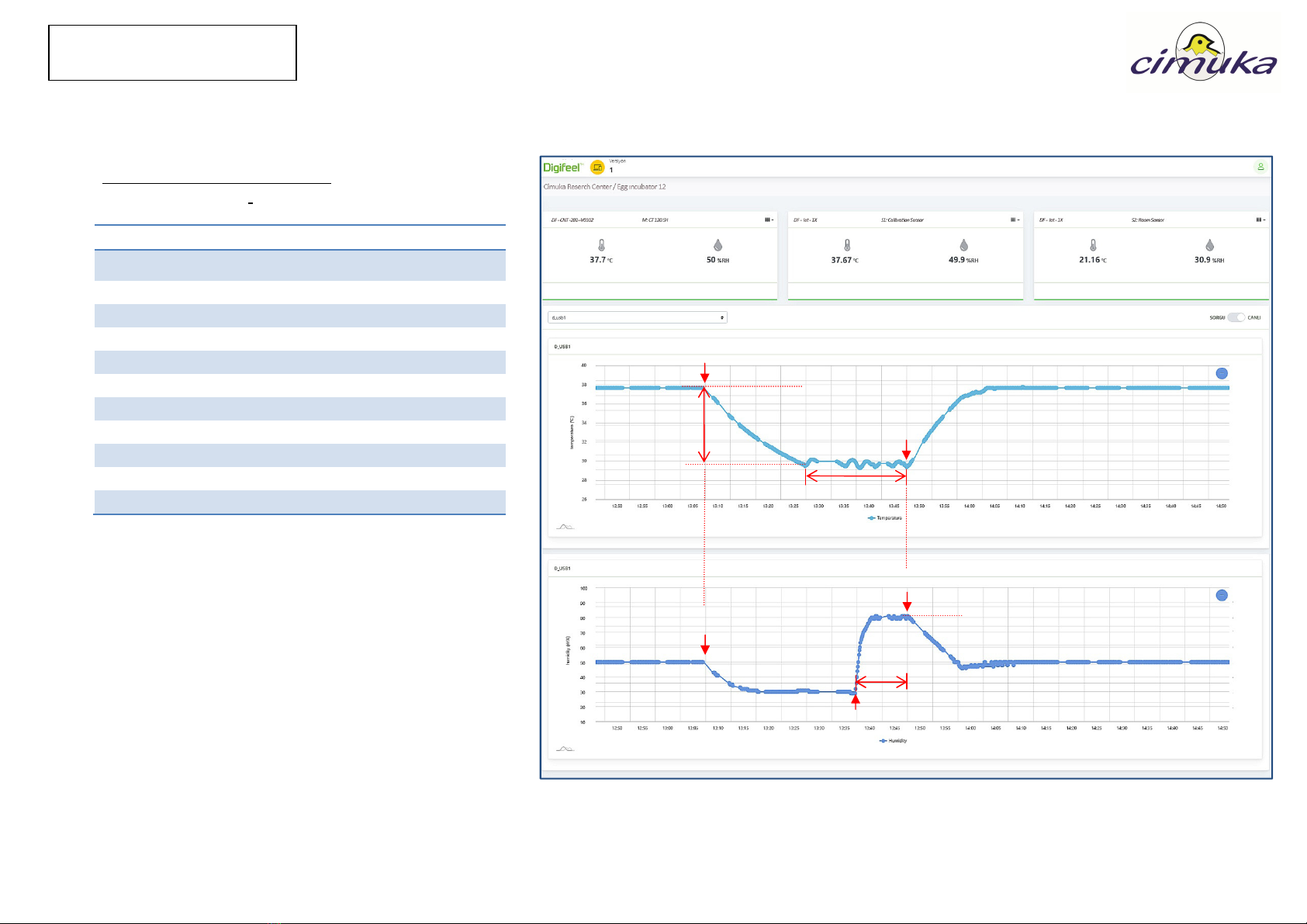

Active Periodic Cooling(APC)………16-19
Egg Setting and Hatching ……..20-21
Incubation Records……..21
Cleaning up and Service……..22
Safety Labeling………22
Factors Affecting Hatchability……..23
Product Information………….23
Recommended Incubation values……..24
Please read the instructions in this user manual carefully before use the incubator.
IMPORTANT! Keep this user manual safe for future reference.
PD SERIES
PD30 / PD60

2
Parts of Model – PD30
1
Control Panel
2
Digital Controller
3
Fan protecting cover
4
Conturn
TM
30 (only for SH models)
5
CS 0Y – hatchery basement
6
Base
7
Adjustable air out holes
8
Cover of control panel
9
Power inlet module ( on/off button)
10
Temperature/humidity sensor with filter
11
Conturn
TM
30 connection / Air in hole
12
Protection fuse ( F type)
13
Spare fuse (F type)
PD SERIES
1
2
3
4
5
6
9
7
8
10
11
12 13

1
Control Panel
2
Digital Controller
3
Fan protecting cover
4
Conturn
TM
30
5
CS 0Y – hatchery basement
6
Hatching Separator
7
Base
8
Adjustable air out holes
9
Cover of control panel
10
Power inlet module ( on/off button)
11
Temperature/humidity sensor with filter
12
Conturn
TM
30 connections / Air in holes
13
Protection fuse ( F type)
14
Spare fuse ( F type)
Parts of Model – PD60
PD SERIES
13 14
3
2
3
4
5
6
7
9
12
8
10
11
1

4
PD SERIES
Accessories
PD30 PD60
SH H SH H
Conturn
TM
30 1 pc 2 pc
CS40Y 1 pc 1 pc 2 pc 2 pc
Conturn
TM
Adapter 1 pc 1 pc
Distribution Cable 1 pc
Power Cable 1 pc 1 pc 1 pc 1 pc
QT13 – Quail rack Optional Optional
GT03 – Goose rack Optional Optional
CS06 – Hatchery Basket Optional Optional
Conturn
TM
30
CS40Y
Conturn Adapter Distribution cable
QT13 GT03 CS06
CAUTION! Any damaged part must not be used.
Power Cable

5
PD SERIES
Quick Guide
- Remove all packing material carefully.
- Please identify and check all parts of model. (see page 2-4 )
- Fill humidity tray with water (1 channel). Picture 1
- Place CS40Y hatchery basement and Conturn
TM
30 to the base.
Picture 2
Note: if your eggs is bigger than chicken egg, Conturn30 racks should be
adjusted for your egg type (see page 12-15)
- Plug your machine and Conturn
TM
adapter to electric supply.
Picture 3
Caution! Don’t use the equipments that need high electric current in the
same electrical line with your egg incubator.
Caution! Always use a grounded power line for your incubator.
- Press power-on button and set temperature for your eggs. Picture 4
(see page 8)
- When temperature was reached set point and after work min 1 hour,
check humidity value in digital controller. If needed, adjust humidity by
water channels (see page 10)
- The incubator must be worked for 3 - 4 hour to check all parts
before first setting.
3 4
Conturn
TM
Adapter
Power
Cable
A
dapter
1 2

6
PD SERIES
Placement of Model
Ventilation
Your incubator must be located in an indoor area. The area must be
clean and ventilated. Ideal distance from walls is 40 cm. Don’t place
machine close to the walls of incubation room. The Incubator must not
be exposed to direct sunlight and not subject to splashes of water or
high humid conditions.
Place your incubator to a flat surface far from doors and windows.
Ideal incubation room temperature is 20–25 °
°°
°C. Wide temperature
variations in the room affect your incubation results. If your area is
very cold or hot, use air condition system in room.
Be sure that room is being ventilated adequately for fresh air
intake.
Embryo needs proper oxygen levels and produce carbon dioxide during
incubation. To supply oxygen in proper level and remove carbon dioxide,
ventilation is essential.
In PD series models, ventilation is supplied automatically with fan and
air-in / air out holes. Air-out ventils are adjustable.
Be sure that your air out ventils and air in holes are open.
Caution! Never close air- in / out holes.
Caution! Air-out ventils must be full open during hatching period.
Caution! Never make animal breeding in incubation room.
Caution! Be sure incubation room has adequate air intake.
Caution! Don’t let room temperature below 15 °
°°
°C and above 30 °
°°
°C
Caution! Never use your egg incubator on floor.
Caution! Don’t let reaching of animals and insects to the incubator.
Caution! Don’t let accessing of children or person that have physically or mentally
problems to the incubator.
Air out
Air in
Air in
40cm
40cm
40cm
40cm

7
PD SERIES
Egg Handling
Temperature
Controller
Eggs must be collected carefully and stored in good conditions up to setting. Quality of eggs is very important for hatchery results. Sanitizing
eggs before storage is an effective method for killing or decreasing the amount of microorganisms in egg surface. You must know that
sanitation processes does not only kill the bacteria, but it can also kill the chick embryo in the egg. Use proper sanitary procedures.
Ideal egg storage temperature is 12–13 °
°°
°C. Store eggs in cool condition (between 10 to 20 C) and never let them be exposed to sunlight.
Daily turning of eggs is suggested during storage to maintain hatchability.
Caution! The eggs never be stored in refrigerator. (4 °
°°
° C is very low)
Caution! Storage of eggs in bad conditions higher than 7 day decrease egg quality and so hatchability.
Caution! Eggs must be stored 1 day minimum before setting.
Caution! For dirty eggs, never use cloths to clean and improper washing procedures.
In egg incubation, the most important factor is temperature. Temperature control is provided by electronic controller which manages heater
units with high precise electronic control system.
Embryos tolerate short term temperature drops, however higher temperatures than ideal affect embryos detrimentally. Be sure that your
temperature setting is true and don’t concern about short term cooling of eggs when cover open for water adding or inspections.
Humidity RH%
Temperature
0
C /F
50
37.7
Rh
0
C
%
T
H
Heater active led
U - Up
D - Down
T- Temperature Set
H - Humidity Set
U
D

8
PD SERIES
Recommended temperature and Humidity values for different
species are given at page 24
50
%
T
H
U
D
37.7
37.7
%
T
H
U
D
(f)tSEt
50
%
T
H
U
D
37.7
>37.7<
%
T
H
U
D
donE
%
T
H
U
D
50
%
T
H
U
D
37.7
50
%
T
H
U
D
hSEt
50
%
T
H
U
D
37.7
>50<
%
T
H
U
D
hSEt
donE
%
T
H
U
D
SAVE
When main screen is active,
Press T button and release
(f)tSEt – Temperature Set Screen
will appear 2 s and turn back to main
screen.
Down value is temperature set point.
To change temperature set point
When main screen is active,
keep pressed T button / 2 s
While temperature set value blinking
Use U / D buttons to adjust
temperature set point
When finished adjustment,
Press T button to “save” adjusted value.
When main screen is active,
keep pressed H button / 2 s
While humidity Set value blinking
Use U / D buttons to adjust
humidity set point
When finished adjustment,
press H button to “save” adjusted value.
Note: PD series models are not equipped with
humidifier but humidity set point must be
adjusted to desired level to get high / low
humidity alarms.
When main screen is active,
Press H button and release
hSEt– Humidity Set Screen
will appear 2 s and turn back to main
screen.
Down value is humidity set point.
To change humidity set point
(f)tSEt
SAVE
To check temperature set point To check humidity set point

9
User Menu Parameters
To Lock Screen on/off
When main screen is active,
Press H+D buttons together / 3s
to lock and unlock screen
on/oFF
)
T
H
U
D
loc
Alarm delay
dlY
%
T
H
U
D
Alr
When main screen is active,
keep pressed U button / 3s
Voice alarm will be delayed
15 minutes.
When main screen is active,
Press U button and release to check
remaining time for next cooling
Note: remaining time to next cooling will appear
if periodic cooling function on
( pls check APC menu. (See page 17)
Than screen turns back to main screen.
Remaining time for next cooling
11.27
%
T
H
U
D
clt
50
%
T
H
U
D
37.7
50
%
T
H
U
D
37.7
10
%
T
H
U
D
hhı
10
%
T
H
U
D
hlo
0,8
%
T
H
U
D
2.0
%
T
H
U
D
Press T + H together / 3s to enter the menu
Use T /H buttons to pass next/before parameter.
Use U/D buttons to change parameter values.
hhi: high humidity alarm.
Started : set value +10
Delay time: 20 minutes
Notification: Alr 5
Voice alarm : continuous
hlo: low humidity alarm.
Started : set value -10
Delay time: 20 minutes
Notification: Alr 6
Voice alarm : intermittently
( )thi: high temperature alarm.
Started : set value + 0,8
Delay time: 2 minutes
Notification: Alr 1/3
Voice alarm : continuous
(f)thi
(f)tlo
0.0
%
T
H
U
D
hco
0.0
%
T
H
U
D
(f)tco
PD SERIES
( )tlo: low temperature alarm.
Started : set value - 2.0
Delay time: 30 minutes
Notification: Alr 2/4
Voice alarm : intermittently
tco: temperature calibration value.
CAUTION! tCo is very critical parameter and
changing this can results with chick looses. pls use
qualified and calibrated glass or electronic
thermometers for calibration purpose. And always
check temperature values periodically.
hco: humidity calibration value.
CAUTION! hCo is very critical parameter and
changing this can results with chick looses. pls use
qualified and calibrated glass or electronic
thermometers for calibration purpose. And always
check humidity values periodically.
Press T + H together / 3s to save changes.
donE
%
T
H
U
D
SAVE

10
PD SERIES
Humidity Adjustment
Humidity adjustment in incubators is for
providing
adequate water loss from egg
s
. And also
high humidity levels for last 2
-
3 day
are
also very important. Egg needed to lose between 13-16 % water depending on the species during incubation period. Weighing of eggs
during incubation is most trustable method to find proper humidity needed to good hatching results for particular poultry species.
Different from temperature, short term humidity changes during incubation are not important. Providing an average humidity in desired level
during all incubation period is enough to achieve good results. However, high humidity levels during hatching period ( last 2-3 day) is very
important. When the chick started to hatch, inner membrane of egg dries quickly. This makes membranes harden and chick can stick to
shell. To prevent drying of membranes, humidity must be adjusted to high levels depending on species for last 2-3 day of incubation.

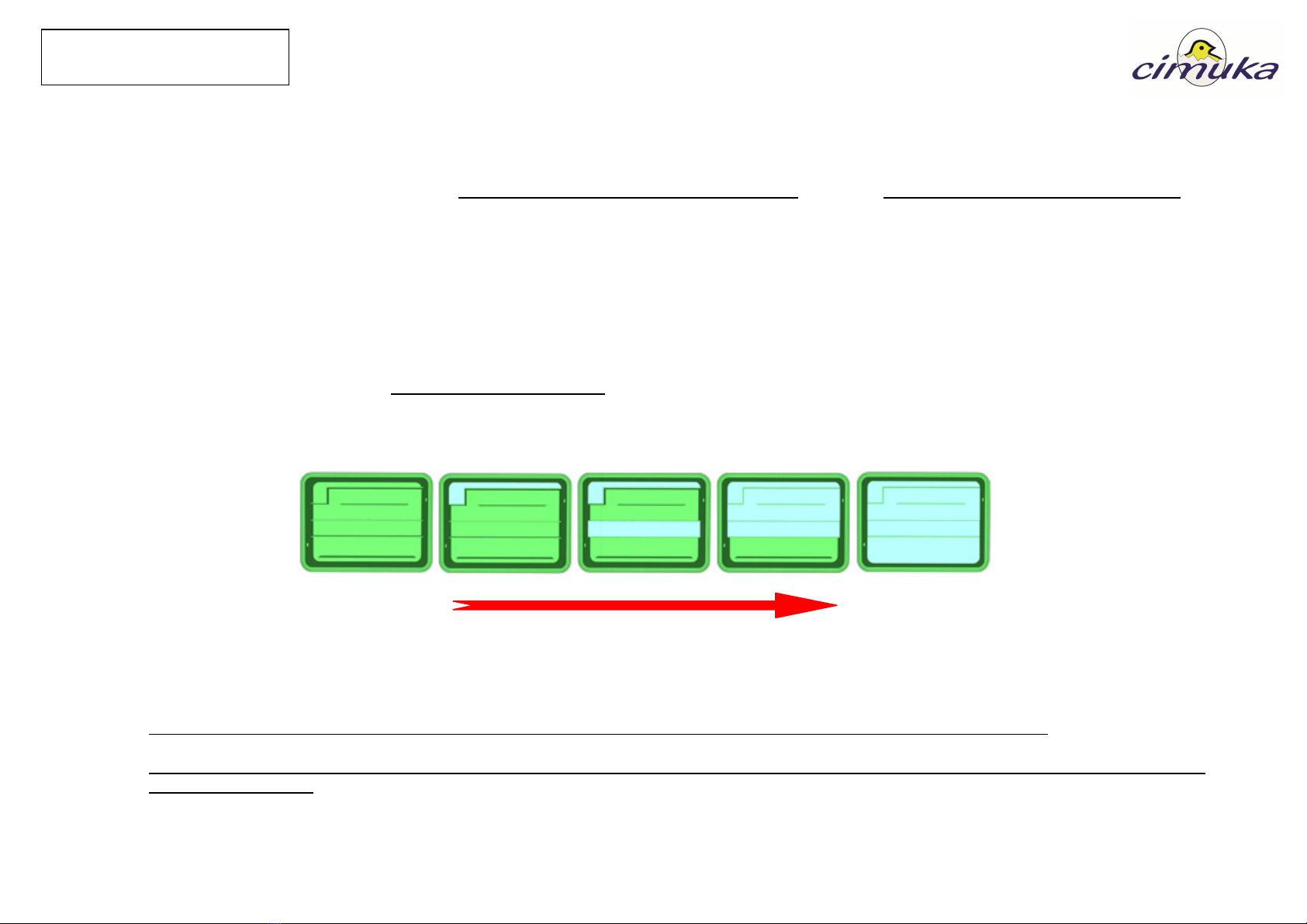

Cabinet humidity value can be adjusted by water channels. Humidity values are shown in control panel digitally.
Humidity levels directly result of water surface area in base. PD models have different size of water channels to adjust humidity at desired
level.
Lowe t humidity
Highe t humidity
Don’t forget that humidity values depend on temperature values, always check humidity values at temperature set point.
You could not decrease humidity below a point and could not increase above a point . This low and up limits depend on humidity level of
your incubation room.
CAUTION! Never fill humidity trays with cold water. Use warm water close to incubator temperature set point. Ideally 25-35
0
C

11
CAUTION! Never close air-out ventils more than 1/3.
CAUTION! Air –out ventils should be fully open during hatching period.
PD SERIES
Air out ventil
1/3 open
Highe t humidity
Full open
Lowe t humidity
Half open
Air out ventils can also be used for humidity adjustment

12
1
Conturn
TM
30 base
2
Conturn
TM
Egg Rack
3
Rack fixing bar
4
Rack fixing pins
5
Main turner bar
6
Conturn
TM
Motor
7
Conturn
TM
Adapter
PD SERIES
Egg Turning / Conturn
TM
30
Adjustment
Conturn
TM
30 Adjustment
4 hours
1
3
4 5 6 7
Conturn
TM
30 comes with 6 rack installation in standard, if you have bigger eggs than chicken eggs, racks must be adjusted.
•Remove the rack fixing bar(3) and pins(4).
•Remove main turner bar(5) from motor
•Adjust the egg racks(2) for your egg size .
•Fix main turning bar(5) to motor arm and racks.
•Fix the rack fixing bar(3) and pins(4).
CAUTION! It is important that Conturn
TM
30 trays must be settle truly. Before connecting
Conturn
TM
30 to power, be sure that channels are in same angel.
2
Conturn
TM
motor provides
continuous turning,
(1 turn per 4 hour for 220VAC and
per 3.20 hour for 110VAC models)

13
5 pc- Standard Rack
Big Duck / Turkey
Hole no: 1-4-7-10 -13
6 pc- Standard Rack
Chicken or smaller eggs
Hole no: 1-3-6-8-11-13
9 quail egg x 6 rack
5 chicken/duck egg x 6 rack
4 turkey/big duck egg x 5 rack
7 partridge egg x 6 rack
6 pheasant egg x 6 rack
EGG CAPACITIES
PD SERIES
Conturn
TM
30 base and main turner bar have holes for adjustments of channels. In standard, it comes with 6 channels. It can
be used for hen and smaller eggs without any change.
C
onturn
TM
30 has
13 holes shown below.
Use hole numbers given above to adjust tray for your egg size.
CAUTION ! Channels must be adjusted for biggest size egg that you will set.
Never set big eggs that can fall down during turning.
1
2
13
4 5
6
8
9
7
11
10 12
3
1
3
6
8 11 13
1
4
7
10
13

14
Standard Egg Rack
QT13
Quail Egg Tray
(optional)
Standard egg rack holds 9 pc quail egg, QT13 quail rack are placed directly onto the
standard channel and holds 13 quail eggs in one rack and help you to place smaller size
quail eggs than normal.
QT13
PD SERIES
CAUTION ! Never set eggs on the position small end top. Eggs must be set small end down or horizontal.

15
2
5
9
12
GT03
–
Goose Egg Rack
( optional)
GooseEgg Rack has been designed for large goose eggs. Goose eggs must set racks as horizontal
position, small end a bit lower about 10 degree. This helps chicks for easy hatching. And
periodic cooling of goose eggs is advisable.
GT03
PD SERIES
4 pc- Goose Egg Rack
Goose
Hole no: 2-5-9-12
CS6
CS6
–
Hatchery Basket
( optional)
CS6 hatchery baskets give chance to user partial settings to Conturn
TM
30.
Between egg settings must be min 5 day.
Example: 5 chicken egg setting every 5 day.

16
Active Periodic Cooling (APC)
CAUTION! Active periodic cooling function is for professional users. If needed please take assistance from your dealer. Results can
change depending on poultry species, egg sizes, room conditions…etc. Inappropriate, long time of periodic coolings can result with late
hatching and chick looses.
In natural incubation, most birds leaves the nest for a period of time, at least one time after first week of the incubation. Eggs cool and dehumidify
for this period. Active periodic cooling (APC) lets user to mimic this natural behavior in artificial incubation.
Last researches show that periodic cooling of goose, duck and even chicken eggs during incubation has positive effects in hatch rates and chick
quality. Especially periodic cooling is very important for most of goose types. Without periodic cooling hatch rates can decrease up to 20-30% in
goose egg incubation. Most breeders makes cooling action manually by taking eggs out of the incubator, cools in hatchery room conditions and
sprays eggs with warm water and then place eggs to the incubator again.
Cimuka presents Active Periodic Cooling (APC) function with 2 different modes as “cooling for a time (clt)” and “cooling for a set (clS)”
Both modes have designed to simulate natural behavior.
Cooling for a time (clt) mode cuts the heater and humidifier power (for models with humidifier) for an adjusted time and system turns to standard
working conditions. Temperature / humidity alarms are off during cooling.
Cooling for a set (clS) mode cuts the heater and humid
ifier power (for models with humidifier) and drops temperature up to an adjusted set point.
It keeps the temperature at this point for an adjusted time than turns to standard working conditions. Temperature and humidity alarms are off
during cooling.
For both modes the system has;
Humidification option (for models with humidifier) just before cooling finished with adjustable parameters; humidification time and max humidity.
fan assistant cooling option (for models with cooling fan) to reach desired cooling temperature faster.
Cimuka’s advanced incubator controller lets user to change all parameters with Active Periodic Cooling (APC) menu to try and achieve best hatch
rates for different poultry specie’s eggs.
PD SERIES

17
Active Periodic Cooling (APC) Menu
50
%
T
H
U
D
37.7
oFF
%
T
H
U
D
cIF
coF
%
T
H
U
D
cb
24
%
T
H
U
D
8.0
%
T
H
U
D
Press U + D together / 3s to enter the menu
Use T /H buttons to pass next / before parameter.
Use U/D buttons to change parameter values.
cIF: Active Periodic cooling(APC) unciton activation.
oFF: Active Periodic Cooling is deactivated.
cLt: “cooling for a time” mode. Stops heater and humidifier
for “hct” time. ( check hct parameter)
cLS: “cooling for a set ”mode. Stops heaters and humidifier up
to a adjusted temperature set point and keep temperature at
this point for an adjusted time. (check cSt/FSt)
cb: Active Periodic cooling Starting.
con: first cooling starts immediately after save the menu.
coF: first cooling starts after periodic cooling cycle (cPr)
cPr: Periodic cooling cycle time( hours)
6 8 12 24 48 72 hours selectable.
System repeats cooling in this cycle.
cSt: cooling set point ( or C display models)
cooling set value: temperature set point – cst ( 8 C)
note: cSt is only active in clS mode on C display models
Example: for a system working on 37.7 C, system
cools up to 29,7 C (37,7 – 8.0)
FSt: cooling set point F. ( or F display models)
cooling set value: temperature set point – FSt ( 15 C)
note: FSt is only active in clS mode on C display models
Example: for a system working on 99.8 F, system
cools up to 84,8 F (99,8 – 15.0)
cth: waiting time in cooling set point.( minute)
Waiting time of system in cooling set point
cth is only active in clS mode
cPr
cSt
15.0
%
T
H
U
D
FSt
30
%
T
H
U
D
cth
180
%
T
H
U
D
hct
on
%
T
H
U
D
chu
10
%
T
H
U
D
80
%
T
H
U
D
hct: max cooling time ( minute)
Heater /humidifier cut off time for clt mode.
Maximum cooling time for clS mode.
chu: humidi ication activation during cooling
( only or models equipped with humidi ier)
on: humidification activated
oFF: humidification deactivated
cht :Humidi ication time in cooling ( minute)
( only or models equipped with humidi ier)
Humidification will start before cooling finished for cht
time.
Example. If cooling will finish within 30 minutes.
Humidification starts after 20 minute(30 10). (see page 21)
chh : max humidi ication set in cooling( RH%)
( only or models equipped with humidi ier)
Humidifier works up to this set and keeps incubator in this
point during humidification period.
cFn : cooling an activation
( only or models equipped with cooling an)
On: cooling fan is activated during cooling.
OFF: cooling fan is deactivated during cooling.
Press T+ H together / 3s to save the changing’s.
During cooling, “cool” blinks on up screen,
CAUTION! don’t cut the power of incubator
during cooling. Power cut will terminate cooling but
the time for cooling period will continue.
cht
chh
on
%
T
H
U
D
cFn
donE
%
T
H
U
D
SAVE
42
%
T
H
U
D
>Cool<
PD SERIES

18
Unfortunately, the best hatch rates can be reached with which parameter combination is not known for different species yet. But Cimuka Research
Team is collecting data from our research center and customers for different APC application results and advises below details for Cooling for a Set
(clS) mode.
Note: Cooling by a time (clt) mode is highly dependent on hatchery room conditions and the loaded egg amount in the model and only advisable to
use for temperature controlled hatchery rooms to reach same hatching results.
Active Periodic Cooling (APC) Parameters
Display
Factory settings
Chicken
Duck
Goose
Cooling mode
clF
oFF
cIS
n at 8th day
ff at 19th day
cIS
n at 8th day
ff at 25th day
cIS
n at 8th day
ff at 27th day
Cooling start time
cb
cof
con
con
con
Cooling cycle time
cPr
24
h
24
24
24
Cooling set point C ( set
–
adjusted data)
cSt
-
8.0
C
-
8.0
-
8.0
-
8.0
Cooling set point F ( set
–
adjusted data)
FSt
-
15
.0
F
-
15.0
-
15.0
-
15.0
Waiting time in cooling set point
cth
20
min
10 min. 8th to
13th
20 min. 14th to 18th
10 minutes 8th to 15th
25 minutes 16th to 25th
10 min. 8th to 14th
20 min. 15th to 21th
40 min. 22th to 27th
Max
cooling time
hct
120
min.
120 min.
150 min.
180 min.
Humidification*
chu
on
-
/on
on
on
Humidification Time*
cht
10
min.
10
15
15
Max humidity during humidification*
chh
80
RH%
80
80
80
Cooling fan
activation**
cFn
on
on
on
on
* only or models equipped with humidi ier
**only or models equipped with cooling an
CAUTION! Don’t forget to off Active Periodic cooling function during hatching period. Cooling in last 2-3 days of incubation results
with bad hatching rates and chick loses.
CAUTION! Changing cooling mode (cIF) or cooling cycle time (cPr) parameters in APC menu resets periodic cooling cycle time (cPr).
CAUTION! In clS mode, time to reach cooling set point cSt (Fst) is highly dependent to room temperature. For very low set points,
system could not reach cooling set point. For such situations, system finalizes cooling at max cooling time (hct).
PD SERIES

19
Active Periodic Cooling (APC) function behavior at
“cooling for a set ( clS)” mode given in the graph for
below parameters .
APC Parameters Display settings
Cooling mode
clF
clS
Cooling
start time
cb
on
Cooling cycle
cPr
24 h
Cooling set point C ( set
–
adjusted data)
cSt
-
8.0 C
Cooling set point F ( set
–
adjusted data)
FSt
-
15 F
Waiting time in cooling set point
cth
2
0 min
Max cooling time
hct
120 min
Humidification*
chu
on
Humidification Time*
cht
10 min.
Max humidity during humidification*
chh
80 RH%
Cooling fan activation**
cFn
on
* only or models equipped with humidi ier
**only or models equipped with cooling an
System repeats APC behavior every cPr time.
In a power cut, cooling cyle time cPr is not reset,
continue from last recorded time. As an example, if
there is an 1 hour power cut, the next cooling time
will delay about 1 hour.
Remaining time to next cooling can be checked by
the controller ( see page 9)
APC starts
APC stops
cSt
cth
APC start
APC stop
chh
cht
Humidification starts
TEMPERATURE
HUMIDITY
PD SERIES

20
50
70
19
TH
DAY
Transfering to
hatchery tray
19
TH
DAY
Transfering to
hatchery tray
PD SERIES
Setting and Hatching
Eggs must be hold in Conturn30 up to the last 2-3 day of incubation and then transferred to hatchery basement for last 3 day
of incubation. Eggs are placed to hatchery tray at horizontal position freely. Don’t forget to change temperature/ humidity
values last 2-3 day of incubation.
Example : Chicken Egg ( incubation time 21 day)
PD60 SH
- Eggs of different species which have different incubation time can set together by adjusting the transfer date to the same day.
- PD30SH model with optional CS6 hatchery basket and PD60 SH model can be used by setting partially. Between 2 set must be min 5 - 7
day. During last 2-3 day of incubation, always keep temp / humidity set values at hatchery values even you have eggs in setting period.
First 18 day
Temp: 37.7
0
C
Humidity: 50 % RH ( 50 55)
Last 3 day
Temp: 37.2
0
C
Humidity: 70 % RH ( 65 70)
T
H
U
D
37.7
T
H
U
D
37.2
PD30 SH
