Cincoze CS-110HC/M1001 User manual

Sunlight Readable Touch Monitor
Industrial Touch Monitor
Sunlight Readable Series
CS-100/M1000 Series

CS-100/M1000 Series
Convertible Touch Monitor | User’s Manual
2
Contents
Preface
Revision …………………………………………………..……………….……….. 03
Copyright Notice …………………………………………………………………… 03
Acknowledgement ……………………………………………………................... 03
Disclaimer ………………………………………………………….……………….. 03
Declaration of Conformity ……………………………………….………………… 03
Product Warranty Statement ……………………………………….…………….. 04
Technical Support and Assistance ………………………………….……………. 05
Conventions Used in this Manual …………………………………….………….. 05
Safety Precaution …..…………………………………….…………….………….. 06
Package Contents ……………………………………………….……….………… 07
Optional Accessories …………...…………………………………….................... 07
Ordering Information …………………………………………….……….………… 08
Chapter 1 Product Introductions
1.1 Overview ………………………………..………………......………....... 10
1.2 Highlights………………………………..………………......………....... 11
1.3 Hardware Specification ...……………..………………......………...... 12
1.3.1 CS-110HC/M1001 & CS-110HC-OB/M1001 …..…………...... 12
1.3.2 CS-112HC/M1001 & CS-112HC-OB/M1001 ..……………....... 14
1.3.3 CS-115C/M1001 & CS-115C-OB/M1001 ……..……………..... 16
1.3.4 CS-117C/M1001 & CS-117C-OB/M1001 ……..……………..... 18
1.3.5 CS-119C/M1001 & CS-119C-OB/M1001 ….……………......... 20
1.4 System I/O ……………………………………………………………… 22
1.4.1 Front ……………………………………………………………… 22
1.4.2 Rear ………….………………………………….………………... 22
1.4.3 Side (Left) ………………………………….….………………... 23
1.4.4 Side (Right) ………………………………..….………………... 23
1.4.5 Top ………………………………..….………………………….. 24
Chapter 2 OSD Operation
2.1 Function Description of OSD …..…………………………………..... 26
Chapter 3 System Setup
3.1 Connecting with CS Display Module ….…………..….…………….... 28
3.2 VESA Mount ……..……………………….…………..….…………….... 30
3.3 Wall Mount ……………………………….…………..….…………….... 31
3.4 Panel Mount …………………………..….…………..….…………….... 33

CS-100/M1000 Series
Convertible Touch Monitor | User’s Manual
3
Revision
Copyright Notice
© 2018 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified,
or reproduced in any form or by any means for commercial use without the prior written permission of
Cincoze Co., Ltd.All information and specification provided in this manual are for reference only
remaining subject to change without prior notice.
Acknowledgement
Cincoze is a registered trademark of Cincoze Co., Ltd. All registered trademarks and product names
mentioned herein are used for identification purposes only and may be trademarks and/or registered
trademarks of their respective owners.
Disclaimer
This manual is designed to be used as a practical and informative guide only and is subject to change
without notice. It does not represent a commitment on the part of Cincoze. This product might include
unintentional technical or typographical errors. Changes are periodically made to the information
herein to correct such errors, and these changes are incorporated into new editions of the publication.
Declaration of Conformity
Preface
FCC
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
CE
The product(s) described in this manual complies with all application European Union
(CE) directives if it has a CE marking. For computer systems to remain CE compliant,
only CE-compliant parts may be used. Maintaining CE compliance also requires proper
cable and cabling techniques.
Revision
Description
Date
1.0
Manual Released
2018/01/24
Prefaces

CS-100/M1000 Series
Convertible Touch Monitor | User’s Manual
4
Product Warranty Statement
Warranty
Cincoze products are warranted by Cincoze Co., Ltd. to be free from defect in materials and
workmanship starting from the date of purchase by the original purchaser. The actual warranty period
of Cincoze products vary with product categories. During the warranty period, we shall, at our option,
either repair or replace any product that proves to be defective under normal operation.
Defects, malfunctions, or failures of the warranted product caused by damage resulting from natural
disasters (such as by lightening, flood, earthquake, etc.), environmental and atmospheric disturbances,
other external forces such as power line disturbances, plugging the board in under power, or incorrect
cabling, and damage caused by misuse, abuse, and unauthorized alteration or repair, and the product
in question is either software, or an expendable item (such as a fuse, battery, etc.), are not warranted.
Product Warranty Period:
RMA
Before sending your product in, you will need to fill in Cincoze RMARequest Form and obtain a RMA
number from us. Our staff is available at any time to provide you with the most friendly and immediate
service.
RMA Instruction
Customers must fill in Cincoze Return MerchandiseAuthorization (RMA) Request Form and
obtain a RMA number prior to returning a defective product to Cincoze for service.
Customers must collect all the information about the problems encountered and note anything
abnormal and describe the problems on the “Cincoze Service Form” for the RMA number apply
process.
Charges may be incurred for certain repairs. Cincoze will charge for repairs to products whose
warranty period has expired. Cincoze will also charge for repairs to products if the damage
resulted from acts of God, environmental or atmospheric disturbances, or other external forces
through misuse, abuse, or unauthorized alteration or repair. If charges will be incurred for a
repair, Cincoze lists all charges, and will wait for customer’s approval before performing the
repair.
Customers agree to insure the product or assume the risk of loss or damage during transit, to
prepay shipping charges, and to use the original shipping container or equivalent.
Customers can be send back the faulty products with or without accessories (manuals, cable,
etc.) and any components from the system. If the components were suspected as part of the
problems, please note clearly which components are included. Otherwise, Cincoze is not
responsible for the devices/parts.
Repaired items will be shipped along with a "Repair Report" detailing the findings and actions
taken.
Limitation of Liability
Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use, whether
based on warranty, contract, negligence, product liability, or otherwise, shall not exceed the original
selling price of the product. The remedies provided herein are the customer’s sole and exclusive
remedies. In no event shall Cincoze be liable for direct, indirect, special or consequential damages
whether based on contract of any other legal theory.
Prefaces
Product Category Warranty Period
Monitor Module 2 Years
Display Module 1 Year

CS-100/M1000 Series
Convertible Touch Monitor | User’s Manual
5
Technical Support and Assistance
1. Visit the Cincoze website at www.cincoze.com/support.php where you can find the latest
information about the product.
2. Contact your distributor or our technical support team or sales representative for technical support
if you need additional assistance. Please have following information ready before you call:
Product name and serial number
Description of your peripheral attachments
Description of your software (operating system, version, application software, etc.)
A complete description of the problem
The exact wording of any error messages
Conventions Used in this Manual
Prefaces
This indication alerts operators to an operation that, if not strictly
observed, may result in severe injury.
WARNING
This indication alerts operators to an operation that, if not strictly
observed, may result in safety hazards to personnel or damage to
equipment.
CAUTION
This indication provides additional information to complete a task easily.
NOTE

CS-100/M1000 Series
Convertible Touch Monitor | User’s Manual
6
Safety Precautions
Before installing and using this device, please note the following precautions:
1. Read these safety instructions carefully.
2. Keep this User’s Manual for future reference.
3. Disconnected this equipment from anyAC outlet before cleaning.
4. For plug-in equipment, the power outlet socket must be located near the equipment and must be
easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall may cause
damage.
7. Make sure the voltage of the power source is correct before connecting the equipment to the
power outlet.
8. Use a power cord that has been approved for using with the product and that it matches the
voltage and current marked on the product’s electrical range label. The voltage and current rating
of the cord must be greater than the voltage and current rating marked on the product.
9. Position the power cord so that people cannot step on it. Do not place anything over the power
cord.
10.All cautions and warnings on the equipment should be noted.
11.If the equipment is not used for a long time, disconnect it from the power source to avoid damage
by transient overvoltage.
12.Never pour any liquid into an opening. This may cause fire or electrical shock.
13.Never open the equipment. For safety reasons, the equipment should be opened only by qualified
service personnel.
If one of the following situations arises, get the equipment checked by service personnel:
The power cord or plug is damaged.
Liquid has penetrated into the equipment.
The equipment has been exposed to moisture.
The equipment does not work well, or you cannot get it to work according to the user's manual.
The equipment has been dropped and damaged.
The equipment has obvious signs of breakage.
14. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type recommended by the manufacturer.
Prefaces

CS-100/M1000 Series
Convertible Touch Monitor | User’s Manual
7
Package Contents
Before installation, please ensure all the items listed in the following table are included in the package.
Prefaces
Item Description Q’ty
1Touch Monitor 1
2Panel Mounting Kit 1
3Utility DVD Driver 1
4Power Terminal Block Connector 1
5USB Cable 1
6VGA Cable 1
7Screw Pack 1
Note: Notify your sales representative if any of the above items are missing or damaged.
Optional Accessories
Model No. Description
GST60A12-CIN Adapter AC/DC 12V 5A 60W, GST60A12-CIN, wide temp (-30°C ~ +70°C), Level VI
DVI-D Cable DVI-D male to DVI-D male Cable 1.8M
SL2-SL3 US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M
SL6-SL3 EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M
QP026-SL3 UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M

CS-100/M1000 Series
Convertible Touch Monitor | User’s Manual
8
Prefaces
Ordering Information
Model No. Product Description
CS-110HC-R10/M1001-R12 10.4" TFT-LCD 1500 nits Sunlight Readable Touch Monitor with P-Cap.
Touch
CS-110HC-OB-R10/M1001-
R12 10.4" TFT-LCD 1500 nits Sunlight Readable Touch Monitor with P-Cap.
Touch and Optical Bonding
CS-112HC-R10/M1001-R12 12.1" TFT-LCD 1500 nits Sunlight Readable Touch Monitor with P-Cap.
Touch
CS-112HC-OB-R10/M1001-
R12 12.1" TFT-LCD 1500 nits Sunlight Readable Touch Monitor with P-Cap.
Touch and Optical Bonding
CS-115C-R10/M1001-R12 15" TFT-LCD 1600 nits Sunlight Readable Touch Monitor with P-Cap.
Touch
CS-115C-OB-R10/M1001-
R12 15" TFT-LCD 1600 nits Sunlight Readable Touch Monitor with P-Cap.
Touch and Optical Bonding
CS-117C-R10/M1001-R12 17" TFT-LCD 1500 nits Sunlight Readable Touch Monitor with P-Cap.
Touch
CS-117C-OB-R10/M1001-
R12 17" TFT-LCD 1500 nits Sunlight Readable Touch Monitor with P-Cap.
Touch and Optical Bonding
CS-119C-R10/M1001-R12 19" TFT-LCD 1600 nits Sunlight Readable Touch Monitor with P-Cap.
Touch
CS-119C-OB-R10/M1001-
R12 19" TFT-LCD 1600 nits Sunlight Readable Touch Monitor with P-Cap.
Touch and Optical Bonding

Product Introductions
Chapter 1

CS-100/M1000 Series
Convertible Touch Monitor | User’s Manual
10
1.1 Overview
The CS-100/M1001 Series is a sunlight readable touch monitor offering ultra-high brightness and
high resolution. It supports both digital and analog signal input via three types of display interface,
including VGA, DVI-D and DisplayPort. CS-100/M1001 Series supports Convertible Display System
(CDS) technology which allows you to configure, upgrade and maintain your display system
according to your need.In addition, it has OSD function for adjusting the viewing options of display.
Featuring wide range operating temperature (-5°Cto 60°C), IP65 dust/water proof front panel and
wide range DC power input (9 to 48VDC), CS-100/M1001 Series is a rugged and reliable display
solution for outdoor applications, such as heavy-duty lifting & moving equipment, e-toll collection
system, car-sharing system and outdoor kiosk.
Chapter 1: Product Introductions
Front Rear

CS-100/M1000 Series
Convertible Touch Monitor | User’s Manual
11
1.2 Highlights
Chapter 1: Product Introductions
Sunlight Readable
Providing ultra high brightness and high resolution, CS-100/M1001 Series is suitable for all
lighting conditions including direct sunlight.
Wide Temperature
CS-100/M1001 Series supports wide range operating temperature from -5°Cto 60°C and is
suitable for deploying in extreme and harsh environments.
Multiple Video Input
CS-100/M1001 Series supports high resolution and offers both digital and analog signal input
interfaces including VGA, DVI-D & DisplayPort.

CS-100/M1000 Series
Convertible Touch Monitor | User’s Manual
12
Chapter 1: Product Introductions
1.3 Hardware Specification
1.3.1 CS-110HC/M1001 & CS-110HC-OB/M1001
Key Features
•10.4" TFT LCD with Ultra High Brightness up to 1,500nits and 1024 x 768 (XGA) Resolution
• Signal Input: VGA, DVI-D and DisplayPort
• Wide Range Operating Temperature -5°C to 60°C
• Designed with Aluminum Die-casting Front Frame
• True Flat IP65 Front Panel Protection
• Supports Panel / Wall / VESA Mounting
• Wide Range Power Input 9~48VDC
• Convertible Display System (CDS) Technology Supported
• Supports Optical Bonding (Optional)
Hardware Specification
Display
•LCD Size: 10.4" (4:3)
•Max. Resolution: 1024 x 768
•Brightness (cd/m2): 1500
•Contrast Ratio: 1400 : 1
•LCD Color: 16.2M
•Pixel Pitch (mm): 0.264 (H) x 0.264 (V)
•Viewing Angle (H-V): 178 / 178
•Backlight MTBF: 50000 hrs (LED Backlight)
Touch
•Projected Capacitive Touch for CS-110C/M1001
I/O Ports
•1x VGA
•1x DVI-D
•1x DisplayPort
•1x Audio Input
•1x USB 2.0
•1x COM Port (Resistive Touch Only)
(USB & COM Port are reserved for the connection to enable
touch usage only)
Physical
•Dimension (WxHxD): 295 x 227.3 x 66 mm
•Weight: 3.36 kg
•Construction Front Panel: Die-cast Flat Surface
•Mounting: Panel / Wall / VESA Mounting
Other Features
•Audio: AMP 5W + 5W (Internal Speaker)
•OSD Function: LCD On/Off, Auto, Menu, Up and
Down
•Multi-language OSD Function
Power
•1x 3-pin Terminal Block Connector with Power
Input 9~48VDC
•1x Optional Power Adapter AC/DC 12V/5A, 60W
Environment
•Operating Temperature: Ambient with Air Flow:
-5°C to 60°C (with Industrial Grade Peripherals)
•Storage Temperature: -20°C to 70°C
•Shock: Operating, 15 Grms, Half-sine 11 ms
Duration (w/ SSD, according to IEC60068-2-27)
•Vibration: Operating, 1.5 Grms, 5-500 Hz, 3 Axes
(w/ SSD, according to IEC60068-2-64)
•Relative humidity: 90% RH @ 40°C
(Non-Condensing)
•IP Level: IP 65 Compliant Front Panel
Certification
•CE
•FCC Class A

CS-100/M1000 Series
Convertible Touch Monitor | User’s Manual
13
Chapter 1: Product Introductions

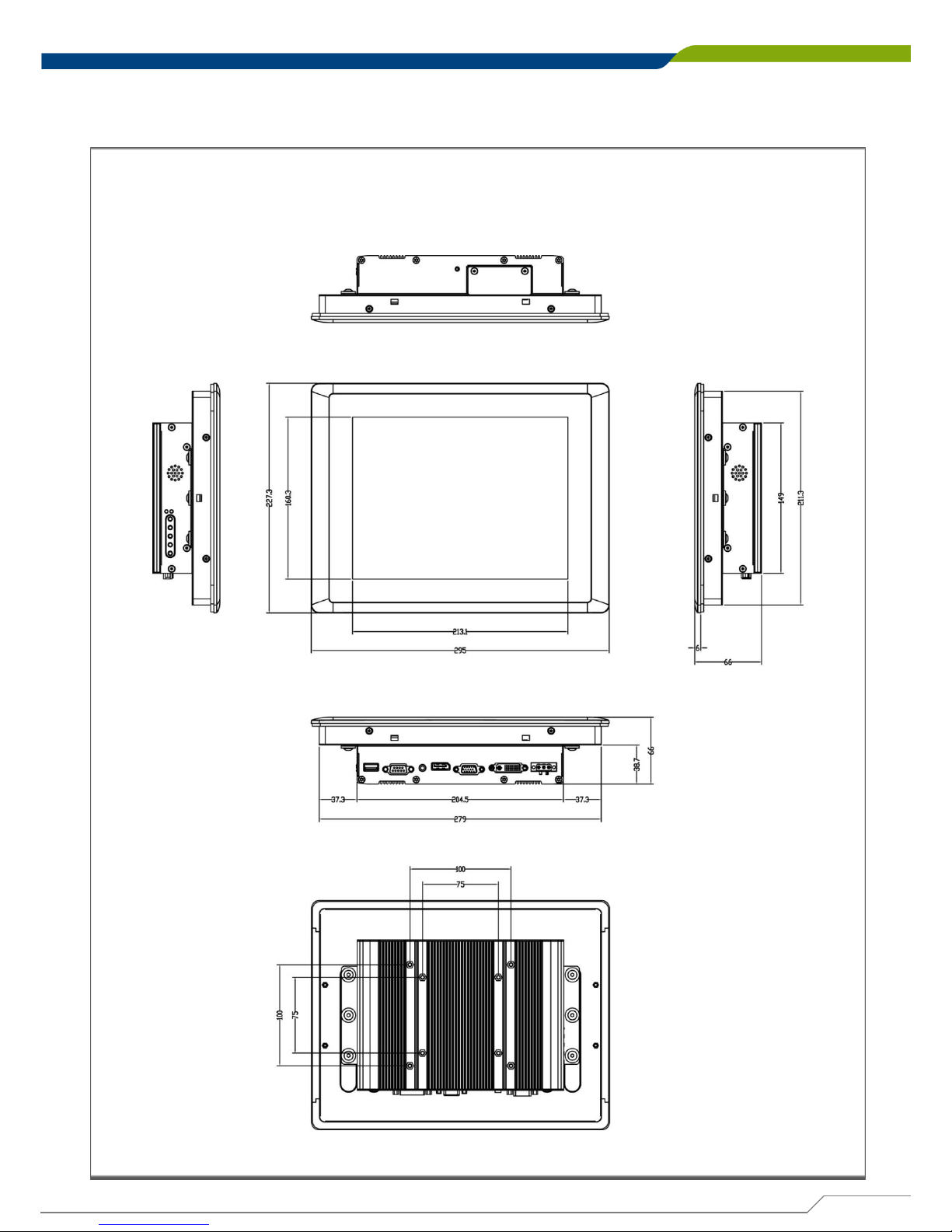

Dimension
Unit: mm
CS-110HC/M1001 & CS-110HC-OB/M1001

CS-100/M1000 Series
Convertible Touch Monitor | User’s Manual
14
Chapter 1: Product Introductions
1.3.2 CS-112HC/M1001 & CS-112HC-OB/M1001
Key Features
•12.1" TFT LCD with Ultra High Brightness up to 1,500nits and 1024 x 768 (XGA) Resolution
•Signal Input: VGA, DVI-D and DisplayPort
•Wide Range Operating Temperature -5°C to 60°C
•Designed with Aluminum Die-casting Front Frame
•True Flat IP65 Front Panel Protection
•Supports Panel / Wall / VESA Mounting
•Wide Range Power Input 9~48VDC
•Convertible Display System (CDS) Technology Supported
•Supports Optical Bonding (Optional)
Hardware Specification
Display
•LCD Size: 12.1" (4:3)
•Max. Resolution: 1024x 768
•Brightness (cd/m2): 1500
•Contrast Ratio: 700 : 1
•LCD Color: 16.2M
•Pixel Pitch (mm): 0.24 (H) x 0.24 (V)
•Viewing Angle (H-V): 160 / 160
•Backlight MTBF: 30000 hrs (LED Backlight)
Touch
•Projected Capacitive Touch for CS-112HC/M1001
I/O Ports
•1x VGA
•1x DVI-D
•1x DisplayPort
•1x Audio Input
•1x USB 2.0
•1x COM Port (Resistive Touch Only)
(USB & COM Port are reserved for the connection to enable
touch usage only)
Physical
•Dimension (WxHxD): 345 x 265.3 x 66.5 mm
•Weight: 4.28 kg
•Construction Front Panel: Die-cast Flat Surface
•Mounting: Panel / Wall / VESA Mounting
Other Features
•Audio: AMP 5W + 5W (Internal Speaker)
•OSD Function: LCD On/Off, Auto, Menu, Up and
Down
•Multi-language OSD Function
Power
•1x 3-pin Terminal Block Connector with Power
Input 9~48VDC
•1x Optional Power Adapter AC/DC 12V/5A, 60W
Environment
•Operating Temperature:Ambient with Air Flow:
-5°C to 60°C (with Industrial Grade Peripherals)
•Storage Temperature: -20°C to 70°C
•Shock: Operating, 15 Grms, Half-sine 11 ms
Duration (w/ SSD, according to IEC60068-2-27)
•Vibration: Operating, 1.5 Grms, 5-500 Hz, 3 Axes
(w/ SSD, according to IEC60068-2-64)
•Relative Humidity: 90% RH @ 40°C
(Non-Condensing)
•IP Level: IP 65 Compliant Front Panel
Certification
•CE
•FCC Class A

CS-100/M1000 Series
Convertible Touch Monitor | User’s Manual
15
Chapter 1: Product Introductions

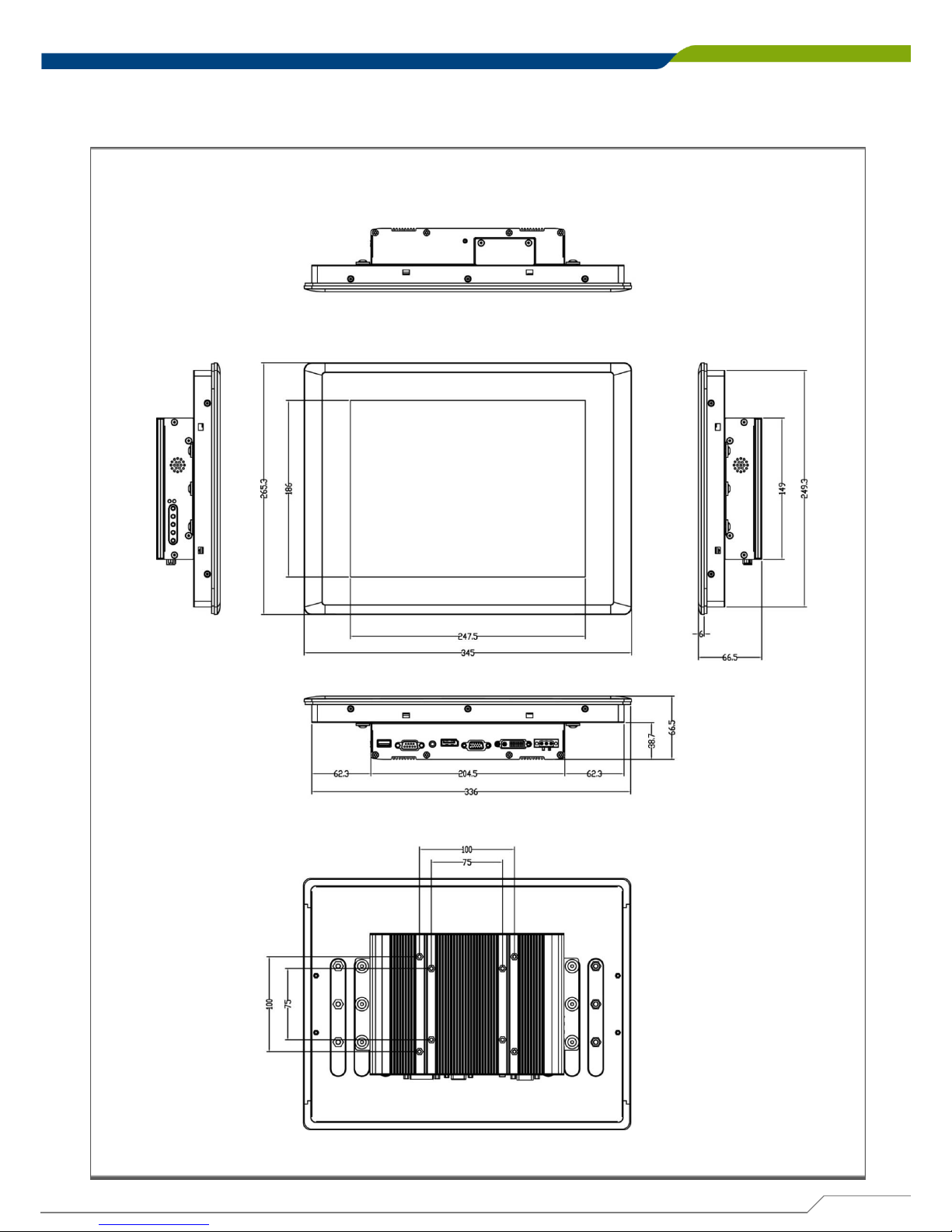

Dimension
Unit: mm
CS-112HC/M1001 & CS-112HC-OB/M1001

CS-100/M1000 Series
Convertible Touch Monitor | User’s Manual
16
Chapter 1: Product Introductions
1.3.3 CS-115C/M1001 & CS-115C-OB/M1001
Key Features
•15" TFT LCD with Ultra High Brightness up to 1,600nits and 1024 x 768 (XGA) Resolution
•Signal Input: VGA, DVI-D and DisplayPort
•Wide Range Operating Temperature -5°C to 60°C
•Designed with Aluminum Die-casting Front Frame
•True Flat IP65 Front Panel Protection
•Supports Panel / Wall / VESA Mounting
•Wide Range Power Input 9~48VDC
•Convertible Display System (CDS) Technology Supported
•Supports Optical Bonding (Optional)
Hardware Specification
Display
•LCD Size: 15" (4:3)
•Max. Resolution: 1024 x 768
•Brightness (cd/m2): 1600
•Contrast Ratio: 800 : 1
•LCD Color: 16.2M
•Pixel Pitch (mm): 0.297 (H) x 0.297 (V)
•Viewing Angle (H-V): 160 / 160
•Backlight MTBF: 50000 hrs (LED Backlight)
Touch
•Projected Capacitive Touch for CS-115C/M1001
I/O Ports
•1x VGA
•1x DVI-D
•1x DisplayPort
•1x Audio Input
•1x USB 2.0
•1x COM Port (Resistive Touch Only)
(USB & COM Port are reserved for the connection to enable
touch usage only)
Physical
•Dimension (WxHxD): 408 x 312.4 x 69 mm
•Weight: 5.48 kg
•Construction Front Panel: Die-cast Flat Surface
•Mounting: Panel / Wall / VESA Mounting
Other Features
•Audio: AMP 5W + 5W (Internal Speaker)
•OSD Function: LCD On/Off, Auto, Menu, Up and
Down
•Multi-language OSD Function
Power
•1x 3-pin Terminal Block Connector with Power
Input 9~48VDC
•1x Optional Power Adapter AC/DC 12V/5A, 60W
Environment
•Operating Temperature: Ambient with Air Flow:
-5°C to 60°C (with Industrial Grade Peripherals)
•Storage Temperature: -20°C to 70°C
•Shock: Operating, 15 Grms, Half-sine 11 ms
Duration (w/ SSD, according to IEC60068-2-27)
•Vibration: Operating, 1.5 Grms, 5-500 Hz, 3 Axes
(w/ SSD, according to IEC60068-2-64)
•Relative humidity: 90% RH @ 40°C
(Non-Condensing)
•IP Level: IP 65 Compliant Front Panel
Certification
•CE
•FCC Class A

CS-100/M1000 Series
Convertible Touch Monitor | User’s Manual
17
Chapter 1: Product Introductions
Dimension
Unit: mm
CS-115C/M1001 & CS-115C-OB/M1001

CS-100/M1000 Series
Convertible Touch Monitor | User’s Manual
18
Chapter 1: Product Introductions
1.3.4 CS-117C/M1001 & CS-117C-OB/M1001
Key Features
•17" TFT LCD with Ultra High Brightness up to 1,500nits and 1280 x 1024 (SXGA) Resolution
•Signal Input: VGA, DVI-D and DisplayPort
•Wide Range Operating Temperature -5°C to 60°C
•Designed with Aluminum Die-casting Front Frame
•True Flat IP65 Front Panel Protection
•Supports Panel / Wall / VESA Mounting
•Wide Range Power Input 9~48VDC
•Convertible Display System (CDS) Technology Supported
•Supports Optical Bonding (Optional)
Hardware Specification
Display
•LCD Size: 17" (5:4)
•Max. Resolution: 1280 x 1024
•Brightness (cd/m2): 1500
•Contrast Ratio: 800 : 1
•LCD Color: 16.7M
•Pixel Pitch (mm): 0.264 (H) x 0.264 (V)
•Viewing Angle (H-V): 160 / 140
•Backlight MTBF: 50000 hrs (LED Backlight)
Touch
•Projected Capacitive Touch for CS-117C/M1001
I/O Ports
•1x VGA
•1x DVI-D
•1x DisplayPort
•1x Audio Input
•1x USB 2.0
•1x COM Port (Resistive Touch Only)
(USB & COM Port are reserved for the connection to enable
touch usage only)
Physical
•Dimension (WxHxD): 450 x 350 x 73 mm
•Weight: 6.76 kg
•Construction Front Panel: Die-cast Flat Surface
•Mounting: Panel / Wall / VESA Mounting
Other Features
•Audio: AMP 5W + 5W (Internal Speaker)
•OSD Function: LCD On/Off, Auto, Menu, Up and
Down
•Multi-language OSD Function
Power
•1x 3-pin Terminal Block Connector with Power
Input 9~48VDC
•1x Optional Power Adapter AC/DC 12V/5A, 60W
Environment
•Operating Temperature: Ambient with Air Flow:
-5°C to 60°C (with Industrial Grade Peripherals)
•Storage Temperature: -20°C to 70°C
•Shock: Operating, 15 Grms, Half-sine 11 ms
Duration (w/ SSD, according to IEC60068-2-27)
•Vibration: Operating, 1.5 Grms, 5-500 Hz, 3 Axes
(w/ SSD, according to IEC60068-2-64)
•Relative humidity: 90% RH @ 40°C
(Non-Condensing)
•IP Level: IP 65 Compliant Front Panel
Certification
•CE
•FCC Class A

CS-100/M1000 Series
Convertible Touch Monitor | User’s Manual
19
Chapter 1: Product Introductions

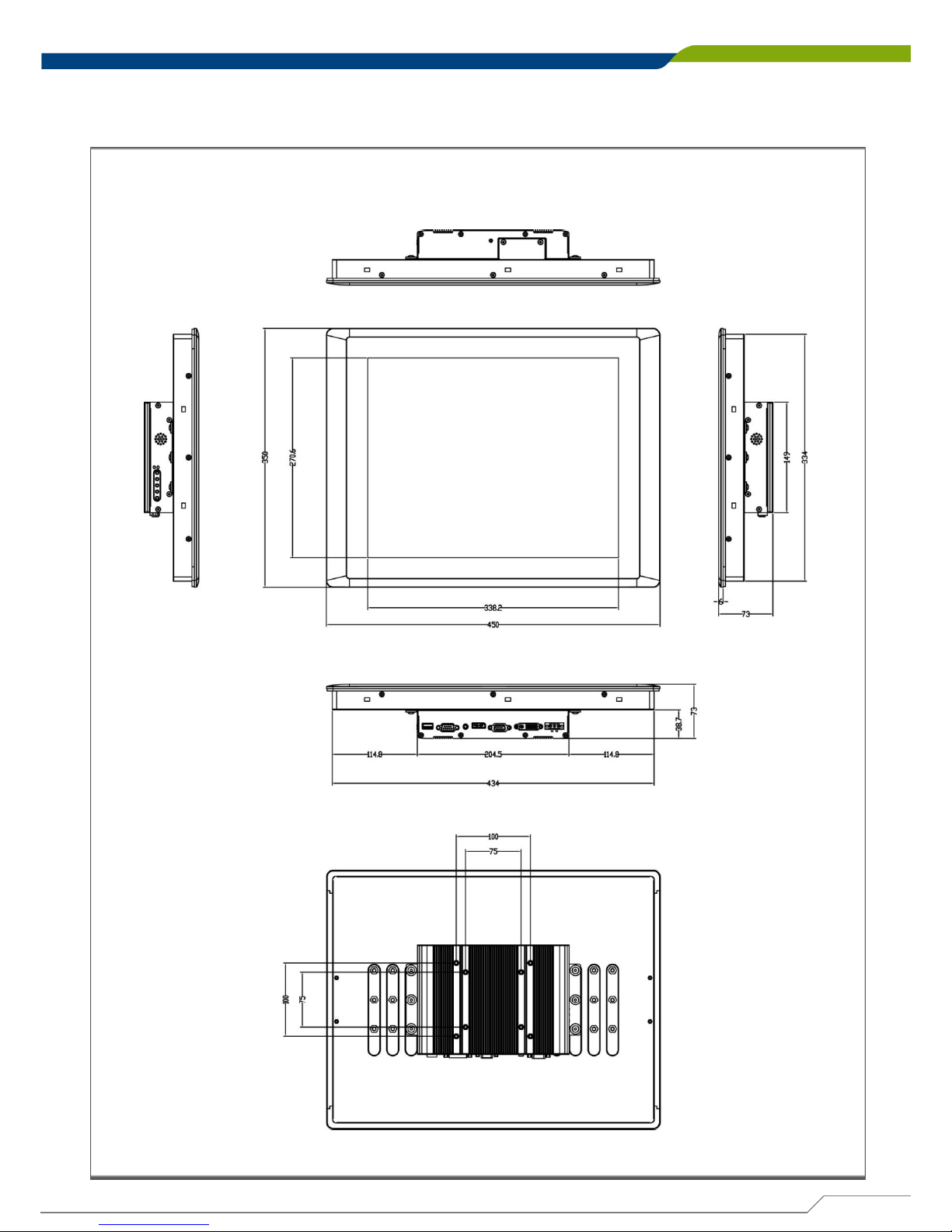

Dimension
Unit: mm
CS-117C/M1001 & CS-117C-OB/M1001

CS-100/M1000 Series
Convertible Touch Monitor | User’s Manual
20
Chapter 1: Product Introductions
1.3.5 CS-119C/M1001 & CS-119C-OB/M1001
Key Features
•19" TFT LCD with Ultra High Brightness up to 1,600nits and 1280 x 1024 (SXGA) Resolution
•Signal Input: VGA, DVI-D and DisplayPort
•Wide Range Operating Temperature -5°C to 60°C
•Designed with Aluminum Die-casting Front Frame
•True Flat IP65 Front Panel Protection
•Supports Panel / Wall / VESA Mounting
•Wide Range Power Input 9~48VDC
•Convertible Display System (CDS) Technology Supported
•Supports Optical Bonding (Optional)
Hardware Specification
Display
•LCD Size: 19" (5:4)
•Max. Resolution: 1280 x 1024
•Brightness (cd/m2): 1600
•Contrast Ratio: 1000 : 1
•LCD Color: 16.7M
•Pixel Pitch (mm): 0.294 (H) x 0.294 (V)
•Viewing Angle (H-V): 170 / 160
•Backlight MTBF: 50000 hrs (LED Backlight)
Touch
•Projected Capacitive Touch for CS-119C/M1001
I/O Ports
•1x VGA
•1x DVI-D
•1x DisplayPort
•1x Audio Input
•1x USB 2.0
•1x COM Port (Resistive Touch Only)
(USB & COM Port are reserved for the connection to enable
touch usage only)
Physical
•Dimension (WxHxD): 510 x 389.3 x 73 mm
•Weight: 8.08 kg
•Construction Front Panel: Die-cast Flat Surface
•Mounting: Panel / Wall / VESA Mounting
Other Features
•Audio: AMP 5W + 5W (Internal Speaker)
•OSD Function: LCD On/Off, Auto, Menu, Up and
Down
•Multi-language OSD Function
Power
•1x 3-pin Terminal Block Connector with Power
Input 9~48VDC
•1x Optional AC/DC 12V/5A, 60W Power Adapter
Environment
•Operating Temperature: Ambient with Air Flow:
-5°C to 60°C (with Industrial Grade Peripherals)
•Storage Temperature: -20°C to 70°C
•Shock: Operating, 15 Grms, Half-sine 11 ms
Duration (w/ SSD, according to IEC60068-2-27)
•Vibration: Operating, 1.5 Grms, 5-500 Hz, 3 Axes
(w/ SSD, according to IEC60068-2-64)
•Relative humidity: 90% RH @ 40°C
(Non-Condensing)
•IP Level: IP 65 Compliant Front Panel
Certification
•CE
•FCC Class A
