Notifier AFC-600 Owner's manual

$)&
,QWHOOLJHQW)LUH3DQHO
Programming Manual
One Fire-Lite Place
Northford, CT 06472
[phone]
[phone] (Fax)
Document 51032
3/8/99 Revision: A
PN 51032:A ECN 98-500
Technical Manuals Online! - http://www.tech-man.com

2AFC-600 Programming PN 51032:A 3/8/99
Installation Precautions –
Adherence to the following will aid in problem-free installation with long-term reliability:
WARNING -
Several different sources of power can be connected to
the fire alarm control panel.
Disconnect all sources of power before
servicing. Control unit and associated equipment may be damaged by
removing and/or inserting cards, modules, or interconnecting cables
while the unit is energized. Do not attempt to install, service, or
operate this unit until this manual is read and understood.
CAUTION -
System Reacceptance Test after Software Changes: To
ensure proper system operation, this product must be tested in
accordance with NFPA 72-1993 Chapter 7 after any programming
operation or change in site-specific software. Reacceptance testing is
required after any change, addition or deletion of system components,
or after any modification, repair or adjustment to system hardware or
wiring.
All components, circuits, system operations or software functions
known to be affected by a change must be 100% tested. In addition, to
ensure that other operations are not inadvertently affected, at least
10% of initiating devices that are not directly affected by the change,
up to a maximum of 50 devices must also be tested and proper system
operation verified.
This system meets NFPA requirements for operation at 0-49OC/
32-120OF and at a relative humidity of 85% RH (non-condensing) at
30OC/86OF. However, the useful life of the system's standby batteries
and the electronic components may be adversely affected by extreme
temperature ranges and humidity. Therefore, it is recommended that
this system and its peripherals be installed in an environment with a
nominal room temperature of 15-27OC/60-80OF.
Verify that wire sizes are adequate for all initiating device loops.
Most devices cannot tolerate more than a 10% I.R. drop from the
specified device voltage.
Like all solid state electronic devices, this system may operate
erratically or can be damaged when subjected to lightning induced
transients. Although no system is completely immune from lightning
transients and interferences, proper grounding will reduce
susceptibility.
Overhead or outside aerial wiring is not recommended,
due to an increased susceptibility to nearby lightning strikes.
Consult
with the Technical Services Department if any problems are
anticipated or encountered.
Disconnect AC power and batteries prior to removing or inserting
circuit boards. Failure to do so can damage circuits.
Remove all electronic assemblies prior to any drilling, filing, reaming
or punching of the enclosure. When possible, make all cable entries
from the sides or rear. Before making modifications, verify that they
will not interfere with battery, transformer and printed circuit board
location.
Do not tighten screw terminals more than 9 in-lbs. Over tightening
may damage threads, resulting in reduced terminal contact pressure
and difficulty with screw terminal removal.
This system contains static-sensitive components Always ground
yourself with a proper wrist strap before handling any circuits so that
static charges are removed from the body. Use static suppressive
packaging to protect electronic assemblies removed from the unit.
Follow the instructions in the installation, operating and programming
manuals. These instructions must be followed to avoid damage to the
control panel and associated equipment. FACP operation and
reliability depend upon proper installation.
Fire Alarm System Limitations
An automatic fire alarm system - typically made up of smoke
detectors, heat detectors, manual pull stations, audible warning
devices and a fire alarm control with remote notification capability can
provide early warning of a developing fire. Such a system, however,
does not assure protection against property damage or loss of life
resulting from a fire.
Any fire alarm system may fail for a variety of reasons:
Smoke detectors may not sense fire where smoke cannot reach the
detectors such as in chimneys, in walls, or roofs, or on the other side of
closed doors. Smoke detectors also may not sense a fire on another
level or floor of a building. A second floor detector, for example, may
not sense a first floor or basement fire. Furthermore, all types of
smoke detectors - both ionization and photoelectric types, have
sensing limitations. No type of smoke detector can sense every kind of
fire caused by carelessness and safety hazards like smoking in bed,
violent explosions, escaping gas, improper storage of flammable
materials, overloaded electrical circuits, children playing with matches,
or arson.
IMPORTANT!
Smoke detectors must be installed in the same room
as the control panel and in rooms used by the system for the
connection of alarm transmission wiring, communications, signaling
and /or power.
If detectors are not so located, a developing fire may
damage the alarm system, crippling its ability to report a fire.
Audible warning devices such as bells may not alert people if these
devices are located on the other side of closed or partly open doors or
are located on another floor of a building.
A fire alarm system will not operate without any electrical power. If
AC power fails, the system will operate from standby batteries only for
a specified time.
Rate-of-Rise heat detectors may be subject to reduced sensitivity
over time. For this reason, the rate-of-rise feature of each detector
should be tested at least once per year by a qualified fire protection
specialist.
Equipment used in the system may not be technically compatible
with the control panel. It is essential to use only equipment listed for
service with your control panel.
Telephone lines needed to transmit alarm signals from a premise to a
central monitoring station may be out of service or temporarily
disabled.
The most common cause of fire alarm malfunctions, however, is
inadequate maintenance. All devices and system wiring should be
tested and maintained by professional fire alarm installers following
written procedures supplies with each device. System inspection and
testing should be scheduled monthly or as required by National and/or
local fire codes. Adequate written records of all inspections should be
kept.
FCC Warning
WARNING: This equipment generates, uses and can radiate radio
frequency energy and if not installed and used in accordance with the
instruction manual, may cause interference to radio communications,
It has been tested and found to comply with the limits for class A
computing device pursuant to Subpart B of 15 of FCC Rules, which is
designed to provide reasonable protection against such interference
when operated in a commercial environment. Operation of this
equipment in a residential area is likely to cause interference, in which
case the user will be required to correct the interference at his own
expense.
Canadian Requirements
This digital apparatus does not exceed the Class A limits for radiation
noise emissions from digital apparatus set out in the Radio
Interference Regulations of the Canadian Department of
Communications.
Le present appareil numerique n'emet pas de bruits radioelectriques
depassant les limites applicables aux appareils numeriques de la
classe A prescrites dans le Reglement sur le brouillage radioelectrique
edicte par le ministere des Communications du Canada.
Technical Manuals Online! - http://www.tech-man.com

AFC-600 Programming PN 51032:A 3/8/99 3
&RQWHQWV
$ERXW7KLV0DQXDO
Scope of this Manual ................................................................................................... 7
Notes, Cautions, and Warnings.................................................................................. 7
Typographic Conventions........................................................................................... 8
Supplemental Information.......................................................................................... 8
Shortcuts to Operating Functions .............................................................................. 8
*HWWLQ
J
6WDUWHG
Introduction to the Control Panel.............................................................................. 9
In This Section ............................................................................................................. 9
How to Enter Information from the Control Panel ............................................... 10

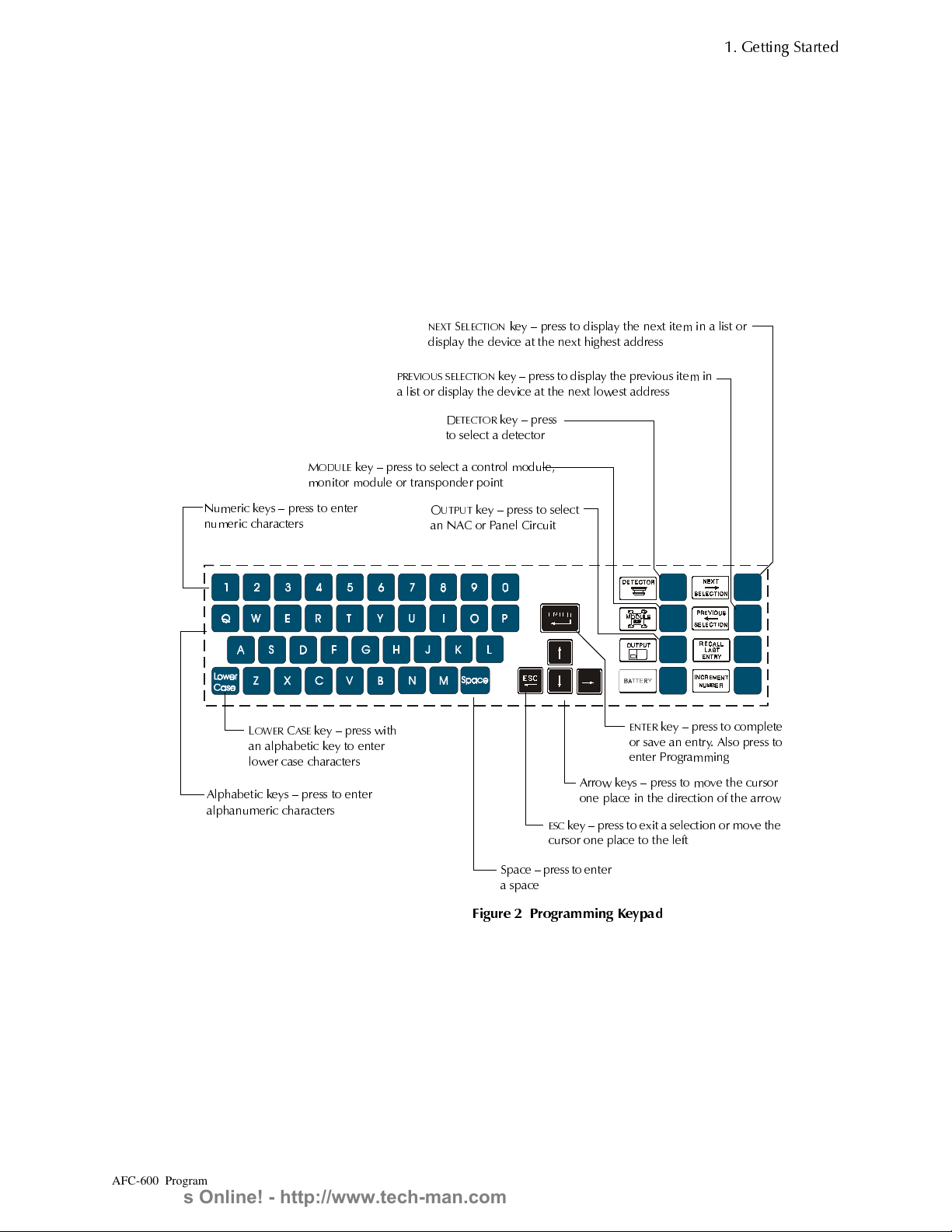

How to Use the Programming Keypad.................................................................... 11
How to Select a Programming Method ................................................................... 12
How to Enter a Programming Password................................................................. 12
3UR
J
UDP&KDQ
J
H
What is Program Change? ....................................................................................... 13

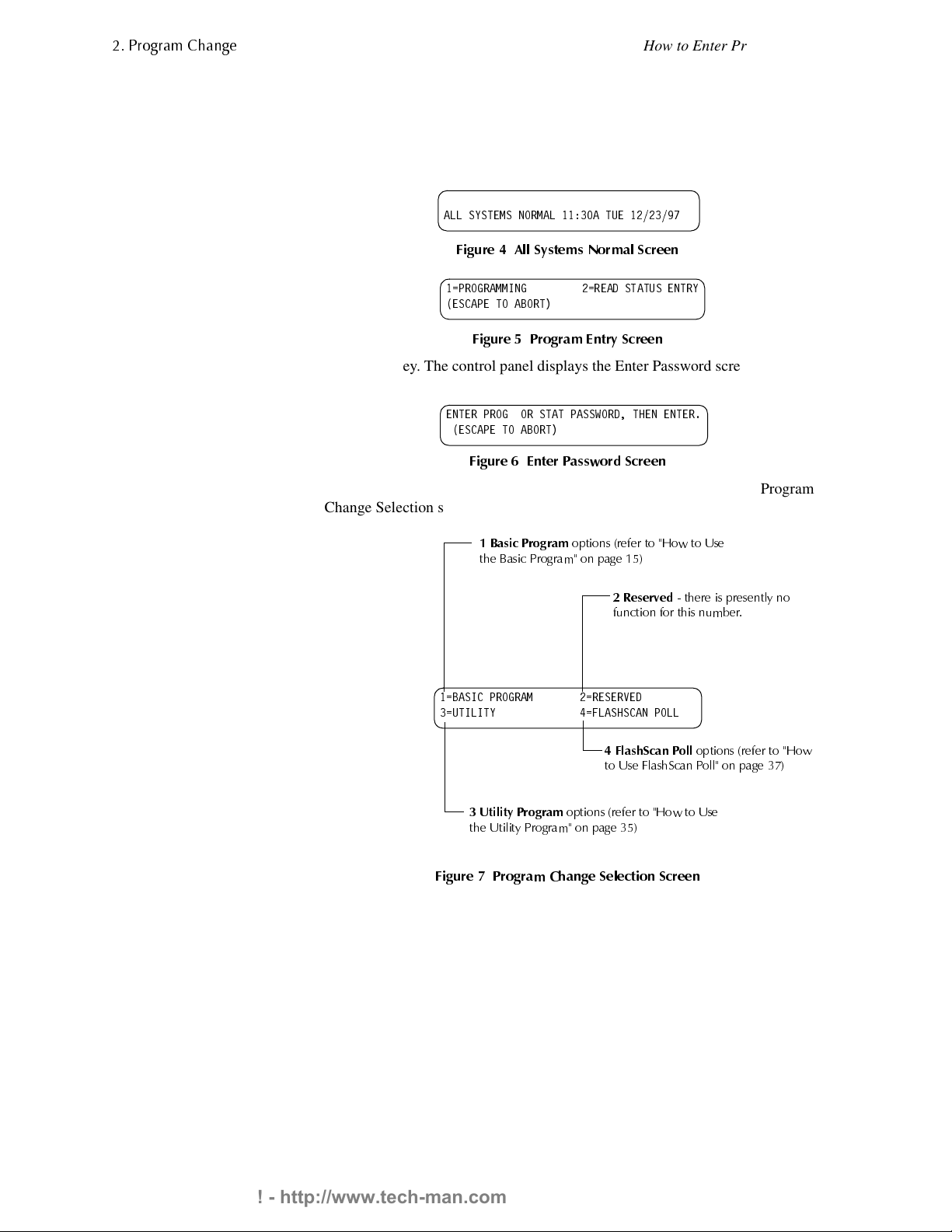

How to Enter Program Change................................................................................ 14
How to Use the Basic Program................................................................................. 15
How to Clear Memory (0=CLR) .............................................................................. 15
How to Autoprogram the Control Panel (1=AUTO)................................................. 16
Purpose................................................................................................................ 16
Create a New Program for the Control Panel ..................................................... 16

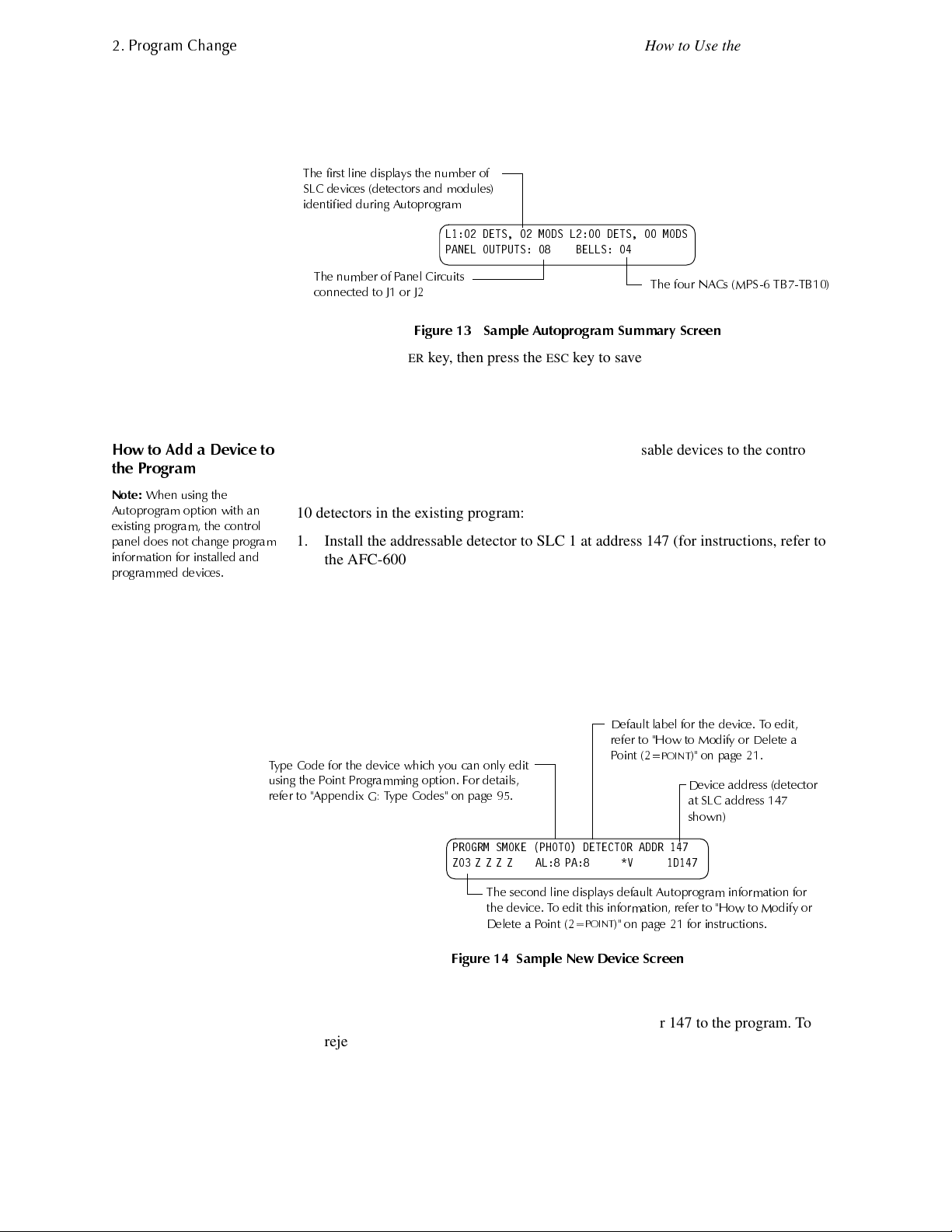

How to Add a Device to the Program................................................................. 18

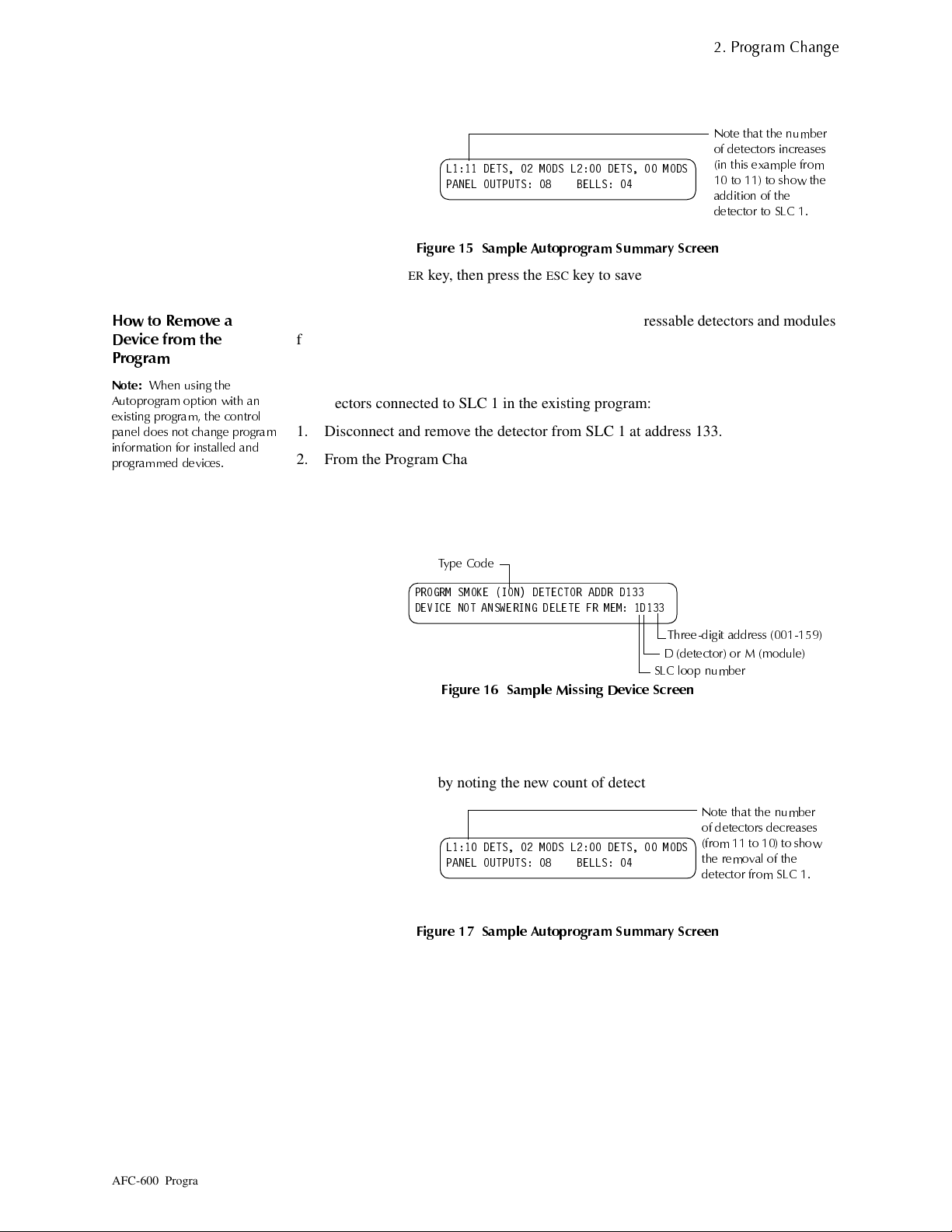

How to Remove a Device from the Program...................................................... 19
How to Change Autoprogram Defaults for System Functions ........................... 20
How to Modify or Delete a Point (2=POINT)........................................................... 21
How to Program an Intelligent Detector............................................................. 22
How to Program a Monitor Module ................................................................... 23
Monitor Module Default Zone Assignments ...................................................... 23
How to Program a Control Module .................................................................... 24
How to Program NACs and Panel Circuits ........................................................ 25
How to Change a Password (3=PASSWD)................................................................ 26
How to Create a System Message (4=MESSAGE) .................................................... 27
How to Create a Custom Zone Label (5=ZONE) ..................................................... 28
How to Program Special Zones (6=SPL FUNCT)...................................................... 29
What are Special Zones?..................................................................................... 29
How to Select Special Zones .............................................................................. 30
How to Change Global System Functions (7=SYSTEM).......................................... 32
Global System Functions .................................................................................... 32
Annunciator Options........................................................................................... 33
ACS Selection Group Example .......................................................................... 34
How to Check the Program for Errors (8=CHECK PRG) .......................................... 34
How to Use the Utility Program ............................................................................... 35
Utility Program Options .......................................................................................... 35
How to Select Utility Program Options .................................................................. 36
How to Use FlashScan Poll ....................................................................................... 37
FlashScan Poll Options ........................................................................................... 37
Baud Rate of Serial Port.......................................................................................... 38
Technical Manuals Online! - http://www.tech-man.com

4AFC-600 Programming PN 51032:A 3/8/99
&RQWHQWV
6WDWXV&KDQ
J
H
Overview..................................................................................................................... 39
How to Disable or Enable a Point ............................................................................ 40
How to Change Sensitivity for a Detector ............................................................... 41
How to Select a Detector .................................................................................... 41
How to Use the Detector Sensitivity Screen....................................................... 41
How to Clear Alarm Verification Counters............................................................ 42
How to Clear the History Buffer.............................................................................. 42
How to Set the System Time and Date..................................................................... 42
How to Do a Walk Test ............................................................................................. 43
How to Program a Standard or Silent Walk Test................................................ 43
What the Control Panel Does in Walk Test........................................................ 43
What to do Before Selecting Walk Test ............................................................. 43
How to Operate the Control Panel in Walk Test ................................................ 44
What to Do when Finished with a Walk Test ..................................................... 44
$
SS
HQGL[$5HOHDVLQ
J
$
SS
OL DWLRQV
What are Releasing Zones? ...................................................................................... 45
NFPA Releasing Applications .................................................................................. 45
How to Program a Releasing Zone .......................................................................... 46
How to Program a Delay Timer .............................................................................. 46
How to Program an Abort Switch ........................................................................... 46
Definition of Abort Switches.............................................................................. 46
How an Abort Switch Works.............................................................................. 47
Programing a ULI Abort Switch......................................................................... 48
Programming an IRI Abort Switch ..................................................................... 49
Programming an NYC Abort Switch.................................................................. 50
Programming an AHJ Abort Switch................................................................... 51
Using Cross Zones .................................................................................................. 52
Purpose of Cross Zones ...................................................................................... 52
How Cross Zones Work...................................................................................... 52
How to Program a Soak Timer (NFPA 16 Applications Only) .............................. 53
Using Type Codes for Releasing Zones.................................................................. 54
How to Program an Abort Switch....................................................................... 55
How to Program a Manual Release Switch ........................................................ 56
How to Program a Manual Release Delay Switch.............................................. 57
How to Program a Second Shot Switch ............................................................. 58
How to Program a Release End Bell Circuit ...................................................... 59
How to Program a ULC Release Circuit............................................................. 60
How to Program a Release Circuit...................................................................... 61
How to Program a Release Form-C Circuit........................................................ 62
How to Program a Release Audible Circuit........................................................ 63
How to Program an Instant Release Circuit........................................................ 64
How to Program a Release Code Bell Circuit .................................................... 65
Initiating Devices ....................................................................................................... 66
Warning Sounders..................................................................................................... 66
Auxiliary Control Functions..................................................................................... 66
ACS Annunciation..................................................................................................... 67
Technical Manuals Online! - http://www.tech-man.com

AFC-600 Programming PN 51032:A 3/8/99 5
&RQWHQWV
$
SS
HQGL[%6
S
H LDO=RQH2XW
S
XWV
Presignal and Positive Alarm Sequence (PAS) ....................................................... 69
What is Presignal and PAS?.................................................................................... 69
Purpose................................................................................................................ 69
Notes on using F0 ............................................................................................... 69
Restrictions on using F0 ..................................................................................... 69
Selecting Presignal and PAS Outputs ..................................................................... 70
Presignal.............................................................................................................. 70
Positive Alarm Sequence (PAS) ......................................................................... 70
Time Control Zones................................................................................................... 71
Coding Functions for NACS and Panel Circuits .................................................... 71
$
SS
HQGL[&$:$&6$
SS
OL DWLRQV
AWACS Overview..................................................................................................... 73
AWACS Features ...................................................................................................... 73
Drift Compensation................................................................................................. 73
Maintenance Warnings – Three Levels................................................................... 74
Self-Optimizing Pre-Alarm ..................................................................................... 75
Detector Sensitivity Levels ..................................................................................... 75
Cooperative Multi-Detector Sensing....................................................................... 76
Pre-Alarm................................................................................................................... 76
Definition ................................................................................................................ 76
Alert Level .............................................................................................................. 76
Alert Functions ................................................................................................... 76
Example of an Alert Level.................................................................................. 77
Action Level............................................................................................................ 77
Action Functions................................................................................................. 77
Example of an Action Level ............................................................................... 78
How to Select a Pre-Alarm Level ........................................................................... 78
Detector Sensitivity Settings ..................................................................................... 79
How to Select Pre-Alarm and Alarm Sensitivity .................................................... 79
How to Test Detectors Set Below 0.50% Obscuration per Foot............................ 80
Detector Maintenance Features ............................................................................... 81
Overview ................................................................................................................. 81
How to Access Detector Maintenance Information ................................................ 81
How to View Detector Maintenance for a Detector................................................ 81
How to Create a Detector Maintenance Report ...................................................... 82
How to Interpret a Detector Status Display or Maintenance Report....................... 83
$
SS
HQGL['9HUL)LUH8
S
ORDG'RZQORDG
What is Veri•Fire?..................................................................................................... 85
How to Install Veri•Fire Components ..................................................................... 85
$
SS
HQGL[(&%(&RQWURO%
\
(YHQW
Description ................................................................................................................. 87
Input and Outputs ..................................................................................................... 87
Equations.................................................................................................................... 87
Equation Entry .......................................................................................................... 88
Logic Functions....................................................................................................... 88
The “AND”Operator.......................................................................................... 88
The “OR”Operator............................................................................................. 88
The “NOT”Operator .......................................................................................... 88
Technical Manuals Online! - http://www.tech-man.com

6AFC-600 Programming PN 51032:A 3/8/99
&RQWHQWV
The “ONLY1”Operator ..................................................................................... 88
The “ANY2”Operator........................................................................................ 88
The “ANY3”Operator........................................................................................ 88
The “XZONE”Operator ..................................................................................... 88
Equation Syntax Example ....................................................................................... 89
Evaluating an Equation ........................................................................................... 89
Arguement Entries .................................................................................................. 90
Time Delay Functions ............................................................................................. 90
The “DEL”Operator........................................................................................... 90
The “SDEL”Operator......................................................................................... 90
CBE Example............................................................................................................. 91
$
SS
HQGL[)'HWH WRU,QLWLDOL]DWLRQ
Overview..................................................................................................................... 93
System Testing and Detector Initialization ............................................................. 93
How to Replace a Detector........................................................................................ 93
How to Manually Initialize a Detector..................................................................... 94
$
SS
HQGL[*7
\S
H&RGHV
What are Type Codes?.............................................................................................. 95
How to Select a Type Code ....................................................................................... 95
In this Appendix ........................................................................................................ 95
Type Codes for Input Devices .................................................................................. 96
Overview ................................................................................................................. 96
Type Codes for Intelligent Detectors ...................................................................... 96
Type Codes for Monitor Modules........................................................................... 97
Type Codes for Output Devices................................................................................ 99
Overview ................................................................................................................. 99
Type Codes for Control Modules............................................................................ 99
NAC and Panel Circuit Type Codes ..................................................................... 100
$
SS
HQGL[+*ORVVDU
\
................................................................................................................................... 101
Technical Manuals Online! - http://www.tech-man.com

Scope of this Manual
$ERXW 7KLV 0DQXDO
AFC-600 Programming PN 51032:A 3/8/99 7
$ERXW7KLV0DQXDO
6FRSHRIWKLV0DQXDO
The manual contains the following:
"1. Getting Started" on page 9 provides a description of the control panel,
programming keys, and programming passwords.
1RWH
7KH
5HDG 6WDWXV
VHOHFWLRQ ZKLFK GRHV QRW
UH
T
XLUH D
S
UR
J
UDP
S
DVVZRUG LV
FRYHUHG LQ WKH $)&
2
S
HUDWLRQV 0DQXDO
"2. Program Change" on page 13 provides instructions and sample screens for
programming essential system functions, including basic programming and utility
programming. Essential system functions include programming new devices,
modifying and deleting devices, changing programming passwords, creating custom
labels and messages, and so on.
"3. Status Change" on page 39 provides instructions and sample screens for
programming status functions, such as setting detector sensitivity, system time, walk
test, and so on.
Appendix A: Releasing Applications on page 45 provides detailed information for
programming Releasing Functions for Releasing Zones R0-R9.
Appendix B: Special Zone Outputs on page 69 provides detailed information for
programming Special Functions F0, F5, F6, F7,and F8.
Appendix C: AWACS Applications on page 73 provides information for intelligent
detector functions, such as Pre-Alarm (F9), detector sensitivity, and detector
maintenance.
Appendix D: Veri•Fire 600 Upload/Download on page 85 provides information for
installing hardware for the Veri•Fire 600 Upload/Download Software which you use to
transfer control panel programs between a control panel and a personal computer.
Appendix E: CBE (Control-By-Event) on page 87 provides information and an
example for understanding how CBE works.
Appendix F: Detector Initialization on page 93 contains information about the
detector initialization routine when you add or change a detector. If you change a
detector with the control panel in Live Test or Walk Test, you must manually initialize
the detector as detailed in Appendix D.
Appendix G: Type Codes on page 95 contains detailed information for all Type
Codes that you can program for intelligent detectors, monitor modules, control
modules, XP5-M, XP5-C, NACs, and Panel Circuits.
Appendix H: Glossary on page 101 contains definitions of terms relevant to
programming the control panel.
Index provides references to pertinent terms, concepts, and procedures.
1RWHV&DXWLRQVDQG DUQLQJV
This manual contains notes, cautions, and warnings to alert the reader to as follows:
•
1RWH
–Supplemental information for a topic, typically in the left margin, that
provides
•Caution –information about procedures that could cause programming errors,
runtime errors, or equipment damage.
•WARNING –indicates information about procedures that could cause
irreversible damage to the control panel, irreversible loss of programming
data or personal injury.


Technical Manuals Online! - http://www.tech-man.com

$ERXW 7KLV 0DQXDO
Typographic Conventions
8AFC-600 Programming PN 51032:A 3/8/99
7\SRJUDSKLF&RQYHQWLRQV
For presentation and printing, this manual uses different typeface characters, in place of
the actual LCD letters that you see on the LCD display. This manual uses the following
conventions for entering data and pressing control panel keys, as listed in Table 1:
Table 1 Typographic Conventions in this Manual
6XSSOHPHQWDO,QIRUPDWLRQ
Table 2 contains a list of documents that contain additional information on the
AFC-600:
Table 2 Supplemental Documentation
6KRUWFXWVWR2SHUDWLQJ)XQFWLRQV
To the left of each program function, you’ll find a keypad shortcut, which contains a
series of keypad entries required to access the program function. All shortcuts start with
the control panel in normal operation.
For example, the keypad shortcut to the left, shows how to enter the Read Status
function with the control panel in normal operation, as well as how to exit the function.
When you see Specifies Example
text in small caps the text as it
appears in the
LCD display or
control panel
MARCH TIME is a selection that
appears in the LCD display
Press the ENTER key
The AC POWER LED
text in quotes a reference to a
section
“Status Change”specifies the
Status Change section.
bold text In body text, a
number or
character that you
enter
Press the ENTER key; then press
the 1 key.
a graphic of the key In a graphic, a key
as it appears on
the control panel
Press 6means to press the
Escape key
Document Title Document Number
AFC-600 Operations Manual 51033
AFC-600 Installation Manual 51031
Veri•Fire 600™Upload/Download Software - PID 51249
&
&
)
WR H[LW
Technical Manuals Online! - http://www.tech-man.com

Introduction to the Control Panel
 *HWWLQ
J
6WDUWHG
AFC-600 Programming PN 51032:A 3/8/99 9
*HWWLQJ6WDUWHG
,QWURGXFWLRQWRWKH&RQWURO3DQHO
The AFC-600 is an intelligent, field-programmable Fire Alarm Control Panel. Field-
programming the AFC-600 lets you customize the fire alarm system by selecting and
setting program options for intelligent/addressable detectors and modules, Panel
Circuits, and Notification Appliance Circuits (NACs).
Features of AFC-600 programming include the following:
•Ease-of-use –Field program the control panel without needing special software
skills.
•Autoprogram option –Automatically detects newly installed, addressable devices,
allowing quicker installation.
•Local programming –program directly from the control panel keypad to reduce
installation time.
•Remote programming –input long data entry programming information on a PC;
transfer programming data between a PC and the control panel.
•Security –use passwords to control access to the control panel and protect
memory.
•80-Character (2x40) Liquid Crystal Display –view programming and device
information on the control panel.
,Q7KLV6HFWLRQ
1RWH
7KLV PDQXDO FRQWDLQV
LQIRUPDWLRQ IRU HQWHULQ
J
S
UR
J
UDPPLQ
J
GDWD WR WKH
FRQWURO
S
DQHO XVLQ
J
S
UR
J
UDPPLQ
J
NH
\
V RQ WKH IURQW
S
DQHO )RU GHWDLOV RQ FRQWURO
S
DQHO R
S
HUDWLRQ UHIHU WR WKH
$)& 2
S
HUDWLRQV 0DQXDO
This section provides introductory information for programming the AFC-600. Table 3
outlines the contents of Section 1:
7DEOH  7R
S
LFV &RYHUHG LQ 6HFWLRQ 
Section Topic(s) covered Refer to page
How to Enter Information
from the Control Panel
The control panel keys used to
program the control panel
10
How to Use the
Programming Keypad
Definitions for keys used to
program the control panel
11
How to Select a
Programming Method
Summarizes the two methods
for field-programming the
control panel (Autoprogram and
Veri•Fire 600 Upload/
Download Utility)
12
How to Enter a
Programming Password
How to enter a Program Change
or Status Change password to
access programming functions
12
Technical Manuals Online! - http://www.tech-man.com

 *HWWLQ
J
6WDUWHG
How to Enter Information from the Control Panel
10 AFC-600 Programming PN 51032:A 3/8/99
+RZWR(QWHU,QIRUPDWLRQIURPWKH&RQWURO3DQHO
Figure 1 illustrates the control panel keys and display that are used when programming
the control panel. Refer to Figure 2 on page 11, for an illustration of the keys which are
located behind the flip-down door:
)LJXUH  &RQWURO 3DQHO .H\V
-
-
- -
-
7% 7% 7% 7% 7% 7%
3UR
J
UDPPLQ
J
NH
\
V
EHKLQG GRRU
4:(57< .H
\S
DG
EHKLQG GRRU
&XUVRU PRYHPHQW NH
\
V
EHKLQG GRRU
)OL
S
GRZQ GRRU
/&' 'LV
S
OD
\
5HIHU WR )L
J
XUHRQ
S
D
J
H  IRU GHWDLO RI
NH
\
V XQGHU GRRU
Technical Manuals Online! - http://www.tech-man.com

How to Use the Programming Keypad
 *HWWLQ
J
6WDUWHG
AFC-600 Programming PN 51032:A 3/8/99 11
+RZWR8VHWKH3URJUDPPLQJ.H\SDG
The control panel provides a programming keypad that includes:
•Function keys: DETECTOR, MODULE, OUTPUT, NEXT SELECTION, and PREVIOUS
SELECTION
•ENTER key
•Cursor movement keys: ESC/left arrow key, up key, right key, down key
•Alphanumeric keys, with LOWER CASE selection key
Figure 2 shows the Programming Keypad, with descriptions for the keys.
)LJXUH  3URJUDPPLQJ .H\SDG
/
2:(5
&
$6(
NH
\
²
S
UHVV ZLWK
DQ DO
S
KDEHWLF NH
\
WR HQWHU
ORZHU FDVH FKDUDFWHUV
'
(7(&725
NH
\
²
S
UHVV
WR VHOHFW D GHWHFWRU
2
87387
NH
\
²
S
UHVV WR VHOHFW
DQ 1$& RU 3DQHO &LUFXLW
0
2'8/(
NH
\
²
S
UHVV WR VHOHFW D FRQWURO PRGXOH
PRQLWRU PRGXOH RU WUDQV
S
RQGHU
S
RLQW
1(;7
6
(/(&7,21
NH
\
²
S
UHVVWRGLV
S
OD
\
WKH QH[W LWHP LQ D OLVW RU
GLV
S
OD
\
WKH GHYLFH DW WKH QH[W KL
J
KHVW DGGUHVV
35(9,286 6(/(&7,21
NH
\
²
S
UHVV WR GLV
S
OD
\
WKH
S
UHYLRXV LWHP LQ
DOLVWRUGLV
S
OD
\
WKH GHYLFH DW WKH QH[W ORZHVW DGGUHVV
$UURZ NH
\
V²
S
UHVV WR PRYH WKH FXUVRU
RQH
S
ODFH LQ WKH GLUHFWLRQ RI WKH DUURZ
(6&
NH
\
²
S
UHVV WR H[LW D VHOHFWLRQ RU PRYH WKH
FXUVRU RQH
S
ODFH WR WKH OHIW
(17(5
NH
\
²
S
UHVVWRFRP
S
OHWH
RU VDYH DQ HQWU
\
$OVR
S
UHVV WR
HQWHU 3UR
J
UDPPLQ
J
1XPHULF NH
\
V²
S
UHVV WR HQWHU
QXPHULF FKDUDFWHUV
$O
S
KDEHWLF NH
\
V²
S
UHVV WR HQWHU
DO
S
KDQXPHULF FKDUDFWHUV
6
S
DFH ²
S
UHVV WR HQWHU
DV
S
DFH
Technical Manuals Online! - http://www.tech-man.com

 *HWWLQ
J
6WDUWHG
How to Select a Programming Method
12 AFC-600 Programming PN 51032:A 3/8/99
+RZWR6HOHFWD3URJUDPPLQJ0HWKRG
The AFC-600 provides two methods for field-programming the control panel: using the
Program Change options or the Veri•Fire™600 Upload/Download Utility. Table 4 lists
the benefits of each method:
7DEOH  )LHOG3UR
J
UDPPLQ
J
2
S
WLRQV
+RZWR(QWHUD3URJUDPPLQJ3DVVZRUG
The AFC-600 provides two types of selectable passwords: Program Change and Status
Change. For security purposes, you can change your passwords. To do so, follow the
instructions in "How to Change a Password (3=PASSWD)" on page 26. Refer to Table 5
for uses and the factory-set password for each type of programming password:
7DEOH  3UR
J
UDPPLQ
J
3DVVZRUGV
Enter a password to enter Program Change or Status Change. In Program Change or
Status Change, the control panel does the following:
•Activates the System Trouble relay (TB5 on the MPS-6)
•Shuts off the panel sounder
•Flashes the SYSTEM TROUBLE LED, which continues to flash while programming
Programming method Benefits Refer to
Program Change Speed and convenience of
putting the control panel on
line quickly (using the
Autoprogram function) and
changing programming
information.
"How to Use the Basic
Program" on page 15
Veri•Fire 600 600 Upload/
Download Utility
Efficient means of creating
and editing programs that
require a lot of data entry.
"How to Install Veri•Fire
Components" on page 85
Password type Use to Factory Setting
Program Change
(high level)
Enter Program Change (see Figure 8 on page 15) to
program control essential control panel functions,
including basic system functions and utility options.
(For more information on Program Change selection,
refer to "What is Program Change?" on page 13.)
00000
Status Change
(low level)
Enter Status Change (see the "Status Change Screen"
on page 39) to program minor program functions.
11111
Technical Manuals Online! - http://www.tech-man.com

What is Program Change?
 3UR
J
UDP &KDQ
J
H
AFC-600 Programming PN 51032:A 3/8/99 13
3URJUDP&KDQJH
KDWLV3URJUDP&KDQJH"
Program Change is the programming level that lets you change the essential control
panel functions, such as point programming, changing passwords, changing system
functions, and so on. Program Change includes three selections: Basic Program,
FlashScan™Poll, and Utility Program. Figure 3 shows the structure of the Program
Change selections:
)LJXUH  3URJUDP &KDQJH 6HOHFWLRQV
This section contains instructions and sample screens for using the Program Change
selections, selected from the Program Change Selection screen (Figure 7):
•Basic Program The Basic Program lets you program essential functions, such as
clearing the program, Autoprogramming the system, programming points, and
setting system functions.
•Utility Program The Utility Program screen provides selections for Dynamic
Polling of the SLC, selecting a Trouble Reminder per NFPA, and enabling or
disabling local control of the ACKNOWLEDGE/STEP, ALARM SILENCE, and SYSTEM
RESET keys.
•FlashScan Poll The FlashScan Poll screen provides the option for selecting
between CLIP (Classic Loop Interface Poll) and FlashScan Poll.
 %$6,& 352*5$0  5(6(59('
 87,/,7<  )/$6+6&$1 32//
 352*5$00,1*  5($' 67$786 (175<
(6&$3( 72 $%257
(17(5 352* 25 67$7 3$66:25' 7+(1 (17(5
(6&$3( 72 $%257
 &/5  $872  32,17  3$66:'  0(66$*(
 =21(6  63/ )81&7  6<67(0  &+(&. 35*
'<132// 1 7%/5(0,1'  $/$6&52// 1
/2&$/ &21752/ <
)/$6+6&$1 /'(7 /02' /'(7 /02'
1<1<
(QWHU WKH 3UR
J
UDP &KDQ
J
H
S
DVVZRUG
&KRRVH RQH RI WKH 3UR
J
UDP &KDQ
J
H VHOHFWLRQV   RU 
6HOHFW
S
UR
J
UDPPLQ
J
R
S
WLRQ  3UR
J
UDPPLQ
J

 %DVLF 3UR
J
UDP
R
S
WLRQV UHIHU WR +RZ WR
8VH WKH %DVLF 3UR
J
UDP RQ
S
D
J
H
 8WLOLW
\
3UR
J
UDP
R
S
WLRQV UHIHU WR +RZ WR 8VH WKH
8WLOLW
\
3UR
J
UDP RQ
S
D
J
H
 )ODVK6FDQ 3ROO
R
S
WLRQV UHIHU WR +RZ WR 8VH
)ODVK6FDQ 3ROO RQ
S
D
J
H
Technical Manuals Online! - http://www.tech-man.com

 3UR
J
UDP &KDQ
J
H
How to Enter Program Change
14 AFC-600 Programming PN 51032:A 3/8/99
+RZWR(QWHU3URJUDP&KDQJH
To enter Program Change, follow these steps:
1. From the All Systems Normal screen (Figure 4), press the ENTER key to display the
Program Entry screen, as shown in Figure 5:
)LJXUH  $OO 6\VWHPV 1RUPDO 6FUHHQ
)LJXUH  3URJUDP (QWU\ 6FUHHQ
2. Press the 1key. The control panel displays the Enter Password screen, as shown in
Figure 6:
)LJXUH  (QWHU 3DVVZRUG 6FUHHQ
3. Enter your Program Change password. The control panel displays the Program
Change Selection screen, as shown in Figure 7:
)LJXUH  3URJUDP &KDQJH 6HOHFWLRQ 6FUHHQ
4. Select a Program Change selection: 1, 3 or 4 as detailed in Figure 7.
$// 6<67(06 1250$/ $ 78( 
 352*5$00,1*  5($' 67$786 (175<
(6&$3( 72 $%257
(17(5 352* 25 67$7 3$66:25' 7+(1 (17(5
(6&$3( 72 $%257
 %$6,& 352*5$0  5(6(59('
 87,/,7<  )/$6+6&$1 32//
 %DVLF 3UR
J
UDP
R
S
WLRQV UHIHU WR +RZ WR 8VH
WKH %DVLF 3UR
J
UDP RQ
S
D
J
H 
 5HVHUYHG
 WKHUH LV
S
UHVHQWO
\
QR
IXQFWLRQ IRU WKLV QXPEHU
 8WLOLW
\
3UR
J
UDP
R
S
WLRQV UHIHU WR +RZ WR 8VH
WKH 8WLOLW
\
3UR
J
UDP RQ
S
D
J
H
 )ODVK6FDQ 3ROO
R
S
WLRQV UHIHU WR +RZ
WR 8VH )ODVK6FDQ 3ROO RQ
S
D
J
H
Technical Manuals Online! - http://www.tech-man.com

How to Use the Basic Program
 3UR
J
UDP &KDQ
J
H
AFC-600 Programming PN 51032:A 3/8/99 15
+RZWR8VHWKH%DVLF3URJUDP
From the Program Change Selection screen (Figure 7), press the 1key to display the
Program Change screen (Figure 8): The Basic Program provides nine options as shown
in Figure 8.
)LJXUH  3URJUDP &KDQJH 2SWLRQV
+RZWR&OHDU0HPRU
\

&/5

The Clear option removes all programming information from control panel memory. If
installing the control panel for the first time, use option 0 to clear control panel
memory. To do so, follow these steps:
1. From the Program Change screen (Figure 8), press the 0key to display the Clear
Program screen. The control panel prompts for verification as shown in Figure 9:
)LJXUH  &OHDU 3URJUDP 6FUHHQ
2. Press the ENTER key to clear control panel memory or press the ESC key to exit the
screen without clearing.
0
1
2
3
4
5
6
7
8
&OHDU H[LVWLQ
JS
UR
J
UDP LQIRUPDWLRQ IURP &38 PHPRU
\

)RU GHWDLOV UHIHU WR +RZ WR &OHDU 0HPRU
\

&/5
 RQ
S
D
J
H
$GG RU UHPRYH DGGUHVVDEOH GHYLFHV WR WKH FRQWURO
S
DQHO
S
UR
J
UDP )RU GHWDLOV UHIHU WR +RZ WR
$XWR
S
UR
J
UDP WKH &RQWURO 3DQHO 
$872
 RQ
S
D
J
H
0RGLI
\
RU GHOHWH D
S
RLQW )RU GHWDLOV UHIHU WR +RZ WR
0RGLI
\
RU 'HOHWH D 3RLQW 
32,17
 RQ
S
D
J
H 
&KDQ
J
H WKH 3UR
J
UDP &KDQ
J
H RU WKH 6WDWXV &KDQ
J
H
S
DVVZRUG )RU GHWDLOV UHIHU WR +RZ WR &KDQ
J
HD
3DVVZRUG 
3$66:'
 RQ
S
D
J
H 
(GLW WKH FKDUDFWHU PHVVD
J
H WKDW GLV
S
OD
\
V RQ WKH
ILUVW OLQH )RU GHWDLOV UHIHU WR +RZ WR &UHDWH D 6
\
VWHP
0HVVD
J
H 
0(66$*(
 RQ
S
D
J
H 
(GLW WKH FKDUDFWHU FXVWRP ]RQH ODEHO IRU ]RQHV 
 )RU GHWDLOV UHIHU WR +RZ WR &UHDWH D &XVWRP
=RQH /DEHO 
=21(
 RQ
S
D
J
H 
3UR
J
UDP UHOHDVLQ
J
]RQHV DQG V
S
HFLDO ]RQHV )RU GHWDLOV
UHIHU WR +RZ WR 3UR
J
UDP 6
S
HFLDO =RQHV 
63/ )81&7

RQ
S
D
J
H 
3UR
J
UDP
J
OREDO V
\
VWHP IXQFWLRQV )RU GHWDLOV UHIHU WR
+RZ WR &KDQ
J
H *OREDO 6
\
VWHP )XQFWLRQV 
6<67(0

RQ
S
D
J
H 
 &/5  $872  32,17  3$66:'  0(66$*(
 =21(6  63/ )81&7  6<67(0  &+(&. 35*
35(66 (17(5 72 &/($5 (17,5( 352*5$0
25 (6&$3( 72 $%257
$872352*5$0 3/($6( :$,7
32,17 352*  02',)< 32,17
 '(/(7( 32,17
&+$1*( 3$66:25' 11111( 352*5$0
11111 ( 67$786
<285 &86720 0(66$*( +(5(
$OO 6<67(06 1250$/ $ )5, 
&+$1*( =21( /$%(/ 6(/(&7 =21( 
(17(5 83 72  &+$5
63(&,$/ )81&7,21 ) 35(6,* 55 5(/
)) 7,0( ) +2/ ) &2'( ) 35($/$50
6,/ ,1+  $872  9(5,)<  86$ 7,0(
7(50 1 $&
B
'/< < /RF7 %/,1. < 67  $&6 1
3URJUDP &KHFN 2.
5(7(67 3$1(/ 12: $ )UL 
&KHFN WKH
S
UR
J
UDP IRU HUURUV )RU GHWDLOV UHIHU WR +RZ WR
&KHFN WKH 3UR
J
UDP IRU (UURUV 
&+(&. 35*
 RQ
S
D
J
H 
3UR
J
UDP &KDQ
J
H VFUHHQ
&
3UR
J
UDP &KDQ
J
H
S
DVVZRUG
&
&
)
WR H[LW
35(66 (17(5 72 &/($5 (17,5( 352*5$0
25 (6&$3( 72 $%257
Technical Manuals Online! - http://www.tech-man.com

 3UR
J
UDP &KDQ
J
H
How to Use the Basic Program
16 AFC-600 Programming PN 51032:A 3/8/99
+RZWR$XWR
S
UR
J
UDPWKH&RQWURO3DQHO
$872

3XU
S
RVH
The Autoprogram option identifies all addressable devices connected to the control
panel. Devices include addressable detectors and modules connected to SLC 1 and
SLC 2, Panel Circuits connected to J1 and J2, and NACs. You can use the Autoprogram
option to create a new program and add or remove devices. Table 6 contains a summary
of the Autoprogram functions, when to use the functions, and where to find information
on using the functions.
7DEOH  $XWR
S
UR
J
UDP )XQFWLRQV
&UHDWH D 1HZ 3UR
J
UDP
IRU WKH &RQWURO 3DQHO
This section covers how to use the Autoprogram option to create a new program for the
control panel. The control panel will identify all addressable detectors and modules
connected to the SLC then display default program information for each installed
device.
To create a new program for the control panel, follow these steps:
1. Use the Clear option to clear program information from memory. For instructions
on clearing memory, refer to "How to Clear Memory (0=CLR)" on page 15.
2. From the Program Change screen, press the 1key to start Autoprogram. The
control panel scans the system to identify all SLC devices and Panel Circuits and
displays the following screen:
)LJXUH  $XWRSURJUDP 3URPSW
Continued on the next page...
Autoprogram Function Control Panel Configuration Refer to...
Create a new program
for the control panel
A new control panel or a
control panel with no existing
program in memory.
"Create a New Program for the
Control Panel" on page 16
Add one or more
SLC-connected
detectors and modules
to an existing program
A program exists in memory
and you want to add a detector
or module to the existing
program—without modifying
information for existing
detectors and modules.
"How to Add a Device to the
Program" on page 18
Remove one or more
SLC-connected
detectors and modules
from an existing
program
A program exists in memory
and you want to remove an
installed detector or module
from the existing program—
without modifying information
for existing detectors and
modules.
"How to Remove a Device from
the Program" on page 19
View system defaults A program exists in memory
and you want to view system
settings assigned during
Autoprogram, such as custom
labels, passwords, and so on.
"How to Change Autoprogram
Defaults for System Functions"
on page 20
$872352*5$0 3/($6( :$,7
Technical Manuals Online! - http://www.tech-man.com

How to Use the Basic Program
 3UR
J
UDP &KDQ
J
H

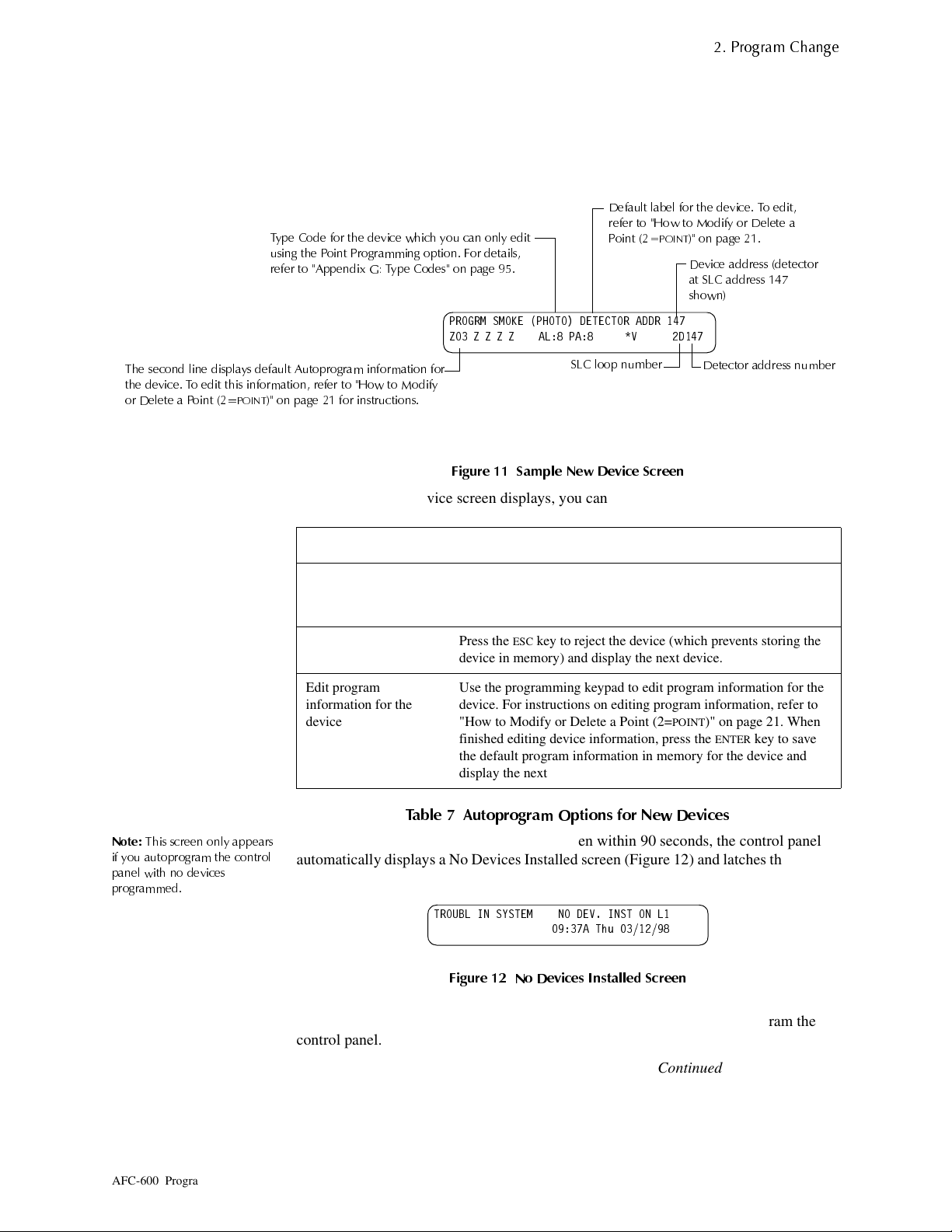

AFC-600 Programming PN 51032:A 3/8/99 17
When finished identifying SLC devices and Panel Circuits, the LCD displays the
first detector or module in the following order: detectors in address order (D101,
D102, and so on), monitor modules in address order, control modules in address
order, Panel Circuits in address order, and NACs in address order. For example,
Figure 11 shows a sample screen for a new detector at SLC address 101 identified
by the control program during Autoprogram.
)LJXUH  6DPSOH 1HZ 'HYLFH 6FUHHQ
3. When a New Device screen displays, you can take one of the following actions:
7DEOH  $XWR
S
UR
J
UDP 2
S
WLRQV IRU 1HZ 'HYLFHV
1RWH
7KLV VFUHHQ RQO
\
D
SS
HDUV
LI
\
RX DXWR
S
UR
J
UDP WKH FRQWURO
S
DQHOZLWKQRGHYLFHV
S
UR
J
UDPPHG
If you do not respond to the New Device screen within 90 seconds, the control panel
automatically displays a No Devices Installed screen (Figure 12) and latches the control
panel in trouble.
)LJXUH  1R 'HYLFHV ,QVWDOOHG 6FUHHQ
This screen displays because the control panel cannot recognize uninstalled devices. To
abort the trouble, press the ENTER key to go into programming and autoprogram the
control panel.
Continued on the next page...
352*50 602.( 3+272 '(7(&725 $''5 
=2==== $/3$ 9 '
7
\S
H &RGH IRU WKH GHYLFH ZKLFK
\
RX FDQ RQO
\
HGLW
XVLQ
J
WKH 3RLQW 3UR
J
UDPPLQ
J
R
S
WLRQ )RU GHWDLOV
UHIHU WR $
SS
HQGL[ * 7
\S
H &RGHV RQ
S
D
J
H 'HYLFH DGGUHVV GHWHFWRU
DW 6/& DGGUHVV 
VKRZQ
'HIDXOW ODEHO IRU WKH GHYLFH 7R HGLW
UHIHU WR +RZ WR 0RGLI
\
RU 'HOHWH D
3RLQW 
32,17
 RQ
S
D
J
H
7KH VHFRQG OLQH GLV
S
OD
\
V GHIDXOW $XWR
S
UR
J
UDP LQIRUPDWLRQ IRU
WKH GHYLFH 7R HGLW WKLV LQIRUPDWLRQ UHIHU WR +RZ WR 0RGLI
\
RU 'HOHWH D 3RLQW 
32,17
 RQ
S
D
J
H  IRU LQVWUXFWLRQV
'HWHFWRU DGGUHVV QXPEHU
6/& ORR
S
QXPEHU
Yo u c a n D o t hi s
Accept default program
information for the
device
Press the ENTER key to save the default program information in
memory for the device and display the next device.
Reject the device Press the ESC key to reject the device (which prevents storing the
device in memory) and display the next device.
Edit program
information for the
device
Use the programming keypad to edit program information for the
device. For instructions on editing program information, refer to
"How to Modify or Delete a Point (2=POINT)" on page 21. When
finished editing device information, press the ENTER key to save
the default program information in memory for the device and
display the next device.
7528%/ ,1 6<67(0 12 '(9 ,167 21 /
$ 7KX 
Technical Manuals Online! - http://www.tech-man.com

 3UR
J
UDP &KDQ
J
H
How to Use the Basic Program
18 AFC-600 Programming PN 51032:A 3/8/99
4. Continue displaying and acting on each device. When the control panel completes
displaying new devices, the Autoprogram Summary screen appears. The
Autoprogram Summary screen (Figure 13) displays the total number of detectors,
modules, Panel Circuits, and NACs connected to the control panel.
)LJXUH  6DPSOH $XWRSURJUDP 6XPPDU\ 6FUHHQ
5. Press the ENTER key, then press the ESC key to save the program in memory and
return to the Program Change screen (Figure 8 on page 15); or
Press the ESC key to exit without saving and return to the Program Change screen
(Figure 8 on page 15).
+RZ WR $GG D 'HYLFH WR
WKH 3UR
J
UDP
You can also use the Autoprogram option to add addressable devices to the control
panel program.
1RWH
:KHQ XVLQ
J
WKH
$XWR
S
UR
J
UDP R
S
WLRQ ZLWK DQ
H[LVWLQ
JS
UR
J
UDP WKH FRQWURO
S
DQHO GRHV QRW FKDQ
J
H
S
UR
J
UDP
LQIRUPDWLRQ IRU LQVWDOOHG DQG
S
UR
J
UDPPHG GHYLFHV
The following steps describe how to add a new detector at SLC address 1D147 with
10 detectors in the existing program:
1. Install the addressable detector to SLC 1 at address 147 (for instructions, refer to
the AFC-600 Installation Manual).
2. From the Program Change screen (Figure 8 on page 15), press the 1key to start
Autoprogram. The Autoprogram Prompt screen (Figure 10 on page 16) appears in
the LCD display as the control panel identifies addressable devices.
When finished identifying addressable devices, the control panel displays
information for the new detector at SLC address 1D147 on the LCD display as
shown in Figure 14.
)LJXUH  6DPSOH 1HZ 'HYLFH 6FUHHQ
3. Press the ENTER key to add detector147 to the program with the default program
information. If you want to change the default information, use the programming
keys to do so, then press the ENTER key to add detector 147 to the program. To
reject the new device, press the ESC key to return to the Program Change screen
(Figure 8 on page 15).
Continued on the next page...
/ '(76  02'6 / '(76  02'6
3$1(/ 2873876  %(//6 
7KH ILUVW OLQH GLV
S
OD
\
V WKH QXPEHU RI
6/& GHYLFHV GHWHFWRUV DQG PRGXOHV
LGHQWLILHG GXULQ
J
$XWR
S
UR
J
UDP
7KH IRXU 1$&V 036 7%7%
7KH QXPEHU RI 3DQHO &LUFXLWV
FRQQHFWHG WR - RU -
352*50 602.( 3+272 '(7(&725 $''5 
=2 = = = = $/ 3$ 9 '
7
\S
H &RGH IRU WKH GHYLFH ZKLFK
\
RX FDQ RQO
\
HGLW
XVLQ
J
WKH 3RLQW 3UR
J
UDPPLQ
J
R
S
WLRQ )RU GHWDLOV
UHIHU WR $
SS
HQGL[ * 7
\S
H &RGHV RQ
S
D
J
H 'HYLFH DGGUHVV GHWHFWRU
DW 6/& DGGUHVV 
VKRZQ
'HIDXOW ODEHO IRU WKH GHYLFH 7R HGLW
UHIHU WR +RZ WR 0RGLI
\
RU 'HOHWH D
3RLQW 
32,17
 RQ
S
D
J
H
7KH VHFRQG OLQH GLV
S
OD
\
V GHIDXOW $XWR
S
UR
J
UDP LQIRUPDWLRQ IRU
WKH GHYLFH 7R HGLW WKLV LQIRUPDWLRQ UHIHU WR +RZ WR 0RGLI
\
RU
'HOHWH D 3RLQW 
32,17
 RQ
S
D
J
H  IRU LQVWUXFWLRQV
Technical Manuals Online! - http://www.tech-man.com

How to Use the Basic Program
 3UR
J
UDP &KDQ
J
H
AFC-600 Programming PN 51032:A 3/8/99 19
The Autoprogram Summary screen appears. You can verify addition of the detector
to the program by noting the new count of detectors as shown in Figure 15.
)LJXUH  6DPSOH $XWRSURJUDP 6XPPDU\ 6FUHHQ
4. Press the ENTER key, then press the ESC key to save the program in memory and
return to the Program Change screen (Figure 8 on page 15).
+RZ WR 5HPRYH D
'HYLFH IURP WKH
3UR
J
UDP
You can also use the Autoprogram option to remove addressable detectors and modules
from the control panel program.
1RWH
:KHQ XVLQ
J
WKH
$XWR
S
UR
J
UDP R
S
WLRQ ZLWK DQ
H[LVWLQ
JS
UR
J
UDP WKH FRQWURO
S
DQHO GRHV QRW FKDQ
J
H
S
UR
J
UDP
LQIRUPDWLRQ IRU LQVWDOOHG DQG
S
UR
J
UDPPHG GHYLFHV
The following steps describe how to delete a detector at SLC address 1D133 with
10 detectors connected to SLC 1 in the existing program:
1. Disconnect and remove the detector from SLC 1 at address 133.
2. From the Program Change screen (Figure 8 on page 15), press the 2key to start
Autoprogram. The Autoprogram Prompt screen (Figure 10 on page 16) displays
while the control panel identifies addressable devices.
3. When finished identifying addressable devices, the control panel displays a screen,
indicating a missing detector at SLC address 133 as shown in Figure 16.
)LJXUH  6DPSOH 0LVVLQJ 'HYLFH 6FUHHQ
4. Press the ENTER key to delete detector 133 from the program and return to the
Program Change screen (Figure 8 on page 15).
The Autoprogram Summary screen appears. You can verify removal of the detector
from the program by noting the new count of detectors as shown in Figure 15.
)LJXUH  6DPSOH $XWRSURJUDP 6XPPDU\ 6FUHHQ
5. Press the ENTER key, then press the ESC key to save the program in memory and
return to the Program Change screen (Figure 8 on page 15).
1RWH WKDW WKH QXPEHU
RI GHWHFWRUV LQFUHDVHV
LQ WKLV H[DP
S
OH IURP
 WR  WR VKRZ WKH
DGGLWLRQ RI WKH
GHWHFWRU WR 6/& 
/ '(76  02'6 / '(76  02'6
3$1(/ 2873876  %(//6 
352*50 602.( ,21 '(7(&725 $''5 '
'(9,&( 127 $16:(5,1* '(/(7( )5 0(0 '
7
\S
H &RGH
7KUHHGL
J
LW DGGUHVV 
' GHWHFWRU RU 0 PRGXOH
6/& ORR
S
QXPEHU
1RWH WKDW WKH QXPEHU
RI GHWHFWRUV GHFUHDVHV
IURP  WR  WR VKRZ
WKH UHPRYDO RI WKH
GHWHFWRU IURP 6/& 
/ '(76  02'6 / '(76  02'6
3$1(/ 2873876  %(//6 
Technical Manuals Online! - http://www.tech-man.com

 3UR
J
UDP &KDQ
J
H
How to Use the Basic Program
20 AFC-600 Programming PN 51032:A 3/8/99
+RZ WR &KDQ
J
H
$XWR
S
UR
J
UDP 'HIDXOWV
IRU 6
\
VWHP )XQFWLRQV
The Autoprogram option automatically selects default system functions during initial
programming of the control panel. You can change the default system functions. If you
change any system default, then Autoprogram the control panel, any new system values
that you enter do not change. For example, if you change a Program Change password,
install new devices, and run the Autoprogram option, the new Program Change
password remains.
Table 8 contains a list of the default system functions and values:
7DEOH  $XWR
S
UR
J
UDP 6
\
VWHP 'HIDXOWV
Function Defaults Refer to
Software
Zones
01-99
default custom label “Zone xx”where xx is the
number of the zone
Note: Zone 00 is reserved for a general alarm.
"How to Create a Custom
Zone Label (5=ZONE)" on
page 28
F0
35* 35(6,*1$/ )81&7 35(6,*1$/ '(/$<
'(/$<  3$6 12 )
"F0 (Presignal/PAS)" on
page 30
Releasing
Zones
R0-R9
35* 5(/($6( )81&7 5(/($6( &21752/
'(/$<  $%257 8/, &5266 1 62. 
"R0-R9 (Releasing
Functions)" on page 30 and
"How to Program a
Releasing Zone" on page 46
F5 and F6
35* 7,0( )81&7,21 7,0( &21752/
21  2))  '$<6 
"F5-F6 (Time Control
Functions)" on page 30
F7
35* +2/,'$< )81&7   
     
"F7 (Holiday)" on page 31
F8
35* &2',1* )81&7,21 &2'( 7<3(
0$5&+ 7,0( )
"F8 (Coding Function)" on
page 31
F9
35($/$50 )81&7 $/(57 )
"F9 (Pre-Alarm)" on page 31
System
Parameters
6,/ ,1+  $872  9(5,)<  86$ 7,0(
7(50 1 $&
B
'/< < /2&7 %/,1. < 67  $&6 1
"How to Change Global
System Functions
(7=SYSTEM)" on page 32
Passwords Default programming passwords area:
Program Change=00000
Status Change=11111
"How to Change a Password
(3=PASSWD)" on page 26
All
Systems
Normal
message
<285 &86720 6<67(0 0(66$*( +(5(
$// 6<67(06 1250$/ $ 7XH 
A message, along with the current day, time,
and date, that displays on the second line of
the LCD display during normal operation.
Note: This is a standard
system message that you
cannot change.
System
Message
<285 &86720 6<67(0 0(66$*( +(5(
$// 6<67(06 1250$/ $ 7XH 
The first line of the LCD display contains 40
blank characters for a custom message.
"How to Create a System
Message (4=MESSAGE)" on
page 27
Technical Manuals Online! - http://www.tech-man.com
