Cincoze CV-100 Series User manual

CV-100 Series
Convertible Display Module | User’s Manual
2
Contents
Prefaces
Revision …………………………………………………..……………….….…….. 03
Copyright Notice …………………………………………………………………… 03
Acknowledgement ……………………………………………………..................... 03
Disclaimer ………………………………………………………….……………….. 03
Declaration of Conformity ……………………………………….………………… 03
Product Warranty Statement ……………………………………….…………….. 04
Technical Support and Assistance ………………………………….……………. 04
Conventions Used in this Manual …………………………………….………….. 04
Safety Precaution …..…………………………………….…………….………….. 05
Package Contents ……………………………………………….……….………… 07
Ordering Information …………………………………………….……….………… 07
Chapter 1 Product Introductions
1.1 Overview ……………………………………………………………….. 10
1.1.1 CV-108 …………………..……………….…...………….…....... 11
1.1.2 CV-110 ………………………..…….…….……………………… 12
1.1.3 CV-112 …………………………………………………………… 13
1.1.4 CV-115 …………………………………………………………… 14
1.1.5 CV-W115 ………………………………………….……………… 15
1.1.6 CV-117 ………………………………………………….………… 16
1.1.7 CV-119 …………………………………………………………… 17
1.2 Mechanical Dimension …………………………………..……………. 18
Chapter 2 System Setup
2.1 Connecting with PC Module or Monitor Module …………………..... 26

CV-100 Series
Convertible Display Module | User’s Manual
3
Revision
Copyright Notice
© 2014 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified,
or reproduced in any form or by any means for commercial use without the prior written permission of
Cincoze Co., Ltd.All information and specification provided in this manual are for reference only and
remain subject to change without prior notice.
Acknowledgement
Cincoze is a registered trademark of Cincoze Co., Ltd. All registered trademarks and product names
mentioned herein are used for identification purposes only and may be trademarks and/or registered
trademarks of their respective owners.
Disclaimer
This manual is intended to be used as a practical and informative guide only and is subject to change
without notice. It does not represent a commitment on the part of Cincoze. This product might include
unintentional technical or typographical errors. Changes are periodically made to the information
herein to correct such errors, and these changes are incorporated into new editions of the publication.
Declaration of Conformity
Prefaces
FCC
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
CE
The product(s) described in this manual complies with all application European Union
(CE) directives if it has a CE marking. For computer systems to remain CE compliant,
only CE-compliant parts may be used. Maintaining CE compliance also requires proper
cable and cabling techniques.
Revision
Description
Date
1.0
Manual Released
2014/10/20
Prefaces

CV-100 Series
Convertible Display Module | User’s Manual
4
Product Warranty Statement
Warranty
Cincoze products are warranted by Cincoze Co., Ltd. to be free from defect in materials and
workmanship for 1 year from the date of purchase by the original purchaser.
During the warranty period, we shall, at our option, either repair or replace any product that proves to
be defective under normal operation.
Defects, malfunctions, or failures of the warranted product caused by damage resulting from natural
disasters (such as by lightening, flood, earthquake, etc.), environmental and atmospheric disturbances,
other external forces such as power line disturbances, plugging the board in under power, or incorrect
cabling, and damage caused by misuse, abuse, and unauthorized alteration or repair, and the product
in question is either software, or an expendable item (such as a fuse, battery, etc.), are not warranted.
RMA
Before sending your product in, you will need to fill in Cincoze RMA Request Form and obtain a RMA
number from us. Our staff is available at any time to provide you with the most friendly and immediate
service.
RMA Instruction
Customers must fill in Cincoze Return MerchandiseAuthorization (RMA) Request Form and
obtain a RMA number prior to returning a defective product to Cincoze for service.
Customers must collect all the information about the problems encountered and note anything
abnormal and describe the problems on the “Cincoze Service Form” for the RMA number apply
process.
Charges may be incurred for certain repairs. Cincoze will charge for repairs to products whose
warranty period has expired. Cincoze will also charge for repairs to products if the damage
resulted from acts of God, environmental or atmospheric disturbances, or other external forces
through misuse, abuse, or unauthorized alteration or repair. If charges will be incurred for a
repair, Cincoze lists all charges, and will wait for customer’s approval before performing the
repair.
Customers agree to insure the product or assume the risk of loss or damage during transit, to
prepay shipping charges, and to use the original shipping container or equivalent.
Customers can be send back the faulty products with or without accessories (manuals, cable,
etc.) and any components from the system. If the components were suspected as part of the
problems, please note clearly which components are included. Otherwise, Cincoze is not
responsible for the devices/parts.
Repaired items will be shipped along with a "Repair Report" detailing the findings and actions
taken.
Limitation of Liability
Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use, whether
based on warranty, contract, negligence, product liability, or otherwise, shall not exceed the original
selling price of the product. The remedies provided herein are the customer’s sole and exclusive
remedies. In no event shall Cincoze be liable for direct, indirect, special or consequential damages
whether based on contract of any other legal theory.
Prefaces

CV-100 Series
Convertible Display Module | User’s Manual
5
Technical Support and Assistance
1. Visit the Cincoze website at www.cincoze.com/support.php where you can find the latest
information about the product.
2. Contact your distributor or our technical support team or sales representative for technical support
if you need additional assistance. Please have following information ready before you call:
Product name and serial number
Description of your peripheral attachments
Description of your software (operating system, version, application software, etc.)
A complete description of the problem
The exact wording of any error messages
Conventions Used in this Manual
Prefaces
This indication alerts operators to an operation that, if not strictly
observed, may result in severe injury.
WARNING
This indication alerts operators to an operation that, if not strictly
observed, may result in safety hazards to personnel or damage to
equipment.
CAUTION
This indication provides additional information to complete a task easily.
NOTE

CV-100 Series
Convertible Display Module | User’s Manual
6
Safety Precautions
Before installing and using this device, please note the following precautions:
1. Read these safety instructions carefully.
2. Keep this User’s Manual for future reference.
3. Disconnected this equipment from any AC outlet before cleaning.
4. For plug-in equipment, the power outlet socket must be located near the equipment and must be
easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall may cause
damage.
7. Make sure the voltage of the power source is correct before connecting the equipment to the
power outlet.
8. Use a power cord that has been approved for using with the product and that it matches the
voltage and current marked on the product’s electrical range label. The voltage and current rating
of the cord must be greater than the voltage and current rating marked on the product.
9. Position the power cord so that people cannot step on it. Do not place anything over the power
cord.
10.All cautions and warnings on the equipment should be noted.
11.If the equipment is not used for a long time, disconnect it from the power source to avoid damage
by transient overvoltage.
12.Never pour any liquid into an opening. This may cause fire or electrical shock.
13.Never open the equipment. For safety reasons, the equipment should be opened only by qualified
service personnel.
If one of the following situations arises, get the equipment checked by service personnel:
The power cord or plug is damaged.
Liquid has penetrated into the equipment.
The equipment has been exposed to moisture.
The equipment does not work well, or you cannot get it to work according to the user's manual.
The equipment has been dropped and damaged.
The equipment has obvious signs of breakage.
14. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type recommended by the manufacturer.
Prefaces

CV-100 Series
Convertible Display Module | User’s Manual
7
Package Contents
Before installation, please ensure all the items listed in the following table are included in the package.
Prefaces
CV-108
Item Description Q’ty
1 CV-108 Display Module 1
2 Panel Mounting Kit 4
CV-110
Item Description Q’ty
1 CV-110 Display Module 1
2 Panel Mounting Kit 6
CV-112
Item Description Q’ty
1 CV-112 Display Module 1
2 Panel Mounting Kit 8
CV-115
Item Description Q’ty
1 CV-115 Display Module 1
2 Panel Mounting Kit 8
CV-W115
Item Description Q’ty
1 CV-W115 Display Module 1
2 Panel Mounting Kit 10
Note: Notify your sales representative if any of the above items are missing or damaged.
CV-117
Item Description Q’ty
1 CV-117 Display Module 1
2 Panel Mounting Kit 10
CV-119
Item Description Q’ty
1 CV-119 Display Module 1
2 Panel Mounting Kit 12

CV-100 Series
Convertible Display Module | User’s Manual
8
Ordering Information
Prefaces
Model No. Product Description
CV-108R 8.4” TFT SVGA 4:3 Display Module with Resistive 5-wire Touch
CV-110R 10.4” TFT SVGA 4:3 Display Module with Resistive 5-wire Touch
CV-112R 12.1” TFT SVGA 4:3 Display Module with Resistive 5-wire Touch
CV-115R 15” TFT XGA 4:3 Display Module with Resistive 5-wire Touch
CV-W115R 15.6” TFT WXGA 4:3 Display Module with Resistive 5-wire Touch
CV-117R 17” TFT SXGA 4:3 Display Module with Resistive 5-wire Touch
CV-119R 19” TFT SXGA 4:3 Display Module with Resistive 5-wire Touch
Model No. Product Description
CV-110C 10.4” TFT SVGA 4:3 Display Module with Projected Capacitive Touch
CV-112C 12.1” TFT SVGA 4:3 Display Module with Projected Capacitive Touch
CV-115C 15” TFT XGA 4:3 Display Module with Projected Capacitive Touch
CV-W115C 15.6” TFT WXGA 4:3 Display Module with Projected Capacitive Touch
CV-117C 17” TFT SXGA 4:3 Display Module with Projected Capacitive Touch
CV-119C 19” TFT SXGA 4:3 Display Module with Projected Capacitive Touch

Product Introductions
Chapter 1

CV-100 Series
Convertible Display Module | User’s Manual
10

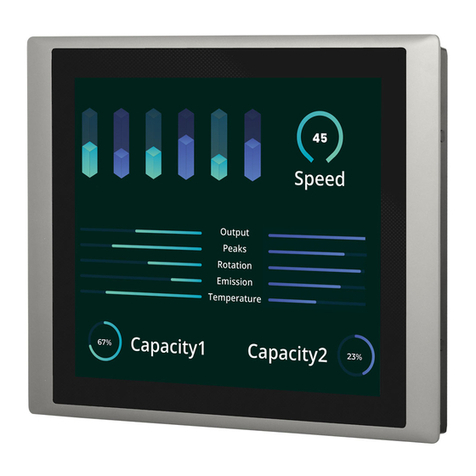

1.1 Overview
CV Series is LCD display module with resistive 5-wire or projected capacitive touch screen. CV Series
features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-
cast front frame, it is rugged and reliable for industrial environment. With support for Convertible
Display System (CDS) technology, CV Series allows you to configure, upgrade and maintain your
Convertible Display System easily.
Chapter 1: Product Introductions
Front Rear

CV-100 Series
Convertible Display Module | User’s Manual
11
1.1.1 CV-108
Key Features
•8.4" SVGA TFT 4:3 LCD with Resistive 5-wire Touch
•30,000 hrs LED Backlight Life
•Resolution up to 800 x 600 (SVGA)
•400 nits Brightness
•Designed with Aluminum Die-cast Front Frame
•IP 65 Compliant Front Panel
•Convertible Display System (CDS) Supported
Hardware Specification
Display
•LCD Size: 8.4" (4:3)
•Max. Resolution: 800 x 600
•Brightness (cd/m2): 400
•Contrast Ratio: 600 : 1
•LCD Color: 262K
•Pixel Pitch (mm): 0.213 (H) x 0.213 (V)
•Viewing Angle (H-V): 150 / 130
•Backlight MTBF: 30000 hrs (LED Backlight)
Touch
•Resistive 5-wire Touch for CV-108R
Environment
•Operating Temperature:Ambient with Air Flow: -10°C to 60°C (with Industrial Grade
Peripherals)
•Storage Temperature: -30°C to 80°C
•Relative humidity: 10%~95% (non-condensing)
•IP Level: IP 65 Compliant Front Panel
Physical
•Dimension (W x D x H): 262 x 186.2 x 56.2 mm
•Weight: 1.62 kg
•Construction Front Panel: Die-cast Flat Surface
Certification
•CE
•FCC ClassA
Chapter 1: Product Introductions

CV-100 Series
Convertible Display Module | User’s Manual
12
1.1.2 CV-110
Key Features
•10.4" SVGATFT 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch
•50,000 hrs LED Backlight Life
•Resolution up to 800 x 600 (SVGA)
•400 nits Brightness
•Designed with Aluminum Die-cast Front Frame
•IP 65 Compliant Front Panel
•Convertible Display System (CDS) Supported
Hardware Specification
Display
•LCD Size: 10.4" (4:3)
•Max. Resolution: 800 x 600
•Brightness (cd/m2): 400
•Contrast Ratio: 700 : 1
•LCD Color: 16.2M
•Pixel Pitch (mm): 0.264 (H) x 0.264 (V)
•Viewing Angle (H-V): 160 / 130
•Backlight MTBF: 50000 hrs (LED Backlight)
Touch
•Resistive 5-wire Touch for CV-110R Only
•Projected Capacitive Touch for CV-110C Only
Environment
•Operating Temperature:Ambient with Air Flow: -10°C to 60°C (with Industrial Grade
Peripherals)
•Storage Temperature: -30°C to 80°C
•Relative humidity: 10%~95% (non-condensing)
•IP Level: IP 65 Compliant Front Panel
Physical
•Dimension (W x D x H): 295 x 227.3 x 56.2 mm
•Weight: 2.24 kg
•Construction Front Panel: Die-cast Flat Surface
Certification
•CE
•FCC ClassA
Chapter 1: Product Introductions

CV-100 Series
Convertible Display Module | User’s Manual
13
1.1.3 CV-112
Key Features
•12.1" SVGATFT 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch
•50,000 hrs LED Backlight Life
•Resolution up to 800 x 600 (SVGA)
•450 nits Brightness
•Designed with Aluminum Die-cast Front Frame
•IP 65 Compliant Front Panel
•Convertible Display System (CDS) Supported
Hardware Specification
Display
•LCD Size: 12.1" (4:3)
•Max. Resolution: 800 x 600
•Brightness (cd/m2): 450
•Contrast Ratio: 800 : 1
•LCD Color: 262K
•Pixel Pitch (mm): 0.3075 (H) x 0.3075 (V)
•Viewing Angle (H-V): 160 / 140
•Backlight MTBF: 50000 hrs (LED Backlight)
Touch
•Resistive 5-wire Touch for CV-112R Only
•Projected Capacitive Touch for CV-112C Only
Environment
•Operating Temperature:Ambient with Air Flow: -10°C to 60°C (with Industrial Grade
Peripherals)
•Storage Temperature: -30°C to 80°C
•Relative humidity: 10%~95% (non-condensing)
•IP Level: IP 65 Compliant Front Panel
Physical
•Dimension (W x D x H): 345 x 265.3 x 57 mm
•Weight: 3.16 Kg
•Construction Front Panel: Die-cast Flat Surface
Certification
•CE
•FCC ClassA
Chapter 1: Product Introductions

CV-100 Series
Convertible Display Module | User’s Manual
14
1.1.4 CV-115
Key Features
•15" XGA TFT 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch
•50,000 hrs LED Backlight Life
•Resolution up to 1024 x 768 (XGA)
•350 nits Brightness
•Designed with Aluminum Die-cast Front Frame
•IP 65 Compliant Front Panel
•Convertible Display System (CDS) Supported
Hardware Specification
Display
•LCD Size: 15" (4:3)
•Max. Resolution: 1024 x 768
•Brightness (cd/m2): 350
•Contrast Ratio: 800 : 1
•LCD Color: 16.2M
•Pixel Pitch (mm): 0.297 (H) x 0.297 (V)
•Viewing Angle (H-V): 160 / 160
•Backlight MTBF: 50000 hrs (LED Backlight)
Touch
•Resistive 5-wire Touch for CV-115R Only
•Projected Capacitive Touch for CV-115C Only
Environment
•Operating Temperature:Ambient with Air Flow: -10°C to 60°C (with Industrial Grade
Peripherals)
•Storage Temperature: -30°C to 80°C
•Relative humidity: 10%~95% (non-condensing)
•IP Level: IP 65 Compliant Front Panel
Physical
•Dimension (W x D x H): 408 x 312.4 x 59.2 mm
•Weight: 4.36 Kg
•Construction Front Panel: Die-cast Flat Surface
Certification
•CE
•FCC ClassA
Chapter 1: Product Introductions

CV-100 Series
Convertible Display Module | User’s Manual
15
1.1.5 CV-W115
Key Features
•15.6" WXGATFT 16:9 LCD with Resistive 5-wire / Projected Capacitive Touch
•50,000 hrs LED Backlight Life
•Resolution up to 1366 x 768 (WXGA)
•300 nits Brightness
•Designed with Aluminum Die-cast Front Frame
•IP 65 Compliant Front Panel
•Convertible Display System (CDS) Supported
Hardware Specification
Display
•LCD Size: 15.6" (16:9)
•Max. Resolution: 1366 x 768
•Brightness (cd/m2): 300
•Contrast Ratio: 500 : 1
•LCD Color: 16.7M
•Pixel Pitch (mm): 0.252 (H) x 0.252 (V)
•Viewing Angle (H-V): 170 / 160
•Backlight MTBF: 50000 hrs (LED Backlight)
Touch
•Resistive 5-wire Touch for CV-W115R Only
•Projected Capacitive Touch for CV-W115C Only
Environment
•Operating Temperature:Ambient with Air Flow: -10°C to 60°C (with Industrial Grade
Peripherals)
•Storage Temperature: -20°C to 60°C
•Relative humidity: 10%~95% (non-condensing)
•IP Level: IP 65 Compliant Front Panel
Physical
•Dimension (W x D x H): 420 x 254 x 66.2 mm
•Weight: TBD
•Construction Front Panel: Die-cast Flat Surface
Certification
•CE
•FCC ClassA
Chapter 1: Product Introductions

CV-100 Series
Convertible Display Module | User’s Manual
16
1.1.6 CV-117
Key Features
•17" SXGA TFT 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch
•50,000 hrs LED Backlight Life
•Resolution up to 1280 x 1024 (SXGA)
•350 nits Brightness
•Designed with Aluminum Die-cast Front Frame
•IP 65 Compliant Front Panel
•Convertible Display System (CDS) Supported
Hardware Specification
Display
•LCD Size: 17" (4:3)
•Max. Resolution: 1280 x 1024
•Brightness (cd/m2): 350
•Contrast Ratio: 800 : 1
•LCD Color: 16.7M
•Pixel Pitch (mm): 0.264 (H) x 0.264 (V)
•Viewing Angle (H-V): 170 / 160
•Backlight MTBF: 50000 hrs (LED Backlight)
Touch
•Resistive 5-wire Touch for CV-117R Only
•Projected Capacitive Touch for CV-117C Only
Environment
•Operating Temperature:Ambient with Air Flow: -10°C to 60°C (with Industrial Grade
Peripherals)
•Storage Temperature: -30°C to 85°C
•Relative humidity: 10%~95% (non-condensing)
•IP Level: IP 65 Compliant Front Panel
Physical
•Dimension (W x D x H): 450 x 350 x 63.2 mm
•Weight: 5.64 kg
•Construction Front Panel: Die-cast Flat Surface
Certification
•CE
•FCC ClassA
Chapter 1: Product Introductions

CV-100 Series
Convertible Display Module | User’s Manual
17
1.1.7 CV-119
Key Features
•19" SXGA TFT 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch
•50,000 hrs LED Backlight Life
•Resolution up to 1280 x 1024 (SXGA)
•350 nits Brightness
•Designed with Aluminum Die-cast Front Frame
•IP 65 Compliant Front Panel
•Convertible Display System (CDS) Supported
Hardware Specification
Display
•LCD Size: 19" (4:3)
•Max. Resolution: 1280 x 1024
•Brightness (cd/m2): 350
•Contrast Ratio: 1000 : 1
•LCD Color: 16.7M
•Pixel Pitch (mm): 0.294 (H) x 0.294 (V)
•Viewing Angle (H-V): 170 / 160
•Backlight MTBF: 50000 hrs (LED Backlight)
Touch
•Resistive 5-wire Touch for CV-119R Only
•Projected Capacitive Touch for CV-119C Only
Environment
•Operating Temperature:Ambient with Air Flow: -5°C to 50°C (with Industrial Grade
Peripherals)
•Storage Temperature: -20°C to 60°C
•Relative humidity: 10%~95% (non-condensing)
•IP Level: IP 65 Compliant Front Panel
Physical
•Dimension (W x D x H): 510 x 389.3 x 63.2 mm
•Weight: 6.96 kg
•Construction Front Panel: Die-cast Flat Surface
Certification
•CE
•FCC ClassA
Chapter 1: Product Introductions

CV-100 Series
Convertible Display Module | User’s Manual
18
Chapter 1: Product Introductions
1.2 Mechanical Dimensions
Unit: mm
CV-108

CV-100 Series
Convertible Display Module | User’s Manual
19
Chapter 1: Product Introductions
Unit: mm
CV-110

CV-100 Series
Convertible Display Module | User’s Manual
20
Chapter 1: Product Introductions
Unit: mm
CV-112
