Circontrol Post eVolve Series User manual

Installation Manual
Post
eVolve
Series

Post eVolve Series
Installation Manual
COPYRIGHT INFORMATION
This document is copyrighted, 2021 by Circontrol, S.A. All rights are reserved. Circontrol, S.A.
reserves the right to make improvements to the products described in this manual at any time
without notice.
No part of this manual can be reproduced, copied, translated or transmitted in any form or by any
means without the prior written permission of the original manufacturer. Information provided in
this manual is intended to be accurate and reliable. However, the original manufacturer assumes
no responsibility for its use, or for any infringements upon the rights of third parties that may
result from its use.
All other product names or trademarks are properties of their respective owners.

1 — So, hello!
2 — Before the
installation
3 — Overview
4 — Dimensions
5 — Installation
6 — Technical
Data
7 — Need Help?
Here’s your guide
to install eVolve.
03
05
06
08
12
18
20

02
Post eVolve Series Installation Manual
1

03
This manual provides commissioning information about CIRCONTROL Charge Points,
which have been designed and tested to allow electric vehicle charging, specified in
IEC 61851.
This document has different sections such as step-by-step installation procedure and
technical data.
ELECTRIC RISK
Take precautions to make the electrical connection inside the unit.
Unit must be disconnected from any power source during commissioning.
ATTENTION!
Indicates that the damage to property can occur if appropiate precautions
are not taken
So, hello!
THE FOLLOWING SYMBOLS ARE USED FOR IMPORTANT
SAFETY INFORMATION IN THIS DOCUMENT
• Complies with IEC 61851, Electric vehicle conductive charging system (IEC
61851-1 and IEC 61851-21-2).
• Complies with IEC 62196, Plugs, socket-outlets, vehicle couplers and vehicle
inlets (IEC 62196-1 and IEC 62196-2).
• Complies with Directives: 2014/35/UE, LVD;2014/30/UE, EMC.
• Complies with
The Electrical equipment (safety) regulations 2016 guidance
and The Electromagnetic compatibility regulations 2016 guidance
• RFID complies with ISO/IEC 14443A/B.
• Modem 4G complies with CE/RED and
Radio Equipment Regulations 2017 .

04
Post eVolve Series Installation Manual
The Charge Point is designed to be installed both in indoor and outdoor areas. For each of
the different conditions of installation, the unit must be installed safely and ensure adequate
protection.
• Charge Point shall not be installed in
areas where there is potential risk of
explosions.
• Do not install the Charge Point where
falling objects may damage the
equipment.
• The Charge Point can be installed in
locations with non-restricted access.
• The surface where the Charge Point is
placed must withstand the mechanical
forces.
• Do not use this unit for anything other
than electric vehicle charging modes
considered in IEC 61851-1:2017.
• Do not modify this unit. If modified,
CIRCONTROLwillrejectallresponsibility
and the warranty will be void.
• Comply strictly with electrical safety
regulations according to your country.
• Do not make repairs or manipulations
with the unit energised.
• Only trained and qualified personnel
should have access to low-voltage
electrical parts inside the unit.
• Check the installation annually by
qualified technician.
• Remove from service any item that has a
fault that could be dangerous for users
(broken plugs, caps that don’t close...).
• Use only Circontrol supplied spare
parts.
• Do not use this product if the enclosure
or the EV connector is broken, cracked,
open, or shows any other indication of
damage.
Refer to TECHNICAL DATA section for more information about environmental installation
conditions.
IMPORTANT SAFETY INSTRUCTIONS
Read carefully all the instructions before starting in order
to ensure properly installation of the Charge Point.
2

05
ELECTRICAL WIRING CONSIDERATIONS
1 — ELECTRICAL PROTECTIONS
Charge Point may not include elements of electrical protection.
If this equipment has internal electrical protections, they are installed for each socket-outlet for
the protection of the user against an electrical failure, according to the international standard
IEC 61851-1:2017.
In order to guarantee the total protection of the users and the installation (power supply line
included) in front of any electrical hazard, it is mandatory to install a main circuit breaker (MCB)
and a residual current device (RCD) upstream of the charger.
These electrical protections and the rest of the installation have to be aligned with the local and
national rules. The selectivity of the protections has to be guaranteed at all times.
2 — POWER SUPPLY LINE DIMENSIONING
The dimensioning of the input power supply line of the Charge Point shall be checked by a
qualified electrician. Note that various factors such as cable length between distribution board
and Charge Point and maximum output current of the Charge Point may have influence on the
selected cable.
In such cases, increasing the cable cross-section is required to adapt the temperature resistance
of the power supply line.
3 — MAXIMUM OUTPUT CURRENT
Please refer to the TECHNICAL DATA section to consult the default factory settings of maximum
output current of the Charge Point.
If the power supply is less than maximum output current and adjustment to a lower nominal
current needs to be performed, please refer to the INSTRUCTION MANUAL.
Depending of the model this value may vary.
Take into consideration this section before starting wiring
the connections of the Charge Point.
Before installation

06
Post eVolve Series Installation Manual
What’s included:
Charge Point Installation
Manual
CirCarLife
RFID Card
eVolve Post Key Foundation Kit
3

07
Overview
11
1
2
3
6
777
8
8
1 — Hat
2 — LED Beacons
3 — Display LCD
4 — RFID Reader
5 — Touch screen TFT 8”
6 — Plugs*
7 — Key lock access
8 — Base
(*) Plugs may vary depending on the model
8
4
4
5
6
6
22
Master Smart Slave

08
Post eVolve Series Installation Manual
446234
1544
1351
113
80
281
Measures in mm
438
288
4

09
50
500 500
x
*
Measures in mm
AMinimum distances
When installing the unit, respect the minimum distances for maintenance and safety reasons.
Please comply accordingly to your country specifications.
The next picture shows how it should be installed.
• Do not install near areas where water or fluids can penetrate into the unit.
• Do not install the unit on unstable terrain.
(*) If Bollard Impact Protector is installed, keep 500 mm as a minimum distance in order
to give enough space to open the frontal door of the Charge Point for maintenance tasks.
Dimensions

10
Post eVolve Series Installation Manual
Foundation Kit:
Nuts
DIN 934 M16
Washers
DIN 9021 M16
Templates
Foundation bolts
16x
2x
4x
4x

11
BFoundation
450
250
119
230
320
300
Measures in mm
• Place the foundation bolts into the
template using the provided nuts
with the help of a 24mm open-end
wrench.
• Once the kit is assembled, it must
be placed in the ground taking
into consideration the following
measures.
Note: If there is any further doubt about the terrain regarding the installation of this unit, due to
the weight and dimensions, it will be necessary to define a final solution to install the unit. It shall
be performed an specific technical project made by an architectural firm prior to its installation.
220
130
500 300
Front view Side view
400

12
Post eVolve Series Installation Manual
5
A
1 2

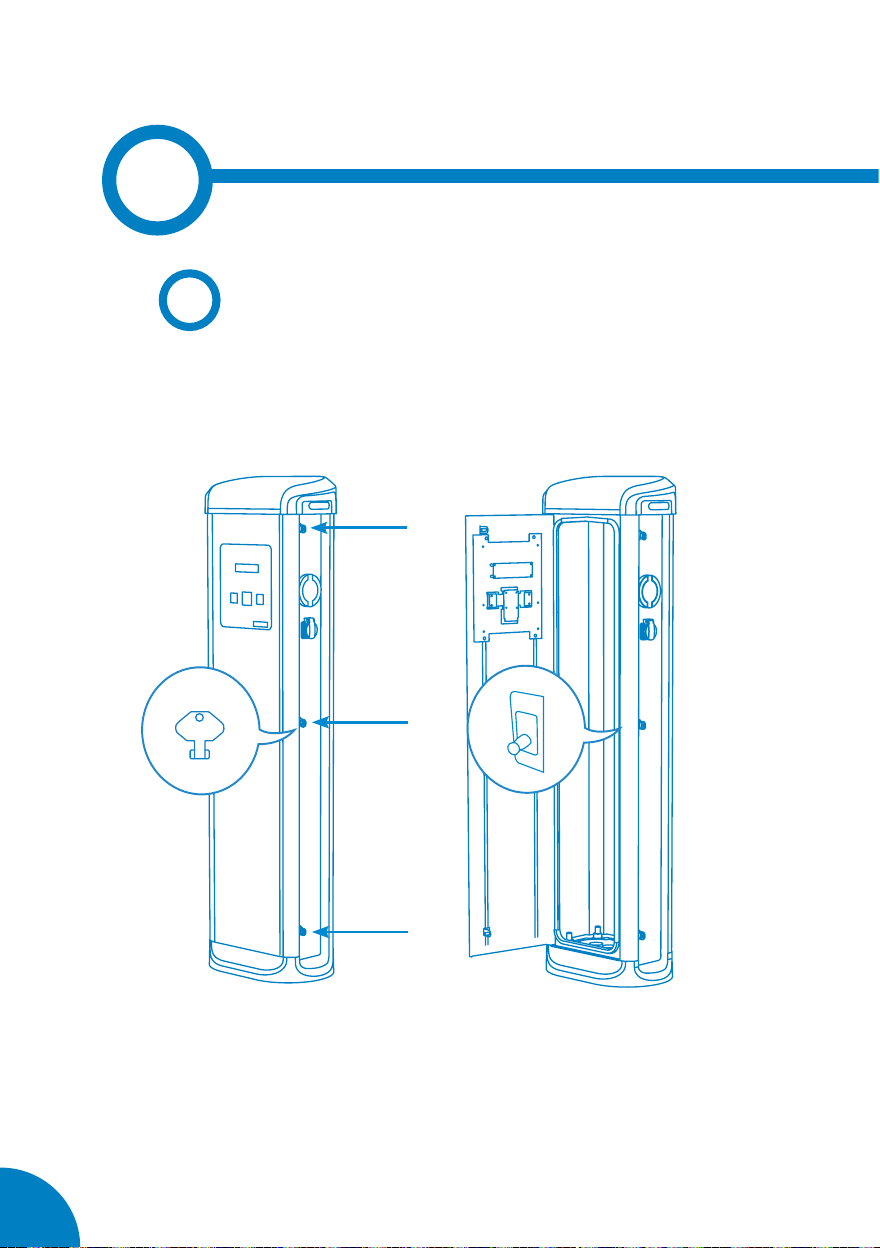

Opening
1. Use the provided key in order to open the unit.
2. Pull outward the Tamper switch* to operate the Charge Point.
(*) Tamper Switch: The Charge Point has a security switch (antitamper protection) installed
that will avoid any charging session if the doors are opened.
It has three positions.
1. Operative postition: The Charge Point is closed.
2. Error position: The Charge Point is opened without supervision.
3. Mantenance position:The Charge Point is opened under mantenance (Pulling otward the
tamper switch).

13
Installation
BPositioning
1. Remove the template nuts before proceeding.
2. Place the Charge Point through the four foundation bolts. Make sure that the Charge Point
pre-holes of the metal plate match with the cable glands.
Post eVolve Charge Point series can be placed at outdoor or indoor areas to charge electric
vehicles. This product series is designed to placed on the ground.

14
Post eVolve Series Installation Manual
4x
• Firmly tighten the 4 nuts using a 24mm open-end wrench.
CFixation
• It is recommended to install a cable glands (not supplied) in pre-holes position.
• Assembly metal plate using the 4 supplied screws.
DMetal plate

15
EWiring
Do not forget to connect the ground cable to the ground terminal
Terminal block maximum cross-section: 35mm2
Type of cable allowed by the terminal block: Aluminium & copper
Make sure all screws are securely tightened at 4..5 Nm
S
Note: The proper earthing system shall be TT or TN-S. The ground loop impedance
measurement for the entire installation shall be less than 80 ohms; however, it could be even
less if required by national regulations. At least once a year it is recommended to carry out
the verification of the installation grounding by a qualified personnel when the terrain is drier.
L1
L2
L3
N
L
N
SINGLE-PHASE CHARGE POINT
• Connect to the 230VAC.
THREE-PHASE CHARGE POINT
• Connect to the 400VAC.
• If the Power Supply is Single-
Phase, connect L1 and N.
• Use provided cable glands in order
to maintain the IP protection
• Use provided cable glands in order
to maintain the IP protection
Al/Cu

16
Post eVolve Series Installation Manual
1 — POWER INPUT
Before proceeding, make sure voltage is present in the terminal blocks.
For Three-Phase models pay special attention to Neutral Cable.
2 — MAINTENANCE MODE
Pull outward the Tamper Switch located in the lower half of the Charge Point.
3 — CAREFUL WITH THE WIRES
Before closing the unit, keep in mind all cables should remain inside.
4 — CHECK THE PLUGS
Plugs should be in good conditions before starting the unit.
5 — ELECTRICAL PROTECTIONS
Rearm all the protections installed on the unit.
6 — CHECK THE BEACON INDICATORS
All beacon indicators should light properly. Here’s the reference:
7 — OPERATION
Check no abnormal noise appears while the unit is charging.
8 — PREVENTIVE MAINTENANCE
It is recommended to perform one preventive maintenance per year.
PLUG STATE
Available
Charging
Fault
BEACON COLOR
Green
Blue
Red
Verification
F

17

18
Post eVolve Series Installation Manual
6
DATA GENERAL SPECIFICATIONS
MECHANICAL
Light beacon RGB Colour indicator
Enclosure rating IP54 / IK10
Enclosure material Aluminium & ABS
Enclosure door Frontal key locked door
Net weight 55Kg
Dimensions (W x H x D) 450 x 1550 x 290 mm
Cable (optional) Type 1; Type 2
ELECTRICAL
Power supply 1P+N+PE / 3P+N+PE
Input voltage 230VAC+/-10% / 400VAC+/-10%
Frequency 50Hz / 60Hz
ENVIRONMENTAL CONDITIONS
Operating temperature -5ºC to +50ºC
Operating temperature with
Low Temperature Kit (optional)* -25ºC to +50ºC
Operating humidity 5% to 95% Non-condensing
PROTECTIONS
Overcurrent protection Miniature Circuit Breaker (MCB)
IEC 60898-1 (Curve C)
Overvoltage protection RCD Type A (30mA) + 6mA DC** / Type B
(optional)
Surge protection (optional) Transient surge protector
IEC 61643-1 (Class II)
* Equipment to be installed outdoor shall be provided with the Low Temperature Kit in order to
comply with the IEC 61851-1:2017
** This protection is not available for model C63
