ABL eMH1 WALLBOX User manual

eMH1 Wallbox
Operating Manual
EN

2
Congratulations
on your new eMH1 Wallbox!
Your eMH1 is compact.
It's easy to use.
With a maximum of safety.

3
Safety first
1. Safety and user information 5
Introduction
2. Your model variant 14
3. Components included 18
4. Accessories 19
Charging procedure
5. Charging 24
Resolving errors
6. Error messages 39
7. Display window 50
8. Shutdown 54
Appendix
9. Definitions 59
10. Technical specifications 60
11. Standards, guidelines and trademarks 65
12. Warranties and guarantees 68
13. Disposal advice 70
CONTENTS

4
1. Safety and user information 5
SAFETY
FIRST

5
• Please observe
all safety and
user information
• Relevant local regu-
lations for operating
electrical devices
always apply.
Indicates
• Dangerous electrical
currents
• Dangers to life
and limb
Indicates
• Risks arising from
damage
to the device
• Risks for other
users
Indicates
• Important information
and particularities
1. SAFETY AND
USER INFORMATION

6
The Wallbox must not
be exposed to direct
sunlight

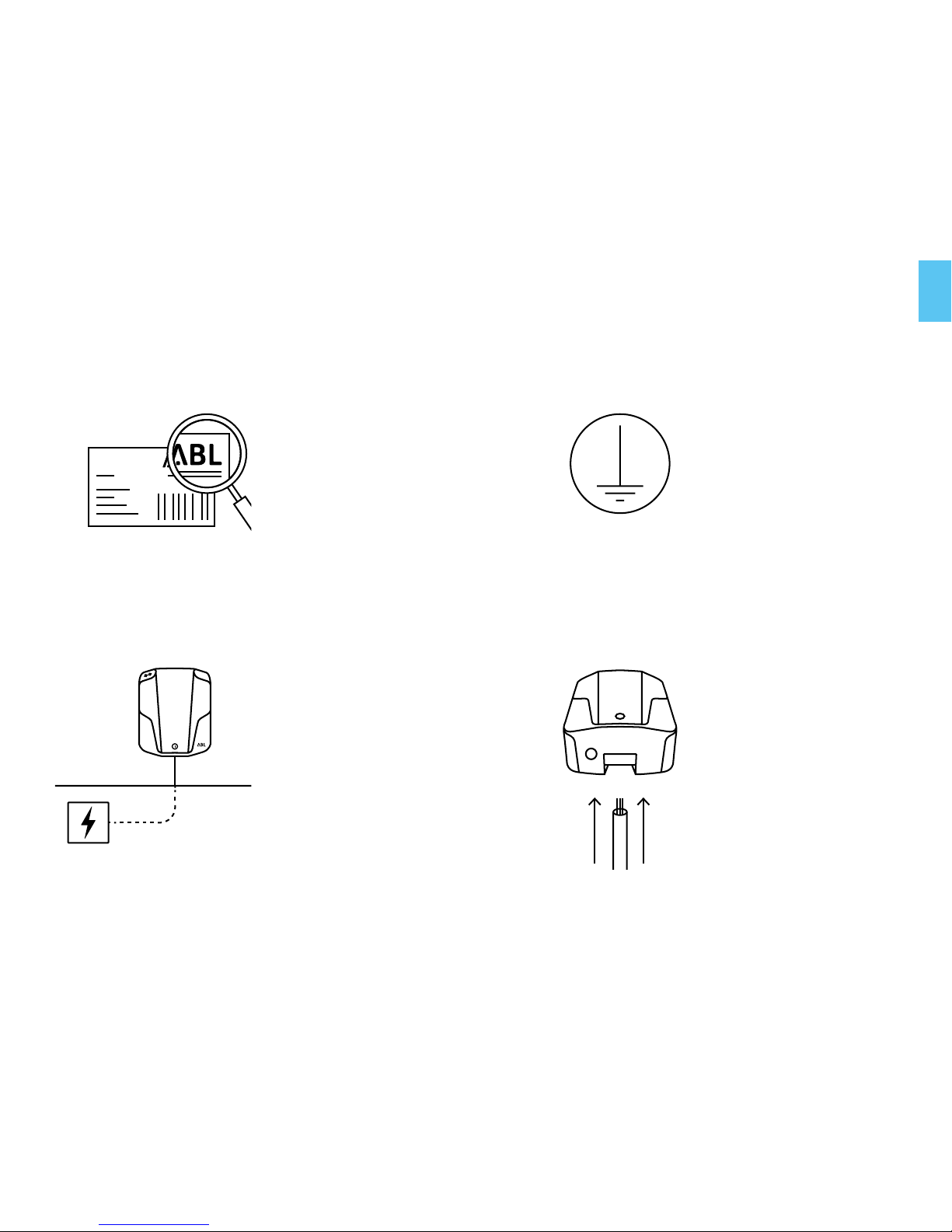

The installation site must
offer protection against
rain and running water or
other liquids
The Wallbox is not
situated near
a heat source
The installation site
must offer sufficient air
circulation.
Operating temperature:
p. 60
1. SAFETY AND
USER INFORMATION

7
1. SAFETY AND
USER INFORMATION

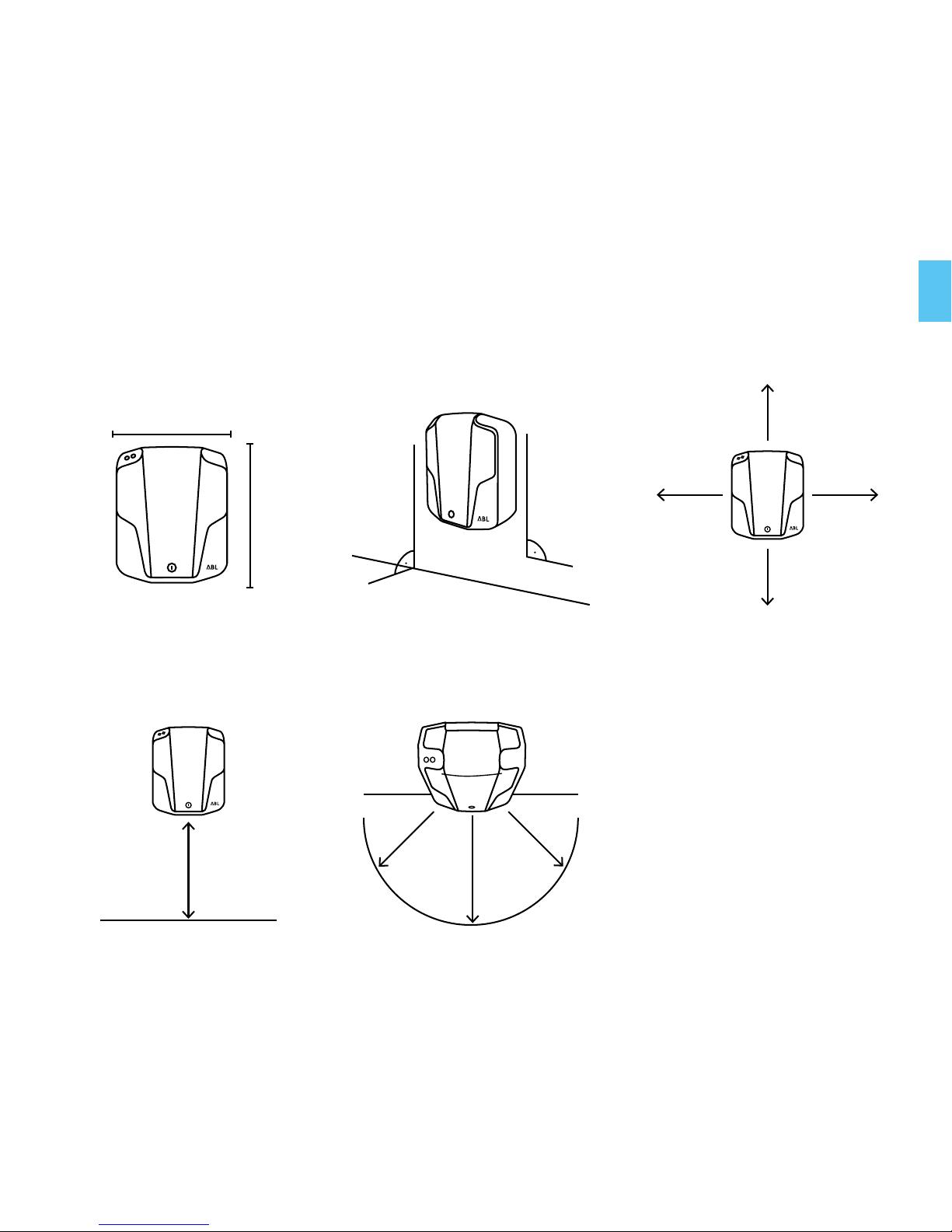

• The installation surface mea-
sures at least 262 x 222 mm
(height x width)
• The installation height is be-
tween 140 and 160 cm (floor to
bottom edge of housing)
• The installation site must be
freely accessible
• The mounting substrate must be
level and firm
• Minimum distances to other
technical installations must be
observed
• If unsure, please contact your
specialist electrical contractor
222 mm
262 mm
140 cm
bis
160 cm

8
• Ideally, the installation
site should already
provide for connection
to the electricity grid
• Otherwise, a power
supply cable must be
installed especially
• If unsure, please
contact your specialist
electrical contractor
• Ideally, cable entry is
from the underside of
the housing base
• Above or below
surface power
supply possible
• The rated voltage must
be observed.
Rated voltage: p. 60
• The Wallbox must be
connected to a protec-
tive earth conductor
1. SAFETY AND
USER INFORMATION

9

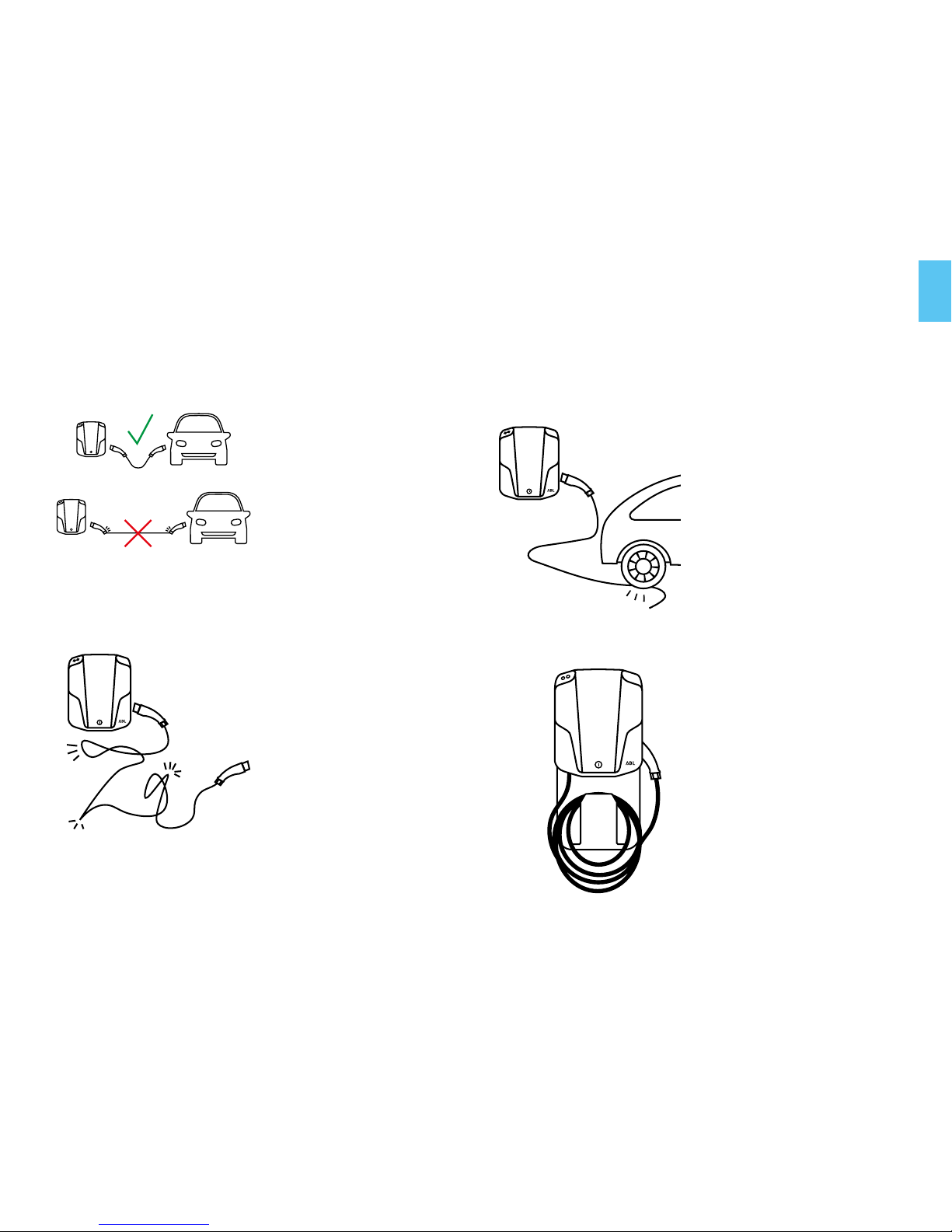

• The charging cable
must not be under
strain during the
charging procedure
• The charging cable and
the charging connector
must not be driven over
• The charging cable
must not be kinked or
twisted
• The charging cable
must be coiled tightly
and stored. Accesso-
ries: p. 19
1. SAFETY AND
USER INFORMATION

10
1. SAFETY AND
USER INFORMATION
• (De-)installation and repairs
must only be carried out by a
specialist electrical contractor
• No modifications must be made
to the Wallbox
• None of the components need to
be maintained by the user
• The Wallbox must be protected
by a Type A RCCB.
• Depending on the model variant,
it may already be incorporated
into the eMH1 Wallbox, or it
must be installed upstream by
the specialist electrical con-
tractor

11
1. SAFETY AND
USER INFORMATION
• The power supply in your do-
mestic power distribution box
must be protected separately by
a suitable and accurately dimen-
sioned miniature circuit breaker
(C characteristic)
The eMH1 Wallbox
• Complies with all technical
safety requirements, standards
and guidelines. Standards &
guidelines: p. 64
• Represents the current state of
technology
• From October 2018, all eMH1
Wallbox model variants are
equipped with an RCM14
• DC fault current detection is
required by law in many coun-
tries
• The RCM14 means there is no
need for a Type B RCCB

12
1. SAFETY AND
USER INFORMATION
• The Wallbox must only
be cleaned using a dry
cloth
• No pressure cleaners
or similar devices must
be used
• Only accessories
intended for the Wall-
box and supplied by
the manufacturer must
be used.
Accessories: p. 19

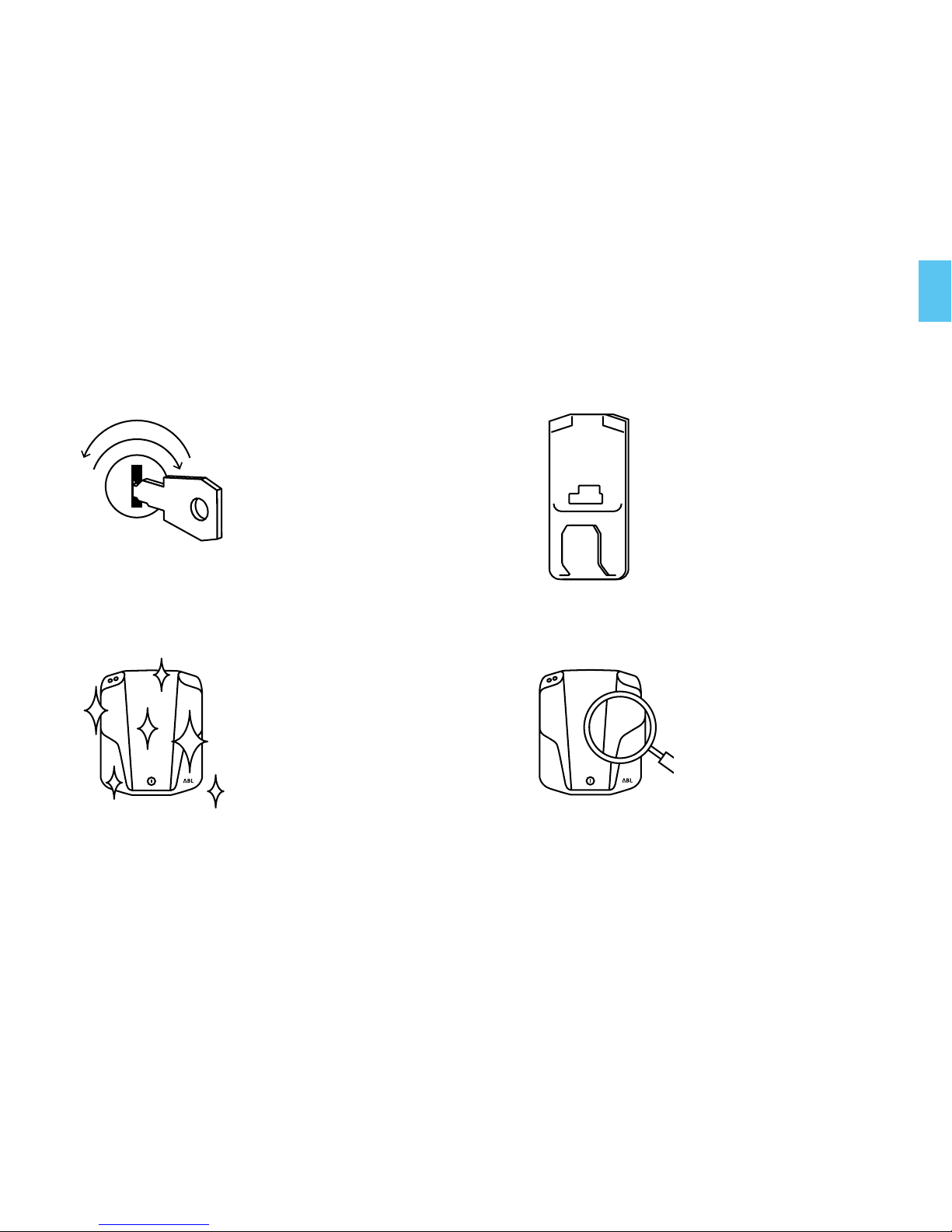

• The housing cover of
the Wallbox must be
locked
• The Wallbox must be
checked regularly for
its technically sound
condition
• The 'T' button of the RCCB must be
tripped once every 6 months. See the op-
erating manual available at www.abl.de
• In case of damage, contact your local
distributor first

13
2. Your model variant 14
3. Components included 18
4. Accessories 19
INTRODUCTION

14
1 Open the cover 3 p. 15
ACover
BType plate
2 The type plate is located
under the cover
2. YOUR MODEL VARIANT Type plate
Model variants
A
B

15
3 You can find your model variant on p. 60 using the data shown at Aand B
2. YOUR MODEL VARIANT Type plate
Model variants

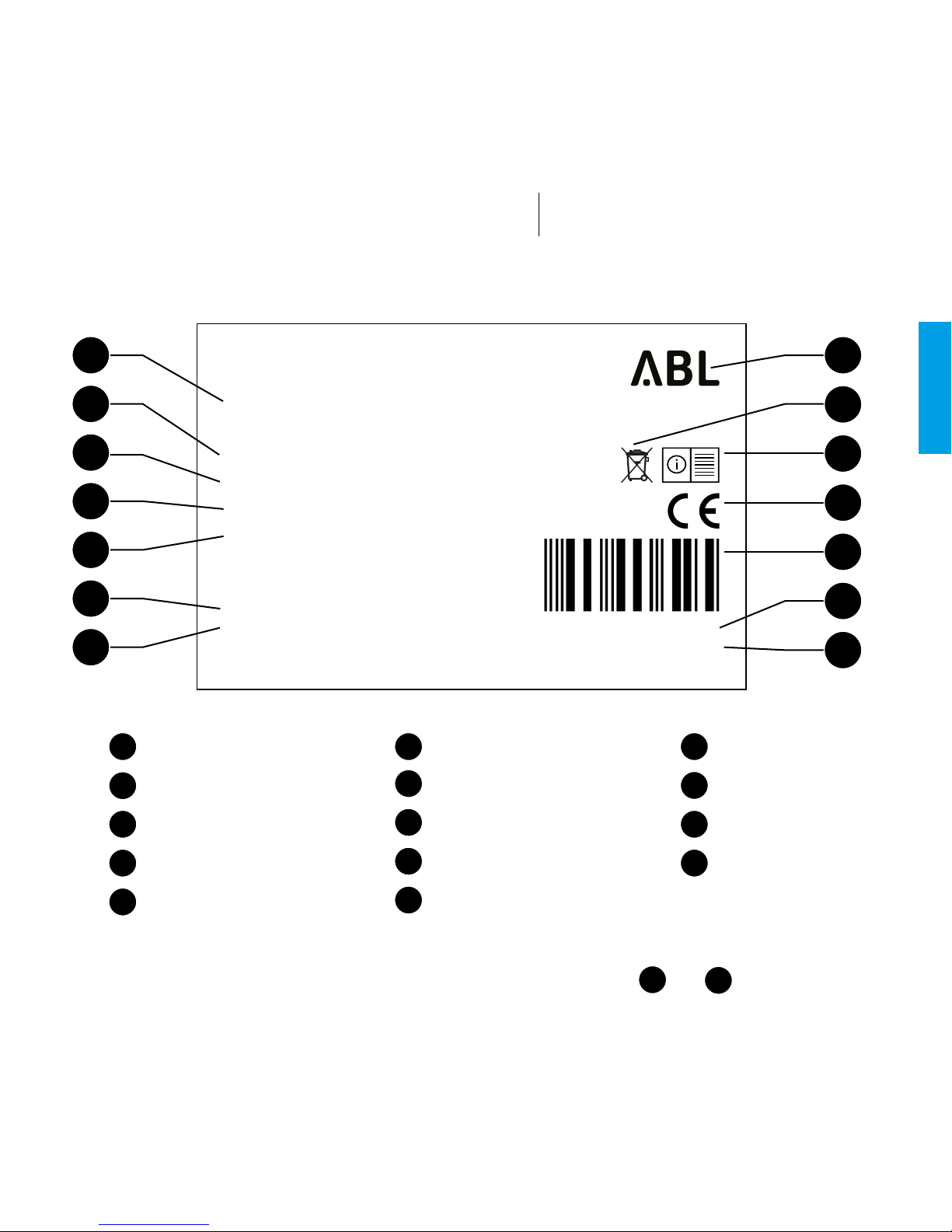

AModel number
GManufacturer
MSerial Number
BPower supply (voltage,
frequency, current)
HManufacturer's logo
NDate printed
CIP rating
IDisposal notice
DStandard
J'Read instructions' advice
EStandard
KCE label FCountry of manufacture
LBarcode
1WXXXX
~230/400V 50Hz 16A
IP44
IEC 61851-1
IEC 61439-7 ACSEV
MADE IN GERMANY
ABL SURSUM Bayer. Elektrozubehör
GmbH & Co. KG
Maßstab Gewicht
Werkstoff
2012 Datum Name
Benennung
Bearb. 20.07. PH
Gepr.
Norm
Zeichnungsnummer
Blatt
1
A Entwurf 20.07.12 PH 1 Bl.
Index Änderung Datum Name Ersatz für: A4
B
A
C
Sonstiges:
Druck:
Trägermaterial:
Abmaße:
F
E
D
62x60mm
BROTHER DK 22212, Endlos-Etik., Film, 62mm x 15.24m [9 9684 00]
sw
1) Bedruckung erfolgt auf BROTHER QL-560 bei Montage Baugruppe
2) Zugehörige Datei: 8099801_A.lbx
Typenschild
LOMD112
8 0998 01
BEI ÄNDERUNGEN MUß GEPRÜFT WERDEN,
INWIEWEIT CE-KONFORMITÄT BETROFFEN IST
UND/ODER
KUNDENFREIGABEN FÜR DIE ÄNDERUNG EINGEHOLT WERDEN MÜSSEN !
fortlaufende
Seriennummer
Fertigungs-
datum
0889
1Wxxxx00001
2018-04-20
H
J
K
L
M
I
N
A
B
D
F
C
E
G

16
2. YOUR MODEL VARIANT Type plate
Model variants

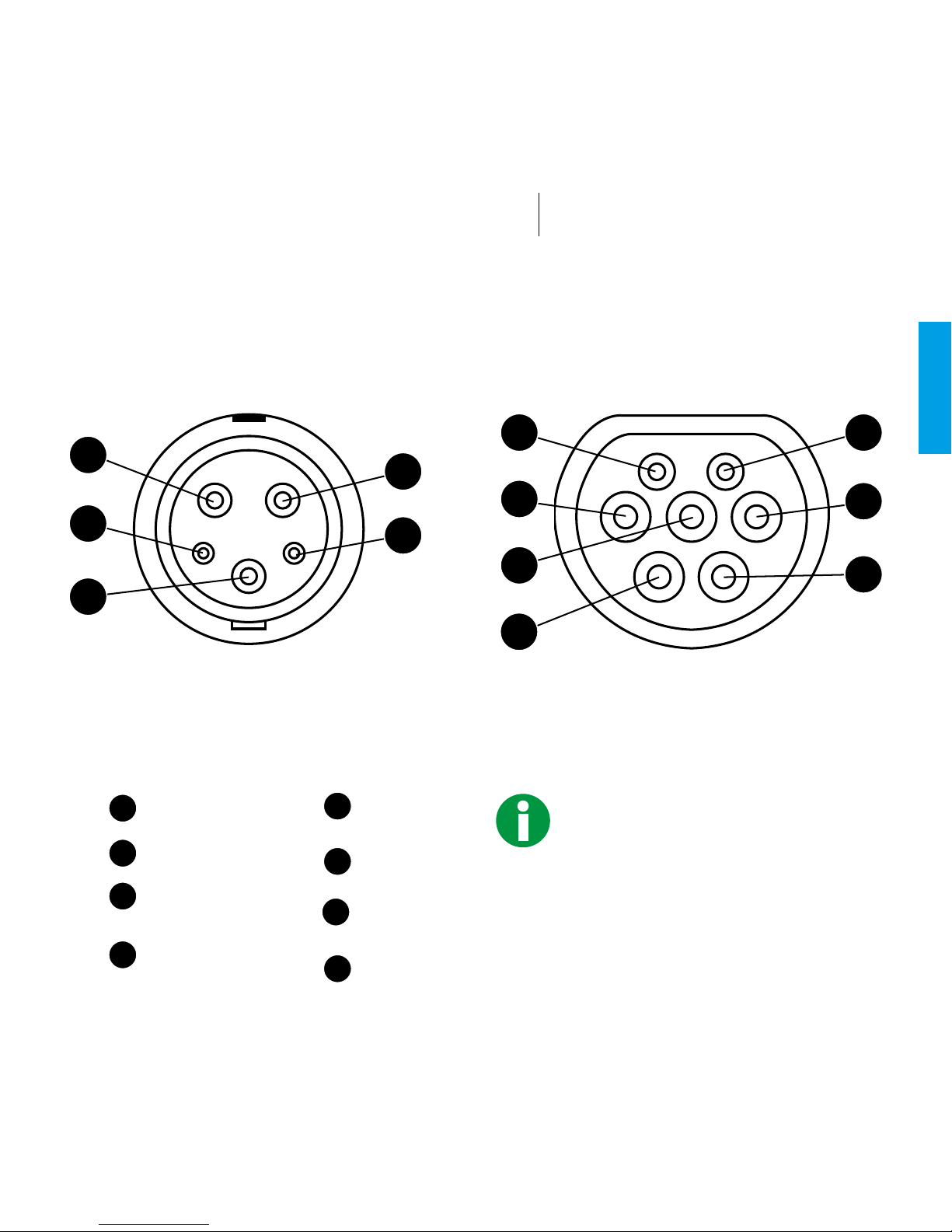

TYPE 1 CHARGING CABLE TYPE 2 CHARGING CABLE
• The eMH1 Wallbox with charging cable is
equipped with a fixed charging cable with
a Type 1 or Type 2 charging connector
• The charging cable is locked in the vehi-
cle's charging socket
• No voltage will be applied to the charging
cable via the current-carrying contacts
unless it is locked into place
GPE – Protective Earth
conductor
BPP – Proximity Pilot
signaling contact
ACP – Control Pilot
signaling contact
HL2 – Current-carrying
conductor / N – Neutral
conductor
CL1 – Current-carrying
conductor
DL2 – Current-carrying
conductor
EL3 – Current-carrying
conductor
FN – Neutral conductor
A
H
B
C
G
B
D
C
F
E
G
A

17
2. YOUR MODEL VARIANT Type plate
Model variants

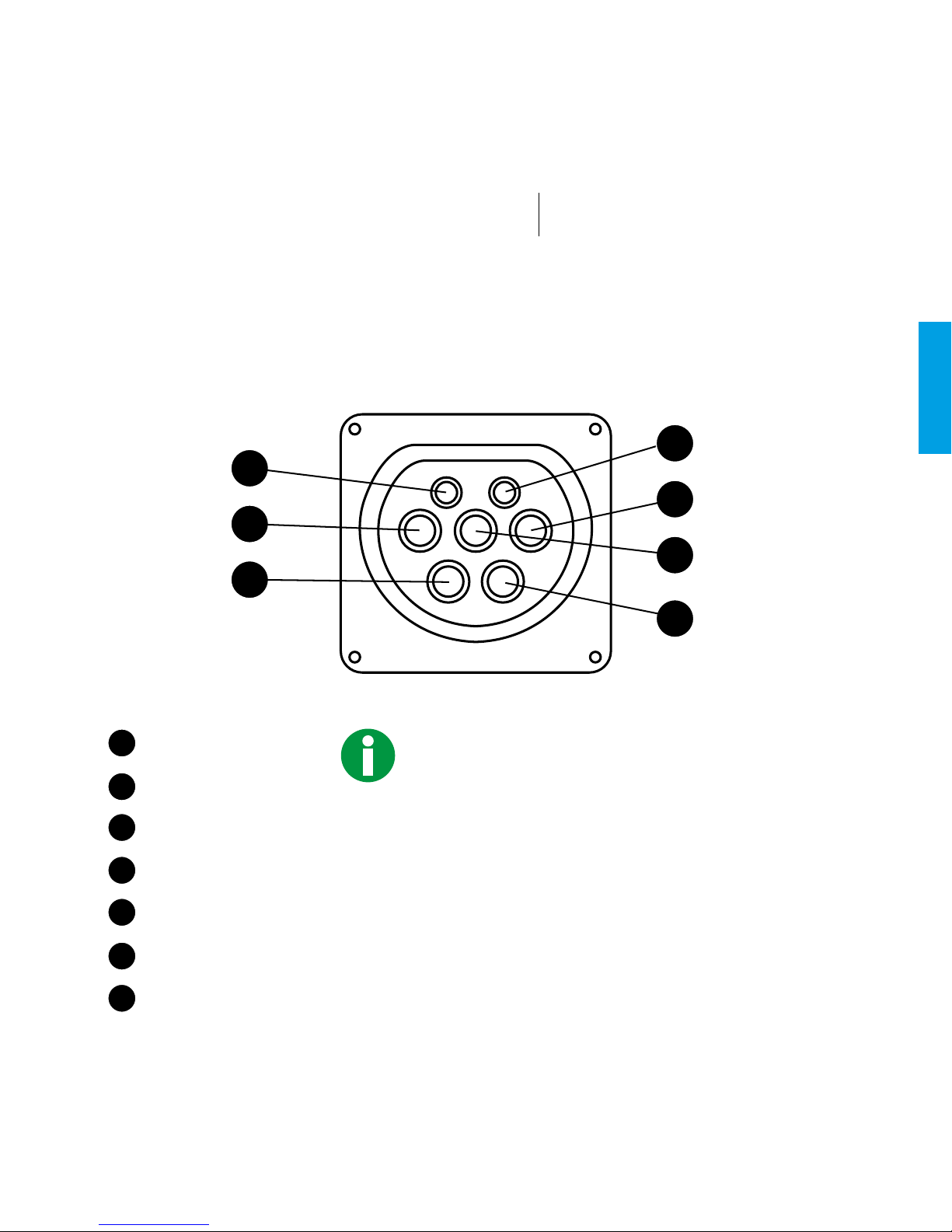

TYPE 2 CHARGING SOCKET
• The eMH1 Wallbox with charging socket is equipped with an
integrated charging socket according to IEC 62196-2 Type 2
• The charging socket electromotively locks the charging
cable as soon as the charging cable is connected to both the
Wallbox and the vehicle
• No voltage will be applied to the charging cable via the
current-carrying contacts of the socket unless it is locked into
place
• ABL offers suitable charging cables as accessories.
Accessories: p. 19
GPE – Protective Earth conductor
BPP – Proximity Pilot
signaling contact
ACP – Control Pilot
signaling contact
CL1 – Current-carrying conductor
DL2 – Current-carrying conductor
EL3 – Current-carrying conductor
FN – Neutral conductor
B
C
DF
E
G
A

18

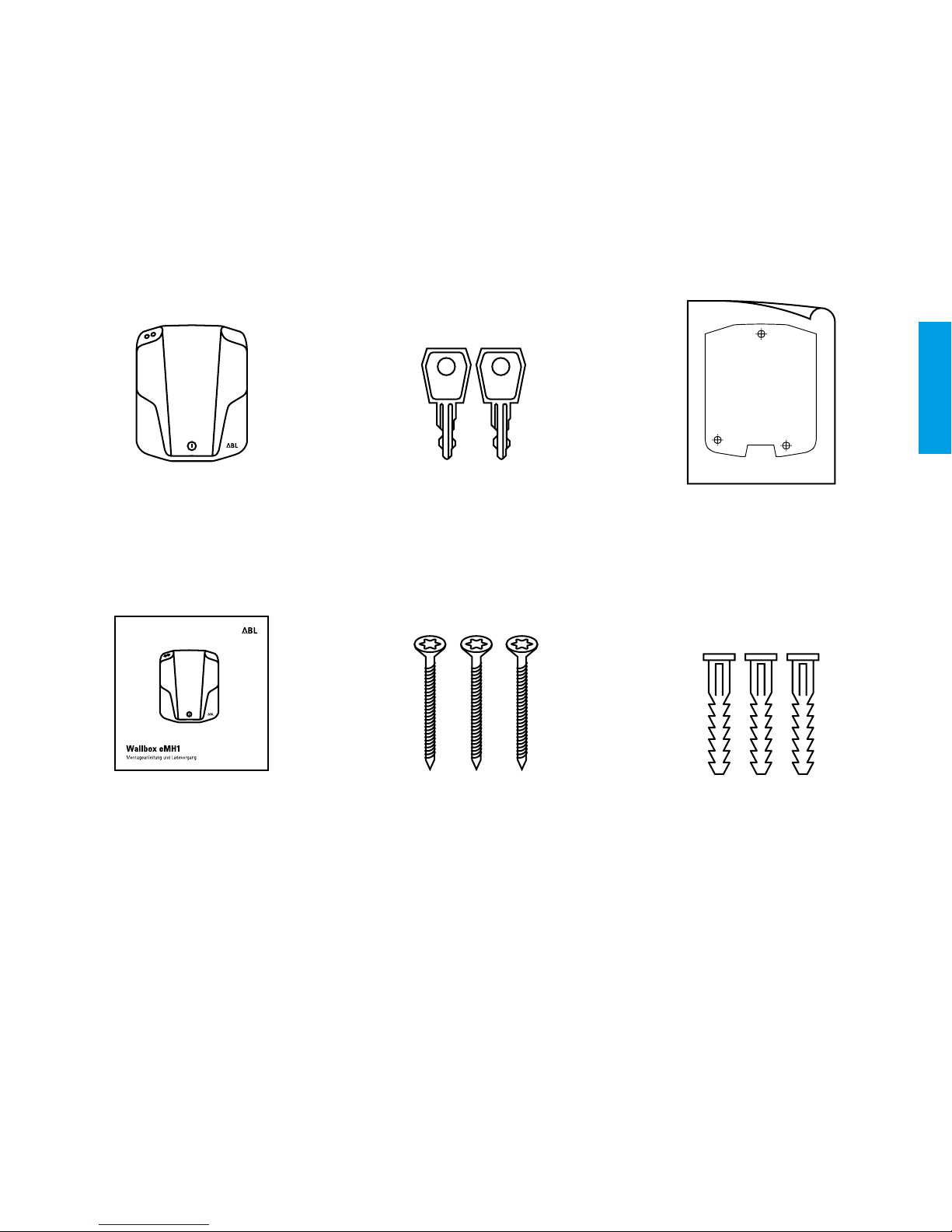

3. COMPONENTS INCLUDED
1 Check immediately after unpack-
ing whether all components are
included
2 In case of missing components,
please contact your local
distributor
eMH1 Wallbox
Installation manual
2 x keys
3 x screws (countersunk,
5 x 60 mm, T20)
Drilling template
3 x wall plugs
(8 x 40 mm)

19
4. ACCESSORIES
Foundation block for eMH1
mounting pole
For ground installation of the mounting pole, ABL offers a precast foun-
dation block, which provides the necessary stability and security for the
pole and has an integrated tube to protect the power supply. The founda-
tion block is made from grade C 25/30 concrete and complies with expo-
sure classes XC4 and XF1. 4 x M12 V2A mounting screws are included.

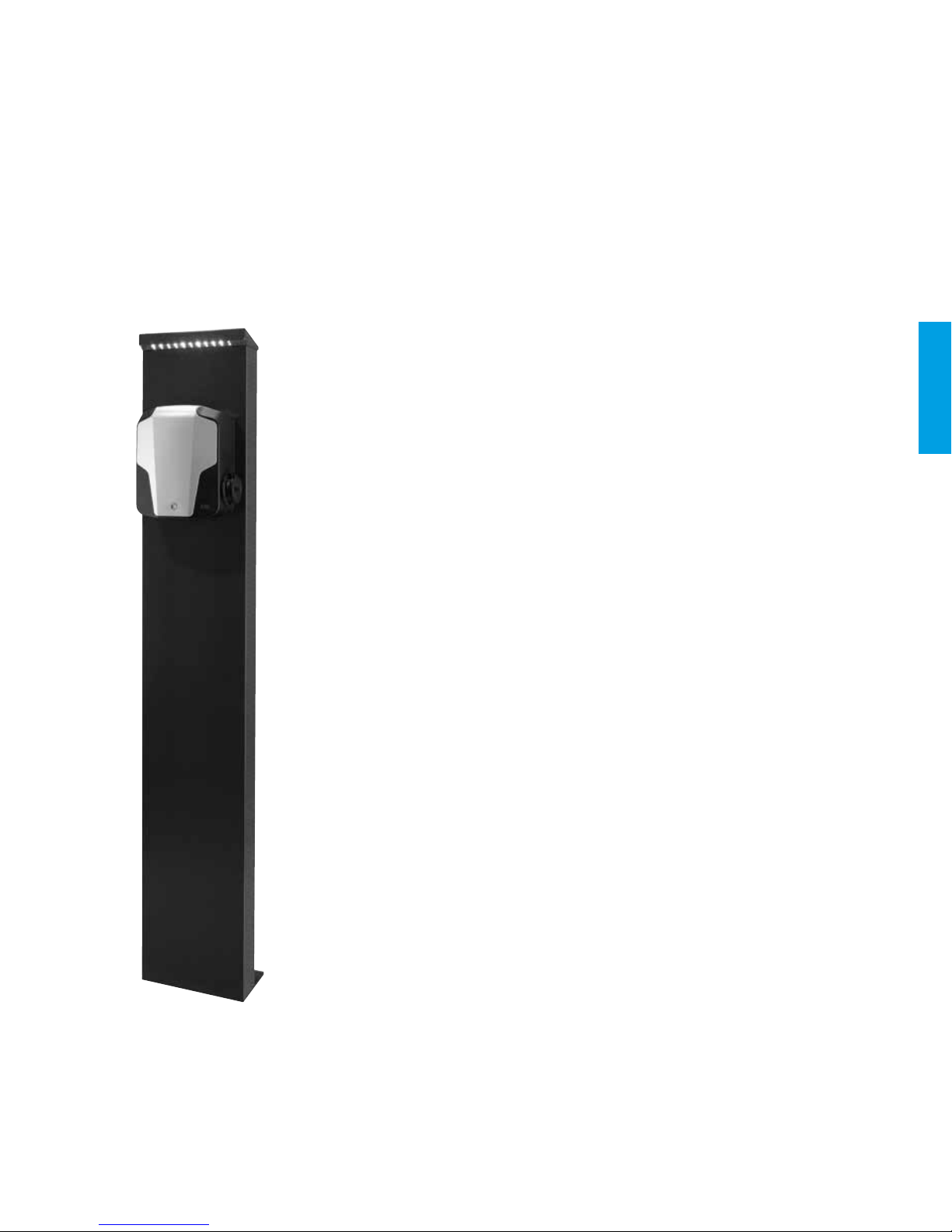

Mounting pole*
Powder-coated metal mounting pole with LED lighting, suitable
for all eMH1 Wallboxes
with or without mounting plate
h = 1650, w = 285, d = 150
*Wallbox not included

20
4. ACCESSORIES

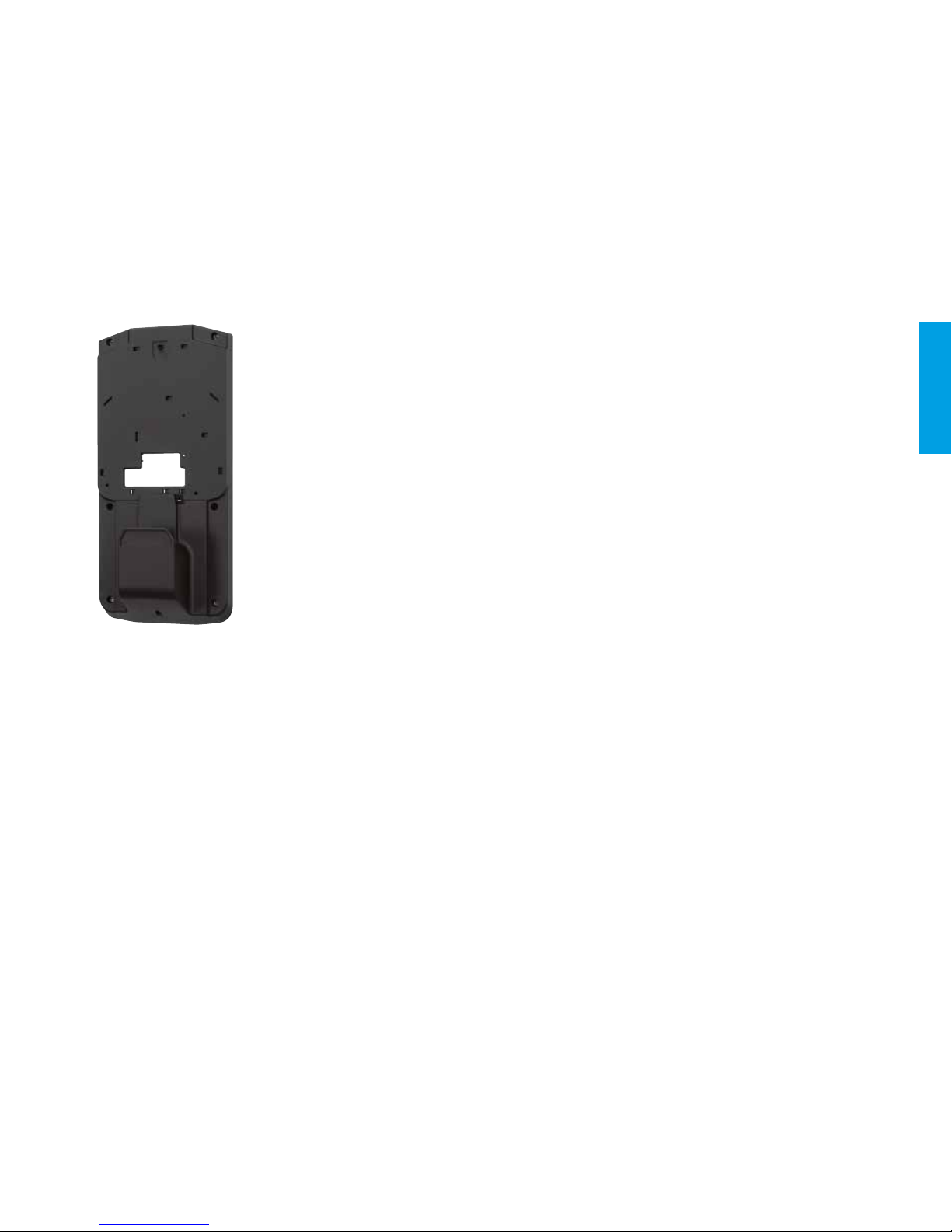

Mounting plate
for all eMH1 Wallboxes
USB/RS485
Converter
To select charging currents via a
serial RS485 interface on the EVCC
Virtual COM-Port
USB: Type B
RS485: RJ12 and MOLEX 5557
incl. software and two supply
cables
