Cisco Unified Wireless IP Phone 7925G Desktop
Charger
This chapter describes the Cisco Unified Wireless IP Phone 7925G Desktop Charger for use with Cisco
Unified Wireless IP Phone 7925G, 7925G-EX, and 7926G.
•Cisco Unified Wireless IP Phone 7925G Desktop Charger Overview, page 1
•Connect Charger to External Power, page 4
•Pair Charger and Wireless Phone, page 5
•Dock Phone in Charger, page 6
•Undock Phone, page 8
•Change Charger Speaker Volume, page 8
•Charge Spare Battery, page 8
•Cisco Unified Wireless IP Phone 7925G Desktop Charger Notes, page 9
Cisco Unified Wireless IP Phone 7925G Desktop Charger
Overview
The Cisco Unified Wireless IP Phone 7925G Desktop Charger provides the following features:
•Charges the docked phone battery from line power
•Contains a speakerphone, with the volume controlled by the phone volume buttons
•Supports Bluetooth through the speakerphone
•Displays status information using the Power/Bluetooth Status LED and Battery LED
•Contains an additional port at the back of the station for charging a spare battery
•Works on line power or from the spare battery for the phone
Cisco Unified Wireless IP Phone 7925G, 7925G-EX, and 7926G User Guide
1

The following figure shows the Cisco Unified Wireless IP Phone 7925G docked in the Cisco Unified Wireless
IP Phone 7925G Desktop Charger.
Figure 1: Cisco Unified Wireless IP Phone 7925G docked in the charger
The Cisco Unified Wireless IP Phone 7925G Desktop Charger supports the following phones:
•Cisco Unified Wireless IP Phone 7925G
•Cisco Unified Wireless IP Phone 7925G-EX
•Cisco Unified Wireless IP Phone 7926G
The two LEDs on the Cisco Unified Wireless IP Phone 7925G Desktop Charger change color, as described
in the following table.
Cisco Unified Wireless IP Phone 7925G, 7925G-EX, and 7926G User Guide
2
Cisco Unified Wireless IP Phone 7925G Desktop Charger
Cisco Unified Wireless IP Phone 7925G Desktop Charger Overview

MeaningFlash rateColorLED
The charger is not plugged into line power.SolidUnlitPower/Bluetooth
Status
The charger is plugged into line power.SolidGreen
Bluetooth is connecting or disconnecting from the
charger.
Flashing slowlyBlue
The charger is connected to the phone using
Bluetooth.
Solid
No spare battery is installed.SolidUnlitBattery
The spare battery is charging.SolidRed
The spare battery is fully charged.SolidGreen
The station is powered by the spare battery with
adequate charge.
SolidAmber-yellow
The station is powered by the spare battery, but the
battery is low.
Flashing
The station is powered by the spare battery, but the
battery is rapidly depleting.
Flashing and
dimming slowly
The spare battery charges only when the Cisco Unified Wireless IP Phone 7925G Desktop Charger is plugged
into line power.
The Cisco Unified Wireless IP Phone 7925G Desktop Charger supports Bluetooth Version 2.1 + Extended
Data Rate (EDR) using Hands-free Version 1.5.
The following figure shows the location of the Control button. The Control button is used when pairing the
charger with the phone.
Cisco Unified Wireless IP Phone 7925G, 7925G-EX, and 7926G User Guide
3
Cisco Unified Wireless IP Phone 7925G Desktop Charger
Cisco Unified Wireless IP Phone 7925G Desktop Charger Overview

Connect Charger to External Power
Procedure
Step 1 Connect one end of the power cord to the station, as shown in the following figure.
Cisco Unified Wireless IP Phone 7925G, 7925G-EX, and 7926G User Guide
4
Cisco Unified Wireless IP Phone 7925G Desktop Charger
Connect Charger to External Power

Step 2 Plug the other end of the power cord into the nearest electrical outlet.
The Power/Bluetooth Status LED lights green.
Pair Charger and Wireless Phone
After you have the Cisco Unified Wireless IP Phone 7925G Desktop Charger powered up, you must make
the charger and your wireless phone communicate. This communication is called “pairing.”The phone and
Cisco Unified Wireless IP Phone 7925G Desktop Charger communicate using Bluetooth technology.
The charger automatically enters pairing mode after it is powered up the first time.
If the charger is already paired to the phone, then press and hold the Control button on the charger for 5
seconds to manually pair the charger and phone.
Note
Before You Begin
•The Cisco Unified Wireless IP Phone 7925G Desktop Charger is connected to external power or a
charged spare battery is installed in the spare battery port.
Cisco Unified Wireless IP Phone 7925G, 7925G-EX, and 7926G User Guide
5
Cisco Unified Wireless IP Phone 7925G Desktop Charger
Pair Charger and Wireless Phone

Procedure
Step 1 Insert the phone into the charger and turn on the phone.
Step 2 Press and hold the Control button on the side of the charger for 5 seconds.
The Power/Bluetooth Status LED flashes and the charger enters pairing mode.
Step 3
On the phone, choose > Phone Settings >Bluetooth.
Step 4 If the first item in the Bluetooth menu displays Bluetooth Disabled, press Select, select Enable, and
press Save.
Step 5 Choose Device List.
Step 6 Press Scan.
A list of devices appears. The scan may take a few seconds to complete.
Step 7 If Cisco Dock 7900 does not appear on the device list, press Rescan.
Step 8 From the device list, select Cisco Dock 7900 and press Pair.
Step 9 If prompted, enter 0000 for the passkey.
The pairing completes, the charger is listed in the Device List, and the charger is paired with the phone.
Step 10 Press the End button on the phone.
Dock Phone in Charger
When you undock the phone, Bluetooth disconnects and the phone uses the local speaker for audio.
If the Bluetooth disconnects when the phone is docked, undock and dock the phone again.Note
Before You Begin
The Cisco Unified Wireless IP Phone 7925G Desktop Charger must be connected to an electrical outlet or
have a charged, spare battery installed.
Procedure
Step 1 Place the phone into the charger, as shown in the following figure.
Cisco Unified Wireless IP Phone 7925G, 7925G-EX, and 7926G User Guide
6
Cisco Unified Wireless IP Phone 7925G Desktop Charger
Dock Phone in Charger

When the phone docks and pairing has been set up, the Power LED flashes blue. While the Power LED flashes
blue, the phone and Cisco Unified Wireless IP Phone 7925G Desktop Charger are pairing. When pairing
completes, the Phone LED lights solid blue and the phone displays the dock icon .
If you are on a call when you dock the phone,
•If the Cisco Unified Wireless IP Phone 7925G Desktop Charger is powered, there is a slight delay while
the Bluetooth connection completes, and then the call continues using the Cisco Unified Wireless IP
Phone 7925G Desktop Charger speaker.
•If the Cisco Unified Wireless IP Phone 7925G Desktop Charger does not have power (electrical output
or spare battery), the phone cannot connect to the charger using Bluetooth. The call continues, but you
need to undock the phone to continue the call.
Step 2 If Bluetooth does not connect, manually connect the phone with the charger:
a)
Select > Phone Settings >Bluetooth >Device List.
b) Select Cisco Dock 7900.
Step 3 Select Options >Connect.
The phone and charger connection is made.
Step 4 If pairing does not happen,
a) Select Options >Unpair.
b) At the unpair prompt, select Yes.
The charger is removed from the Bluetooth device list.
Cisco Unified Wireless IP Phone 7925G, 7925G-EX, and 7926G User Guide
7
Cisco Unified Wireless IP Phone 7925G Desktop Charger
Dock Phone in Charger

c) Pair the charger and phone again.
Related Topics
Pair Charger and Wireless Phone, on page 5
Undock Phone
Procedure
To undock the phone, remove the phone from the cradle.
If you are on a call when you undock the phone, the Power/Bluetooth Status LED flashes blue while the Cisco
Unified Wireless IP Phone 7925G Desktop Charger disconnects. The call then continues on the phone.
Change Charger Speaker Volume
Procedure
Use the volume keys on the phone to raise or lower the speaker volume.
Charge Spare Battery
Use this procedure to install a spare battery so that it can be recharged. After the spare battery is fully charged,
you can use it as a power source (for a limited time) for the Cisco Unified Wireless IP Phone 7925G Desktop
Charger.
Prerequisites
•The Cisco Unified Wireless IP Phone 7925G Desktop Charger must be plugged into the electrical outlet.
Procedure

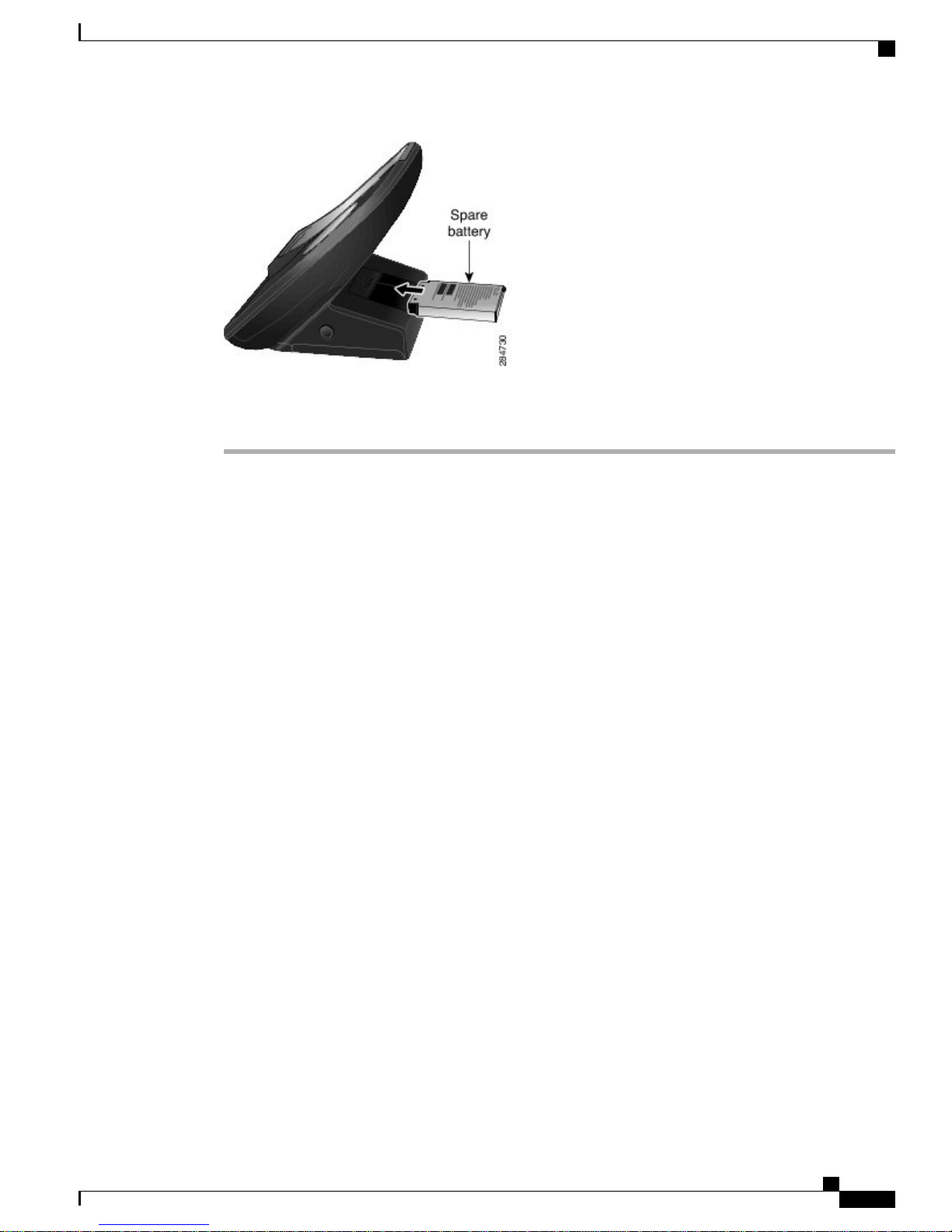

Step 1 Insert the spare battery into the Cisco Unified Wireless IP Phone 7925G Desktop Charger as shown in the
following figure. The battery contacts must be facing the base of the charger.
Cisco Unified Wireless IP Phone 7925G, 7925G-EX, and 7926G User Guide
8
Cisco Unified Wireless IP Phone 7925G Desktop Charger
Undock Phone

The Battery LED lights green if the battery is charged, or red if the battery is charging.
Step 2 If the Battery LED does not light up as red or green, check that the battery was installed correctly (label side
up). You may need to remove the battery, reorient it, and reinsert it firmly against the contacts.
Cisco Unified Wireless IP Phone 7925G Desktop Charger Notes
Unplugging the Cisco Unified Wireless IP Phone 7925G Desktop Charger from the electrical outlet has the
following consequences:
•As long as a charged spare battery is in place, the station functions normally. The spare battery provides
power for the speakerphone.
◦When the Battery LED starts flashing amber-yellow, the charge on the spare battery is low. Active
calls continue and new calls can be placed, as long as there is sufficient power in the spare battery.
When the spare battery power is low, the speakerphone does not operate, but calls can continue.
◦When the Battery LED flashes amber-yellow and dims, the spare battery charge has dropped too
low. Active calls disconnect and new calls cannot be placed. The Cisco Unified Wireless IP Phone
7925G Desktop Charger should be connected to an electrical outlet or a charged spare battery
installed.
•If an uncharged spare battery is in place, the station does not function. The Cisco Unified Wireless IP
Phone 7925G Desktop Charger must be plugged into an electrical outlet, or a charged spare battery
installed.
