CHAPTER 1
Overview
•Overview, on page 1
Overview
The Cisco Nexus 93180YC-FX3 switch (N9K-C93180YC-FX3) is a 1-rack unit (RU), fixed-port switch
designed for spine-leaf-APIC deployment in data centers. This switch has the following ports:
• 48 100M/1/10/25-Gigabit Ethernet SFP28 ports (ports 1-48).
• 6 10/25/40/50/100-Gigabit QSFP28 ports (ports 49-54)
• One management port (one 10/100/1000BASE-T port)
• One console port (RS-232)
• 1 USB port
This switch includes the following user-replaceable components:
• Fan modules (four) with the following airflow choices:
• Port-side exhaust fan module with blue coloring (NXA-FAN-35CFM-PE)
• Port-side intake fan module with burgundy coloring (NXA-FAN-35CFM-PI)
This switch runs with +1 redundancy mode, so that if one fan fails, the switch
can sustain operation. But if a 2nd fan fails, this switch is not designed to sustain
operation. Hence before waiting for major threshold temperature to be hit, the
switch will power down due to Powered-down due to fan policy trigger.
Note
Each fan module has two rotors. The switch can function normally if one rotor
inside the any one fan module fails. In case of more than one rotor failure, the
switch will issue a warning and power down in 2 minute.
Note
Cisco Nexus 93180YC-FX3 ACI-Mode Switch Hardware Installation Guide
1

• Power supply modules (two—One for operations and one for redundancy [1+1]) with the following
choices:
• 650-W port-side exhaust AC power supply with blue coloring (NXA-PAC-650W-PE)
• 650-W port-side intake AC power supply with burgundy coloring (NXA-PAC-650W-PI)
•1200-W HVAC/HVDC power supply with dual-direction airflow white coloring (N9K-PUV-1200W)
• 930-W port-side exhaust DC power supply with blue coloring (NXA-PDC-930W-PE)
• 930-W port-side intake DC power supply with burgundy coloring (NXA-PDC-930W-PI)
All fan modules and power supplies must use the same airflow direction.
Note
This switch may present access issues if installed between switches with greater
chassis depth. Please consider this before installation.
Note

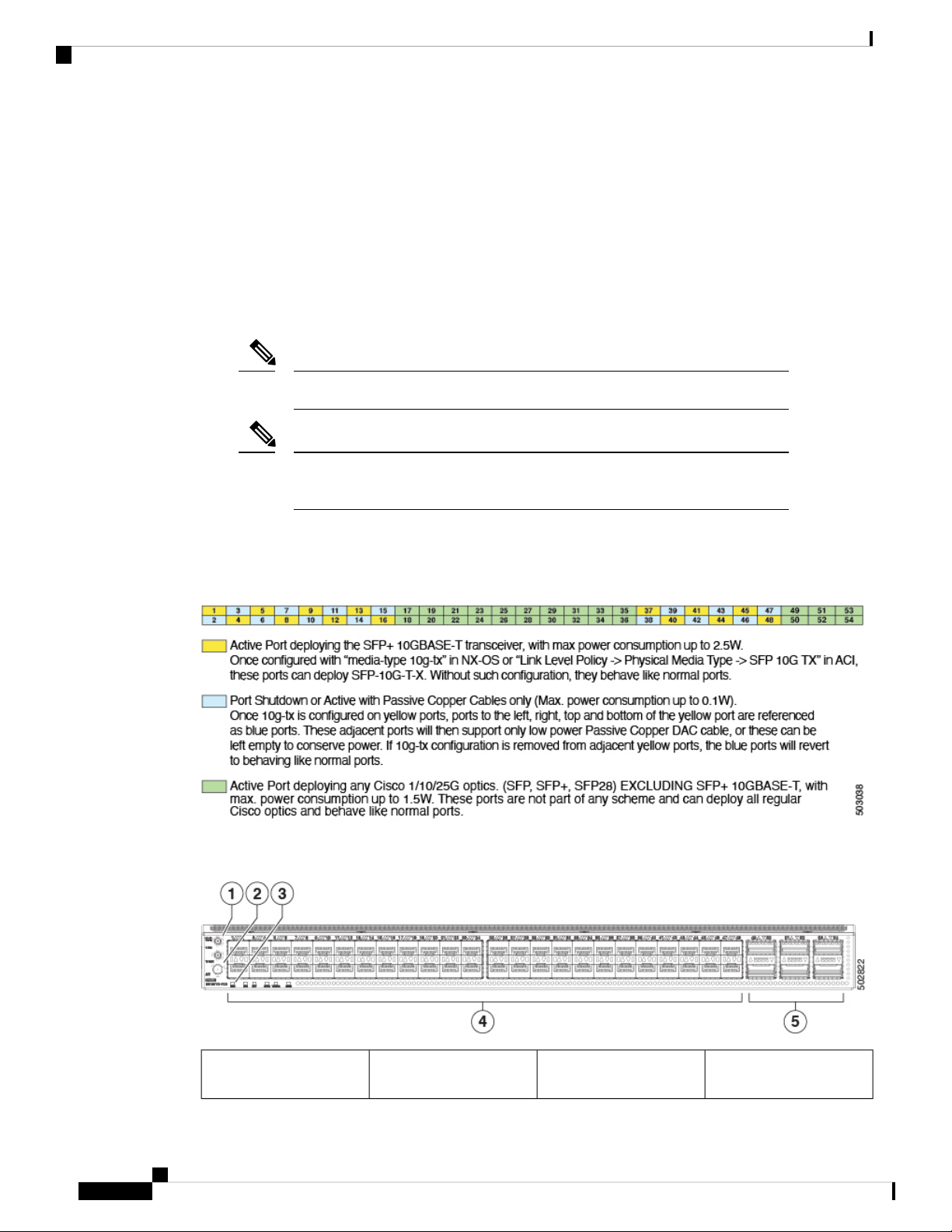

Deployment Scheme for SFP-10G-T-X Transceivers
The following figure shows the maximum configuration density of SFP-10G-T-X SFP+ transceivers for this
switch.
The following figure shows the switch features on the port side of the chassis.
48 100M/1/10/25-Gigabit
Ethernet SFP28 ports
41PPS and 10MHz SMB
ports
1
Cisco Nexus 93180YC-FX3 ACI-Mode Switch Hardware Installation Guide
2
Overview
Overview

6 10/25/40/50/100-Gigabit
QSFP28 ports
5GPS/GNSS antenna
connector
2
LEDs3
Time of Day, and PTP GM is not supported
Note
To determine which transceivers, adapters, and cables are support this switch, see the Cisco Transceiver
Modules Compatibility Information document.
The following figure shows the switch features on the power supply side of the chassis.
Management port (RJ45)4Power supply modules (1
or 2) (AC power supplies
shown) with slots
numbered 1 (left) and 2
(right)
1
USB port5Fan modules (4) with slots
numbered from 1 (left) to
4 (right)
2
ToD port6Console port3
The following figure shows the side of the chassis.
Cisco Nexus 93180YC-FX3 ACI-Mode Switch Hardware Installation Guide
3
Overview
Overview

Grounding pad3Screw holes for mounting
brackets
1
Depending on whether you plan to position the ports in a hot or cold aisle, you can order the fan and power
supply modules with port-side intake or port-side exhaust airflow. For port-side intake airflow, the fan and
power supplies have burgundy coloring. For port-side exhaust airflow, the fan and power supplies have blue
coloring.
The fan and power supply modules are field replaceable. You can replace one fan module or one power supply
module during operations so long as the other modules are installed and operating. If you have only one power
supply installed, you can install the replacement power supply in the open slot before removing the original
power supply.
All fan and power supply modules must have the same direction of airflow. Otherwise, the switch can overheat
and shut down.
Note
If the switch has port-side intake airflow (burgundy coloring for fan modules), you must locate the ports in
the cold aisle. If the switch has port-side exhaust airflow (blue coloring for fan modules), you must locate the
ports in the hot aisle. If you locate the air intake in a hot aisle, the switch can overheat and shut down.
Caution
Cisco Nexus 93180YC-FX3 ACI-Mode Switch Hardware Installation Guide
4
Overview
Overview

CHAPTER 2
Preparing the Site
•Temperature Requirements, on page 5
•Humidity Requirements, on page 5
•Altitude Requirements, on page 5
•Dust and Particulate Requirements, on page 6
•Minimizing Electromagnetic and Radio Frequency Interference, on page 6
•Shock and Vibration Requirements, on page 7
•Grounding Requirements, on page 7
•Planning for Power Requirements, on page 7
•Airflow Requirements, on page 9
•Rack and Cabinet Requirements, on page 9
•Clearance Requirements, on page 10
Temperature Requirements
The switch requires an operating temperature of 32 to 104 degrees Fahrenheit (0 to 40 degrees Celsius). If
the switch is not operating, the temperature must be between –40 to 158 degrees Fahrenheit (–40 to 70 degrees
Celsius).
Humidity Requirements
High humidity can cause moisture to enter the switch. Moisture can cause corrosion of internal components
and degradation of properties such as electrical resistance, thermal conductivity, physical strength, and size.
The switch is rated to withstand from 12- to 75-percent (noncondensing) relative humidity.
Buildings in which the climate is controlled by air-conditioning in the warmer months and by heat during the
colder months usually maintain an acceptable level of humidity for the switch equipment. However, if the
switch is located in an unusually humid location, use a dehumidifier to maintain the humidity within an
acceptable range.
Altitude Requirements
Altitude rating is based on power supply installed; see critical components list in the system CB report for
altitude rating.
Cisco Nexus 93180YC-FX3 ACI-Mode Switch Hardware Installation Guide
5

Dust and Particulate Requirements
Exhaust fans cool power supplies and system fans cool switches by drawing in air and exhausting air out
through various openings in the chassis. However, fans also ingest dust and other particles, causing contaminant
buildup in the switch and increased internal chassis temperature. Dust and particles can act as insulators and
interfere with the mechanical components in the switch. A clean operating environment can greatly reduce
the negative effects of dust and other particles.
In addition to keeping your environment free of dust and particles, follow these precautions to avoid
contamination of your switch:
• Do not permit smoking near the switch.
• Do not permit food or drink near the switch.
Minimizing Electromagnetic and Radio Frequency Interference
Electromagnetic interference (EMI) and radio frequency interference (RFI) from the switch can adversely
affect other devices, such as radio and television (TV) receivers. Radio frequencies that emanate from the
switch can also interfere with cordless and low-power telephones. Conversely, RFI from high-power telephones
can cause spurious characters to appear on the switch monitor.
RFI is defined as any EMI with a frequency above 10 kHz. This type of interference can travel from the switch
to other devices through the power cable and power source or through the air as transmitted radio waves. The
Federal Communications Commission (FCC) publishes specific regulations to limit the amount of EMI and
RFI that are emitted by computing equipment. Each switch meets these FCC regulations.
To reduce the possibility of EMI and RFI, follow these guidelines:
• Cover all open expansion slots with a blank filler plate.
• Always use shielded cables with metal connector shells for attaching peripherals to the switch.
When wires are run for any significant distance in an electromagnetic field, interference can occur to the
signals on the wires with the following implications:
• Bad wiring can result in radio interference emanating from the plant wiring.
• Strong EMI, especially when it is caused by lightning or radio transmitters, can destroy the signal drivers
and receivers in the chassis and even create an electrical hazard by conducting power surges through
lines into equipment.
To predict and prevent strong EMI, you need to consult experts in radio frequency interference (RFI).
Note
The wiring is unlikely to emit radio interference if you use a twisted-pair cable with a good distribution of
grounding conductors. If you exceed the recommended distances, use a high-quality twisted-pair cable with
one ground conductor for each data signal when applicable.
Cisco Nexus 93180YC-FX3 ACI-Mode Switch Hardware Installation Guide
6
Preparing the Site
Dust and Particulate Requirements

If the wires exceed the recommended distances, or if wires pass between buildings, give special consideration
to the effect of a lightning strike in your vicinity. The electromagnetic pulse that is caused by lightning or
other high-energy phenomena can easily couple enough energy into unshielded conductors to destroy electronic
switches. You will want to consult experts in electrical surge suppression and shielding if you had similar
problems in the past.
Caution
Shock and Vibration Requirements
The switch has been shock- and vibration-tested for operating ranges, handling, and earthquake standards.
Grounding Requirements
The switch is sensitive to variations in voltage that is supplied by the power sources. Overvoltage, undervoltage,
and transients (or spikes) can erase data from memory or cause components to fail. To protect against these
types of problems, ensure that there is an earth-ground connection for the switch. You can connect the grounding
pad on the switch either directly to the earth-ground connection or to a fully bonded and grounded rack.
When you properly install the chassis in a grounded rack, the switch is grounded because it has a metal-to-metal
connection to the rack. Alternatively, you can ground the chassis by using a customer-supplied grounding
cable that meets your local and national installation requirements. For U.S. installations, we recommend
6-AWG wire. Connect your grounding cable to the chassis with a grounding lug (provided in the switch
accessory kit) and to the facility ground.
You automatically ground AC power supplies when you connect them to AC power sources. For DC power
supplies, you must connect a grounding wire when wiring the power supply to the DC power source.
Note
An electrical conducting path shall exist between the product chassis and the metal surface of the enclosure
or rack in which it is mounted or to a grounding conductor. Electrical continuity shall be provided by using
thread-forming type mounting screws that remove any paint or non-conductive coatings and establish a
metal-to-metal contact. Any paint or other non-conductive coatings shall be removed on the surfaces between
the mounting hardware and the enclosure or rack. The surfaces shall be cleaned and an antioxidant applied
before installation.
Note
Planning for Power Requirements
The switch includes two power supplies (1-to-1 redundancy with current sharing) in one of the following
combinations:
• Two 650-W AC power supplies (NEBS compliant)
• Two 1200-W HVAC/HVDC power supplies
Cisco Nexus 93180YC-FX3 ACI-Mode Switch Hardware Installation Guide
7
Preparing the Site
Shock and Vibration Requirements

• Two 930-W DC power supplies
For n+1 redundancy, you can use one or two power sources for the two power supplies. For n+nredundancy,
you must use two power sources and connect each power supply to a separate power source.
Note
The power supplies are rated to output up to 650 W (AC power supplies) but the switch requires less than
that amount of power from the power supply. To operate the switch, you must provision enough power from
the power source to cover the requirements of both the switch and a power supply. Typically, this switch and
a power supply require 500 W of power input from the power source, but you must provision as much as 625
W of power input from the power source to cover peak demand.
Some of the power supply modules have rating capabilities that exceed the switch requirements. When
calculating your power requirements, use the switch requirements to determine the amount of power that is
required for the power supplies.
Note
To minimize the possibility of circuit failure, make sure that each power-source circuit that is used by the
switch is dedicated to the switch.
For AC input application, please refer to the following statement:
Note
Statement 1005—Circuit Breaker when using AC power supplies
This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the
protective devices are rated not greater than 20A (North America), 16A (Europe), and 13A (UK).
Warning
For DC input application, please refer to the following statement:
Note
Statement 1033
Connect the unit only to DC power source that complies with the Safety Extra-Low Voltage (SELV)
requirements in IEC 60950 based safety standards.
Warning
We recommend 8-AWG wire for DC installations in the U.S.
Note
For the power cables to use with the power supplies, see Power Cable Specifications, on page 47.
Note
Cisco Nexus 93180YC-FX3 ACI-Mode Switch Hardware Installation Guide
8
Preparing the Site
Planning for Power Requirements

Airflow Requirements
The switch is positioned with its ports in either the front or the rear of the rack depending on your cabling
and maintenance requirements. You must have fan and power supply modules that move the coolant air from
the cold aisle to the hot aisle in one of the following ways:
• Port-side exhaust airflow—Cool air enters the chassis through the fan and power supply modules in the
cold aisle and exhausts through the port end of the chassis in the hot aisle.
• Port-side intake airflow—Cool air enters the chassis through the port end in the cold aisle and exhausts
through the fan and power supply modules in the hot aisle.
You can identify the airflow direction of each fan and power supply module by its coloring as follows:
• Blue coloring indicates port-side exhaust airflow.
• Burgundy coloring indicates port-side intake airflow.
• White coloring on HVAC/HVDC power supplies indicates dual-direction airflow.
To prevent the switch from overheating and shutting down, you must position the air intake for the switch in
a cold aisle. The fan and power supply modules must have the same direction of airflow (even if their coloring
is different). If you must change the airflow direction for the switch, you must shutdown the switch before
changing the modules.
Note
Rack and Cabinet Requirements
You can install the following types of racks or cabinets for your switch:
• Standard perforated cabinets
• Solid-walled cabinets with a roof fan tray (bottom-to-top cooling)
• Standard open four-post Telco racks
Work with your cabinet vendors to determine which of their cabinets meet the following requirements or see
the Cisco Technical Assistance Center (TAC) for recommendations:
• Use a standard 19-inch (48.3-cm), four-post Electronic Industries Alliance (EIA) cabinet or rack with
mounting rails that conform to English universal hole spacing per section 1 of the ANSI/EIA-310-D-1992
standard.
• The depth of a four-post rack must be 24 to 32 inches (61.0 to 81.3 cm) between the front and rear
mounting rails (for proper mounting of the bottom-support brackets or other mounting hardware).
Also, you must have power receptacles that are located within reach of the power cords that are used with the
switch.
Cisco Nexus 93180YC-FX3 ACI-Mode Switch Hardware Installation Guide
9
Preparing the Site
Airflow Requirements

Statement 1048—Rack Stabilization
The rack stabilizing mechanism must be in place, or the rack must be bolted to the floor before installation
or servicing. Failure to stabilize the rack can cause bodily injury.
Warning
Clearance Requirements
Provide the chassis with adequate clearance between the chassis and any other rack, device, or structure so
that you can properly install the chassis. Provide the chassis with adequate clearance to route cables, provide
airflow, and maintain the switch. For the clearances required for an installation of this chassis in a four-post

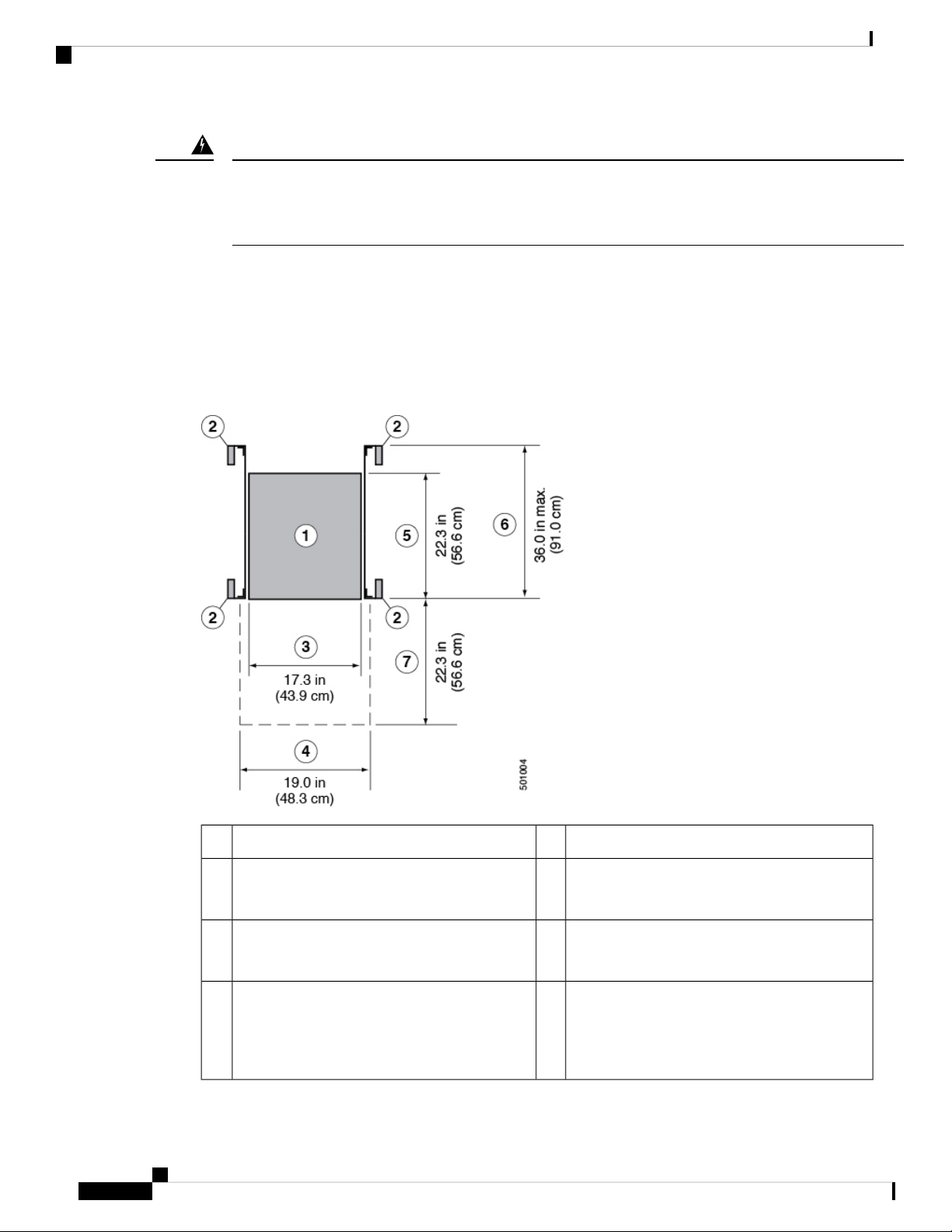

rack, see the following figure.
Depth of the chassis5Chassis1
Maximum extension of the bottom-support rails
36.0 in (91.0 cm)
6Vertical rack-mount posts and rails2
Depth of the front clearance area (equal to the
depth of the chassis).
7Chassis width
17.3 in (43.9 cm)
3
Width of the front clearance area (equal to the
width of the chassis with two rack-mount
brackets that are attached to it).
19.0 in (43.3 cm)
4
Cisco Nexus 93180YC-FX3 ACI-Mode Switch Hardware Installation Guide
10
Preparing the Site
Clearance Requirements

Both the front and rear of the chassis must be open to both aisles for airflow.
Note
Cisco Nexus 93180YC-FX3 ACI-Mode Switch Hardware Installation Guide
11
Preparing the Site
Clearance Requirements

Cisco Nexus 93180YC-FX3 ACI-Mode Switch Hardware Installation Guide
12
Preparing the Site
Clearance Requirements

CHAPTER 3
Installing the Switch Chassis
•Safety, on page 13
•Installation Options with Rack-Mount Kits, on page 14
•Airflow Considerations, on page 14
•Installation Guidelines, on page 14
•Unpacking and Inspecting the Switch, on page 15
•Installing the Switch Using the NXK-ACC-KIT-1RU Rack-Mount Kit, on page 16
•Installing the Switch Using the N3K-C3064-ACC-KIT Rack-Mount Kit, on page 20
•Grounding the Chassis, on page 24
•Starting the Switch, on page 26
Safety
Before you install, operate, or service the switch, see the Regulatory, Compliance, and Safety Information for
the Cisco Nexus 3000 and 9000 Series for important Safety Information.
Statement 1071—Warning Definition
IMPORTANT SAFETY INSTRUCTIONS
Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar
with standard practices for preventing accidents. Read the installation instructions before using, installing, or
connecting the system to the power source. Use the statement number provided at the end of each warning
statement to locate its translation in the translated safety warnings for this device.
SAVE THESE INSTRUCTIONS
Warning
Statement 1017—Restricted Area
This unit is intended for installation in restricted access areas. Only skilled, instructed, or qualified personnel
can access a restricted access area.
Warning
Cisco Nexus 93180YC-FX3 ACI-Mode Switch Hardware Installation Guide
13

Statement 1030—Equipment Installation
Only trained and qualified personnel should be allowed to install, replace, or service this equipment.
Warning
Installation Options with Rack-Mount Kits
The rack-mount kit enables you to install the switch into racks of varying depths. You can position the switch
with easy access to either the port connections or the fan and power supply modules.
You can install the switch using the following rack-mount options:
• Rack-mount kit (NXK-ACC-KIT-1RU) which you can order from Cisco. This option offers you easy
installation, greater stability, increased weight capacity, added accessibility, and improved removability
with front and rear removal.
• Rack-mount kit (N3K-C3064-ACC-KIT) which you can order from Cisco.
The rack or cabinet that you use must meet the requirements listed the in General Requirements for Cabinets
and Racks, on page 41 section.
You are responsible for verifying that your rack and rack-mount hardware comply with the guidelines that
are described in this doc.
Note
Airflow Considerations
The switch comes with fan and power supply modules that have either port-side intake or port-side exhaust
airflow for cooling the switch. If you are positioning the port end of the switch in a cold aisle, make sure that
the switch has port-side intake fan modules with burgundy coloring. If you are positioning the fan and power
supply modules in a cold aisle, make sure that the switch has port-side exhaust fan modules with blue colorings.
All fan modules must have the same direction of airflow.
Installation Guidelines
When installing the switch, follow these guidelines:
• Ensure that there is adequate clearance space around the switch to allow for servicing the switch and for
adequate airflow.
• Ensure that the chassis can be adequately grounded. If the switch is not mounted in a grounded rack, we
recommend connecting the system ground on the chassis directly to an earth ground.
• Ensure that the site power meets the power requirements for the switch. If available, you can use an
uninterruptible power supply (UPS) to protect against power failures.
Cisco Nexus 93180YC-FX3 ACI-Mode Switch Hardware Installation Guide
14
Installing the Switch Chassis
Installation Options with Rack-Mount Kits
