Cisco SFS 3001 Multifabric Server Switch
Quick Start Guide (Topspin 90 Quick Start Guide)
Release 2.1.0
Part Number: OL-7712-01
Product ID: 140252

Copyright © 2003-2004 Topspin Communications, Inc. All rights reserved.
The Topspin Switched Computing System, Topspin Host Channel Adapter, Topspin Element Manager, and collateral
software programs and documentation are subject to and made available only pursuant to the license agreement
signed by you and Topspin, Communications, Inc. (or if no signed license agreement exists, the license agreement
included with your original media) and may only be used in accordance with the terms of that agreement. Making
copies, modifications, or compilation works of the software except as specifically allowed in that agreement is
prohibited by law and constitutes a punishable violation of the law. This documentation may not be copied, modified
or reduced to any electronic or machine-readable form without Topspin Communication, Inc.'s prior written consent.
As defined in FAR section 2.101, DFAR section 252.227-7014(a)(1) and DFAR section 252.227-7014(a)(5) or
otherwise, the collateral software programs provided to you are “commercial items,” “commercial computer
software” and/or “commercial computer software documentation.” Consistent with DFAR section 227.7202, FAR
section 12.212 and other sections, any use, modification, reproduction, release, performance, display, disclosure or
distribution thereof by or for the U.S. Government shall be governed solely by the terms of the license agreement and
shall be prohibited except to the extent expressly permitted by the terms of that agreement. Any technical data
provided that is not covered by the above provisions shall be deemed “technical data-commercial items” pursuant to
DFAR section 227.7015(a) or equivalent. Any use, modification, reproduction, release, performance, display or
disclosure of such technical data shall be governed by the terms of DFAR section 227.7015(b) or equivalent.
This documentation may include technical inaccuracies or typographical errors and is subject to correction and other
revision without notice. TOPSPIN PROVIDES THIS DOCUMENTATION "AS IS" AND WITHOUT ANY
WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some
states or jurisdictions do not allow disclaimer of express or implied warranties in certain transactions; therefore, this
statement may not apply to you.
©Copyright 2003-2004, Topspin Communications, Inc. All rights reserved. Topspin is a registered trademark and the
Topspin logo, TopspinOS, and Topspin Switched Computing System are trademarks of Topspin Communications,
Inc. Other company, product, or service names are the property of their respective owners.
Document Version: 2.1.0
Part Number: OL-7712-01
Product ID:140252
Printed in the United States of America.

iii
Contents
Regulatory Notices.......................................... v
FCC Statement.............................................................................................................................................v
Safety Information .......................................................................................................................................v
Electrical Cautions.......................................................................................................................... v
General Cautions.......................................................................................................................... vii
Laser Cautions ............................................................................................................................. vii
Laser Specs ................................................................................................................................. viii
Contact Information................................................................................................................................. viii
1: Topspin 90 Quick Start............................... 1
Prepare the Site ............................................................................................................................................1
Install the Topspin 90 in an Equipment Rack..............................................................................................2
Requirements .................................................................................................................................. 2
Prepare for the Installation.............................................................................................................. 2
Rack Mount Installation.................................................................................................................. 2
Install Expansion Modules (Optional).........................................................................................................5
Cable the Switch ..........................................................................................................................................5
Connect Management Ports ............................................................................................................ 5

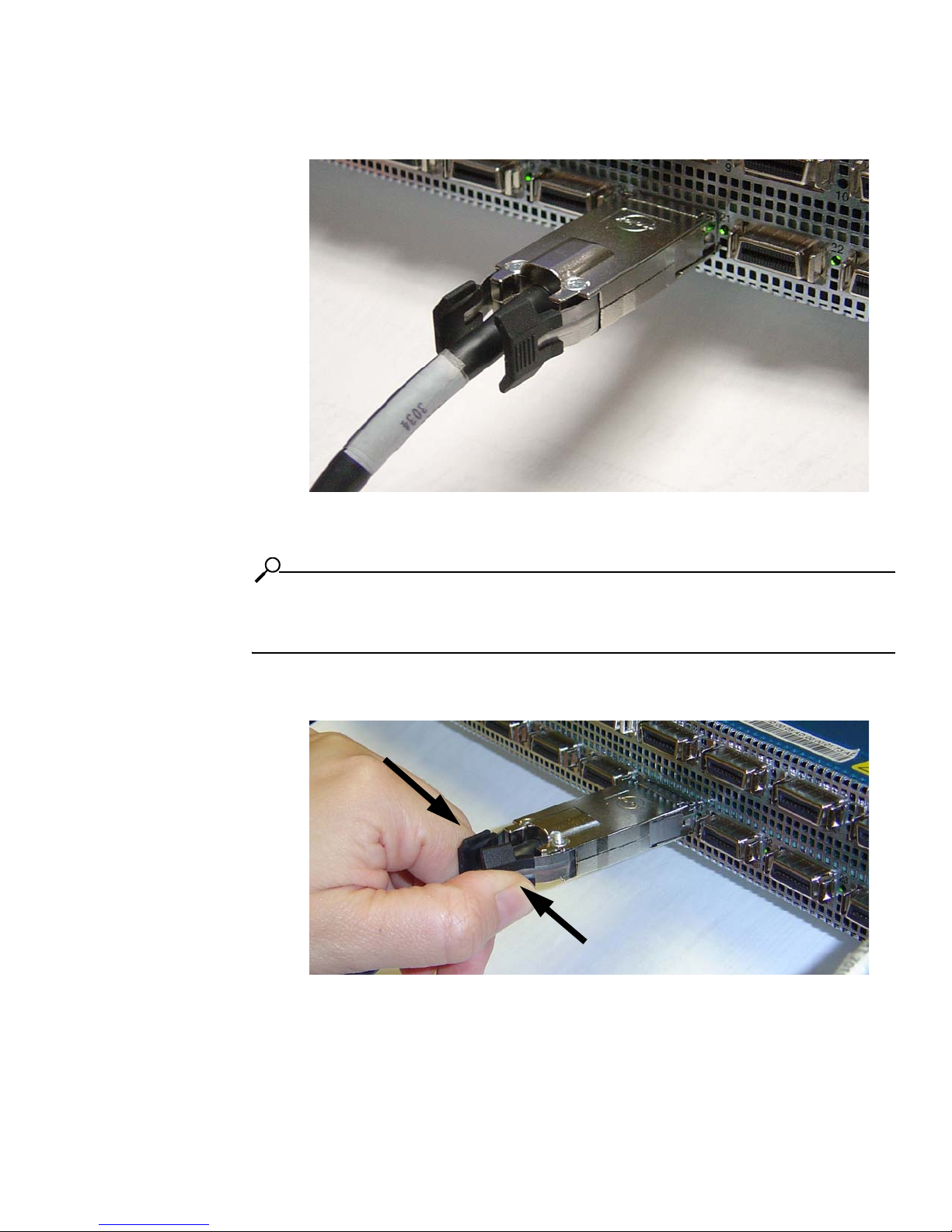

Connect InfiniBand Cables............................................................................................................. 6
(Optional) Connect to Ethernet Devices......................................................................................... 6
(Optional) Connect to Fibre Channel Devices................................................................................ 6
Connect the Power Cable................................................................................................................ 6
Configure Basic Connectivity......................................................................................................................6
Assigning an Address Statically ..................................................................................................... 6
Assigning an Address Dynamically (DHCP) ................................................................................. 7
Connect and Configure InfiniBand Hosts....................................................................................................8
Install the Element Manager (GUI) ...........................................................................................................10

iv

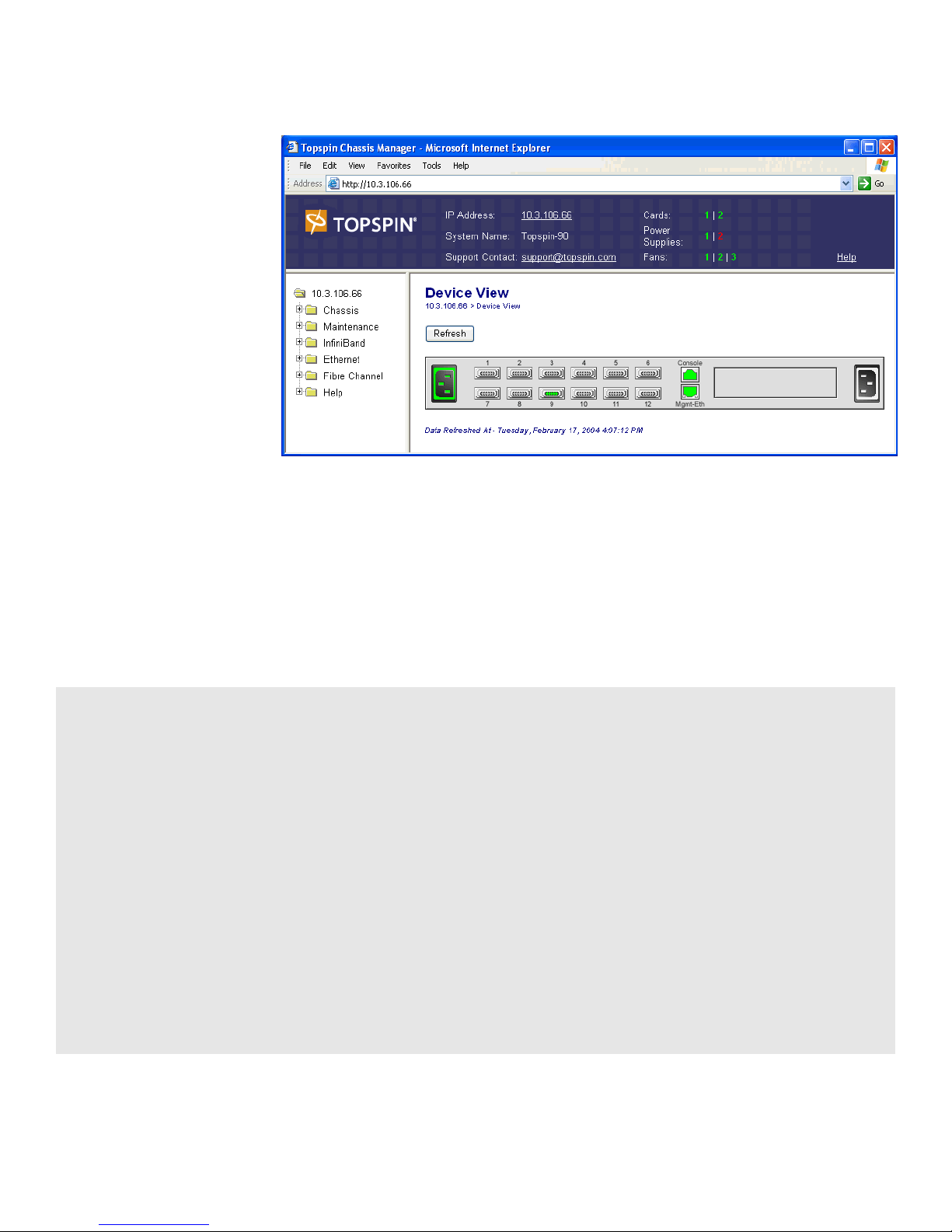

Launch Chassis Manager ...........................................................................................................................11
Configure Additional Settings ...................................................................................................................12
(Optional) Configure the Ethernet Gateway .............................................................................................13
Layer 2 Bridging Procedure.......................................................................................................... 13
Configure the Fibre Channel Gateway (Optional).....................................................................................15

v
Regulatory Notices
FCC Statement
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Safety Information
•“Electrical Cautions” on page v
•“General Cautions” on page vii
•“Laser Cautions” on page vii
Electrical Cautions
Use only the power cable provided with your Topspin system. Inspect the power cord and determine if it
provides the proper plug and is appropriately certified for use with your electrical system. Discard the
cord if it is inappropriate for your country’s electrical system and obtain the proper cord, as required by
your national electrical codes or ordinances.
CAUTION: Grounding is supplied by the ground-prong on the 3-prong power cable. Do not attach a
separate ground cable. Do not use adapter plugs. Do not remove the ground prong from the cable.

vi
Ensure the ground connection on the power supply is correct and functioning before applying power to
the Topspin system.
CAUTION: Always ground yourself before touching any internal Topspin system components to avoid
damage from electrostatic discharge (ESD).
CAUTION: The Topspin system has two power cables. The operator must disconnect all power cables
before attempting to remove the system from the rack.
CAUTION: Remove power cables by grasping the cable connector and pulling straight out.If the
chassis comes equipped with a power-plug retainer, move the bail wire used to retain the plug to the side
before attempting to remove the power plug. Replace power-supply cables be grasping the cable
connector, align the connector with the power jack, and insert the connector straight into the jack.If the
chassis comes equipped with a power-plug retainer, move the bail wire back into place to keep the
power plug firmly in place.
CAUTION: The Topspin system contains lithium batteries. Do not attempt to replace or discard these
batteries. The batteries may only be serviced by Topspin service personnel.
CAUTION: Observe and follow service markings. Do not service the Topspin system, except as
explained in the Topspin documentation supplied with your system. Opening the chassis or removing
the enclosure cover exposes you to electrical shock and may damage system components.
If one or more of the following situations occurs, remove power to the Topspin system chassis, and
contact your Topspin support representative:
• The power cable or power plug is damaged.
• The system has been exposed to water.
• The system has been dropped or damaged in any way.
• The system does not operate correctly after following the installation instructions.
CAUTION: You must ensure the operating environment has adequate air circulation. Keep the Topspin
in a cool, well-ventilated room. Do not block cooling vents. Install filler panels into all unused slots.
CAUTION: Use only Topspin-approved gateway expansion modules, controller cards, fans, and power
supply modules.

vii
CAUTION: Never place your hand inside an empty card or module bay. You should never have cause
to place a hand anywhere inside the Topspin chassis. Unused card and module bays should always have
a Topspin cover over the bay to ensure proper safety, ventilation, and cooling.
General Cautions
CAUTION: No user is authorized to remove the Topspin system enclosure cover. The internal chassis
contains no user-serviceable components. Removing the enclosure cover voids your warranty. See the
warranty card for further details regarding the servicing of your chassis.
CAUTION: Opening and/or modifying expansion and system modules may void your warranty. Refer
to your warranty to determine access restrictions.
In general:
• Do not spill food or liquids on your system components.
• Protect your Topspin system from sudden power-surges and interruptions by using a surge
suppressor, line conditioner, or uninterruptable power supply (UPS).
• Place cables appropriately so that they do not obstruct any egress within the data center and they do
not block any ventilation inlets or outlets.
• Rack mount the Topspin chassis according to the rack manufacturer recommendations.
Laser Cautions
CAUTION: Only qualified service technicians should repair laser devices.
CAUTION: Only open, modify, or service laser devices as specified in the manufacturer
documentation.
CAUTION: Use of controls or adjustments or performance of procedures other than those specified
herein may result in hazardous laser radiation exposure.
CAUTION: In order to ensure eye safety, only the fiber-optic transceivers indicated in the following
table may be used.

viii
Laser Specs
Contact Information
Table III-1:
Topspin P/N Application Optical Parameters
48-00001-01 Fibre Channel *CDRH/IEC Laser Class: 1/1
Maximum Data Rate: 2.125 GB/s
Wavelength: 850nm
I/O connector:
* Standards used: CDRH - 21CFR Chapter I §1040.10; IEC - IEC60825-1:1994
Table III-2: Customer Contact Information
Address Topspin Communications, Inc.
515 Ellis St.
Mountain View, CA 94043
Telephone, Corporate Headquarters (866) TOPSPIN or [phone]
Fax [phone]
Telephone, Technical Support [phone]
Email, Technical Support [email protected]
Web site, Support http://support.topspin.com

1
1
Topspin 90 Quick Start
This document describes the basic steps required to install and configure the Topspin 90 system.
For more detailed information about the Topspin 90 server switch, we recommend that you have the
Topspin 90 Hardware Guide available.
•“Prepare the Site” on page 1
•“Install the Topspin 90 in an Equipment Rack” on page 2
•“Install Expansion Modules (Optional)” on page 5
•“Cable the Switch” on page 5
•“Configure Basic Connectivity” on page 6
•“Connect and Configure InfiniBand Hosts” on page 8
•“Install the Element Manager (GUI)” on page 10
•“Launch Chassis Manager” on page 11
•“Configure Additional Settings” on page 12
•“(Optional) Configure the Ethernet Gateway” on page 13
•“Configure the Fibre Channel Gateway (Optional)” on page 15
Prepare the Site
1. Read the cautionary statements in “Safety Information” on page v.
2. Unpack the Topspin 90 package, using the packing list provided.
3. Register the Topspin system online. Go to http://topspin.com/support/.
4. Prepare a management workstation, such as a PC or laptop running a terminal program, and a
straight-through M/F DB-9 serial cable (included).

2
5. Prepare the physical environment for the Topspin 90.
a. Make sure that you have an approved grounding wrist-strap.
b. Make sure the system has the right cables and sufficient ventilation.
c. Unpack the Topspin 90 package, using the packing list provided.
d. Verify that you have all of the items on the Requirements list. See “Requirements” on page 2.
Install the Topspin 90 in an Equipment Rack
There are two different methods that can be used to rack the Topspin 90. This guide provides
instructions for one method. To view instructions on the alternative method, refer to the Topspin 90
Hardware Guide.
Requirements
In addition to the accessories provided with the switch, you should have:
• Phillips screw driver
• Eight screws and any associated mounting clips to secure the brackets to your rack (2 for each rail
of the rack)
• Two people are recommended to perform the install
Prepare for the Installation
1. Open the shipping package, if you have not already done so. Remove the chassis, rack brackets,
CD-ROM, parts bag, and documentation.
2. Place the chassis on a secure, clean surface.
3. Open the plastic bag containing mounting parts.
4. Check the slot in the rack for sufficient clearance.
5. Determine the direction that the switch will be installed and justified in the rack. The direction that
you mount the switch will determine the direction that the brackets will need to be attached.

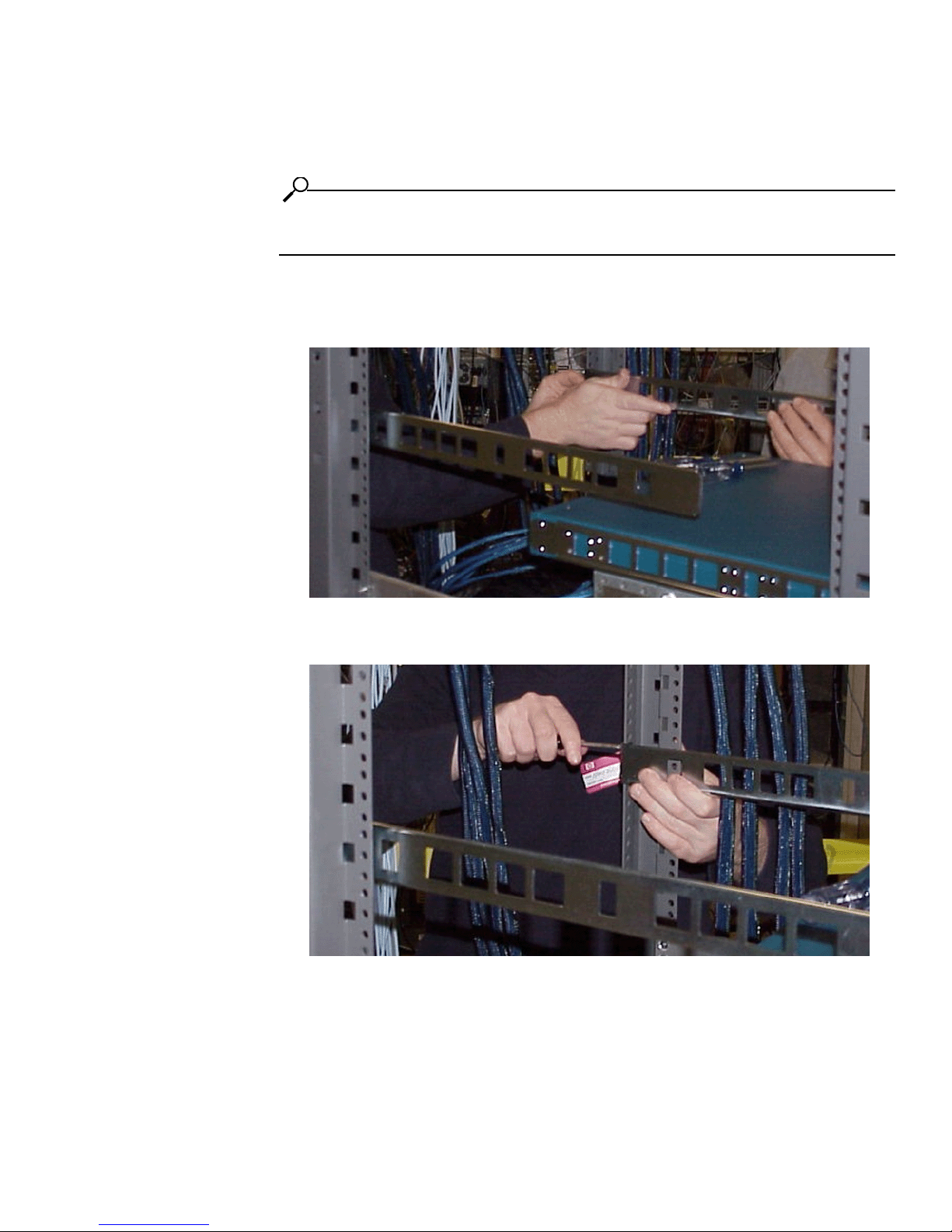

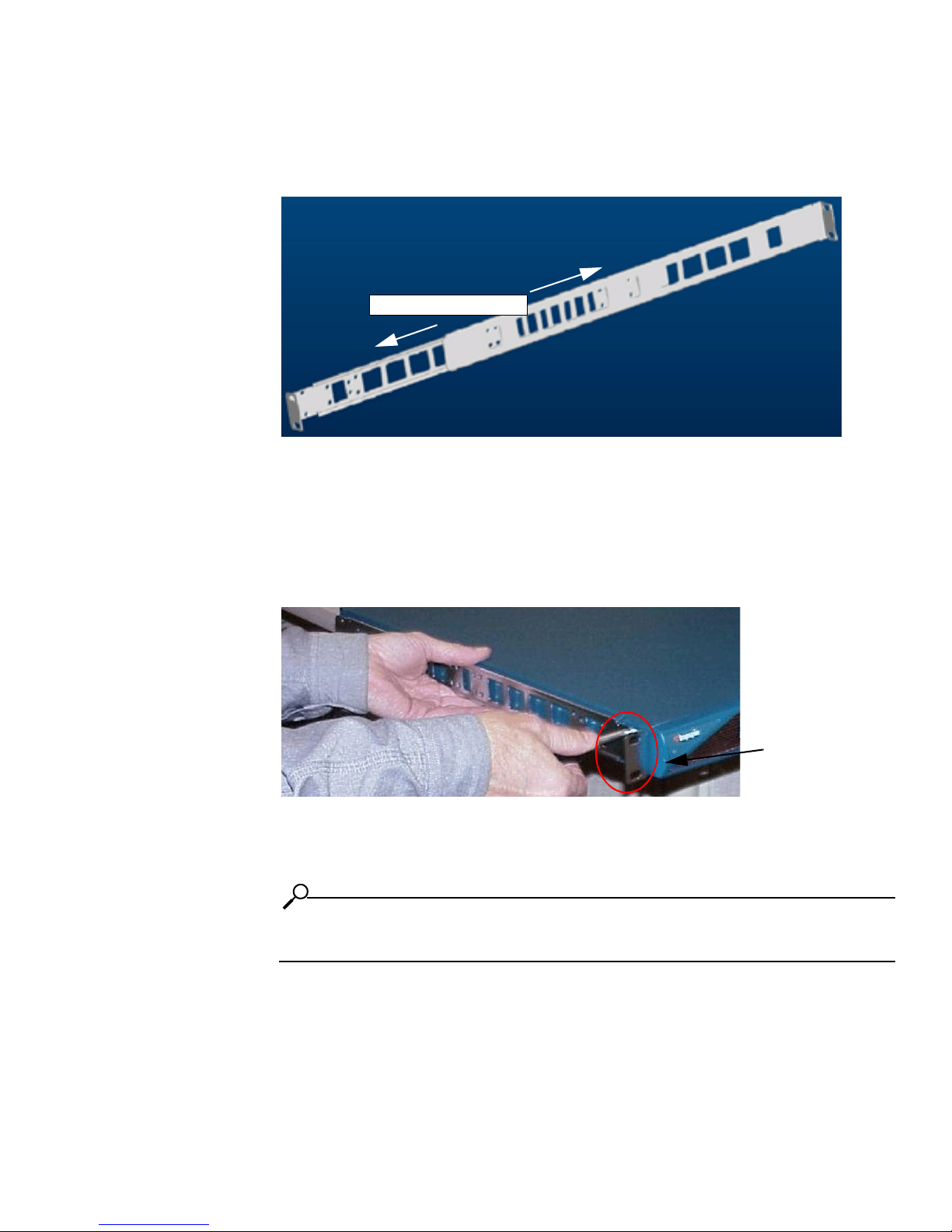

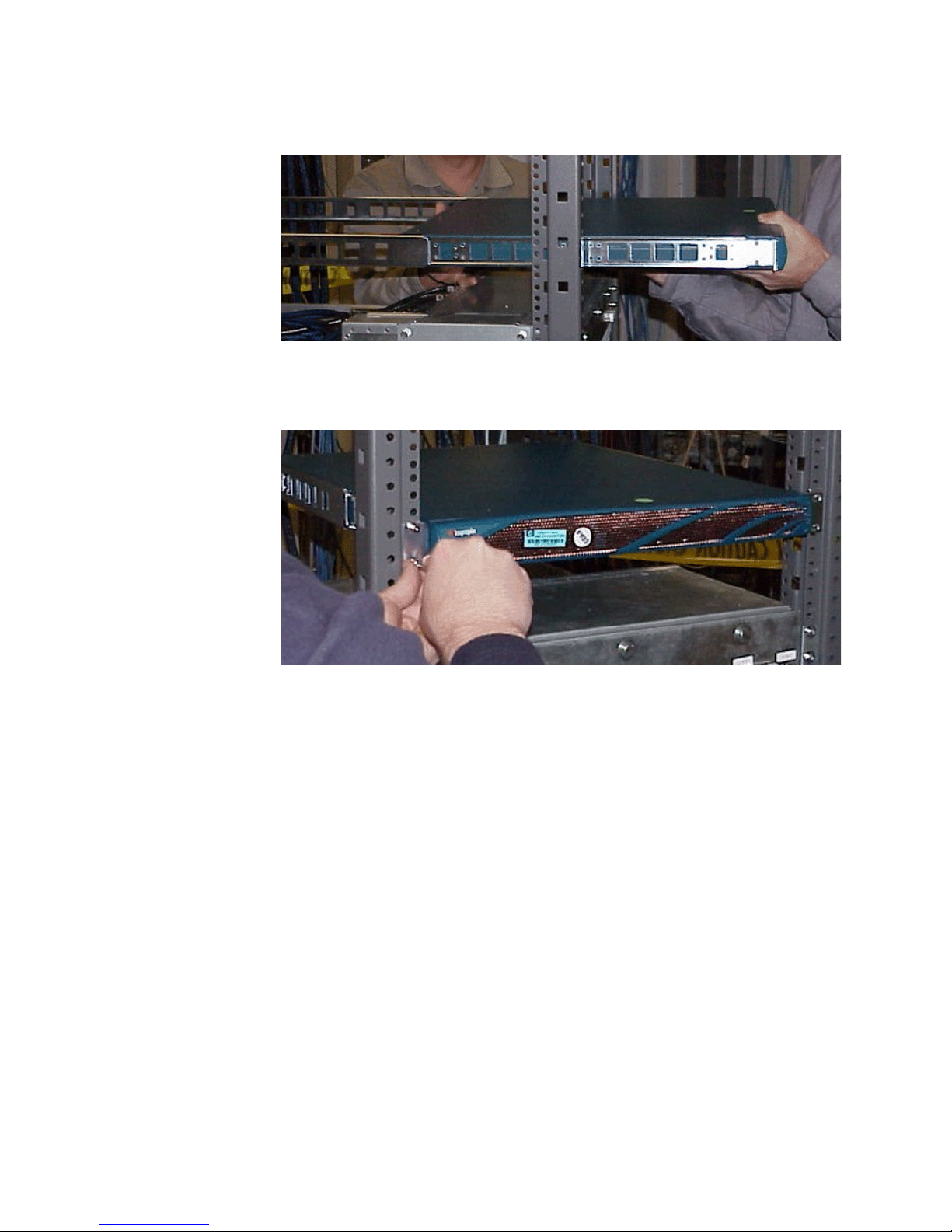

Rack Mount Installation
NOTE: There are two different ways to perform the rack installation of the Topspin 90. In this
procedure, you will attach the rails to the rack before inserting the switch. This procedure is slightly
easier to perform if you only have one person. Refer to the Topspin 90 Hardware Guide to view the
second installation method.
