Civemasa STAC M 500 User manual

OPERATOR’S
MANUAL
STAC M 500STAC M 500

Civemasa Implementos Agrícolas STAC M 500 1
Introduction
The STAC M 500 plow was specially designed to break compacted
layers with safety, agility and reduced maintenance.
Manufactured with 5 and 7 shanks, this plow has a modern
structure with high resistance. The working depth is determined
by the cylinder stops installed on the hydraulic cylinder rods.
This plow model can be optionally supplied with:
•Disc blade: perfect to cut straw;
•Cage roller: Break the clods and facilitates the job of other
equipments, leaving a pre-leveled soil.
Thisoperator'smanualcontainsthenecessaryinformation
for the best performance of this plow. The operator must carefully
read the entire manual before working with the equipment. Also,
read and understand the safety recommendations.
For any further clarification or in the event of technical
problems that may arise during the service, consult your dealer
and the Technical Support department of the factory. They can
ensure the fully functioning of your Civemasa plow.

Civemasa Implementos Agrícolas
2STAC M 500
Table of contents
1. To the owner 3
2. To the operator 4 to 9
Working safely 4 to 6
Transportation over truck or trailer 7
Lifting points 8
Safety decals 9

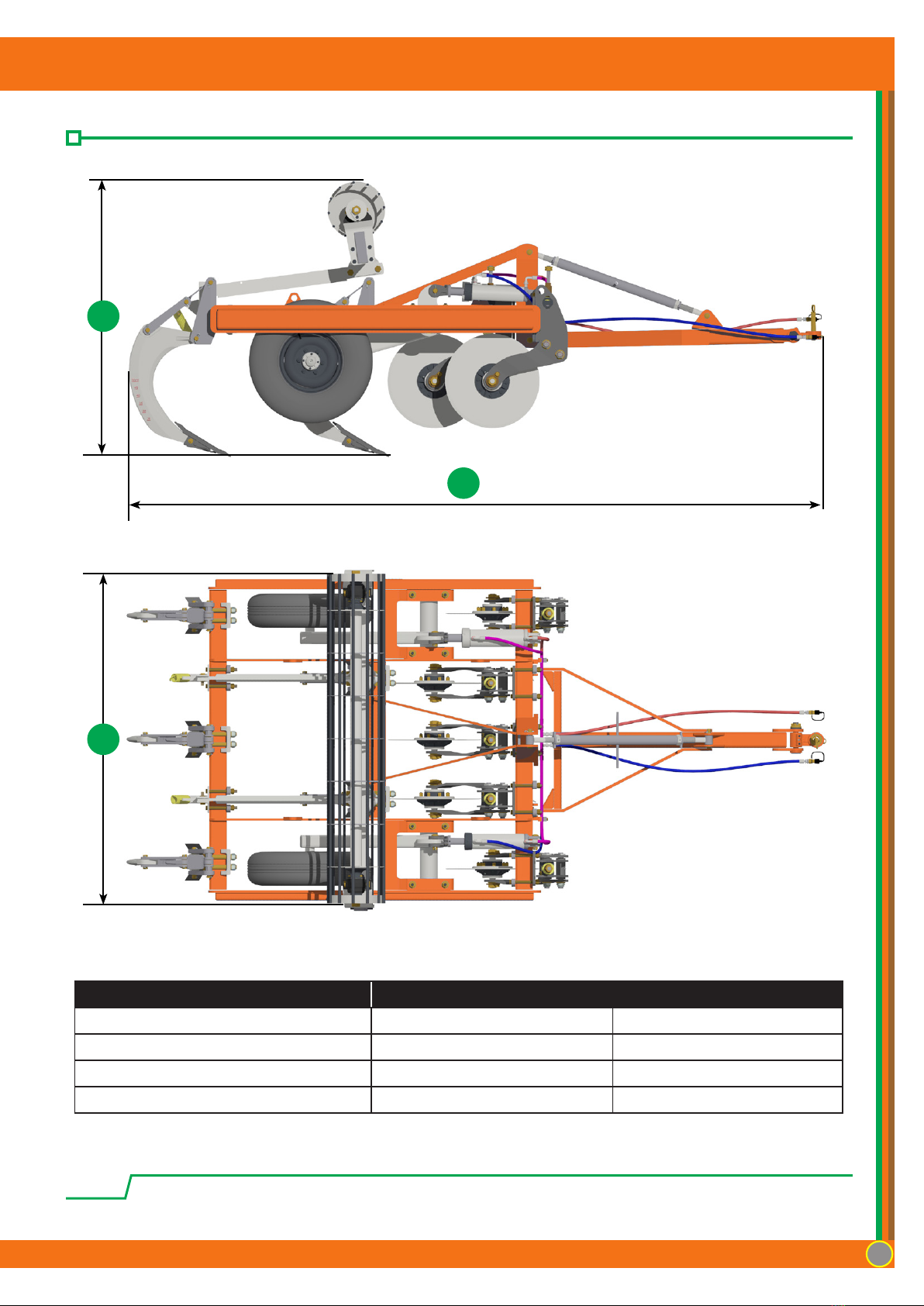

3. Data sheet 10 & 11
4. Components 12
5. Assembly 13 to 16
Drawbar assembly 13
Tires assembly 14
Hydraulic circuit assembly 15
Shanks assembly 16
6. Set-up instructions 17 to 20
Preparing the tractor / Preparing the disk harrow 17

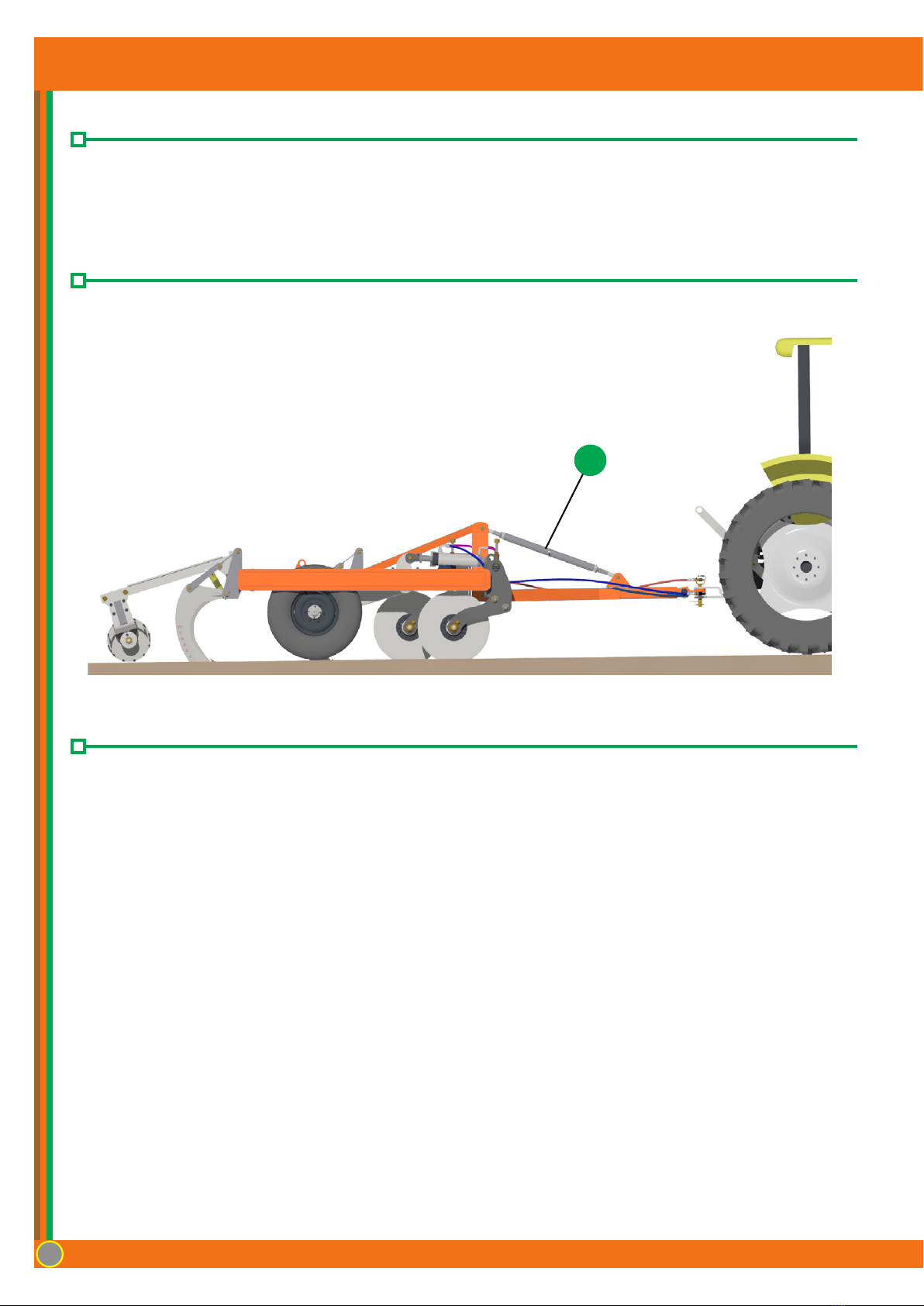

Hitching to the tractor 17 & 18
Leveling the plow / Daily working preparation 18
Shanks and disc blades position 19 & 20
7. Adjustments and operations 21 to 26
Shanks depth adjustment 21 & 22
Automatic retrieving of the shanks 23
Shank retrieving pressure adjustment 23
Troubleshooting guide 24 & 25
Operations - Important points 26
8.Optional 27 to 30
Disc blade 27
Disc blade depth adjustment 28
Cage roller / Cage roller assembly 29
Plow transportation with cage roller 30
9. Maintenance 31 to 38
Lubrication 31 & 32
Replacement of the shank tips / Plow maintenance 33
Wheelset hubs lubrication 34
Hydraulic cylinder maintenance / assembly 35 & 36
Hydraulic safety 37
Tires inflation 38
10. Important data 39 to 41
Calculation of hourly income 39
Income table 40
Torque table 41
11. Important 42

Civemasa Implementos Agrícolas STAC M 500 3
To the owner
General information
Important
Right and left hand side indication are made observing the equipment from the rear.

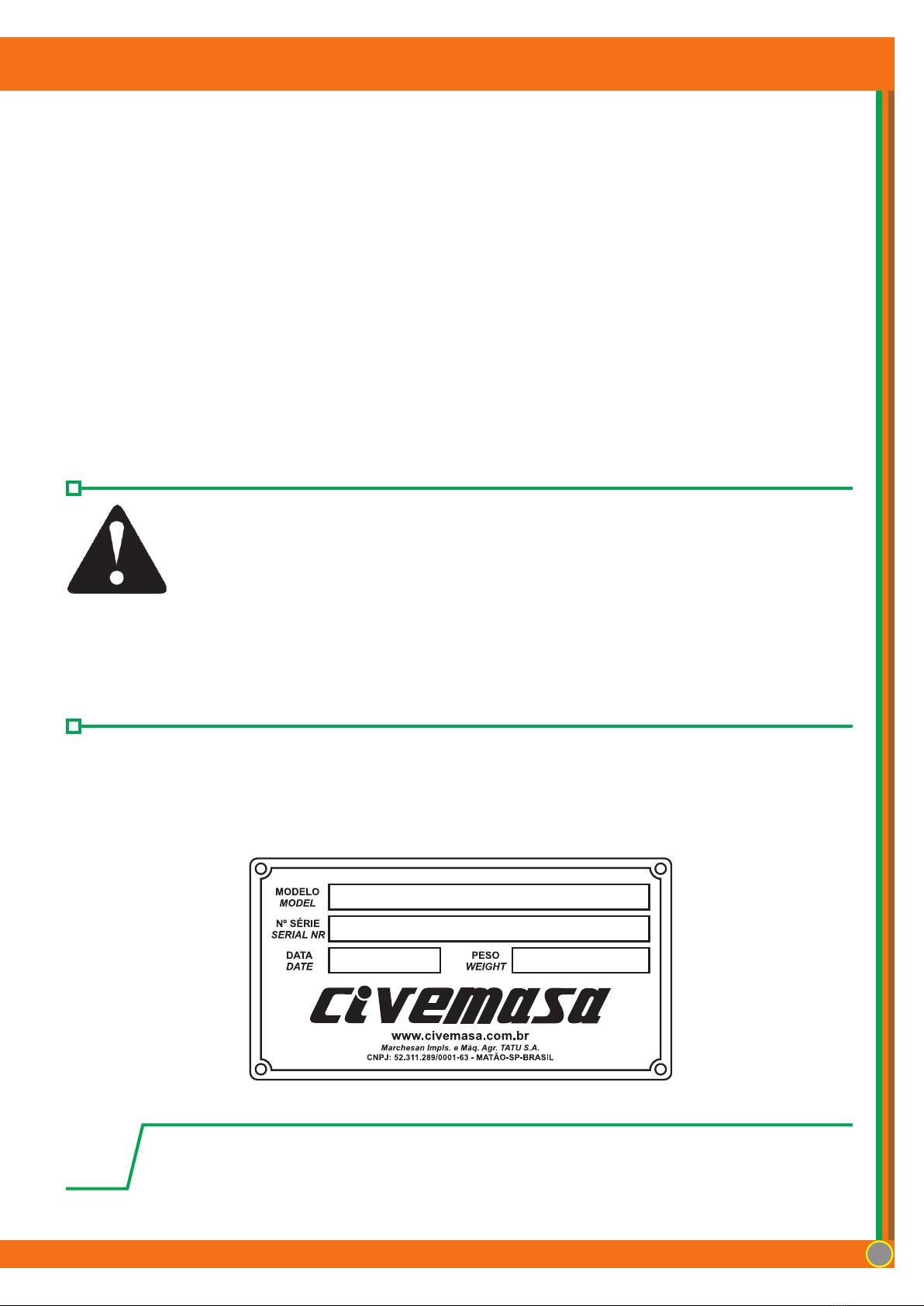

To order any parts or request technical assistance services, it is required to provide
the data contained on the nameplate, which is located on the equipment frame.
The acquisition of any Civemasa product assures to the original purchaser the following
rights:
• Warranty certificate;
• Operator's manual;
• Technical assistance by the dealer on equipment delivery.
However, the owner must check the condition of the equipment on delivery, as well as
knowing the warranty terms.
Special attention should be given to the safety recommendations, operation precautions
and maintenance of the equipment.
The instructions in this manual indicates how to get the best performance and allow
the operator to get maximum income, increasing the equipment lifetime.
This manual should be read by operators and maintenance staff.
• Only people who own a full knowledge of the tractor and equipment must
transport, operate and carry out any maintenance on them;
• Civemasa is not responsible for any damage caused by accident on
transporting, incorrect utilization or inadequate storage, either by
negligence and/or lack of experience from any person;
• Civemasa is not responsible for any damage caused by unpredictable
situations or the incorrect use of the equipment.
The warranty shall not be applied to any equipment, or any parts thereof,
which has been altered elsewhere than at the place of manufacture or which
the original purchaser thereof, at retail, has used or allowed to be used parts,
not made or supplied by Civemasa.
NOTE

Civemasa Implementos Agrícolas
4STAC M 500
To the operator
Dear operator!
Respect the ecology. Do not throw trash away. This gesture
of goodwill helps to protect our environment.
Products such as oil, fuel, filters, batteries and others are
spilled to the soil and can penetrate to the underground layers,
compromising nature. Ecological and conscious disposal of them
should be done.
Be careful with the environment
Working safely
Read and understand the information before making any
adjustment or maintenance.
• Security aspects must be carefully observed to avoid accidents.
• This symbol is a warning used to prevent accidents.
• The instructions under this symbol refers to the safety of the
operator or third parties, therefore they should be carefully
read and observed. When the safety instructions are not being
followed, a serious accident or even death may occur.
The STAC M 500 plow is simple to operate, requiring however
the basic and essential cautions to its handling.
Always keep in mind that safety requires constant attention,
observation and prudence during the transportation, maintenance
and storage.
U
U
s
s
o
o
d
d
e
e
E
E
.
.
P
P
.
.
I
I
.
.
O
O
B
B
R
R
I
I
G
G
A
A
T
T
Ó
Ó
R
R
I
I
O
O
Uso de
E.P.I.
OBRIGATÓRIO
Have extreme caution when operating with the power take-off
(PTO). Do not get closer during operation.

Civemasa Implementos Agrícolas STAC M 500 5
To the operator
Always use the safety locks to carry out maintenance operations
and to transport the equipment.
Always use the seat belt.
XX
The presence of any other people on the tractor or equipment
is stricly forbidden.
Have extreme caution when driving under electrical power lines.
For your protection and safety, always wear adequate clothes
and footwear while operating the equipment.
Never use your bare hands to check hydraulic leaks, the high
pressure can cause injuries.
Never attempt to change the adjustments, clean or lubricate the
equipment when the same is switched on or in movement.
Be careful while driving on slopes. Risk of overturn.
Prevent that chemical products (i.e.: fertilizers, treated seeds)
make any contact with your skin or clothes.
Keep access and work places clean or free from oil and grease.
Risk of accidents.

Civemasa Implementos Agrícolas
6STAC M 500
To the operator
• Only trained and qualified personnel are allowed to operate the equipment.
• While working or during transportation, only the presence of the operator is
allowed on the tractor.
• Do not allow children to play or to get over the equipment while it is operating,
during transportation or storage.
• When setting the equipment to transport position, check if there are no people
or animals close or under the equipment.
• Use personal protective equipment (PPE).
• Wear appropriate clothes and footwear. Avoid clothes that are either loose or
hanging from the body, which may become entangled in moving parts.
• Wear protective gloves to work near the cutting parts.
• Never operate the equipment without its protective devices.
• Have full knowledge of the soil before starting to work. Use the speed which is
suitable to the conditions of the ground. Provide the delineation of obstacles
or hazardous locations.
• Carefully check the transport width on narrow locations.
• Be careful when hitching the equipment to the tractor.
• Only pull the equipment using a tractor with appropriate power.
• Do not drive the equipment under the influence of alcohol or any soothing/
stimulating medicine, as it may result in a serious accident.
• In case of a fire outbreak or any possible hazard, the operator must leave the
area as fast as possible and look for a safe place. Always have emergency
numbers at hands.
• In case of emergency, know how to stop the tractor and equipment quickly.
• Always shut down the engine, remove the key and activate the brake before
leaving the tractor seat.
• Never attempt to change the adjustments, clean or lubricate the equipment
while it is moving.
• Whenever you unhitch the equipment, either in the field or shed, do it on a flat
and firm surface. Make sure the equipment is properly supported.
• We suggest that you carefully read the manual, as it will be a guide for
periodic verifications that need to be done and will allow that you assure the
maintenance of your equipment.
• If there is any doubt after reading it, ask your dealer. For more complicated
operations, there will be the right person to help you there.
• Please check the general safety instructions on the back cover of this manual.

Civemasa Implementos Agrícolas STAC M 500 7
Transportation over truck or trailer
To the operator
Civemasa does not advise the equipment traffic on highways, because this
practice involves serious security risks in addition to being prohibited by the
current existing traffic law. The transportation for long distances should be
done on truck, trailer or other by following these safety guidelines:
• Use adequate ramps to load or unload the equipment. Do not make the loading
on ditch banks, it can cause a serious accident.
• When lifting with a hoist, use the appropriate points for lifting.
• Underpin the equipment appropriately.
• Fasten the moving parts that may get loose and cause accidents.
• Use chock blocks and safety chains to secure the equipment to the truck or
trailer during the transport.
• Make sure the SMV (Slow Moving Vehicle) sign, and all the lights and reflectors
that are required by the local highway and transport autorithies are in place,
are clean and can be seen clearly by all overtaking and oncoming traffic.
• After 8 to 10 km transporting, please inspect the load condition. Repeat this
procedure every 80 to 100 km. Give more attention when transporting the
equipment on rough roads, slopes and other adverse conditions.
• Always be careful with the load height, especially when passing under electrical
power lines, bridges and others.
• Check all laws and regulations regarding the height limits and load width while
transporting the equipment to the truck or trailer. If necessary use banners,
lights and other devices in order to give adequate warning to the other drivers.

Civemasa Implementos Agrícolas
8STAC M 500
To the operator

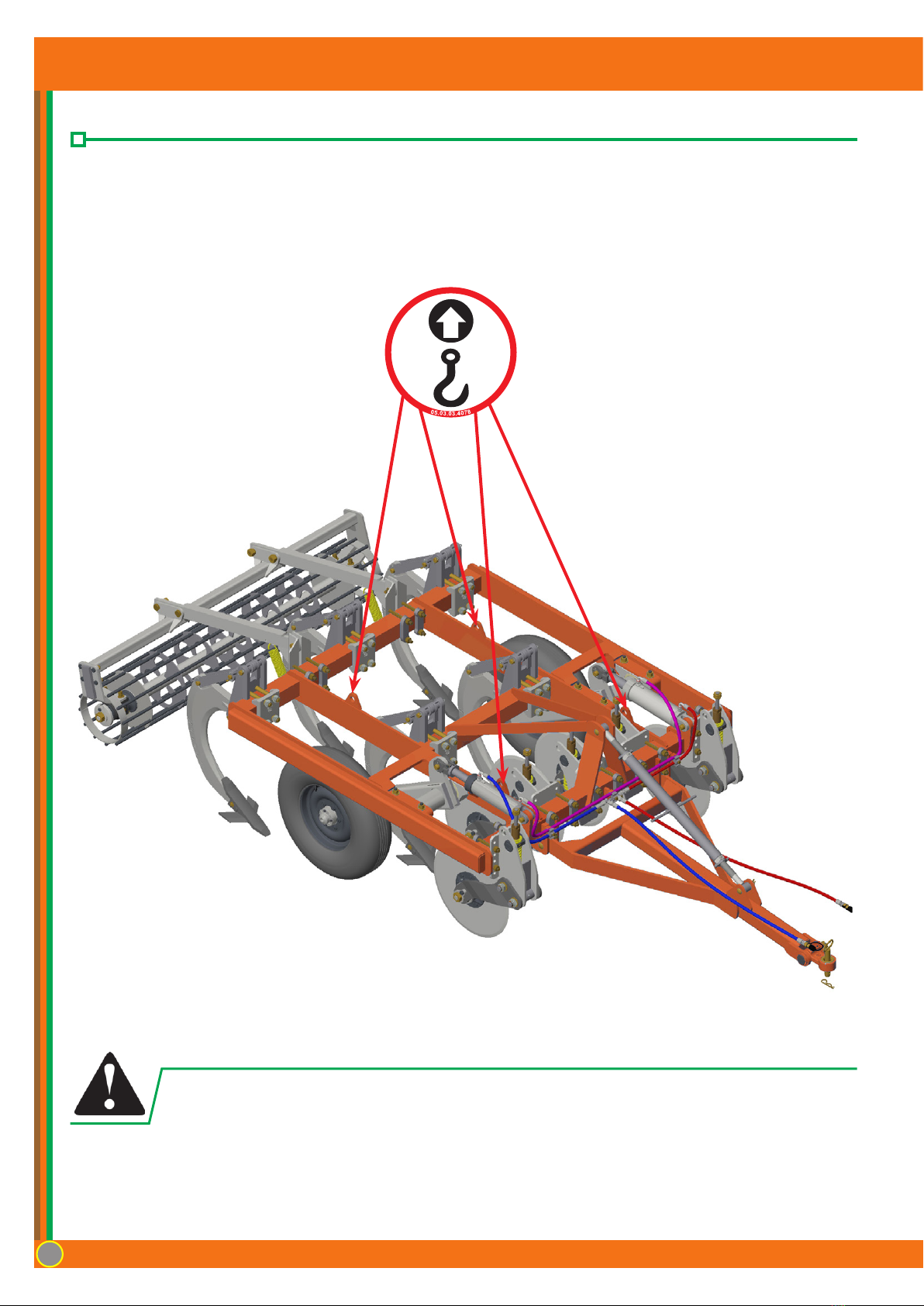

Lifting points
This equipment has adequate lifting points located on the frame. When lifting with a
hoist, it is essential to hitch the cables to the points as shown below.
Use chains, of at least 3 meters long to lift the equipment safely.
Use the adequate points for lifting and be sure that the equipment is safe.
Avoid accidents.
Always keep a safe distance from the equipment.

Civemasa Implementos Agrícolas STAC M 500 9
Ao operador
Safety decals
Decal set
Quantity Serial number Description
02 05.03.03.4059 STAC M decal set
02 05.03.03.3246 Civemasa logotype
01 05.03.03.1827 Lubricate and tighten daily decal
01 05.03.03.1428 Read the manual decal
01 05.03.03.1803 Important decal
04 05.03.03.4078 Lifting points decal
01 05.03.03.1087 Final test decal
04 05.03.03.4247 Lubrication points decal
A
A
T
T
E
E
N
N
Ç
Ç
Ã
Ã
O
O
/
/
A
A
T
T
T
T
E
E
N
N
T
T
I
I
O
O
N
N
/
/
A
A
T
T
E
E
N
N
C
C
I
I
Ó
Ó
N
N
05.03.03.1803
Ao acionar os cilindros pela primeira vez,
apenas um se movimentará. Continue
acionando até que o equipamento levante
totalmente.
When activating the hydraulic
cylinders for the first time, only one
of them will move. Keep activating
in order to raise the equipment
completely.
Al accionar los cilindros hidráulicos
por primave ra vez, solame nte un o
se moverá. Continúe la acción hasta
que el equipo se levante completamente.
The safety decals warn about the equipment points that require more attention and
they should be kept in good repair. If these decals become damaged or illegible, replace
them. Civemasa provide decals, upon request and indication of the respective serial number.

Civemasa Implementos Agrícolas
10 STAC M 500
STAC M 500
Right and left hand side indication are made observing the plow from its rear.
NOTE
Model STAC M 500
Number of shanks 05 07
Spacing (mm) 400 400
Working width (mm) 2000 2800
Approximated weight* (kg) 2200 2766
Tractor required (cv) 160 - 180 200 - 220
• The STAC M 500 weight was quoted with disc blades and cage rollers equipped.
• Working speed: 05 to 06 km/h.
• Transport speed: 30 km/h.
• Tires inflation:
7.50 x 16 tire - 10 ply (60 PSI),
7.50 x 16 tire - 12 ply (72 PSI).
Data sheet

Civemasa Implementos Agrícolas STAC M 500 11
Data sheet
Dimensions for transportation and storage
NOTE
Model STAC M 500
Number of shanks 05 07
A4470 4470
B2110 2800
C1780 1780
BB
CC
AA
Measures in millimeters.

Civemasa Implementos Agrícolas
12 STAC M 500

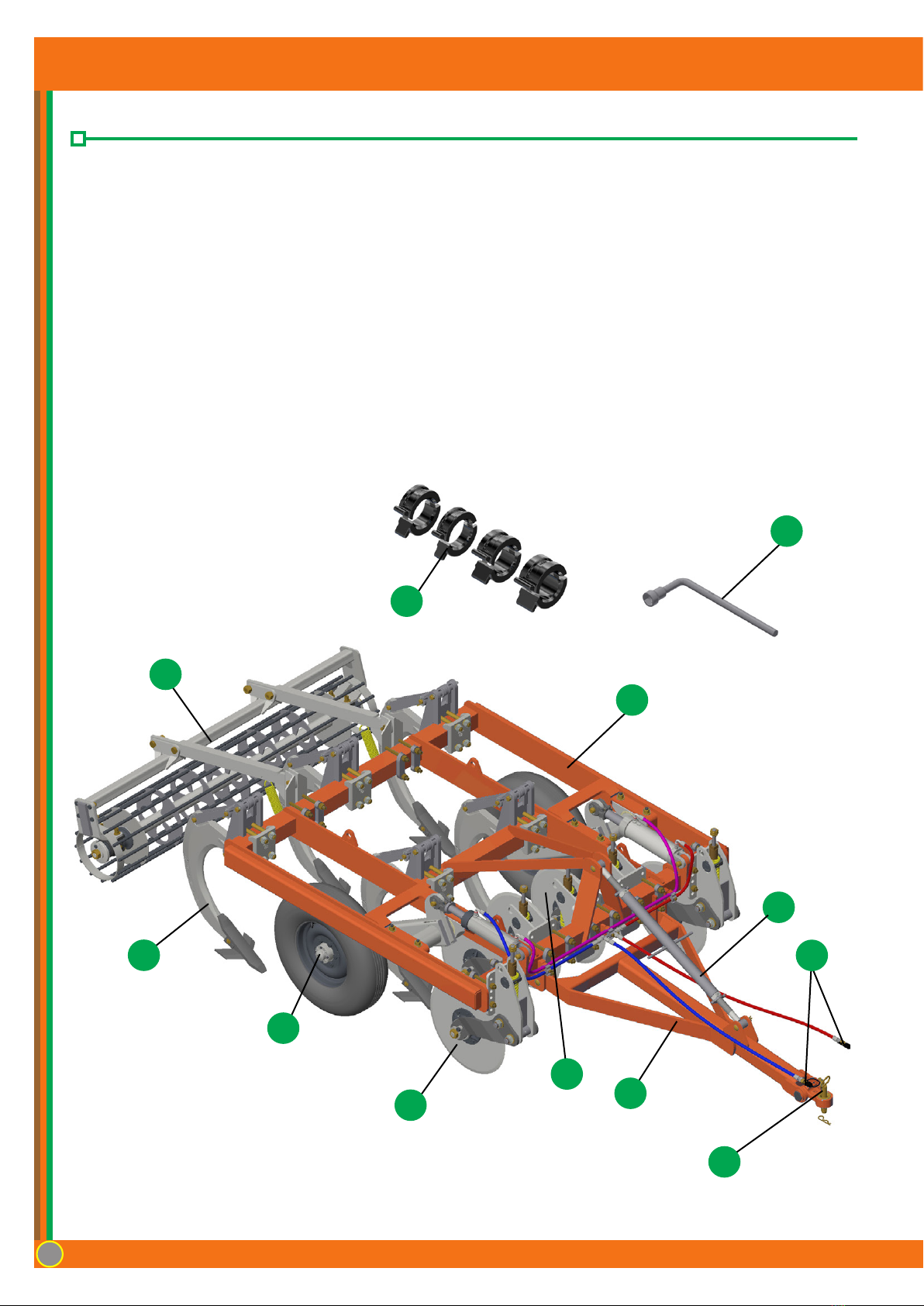

Components
STAC M 500
0101
0202
0303
0404
0505
0606
0707
0808
1010
0909
1212
1111
01 - Frame 02 - Drawbar
03 - Extensor arm 04 - Hydraulic circuito
05 - Hitch pin 06 - Wheelset
07 - Flat spring shanks 08 - Ø 24" front disc blades (optional)
09 - Cage roller (optional) 10 - Ø 24" rear disc blades (optional)
11 - Cylinder stops 12 - 1" wrench

Civemasa Implementos Agrícolas STAC M 500 13
Assembly
Drawbar assembly
BB
DD
AA
CC
To facilitate transportation, the plow leaves the factory unassembled. To start assembling,
choose a flat and clean place and follow the steps below:
Separate the parts to facilitate identification and check them
according to the list that can be found
inside the box.
Place the frame over four trestles
with at least 850 mm of height each.
Assemble the drawbar (A) to the frame using pins (B) and cotter pins. Then, couple
the extensor arm (C) to the frame and drawbar using pins (D) and cotter pins.

Civemasa Implementos Agrícolas
14 STAC M 500
Assembly

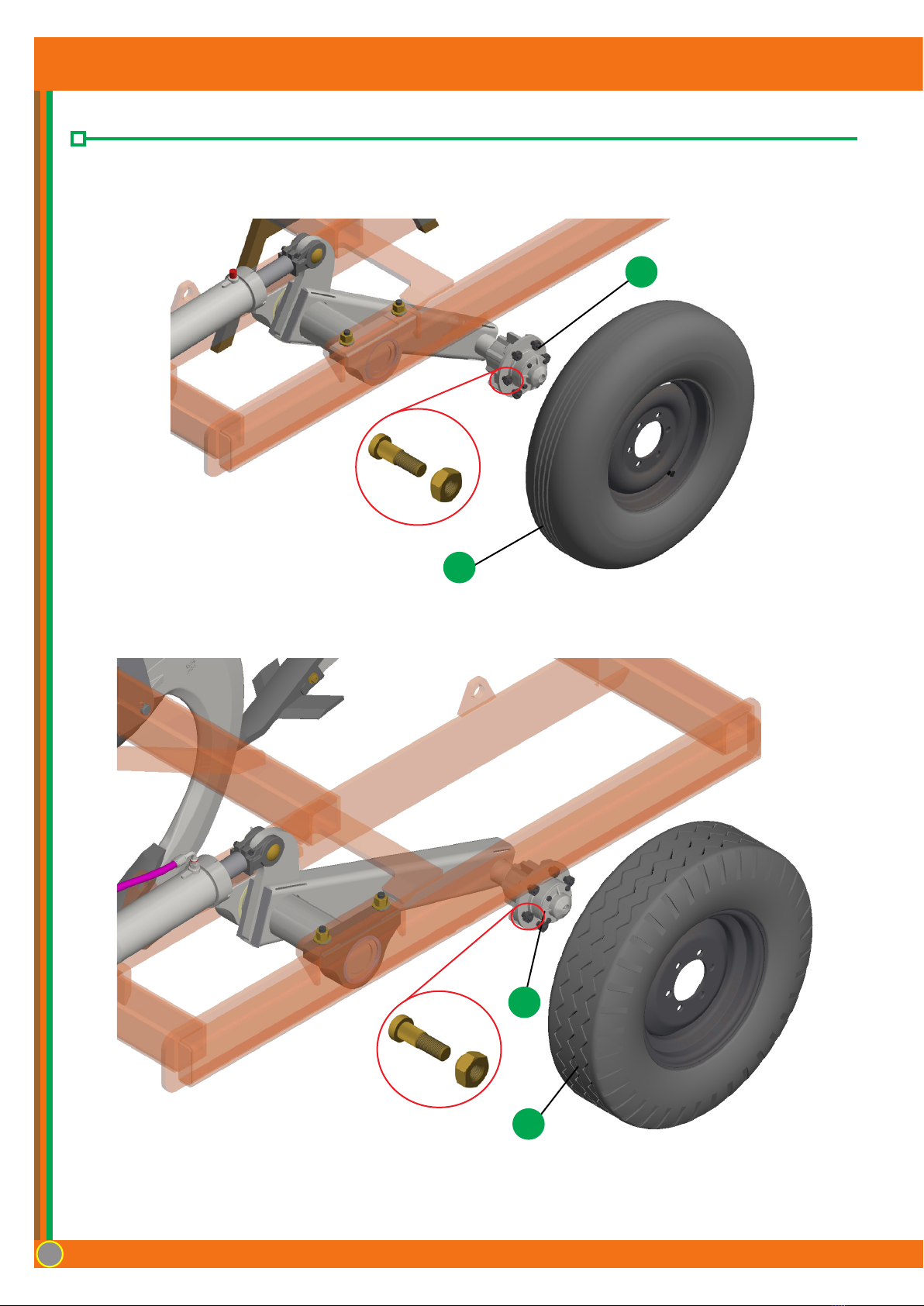

Tires assembly
Assemble the tires (A) to the hubs (B) using nuts.
7.50 x 16 tire - 12 ply (72 PSI),used on the STAC M 500 with 7 shanks.
AA
BB
BB
7.50 x 16 tire - 10 ply (60 PSI), used on the STAC M 500 with 5 shanks.
AA

Civemasa Implementos Agrícolas STAC M 500 15
Assembly
Hydraulic circuit assembly
NOTE
0101
0202
0303
0404
0505
0606
0707
0808
0909
STAC M 500 5 & 7 shanks
Item Description Quantity
Frame 5 shanks Frame 7 shanks
01 Hose 3/8 X 1000 TR-TC 3/8 X 1400 TR-TC 01 Pressure
02 Hose 3/8 X 1360 TR-TC 3/8 X 1700 TR-TC 01 Return
03 Hose 3/8 X 2350 TC-TC 3/8 X 3000 TC-TC 01 Pressure / Return
04 Hose 3/8 X 3000 TR-TM 3/8 X 3000 TR-TM 01 Return
05 Hose 3/8 X 3000 TR-TM 3/8 X 3000 TR-TM 01 Pressure
06 Hydraulic cylinder (Small) 01
07 Hydraulic cylinder (Great) 01
08 Oil distributor 01
09 Male quick coupler 02
IMPORTANT
• After assembling the equipment, activate the hydraulic circuit so just one
side of the equipment will lift up. Activate some more until the equipment is
leveled.
• This procedure is executed just once so the hydraulic circuit is filled
completely, thus the other activations will carry out the operation with a
leveled equipment.
• Frequently observe the general state of the connectors, hoses and
cylinders to see if there is not physical defect, wear or leakages.
• If necessary, use thread sealing tape to couple the hoses and the
'male' part of the quick couplers.

Civemasa Implementos Agrícolas
16 STAC M 500
Assembly

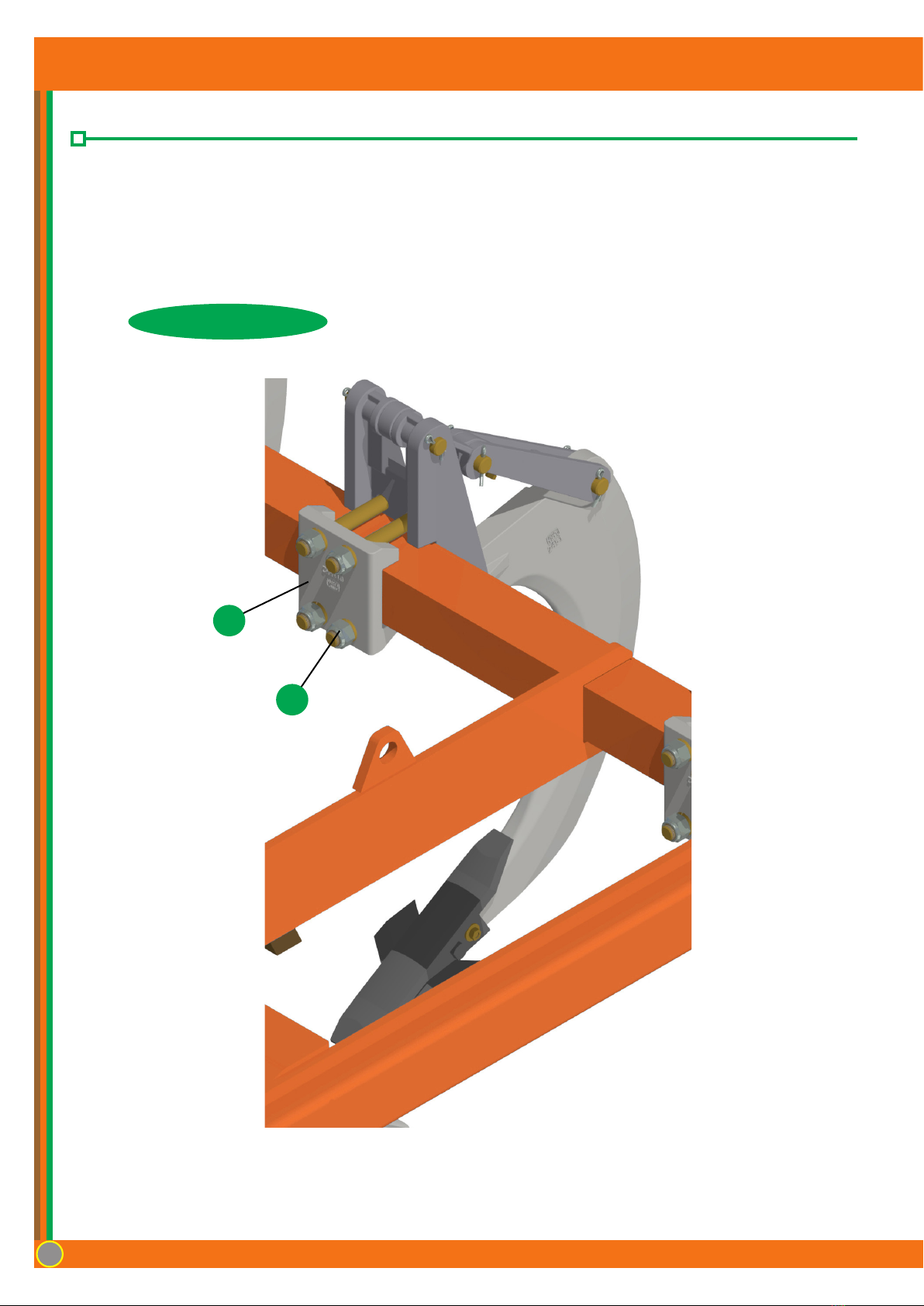

Shanks assembly
STAC M 500 shankSTAC M 500 shank
Couple the shanks to the frame using bolts (A), support plate (B), spring washers and
nuts.
BB
AA

Civemasa Implementos Agrícolas STAC M 500 17
Set-up instructions
Preparing the tractor
Preparing the disk harrow
Hitching to the tractor
AA
BB
CC
DD
ATTENTION
The following instructions must be carefully observed in order to get the best work
performance.
The addition of ballast water in the tires and a set of weights on the front part and rear
wheels of the tractor are the most used ways to increase the soil traction and give greater
stability to the tractor. Check if the tractor is in good condition before using it.
Check the condition of all parts, retightening nuts and bolts, especially from the disc
gangs. These will damage the axle and other components when working loose.
Check the tires inflation and keep the same pressure on all of them.
Lubricate all grease fittings appropriately. (See 'lubrication' instructions).
Couple the equipment to the tractor by hitching the drawbar (A) to the hitch bar (B)
using a pin (C) and connect the hydraulic cylinder hoses (D) to the tractor remote control
couplers.
If necessary, use the extensor arm (E) to facilitate hitching.
• The tractor drawbar must remain fixed and centralized.
• The hitch pin (C) is not included with some equipment models.
• During transportation, the hydraulic lower arms must remain lifted.

Civemasa Implementos Agrícolas
18 STAC M 500
Set-up instructions
Level the plow through the extensor arm (A).
Hitching to the tractor
Leveling the plow
Important recommendations
AA
To couple the hydraulic cylinder hoses (D) to the tractor remote control couplers, shut
down the tractor engine, relieve the control valve pressure by activating the lever a couple
of times and check if the quick couplers are clean.
Before starting the subsoiling job, inspect the plow and retighten all bolts and nuts;
also check the conditions of all pins and cotter pins to avoid future damages. Repeat this
operation after the first day of work.
The tractor drawbar must remain fixed and centralized.
It is really important to check the tires inflation and to keep the same pressure on both
of them.
Before connecting the equipment hoses to the tractor, check if the hose is pressurized.
If the answer is positive, the operator will not be able to connect the male part to the female
one - and forcing this operation may lead to severe damages to the eye and skin as the
fluid may escape. To remove the pressure on the tip of the hose, press the male coupling
against a non-metallic surface to move the retention valve, until there is no oil leakage
anymore.
Activate the control valve lever and check for any leaks on the terminals and on the
quick couplers.
To transport the equipment, it is necessary to use the transport locks which are coupled
to the hydraulic cylinder rods. When they are not being used, the safety locks must remain
fixed to the equipment on their appropriate place.

Civemasa Implementos Agrícolas STAC M 500 19
Set-up instructions

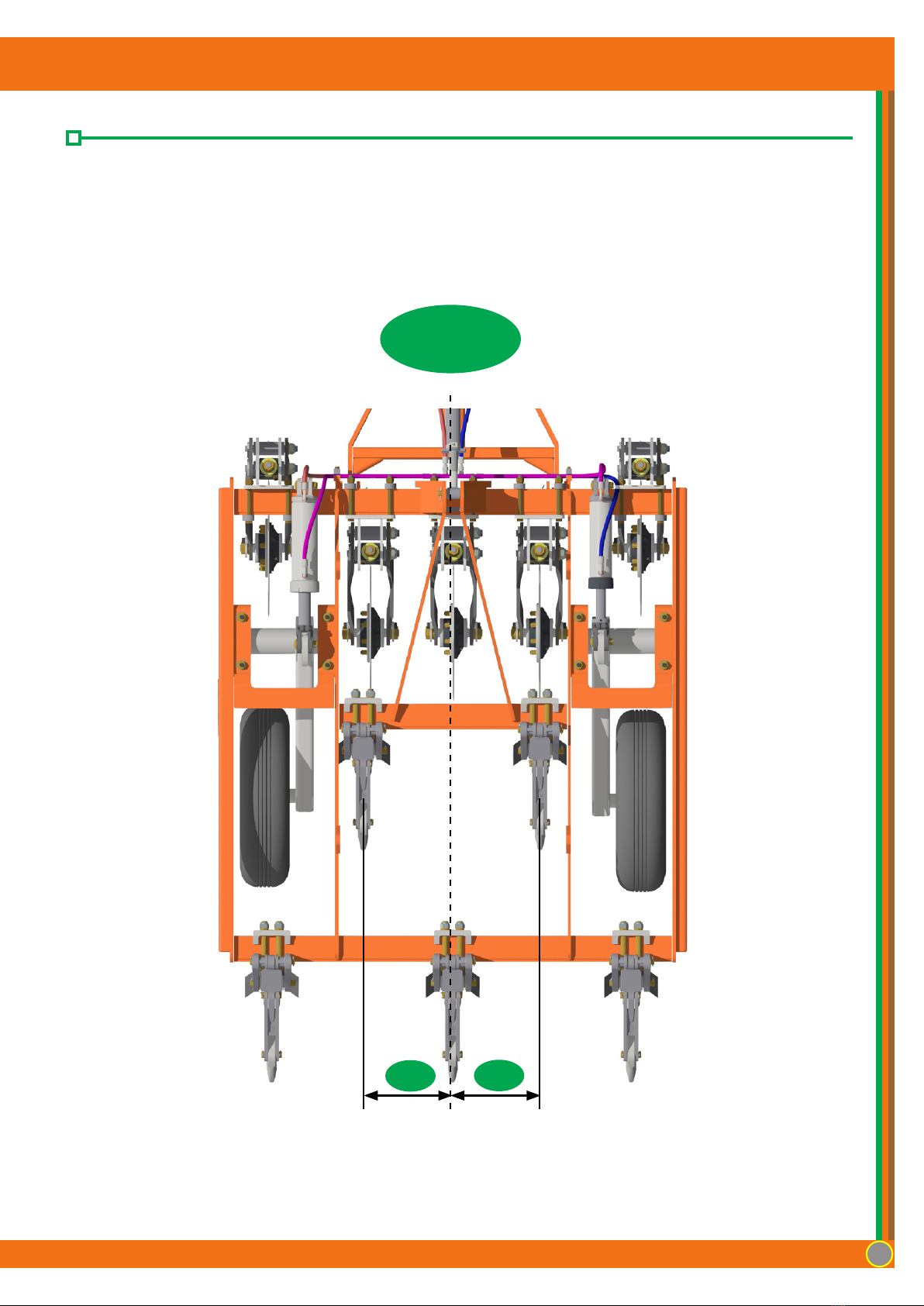

Shanks and disc blades position
STAC M 500STAC M 500
5 shanks5 shanks
400400
400400
Odd number of row units:
Position a row unit on the center of the frame and use that row as a reference to position
the others with the desired spacing.
