Cima New Plus Operating and maintenance instructions

Operation and maintenance instructions
New Plus

Dear Customer, thank you very much!
We want to congratulate with you, for hav-
ing chosen a sprayer.
Your choice shows the wisdom of the
well-informed Purchaser, aware of the
fact, that the required features of quality,
technique and reliability must be satised
at the right price!
Our continuous engagement in R&D and
in testing our machines allows us to re-
alize products able to offer the best per-
formances, a high reliability and a great
easiness of use at the same time !
Our rst goal, is to get our Customers
happy for having met us!
The “Spare parts catalogue” of this sprayer/
sprayhead is available in the “restricted area” on
website www.cima.it.
In order to accede, use:
User name: sprayer
Password: 844719KE

OPERATION AND
MAINTENANCE INSTRUCTIONS
Model: ...................................................
Serial Number: .....................................
(Pubblication N° LUM-NPLUS-00-EN)
© CIMA S.P.A. 2001 - 2018 Private property.
Any reproduction, even if partial, is forbidden if not preventively authorized in writing by the Cima S.p.A. company.
Mounted sprayer
New Plus

Rev.00 - Jan. 2013 III
New Plus 42-45-50-55
LISTING OF VALID PAGES
This publication consists of 85 pages, subdivided as follows:
N° OF PAGE REVISION BASE
from I to VI 00 January 2013
from 1 to 79 00 January 2013
ADDITIONAL RECORDS AND VARIANTS
REVISION DESCRIPTION
00 First Edition, January 2013
01
02
03
04
05
06
07
08
09

Rev.00 - Jan. 2013
IV
New Plus 42-45-50-55
GENERAL INDEX
1 FOREWORD.......................................................................................................................... 1
1.1 CHECKS TO BE CARRIED OUT AT MATERIAL RECEPTION ..................................................1
1.2 PUBLICATION IDENTIFICATION........................................................................................ 1
1.3 ATTACHED PUBLICATIONS................................................................................................ 1
1.4 PURPOSE OF PUBLICATION ............................................................................................. 1
1.5 REFERENCE TO REGULATIONS....................................................................................... 2
1.6 USING THE MANUAL........................................................................................................... 2
1.7 UPDATES............................................................................................................................... 2
2 GLOSSARY ........................................................................................................................... 3
2.1 TERMINOLOGY .................................................................................................................... 3
2.2 ABBREVIATIONS.................................................................................................................. 3

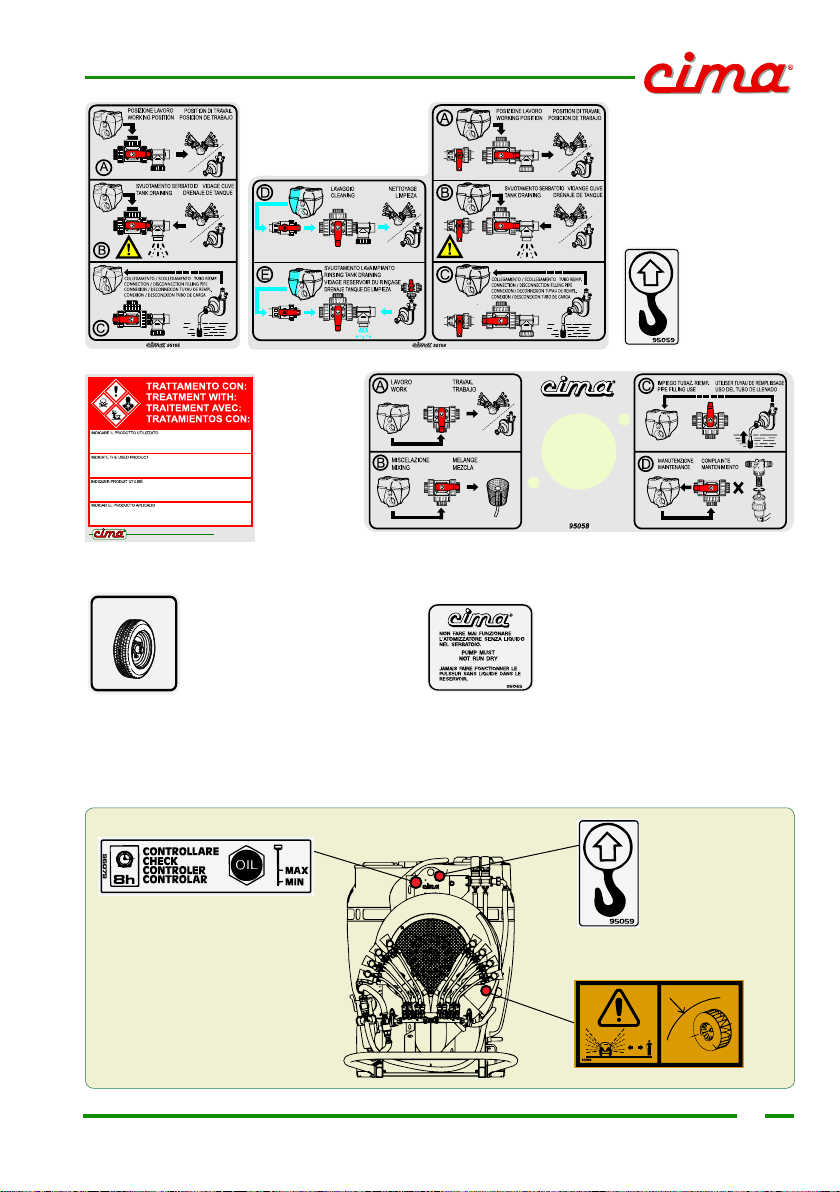

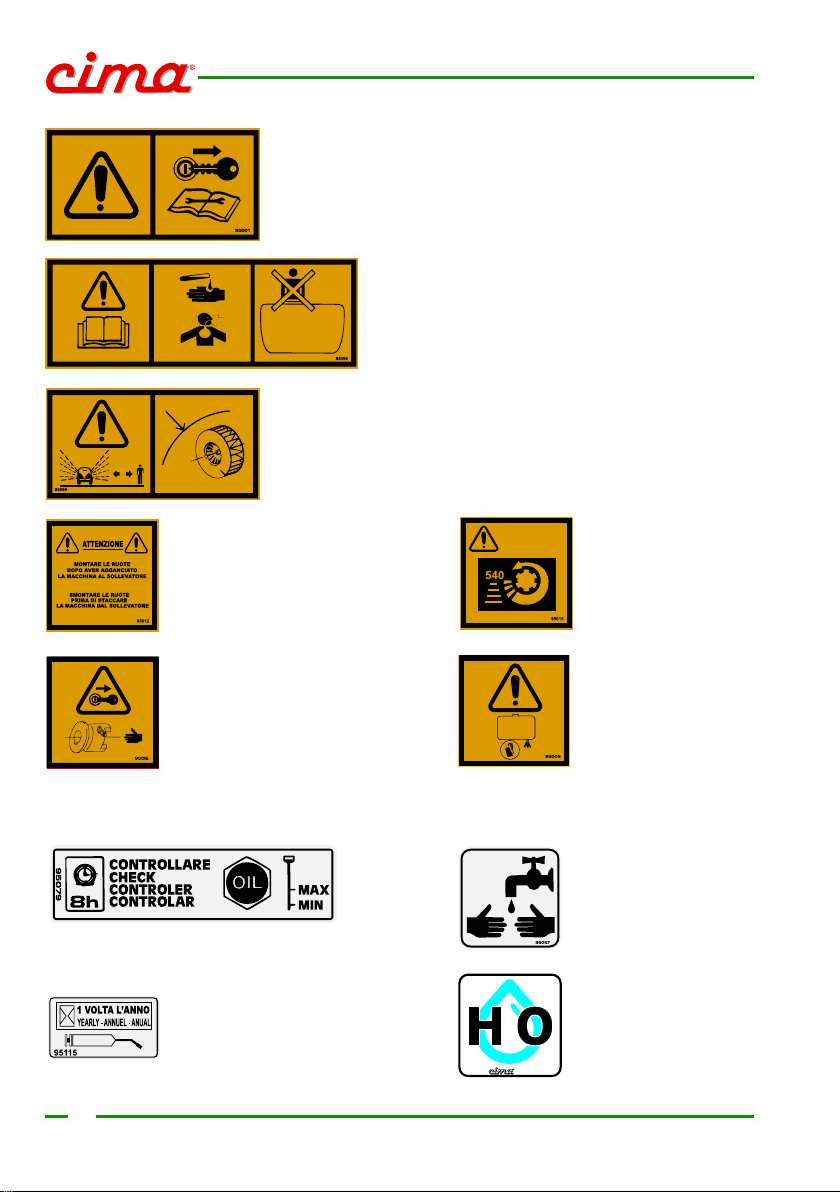

2.3 DECALS................................................................................................................................. 3
3 GENERAL INFORMATION................................................................................................... 7
3.1 MACHINE IDENTIFICATION................................................................................................ 7
3.2 TECHNICAL ASSISTANCE .................................................................................................. 7
3.3 SAFETY NOTICES................................................................................................................ 7
3.3.1 General ................................................................................................................................... 7
3.3.2 Precautions against the res................................................................................................... 8
3.4 SAFETY SYSTEMS .............................................................................................................. 9
3.5 HANDLING OF AGRO-CHEMICALS ...................................................................................... 9
3.5.1 Storage ................................................................................................................................. 10
3.5.2 Specic equipment................................................................................................................ 10
3.5.3 Disposal of empty containers and agro-chemicals residues................................................. 10
3.5.4 Personal Protective Equipment (PPE) ................................................................................. 11
4 MACHINE’S STRUCTURAL ANALYSIS............................................................................ 12
4.1 FRAME................................................................................................................................. 13
4.2 FAN SERVO AMPLIFIER.................................................................................................... 14
4.3 HYDRAULIC CIRCUIT........................................................................................................ 15
4.3.1 Operating principle................................................................................................................ 15
4.3.2 Hydraulic circuit components ................................................................................................ 19
4.4 TECHNICAL DATA .............................................................................................................. 28
4.4.1 SPRAYERS DIMENSIONS AND WEIGHTS ..................................................................... 28
4.4.2 Weight of accessories........................................................................................................... 29
4.4.3 Centrifugal pump CD32 ........................................................................................................ 31
4.4.4 Filters .................................................................................................................................... 31

Rev.00 - Jan. 2013 V
New Plus 42-45-50-55
4.4.5 Tanks..................................................................................................................................... 31
4.4.6 Fans ...................................................................................................................................... 31
5 COUPLING MODALITIES .................................................................................................. 32
5.1 HITCHING TO THE TRACTOR.......................................................................................... 32
5.2 MOUNTING OF THE TRANSMISSION SHAFT................................................................ 33
5.3 INSTALLATION OF REMOTE CONTROLS ...................................................................... 34
5.3.1 Electrical control panel - E10 ............................................................................................... 34
5.3.2 Manual 2-tap distributor - P9................................................................................................. 35
5.3.3 E.P.A. Control Unit .............................................................................................................. 35
6 DISTRIBUTION DEVICES ................................................................................................. 36
6.1 POSITIONING OF FAN CASING ....................................................................................... 37
7 ACCESSORIES .................................................................................................................. 38
7.1 FILLING PIPE...................................................................................................................... 38
7.2 PAIR OF WHEELS .............................................................................................................. 38
7.3 SWIVELLING DEVICE........................................................................................................ 39
7.4 E.P.A. KIT - DELIVERY PROPORTIONAL ADVANCEMENT........................................... 40
8 FILLING ............................................................................................................................... 41
8.1 FOREWORD - USE OF THE FAN DISENGAGEMENT ................................................... 41
8.1.a Disengagement of the fan..................................................................................................... 41
8.1.b Fan engagement to perform the treatment ........................................................................... 42
8.2 FILLING THROUGH POURING FROM THE TO .............................................................. 42
8.3 FILLING WITH THE SPECIFIC PIPE (OPTIONAL DEVICE) .......................................... 43
9 AGITATION ......................................................................................................................... 46
10 OPERATING PROCEDURES ............................................................................................ 46
10.1 PRELIMINARY OPERATIONS TO TREATMENT............................................................. 46
10.2 - PREPARATORY OPERATIONS TO TREATMENT............................................................ 47
10.3 THE TREATMENT............................................................................................................... 48
10.4 PROCEDURE TO WASH THE HYDRAULIC CIRCUIT.................................................... 49
10.5 END OF TREATMENT - STORAGE................................................................................... 51
10.5.1 Daily ...................................................................................................................................... 51
10.5.2 End of seasonal cycle ........................................................................................................... 53
11 TANK AND HYDRAULIC CIRCUIT DRAINING................................................................. 54
12 LIFTING AND TRANSPORT............................................................................................... 55

Rev.00 - Jan. 2013
VI
New Plus 42-45-50-55
13 MAINTENANCE OPERATIONS......................................................................................... 56
13.1 LUBRICATION..................................................................................................................... 56
13.2 FAN SHAFT SUPPORT OIL LEVEL CHECK .................................................................... 57
13.3 FAN SHAFT SUPPORT OIL REPLACEMENT.................................................................. 57
13.4 CLEANING OF FILTER’S CARTRIDGE............................................................................ 58
13.5 PURGING OF RESIDUES FROM FILTER........................................................................ 58
13.6 FAN BELT TENSIONER ..................................................................................................... 59
13.7 PUMP BELT TENSIONER ................................................................................................. 59
13.8 TANK REMOVAL OR REPLACEMENT ............................................................................. 60
13.9 TABLE OF MAINTENANCE OPERATIONS...................................................................... 61
14 FAULTS FINDING .............................................................................................................. 62
15 REPAIRS ALLOWED .......................................................................................................... 65
15.1 REPLACEMENT OF PUMP CONTROL BELT .................................................................. 65
15.2 REPLACEMENT OF ELECTRICAL PANEL’S FUSES ..................................................... 66
15.3 PRESSURE GAUGE REPLACEMENT ............................................................................. 66
15.4 INSPECTION AND CLEANING PUMP FILTER ................................................................ 67
15.5 LEVEL GAUGE CLEANING ............................................................................................... 68
15.6 CHECK HYDRAULIC DELIVERY ...................................................................................... 69
15.6.1 CHECK WHIT FLOWMETER ............................................................................................. 69
15.6.2 CHECK WHITOUT FLOWMETER ..................................................................................... 70
16 INTEGRATIVE DIAGRAMS................................................................................................ 71
16.1 HYDRO-PNEUMATIC DIAGRAM....................................................................................... 71
16.2 WIRING DIAGRAM ............................................................................................................. 73
17 NOISE LEVEL...................................................................................................................... 77
18
ATTACHMENT: DECLARATON OF CONFORMITY ................................................................... 78
19 WARRANTY......................................................................................................................... 79
19.1 GENERAL INFORMATION................................................................................................. 79
19.2 REPORTING DEFECTS IN GOODS ................................................................................. 79
19.3 TO PASS SAFETY INFORMATION ................................................................................... 79
19.4 VALIDITY AND ACCEPTANCE .......................................................................................... 79

Rev.00 - Jan. 2013 1
New Plus 42-45-50-55
1 FOREWORD 1
1.1 CHECKS TO BE CARRIED OUT AT MATERIAL RECEPTION
At reception of the machine, make sure that this one is complete and in good condition in every part.
If any damaged parts are found out, timely inform about that the machine Distributor, or directly contact
C.I.M.A. SpA.
Upon receipt of the machine, expressly verify the following conditions:
- that the machine is delivered assembled in all its parts, and that the equipment fully complies with
the requested conguration (that procedure is necessary, because for overall dimensions’
requirements the machine is often partially disassembled during the transport);
- that the connections are correctly mounted;
- that the cable clamps are correctly tightened, as well as all the ttings and connections;
- that all the protections are both present and rmly fastened;
- that the oil level inside the fan support is correct;
- that the fan, the fan protection casing or other parts of the machine ARE NOT damaged because
of any bumps su󰀨ered during the transport.
1.2 PUBLICATION IDENTIFICATION
The “OPERATIONAND MAINTENANCE INSTRUCTIONS” manual is an integrative part of the sprayers.
It is identied by a Publication No. located on the frontispiece, and through which the document can
be identied, traced and/or subsequently referred to.
The information elements contained herein are updated as at the date of publication. C.I.M.A. S.p.A.
reserves the right to modify its machines without notice, with the purpose of applying technical
enhancements, and it declines all responsibility for possible omissions from the publication.
All rights are reserved. No parts of this book may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying, recording, or by any information storage and retrieval
system, without permission in writing by C.I.M.A. S.p.A..
1.3 ATTACHED PUBLICATIONS
- Spare parts catalogue, available in the “restricted area” on website www.cima.it
(see on the inside cover);
- Distribution devices, “Operation and maintenance instructions”;
- Distribution devices, “Spare parts catalogue”;
- “Low Volume - Instructions for sprayer adjustment”.
1.4 PURPOSE OF PUBLICATION
All indications contained in this manual are aimed at the user of the sprayer.
The duration of the machine and its operation, the operator’s safety and the respect for the environment
are dependent upon scrupulous observance of the stated norms.
Before making use of the sprayer, the user must read, understand and abide by all regulations listed
in this manual.

Rev.00 - Jan. 2013
2
New Plus 42-45-50-55
1.5 REFERENCE TO REGULATIONS
This manual was set out conforming to the regulations contained in following documents:
— Directive 2006/42/CE: Attachment 1 point 1.7.4;
— UNI 10653: Technical Documentation;
— UNI 10893: Technical Documentation.
1.6 USING THE MANUAL
Read every part of this manual, paying attention to the WARNING and DANGER indications both on
the text and on the machine or on components.
All operations suggested by the manual will have to be followed with the utmost care and only after
having understood the negative consequences of improper usage.
The following “symbols” are used within the text in order to highlight and visually identify the importance
of the various types of information:
Indicates important additional information.
Non observance can result in permanent damage to the sprayer.
Highlights possibly dangerous situations to people.
The manual, with relevant attachments and possible integrating issues, must be kept with the utmost
care and must always be complete, integer and legible in every part. Should it be mislaid it is imperative
to immediately request a duplicate from C.I.M.A. S.p.A.
Should the decals originally applied on the machine be mislaid, damaged or become incomprehensible,
they should be promptly replaced.
For every type of distribution device (Head) delivered with the sprayer, a specic user and maintenance
manual is attached. All the head manuals must always accompany the one of the machine.
- The manual must always be kept for the sprayer’s whole operational life.
- Any modication received must be permanently inserted in this publication.
- The manual must be ceded with the sprayer should this be sold.
1.7 UPDATES
Any amendments or additions that C.I.M.A. S.p.A. may send the sprayer’s owner will be accompanied
by the necessary instructions to be included with this publication, becoming an integral part of it.

Rev.00 - Jan. 2013 3
New Plus 42-45-50-55
2 GLOSSARY 2
2.1 TERMINOLOGY
The terms FRONT, REAR, RIGHT and LEFT utilised in this publication refer to the sprayer as seen
by an operator from behind the operative unit along the drive line and facing it: the rear part of the
machine is that closest to the operator, and is where the distribution device (Head) is mounted - and
the front part is the one that gets attached to the tractor.
2.2 ABBREVIATIONS
cm .................................................................................................................................... centimetres
g................................................................................................................................................grams
h................................................................................................................................................. hour
ha ............................................................................................................................................hectare
ha/h .......................................................................................................................... hectare per hour
kg .......................................................................................................................................... kilogram
kg/cm2.......................................................................kilograms per square centimeter (atmosphere)
km ........................................................................................................................................ kilometre
km/h .....................................................................................................................kilometres per hour
l.................................................................................................................................................... litres
l/h ..................................................................................................................................litres per hour
l/min .......................................................................................................................... litres per minute
Lm .............................................................................................................................. width in metres
m............................................................................................................................................... metre
Mesh ..................................................................................................... N° of meshes per linear inch
Micron ................................................................................................................ 1/1000 of millimetre
mm .................................................................................................................................... millimetres
PPE ................................................................................................... Personal Protective Equipment
PTO .............................................................................................................................power take-o󰀨
RPM ............................................................................................................................revs per minute
s............................................................................................................................................. seconds
2.3 DECALS
The safety and use/maintenance decals are applied to the machine are described in the following
paragraph.
Every decal is marked with its part number, in case it needs to be replaced.
The arrangement of the adhesives on the machine is shown in the following pictures.

Rev.00 - Jan. 2013
4
New Plus 42-45-50-55
Safety decals
Use and maintenance decals
95001
95098
95099
95012
95015
95010
95009
- STOP THE ENGINE AND REMOVE THE KEY FROM THE
TRACTOR’S CONTROL PANEL BEFORE CARRYING OUT ALL
MAINTENANCE OR REPAIR OPERATIONS
- CONSULT THE USER AND MAINTENANCE MANUAL BEFORE
USING OR INTERVENING ON THE MACHINE
- CONSULT THE USER AND MAINTENANCE MANUAL
BEFORE USING THE MACHINE
- DANGER OF CONTAMINATION BY CONTACT OR
POISONOUS PRODUCTS INHALATION
- IT IS FORBIDDEN TO GET INTO THE TANK!
- DANGER OF SPRAYS: KEEP AT A SAFE DISTANCE
- DANGER, PARTS IN MOTION. BEFOREREMOVING PROTECTION
GUARDS, STOP THE TRACTOR, REMOVE THE KEY FROM THE
TRACTOR’S CONTROLPANELAND ENSURE THAT ALL MOVING
PARTS HAVE STOPPED.
- BEFORE UTILISING THE
RELEASE DEVICE, STOP THE
TRACTOR, REMOVE THE
KEY FROM THE TRACTOR’S
CONTROL PANELAND ENSURE
THAT THE FAN HAS STOPPED.
- OPERATING SPEED
OF THE DRIVE
OUTLET (PTO):
540 RPM
- DANGER: GLOVES
MUST BE USED TO
EMPTY THE TANK.
.
- DANGER:MOUNTTHEWHEELSAFTER
HAVING HITCHED THE MACHINE TO
THE HOISTERAND DISMANTLE THEM
BEFORE UNHITCHING THE MACHINE
FROM THE HOISTER
(for the models where it is foreseen)
95079
- GREASE YEARLY:
FAN TIGHTENER SUPPORT AND
FREEWHEEL
95057
- CHECK THE OIL LEVEL EVERY 8 HOURS:
FAN SHAFT BEARINGS.
- HAND WASHING
TANK TAP
Imprint next to the tap.
95115
2
95019
95019
- FILL ONLY WITH
CLEAN WATER
Hand washing tank
ller,
Rinsing tank ller.

Rev.00 - Jan. 2013 5
New Plus 42-45-50-55
2,5 atm
95056
95056
95058
95105
- TIRES PRESSURE
(for the models where it is
foreseen)
- INDICATION ON THE OPERATION OF
THE 3-WAY TAP (P6)
- INDICATION ON THE
OPERATION OF THE
3-WAY TAP (P2)
(and P15 for the
models where it is
foreseen)
95102
- INDICATION OF THE CHEMICAL
EMPLOYED FOR THE TREATMENT
- HOOKING
POINT FOR
THE LIFTING
OF THE
MACHINE
95059
95104
Positioning of the safety, use and maintenance decals
NOTE: The numbers with the asterisk (*) indicate the adhesives relevant either to optional
components or to accessories to be applied ONLY on the models and versions on which
it is foreseen.
95065
- WARNING: NEVER OPERATE
THE SPRAYER WITHOUT
LIQUID IN THE TANK
95079
95059
FAN SHAFT BEARINGS
95099
01255

Rev.00 - Jan. 2013
6
New Plus 42-45-50-55
95001 95065
95010
OVERRUNNING
CLUTCH
95115 (*) 95015 (*)
01253
95098
For versions with fan
switching-o󰀨 device
01254
95057
95009
95105 (*)
95104 (*)
95056 (*)
(*) For versions in which this is envisaged
95012
95058
95102
01256
01254
2,5 atm
95056
FAN
TIGHTENER
SUPPORT
95115

Rev.00 - Jan. 2013 7
New Plus 42-45-50-55
3 GENERAL INFORMATION 3
3.1 MACHINE IDENTIFICATION
3.2 TECHNICAL ASSISTANCE
C.I.M.A. S.p.A. is at the complete disposal of customers for any type of intervention. The names and
addresses of its service network, both in Italy and in foreign countries, can be requested from:
C.I.M.A. S.p.A. - 27040 Montù Beccaria - Loc. Molino Quaroni (PV) - ITALIA
tel. [phone] - fax [phone]
e.mail [email protected]
GPS: 45°03’19.3” N - 9°18’22.1” E
3.3 SAFETY NOTICES
3.3.1 General
The personnel appointed to the use of the machine must have acquired an exhaustive
knowledge of the same one and of the dispositions contained inside this publication, be
able to properly interpret the symbols of the adhesives applied on the machine, and, in
addition, perfectly know the safety and the work hygienic rules in force in the country
where the machine itself is to be used.
All the preparation, use, maintenance, moving and transporting operations must be carried out of the
regulations contained in this publication.
IT IS FORBIDDEN TO UTILISE THE SPRAYER FOR PURPOSES OTHER THAN FOR ITS
INTENDED USE, SINCE IT WAS MANUFACTURED ONLY FOR SPRAYING AGRICULTURAL
CROPS WITH ANTI-PARASITIC PRODUCTS.
ANY USE OTHER THAN THOSE DESCRIBED IN THE USE PERMITTED IS CONSIDERED
AS NOT CONFORMING AND THEREFORE IS NOT PERMITTED.
It is necessary to scrupulously abide by the following general norms:
— check that the weight and power of the tractor are compatible with the sprayer to be used;
— verify that the tow capacity of the tractor is compatible with the total weight of the sprayer to be used;
01254
00070
Identication nameplate
®
MONTU BECCARIA (PV) ITALY
(39) 0385/246636 FAX 2 46637
S.p.A.
Fabbr.
nel.
Matr.
Tipo
Peso a V. Kg Peso T.Kg
Press.
max bar

Rev.00 - Jan. 2013
8
New Plus 42-45-50-55
 Ontheidenticationplate,thefull-loadweight(PESOT.)ofthemachineisindicated,
measured WITHOUT the distribution device, and WITHOUT the accessories possibly
installed.
In order to calculate the weight on the hoister in operative conditions (at full load), add
totheweightindicatedontheidenticationplate(PESOT.),theweightofthedistribution
device which is used (see “Distribution devices – Use instructions” manual), the weight
of the installed accessories (Par. 4.4.2) and the 50% of the weight of the used cardan
shaft(seetherelevantspecicmanual).
—before utilisation, check the correct tightening and securing of the machine’s various components,
paying particular attention to the safety protections and to the moving parts;
— only utilise protected cardan shafts provided with CE conformity certication.
Carry out the assembly only if the drive outlets of both tractor and sprayer are equipped with the
protection counter-guard;
— check that the cardan shaft is blocked by the appropriate anti-rotation chains;
— keep people and animals away from the machine before starting it up;
— don’t wear articles of clothing that might get caught in moving parts;
— keep to a low speed while negotiating bumps or crossing ditches;
— during the use of the machine, the operator must have a su󰀩ciently good visibility on the working
areas, consequently it is recommended to keep both clean and e󰀩cient the cab windows and the
rear-view mirrors;
—always stop the tractor’s engine and actuate the parking brake before carrying out any operation
on the sprayer;
— never leave the machine unguarded, when the key is inserted inside the tractor control panel;
- All maintenance and repair operations must be carried out only after having rinsed the
tankandushedthesystem.
- Before operating within the tank it is necessary to wash it thoroughly with clean water.
- The application of paints and/or solvents, the washing of closed environments and
machinery as well as the utilisation of the air ow for purposes other than those
expressly concerning the spraying of agro-chemicals is not permitted.
- It is forbidden to enter the tank.
3.3.2 Precautionsagainsttheres
Don’t approach either ames or heat sources to the machines. The materials used for manufacturing
the machine itself are made by widely using oil derivatives: tanks, pipes, wheels, plastic components;
besides, the presence of lubricants and of chemical product residuals make them potentially ammable.
- It is forbidden to use the machine within a potentially explosive environment.
- It is forbidden to perform welding operations if ammonium salts were previously used.

Rev.00 - Jan. 2013 9
New Plus 42-45-50-55
3.4 SAFETY SYSTEMS
All machine moving parts are suitably protected by guards and highlighted through the use of warning
decals.
- It is forbidden to use the machine with these guards removed.
- Before removing the protection, stop the tractor’s engine and remove the key from the
control panel.
The pictures illustrate the machine’s guarded parts::
01253 00131
THE OWNER AND/OR THE OPERATOR OF THE SPRAYER ARE NOT PERMITTED TO
MODIFY THE STRUCTURE OR THE SPECIFIC OPERATION OF THE SPRAYER ITSELF. ANY
REPAIRING INTERVENTION HAS TO BE CARRIED OUT EITHERAT THE DEALERS’OR AT
THE C.I.M.A. S.p.A.AUTHORIZED WORKSHOPS, OTHERWISEANYKIND OF WARRANTY
IMMEDIATELY CEASES AND C.I.M.A. S.p.A. IS CLEARED OF ANY CONSEQUENT AND/
OR IMPLIED RESPONSIBILITY.
3.5 HANDLING OF AGRO-CHEMICALS
The operator could become contaminated due to accidental spray, contact or inhalation of products
or crop-spraying mixtures.
The environment could become polluted by mixture over-spills, puncturing of containers, uncontrolled
storage of used and unwashed containers or spillage into waterworks.
In order to avoid these risks the preparation and lling operations must be carried out in suitably ap-
pointed and adequately equipped sites.
FAN DISENGAGEMENT
REMOVABLE PROTECTION COVER
(for the version where foreseen)
FAN
PROTECTION
GRILL

Rev.00 - Jan. 2013
10
New Plus 42-45-50-55
To use pesticides (purchase, transport, loading, treatment planning, mixture
preparation, eld transfert, treatment performance, ending treatment liquid waste
management, equipement rinsing and waste disposal) you must follow the country
rules.
Absolutely respect the rules on the label of the product used referring to the dose for
hectar and to the compatibility of other products.
3.5.1 Storage
Fixed / stationary: the site used must be well ventilated and secured by lockable doors in order to
prevent even accidental access by children or unauthorised persons.
Mobile: the carrier equipment must be properly locked and kept under conditions whereby access
by children or unauthorised persons can be prevented during the absence of the operator. All full or
partially utilised containers must be secured against tipping, falling or breakage during transportation.
Both types of storage must:
— have a suitable container for the storing of empty packaging materials should a specic storage area
not be available;
— have a clean water supply readily available for washing, by means of a specic container or through
connection to the waterworks system;
— have the use of re extinguishers, should ammable products and substances be stored.
- All packages, whether whole or partially utilised, must be stored in their original
packing and with the warning instructions clearly displayed and legible.
- The storage indications must always be scrupulously adhered to, as well as their
utilisation and possible disposal as suggested on the product’s original packaging.
3.5.2 Specicequipment
The site at which the preparation and lling out will take place must provide for:
— all the equipment necessary to the precise measuring of both the water quantity and the dose of
product to be mixed in the tank at every lling;
— all the equipment and means useful to the preparation of the mixture and for the cleaning of the
operator in case of contamination;
— all tools necessary to facilitate the direct introduction of the agro-chemicals in the tank;
— the allocation of clothing and specic equipment in order to avoid contamination by contact or inha-
lation during the whole operative phase of the intervention;
— the availability of proper equipment able to stop the uncontrolled spilling and owing of the mixture;
— a retaining valve on the feed pipe when the lling of the tank takes place directly from the waterworks
system.
3.5.3 Disposal of empty containers and agro-chemicals residues
Agro-chemicals are classied as “special” waste and their disposal must take place separately from
“urban” wastes.
Empty packaging and contaminated containers to be done away with cannot be
dispersed, burned or buried. The washing water for the cisterns and the tools utilised
for the preparation of mixtures cannot be emptied on the ground, spilled into the
sewage system or in waterways and rivers.
The disposal of special wastes is regulated by specic norms. In order to perform this operation it is
necessary to obtain the relevant information from the Local O󰀩ces specically appointed to rule on

Rev.00 - Jan. 2013 11
New Plus 42-45-50-55
this subject. The non compliance with these regulations can cause considerable damage to persons
and animals as well as polluting the environment.
3.5.4 Personal Protective Equipment (PPE)
The use of phytosanitary products might imply a more or less high chemical risk for the workers on
the basis of the toxicity and the dangerous properties of the phytosanitary product, of the level and
duration of the exposure, of the absorption level through the respiratory tract, the skin, the mucosa
and the ingestive tract, as well as the way and frequency of the use.
The “personal protective equipment” (PPE) are equipment that all the users of the machine need to
wear and hold in order to be protected by one or more risks that are capable to treath the security or
healthy during the job.
Regarding the basic requirements, PPE have to:
- be suitable to the risks that have to be prevented, without causing major risks themselves;
- be suitable to the existing conditions on the workplace;
- consider the ergonomic (easily adaptable, easy to wear and safe) or health needs for any users;
- be adaptable to the user according to his/her needs.
The PPE for the protection against dangerous chemical agents used for the operations that concern
the exposition to phytosanitary products , pertains to the third class (3rd class – 0000).
Use solely PPE equipped with the needed CE mark, in the scrupulous rispect of the
regulations in force in the country where the machine is in use and adequate to the
phytosanitary product used.
It’s needed to use the PPE in each of the following
working stage:
- tank lling and addition of the phytosanitary
product;
- spraying,
- calibration of the sprayer,
- draining and cleaning of the tank,
- phytosanitary product replacement,
- servicing.
The following must be worn:
- for the protection of the body (gloves, suits,
boots),
- for the protection of the respiratory tract, of the
head and of the eyes (helmet, masks, lters,
glasses, hoods and headdresses).
Filters must be replaced following the
producers’ instructions, and in any case:
- in case a bad smell is noticed;
- in case a resistance to the respiratory function is noticed;
- at least once a year in case of occasional use.
For ALL PPE in use, follow the use instruction declared by the PPE producerse.
00073

Rev.00 - Jan. 2013
12
New Plus 42-45-50-55
4 MACHINE’S STRUCTURAL ANALYSIS 4
The pictures indicate the position of the main components of the sprayer.
PUMP
LEVER TAP FOR
DUST PRODUCTS
MIXING
01259
DELIVERY
FILTER
CENTRIFUGAL
FAN
MAIN
TANK
DISTRIBUTION
DEVICE
(SPRAYHEAD)
ROTATING DISC
REGULATOR
MAIN FILLER (BP)
FRAME
SPRAYHEAD
PROTECTION
RING
01258
00184
ELECTRICAL
DISTRIBUTOR
RINSING TANK
For versions in which this is envisaged
3-WAY TAP
HAND
WASHING
TANK
SECONDARY
FILLER (BS)
TANK LEVEL
INDICATOR
ELECTRICAL
DISTRIBUTOR
CONTROL UNIT
01748
