(QY-72**)INSTRUCTION MANUAL (100705)UPDATE
DECLARATION OF CONFORMITY
Hereby Clarion Co., Ltd. Declares that this navigation system for installation vehicles is in
compliance with the essential requirements and other relevant provisions of Directive 1995/E/EC.
TABLE OF CONTENTS
1. THE USE AND FUNCTION OF THIS PRODUCT
1-1. USAGE
1-2. FEATURE
1-3. MANUFACTURE INFORMATION
2. BLUETOOTH FUNCTION
3. DETAIL OF BLUETOOTH FUNCTION
3-1. HANDSFREE FUNCTION
3-1-1. PAIRING(TELEPHONE REGISTRATION)
3-1-2. INCOMING CALL(RECEIVING CALL)
3-1-3. OUTGOING CALL(MAKING A CALL)
3-2. TELEPHONE DIRECTORY TRANSMISSION
3-3. BLUETOOTH AUDIO FUNCTION
3-3-1. PAIRING(TELEPHONE REGISTRATION)
3-3-2. PLAYING A BLUETOOTH AUDIO
4. SPECIFICATION
4-1. MECHANICAL SPECIFICATION

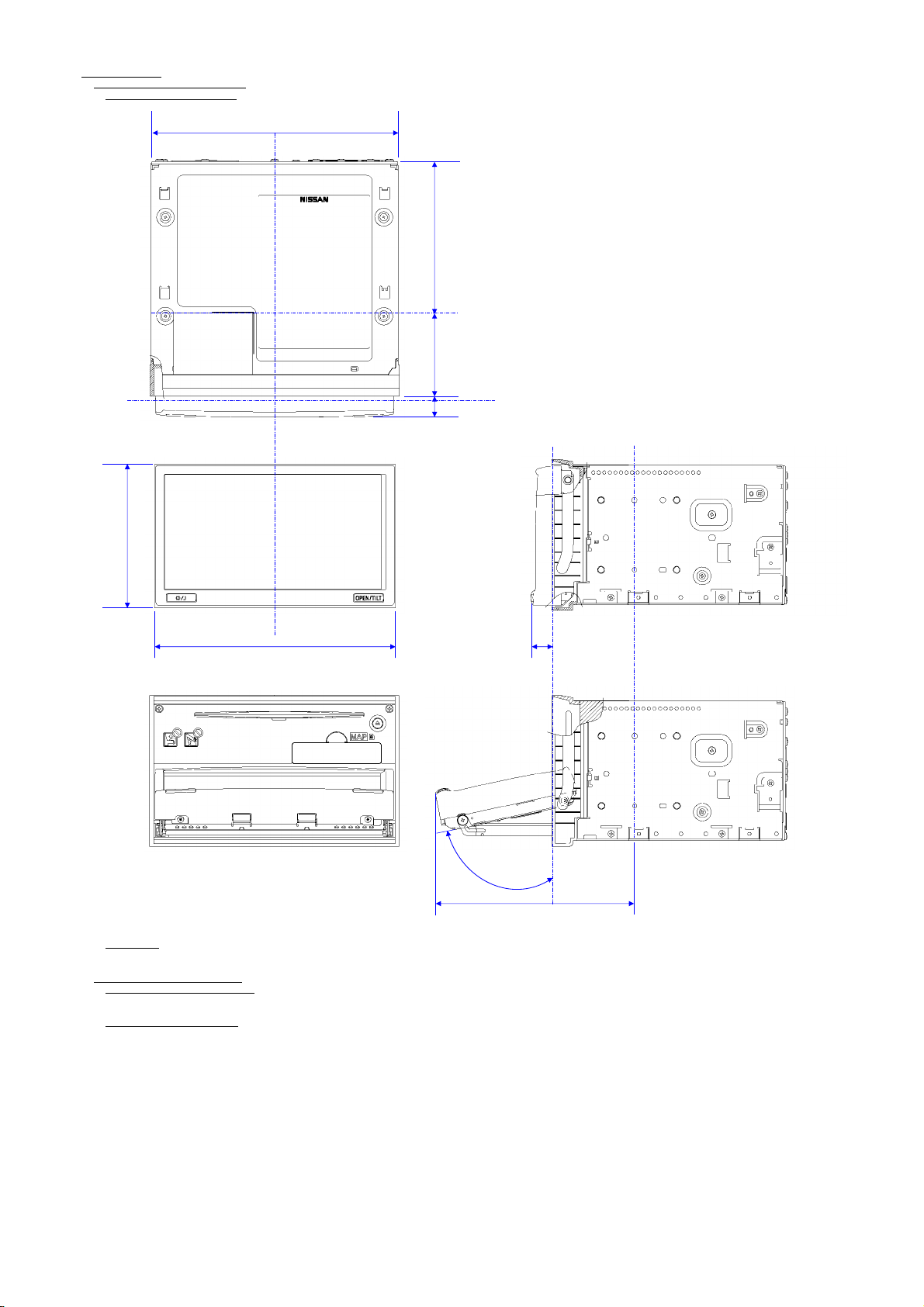

4-1-1. EXTERNAL DIMENSION
4-1-2. MASS
4-2. ELECTRICAL SPECIFICATION
4-2-1. POWER SUPPLY VOLTAGE
4-2-2. TEMPERATURE RANGE

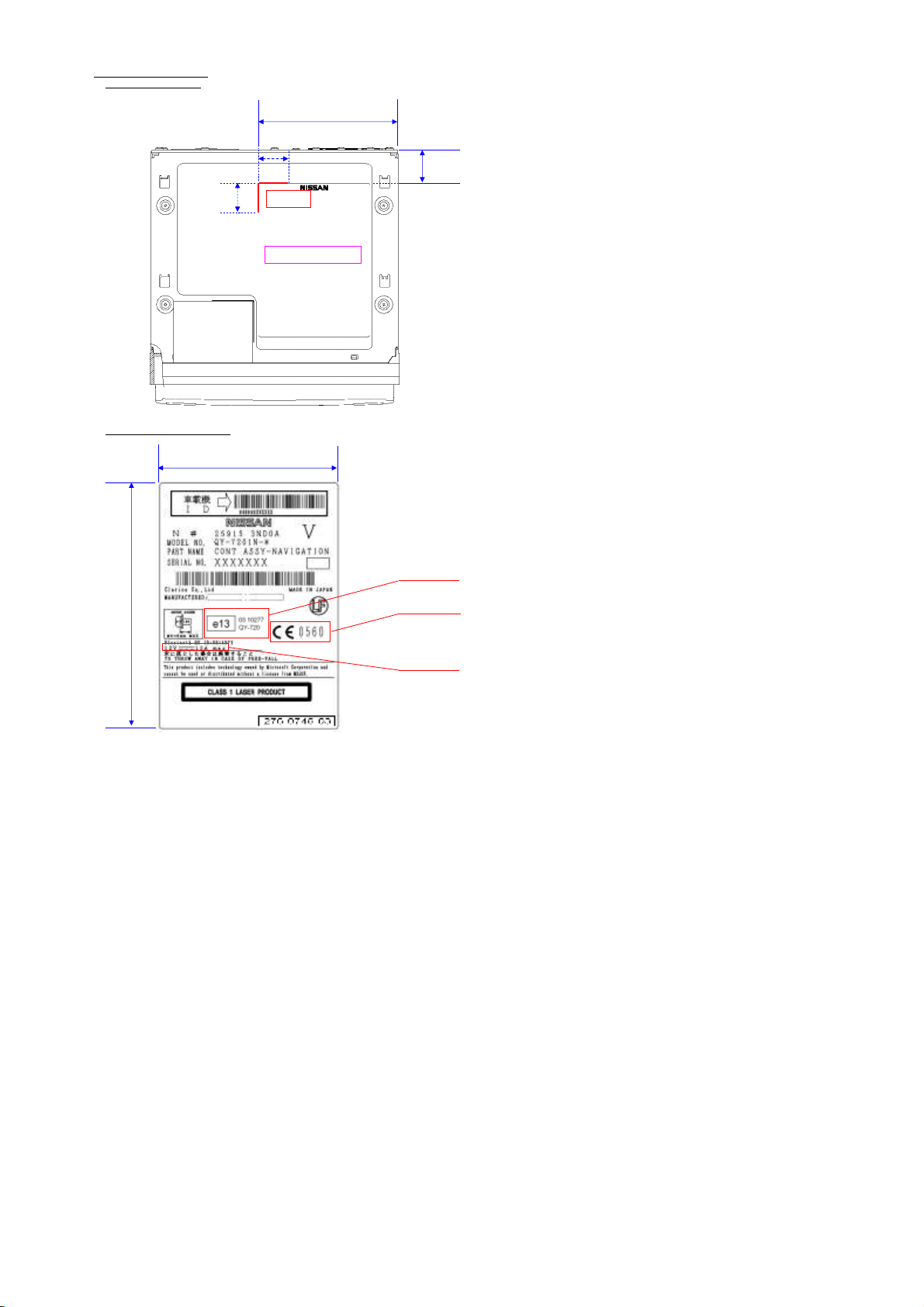

4-3. LABEL INFORMATION
4-3-1. LABEL LAYOUT
4-3-2. CONTENTS OF LABEL
5. BLUETOOTH MODULE SPECIFICATION
5-1. PRODUCT NAME
5-2. MANUFACTURE
5-3. FEATURES
5-4. SPECIFICATION
5-4-1. MECHANICAL SPECIFICATION

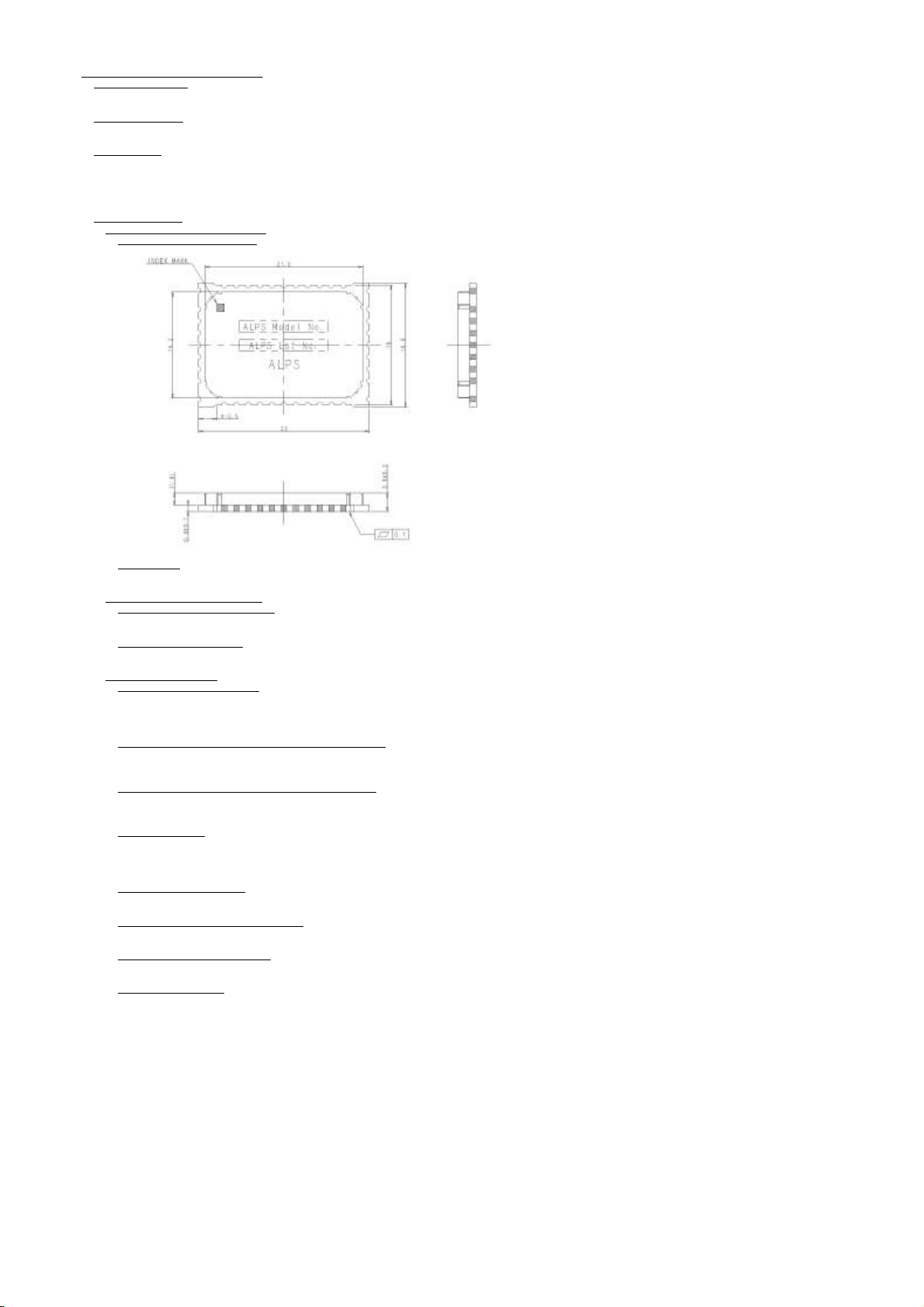

5-4-1-1. EXTERNAL DIMENSION
5-4-1-2. MASS
5-4-2. ELECTRICAL SPECIFICATION
5-4-2-1. POWER SUPPLY VOLTAGE
5-4-2-2. OPERATING RANGE
5-4-3. RF SPECIFICATION
5-4-3-1. MODULATION METHOD
5-4-3-2. NORMAL TRANSMIT POWER ( AVERAGED POWER )
5-4-3-3. REFERENCE SENSITIVITY LEVEL ( BER = 0.001% )
5-4-3-4. DATA RATE
5-4-3-5. ENCODING METHOD
5-4-3-6. OPERATING FREQUENCY RANGE
5-4-3-7. TRANSMIT POWER LEVEL
5-4-3-8. ANTENNA TYPE
5-4-3-9. BLUETOOTH MODULE & EXTERNAL ANTENNA POSITION

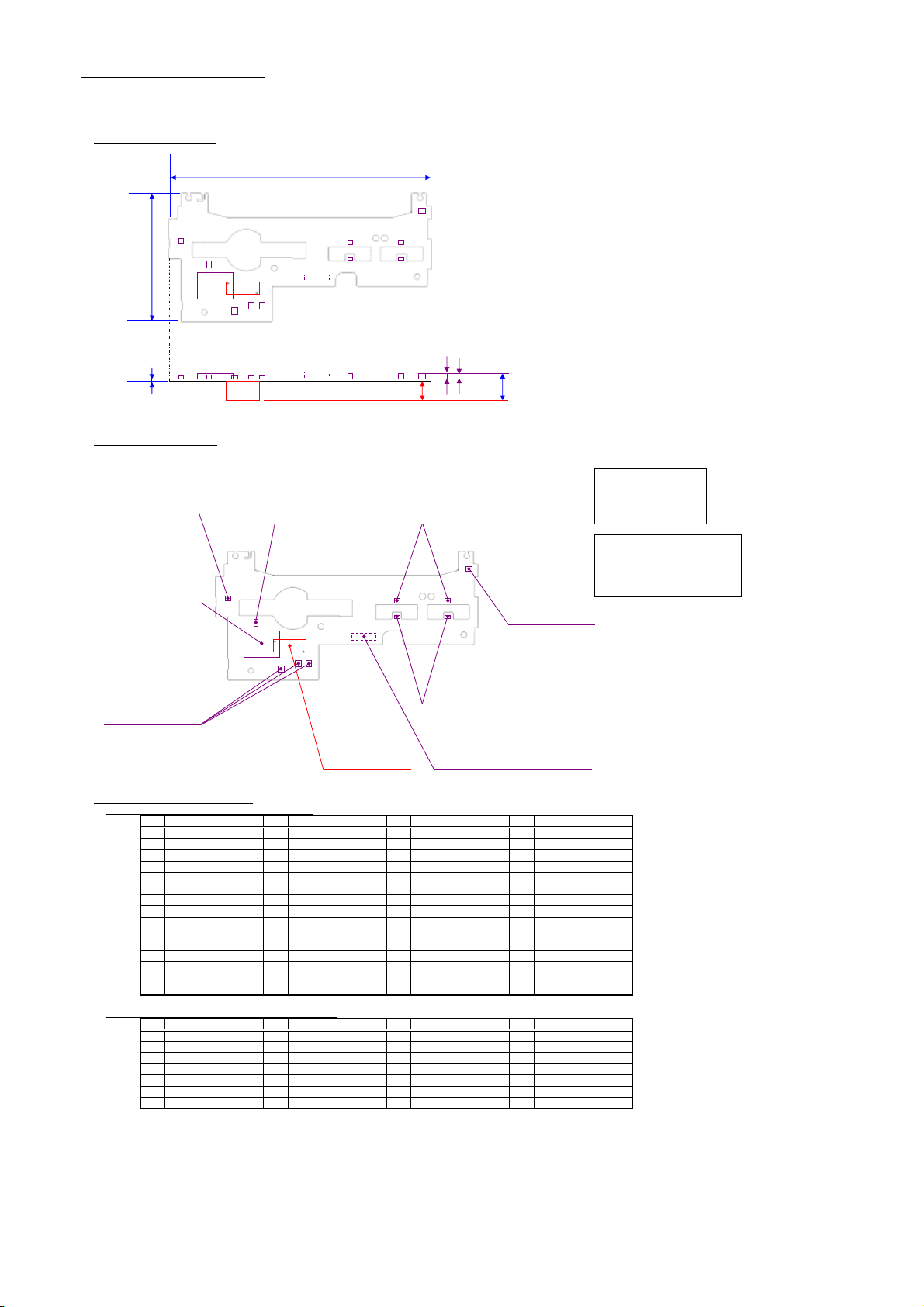

6. FRONT PCB(BTU-3586) SPECIFICATION
6-1. FEATURE
6-2. EXTERNAL DIMENSION
6-3. MAJOR PARTS LAYOUT
6-4. CONNECTOR PIN ASSIGNMENT
6-4-1. BtoB CONNECTOR(9828S-30Y900) / P200
6-4-2. DEBUG CONNECTOR(SM14B-SRSS-TB) / P100
6-5. LABEL INFORMATION
6-5-1. LABEL LAYOUT
6-5-2. CONTENTS OF LABEL
6-6. BLOCK DIAGRAM

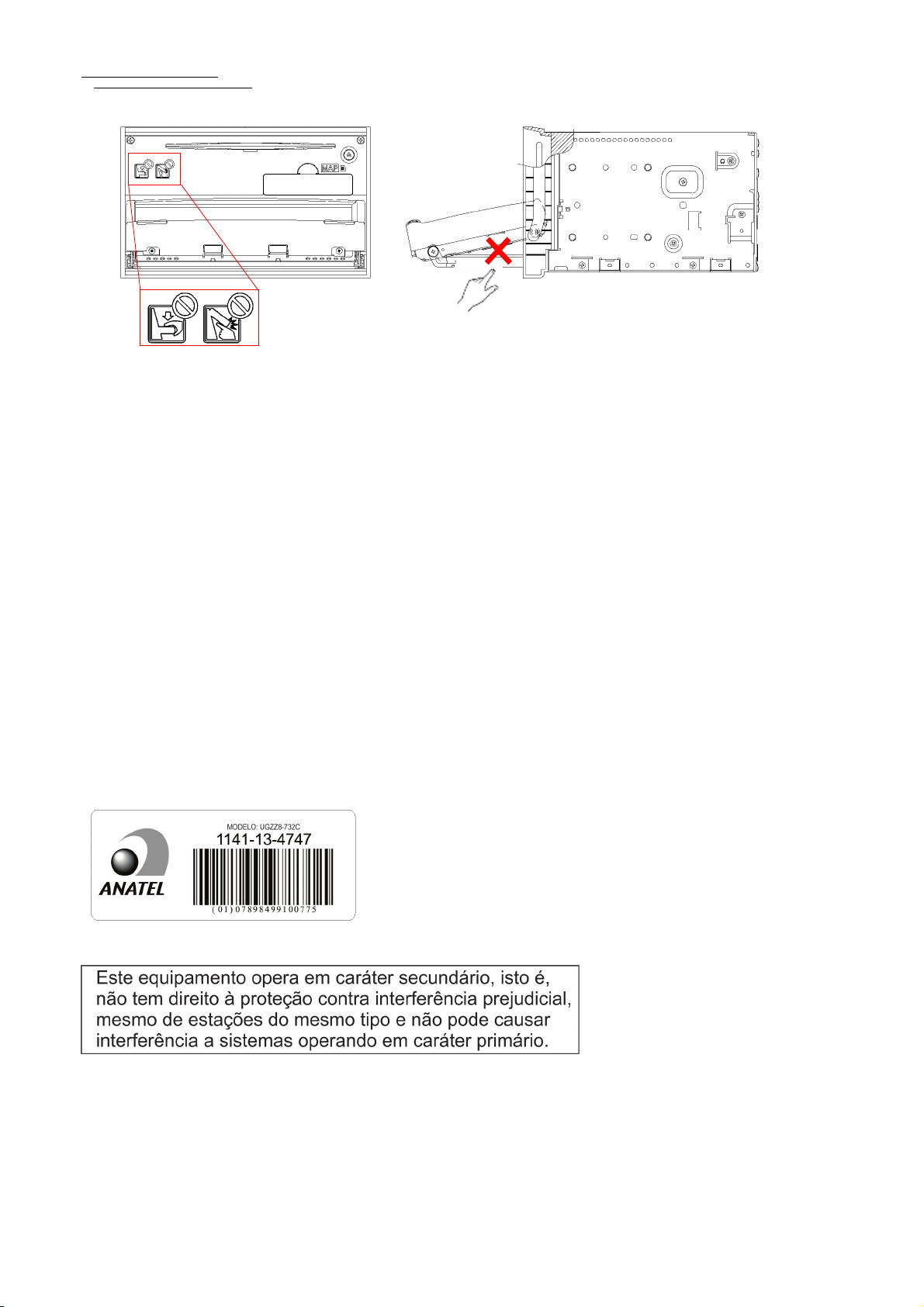

7. OPERATING SUGGESTIONS
7-1. When opened an operation panel
(QY7201N)INSTRUCTION MANUAL - 1 / 12 -

Clarion Co., Ltd.
CONFIDENTIAL
1. THE USE AND FUNCTION OF THIS PRODUCT
1-1. USAGE
A car navigation system and audio controller
(Navigation system for installation into vehicles)
1-2. FEATURE
(1)Navigation to the destination
(2)Playing some music source(CD, USB(iPod), BLUETOOTH AUDIO)
(3)Handsfree function
1-3. MANUFACTURE INFORMATION
Clarion Manufacturing "Protech" Co., Ltd.
(ADDRESS : 50 Shimotagawara Aza Kanaya Tamura-machi, Koriyama-Shi, Fukushima-Ken, JAPAN)
2. BLUETOOTH FUNCTION
(1)Handsfree(HFP)
(2)Telephone directory transmission in a cellular phone(OPP)
(3)audio transfer and remote controll(A2DP, AVRCP).
3. DETAIL OF BLUETOOTH FUNCTION
3-1. HANDSFREE FUNCTION
3-1-1. PAIRING(TELEPHONE REGISTRATION)
When you use a handsfree function for the first time, pairing(registration) is necessary.
(1)PUSH <MENU>, and highlight [Setting].
(2)Highlight [Bluetooth].
(3)Highlight [Pair Bluetooth Device].
(4)Higlight [YES].
(QY7201N)INSTRUCTION MANUAL - 2 / 12 -

Clarion Co., Ltd.
CONFIDENTIAL
(5)When the following messages were displayed, operate Bluetooth mobile telephone to input a PIN cord.
(6)When pairing completed, registered device name is displayed to screen. And will return Bluetooth setup display.
3-1-2. INCOMING CALL(RECEIVING CALL)
(1)When there was the receipt, the machinery becomes the incoming mode.
To receive a call, perform one of the following procedures listed below.
(a)Highlight [Answer].
(b)Push <PHONE> button on the steering wheel.
3-1-3. OUTGOING CALL(MAKING A CALL)
(1) To making a call, follow the procedures below.
(a)Push <SETTING> , and highlight [PHONE].
(b)Push <PHONE> button on the steering wheel.
(2)THE "PHONE" screen will appear on the display.
(a)Call Phonebook
(a-1)Highlight [Call (Phonebook)] on the "PHONE" menu.
(a-2)Select the registered person's name from the list.
(b)Call logs
(b-1)Highlight [Call (Call logs)] on the "PHONE" menu.
(b-2)Select the name or phone number from the incoming or outgoing call logs.
(c)Dial (Keypad)
(c-1)Highlight [Dial (Keypad)] on the "PHONE" menu.
(c-2)Input the phone number manually using the keypad displayed on the screen.
(3)After the call is over, perform one of the following to finish the call.
(a)Highlight [Hand up].
(b)Push the <PHONE> button on the steering wheel.
3-2. TELEPHONE DIRECTORY TRANSMISSION
(1)PUSH <MENU>, and highlight [Phone].
(2)Highlight [Handset Memory].
(3)When the following messages were displayed. Highlight [YES].
(QY7201N)INSTRUCTION MANUAL - 3 / 12 -

Clarion Co., Ltd.
CONFIDENTIAL
(4)When the following messages were displayed, operate Bluetooth mobile telephone to transfer telephone
directory(phonebook memory).
3-3. BLUETOOTH AUDIO FUNCTION
3-3-1. PAIRING(TELEPHONE REGISTRATION)
When you use a Bluetooth audio function for the first time, pairing(registration) is necessary.
(1)PUSH <MENU>, and highlight [Setting].
(2)Highlight [Bluetooth].
(3)Highlight [Pair Bluetooth Device].
(4)Highlight [NO].
(QY7201N)INSTRUCTION MANUAL - 4 / 12 -

Clarion Co., Ltd.
CONFIDENTIAL

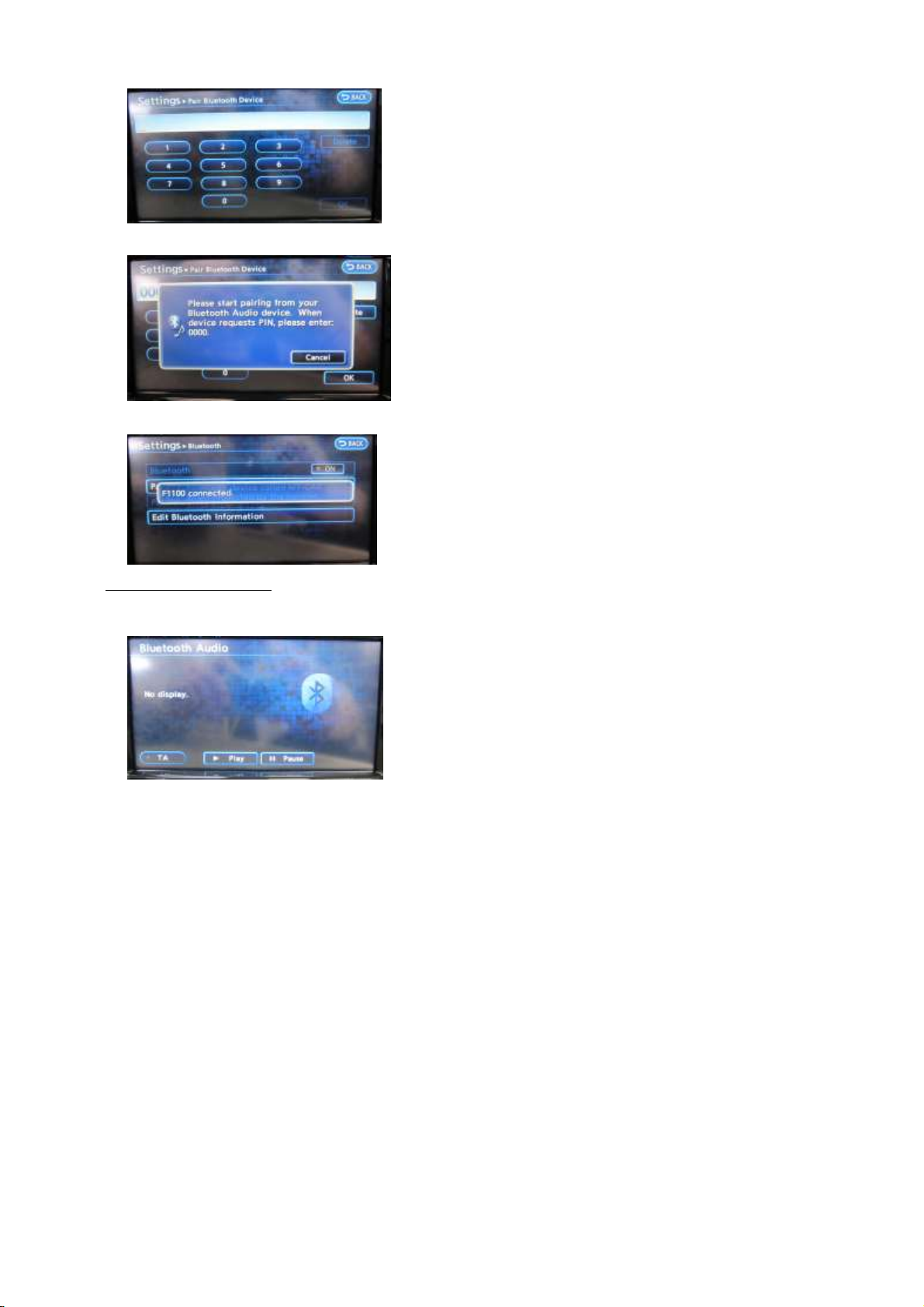

(5)Input the PIN-code manually using the keypad displayed on the screen.
(5)When the following messages were displayed, operate an audio device to register your device.
(6)When pairing completed, registered device name is displayed to screen. And will return Bluetooth setup display.
3-3-2. PLAYING A BLUETOOTH AUDIO
(1)Push <AUX> till a "BLUETOOTH AUDIO" screen appears.
(2)You hear a sound from the speaker of a navigation system after a few minutes.
(3)If the device which you registered supports AVRCP, operation in the machinery side is enabled.
(QY7201N)INSTRUCTION MANUAL - 5 / 12 -

Clarion Co., Ltd.
CONFIDENTIAL
4. SPECIFICATION
4-1. MECHANICAL SPECIFICATION
4-1-1. EXTERNAL DIMENSION
4-1-2. MASS
2.9 [Kg]
4-2. ELECTRICAL SPECIFICATION
4-2-1. POWER SUPPLY VOLTAGE
DC +9.0 to +16.0 [V]
4-2-2. TEMPERATURE RANGE
-30 to + 70 [degree C]
178
180
109.1
59.5
15.11
108.3
15.11
144
77.9[degrees]
UNIT : mm
(QY7201N)INSTRUCTION MANUAL - 6 / 12 -

Clarion Co., Ltd.
CONFIDENTIAL
4-3. LABEL INFORMATION
4-3-1. LABEL LAYOUT
4-3-2. CONTENTS OF LABEL
CE MARK
RATING
eMARK
101.2
26.8
RATING LABEL
29.7
29.7
GUIDE
80
110
UNIT : mm
(QY7201N)INSTRUCTION MANUAL - 7 / 12 -

Clarion Co., Ltd.
CONFIDENTIAL
5. BLUETOOTH MODULE SPECIFICATION
5-1. PRODUCT NAME
UGZZ8-732
5-2. MANUFACTURE
ALPS ELECTRIC
5-3. FEATURES
Bluetooth™ Specification V2.0+EDR support
Complete type of Bluetooth module, built in various profile
(Contains CSR BC5-Multimedia, which has complete radio, 16bit RISC processor, RAM and DSP.)
Output power class 2 compliant
5-4. SPECIFICATION
5-4-1. MECHANICAL SPECIFICATION
5-4-1-1. EXTERNAL DIMENSION
5-4-1-2. MASS
TYP.1.82 [g]
5-4-2. ELECTRICAL SPECIFICATION
5-4-2-1. POWER SUPPLY VOLTAGE
DC +3.1 to 3.6 [V]
5-4-2-2. OPERATING RANGE
-40 to +85 [degree C]
5-4-3. RF SPECIFICATION
5-4-3-1. MODULATION METHOD
GFSK Bbt =0.5
π/4-DQPSK
8DPSK
5-4-3-2. NORMAL TRANSMIT POWER ( AVERAGED POWER )
-6 to +4 [dBm] @BDR(BASIC DATA RATE)
-4 to +1 [dBm] @EDR(ENHANCED DATA RATE)
5-4-3-3. REFERENCE SENSITIVITY LEVEL ( BER = 0.001% )
MAX. -70 [dBm] @BDR
MAX. -70 [dBm] @EDR
5-4-3-4. DATA RATE
BDR : 1 [Mbps]
EDR : 2 [Mbps] @ π/4-DQPSK
EDR : 3 [Mbps] @ 8DPSK
5-4-3-5. ENCODING METHOD
FHSS ( Frequency Hopping Spread Spectrum )
5-4-3-6. OPERATING FREQUENCY RANGE
2402 - 2480 [MHz] (79CH)
5-4-3-7. TRANSMIT POWER LEVEL
POWER CLASS B (max 2.5[mW])
5-4-3-8. ANTENNA TYPE
EXTERNAL ANTENNA(CONNECT MHF RECEPTACLE@I-PEX)
(QY7201N)INSTRUCTION MANUAL - 8 / 12 -

Clarion Co., Ltd.
CONFIDENTIAL
5-4-3-9. BLUETOOTH MODULE & EXTERNAL ANTENNA POSITION
5-4-4. EXTERNAL ANTENNA SPECIFICATION
3-4-4-1. PRODUCT NAME
CROW-002
5-4-4-2. MANUFACTURE
FUJIKURA
5-4-4-3. FEATURES
INVERTED F TYPE
FILM TYPE(t=0.12[mm]) ANTENNA
FULL CUSTOM PRODUCT of CLARION
5-4-4-4. PEAK GAIN
XY PLANE : 0.5 [dBi]
ZX PLANE : -0.6 [dBi]
5-4-4-5. AVERAGE GAIN
-5.56 [dBi]
5-4-4-6. EXTERNAL DIMENSION
5-4-5. PIN ASSIGNMENT
NO.
PIN NAME
I/O
DESCRIPTION
NO.
PIN NAME
I/O
DESCRIPTION
21
NC
-
OPEN
1
NC
-
OPEN
22
UART_RTS
O
UART RTS
2
VCC_IO
I
IO POWER SUPPLY
23
UART_CTS
I
UART CTS
3
VCC
I
MAIN POWER SUPPLY
24
UART_TX
O
UART TX
4
GND
-
GND
25
UART_RX
I
UART RX
5
RF I/O
I/O
RF I/O
26
SD_IN/PCM_IN
I
I^2S INPUT
6
GND
-
GND
27
SCK_PCM_CLK
O
I^2S SERIAL CLK
7
PIO[0]
I/O
PROGRAMMABLE I/O
28
SD_OUT/PCM_OUT
O
I^2S OUTPUT
8
GND
-
GND
29
NC
-
OPEN
9
NC
-
OPEN
30
WS/PCM_SYNC
O
I^2S WORD SELECT
10
SPKR_B_P
O
SPEAKER OUT
31
RST#
I
RESET(LOW ACTIVE)
11
SPKR_B_N
O
SPEAKER OUT
32
SPI_CLK
O
SPI CLK
12
SPKR_A_P
O
SPEAKER OUT
33
SPI_MISO
I
SPI INPUT
13
SPKR_A_N
O
SPEAKER OUT
34
SPI_MOSI
O
SPI OUTPUT
14
MIC_B_P
I
MIC IN
35
SPI_CS#
O
SPI CHIP SELECT
15
MIC_B_N
I
MIC IN
36
NC
-
OPEN
16
MIC_A_P
I
MIC IN
37
PIO[7]
I/O
PROGRAMMABLE I/O
17
MIC_A_N
I
MIC IN
38
PIO[6]
I/O
PROGRAMMABLE I/O
18
GND
-
GND
39
PIO[2]
I/O
PROGRAMMABLE I/O
19
USB_DP
-
USB DATA
40
PIO[1]
I/O
PROGRAMMABLE I/O
20
USB_DN
-
USB DATA
EXTERNAL ANTENNA
BT COVER TAPE
MHF RECEPTACLE
(RF CONNECTOR)
UGZZ8-732
MOUNTED FRONT PCB
#1
#9
#10
#20
#21
#29
#30
#40
(QY7201N)INSTRUCTION MANUAL - 9 / 12 -

Clarion Co., Ltd.
CONFIDENTIAL
6. FRONT PCB(BTU-3586) SPECIFICATION
6-1. FEATURE
MOUNTED BLUETOOTH MODULE(UGZZ8-732)
MOUNTED DISC EJECT SW
SD CARD SENSOR
6-2. EXTERNAL DIMENSION
(FRONT PWB SIZE : 165 * 80.5 * 1.2 [mm])
6-3. MAJOR PARTS LAYOUT
6-4. CONNECTOR PIN ASSIGNMENT
6-4-1. BtoB CONNECTOR(9828S-30Y900) / P200
6-4-2. DEBUG CONNECTOR(SM14B-SRSS-TB) / P100
NO.
PIN NAME
I/O
DESCRIPTION
NO.
PIN NAME
I/O
DESCRIPTION
16
MIC_IN
I
MIC IN
1
D_5V
I
POWER SUPPLY
17
ILL_9V
I
ILL_9V IN
2
GND
-
GND
18
A-GND
-
GND
3
D_5V
I
POWER SUPPLY
19
CARD1_SENS
I
SD CARD SENSOR
4
GND
-
GND
20
B/T_R
O
SP OUT
5
D_3.3V_SENS
I
VCC DETECTION
21
CARD0_SENS
I
SD CARD SENSOR
6
N.C.
-
-
22
A-GND
-
GND
7
N.C.
-
-
23
DVD_IND
-
NOT CONNECTED
8
RESET
I
RESET
24
B/T_L
O
SP OUT
9
BT_CPU_CTS
O
UART CTS
25
B_CAS_SENS
I
NOT USED
10
CPU_BT_RTS
I
UART RTS
26
N.C.
-
-
11
BT_NAVI
I
UART TX
27
EJECT_SW
I
EJECT SW SIGNAL
12
NAVI_BT
O
UART RX
28
N.C.
-
-
13
A_5V
I
POWER SUPPLY
29
GND
-
GND
14
A-GND
-
GND
30
GND
-
GND
15
A_5V
I
POWER SUPPLY
NO.
PIN NAME
I/O
DESCRIPTION
NO.
PIN NAME
I/O
DESCRIPTION
8
VCC-5V(UART)
I
POWER SUPPLY
1
N.C.
-
-
9
BT_NAVI
O
UART TX
2
SPI_MISO
I
SPI INPUT
10
NAVI_BT
I
UART RX
3
SPI_MOSI
O
SPI OUTPUT
11
BT_CTS
I
UART CTS
4
SPI_CS
O
SPI CHIP SELECT
12
BT_RTS
O
UART RTS
5
SPI_CLK
O
SPI CLK
13
BT_RST
I
RESET
6
GND(SPI)
-
GND
14
GND(UART)
-
GND
7
VCC-5V(SPI)
I
POWER SUPPLY
165.5
IC101 / IC102 / IC103
OP-AMP
NJM14558V
NJRC
P100
DEBUG CONNECTOR
SM14B-SRSS-TB
JST
*Only a trial product implements it.
D201 / D202
DIODE
CL-200IR-X-TS
CITIZEN ELECTRONICS
IC104
REGULATOR
S-1155B33-U5T1G
SII
J100
RF CONNECTOR
20279-001E-02
I-PEX
8.45
(2.95)
2.5
80.5
1.2
Unit : mm
IC100
BLUETOOTH MODULE
UGZZ8-732
ALPS ELECTRIC
Q201 / Q202
PHOTO-TR
CPT-184S-C-X-TS
CITIZEN ELECTRONICS
SW200
SW
SKRPABE010
ALPS ELECTRIC
P200
BtoB CONNECTOR
9828S-30Y900
IRISO
REF.
DESCRIPTION
MODEL NAME
MANUFACTURE
PURPLE CHARACTER
->> SIDE-A MOUNTED PARTS
RED CHARACTER
->> SIDE-B MOUNTED PARTS
12.15
(QY7201N)INSTRUCTION MANUAL - 10 / 12 -

Clarion Co., Ltd.
CONFIDENTIAL
6-5. LABEL INFORMATION
6-5-1. LABEL LAYOUT
(FRONT PCB SIDE-B : BLUETOOTH MODULE MOUNTED SIDE)
6-5-2. CONTENTS OF LABEL
LABEL SIZE : 16 * 13 [mm]
6-6. BLOCK DIAGRAM
BtoB CN
P200 EJECT SW
SW200
SD CARD SENSOR x2
Q201&D201(SD CARD1)
Q202&D202(SD CARD2)
IC100 IMPEDANCE MATCHING CIRCUIT
BLUETOOTH MODULE R138, L103, C127
REGULATOR
RF CONNECTOR(RECEPTACLE)
IC104 R C
J100
DC5V
DC3.3V
L
UART I/F
RESET
OP-AMP
IC101
MIC_IN MIC_IN_P
MIC_IN_N
OP-AMP
IC103
Lch_OUT SPKR_A_P
SPKR_A_N
OP-AMP
IC102
Rch_OUT SPKR_B_P
SPKR_B_N
5->3.3V
MODEL NAME
16
13
TELEC MARK, FH MARK
TELEC ID
FCC ID
IC ID
COMPANY NAME
COUNTRY OF ORIGIN
BLUETOOTH
EXTERNAL ANTENNA
BT Frequency range : 2402 -2480 MHz
(QY7201N)INSTRUCTION MANUAL - 11 / 12 -

Clarion Co., Ltd.
CONFIDENTIAL
7. OPERATING SUGGESTIONS
7-1. When opened an operation panel
Please be careful so that it is not sandwiched a hand when change operation panel opening and shutting time or an angle.
(QY7201N)INSTRUCTION MANUAL - 12 / 12 -
