Clarke CIB755 User manual

ASSEMBLY INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC0122
BICYCLE SHED
MODEL NO: CIB755
PART NO: 3503598

2
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
INTRODUCTION
Thank you for purchasing this CLARKE Shed. Before attempting to use this
product, please read this manual thoroughly and follow the instructions
carefully. In doing so you will ensure the safety of yourself and that of others
around you, and you can look forward to your purchase giving you long and
satisfactory service.

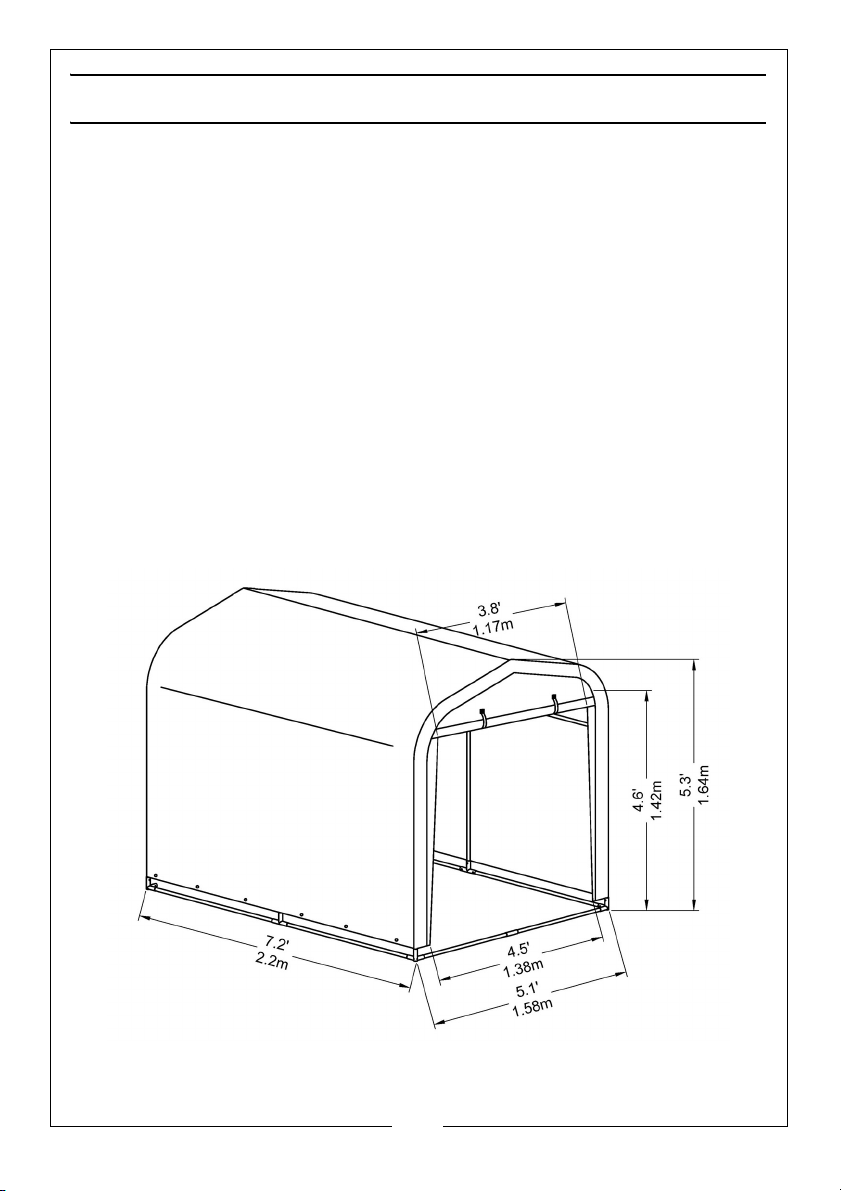

When erected, the CIB755 Shed will be of the dimensions shown on page 4.
The product weight is 13.43 kg (unpacked), 14.55 kg (packed).
SAFETY WARNINGS
DO NOT use this product in environments for which it is not Intended (i.e.
extreme cold, high winds, extreme heat, heavy rainfall, etc).
DO NOT use open flames or cooking or heating devices inside or in close
proximity to the shed including all types of stoves, gas heaters, gas lanterns,
torches, fly killers, etc. The fabric will burn if left in continuous contact with a
naked flame.
DO NOT store flammable liquids (petrol, kerosene, propane, etc.) in the shed
or operate gas powered vehicles/equipment in or around the shed.
ALWAYS follow the instructions for anchoring the shed.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission. This guarantee does not effect your
statutory rights.
WARNING: READ THESE SAFETY INSTRUCTIONS TO REDUCE THE RISK OF
INJURY. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.

3
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
POSITIONING AND INSTALLATION OF THE SHED
POSITIONING THE SHED
This shed is a temporary structure and is not recommended as a permanent
building. It is designed to offer protection from sun, rain, light snow, tree sap
and bird droppings etc. It is not designed to shelter equipment from
excessively high winds or heavy snow.
Choose your shed location carefully. Check for overhead power lines, tree
branches, etc. DO NOT install near roofs or other structures that may shed snow,
ice or excessive run-off onto your shed.
SITING THE SHED
Erect your shed on level ground over a firm, level area. Allow enough space
near each corner for the ground anchors and tie-down straps supplied to be
used as intended. If the ground area is of tarmac or concrete, the use of
ground anchor holding-down bolts will be required to anchor the shed to the
floor.
Choose a dry location where dampness arising from ground water in the
environment will not undermine the protection offered by the shed.
A masonry floor such as block paving or concrete is ideal, but if this is not
being supplied, a timber or shuttering plywood floor, protected by a suitable
groundsheet should be used. This will help to create a dry storage environment
by insulating the storage space from ground moisture.
Proper anchoring and keeping the cover tight and free of snow and debris is
the responsibility of the user. Damage caused by improper anchoring is not
covered under warranty.
CARE OF THE SHED STRUCTURE
This shed is NOT designed to support heavy snow. Snow or ice accumulation
may cause your shed to collapse. To avoid overload, brush snow and ice off
the roof top with a broom or mop to prevent collapse with the resultant
damage to property or personal injury.
NEVER clear the roof of snow or debris from inside the shed.
DO NOT use hard-edged tools or instruments, such as rakes or shovels to
remove snow. These can cause punctures to the cover.
DO NOT use bleach, alkaline or harsh detergents for cleaning. Doing so will
damage the material. Soap and warm water are recommended.
In order to reduce risk of burning and avoid damage, DO NOT- cook, smoke,
refuel or use any open flame devices in or around the shed.

4
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
USING THE STORAGE SPACE
Never run the engine of any machine inside a closed shed. Ensure that there is
adequate ventilation for engines or for any work with paints, cleaners. etc. by
opening the door panel and keeping it raised.
CONDENSATION
Take steps to avoid the buildup of condensation inside the shed. Cool, damp
winter days and moisture from the breath and body heat of personnel may
cause condensation on the inside of the top cover.
A supply of fresh air through the doorway will at least partly remove this issue.
For long term storage of moisture sensitive belongings in all weathers, the use
of a dehumidifier may be required, such as those in the CLARKE range. A
suitable extension lead to a locally available power supply will be required.
Condensation will be much less of an issue during the summer months.
CONSTRUCTION
Have an overview of all parts before attempting installation and make sure all
components are supplied.

5
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

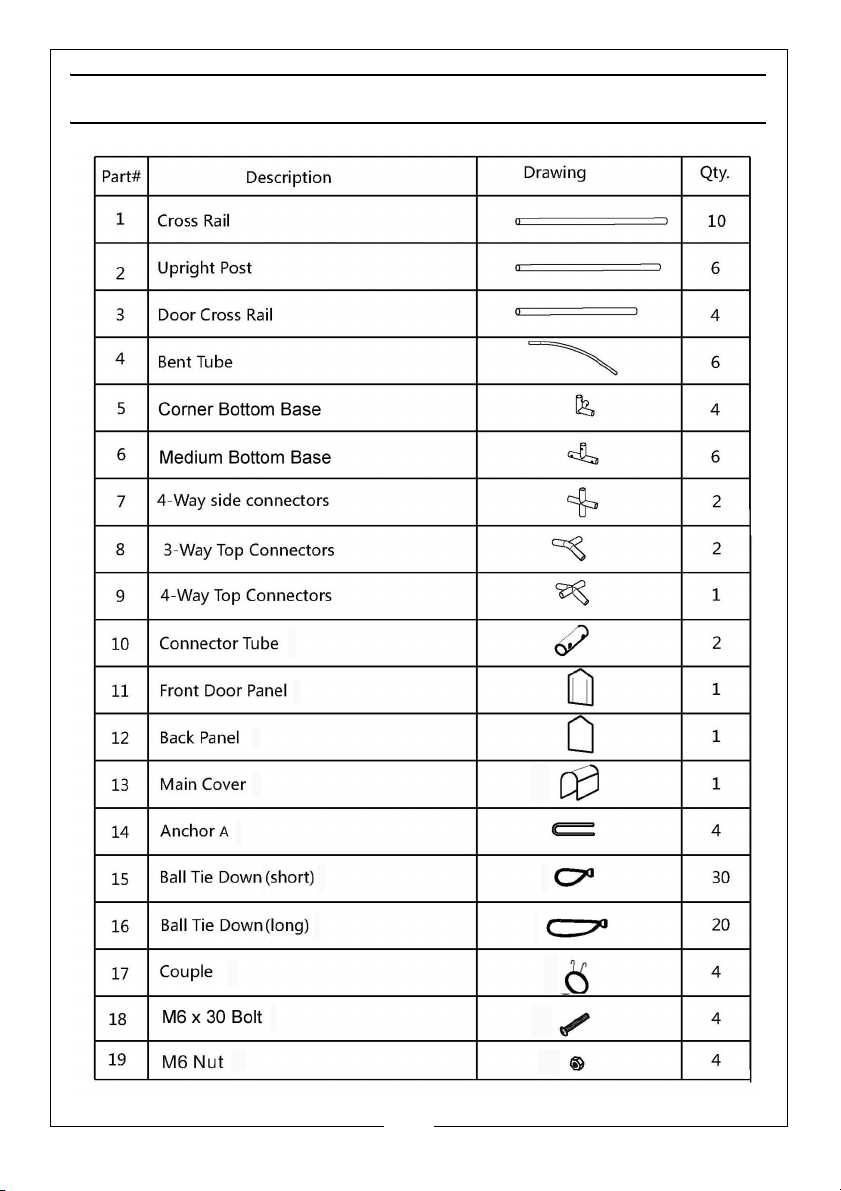

COMPONENT PARTS LIST

6
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
ASSEMBLY
1. Place all parts in a clear area and arrange them on the ground. Check for
completeness and for any transport damage.
2. Remove all packaging materials and place them back in the box. Do not
dispose of the packaging materials until assembly is complete.
WARNING: DO NOT PLACE THE PRODUCT UNDER TREES FROM WHICH
HARD FRUIT SUCH AS APPLES, WALNUTS OR HEAVY PINE CONES, ETC.,
MAY FALL. KEEP CHILDREN AWAY DURING ASSEMBLY. DO NOT ATTEMPT
TO ASSEMBLE THE PRODUCT IF ANY PARTS ARE MISSING.
WARNING: DO NOT LEAVE THE SHED UNATTENDED DURING ASSEMBLY IN
CASE PERSONAL INJURY OR DAMAGE MAY OCCUR.

7
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
STEP 1:

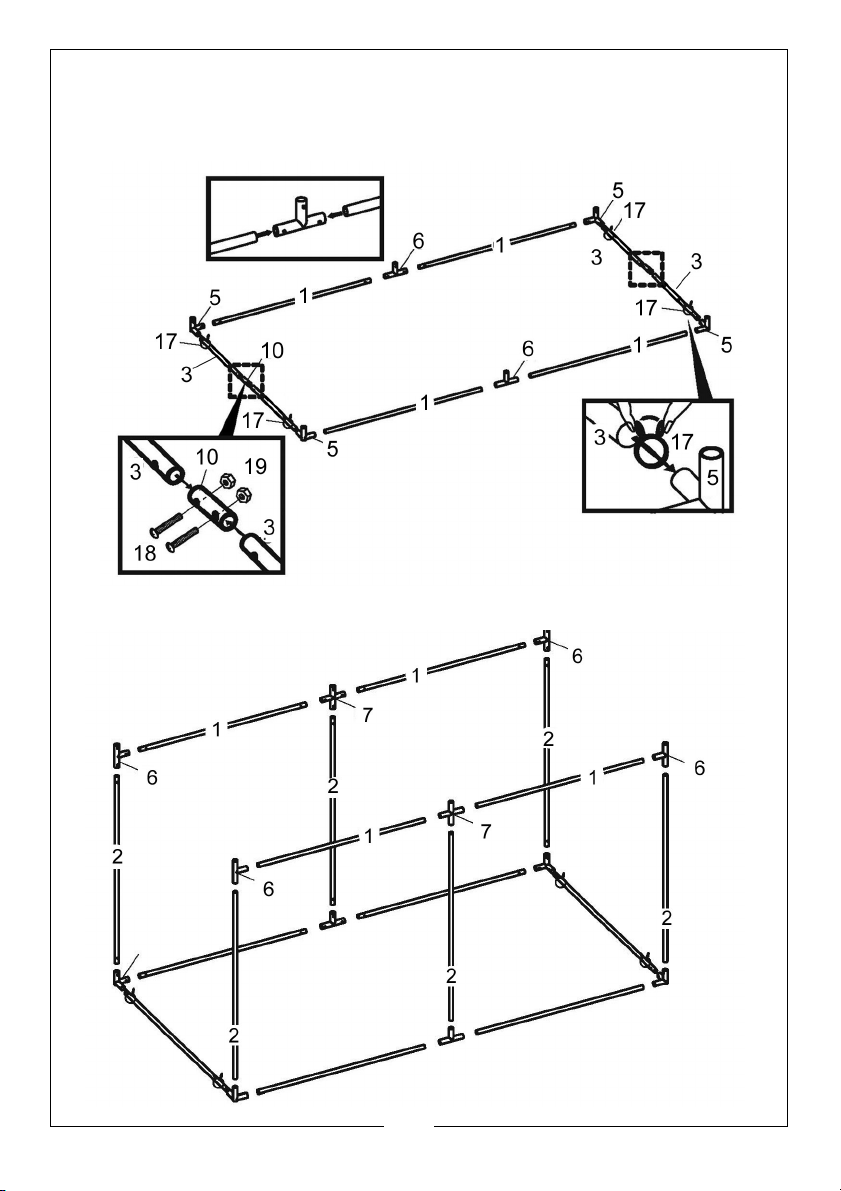

1. Select a suitable location for the shed and assemble the base frame as
shown.

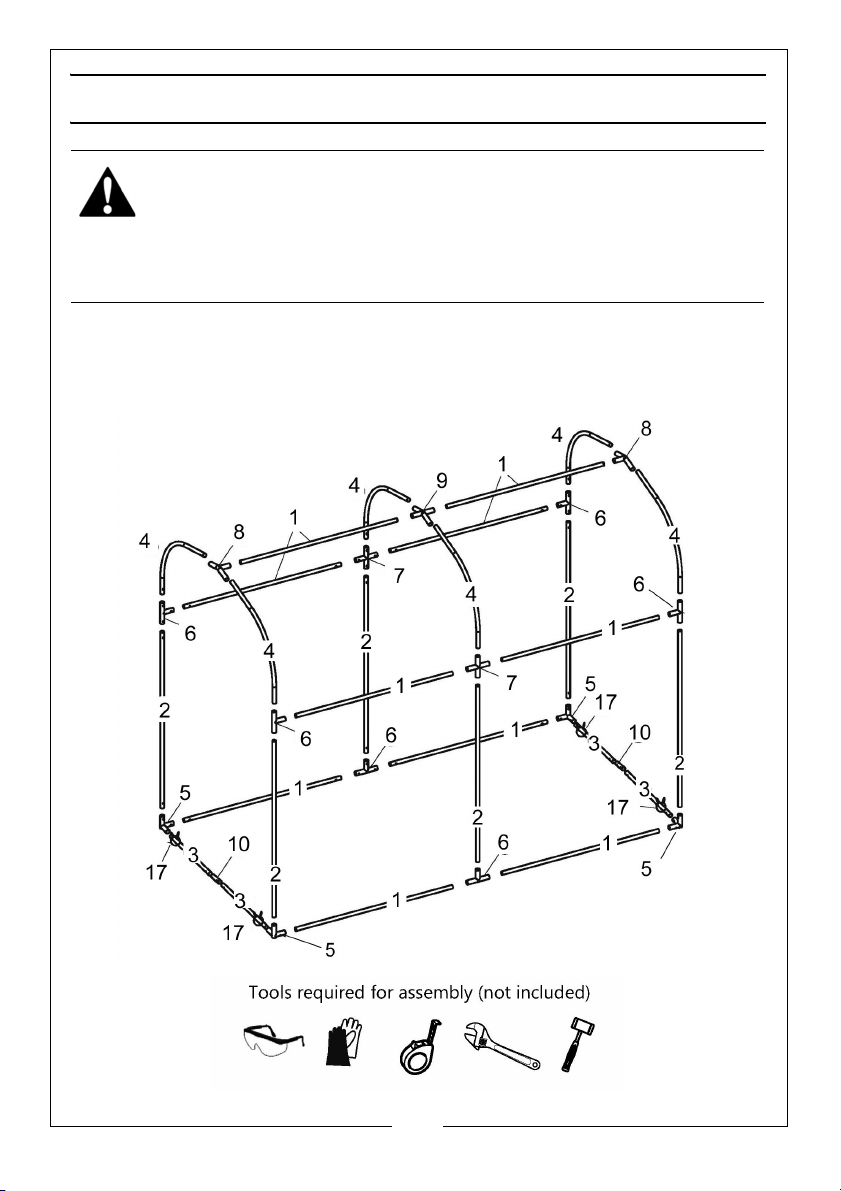

2. Assemble the legs and shoulder tubes as shown.

8
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

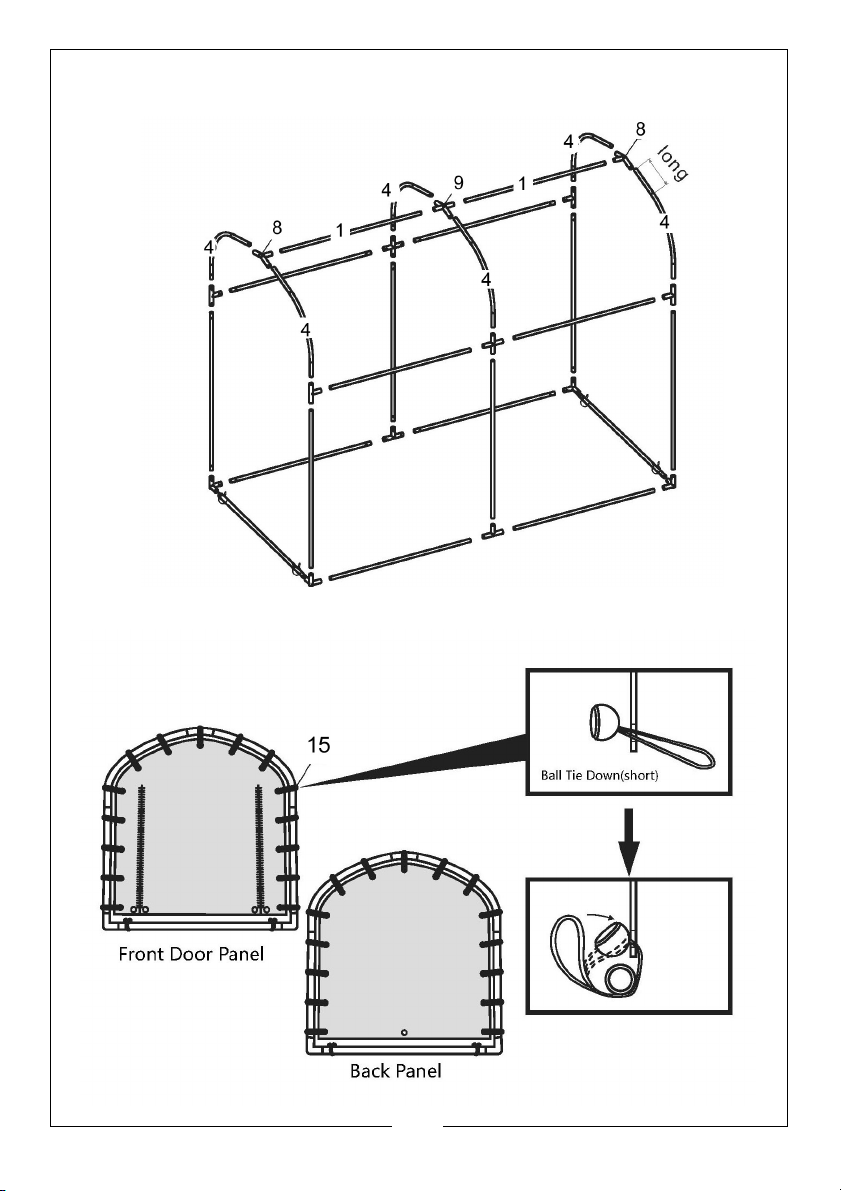

3. Assemble the roof, noting that the long side of the bent tube (4) is on top of
the roof.
4. Attach the door panels on the frame using the short bungees (15).

9
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

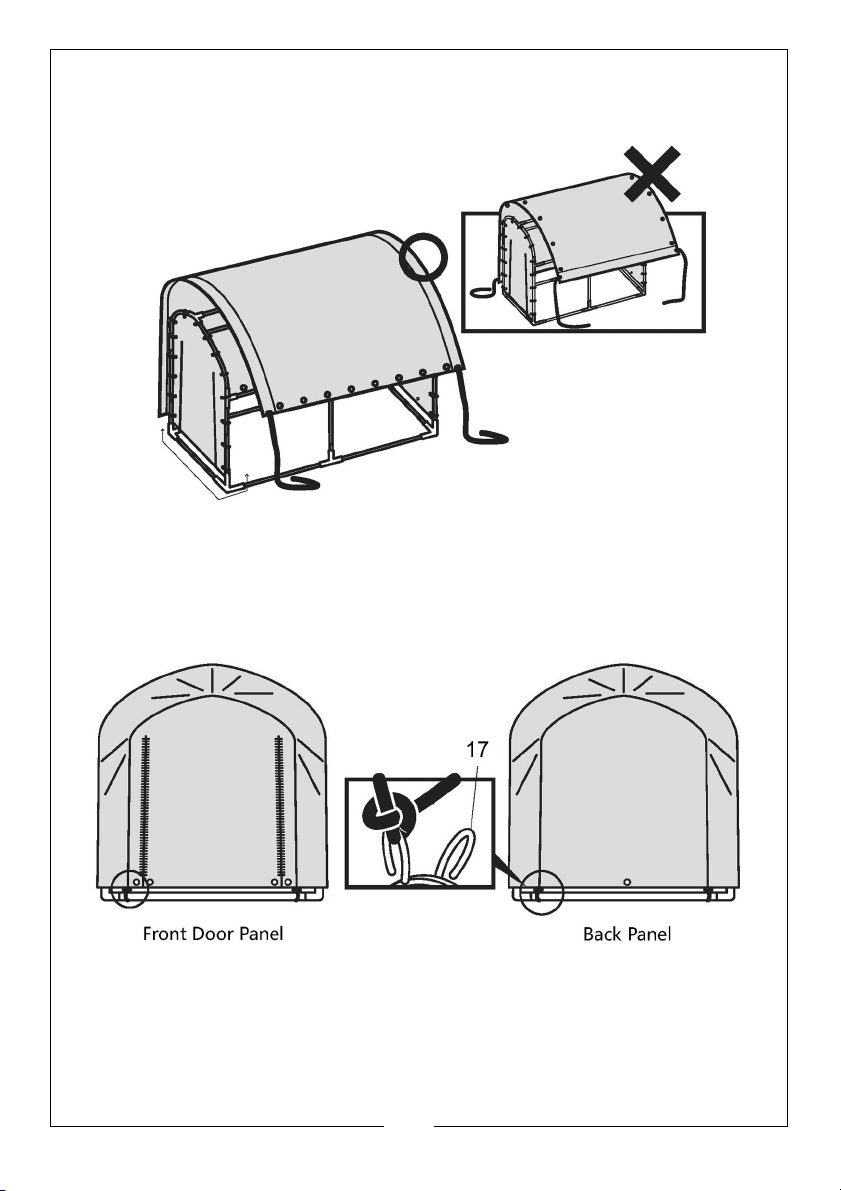

5. Attach the roof cover as shown in the diagram. Note the cover direction
with the eyelets on both sides of the shed.
6. Tie one side of the roof cover rope ends on couplers (17).

10
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
7. Tie the other side of the roof cover rope end on parts 17 (Fig A) and then
through the door panel eyelet and tighten again. (Fig B)
8. Attach the main cover to the frame using the long bungees (16).

11
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
9. Use the anchors (14) to fix the two side beams to the ground along each
side.
The shed is now ready for use.
USING THE SHED
1. Check periodically and tighten all hardware if needed.
2. Open the door with the help of an assistant, rolling the fabric up until the
door can be held in position above the opening using the webbing straps
and buckles.
DISASSEMBLY
To dismantle, execute all instructions in reverse order.
Store your shed in a cool, dry location between seasons to prolong the usable
life of all components. Components are not equally durable and will require
replacement over time at differing intervals.
PLEASE RE-READ ALL WARNINGS ON PAGE 2 OF THESE INSTRUCTIONS. SAVE
THESE INSTRUCTIONS FOR FUTURE USE.
WARNING: IF POSITIONING THE SHED IN A WINDY LOCATION ALWAYS
ENSURE THE FRONT DOOR IS KEPT FULLY CLOSED TO PREVENT WIND
LIFTING THE SHED FROM INSIDE AND THAT THE SHED IS SECURELY
ANCHORED TO THE GROUND
