Clarke PGG68 User manual

05_70650_0A
Page 13/1912
Before you start: 2 or more individuals recommended for assembly, approximate time 1 1/2hours.
Please read instructions COMPLETELY before assembly. This shelter MUST be securely anchored.
8' x 6' x 6'6" Professional Growers Greenhouse
Assembly Instructions
Clarke International
Hemnall Street
Epping
Essex CM16 4LG
ENGLAND
www.clarkeinternational.com
PARTS & SERVICE: 0208 988 7400
E-mail: [email protected] or
[email protected]
SALES: UK 01992 565333 or
EXPORT: 00 44 (0)1992 565335
DESCRIPTION MODEL #
8' x 6' x 6'6"
A B C PGG68
3503514
2.4 x 1.8 x 2 M - Green
Professional
Growers Greenhouse
C
A
B

05_70650_0A
Page 2
12/20/11 70650
PROPER ANCHORING OF THE FRAME IS THE RESPONSIBILITY OF THE CONSUMER.
Clarke®International is not responsible for damage to the unit or the contents from acts of nature. Any greenhouse that is not
anchored securely has the potential to y away causing damage. Periodically check the anchors to ensure stability of the greenhouse.
Clarke®International cannot be responsible for any greenhouse that blows away. NOTE: Your greenhouse’s cover can be quickly
removed and stored prior to severe weather conditions. If strong winds or severe weather is forecasted in your area, we recommend
removal of the cover.
proper AncHorinG AnD instAllAtion oF FrAMe:
A tight cover ensures longer life and performance. Always maintain a tight cover. Loose fabric can accelerate deterioration of cover
fabric. Immediately remove any accumulated snow or ice from the roof structure with a broom, mop or other soft-sided instrument.
Use extreme caution when removing snow from cover- always remove from outside the structure. DO NOT use hard-edged tools or
instruments like rakes or shovels to remove snow. This could result in punctures to the cover. DO NOT use bleach or harsh abrasive
products to clean the fabric cover. Cover is easily cleaned with mild soap and water.
cAre AnD cleAninG:
Attention:
This greenhouse is manufactured with quality materials. It is designed to t the custom fabric cover included. Please anchor the
greenhouse carefully following the instructions in this manual. Proper anchoring, keeping the cover tight and free of snow and debris
is the responsibility of the consumer. Please read and understand the installation detail, warnings and cautions prior to beginning
installation.
Risk of re. DO NOT smoke or use open ame devices (including grills, re pits, deep fryers, smokers or
lanterns) in or around the greenhouse. DO NOT store ammable liquids (gasoline, kerosene, propane,
etc.) in or around your greenhouse. Do not expose top or sides of the greenhouse to open re or other
ame source.
WArninG:
Choose the location of your greenhouse carefully. DANGER: Keep away from electrical wires.
Check for overhead utility lines, tree branches or other structures. Check for underground pipes or
wires before you dig. DO NOT install near roof lines or other structures that could shed snow, ice or
excessive run off onto your shelter. DO NOT hang objects from the roof or support cables.
DAnGer:
cAUtion:
Use CAUTION when erecting the frame.

05_70650_0A
Page 3
Quantity Part #
Description of Parts:
3-Way Frame Connectors
4-Way Frame Connectors
4-Way Cover Rail Half-Clamps
3-Way Cover Rail Half-Clamps
34.4 in. Poles
22.2 in. Upright Poles
45.7 in. Roof Rails
46.1 in. Cover Rails
40.7 in. Side Vent Rails
27.9 in. Side Vent Rails
Cover
Foot Plates - Grey
Bungee Cords
Bolts 1
/
4x 1 7
/
8in.
Bolts 1
/
4x 1 5
/
8in.
Washer 1
/
4in.
Wing Nut 1
/
4in.
6
3
4
8
12
6
6
4
2
4
1
6
12
14
8
50
36
802860
802861
13201
13202
802864
802862
802868
802695
802866
802867
803094
802916
10066
10115
01011
07000
03032
8' x 6' x 6'6" Organic Growers Greenhouse - Parts List - Model # PGG68 3503514
4
4
4
15 in. Anchors
Cable Clamps
Cable - 24 in. Length
10014
10016
801138
NOTE: 15 inch anchors are available from our spare parts
department. Please quote Part No. 10014

05_70650_0A
Page 4
802864
07000
03032
03032
03032
07000
802861
802868
802868
802868
802861
03032
07000
07000
07000
03032
03032
802864
802860
802864
802868
1. lAY oUt rooF FrAMe
2. AsseMBle rooF FrAMe Use 03032 bolts and 07000 wingnuts as shown.
802860 802860
802860 802860
802860 802860
802861
802861
802861
802864802864 802864802864 802864802864
802868 802868
802868 802868
802868 802868
3-Way Connections
4-Way Connection
4-Way Connections

05_70650_0A
Page 5
Assembled
Leg
07000 03032
B
3. AsseMBle leGs & AttAcH to rooF FrAMe Use bolts as shown in illustrations.
A. Assemble each of the 6 legs.
B. Attach legs with 1-7/8 inch bolts (#03032) on one side of roof frame, letting the other side of roof frame rest
on the ground.
C. Attach remaining legs with bolts to opposite side of roof frame.
Bc
Leg Assembly
Attach Legs to Roof Frame
802916
802862
802864
07000
07000
10115
03032
A

05_70650_0A
Page 6
6ft.
5. sqUArinG Up tHe FrAMe
A. Place frame in its nal location, which needs to be as at and level as possible.
B. Measure across opposite corners. These distances must be equal to within 1 inch.
C. Check that the front and rear of the frame measures 6 feet in width
6ft.
4. AsseMBle coVer rAils
A. Place a cover rail (802695) between each leg and secure them with cover clamps as shown below.
B. Slide the cover rails so they are approximately 8 inches up from the ground.
note: Loosely HAND-TIGHTEN
these connections.
10115
802695
13202
802864
01011
07000
10115
802695
802695
13201
802864
07000
01011
Middle Rib Cross Rail Clamps
End Rib Cross Rail Clamps

05_70650_0A
Page 7
= Bungee fastener locations

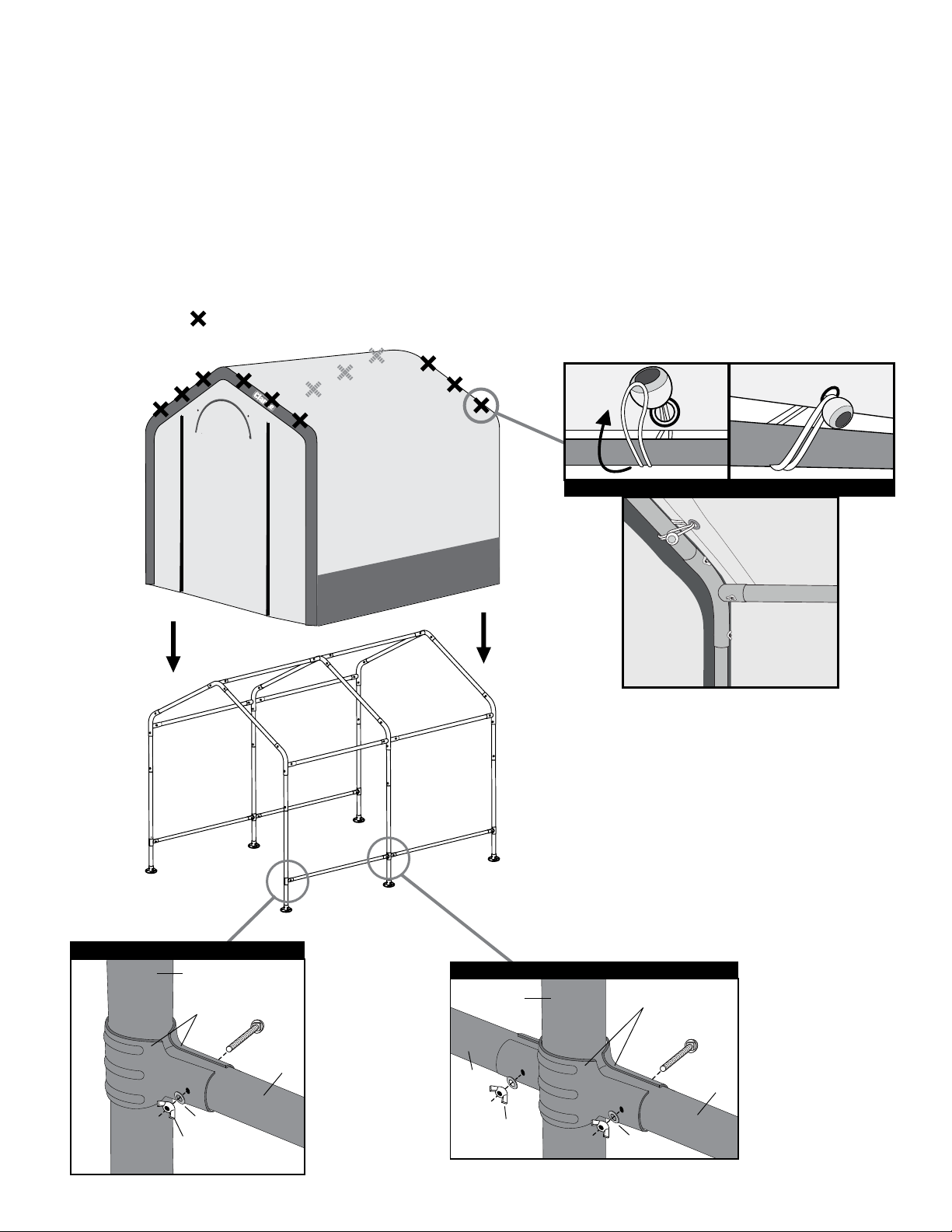

6. instAllinG coVer AnD coVer rAils
A. Your greenhouse cover comes in one complete piece. You may nd it easier to t the cover over the frame by
partially opening the door zippers.
B. Pull cover over the frame, making sure to center cover on frame. There should be an equal amount of over-
hang at all four corners.
C. Inside the greenhouse, place a bungee cord fastener through each grommet hole and loop around the pipe of
the roof frame. Secure elastic around ball.
D. Disassemble cover rails and slide them through the fabric pockets at each leg. Reattach with clamps to each
leg. Repeat this on other side. Push down on cover rails to tighten cover, before tightening bolts completely.
E. Check and tighten Cover Rails monthly to ensure the cover is tight.
A
B
D
c
Inside View of Cover
10115
802695
13202
802864
01011
07000
10115
802695
802695
13201
802864
07000
01011
Middle Rib Cross Rail Clamps
End Rib Cross Rail Clamps

05_70650_0A
Page 8
7. properlY AncHor FrAMe
Your unit comes with 4 Anchors.
A. Anchors must be placed inside shelter at the corners of the shelter. Insert a ¾-inch pipe or steel rod,
through the eyelet of the auger and screw the anchor into the ground until the eyelet is sticking out of the
ground by 1 to 2 inches so it can be anchored to the legs.
If ground is too hard, dig a hole with a shovel or post hole tool. Optional: Place auger in hole and ll with cement.
B. Thread cable provided through the eyelets of the Anchor as indicated in gure. Secure the cable with the
clamps provided.
WARNING:
Serious injury to persons or property could result if cover is
installed and shelter is not anchored and is left unattended.
Shelter must be securely anchored before use.
Corner Anchors

05_70650_0A
Page 9

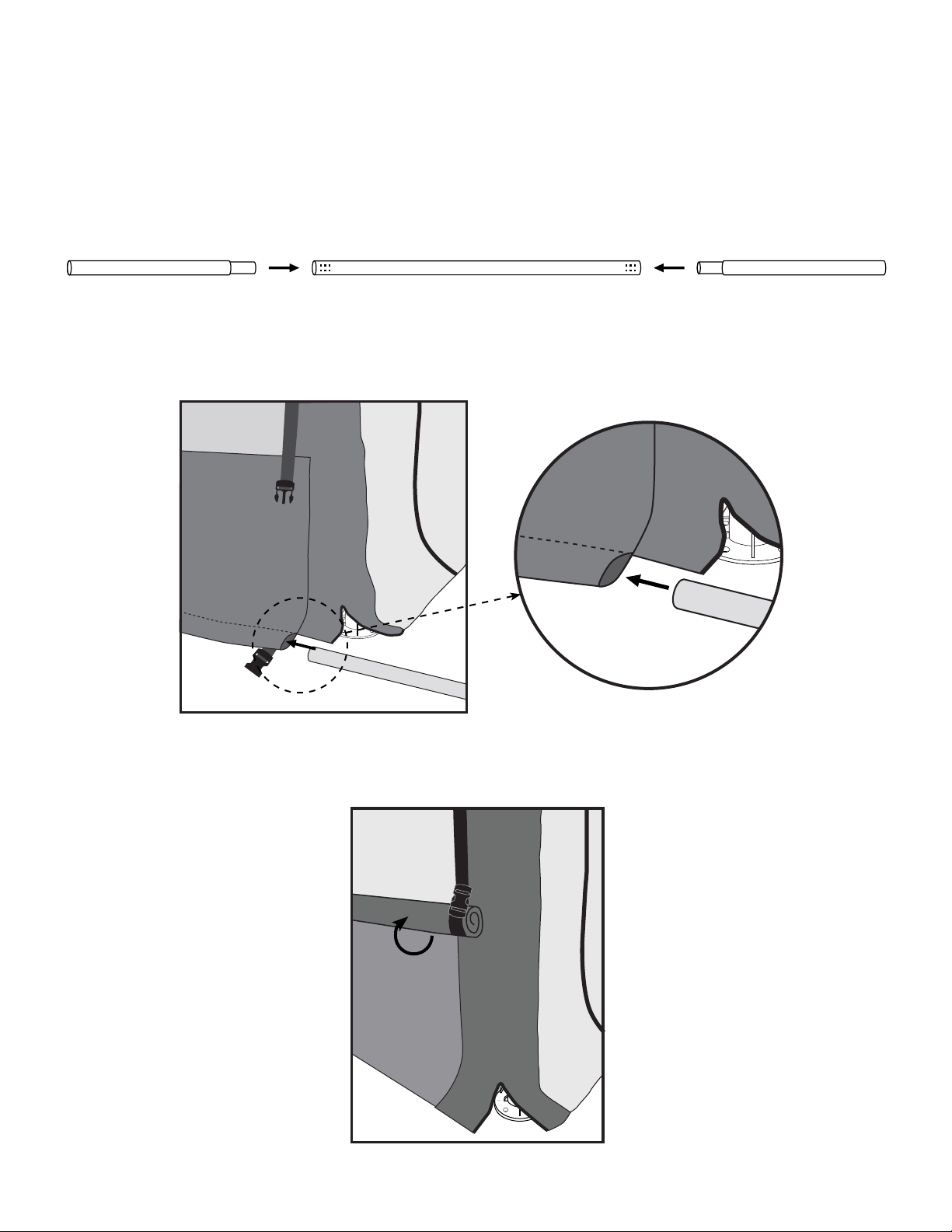

8. instAllinG AnD UsinG siDe Vent rAils
A. Assemble rails for the side vents as shown below. Bolts are not used for these connections.
B. Insert assembled vent rails into pockets at the bottom of the vent covers on each side.
C. To open side vents, roll green vent covers upward and use the straps and clips to secure them in place.
802867 802867802866
A
B
c

05_70650_0A
Page 10
9. UsinG tHe enD pAnel Vents
A. To open vents, completely unzip the semicircular zipper.
B. Roll the vent cover upward.
C. Use the hook-and-loop strap to secure the vent cover in a rolled position.
A.
c.
B.
