CLIMA POD Spirit V7 Series User manual

SPIRIT Greenhouse
ASSEMBLY INSTRUCTIONS
TO BE USED IN CONJUNCTION WITH
SPIRIT V7 SERIES GREENHOUSE
Contact Information:
MODULAR ORGANICS LLC
EMAIL: [email protected]m
Phone: [phone]
Website: www.climapod.com

2
Statement
Dear Customer!
We would like to congratulate you on your new Greenhouse purchase.
We hope that by following the detailed assembly instructions you will find as much pleasure in assembly process
same as the time you will spend in your greenhouse in the future.
The assembly instructions mainly consist of detailed illustrations and no specific technical knowledge is required
for the assembly of the greenhouse.
Depending on the model & accessories package you purchased you may have received multiple packages. The
main ClimaPod house (not counting in accessories or extended models) has three main master packages:
- Straight Frame & Base
- Panels
- Curved Frame
7’ Extension Set also come in three different packages.
The aluminum base, straight frame profiles, as well as supporting hardware are packed in one carton. The
greenhouse curved frames or “arches”are packed in a curved shape package.
All the polycarbonate panels are packed in one carton.
All of the aluminum profiles are marked with a part number corresponding to the numbers given on the draw-
ings and listed on the parts list. Nuts, bolts, and fittings will be found in the relevant package.
All of the rear gable section straight frames are in package No.1
All of the front gable section straight frames are in package No.2
All of the roof/side wall section straight frames are in package No.3
All of the frames and components for the window are in package No.4
All of the frames and components for the door are in package No.5
Each of the polycarbonate panels have are labeled with item number corresponding to the instructions. You
may also differentiate them by their size and shape. Note: once you get to insert the polycarbonate panels,
make sure to have the side with opal white film facing outside.
Accessories
Modular Organics LCC (ClimaPod) offers a wide range of accessories which contribute to a better yield and
make life easier for the gardener. A selection of the range is shown in the supplements to these instructions. Upon
the request, your local dealer mayprovide you with more information about available accessories. You mayalso
refer to our main website www.ClimaPod.com for more information.
Winter Protection
In areas where snow might be expected we recommend the following in order to protect your green- house:
1. Support the ridge at the center of the greenhouse.
2. Remove larger snow loads by sliding them down the sides.
3. Take precautions against snow falling down.
Complaints
Weput severe demands on quality to secure that you get a faultless product. However, should a problem occur,
we kindly ask you to contact the dealer from whom you have bought the greenhouse. For a quick service, you
should specify the extent of the defect by means of the parts list in the assembly instructions. Please
also note to mention the model number which is marked on the front page of these instructions.
Guarantee
Wegrant a 10 year comprehensive guarantee which covers replacement or repairs of defective parts due to ma-
terial or manufacturing defect. The guarantee does not cover polycarbonate, transport, erection. The guarantee
is invalid if the greenhouse is not assembled according to these instructions.
Insurance
Not all insurance companies automatically cover greenhouses.We strongly recommend you contact your insur-
ance agent to ensure that your greenhouse is added to the coverage once assembled.

3
Statement
Tips
1. The base has to be fastened in a non-freezing depth(80cm).
2. The greenhouse is to be fastened to the base.
3. The base has to be 100% level and square. The easiest way to ensure this is to make sure that the
two diagonal measurements are identical.
4. We recommend that you grease screws for doors and windows for easier assembly.
5. Erection of the greenhouse should only take place in calm and dry weather.
6. All frames are to be assembled around the polycarbonate as shown on the drawings. We recom-
mend that you start with the back gable.
7. IMPORTANT Before assembling aluminum base, the end trough centers of four legs should match
both end trough centers of side sills and front & rear sills at the same time.
Remove approximately 2
inches of film from all
sheet edges before in-
stalling. Remove all film
immediately after the con-
structions is completed.
The UV-protected side of
the sheet is covered with
opal white film/text and
must face towards the
sun.
Please put on gloves
avoid slitting your hands.
Handle with care! Drop-
ping can bend the frame,
and it won’t fit properly.
Keep sharp instruments
away from the polycar-
bonate sheets.
Cautions
Foundation
The base is maintenance free and, of course all fittings are included. If you plan to use concrete founda-
tion, remember to order concrete pipes and concrete at your local supply stores as they are not included
with your order.
side sills
front & rear sills
Please match four corner
troughs together at the
same time

4
ClimaPod Assembly Tips and Tricks
Tools required:
●10mm nut driver
●10mm open-end wrench
●Phillips head and flat head screwdriver
●Level
●Ladder
●Needle nose pliers
Misc. Items required:
●WD-40 lubricant
●Silicone Caulking Sealant
Henry 212 All Purpose Crystal Clear Sealant (recommended)
Caulking Increases the structural integrity of the greenhouse and prevents water from going into
the panels. Caulking the top of the middle seam will prevent algae and water buildup.
●The base has to be 100% level and square.
The easiest way to ensure this is to make sure that the two diagonal measurements are identical.
●Erection of the greenhouse should only take place in calm and dry weather.
●Pre-assemble and caulk windows and doors before you erect the greenhouse
●Pre-thread aluminum profiles for window and door pieces to make assembly
easier
●Keep bolts loose during assembly and avoid securely attaching side
supporting aluminum strips (ref. #012 and/or #056 strips on the parts page) before
the first panel arch has been inserted
●It is far easier to assemble if you have an elevated surface such as two 4’×8’
pieces of plywood on sawhorses.

5
Basic Steps for Assembly
1. Prepare Foundation
2. Attach and secure Base and side sills
3. Assemble and Caulk Windows and Doors
4. Assemble Gables
5. Attach Gables to base and side sills and connect with top ridge beam
6. Connect Hanging basket bar, horizontal rails, and partially connect #012
strips
7. On one side begin by inserting B panel, then crossbar, then I Panel
8. Secure into place with curved aluminum profile.
9. Continue the process while alternating sides.
10. When fitting final polycarbonate panels, loosen bolts to partially disconnect
front gable. It will allow you to get extra space needed for fit the last panel.
11. Slide in the windows, if necessary trim upper corners of the arches
12. Install doors and additional accessories
13. Silicone caulk panel edges on the outside all around greenhouse

6
ClimaPod SPIRIT Series
7x42 (V742) = one V707 Main set + five V7 7’ Extension sets
7x35 (V735) = one V707 Main set + four V7 7’ Extension sets
7x28 (V728) = one V707 Main set + three V7 7’ Extension sets
7x21 (V721) = one V707 Main set + two V7 7’ Extension sets
7x14 (V714) = one V707 Main set + one V7 7’ Extension set

7

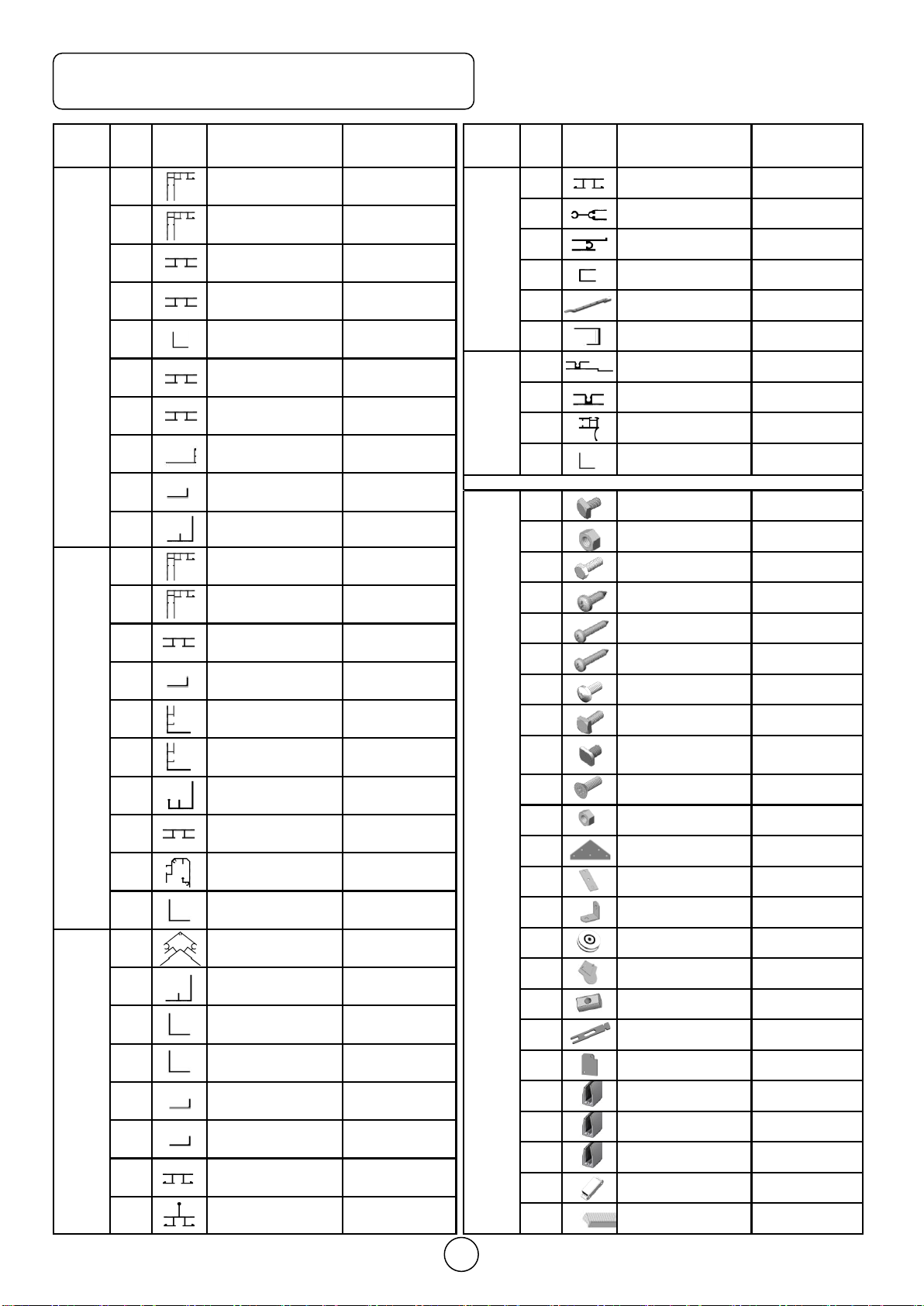

Spirit 7x7(V707) Parts list
Section Part
No. Profile Size Spirit V707
V
E
N
T
V042 683 (2’27/8”) 2
V044 698 (2’31/2”) 2
V045 698 (2’31/2”) 2
V746 525 (1’811/16”) 4
047 300 (1113/16”) 2
048 200 (77/8”) 2
D
O
O
R
V049 586 (1’111/16”) 1
V050 586 (1’111/16”) 2
V051 1864 (6’13/8”) 2
054 558 (1’915/16”) 1
a1 M6x10 96
a2 M6 103
a3 M6x18 2
a4 Φ4.2x9.5 8
a5 Φ3.5x19 12
a6 Φ3.5x35 6
a7 Φ4x8 2
a8 M6x15 5
a9 M6x15
crop 4
a10 Φ3x10 2
a11 M3 2
m1 -2
m3 -4
m6 -1
n1 -2
p1 -2
p3 -4
p4 -2
p5 -2
p6 592 (1’115/16”) 1
p7 682 (2’27/8”) 6
p8 660 (2’2”) 4
m11 -1
FLUFF 3.8m 1
Section Part
No. Profile Size Spirit V707
R
E
A
R
V701 2563 (8’47/8”) 1
V702 2563 (8’47/8”) 1
V005 1912 (6’31/4”) 1
V006 1912 (6’31/4”) 1
708 642 (2’11/4”) 1
V009 683 (2’27/8”) 2
V010 594 (1’113/8”) 1
711 2036 (6’83/16”) 1
012 1100 (3’75/16”) 2
V713 2036 (6’83/16”) 1
F
R
O
N
T
V703 2563 (8’47/8”) 1
V704 2563 (8’47/8”) 1
V009 683 (2’27/8”) 2
012 1100 (3’75/16”) 2
V014 1912 (6’31/4”) 1
V015 1912 (6’31/4”) 1
V716 2036 (6’83/16”) 1
V718 594 (1’113/8”) 1
V719 1245 (4’1”) 1
056 707 (2’313/16”) 2
R
O
O
F
/
S
I
D
E
V021 2197 (7’21/2”) 1
V026 2176 (7’111/16”) 2
031 2163 (7’13/16”) 2
036 2163 (7’13/16”) 2
012 1100 (3’75/16”) 4
741 939 (3’15/16”) 4
V042 683 (2’27/8”) 6
V743 2557 (8’411/16”) 4
This list includes parts count for the main
house 7’ x 7’ which includes parts for front and
back gables. Please see page 26 for 7’ x 7’ ex-
tension set parts list.

8
Polycarbonate sheet
# Size Spirit V707
A700x1049 (2’39/16” x 3’55/16”) 4
B700x842 (2’39/16” x 2’91/8”) 10
C592x16/247/16 (1’115/16” x 5/8” / 93/4” / 5/8”) 1
D599x913 (1’119/16” x 2’1115/16”) 2
E610x1057/1296/1057 (2’ x 3’55/8” / 4’3” / 3’55/8”) 1
F610x842 (2’ x 2’91/8”) 1
G700x1157 (2’39/16” x 3’99/16”) 2
H696x506 (2’33/8” x 1’715/16”) 2
I700x1714 (2’39/16” x 5’71/2”) 4
p6 592 (1’115/16”) 1
p7 682 (2’27/8”) 6
p8 660 (2’2”) 4
I
IGAA
A
A
D
D
BB
BB
E
F
H
C
p6p8 p8
p8
p8
p7 p7 p7
p6/p7/p8
p6/p7/p8
BBB
This page shows the positioning of the polycarbonate panels for the front and rear gable as
well as the roof and the sides. It also indicates where the gray plastic parts #P6, #P7 and #P8
are used. When fitting parts #P6/P7/P8 on the ends of the panels, try using a narrow piece of
bar soap through the part first. It will allow them to slide on the panel’s edges much easier.
#P6/P7/P8 must be fitted on one end of polycarbonate in advance before polycarbonate is in-
serted into aluminum frame. The square illustration on the page shows the placement of the
gray plastic U shape strips.
Frame Panel
Bracing bar
Note: If panel edge can’t enter into alumi-
num Frame channel, please use a
bracing bar to squeeze panel edge
into channel.

9
Step 1
a2
m7
Base
crop bolts/a2
Model Side profiles Anchor leg Fixing tab Crop boltsBolts/nuts WasherGable profiles
V707 2x2174(7’19/16”) 4816 25 882x2038(6’81/4”)
EXT-3 2x2148(7’9/16”) 4416 20 48-
Aluminum Base
V707 BASE
EXT-3 BASE
EXT-3 BASE
V707 BASE
Note：
For 7’ main house (7x7), 16 pcs square bolts and nuts
used for 4 legs, you need to insert into base channel in
advance. 8 pcs cropped head bolts and nuts used for
base fixing connector #m7. (no need to insert in advance)
For each 7’ Extension set that would build the size you
ordered, 16 pcs square bolts and nuts used for 4 legs,
you need to insert into base channel in advance. 4 pcs
cropped head bolts and nuts used for base fixing connec-
tor #m7. (no need to insert in advance)

10
Base
# m5
V707 12
EXT-3 6
a2
m5
Concrete
Part No. m5 shows a bracket used to secure the inside base when not using the original supplier’s foundation.
Prior to the assembly of the greenhouse, you should have a 10 mm nut driver, 10 mm open-end wrench, Philips
head and slotted screw driver, level, and WD-40 lubricant.
Assembly without base (on concrete slab or wooden deck)

11
1
V005 V006 708 V009 V010 711 012 V713 m1 a1 a2V701 V702
Part No. p6 p8a9 p1
1912
6’31/4”
1912
6’31/4”
642
2’11/4”
683
2’27/8”
594
1’113/8”
2036
6’83/16”
1100
3’75/16”
2036
6’83/16”-M6x10 M6
2563
8’47/8”
2563
8’47/8”
Size 592
1’115/16”
660
2’2”
M6x15 -
11121121118 2011Qty 1221
708
AA
E
BBF
2
34
5
6
Rear Gable

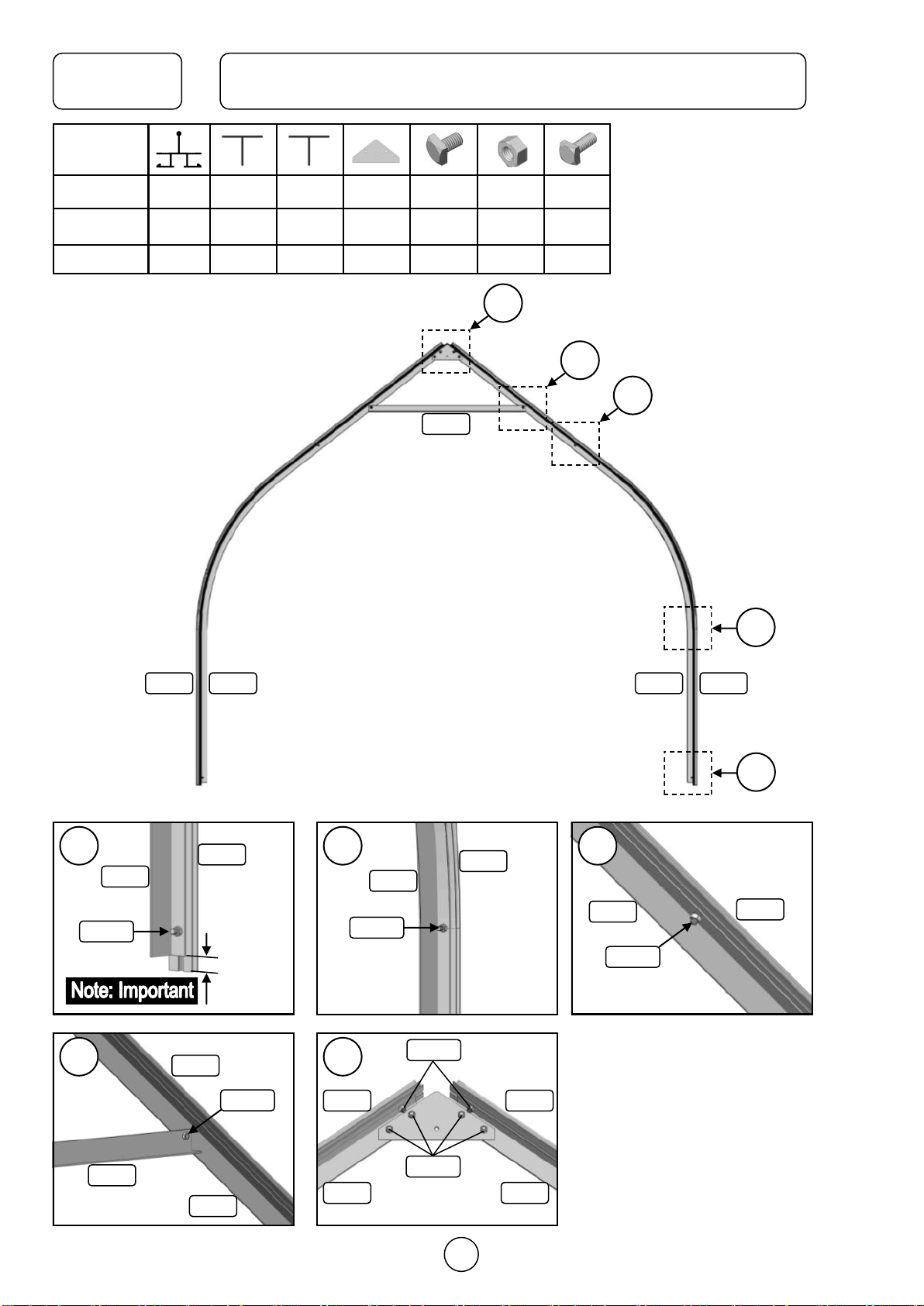

With this page, you will assemble the rear gable (back). It is far easier if you have an elevated surface
such as two 4’×8’ pieces of plywood on a sawhorses. If not, lay the aluminum profiles out on a hard sur-
face as shown in the main illustration. Remember you are building from the inside with the outside facing
down. Start with one of the “E” panels and build the aluminum around the polycarbonate panel. the poly-
carbonate side with the opal film/text must facing down.
Package No.1
V005 V006
V701 V702
V009 V010 V009
711
012012
V713
Step 2

12
2
1
Square No.1 This the Ridge. The
square headed bolt slides into the
channel in part #V701 & #V702, and
connect them with part #m1, Our bolts
and nuts were made of stainless steel.
Square No.2 Insert part #V005 into
Part #V701 channel, contact with part
#708 together, Please insert extra bolt
#a1 into the channel of Part #V006 for
attaching part #711 use later. Do the
same for the opposite end.
Note: Please connect Part #711 with Part #V701, #V702, #V005, #V006
firstly before you are inserting PC panel #A &#E into profiles’ channel.
3A
Square No.3 After PC
panels in position, then
dismantle part #711 and
adjust the distance same
between PC panel and
keyway edge.
V702V701
m1
708
V005
V701
V701
711
V009
012
711
V701
A
V009
V701 V702
708
711
V006V005
AA
E
V009 V009V010
AAE
a9 Section View
V009
a9

13
4
BBF
5
6Square No. 5
Inserting PC panel
#B,#F in profiles’
channel. With PVC
anti-dust strip #p6
& #p8 on bottom.
Square No.6
Connect Part
#V713.
Please note: 4 Bolts will need to be slid into each Part #V701 and #V702 for ridge, hanging basket bar or horizontal rail
and side sill beam in advance, Finger tightens the nuts for later use.(Bolts and nuts in Package No.3 of Roof/Side wall)
Please remember to add an extra bolt and nut to part #V701 or #V702, depending on which side you have your window
(only for V705). Finger tightens the nut for later use when mounting the window in the greenhouse.
When finished with the back gable, position and securing away from the wind so it does not blow over and cause damage.
Square No. 4 Assembly part #V009, #V010 in place, then connect with part #711 again.
711 V010
711
V009
p8
V713
p8 p6 p8
V713
p6
V713
p8
012
Please Note: Don’t let this bolt block polycarbonate panel to
insert into part #V701&V702 alu. frame channel. Insert PC panel
first, then slide this bolt in part #V701&V702 profile’s trough.
V701 V702 V701

14
1
Front Gable Package No.2
Square No.1 this step is very
much like the rear gable.
V703 V704
m1
Part No. V703 V704 V009 012 V014 V015 V716 V718 V719 056 m1 a1 a2 a3 a9 p1 p8
Size 2563
8’47/8”
2563
8’47/8”
683
2’27/8”
1100
3’75/16”
1912
6’31/4”
1912
6’31/4”
2036
6’83/16”
594
1’113/8”
1245
4’1”
707
2’313/16”-M6x10 M6 M6x18
M6x15 -660
2’2”
Qty 1122111112116 20 2212
AA
BB
V009 V009
V703 V704
012 012
V716
V014 V015
V718
V719 C
1
3
5
2
6
4
056 056
Step 3

15
Square No.2 Assemble
polycarbonate panel #C
on part #V703 & #V704,
use part #V718 to fix it.
C
V718
2
V718
V704
V015
AA
V009 V009
3V704
V009
Square No.3 Af-
ter PC panels in
position, then adjust
the distance same
between PC panel
and keyway edge.
a3
V703 V704
V703 V704
Section View
V009
a9
a9
4V014 V009
056
056
012
a9
V704
Square No.4 Use
the part #056 to con-
nect the part #V009
& #V014.

16
Please note: 4 Bolts will need to be slid into each Part #V703 and #V704 for Ridge, hanging basket bar or horizontal rail
and Side sill beam in advance, Finger tightens the nuts for later use.(Bolts and nuts in Package No.3 of Roof/Side wall)
Square No.7 The bolt #a3 to fix #V718 is an extra
long stainless bolt. The bolt slides into part #V719 and
extends through parts #V703 & #V704.
V719
a3
B
p8
B
p8
V716
5V704
V716
p8
6
p8
V716
012
V014
Section view
Square No. 5
Inserting PC panel
#B in profiles’
channel. With PVC
anti-dust strip #p8
on bottom.
Square No.6
Connect Part
#V716.
Please Note: Don’t let this bolt block polycarbonate panel to
insert into part #V703&V704 alu. frame channel. Insert PC panel
first, then slide this bolt in part #V703&V704 profile’s trough.
V703 V704
V719
a3
7
V718

17
Step 4 Spirit 7’ Extension (V7 EXT A-Frame)
Part No. V743 761 762 m1 a1 a2 a8
Size 2557
(8’411/16”) 2524 (8’33/8”) 650 (2’19/16”) -M6x10 M6 M6x15
Qty 2211614 8
V743 V743761 761
762
1
2
3
4
5
123
45
V743
761
a8/a2
15mm
V743
761
a8/a2 V743
761
a8/a2
761
V743
762
a1/a2 V743 V743
761 761
a1/a2
a8/a2
Please connect V743 glazing bar first
(on both sides), then have T-shape 761
connection bar go over the V743 (on
the inside).
Please Note: The bottom end part of
T-shape 761 bar is not connected to
the base and should be secured
15mm (~5/8 inch) shorter (see image
1). This is very important.

18
1
m1
Step 5
Connect to the Rear gable
to make 7x7 Main house
Connect to the first
V7 Extension A-Frame
V021
V026
V026
1
2
Part No. Size Spirit
V707
V021 2197
7' 2 1/2" 1
V026 2176
7' 1 11/16" 2
2
Square No.1 Attaching the ridgepole to the gables, this is
where you may have to adjust bolts in plate #m1 to fit the
pole into gables. Slide the bolt with the nut on up the trough
of ridgepole and tighten.
Square No.2 Connect side sill beam with curved corner
bar, this can be one of the easiest. This is where you will use
an open-end 10mm wrench. Because of the tight corner, it is
difficult to work with the nut driver. Once you have attached
side sill to curved corner bar, bring the corner together and
slide the bolt down into the slot. Tighten with the open-end
wrench.
a1/a2
V021
V026
34
Connect with A-Frame
V021
V026
069
a8/a2
V743
761 a8/a2
Without
extension kit
With
extension kits
For 7x7 greenhouse, connect Front gable directly with Rear gable by ridge and
side sill beam.
For longer greenhouse sizes connect Front Gable with the first A-Frame (as
shown on page 17) by ridge and side sill beam, and then continue connecting
other extension sets in the same way. When you have connected all 7' exten-
sions included, connect the Rear gable.

19
Step 6
2
m7
Square No.1 You may loosen the bolts in corners and re-tighten it
at the trough of base legs.
Square No.2 Assemble greenhouse frame on base by connector
m7 in the middle of bottom.
Center
1
Corner
a1-M6x10 a1-M6x10
Corner
Center
a8-M6x15
a8-M6x15
With Alu. base
3
a8/a2
V743
761
Connecting greenhouse to Aluminum Base.

20
1
2
3
012
012
741
741
Hanging basket bar
Horizontal rail
4
031
036
Step 7 Package No.3
Before assembling polycar-
bonate panel and glazing
bar. Please connect hang-
ing basket bar and horizontal
rail on front and rear corner
bars, also connect roof and
sidewall bracing bars (#741
& #012). Then the green-
house will be in straight
shape structure. Then we
can start to assemble PC
panels and glazing bars
smoothly.
Spirit 7x7 main house (V707)
Roof/side wall
Spirit 7x7 main house (V707)
For Spirit 7’ Extension (V7-EXT)
Roof / Side wall parts and QTY ,
please see page 26.
Part No. Size Spirit
V707
031 2163
7' 1 3/16" 2
036 2163
7' 1 3/16" 2
012 1100
3’75/16”4
741 939
3’15/16”4
V042 683
2’27/8”6
V743 2557
8’411/16”4
a1 M6x10 64
a2 M6 72
a8 M6x15 8
p7 682
2’27/8”6
34
012
741
1
012
2
741
