Clarke Air CAT176 Installation and operation manual

OPERATING & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC0418 - ISS 1
MULTI-SANDER KIT
MODEL NO: CAT176
PART NO: 3120193

2
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
INTRODUCTION
Thank you for purchasing this CLARKE Air Tool Kit.
Before attempting to use this product please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
Your tool kit has been designed to give long and trouble free service. If,
however, having followed the instructions in this booklet carefully, you
encounter problems, take the unit to your local CLARKE dealer.

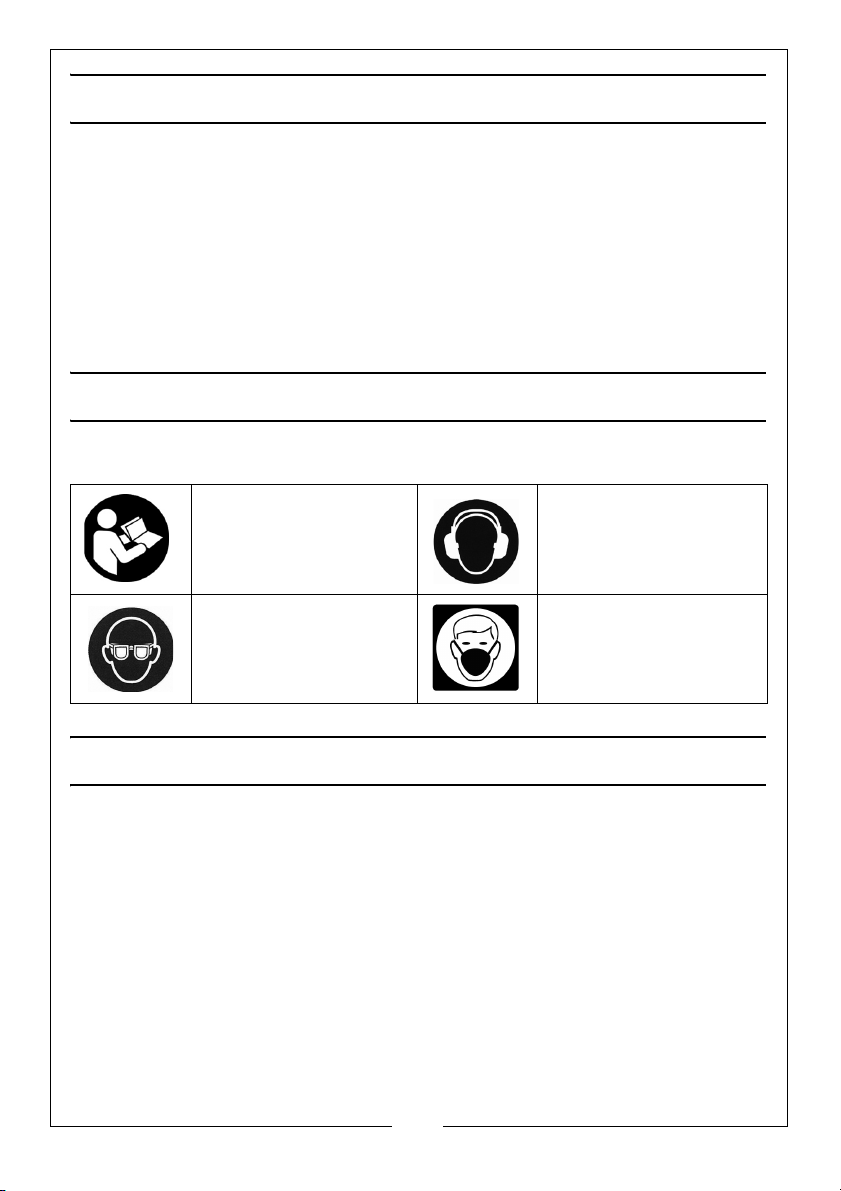

SAFETY SYMBOLS
The following safety symbols are to be found on the air tool.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended. Faulty goods should be returned to their place of purchase, no
product can be returned to us without prior permission. This guarantee does
not effect your statutory rights.
Read this instruction
booklet carefully
before use.
Wear ear protection.
Wear eye protection. Wear dust mask.

3
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
GENERAL SAFETY RULES
WORK ENVIRONMENT
1. Keep the work area clean and tidy.
2. Dress appropriately - Do not wear loose clothing or jewellery. Tie long hair
out of the way.
3. Keep children and visitors away - Do not let children handle the tool.
4. Do not use the tool where there are flammable liquids or gases.
PERSONAL SAFETY
1. Stay alert and use common sense - do not operate the air tool when you
are tired or under the influence of alcohol, drugs or medication.
2. Always wear eye protectors when using the tool. Eye protectors must
provide protection from flying particles from the front and the side.
3. Always wear ear protectors when using the air tool.
4. Always wear a dust mask when operating this type of tool.
5. Do not overreach - Keep proper footing and balance at all times.
6. Ensure wrenches are disconnected from the air tool before turning it on. A
wrench left attached to a rotating part of the tool may result in personal
injury.
USE OF AIR POWERED TOOLS
1. Never use oxygen, CO2, combustible gases or any type of bottled gas as a
source of power for the tool.
2. Do not connect the air supply hose with your finger on the trigger.
3. Do not exceed the maximum pressure for the tool of 90 psi / 6.2 bar.
4. Check hoses for leaks or worn condition before use and ensure that all
connections are secure.
5. Do not use the tool for any other purpose than that described in this
manual.
6. Keep the air supply hose away from heat, oil and sharp edges.
CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN
PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY.

4
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
7. Do not fit the tool to any stand or clamping device that may damage it.
8. Do not carry out any alterations or modifications to the tool.
9. Always disconnect from the air supply when:
• Performing any maintenance.
• The tool is not in use.
• The tool will be left unattended.
• Moving to another work area.
• Passing the tool to another person.
10. Never use the tool if it is defective or operating abnormally.
11. The tool should be serviced at regular intervals by qualified service
personnel.
12. Avoid damaging the tool by applying excessive force of any kind.
13. Always maintain the tool with care. Keep it clean for the best and safest
performance.
14. Quick change couplings should not be located at the tool. They add
weight and could fail due to vibration.
15. Do not force or misuse the tool. It will do a better and safer job at the rate
for which it was designed.
16. Do not remove any labels. Damaged labels should be replaced.
17. This tool vibrates with use. Vibration may be harmful to your hands or arms.
Stop using the tool if discomfort, a tingling feeling or pain occurs. Seek
medical advice before resuming use.
USE OF THE GRINDING TOOLS
1. Try to hold the tool with both hands. Ensure that the workpiece is kept at
waist height where possible. Never use the tool between the legs whilst
sitting on the floor.
2. Ensure that sparks and particles resulting from use do not create a hazard,
Use screens where appropriate.
3. Never bump the grinding stones onto the workpiece, or let it hit any other
objects while grinding.
4. Always allow the tool to run up to full operating speed before applying it to
the job.
5. Use clamps, or vices to hold the workpiece. Failure to secure the workpiece
could result in personal injury.

5
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
USE OF THE SANDING DISCS
1. Inspect any sanding disc before use. Do not use if split or broken.
2. Avoid contact with the moving sanding disc and wear gloves to protect
the hands.
3. Never run the tool unless the abrasive pad is applied to the workpiece.
4. Beware of potentially explosive atmospheres being caused by dust / fumes
resulting from sanding and used dust extraction systems where possible.
5. Always wear a face mask when using the sander as protection from
airbourne particles of sanded material. Avoid disturbing existing dust and
minimise the scattering of dust in the worplace environment. Take steps to
control the dust at the point of emission.
TRANSPORTATION AND STORAGE
1. Never carry the tool by the air supply hose or with your finger on the trigger.
2. When not in use the tool should be disconnected from the air supply and
stored in a dry place out of the reach of children.
3. Avoid storing the tool in environments where the temperature is below 0oC.
SPECIFICATIONS
Please note that the details and specifications contained here are correct at
the time of going to print. However CLARKE International reserve the right to
change specifications at any time without prior notice.
Model Number CAT176
Dimensions (L x W x H) 155 x 38 x 74 mm
Weight (tool only) 0.7 kg
Air Inlet Size 1/4“BSP (female)
Operating Pressure 90 psi (6.2 bar)
Measured Air Consumption 12 cfm maximum
No Load Speed 17,000 rpm @ 90psi
Sound Pressure Level (LpA dB) 88 dB(A)
Sound Power Level (LwA dB) 99 dB(A)
Vibration Levels <2.9 m/s2

6
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
CONTENTS OF THE KIT
When opening the case for the first time, check that all items are present. Any
damage or deficiency should be reported to your CLARKE dealer
immediately.
NO DESCRIPTION NO DESCRIPTION
1 Sanding Arbor 6 2 x Wrenches (11 and 17 mm)
2 5 x 75 mm Sanding Pads 7 1 x Male Snap Connector
3 CAT176 Air Tool 8 2 x Collets (1 already fitted to tool)
4 Oil Bottle 9 10 x Grinding Stones
5 5 x 50 mm Sanding Pads

7
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
COMPRESSED AIR REQUIREMENTS
• Use only clean, dry, regulated compressed air as a power source.
• Air compressors used to drive this tool must comply with the
appropriate European Community Safety Directives.
• A build-up of moisture or oil in the air compressor will accelerate
wear and corrosion in the tool. Ensure any moisture is drained from
the compressor daily and the inlet filter is kept clean.
• If an unusually long air hose is required, (over 8 metres), the line
pressure or the hose inside diameter may need to be increased.
• The air hose must be rated at least 150% of the maximum operating
pressure of the tool.
• A typical air line layout is shown above. If an automatic in-line filter/
regulator is used, it will keep the tool in good condition, but should
be regularly checked and topped up with oil. SAE 10 oil should be
used and the lubricator adjusted to approx 2 drops per minute.
• Never exceed the maximum operating pressure for the tool. It is
recommended that air pressure does not exceed 90 psi when
running. Higher pressures and contaminated air will shorten the life of
the tool due to faster wear and is a possible safety hazard.
WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU
ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF AIR
COMPRESSORS AND COMPRESSED AIR SUPPLIES.

8
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
BEFORE USE
CONNECTING AIR HOSES
NOTE: Ensure the compressor is turned off while connecting hoses.
1. If required, connect an in-line lubricator to the tool.
• A lubricator helps to prolong the life of the air tool.
2. If a lubricator is not being used, run
a few drops of oil through the tool
before use. It can be entered
through the air inlet or via the hose
at the nearest connection to the
air supply.
3. Connect a suitable hose to the air
inlet as shown.
4. Connect the other end of the hose
to the compressor.
Your air tool is now ready for use.
You can fit a whip hose with a quick fit coupling if required (available from
your Clarke dealer).
INSTALLING THE COLLET
1. Select the grinding stone you require.
2. Two collets of different sizes are
provided. Select whichever fits
the shank of the stone you have
chosen.
• One collet may already be
installed in the grinder.
3. If the other collet is to be used,
undo the retaining collar
completely and pull out the collet
from the collet seat. Replace it
with the new collet and screw the collar loosely back on.
WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU
ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF AIR
COMPRESSORS AND COMPRESSED AIR SUPPLIES.

9
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
FITTING THE GRINDING STONE
IMPORTANT: Never use chipped or cracked grindstones.
1. Slip the shank of the chosen stone
into the collet and tighten the
retaining collar finger tight.
2. Place the smaller of the two
wrenches over the collet seat to
stop the tool from rotating.
3. Use the larger wrench to fully
tighten the collet and grip the
stone in position as shown.
FITTING THE SANDING DISC
1. Fit the larger collet to the tool and
slip the spindle into the collet.
Secure in place by tightening the
collar as above.
2. Screw the sanding arbor onto the
spindle and secure by tightening
the nut against it using the larger
wrench.
3. Screw the sanding pad onto the
sanding arbor.
OPERATING THE TOOL
1. Use your thumb to slide the
throttle locking lever forward while
squeezing the trigger against the
body of the tool.
2. Adjust the tool speed by varying
the pressure on the trigger.
3. Do not use excess pressure on the
grinding stone as this will shorten
its life.
4. Release the trigger to stop the
tool.
• The tool will continue to rotate for a short time after the trigger has
been released.
5. Always ensure the tool has stopped before putting it down.

10
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
SANDING AND GRINDING TIPS
• Do not force the disc or stone against the material.
• The key to efficient grinding is to control the pressure and surface
contact between the grinding tool and the workpiece.
• Allow the tool to reach full speed before grinding.
• Avoid overloading the grinder. If it becomes hot during use, rest for a
few minutes while it cools down.
TROUBLESHOOTING
SYMPTOM PROBLEM SOLUTION
Tool runs at normal
speed but slows down
under any load.
1. Excessive pressure on
tool.
2. Motor parts worn.
3. Worn or sticking
mechanism due to
lack of lubricant.
1. Reduce the force
applied to the tool.
2. Return to Clarke dealer
for repair.
3. Drip air tool lubricating
oil into the air inlet. Allow
oil to soak the moving
parts before using.
Tool runs slowly. Air
flows weakly from
exhaust.
1. Motor parts jammed
with gum/dirt.
2. Regulator in closed
position.
3. General airflow
blocked by dirt.
1. Examine inlet air filter for
cleanliness.
2. Adjust the regulator to the
open position.
3. Operate the tool in short
bursts.
Tool will not run. Air
flows freely from
exhaust.
1. Motor vanes stuck
due to buildup of
foreign material.
1. Disconnect air supply
and rotate tool assembly
manually.
2. Try operating tool in
short bursts.
3. Drip a few drops of air
tool lubricating oil into
the air inlet to soak moving
parts.
Tool will not shut off. 1. Throttle O-rings
damaged or ill-fitting
in seat.
1. Return to Clarke dealer
for repair.

11
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
DISCONNECTING THE AIR SUPPLY
1. Do not disconnect the air supply hose until the compressor has been shut
down and the compressed air released.
2. Refer to the compressor instruction manual for the procedure to shut down
and release the compressed air.
3. Once the pressure has been released, disconnect the air supply hose from
the air tool.
MAINTENANCE
DAILY
1. Before use, drain water from the air tank, air line and compressor.
2. Pour a few drops of CLARKE airline oil into the air inlet. This should be carried
out regardless of whether or not an in-line mini oiler is used. If an in-line
lubricator is not used, this procedure should be repeated after every two to
three hours of use.
WEEKLY

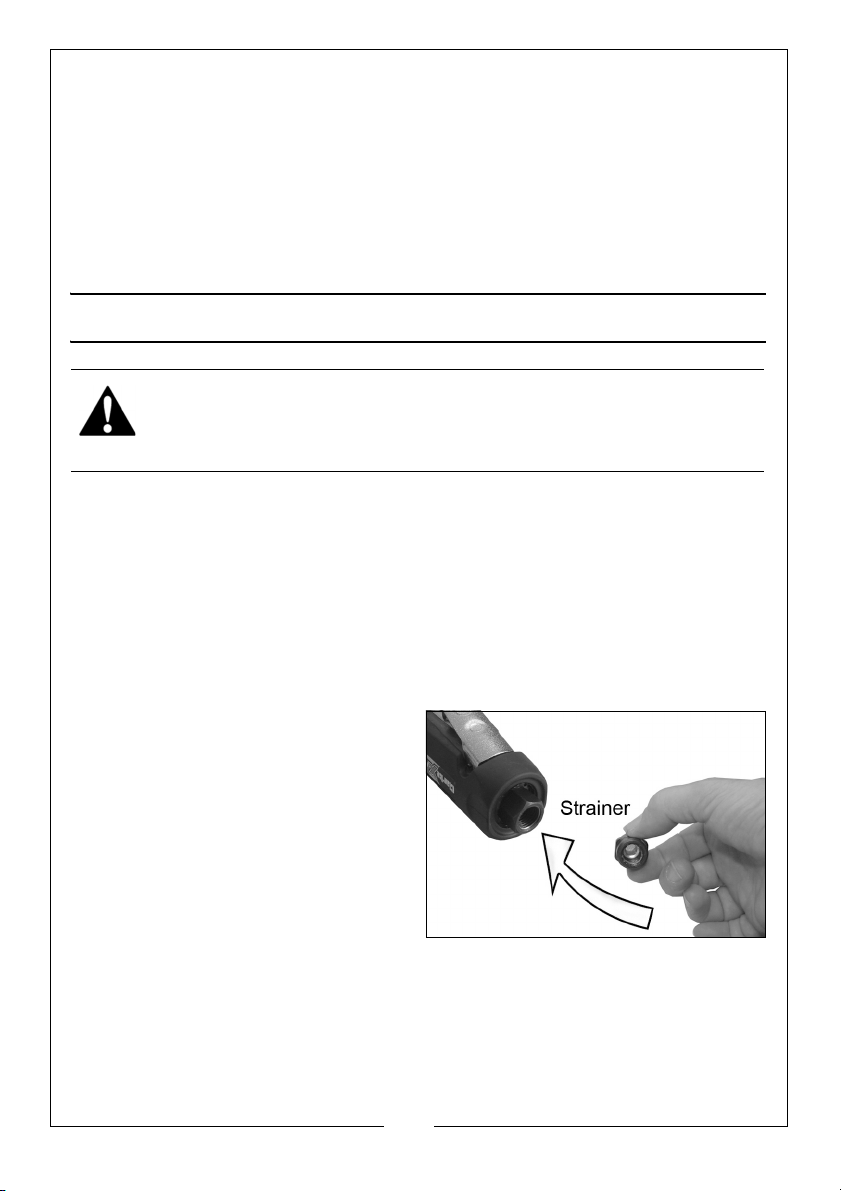

1. Check the air inlet strainer for
blockage and clean if necessary.
CLEANING
1. Keep the body of each tool clean
and free from debris.
2. Grit or gum deposits inside the tool
may also reduce its efficiency. This
condition can be corrected by
cleaning out the air strainer and
flushing out the tool with gum solvent or oil, or failing this, the motor may
require dismantling. This is better left to your Clarke dealer.
WARNING: MAKE SURE THAT THE AIR TOOL IS DISCONNECTED FROM THE
AIR SUPPLY BEFORE STARTING ANY CLEANING OR MAINTENANCE
PROCEDURES.

12
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

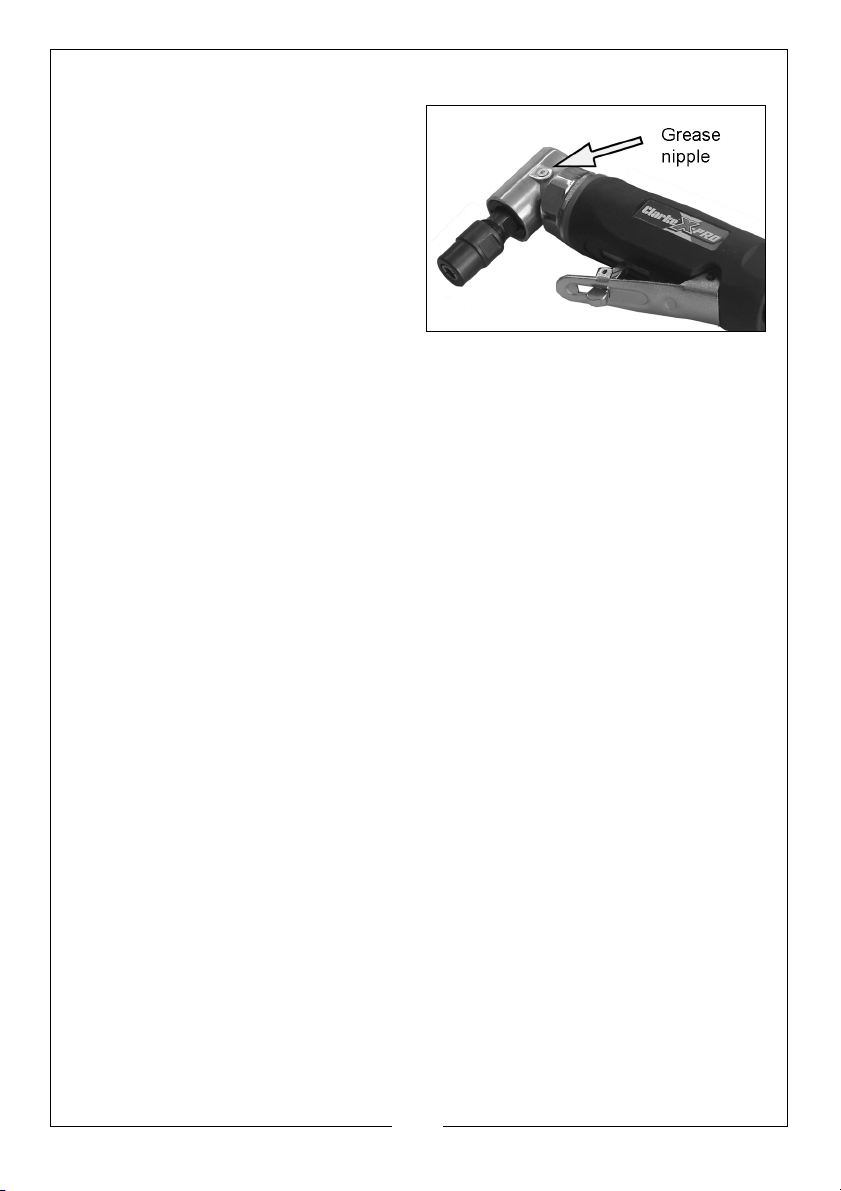

GREASING
The right angle drive is fitted with a
grease nipple to provide a facility for
lubrication of the drive gears.
1. After extensive use, apply a shot
of general purpose grease using a
suitable grease gun.
SERVICE AND REPAIR
If the tool runs erratically or becomes
inefficient although the air supply is in
good order, it may be necessary to dismantle the air motor and replace any
worn or damaged parts. Such servicing and repair work should be carried out
by a qualified service technician.
PERFORMANCE
Please note that factors outside the tool may effect its operation and
efficiency such as reduced compressor output, excessive air demand from
the airline, moisture or restrictions in the air-line, or the use of connectors of
improper size or poor condition which will reduce air supply.
**Clarke Air Line Oil (part no. 3050825) is available from your CLARKE dealer.
STORAGE
If the tool is to be stored, or is idle for longer than 24 hours, run a few drops of
Clarke air line oil into the air inlet, and run the tool for 5 seconds in order to
lubricate the internal parts.
When not in use, disconnect from air supply, clean tools and store in the
moulded case provided. When storing, ensure the blanking plug is replaced
on the airline connector once the airline is disconnected.
ACCESSORIES
A wide range of accessories is available including filter/regulators, lubricators,
high-pressure hoses (5 to 50 metres) etc. Contact your CLARKE dealer for
further information or CLARKE International Service Department.

13
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
DECLARATION OF CONFORMITY

14
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
PARTS LIST
No Description No Description
1 Main Housing 21 Bush
2 Lever Trigger 22 Front Plate
3 Lever Block 23 Steel Ball
4Spring 24Bearing
5 Roll Pin 25 Primary Gear
6 Roll Pin 26 Decorating Ring
7 O-Ring 27 End Fixing Ring
8 O-Ring 28 End Nut
9 Valve Stem 29 Gear Casing
10 Spring 30 Lubricating Nipple
11 O-Ring 31 Bearing
12 Screw Cap 32 Secondary Gear
13 Exhaust Muffler 33 Bush
14 Inlet Connector 34 Spindle
15 Bearing 35 Woodruffe Key
16 Rear Plate 36 Collet
17 Bolt 37 Collet Retaining Collar
18 Rotor 38 Soft Grip
19 Rotor Blade 39 Wrench (small)
20 Cylinder 40 Wrench (large)

15
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
PARTS DIAGRAM
