Clarke BEXT 100H User manual

Form No. 70416A 7/06 Clarke®Printed in the U.S.A.
READ THIS BOOK
This book has important information for the use and safe operation of this machine. Failure to read this
book prior to operating or attempting any service or maintenance procedure to your Clarke machine
couldresultininjurytoyouortootherpersonnel;damagetothemachineortootherpropertycouldoccur
aswell. Youmusthavetrainingintheoperationofthismachinebeforeusingit. Ifyouroperator(s)cannot
read English, have this manual explained fully before attempting to operate this machine.
Si Ud. o sus operadores no pueden leer el Inglés, se hagan explicar este manual completamente antes
de tratar el manejo o servicio de esta máquina.
All directions given in this book are as seen from the operator’s position at the rear of the machine.
For new books write to: Clarke®, 2100 Highway 265, Springdale, Arkansas 72764.
BEXT®-100, 100H,
150H, 300HV
120V
Extractor's
Operator's Manual
Manual del Operador
Manueldel'operateur
Order Parts Here:
www.ivie-ent.com/parts
Ph:[phone]

Page 2 Clarke® BEXT®-100, 100H 150H, 300HV Operator's Manual
CONTENTSOFTHISBOOK
OperatorSafetyInstructions .................................................................................. 5
IntroductionandMachineSpecifications..................................................................6
ControlsandMachineFeatures...............................................................................12
HowtoPreparetheMachineforOperation ..............................................................14
Set-Up........................................................................................................14
BEXT®-100ControlPanel .............................................................................16
BEXT®-100HControlPanel...........................................................................16
BEXT®-150HControlPanel...........................................................................18
BEXT®-300HVControlPanel ........................................................................18

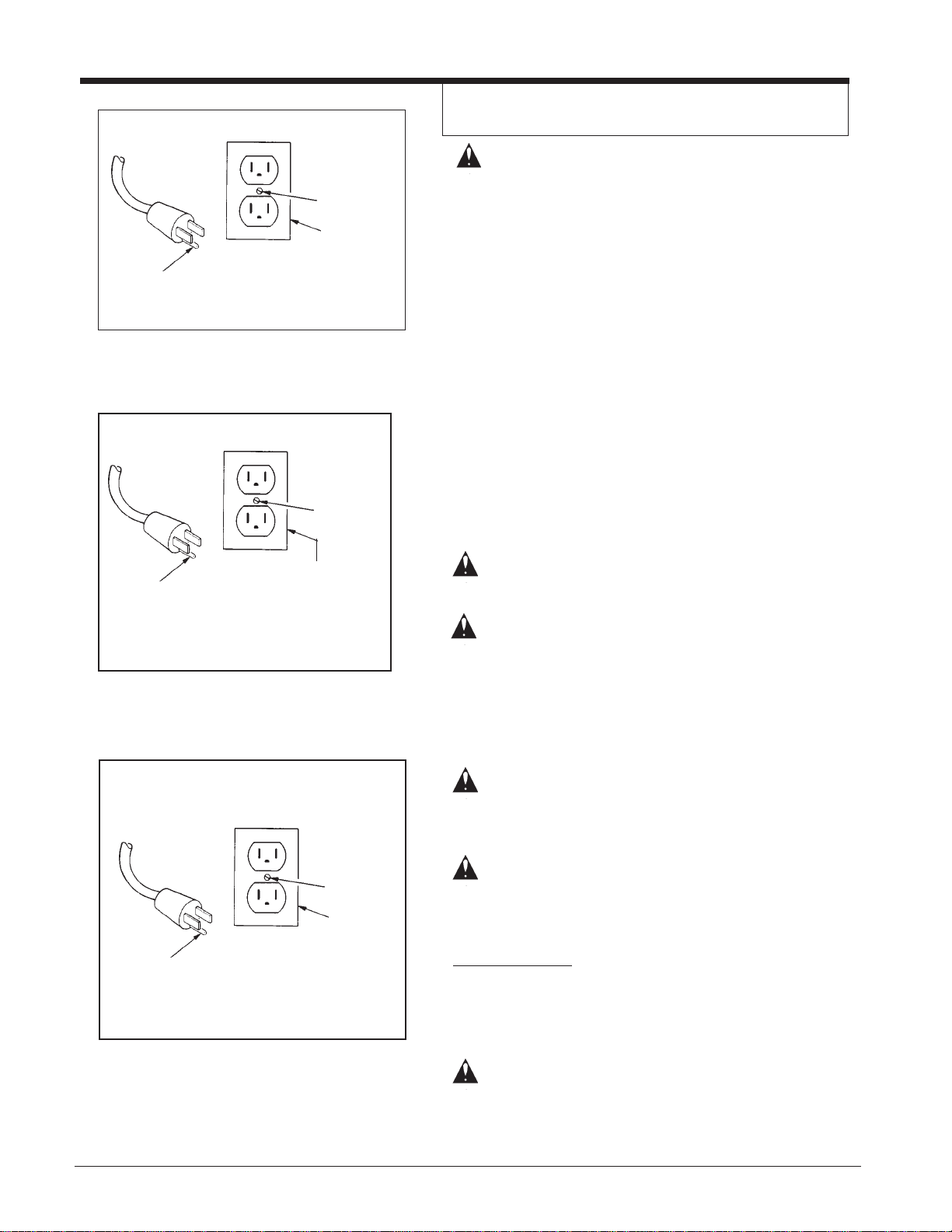

InstructionsforConnectiontothePowerSupply-120V
ExtensionCords - 120V .............................................................................20
MachineOperatingInstructions ...............................................................................22
HowtoCleananAreaof Carpet..................................................................22
HowTocleanaLargerAreaofCarpet.........................................................22
Maintenance ...........................................................................................................24
After Each Use of the Machine ...................................................................24
HowtoPreventDamagefromFreezingTemperatures.................................26
The PumpandVacuumMotor ...................................................................26
HowToCheckTheCommutatorandTheCarbonBrushes..........................28
How to Correct Problems in the Machine.................................................................30

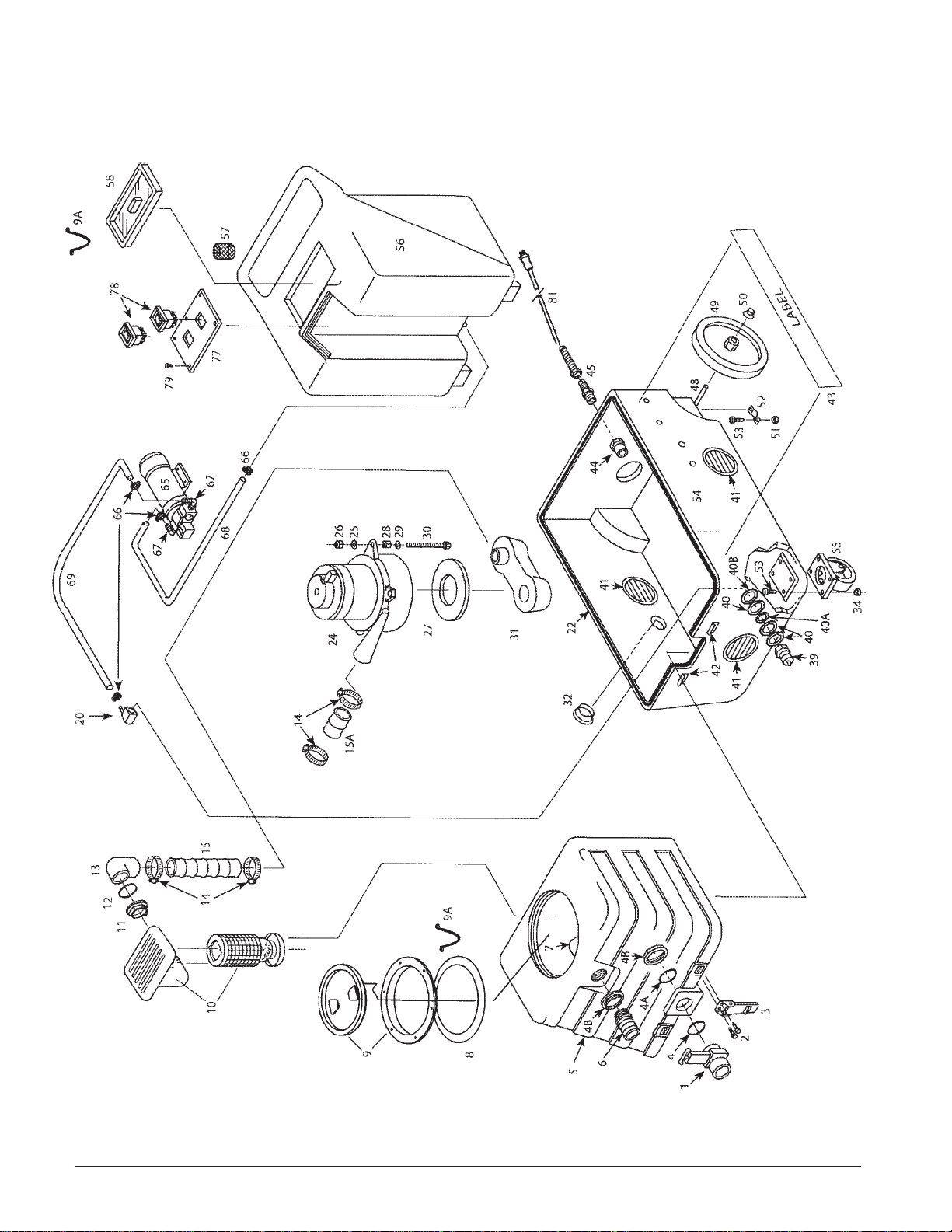

BEXT®-100 AssemblyDrawing .................................................................................34
Parts List ................................................................................................35

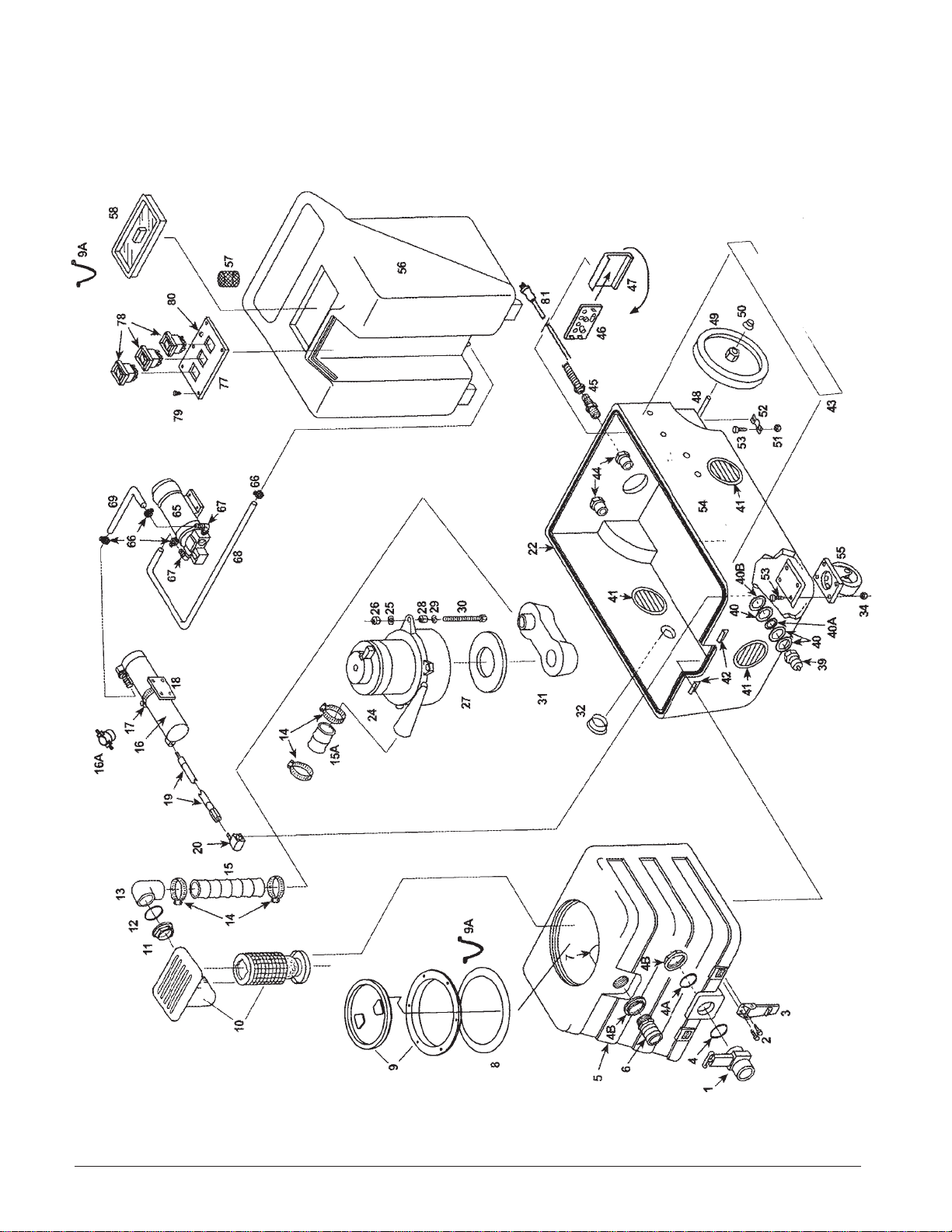

BEXT®-100H AssemblyDrawing...............................................................................36
Parts List ................................................................................................37
BEXT®-150H AssemblyDrawing...............................................................................38
Parts List ................................................................................................39
BEXT®-300HV AssemblyDrawing ............................................................................40
Parts List ................................................................................................41
BEXT®-100Accessories............................................................................................42
BEXT®-100HAccessories .........................................................................................43
BEXT®-150HAccessories .........................................................................................44
BEXT®-300HVAccessories.......................................................................................45
ControlPanelWiringDiagram .................................................................................46
Electrical Schematic 120V ......................................................................................47

Clarke® BEXT®-100, 100H 150H, 300HV Operator's Manual Page 5
OPERATORSAFETYINSTRUCTIONS
WARNING AVERTISSEMENT ADVERTENCIA
Forthesafe operation ofthismachine,readand understand allwarningsandcautions.
DANGER means: Severebodily injury or death can occur to youor other personnelif
theDANGERstatementsfoundonyourmachineorinyourOwner's
Manualareignoredorarenotadheredto. Readandobserveall
DANGER statementsfoundinyourOwner'sManualandonyour
machine.
WARNING means:Injury can occur to you or to other personnel if the WARNING
statementsfoundon yourmachineorin your Owner'sManualare
ignoredorarenotadheredto. ReadandobserveallWARNING
statementsfoundin yourOwner'sManual and onyourmachine.
CAUTIONmeans:Damage can occur to the machine or to other property if the
CAUTIONstatementsfoundonyourmachineorinyourOwner's
Manualareignoredornotadheredto. Readandobserveall
CAUTIONstatementsfoundinyourOwner'sManualandon
yourmachine.
DANGER: Machinescancauseanexplosionwhenoperatednearflammablematerialsandvapors. Donot
usethismachinewithornearfuels,graindust,solvents,thinners,orotherflammablematerials.
DANGER: Do not immerse. To reduce the risk of an electric shock, use only on a carpet that has been
moistenedby a cleaningprocess. Protectthe machinefromrain. Keepthe machineina dry
building. Always clean the machine with a clean dry cloth.
WARNING: You must have training in the operation of this machine before using it. READ THE
INSTRUCTIONBOOKFIRST.
WARNING: Alwaysuseathree-wireelectricalsystem connected to the electrical ground. For maximum
protection against electric shock, use a circuit that is protected by a ground fault circuit
interrupter. Consultyourelectricalcontractor.
WARNING: To prevent electric shock, always remove the electrical plug from the electrical outlet before
doing any repairs or maintenance to this machine.
WARNING: Do not use this machine as a step or furniture. Injury could occur to the operator.
WARNING: Toavoidseriousinjury,useproperliftingprocedureswhenliftingthemachine.
WARNING: Maintenanceand repairsmustbe donebyauthorizedpersonnelonly.
WARNING: Keep all fasteners tight. Keep the adjustments according to specifications.
WARNING: Makesurethatallthe labels, decals, warnings, cautions and instructionsarefastenedtothe
machine. Replace them when necessary by ordering them from Clarke.
WARNING: Do not use water that is hotter than 120°F (40°C).
WARNING: If foam/liquid comes out, stop extracting immediately. Allow vacuum('s) to run until exhaust
air is dry.

Page 6 Clarke® BEXT®-100, 100H 150H, 300HV Operator's Manual
OPERATORSAFETYINSTRUCTIONS(CONT.)
WARNING: Improper discharge of waste water may damage the environment and be illegal. The United
States Environmental Protection Agency has established certain regulations regarding dis-
charge of waste water. Also, city and state regulation regarding this discharge may be in effect
inyourarea. Understand and follow theregulationsinyour area. Be awareoftheenvironmental
hazards of chemicals that you dispose.
CAUTION: To prevent damage to the power cord, do not move this machine over the power cord, instead,
lift the power cord over the machine. If the cord supplied is damaged, it must be replaced by
the manufacturer, its service agent or a similarly qualifed person in order to avoid the hazard.
CAUTION: To prevent damage to the power cord and hoses, do not use the power cord or hoses to pull
the machine.
CAUTION: To prevent damage to the machine avoid extreme temperatures.
CAUTION: To prevent damage to the machine do not let pump run dry.
SPECIFICATIONS Bext 100 Bext 100H Bext 150H Bext 300H
Bext 100H Detailer Bext 150H Detailer
Part Number 04156A 04157A / 04158A 04147A / 04152A 04148A
Solution Tank 9 gallon rotationally molded 13 gallon rotationally molded
Solutin Pump 100 psi demand pump 150 psi demand pump 300 psi demand pump
Vacuum Motor 5.7", 3 stage (2) - 5.7" 2-stage 7.2" 3-stage
Waterlift 140" 150" 140"
Easy Circuit Locator N/A Standard Standard Standard
On-board Heater N/A Standard Standard Standard
Wand Double bend twin nozzle polished stainless steel
Power Cable 25 ft. 12-3 hosp. (2) 25 ft. 12-3 hosp. grade plug
grade plug
Wheels (2) 8" non-marking & (2) 3" casters (2) 10" non-marking & (2) 2" casters
Hose 15 ft. crushproof vacuum and high pressure solution line
Low Moisture System Standard
Float Shut-Off Standard
Weight 69 lbs. 75 lbs. 90 lbs. 119 lbs.
Warranty Product Lifetime (10 years) on tank and mainframe; 1 year Parts and labor
•The Model BEXT®-100, 100H, 150H or 300HV is an extractor for cleaning carpet. When used with a floor tool, the
machine applies cleaning solution to the carpet and removes the dirty solution and soil from the carpet.
•Theextractorhascontrolstostartthepumpforthesolutionandthemotorforthevacuum. Thefloortoolshavecontrols
to release the solution.
•The extractor has a bypass pump. The pump runs when switched on, bypassing solution internally to keep pressure
even.The extractor starts when the solution lever on the floor tool is activated.
NOTE: Whenusingthe extractor tocleancarpets,followthis procedure:
1. Do not walk on freshly cleaned carpets for at least four hours or until the carpet is dry to touch.
2. Donot removealuminumorplastic piecesthathavebeen placed underthelegs of furnitureuntil
the carpet is dry.
3. Do not allow children or pets to crawl or walk around on the damp carpet.
4. Vacuum right after the carpet is dry and then vacuum the carpet once a week as needed.
INTRODUCTIONandMACHINESPECIFICATIONS
INSPECTION:CarfefullyunpackandinspectyournewExtractorforshippingdamage. Eachunitistestedandinspected
before shipment. Any damage incurred is the responsibility of the carrier, who should be notified immediately.
CLEANING SOLUTIONS: We recommend liquid cleaning chemicals. A pH of 7-9 is strongly recommended to avoid
premature pump wear, which would voide the warranty.

Page 12 Clarke® BEXT®-100, 100H 150H, 300HV Operator's Manual
CONTROLS and MACHINE FEATURES

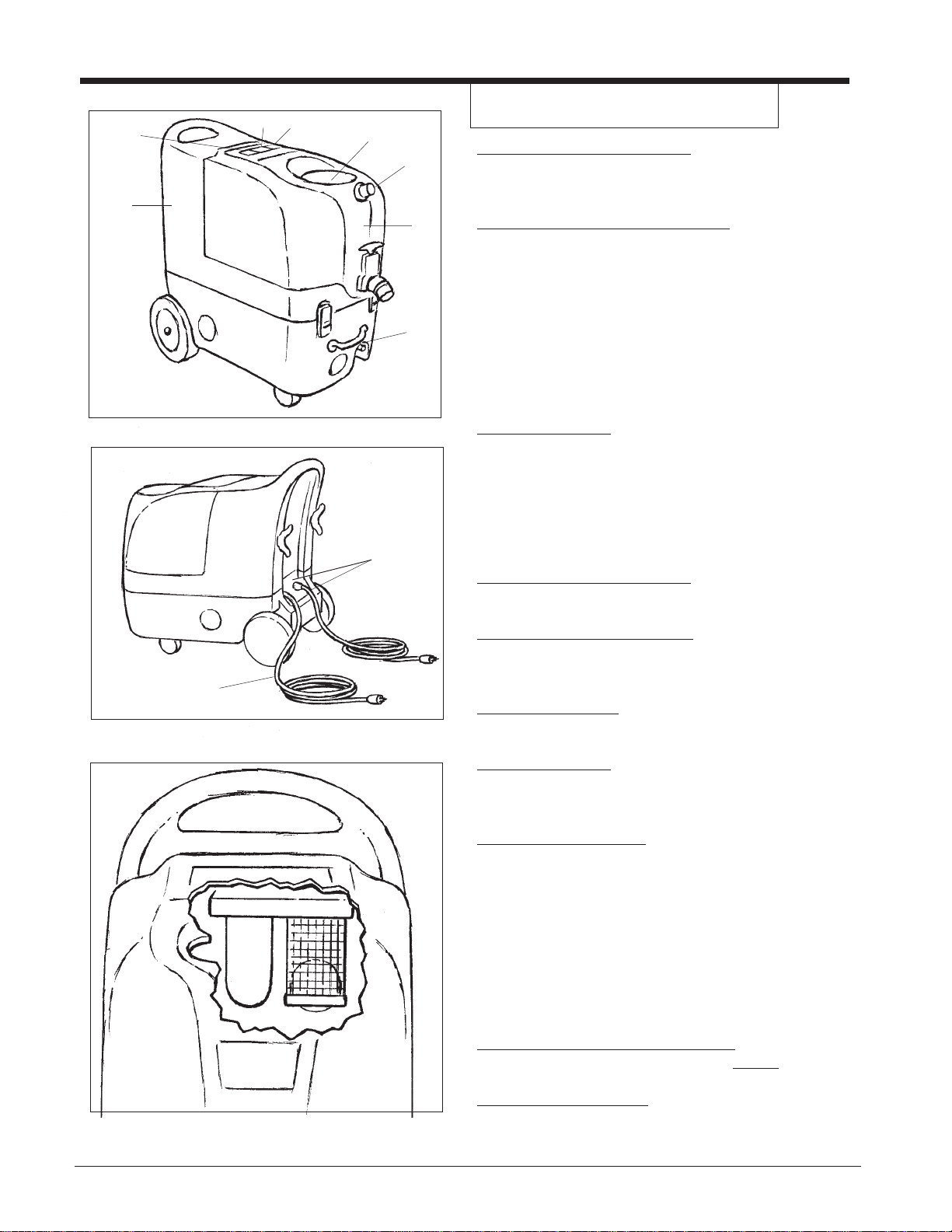

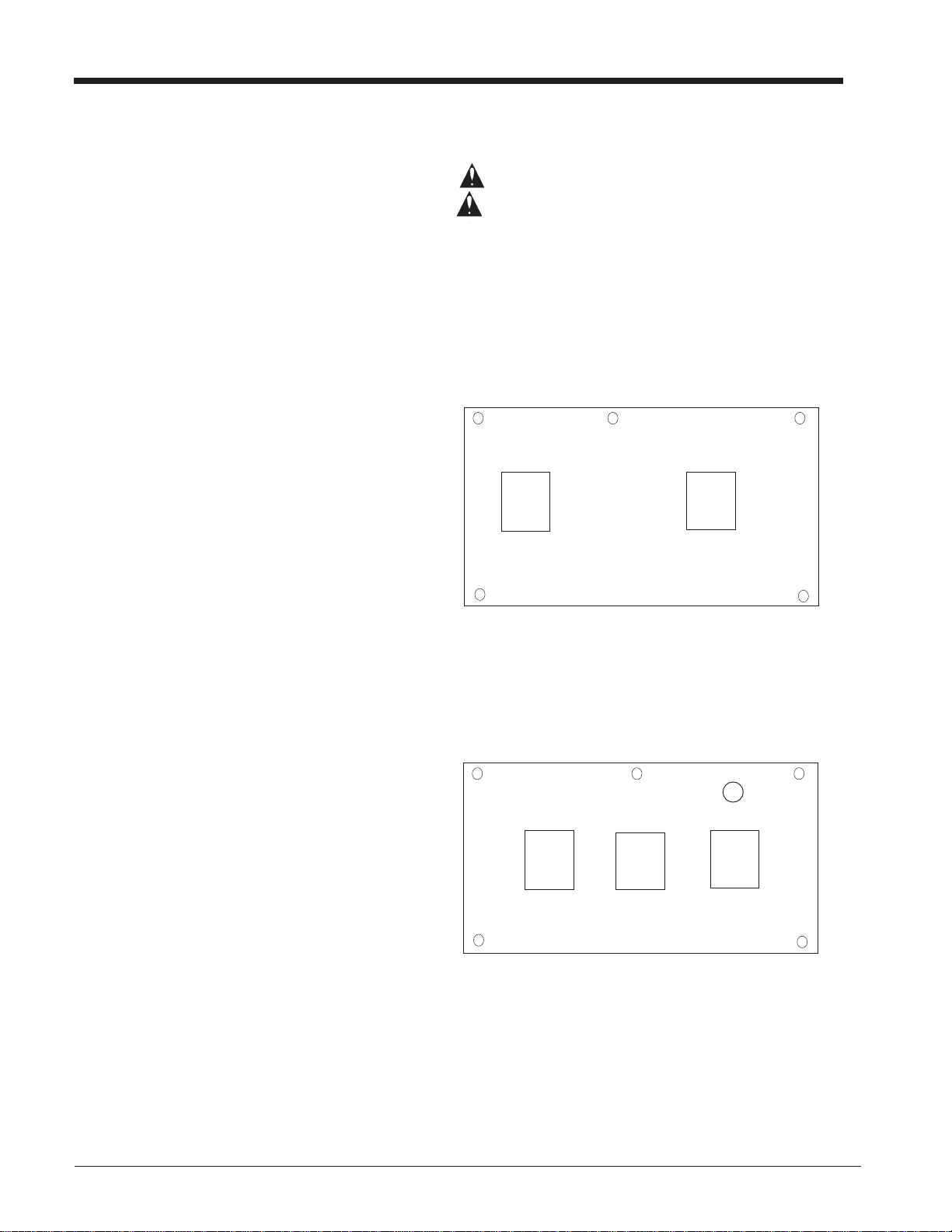

The Vacuum Motor Switches See Figure 1-A
Thevacuummotorswitchesarelocatedonthetopofthe
machine.
The Switch To Activate The Pump See Figure 1-B
Theswitchtostart/stopthepumpmotorisonthetopofthe
machine. Press the lever on the floor tool to start the
solutionflow. Releasetheleveronthefloortooltostopthe
solutionflow.
NOTE: While the BEXT-150 machine is in operation,
thepumpwillshut-offautomaticallywhenitreaches
full pressure. The pump will automatically turn on
when the pressure decreases.
The Float Shut-Off -SeeFigure 1C
Thefloatshut-offisintherecoverytank. Whentheliquid
raisesthefloat,theairstopsmovingthroughthemachine.
NOTE: To avoid vacuum motor damage, always
inspect the float filter and ball. Verify ball travels
easily prior to use of unit. See Figure 2
The Vacuum Hose Connector See figure 1D
Thevacuum hose connector is on thefront ofthe unit.
The Solution Hose Connector See Figure 1E
The solution hose connector is on the lower part of the
extractor,belowthevacuumhoseconnector.
The Recovery Tank See Figure 1F
The recovery tank is in the top of the machine.
The Solution Tank See Figure 1G
The solution tank is in the top of the machine next to the
recoverytank.
ElectricCircuitLocator SeeFigure1H
Thisunique,patented"smartsystem",operatedbyasolid
state circuit, will inform the operator when the two cords
are plugged into separate circuits by illuminating the
"Locator"indicatorlight. Thishelpspreventtrippingcircuit
breakers.
NOTE: Ground plug on the cord is required to allow
circuit locator to operate correctly. The system will
not function without proper ground.
The Machine Power Cord (Red "H") See Figure 1I
Thiscordpowersallmachinefunctionsexcepttheheater.
The Heater Power Cord See Figure 1J
Thiscordpowersheateronly.
Figure 1
1G
1H 1B 1A 1C
1F
1E
1D
Figure 1
1I
1J
Figure 2

Page 14 Clarke® BEXT®-100, 100H 150H, 300HV Operator's Manual

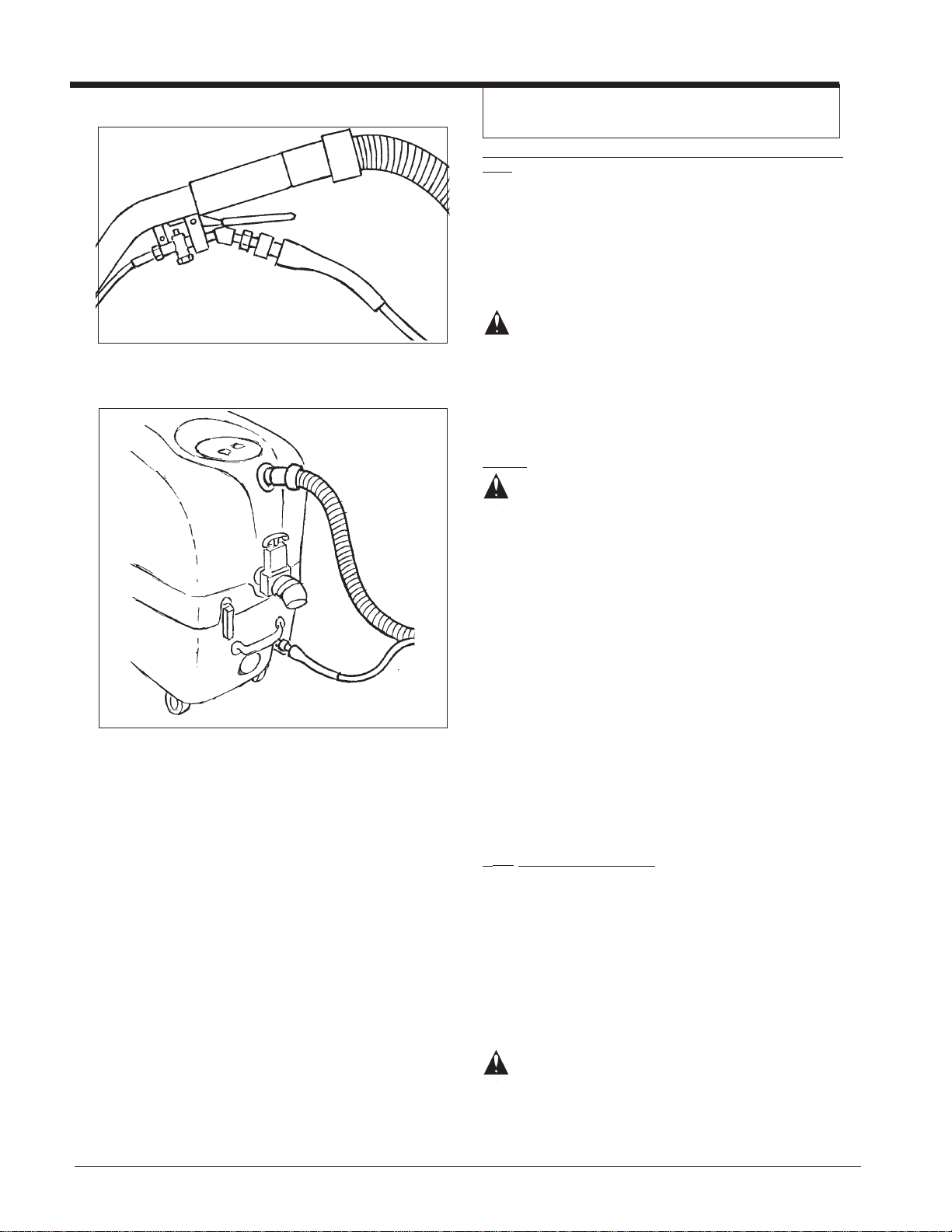

Topreparethe machineforoperation,followthisproce-
dure:1. Connect the vacuum hose to the hose connector
on the extractor and to the end of the vacuum tube
on the floor tool. See Figure 1 D, E
2. Connect the solution hose to the extractor and the
floor tool. To fasten the quick disconnect fitting,
slide the knurled collar on the female coupling
away from the opening. Push the male coupling
into the female coupling. See figure 3 A & B
WARNING: Do not use water that is hotter than
120°F (48°C).
3. Before moving the extractor onto the carpet, put
clean hot water into the solution tank.
4. Add a cleaning chemical, such as Clarkare®Ex-
tractor Concentrate, to the hot water. For the
correctamount, followthe directionsshown onthe
container.
Set-Up
WARNING: We recommend that you use liquid
cleaningchemicals. Powdercandam-
age machine. Powders can cause
build-up in the lines, heater, pump,
quick disconnects, etc., all of which
would void the warranty on those
items. A pH of 7-9 is strongly recom-
mendedtoavoiddamageandprema-
ture wear to the pump, which would
void the warranty.
Fill the holding tank with clear water and the detergent of
your choice. Mix well. Although this machine is designed
tosupplyinstant hotwater,theadditionofwarmorhotwater
to the holding tank is beneficial and will reduce pre-heat
times.
A. Plug in cord #1 (vac and pump), identified by the red "H"
on the end of the cord. Attach the priming hose to the
machine(on300HVonly). Turnthepumponandsetthe
switch to the upholstery setting. Run until the pump is
fullyprimed,thenturnoffthepump. Removethepriming
hose and attach the cleaning hoses and tool.
B. Turn on the pump and spray through the cleaning tool
for a few seconds to fill the lines with solution.
BEXT®100H, 150H & 300HV
C. Plug in cord #2. The "Locator" light will illuminate when
the cords are plugged into separate circuits. Turn the
"Heat" switch on; wait two minutes for the heat ex-
changer to reach operating temperature. You may now
begin cleaning. It will take about 10 seconds for the
initial heat to reach the wand. The "Mode" light will turn
on when the heat exchanger is actively heating. (See
Figures 5, 6 and 7)
NOTE:Ifthe"Locator"indicatorlightdoesnotilluminate
when cord #2 is plugged in, then both cords are on the
same line. Try other outlets until the light comes on.
CAUTION: If both cords are plugged into the
samecircuitbreaker,thebreakermay
blow when operating with the heater
on.
Figure 3A
Figure 3B
HOWTOPREPARETHEMACHINEFOROPERA-
TION

Page 16 Clarke® BEXT®-100, 100H 150H, 300HV Operator's Manual
VACUUMSWITCH(1):Thevacswitchesilluminatewhenturned
on.
PUMP SWITCH (2): This switch will illuminate when the pump
is on.
5. If the extractor removes an excess amount of foam
from the carpet, add a de-foamer such as Clarkare®
De-foamer Concentrate to the recovery tank. The
amount needed will vary according to the amount of
detergent already in the carpet.
CAUTION: Topreventdamage,useawater-basedde-
foamer ratherthananoil-basedde-foamer.
CAUTION: Donot leavetheextractororothercleaning
machines or tools on the carpet when not
inuse. Cleaning solution in the machines
and tools can leak onto the carpet and
cause light spots or stains.
NOTE: To order Clarkare®Extractor Concentrate, order
part no. 398421. To order Clarkare®Defoamer,
order part no. 398420.
For instructions for preparation and operation of your floor
tool, read the instruction sheet given with your floor tool.
12
VAC PUMP
Figure 4
BEXT®-100 Control Panel
BEXT®-100H Control Panel
CIRCUITLOCATOR(1):Whenthislightison,itindicatesthatcord
#2 is on a separate line from cord #1. Cord #2 supplies voltage
to the heater allowing it to heat to the proper temperature range.
VACUUM SWITCH (2): The vacuum switch will illuminate when
the vacuum motor is turned on.
PUMP SWITCH (3): This switch will illuminate when the pump
is on.
HEAT SWITCH (4): The heat switch will illuminate when it is
activated and will turn the heater on.
234
VAC PUMP HEAT
Figure 5
1
LOCATOR

Page 18 Clarke® BEXT®-100, 100H 150H, 300HV Operator's Manual
123
VAC PUMP
VAC( 1)&PUMP (2) SWITCHES: Theseswitchesarepowered
by cord #1 (4" red band). Switches are on when illuminated.
CARPET / UPHOLSTERY SWITCH ( 3 ): This switch is also
powered by cord #1. The carpet setting (down position) is high
pressure (approximately 300 psi). The upholstery setting (up
position) is low pressure (approximately 75 psi). NOTE: Switch
does not illuminate.
HEAT SWITCH ( 4): Turning on this switch (switch illuminates
when on) turns the heater on.
GREENCIRCUITLOCATORLIGHT(5):Whenthislightisillumi-
nated, it confirms that the machine is on two separate circuits.
See previous page for additional information on the circuit
locator.
HEAT LIGHT MODE ( 6 ) : The light will only illuminate when the
heater uis heating and will turn off when it reaches operating
temperature.
Figure 7
BEXT®-300 HV Control Panel
4
HEAT
MODE
LOCATOR
5
6CARPET
345
VAC 1 VAC 2 PUMP
CIRCUITLOCATOR(1):Whenthislightison,itindicatesthatcord
#2 is on a separate line from cord #1. Cord #2 supplies voltage
to the heater allowing it to heat to the proper temperature range.
HEAT MODE LIGHT ( 2 ): This light will only illuminate when the
heater is heating and will turn off when it reaches operating
temperature.
VACUUM SWITCH ( 3 & 4): Each switch turns on one vac motor.
turn both switches on for maximum lift. The vac switches illumi-
nate when turned on.
PUMP SWITCH ( 5 ): This switch will illuminate when the pump is
on.
HEAT SWITCH ( 6 ) : The heat switch will illuminate when it is
activated and will turn the heater on.
Figure 6
6
HEAT
MODE
LOCATOR
1
2
BEXT®-150 H Control Panel
Upholstery

Page 20 Clarke® BEXT®-100, 100H 150H, 300HV Operator's Manual
INSTRUCTIONSFORCONNECTIONTOTHE
POWERSUPPLYANDELECTRICALGROUND- 120V
CAUTION: This machine will operate only on an
AC frequency and on the specified
electrical voltage shown on the name-
plate. Make sure you have the cor-
rect frequency and voltage before
connecting the power cord to an out-
let.
Thismachine mustbe connectedtoan electricallygrounded
circuit in order to protect the operator from electric shock.
This machine has an approved power cord with three
conductors as well as a plug with three terminals. Connect
the plug to a three holed receptacle. For maximum
protection against electric shock, use a circuit that is
protected by a ground fault circuit interrupter.
This machine uses a 120 volt AC 50/60 cycle electrical
circuit. Make sure you have the correct frequency and
voltage before connecting the power cord to an outlet. The
machine has a plug as shown in Figure 7. If a receptacle
connected to the electrical ground as shown in Figure 7 is
not available, contact an electrical contractor. Do not use
an adapter.
WARNING: To prevent possible electric shock,
protect the machine from rain. Keep
the machine in a dry building.
WARNING: To prevent possible electric shock,
always use a 3-wire electrical system
connected to the electrical ground.
For maximum protection against elec-
trical shock, use a circuit that is pro-
tected by a ground fault circuit inter-
rupter. Consult your electrical con-
tractor.
WARNING: Do not cut, remove, or break the
ground pin. If the outlet does not fit
the plug, consult your electrical con-
tractor.
WARNING: If the cords or plugs are worn or
damaged in any way, have them
replaced by an authorized service
person.
Extension Cords
Useonlyan approved extensioncordwith three conductors,
a plug with three terminals and a three-holed connector
body. This machine has a power cord with a wire size of 12
AWG. (AWG stands for American Wire Gauge).
CAUTION: If you use an extension cord, use one
that has a minimum wire size of 12
AWG. Be sure your extension cord is
no longer than 50 ft. Do not join two
extension cords.
Figure 7
Plate
Screw
Outlet must be
connected to
the electrical
ground
Ground Pin
Figura 7
Tornillo
de la
placa
Terminalde
tierra
Eltomacorriente
debeestar
conectadoal
bornedepuesta
atierra
Figure 7
Borne
mâlede
laprise
Fichedeterre
Leréceptacle
doitêtre
connecté à la
masse

Page 22 Clarke® BEXT®-100, 100H 150H, 300HV Operator's Manual
How To Clean A Larger Area Of Carpet See Fig. 8B
Tocleanalargerareaof carpet,follow thisprocedure:
1. Beginat the right-hand corner ofthecarpet.
2. Make a pass halfway along the edge of the carpet.
Pull the tool backward at a steady speed.
3. Movetotheedgeofthecarpet. Makeanotherpass
next to your first pass.
4. As you make more passes, repeat one inch of the
areaalreadycleaned. Ifyouuseapowerbrushtool,
repeat one inch of the area already cleaned by the
brush. Makeeachpassfourinchesdifferentinlength
to prevent making a line in the center of the carpet.
5. Makemorepassesuntilhalfofthecarpetiscleaned.
Toremovemoreliquidfromthecarpet,makepasses
over the area already cleaned, but do not apply
pressureto theleverforthe solution.
6. Movetotheright-handcornerofthepartofthecarpet
not yet cleaned.
7. Make a pass halfway along the edge of the carpet.
8. As you make passes, repeat one inch of the area
alreadycleaned.
9. Make more passes until all of the room is cleaned.
CAUTION: Clarkewillnotbeheldliablefordamage
tothecarpet,orpoorresultsbecauseof
the operator's lack of ability.
Figure8A
Figure8B
Vacuum only,
after cleaning
each area for
maximum
water removal
Area 1 See figure 8
MACHINEOPERATINGINSTRUCTIONS
Aspiration
seulement,
après nettoyage
de chaque zone
pour une
élimination
maximum de
l'eau
Zone1 Voir figure 8
Superficie 1. Vea la Figura 8
Para eliminar la
mayor cantidad
de agua posible
sólo realice la
aspiración
después de
limpiar cada
superficie
How to Clean an Area of Carpet See Figure 8A
WARNING: Do not use water that is hotter
than120°F(48°C).
Toclean anareaofcarpet,follow thisprocedure:
1. Startthepumpforthesolutionandthemotorforthe
vacuumontheextractor.
2. Beginat the right-hand corner ofthecarpet.
3. Hold the floor tool at the angle that gives the best
vacuumsealbetween the tool and thecarpet.
4. Applypressuretotheleverforsolutionrelease. Pull
the tool toward you at a slow, steady speed. To
remove as much solution as possible, release the
lever before you stop moving backward. Push tool
away over the same area while moving tool to next
position.(Repeatprocess)
5. Tocleantheedgeofaroom,movethetoolalongthe
baseboarduntiltheedgeofallthecarpetiscleaned.
6. To clean a small area of carpet, clean the carpet in
sections three feet square. As you make more
passes,repeatoneinchoftheareaalreadycleaned.
7. Toremovemoreliquidfromthecarpet,makepasses
over the area already cleaned, but do not apply
pressureto theleverforthe solution.

Page 24 Clarke® BEXT®-100, 100H 150H, 300HV Operator's Manual
MAINTENANCE
WARNING: Maintenance and repairs must
be done by authorized person-
nelonly. Keepallfastenerstight.
Use only genuine Clarke parts.
WARNING: Do not operate this machine un-
less it is completely assembled.
NOTE: For maintenance of the floor tools read the
manualgiven withthetools.
After Each Use of the Machine
1. Removeunusedcleaningsolutionfromthesolu-
tiontank,byplacing theendofthevacuumhose
in the solution tank. Start the vacuum motor.
Stop the motor when the tank is empty.
2. To prevent damage to the valves and jets, flush
one gallon of clean water through the solution
system and the tools.
3. Disconnectthepowercordfrom the outlet.
4. Foroptimumperformance,flushthemachinewith
clearwaterattheendofeachworkingday. Once
a month, minimum, run a flushing compound
throughthemachinetocutanyalkalinebuild-up
thatmayhaveformed.
5. Lubricatewheels,casters,andhingesasneeded.
Thepumpandvacuummotordonotrequireany
maintenance.
6. The body can be cleaned with a general all-
purposedetergentand protectedwithasilicone
type product. The quick-disconnects should be
lubricated with silicone, also.
7. Prior to each job, inspect the holding tank filter
andtherecovery tankfloatfilterfor hairanddirt.
Thedrainvalveshouldalsobeinspectedregularly
andkeptfree ofanydebrisor build-up.
8. Draintherecoverytankanddisposeofproperly.
9. Rinsethe recovery tank withcleanwater.
10. Use adryclothtowipe the tools andbothtanks,
inside and out.
11. Apply a small amount ofsiliconelubricanttothe
quick-disconnectfittings. Topreventdamageto
the O-rings, do not use an oil lubricant.

Page 26 Clarke® BEXT®-100, 100H 150H, 300HV Operator's Manual
MAINTENANCE(CONT)
How To Prevent Damage From Freezing Tempera-
tures
Topreventdamagefromfreezingtemperaturesfollow
thisprocedure:
1. Usethevacuum hose to remove all the solution
from the clean solution tank.
2. Connect the solution hose to the extractor and a
floortool.
3. Putapproximately1quartofantifreezesolutionin
the solution tank.
4. Put the switch for the pump in the "ON" position.
5. Put the end of the floor tool in the recovery pail.
6. Press the lever on the floor tool to activate the
pump.
7. Make sure the solution runs through the system.
8. Release the lever on the floor tool to stop the
pump.
9. Flush the antifreeze solution from the system
beforeusingtheextractor.
WARNING: Electrical repairs must be done by
authorized personnel only.
WARNING: After electrical repairs are done to
the machine, the machine must be
tested for electrical safety.
How To Get Access To The Pump and Vacuum
Motor
To get access to the pump and the vacuum motor,
followthis procedure (seefigures9a & 9b):
1. Empty both tanks.
2. Unlatch tanks from base.
3. Tilt tanks back.
4. Disconnect hoses from tanks.
5. Openupforservice.
Figure 9b
Figure 9a

Page 28 Clarke® BEXT®-100, 100H 150H, 300HV Operator's Manual
Maintenance Of The Motor
This machine has a vacuum motor that uses carbon
brushes. The carbon brushes in the motor must be
checked every three months, or every 500 hours of
operation, whichever comes first. If either of the brushes
is shorter than 3/8 inch, replace both of the carbon
brushes.
HowToCheck The Commutator And The Carbon
Brushes
WARNING: Electrical inspections must be made
by a person authorized to make
electrical repairs.
To check the commutator and the carbon brushes follow
this procedure:
1. Disconnect the power cord from the electrical outlet.
2. Empty both tanks.
3. Unlatch tanks from lower housing.
4. Lift the upper housing from the lower housing.
5. Disconnect the ground wire.
6. Remove the plastic motor cover.
7. Inspect the commutator. See figure 10. Take the
machine to a Clarke authorized repair location if you
see any of the following conditions:
a.Small holes in the surface of the commutator.
See "A" in figure 11.
b.Uneven color. Look for an even dark brown color.
Clean areas or very dark areas indicate a
problem.
See "B" in figure 11.
c. High mica. The mica insulation must be lower
than the commutator bars. See "C" in figure 11.
8. To check the carbon brush assemblies, remove the
two screws from the holding bracket.
9. Remove the brackets.
10. Remove the carbon brush assemblies.
11. Check the carbon brush assembly. Replace both
carbon brush assemblies if either carbon brush is
shorter than 3/8inch. If either brush is shorter than ½
inch, order replacement brushes. Be ready to
replace both carbon brushes earlier than the normal
inspection time.
12. Put the motor brushes in position.
13. Using the two screws, install the bracket that holds
the carbon brushes.
14. Install the plastic motor cover.
15. Connect the ground wire.
16. Install the motor holding bracket.
17. Install the lower housing to the upper housing.
Figure 10
UNEVEN
GOOD
SMALL
HOLES
GOOD
GOOD HIGHMICA
C
AB
MAINTENANCE
IRREGULAR
ENBUEN
ESTADO
AGUJEROS
PEQUEÑOS
ENBUEN
ESTADO
ENBUEN
ESTADO
MICA ALTA
C
AB
INÉGAL
CORRECT
PETITSTROUS
CORRECT
CORRECT MICAÉLEVÉ
C
AB

Page 30 Clarke® BEXT®-100, 100H 150H, 300HV Operator's Manual
HOWTOCORRECTPROBLEMSINTHEMACHINE
ActionCause
Problem
1. Make sure the machine is connected to the
correct frequency and voltage, and all connec-
tions are tight.
Make sure the plug is in the electrical outlet.
2. Contact anauthorized service person to replace
the cord.
1. Put the switch for the vacuum in the "I" position.
2. Contact an authorized service person.
3. Contact an authorized service person.
4. Remove the obstruction.
5. Remove the liquid from the tank.
6. Contact an authorized service person to re-
place gasket.
7. Contact an authorized service person.
8. Replace the dome.
9. Replace the motor brushes.
10.Close drain gate.
11.Contactanauthorizedserviceperson.
1. Put the switch in the "I" position.
2. Contact an authorized service person.
3. Contact an authorized service person.
4. Contact an authorized service person.
5. Contact an authorized service person.
6. Straighten the hose. Replace if damaged.
7. Contact an authorized service person.
8. Contact an authorized service person.
9. Contact an authorized service person.
10.Contact an authorized service person.
11.Contact an authorized service person.
12.Fill the solution tank.
13.Clean the screen.
14.Contact an authorized service person.
1. Contact an authorized service person.
1. Clean the float. Replace if damaged.
2. Putdefoamerinthesolution. OrderP/N398420.
3. Cleanthe gasket. Replace if damaged.
1. The machine has no power.
2. The power cord is damaged.
1. The vac motor does not run.
2. The vac motor switch is defective.
3. There is a loose motor connection.
4. There is an obstruction in the vacuum
hose.
5. The recovery tank is full.
6. The dome gasket is worn or damaged.
7. The internal vac hose is damaged
or stopped.
8. The dome is damaged
9. The motor brushes are worn.
10. Drain gate is open.
11.Sealsaredamaged.
1. The switch is in the "OFF" position.
2. The pressure switch is damaged.
3. The pump motor will not run.
4. The pump motor brushes are worn.
5. The quick disconnect fitting is dirty
or stopped.
6. The solution hose is bent.
7. The pump is worn.
8. The pump switch is defective.
9. The pump connections are loose.
10.The pump intake and oulet valves are
worn.
11.The thermol protector is open.
12.The solution tank is empty.
13.The intake screen is dirty.
14.The rectifier in the pump motor is bad.
1. The tank is damaged.
1. The float is dirty or damaged.
2. There is too much foam.
3. The float gasket is dirty or damaged.
The machine will not run.
There is no suction.
There is no pressure.
The solution tank leaks.
The recovery tank overflows.

Clarke® BEXT®-100, 100H 150H, 300HV Operator's Manual Page 33
BEXT®-100, 100H, 150H, 300HV
Extractor
Section II
Parts and Service Manual
(70416A)

Page 34 Clarke® BEXT®-100, 100H 150H, 300HV Operator's Manual
Clarke®B EXT®-100, 120V
Assembly Drawing 7/06

Clarke® BEXT®-100, 100H 150H, 300HV Operator's Manual Page 35
Clarke®B EXT®-100, 120V
Assembly Drawing Parts List 7/06
Ref # PartNo. Description Qty
1 53876A Drain Gate 1
2 80331A Screw, 8-32 x 5/8"4
3 52636A Latch 2
4 53877A O-Ring 1
4A 53878A O-Ring 1
4B 80332A Nut, Aluminum, ½" 1
5 53861A Vacuum Tank Complete 1
6 53879A Hose Bar, 1½" 1
7 53880A Elbow, PVC 1
8 53881A Gasket, Lid Vacuum 1
9 53882A Lid, Clear 6" w/ring 1
9A 53883A Chain Assembly, for lids 2
10 53884A Manifold, with Ball/Cage 1
11 80332A Nut, Aluminum 1½" 1
12 53877A O-Ring 1
13 53880A Elbow, PVC 1
14 53887A Hose Clamp 4
15 53888A Hose, 2" x 21" 1
15A 53889A Hose, 2" x 2" 1
20 53893A Elbow 1
22 53894A Gasket 1
24 40954A Vacuum Motor, 3-Stage 1
25 80334A Washer, Flat 3
26 80335A Lock Nut, ¼-20 3
27 53896A Gasket, Vacuum 1
28 80336A Nut, Finish 3
29 80334A Washer, Flat 3
30 80338A Bolt, ¼-20 x 5" 3
31 53897A Manifold, Vac Motor, Black 1
32 52672A Exhaust Flange 1
Ref # PartNo. Description Qty
34 80335A Lock Nut, ¼-20 8
39 53885A Quick Disconnect, Male ¼ PT 1
40 53895A Washer, Fiber 3
40A 54066A Bushing, Fiber 1
40B 80341A Washer, Flat Brass 1
41 52763A Louver 3", includes screws 3
42 52675A Strike, Latch 2
43 Label 2
44 52675A Reducer, Bushing PVC 1
45 53798A Cord, Retainer Flexible 1
48 53898A Axle, Rod 17" 1
49 53867A Wheel, 8" 2
50 53899A Axle,Cap 2
51 80335A Lock Nut, ¼-20 4
52 54069A Bracket,Axle 2
53 80343A Bolt, ¼-20 x 3/4"12
54 53863A Base, Black 1
55 53866A Castor, 3" 2
56 53862A Holding Tank, Blue 1
57 53872A Filter, 40 Mesh SS 1
58 54070A Lid, Tinted 1
65 53869A Pump, 100PSI 1
66 54071A Hose Clamp 4
67 54072A Hose Barb, Elbow 2
68 54073A Hose, Pump Inlet 3/8ID x 13" 1
69 54074A Hose, Pump Outlet ID 3/8 x 22" 1
77 53868A Switch Plate 1
78 52842A Switch, Rocker w/cover 2
79 80345A Screw, #4 x 3/8" 5
81 40637A Cord, Power 12-3, 25" 1

Page 36 Clarke® BEXT®-100, 100H 150H, 300HV Operator's Manual
Clarke®B EXT®-100H, 120V
Assembly Drawing 7/06

Clarke® BEXT®-100, 100H 150H, 300HV Operator's Manual Page 37
Clarke®B EXT®-100H, 120V
Assembly Drawing Parts List 7/06
Ref # PartNo. Description Qty
1 53876A Drain Gate 1
2 80331A Screw, 8-32 x 5/8"4
3 52636A Latch 2
4 53877A O-Ring 1
4A 53878A O-Ring 1
4B 80332A Nut, Aluminum, ½" 1
5 53861A Vacuum Tank Complete 1
6 53879A Hose Bar, 1½" 1
7 53880A Elbow, PVC 1
8 53881A Gasket, Lid Vacuum 1
9 53882A Lid, Clear 6" w/ring 1
9A 53883A Chain Assembly, for lids 2
10 53884A Manifold, with Ball/Cage 1
11 80332A Nut, Aluminum 1½" 1
12 53877A O-Ring 1
13 53880A Elbow, PVC 1
14 53887A Hose Clamp 4
15 53888A Hose, 2" x 21" 1
15A 53889A Hose, 2" x 2" 1
16 53890A Heat Exchanger, complete 1
16A See Misc. Parts List
17 53891A Hose Clamp 1
18 53892A Bracket, Heater Mounting 1
19 53870A Hose, Heater to outlet 1
20 53893A Elbow 1
22 53894A Gasket 1
24 40954A Vacuum Motor, 3-Stage 1
25 80334A Washer, Flat 3
26 80335A Lock Nut, ¼-20 3
27 53896A Gasket, Vacuum 1
28 80336A Nut, Finish 3
29 80334A Washer, Flat 3
30 80338A Bolt, ¼-20 x 5" 3
31 53897A Manifold, Vac Motor, Black 1
32 52672A Exhaust Flange 1
Ref # PartNo. Description Qty
34 80335A Lock Nut, ¼-20 8
39 80340A Quick Disconnect, Male ¼ PT 1
40 53895A Washer, Fiber 3
40A 54066A Bushing, Fiber 1
40B 80341A Washer, Flat Brass 1
41 52763A Louver 3", includes screws 3
42 52675A Strike, Latch 2
43 71194A Label 2
44 52675A Reducer, Bushing PVC 1
45 53798A Cord, Retainer Flexible 1
46 54067A Dual Cord Circuit Board 1
47 54068A SnapTrack, CircuitBoardMounting 1
48 53898A Axle, Rod 17" 1
49 53867A Wheel, 8" 2
50 53899A Axle,Cap 2
51 80335A Lock Nut, ¼-20 4
52 54069A Bracket,Axle 2
53 80343A Bolt, ¼-20 x 3/4"12
54 53863A Base, Black 1
55 53866A Castor, 3" 2
56 53862A Holding Tank, Blue 1
57 53872A Filter, 40 Mesh SS 1
58 54070A Lid, Tinted 1
65 53869A Pump, 100PSI 1
66 54071A Hose Clamp 4
67 54072A Hose Barb, Elbow 2
68 54073A Hose, Pump Inlet 3/8ID x 13" 1
69 54074A Hose, Pump Outlet ID 3/8 x 48" 1
70 80344A Lock Nut
77 54075A Switch Plate 1
78 53842A Switch, Rocker w/cover 3
79 80345A Screw, #4 x 3/8"
80 54076A Light, Green 1
81 40637A Cord, Power 12-3, 25" 2
NI 54077A HeatRepairKit
(incl.cutout&thermoswitch)

Page 38 Clarke® BEXT®-100, 100H 150H, 300HV Operator's Manual
Clarke®B EXT®-150H, 120V
Assembly Drawing 11/05
8A
86
8
