Clarke VAC KING CCVAC20SS Installation and operation manual

OPERATING & MAINTENANCE
GC0114
INSTRUCTIONS
WET & DRY VACUUM CLEANERS
MODEL NO: CCVAC20SS, CVAC25SS & CVAC30SSR
PART NO: 6471105, 6471110 & 6471120

2
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
INTRODUCTION
Thank you for selecting this VAC KING Vacuum Cleaner, which will provide you
with a cleaner and safer working environment.
This machine is capable of collecting both wet and dry materials as well as
water. DO NOT, however, collect any other type of liquid as this could be
dangerous.
Before attempting to operate the machine, it is essential that you read this
manual thoroughly and carefully follow all instructions given. In doing so you
will ensure the safety of yourself and that of others around you, and you can
also look forward to the machine giving you long and satisfactory service.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety. Children should
be supervised to ensure that they do not play with the appliance.
GUARANTEE
This CLARKE product is guaranteed against faulty manufacture for a period of
12 months from the date of purchase. Please keep your receipt as proof of
purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for its intended purpose.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL PROTECTION
Through purchase of this product, the customer is taking on the
obligation to deal with the Waste Electrical and Electronic Equipment
(WEEE in accordance with the WEEE regulations in relation to the
treatment, recycling & recovery and environmentally sound disposal
of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.

3
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
SAFETY PRECAUTIONS
WORK AREA
1. Avoid operating in the presence of flammable liquids or gases. The motor
may produce sparks during operation. Do not use in enclosed areas where
flammable, explosive or toxic vapours are given off.
PERSONAL SAFETY
1. Always stay alert, watch what you are doing and use common sense when
operating the CVAC. Do not use the CVAC while you are tired or under the
influence of medication, drugs or alcohol. A moment of inattention can
result in personal injury.
2. Never over-reach. Keep your proper footing and balance at all times to
enable better control of the machine in unexpected situations.
3. Always store the machine out of reach of children.
GENERAL MACHINE USE AND CARE
1. Prior to use, all users should become familiar with this instruction booklet.
2. Always maintain the CVAC with care and keep it clean for best / safest
performance.
3. Never use this CVAC if any part is damaged. Have it inspected and
repaired by your Clarke dealer. Do not use if the electric cable, plug, or the
machine itself, is in poor condition.
4. Never abuse the power cable. Never pull on the cable when removing the
plug from the socket or lift the machine by the power cable. Take care not
to close doors on the cable, or allow it to become snagged under
furniture/objects with sharp edges. Keep away from heat or oil.
5. Only use extension leads that are of an appropriate power rating and
suitable for the work environment. Extension leads must have an earth
connection. Inspect the extension lead regularly and replace if damaged.
6. Always take care when a long hose is required in the work area as it
presents a trip hazard. Tidy the hose away when the job is finished.
7. Never pick up flammable or readily combustible material such as hot ashes
or coals, or use in the presence of explosive liquids or vapours.
8. Never pick up burning cigarettes or other smoking substances.
9. Never abuse the CVAC by standing on it.
10. Always transport the CVAC by lifting it by the handle.

4
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
CARE & STORAGE
1. When not in use, turn off by the On/Off switch on top of the machine, then
remove the plug from the mains power supply.
2. When you have finished with the machine, ensure the electric cable is
stowed away and not left as a hazard for others to trip over.
3. Do not change filters, or carry out any cleaning or servicing, without first
disconnecting the machine from the power supply.
4. Keep the external surfaces clean. Avoid impact damage and do not allow
the machine to come into contact with abrasive or corrosive materials.
5. Do not use solvents, thinners or alcohol to clean the CVAC, as these
chemicals will damage the finish. With the machine unplugged from the
power supply, use a dry cloth to wipe over the plastic casing.
6. When not in use the CVAC should be stored in a secure, dry place, out of
the reach of children. DO NOT leave it exposed to the elements and avoid
direct sunlight, direct heat, rain/moisture etc.
7. Only use parts and accessories recommended in this manual. The use of
unauthorised accessories or attachments is not permitted and may result in
personal injury or damage to the machine.
8. Do not attempt to repair or modify the machine. Do not attempt any
electrical repair yourself. Consult a qualified electrician or our Service
Department on 020 8988 7400.

5
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
ELECTRICAL CONNECTIONS
Before switching the product on, make sure that the voltage of your electricity
supply is the same as that indicated on the rating plate. This product is
designed to operate on 230VAC 50Hz. Connecting it to any other power
source may cause damage.
This product may be fitted with a non-rewireable plug. If it is necessary to
change the fuse in the plug, the fuse cover must be refitted. If the fuse cover
becomes lost or damaged, the plug must not be used until a suitable
replacement is obtained.
If the plug has to be changed because it is not suitable for your socket, or due
to damage, it should be cut off and a replacement fitted, following the wiring
instructions shown below. The old plug must be disposed of safely, as insertion
into a mains socket could cause an electrical hazard.
CVAC20SS/CVAC25SS (DOUBLE INSULATED APPLIANCE)
If the colours of the wires in the power cable of this product do not correspond
with the markings on the terminals of your plug, proceed as follows.
• The wire which is coloured Blue must be connected to the terminal
which is marked Nor coloured Black.
• The wire which is coloured Brown must be connected to the terminal
which is marked Lor coloured Red.
We strongly recommend that this machine is connected to the mains supply via
a Residual Current Device (RCD).
WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE
MAINS SUPPLY.
WARNING! THE WIRES IN THE POWER CABLE OF THIS PRODUCT
ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
Blue = Neutral Brown = Live
Plug must be BS1363/A approved.
Always fit a 5 Amp fuse.
Ensure that the outer sheath of the cable is firmly held by the clamp
Neutral
(Blue)
Live
(Brown)

6
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
CVAC30SSR (EARTHED ELECTRICAL APPLIANCE)
If the colours of the wires in the power cable of this product do not correspond
with the markings on the terminals of your plug, proceed as follows.
• The wire which is coloured Blue must be connected to the terminal
which is marked Nor coloured Black.
• The wire which is coloured Brown must be connected to the terminal
which is marked Lor coloured Red.
• The wire which is coloured Yellow and Green must be connected to
the terminal which is marked E or or coloured Green.
We strongly recommend that this machine is connected to the mains supply
via a Residual Current Device (RCD).
If in any doubt, consult a qualified electrician. DO NOT attempt any repairs
yourself.
WARNING! THE WIRES IN THE POWER CABLE OF THIS PRODUCT
ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
Blue = Neutral Brown = Live Yellow and Green = Earth
Plug must be BS1363/A approved.
Always fit a 5 Amp fuse.
Ensure that the outer sheath of the cable is firmly held by the clamp
Neutral
(Blue)
Live
(Brown)
Earth
(Green and Yellow)

7
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
COMPONENTS
No Description No Description
1 Motor Housing & Head Section 7 Crevice Tool
2 Container 8 Power Tool Adaptor(30SSR only)
3 Flexible Hose 9 Caster
4. Extension Tube 10 Cartridge Filter
5 Brush Adaptor 11 Paper Dust Bag
6 Hose/Extension Tube Angle Adaptor 12 Foam Filter (water pick-up only)

8
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
PREPARATION FOR USE
UNPACKING & ASSEMBLY
With the CVAC removed from the packaging, undo the two clamps securing
the head and remove the components from within the tank. Lay them out
and check for shortages and that no damage was suffered in transit.
For ease of mobility, the CVAC base is provided with castors which require
assembling. Push the four castors onto their mountings firmly.
THE FILTERS
Filters are essential to ensure that dust or foreign matter does not enter the
motor compartment which would reduce motor efficiency, and eventually
cause serious damage.
During dry operation, the double filtering action of the linen and paper bag
filters protects the motor from dust and dirt but also ensures that the cleanest
possible air is exhausted, thereby preventing dust being spread into the
environment.

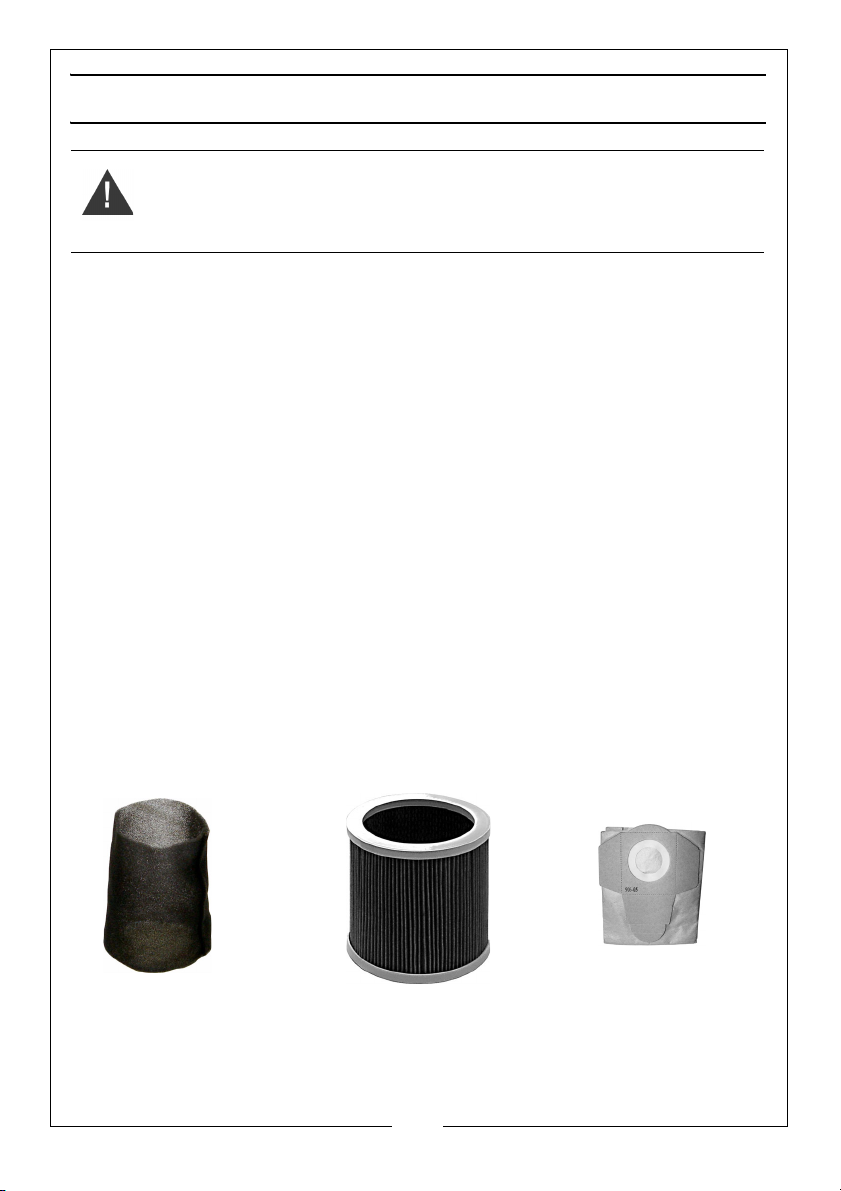

a. Foam Filter
b. Cartridge Filter
c. Paper Bag Filter
a. b. c.
WARNING: Before using the CVAC, make sure that you have read and
understood the safety instructions

9
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
FOR WET USE
The Foam Filter is only to be used for
picking up water.
It is the only filter used during this
operation and must be fitted over the
filter cage as shown.
The linen and paper bag filters must
be removed before using the CVAC to
pick up water.
FOR DRY USE
The Cartridge Filter must be fitted over the filter cage and is used when dry
vacuuming ONLY.
Remove the foam filter
for dry use.
The Paper Bag Filter
should be used in
conjunction with the
Cartridge filter for dry
vacuuming ONLY. It is
fitted over the inlet
elbow on the inside of
the container. The paper bag filter will inflate in use and dust is being
collected.
OPERATING INSTRUCTIONS
Before plugging in to the mains power supply, open the machine and check
to ensure the appropriate filters are securely in place and are in good
condition. If the paper bag is full, replace it. Spare bags are available from
your Clarke Stockist.
Switch the machine ON and proceed to use as normal. The CVAC should be
positioned on a firm, level surface. Do not cover the CVAC. Always position it
with good all-round air ventilation. The CVAC must remain upright, especially
when picking up water.
When moving the CVAC;
• Always use the handle.
• Do not lift by (or place a strain on) the hose or cable.

10
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
• Always switch it off and disconnect it from the mains power supply.
REMEMBER to use the FOAM FILTER ONLY for picking up WATER and ensure that
it is correctly fitted so that it covers the filter cage completely.
NOTE: Be aware that when picking up water, the tank will gradually fill
up. Check and empty at frequent intervals, otherwise the float
located within the filter cage will rise and eventually shut off the
suction. This is a safety feature to prevent water from coming into
contact with electrical components. Should suction stop, you will
hear a more urgent sound from the motor. Immediately switch
OFF and empty the tank, otherwise the motor could overheat.
CVAC30SSR ONLY
This machine is provided with a standard three pin auxiliary power take off
which enables the machine to be used as a dust extractor for power tools.
Plug the power tool into the socket and switched it on. The CVAC will
automatically start. When the power tool is switched off, the CVAC will switch
itself off after a short delay. Any power tool up to a maximum of 1400W/6A
rating can be used.
Additionally, a stepped adapter tube is provided which may be pushed into
the dust extractor port of the power tool and on to which, the flexible hose
may be attached.
IMPORTANT: On no account must this mode be used when picking up
water.
MAINTENANCE
Maintenance is limited to inspecting the filters regularly and replacing when
necessary. If the filters become holed or damaged in any way, they must be
replaced.
The cartridge filter is of paper construction and therefore may not be washed.
It may be brushed clean and compressed air set at a low pressure may also
be used. The linen bag may be washed as required and dried before use.
Ensure the hose is kept in good condition. A damaged hose will seriously effect
the efficiency of the machine and should be replaced immediately.
Inspect all other components periodically and replace damaged castors or
accessories when necessary. Contact your CLARKE dealer for replacements.
Regular inspection and the correct maintenance of the filters will ensure
efficient running and prolong the life of your machine.

11
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
SPARE PARTS
NODESCRIPTION NODESCRIPTION
1Handle 5 ContainerBody
2 Head Assembly 6 Water Drain Assembly
3 Latch Assembly 7 Base Frame
4. Hose Inlet Assembly 8 Castor Assembly

12
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
SPARE PARTS
Replacement 25Ltr Dust Bags also available as Clarke Part No 6471140 and
30Ltr Dust Bags as Clarke Part No 6471145.
CVAC20SS CVAC25SS CVAC30SSR
CARTRIDGE FILTER HT90501
PAPER DUST BAG FILTER HT90605 HT90609 HT90602
FOAM FILTER HT90503
CASTER TVQTJC0400
FLEXIBLE HOSE 2.5 M HT80819
ANGLE ADAPTOR (HOSE TO TUBE) HT80401
METAL TELESCOPIC TUBE HT80905
COMBI BRUSH ADAPTOR TOOL HT80701
CREVICE TOOL HT80707
POWER TOOL ADAPTOR HT80302
OPTIONAL 5M HOSE 6471155

13
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
SPECIFICATION
Please note that the details and specifications contained herein, are correct at
the time of going to print. However, CLARKE International reserve the right to
change specifications at any time without prior notice.
MODEL CVAC20SS CVAC25SS CVAC30SSR
Part No 6471105 6471110 6471120
Weight 6.5 kg 7 kg 8.5 kg
Dimensions (L x W x H) mm 470x470 x 556 470x470 x 630 515 x515 x630
Tank Capacity 12 Litres 17 Litres 21 Litres
Dust Capacity 16 Litres 19 Litres 24 Litres
Max Vacuum 15 kPa 15.5 kPa 16 kPa
Duty Cycle S1(continuous)
Fuse Rating 13 Amps
Power Supply 230 V/50Hz/1ph
Motor Power rating 1.4 kW
IP Rating IP24
Output Socket Rating 1400 W (6A)
Sound Power Level (@2m) 82 dB LwA
(water)

14
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

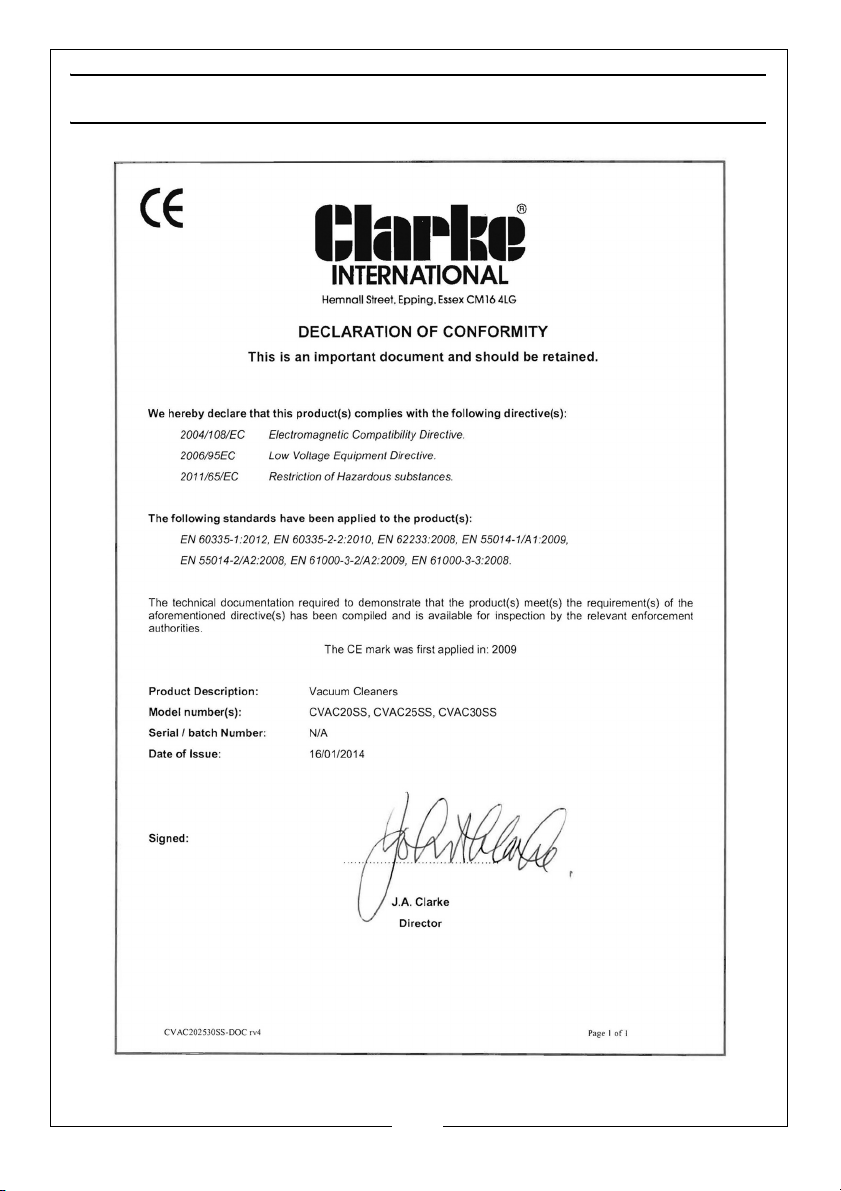

DECLARATION OF CONFORMITY

15
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
NOTES
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
