READ THIS BOOK
This book has important information for the use and safe operation of this machine. Failure to read this
book prior to operating or attempting any service or maintenance procedure to your Clarke machine
couldresultininjurytoyouortootherpersonnel;damagetothemachineortootherpropertycouldoccur
aswell. Youmusthavetrainingintheoperationofthismachinebeforeusingit. Ifyouroperator(s)cannot
read English, have this manual explained fully before attempting to operate this machine.
Si Ud. o sus operadores no pueden leer el Inglés, se hagan explicar este manual completamente antes
de tratar el manejo o servicio de esta máquina.
All directions given in this book are as seen from the operator’s position at the rear of the machine.
For new books write to: Clarke®, 2100 Highway 265, Springdale, Arkansas 72764.

2Clarke®Operator's Manual - D14 & D18
ImportantSafetyInstructions............................................................................................................ 3
Introduction&MachineSpecifications............................................................................................. 7
GroundingInstructions .................................................................................................................... 8
HowToAssembleTheMachine ....................................................................................................... 9
TheControls..................................................................................................................................... 12
HowToOperateTheMachine .......................................................................................................... 14
Maintenance .................................................................................................................................... 15
HowToChangeTheFilterBag ............................................................................................ 15
HowToCleanTheFilterCartridge ....................................................................................... 16
HowToReplaceTheBrush ................................................................................................. 16
HowToChangeTheDriveBelt ............................................................................................ 17
TheVacuumIndicatorLight ................................................................................................. 17
TheCircuitBreaker.............................................................................................................. 17
BrushPerformanceIndicatorLights.................................................................................................. 18
SECTION II Parts and Service Manual

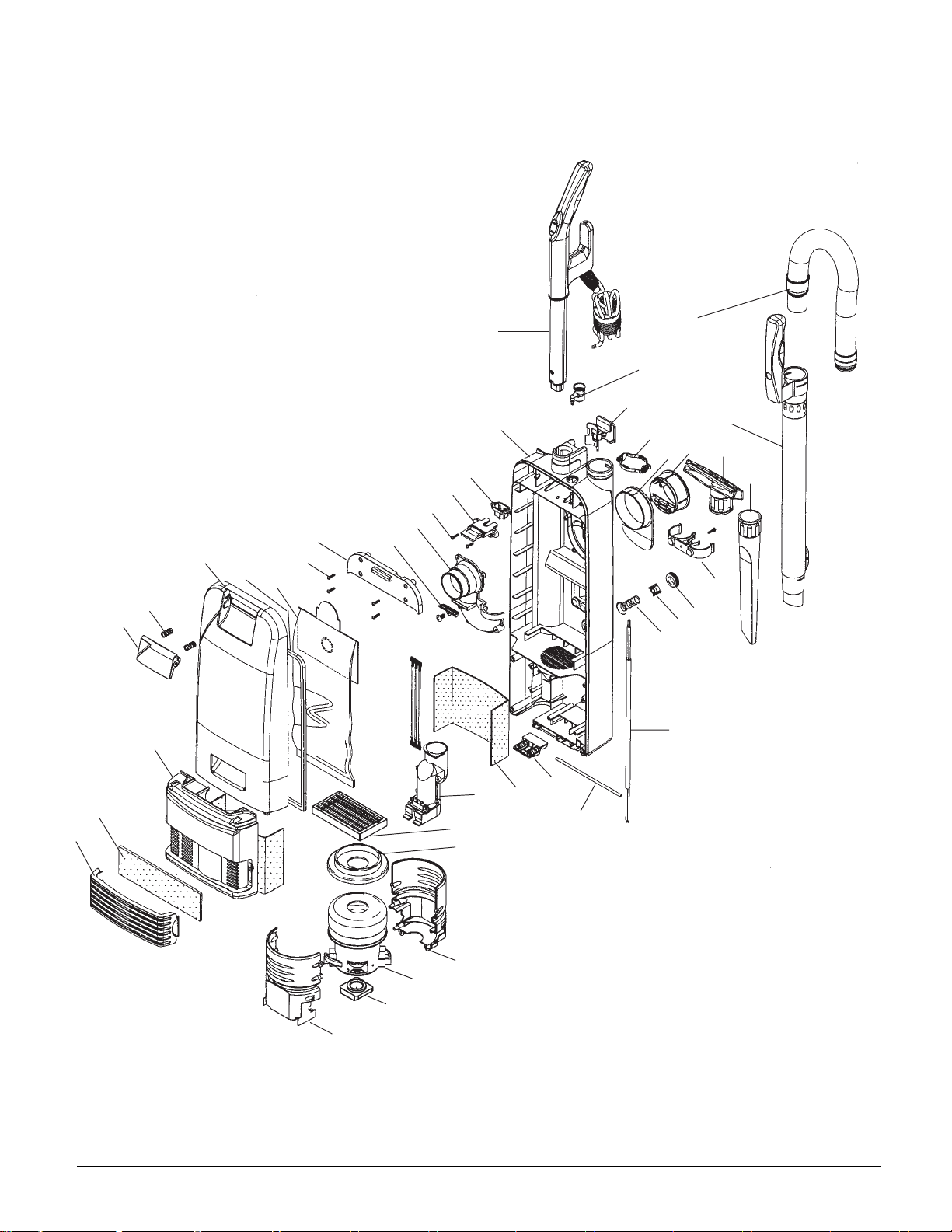

Drawing#1UpperCanisterAssembly ..............................................................................................20
Parts List #1 Upper Canister Assembly............................................................................................ 21

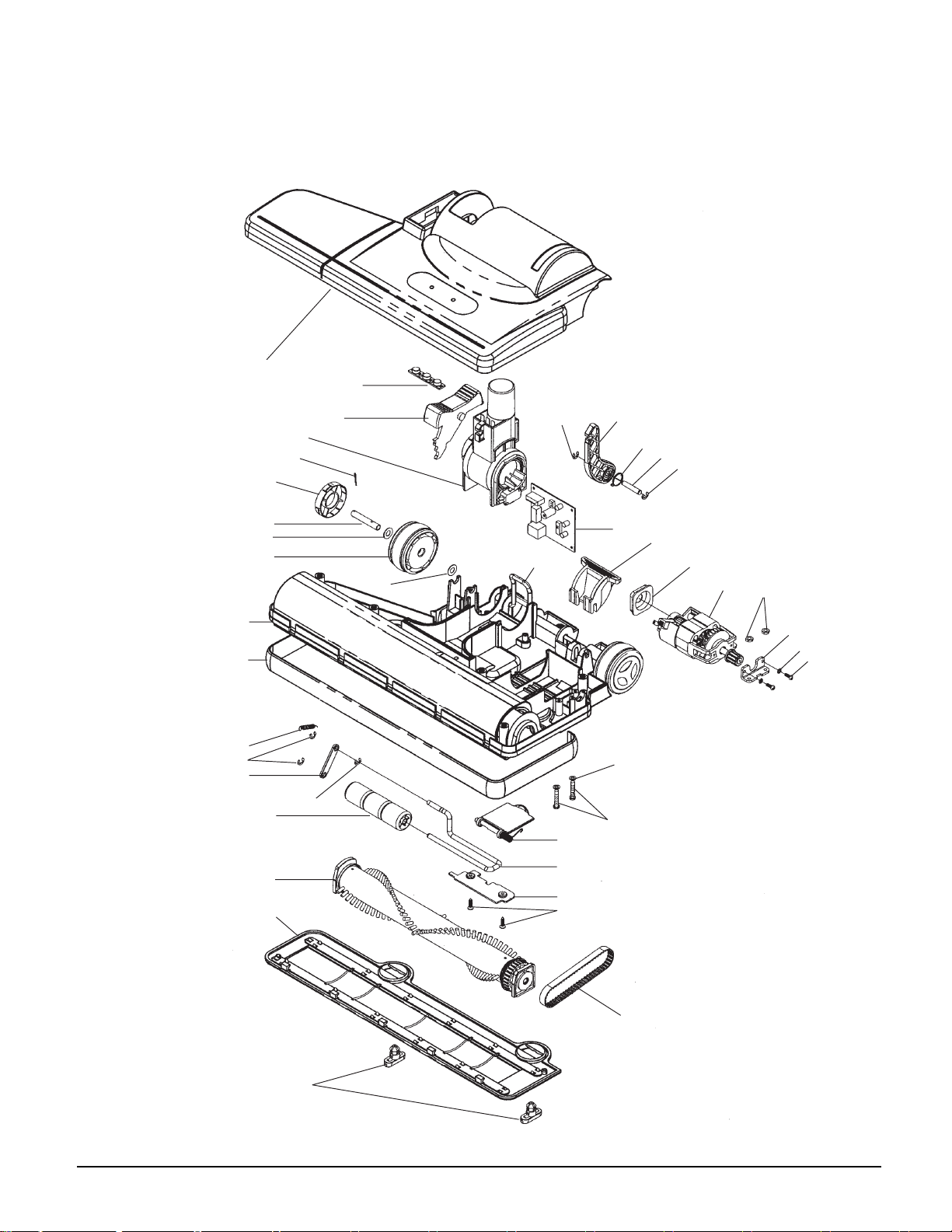

Drawing#2BrushHousingAssembly...............................................................................................22
Parts List #2 Brush Housing Assembly ............................................................................................23
Parts List #3 Hose Wand and Handle Assembly .............................................................................. 24
Table of Contents

Clarke®Operator's Manual - D14 & D18 3
IMPORTANT SAFETY INSTRUCTIONS
WARNING AVERTISSEMENT ADVERTENCIA
Forthesafeoperationof thismachine,readand understandalldangers, warningsand
cautions. Look for these symbols:
DANGER: If you do not follow the instructions in a DANGER, severe bodily injury or death can occur to
theoperatorand/orotherpersonnel.
WARNING: If you do not follow the instructions in a WARNING, injury can occur to you or to other
personnel.
CAUTION: If you do not follow the instructions in a CAUTION, damage can occur to the machine.
WARNING: To reduce the risk of fire, electric shock, or injury:
1. You must have training in the operation of this machine before using it. READ THE
INSTRUCTION BOOK.
2. Do not use outdoors or on wet surfaces.
3. Donotleavevacuumcleanerunattendedwhenpluggedin. Turnofftheswitchandunplugthe
electricalcord when notinuseandbeforeservicing.
4. Do not allow to be used as a toy. Close attention is necessary when used by or near
children.
5. Use only as described in this manual. Use only manufacturer's recommended attachments.
6. Do not use with damaged cord or plug. If vacuum cleaner is not working as it should, has
beendropped, damaged,leftoutdoors,or dropped intowater,returnit toaservicecenter.
7. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull a cord around
sharpedgesorcorners. Donotrunvacuumcleaner over cord. Keep cord away from heated
surfaces.
8. Connect toaproperlygroundedoutletonly (refer to GroundingInstructions).
9. Do not use extension cords or outlets with inadequate current carrying capacity.
10. Turnoffallcontrolsbeforeunplugging.
11. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
12. Donot handleplug orvacuumcleanerwithwet hands.
13. Do not put any objects into openings. Do not use with any opening blocked, keep free of
dust, lint, hair, and anything that may reduce airflow.
14. Thisvacuum cleanercreates suctionandcontains arevolving brush. Keephair, loose
clothing,fingers and all parts of bodyawayfromopeningsandmovingparts.
15. Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot
ashes.

4Clarke®Operator's Manual - D14 & D18
SAVE THESE INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury:
16. Belt pulleyscan become hotduring normaluse. Toprevent burns,avoid touching thebelt
pulleywhenservicingthedrivebelt.
17. Do not use to pick up flammable or combustible liquids such as gasoline, or use in areas
wherethey may bepresent.
18.Unplug the machinebefore servicing thebelt or brush. Thebrush may startsuddenly and
cause injury.

Clarke®Operator's Manual - D14 & D18 7
PowerSupply 120V-60Cycle 120V-60Cycle
230V-50/60Cycle 230V-50/60Cycle
VacuumMotor 1050 Watts 1050 Watts
BrushRPM 4300rpm 4300rpm
Cord 50 ft.3-wire 50ft.3-wire
Wheels(2) 2.7" x 1.25" 2.7" x 1.25"
Wand 21" extends to 33.5" 21" extends to 33.5"
Hose 1.5" x 18.5" 1.5" x 18.5"
extends to 72" extends to 72"
AgitatorBrush ChevronBrushPattern ChevronBrushPattern
CleaningWidth 14" 18"
Filter Bags 6 lt, 2-ply disposable 6 lt, 2-ply disposable
Weight(lesspower
cord) 20 lbs. 20.5 lbs.
ShippingWeight 26 lbs 26.75lbs
VacuumDimensions 10.5 x 14.25 x 46.5 10.5 x 14.25 x 46.5
Warranty OneYear OneYear
Model D14 D18
INTRODUCTION
TheD14andD18areuprightvacuumsforcleaning carpet. Thesemachinesareusedto removedrymaterialfrom
carpet. Thesemachinesareintended for commercial use.
MACHINE SPECIFICATIONS

8Clarke®Operator's Manual - D14 & D18
GROUNDINGINSTRUCTIONS
Preparation:
The following are instructions for connection to the
power supply and the electrical ground.
This machine must be connected to the electrical ground to
protect the operator from electrical shock. The machine has
anapprovedpowercordwith three conductors and a plug
with three terminals. Connect the plug to a receptacle that
has three holes and is connected to the electrical ground.
Thegreen (or green andyellow) conductor in thecord is the
groundwire. Never connect this wireto any terminal other
thantheground pin terminal.
DANGER: Improper connection of
the equipment-grounding conductor can result
in risk of electric shock. Check with a qualified
electrician or service person if you are in doubt
as to whether the outlet is properly grounded.
Do not modify the plug provided with the
appliance. If it will not fit the outlet, have a
proper outlet installed by a qualified
electrician.
This machine is for use on a 110 to 120 VoltAC 60 cycle
electric circuit. Make sure you have the correct frequency
andvoltagebefore connecting the power cordtoanoutlet.

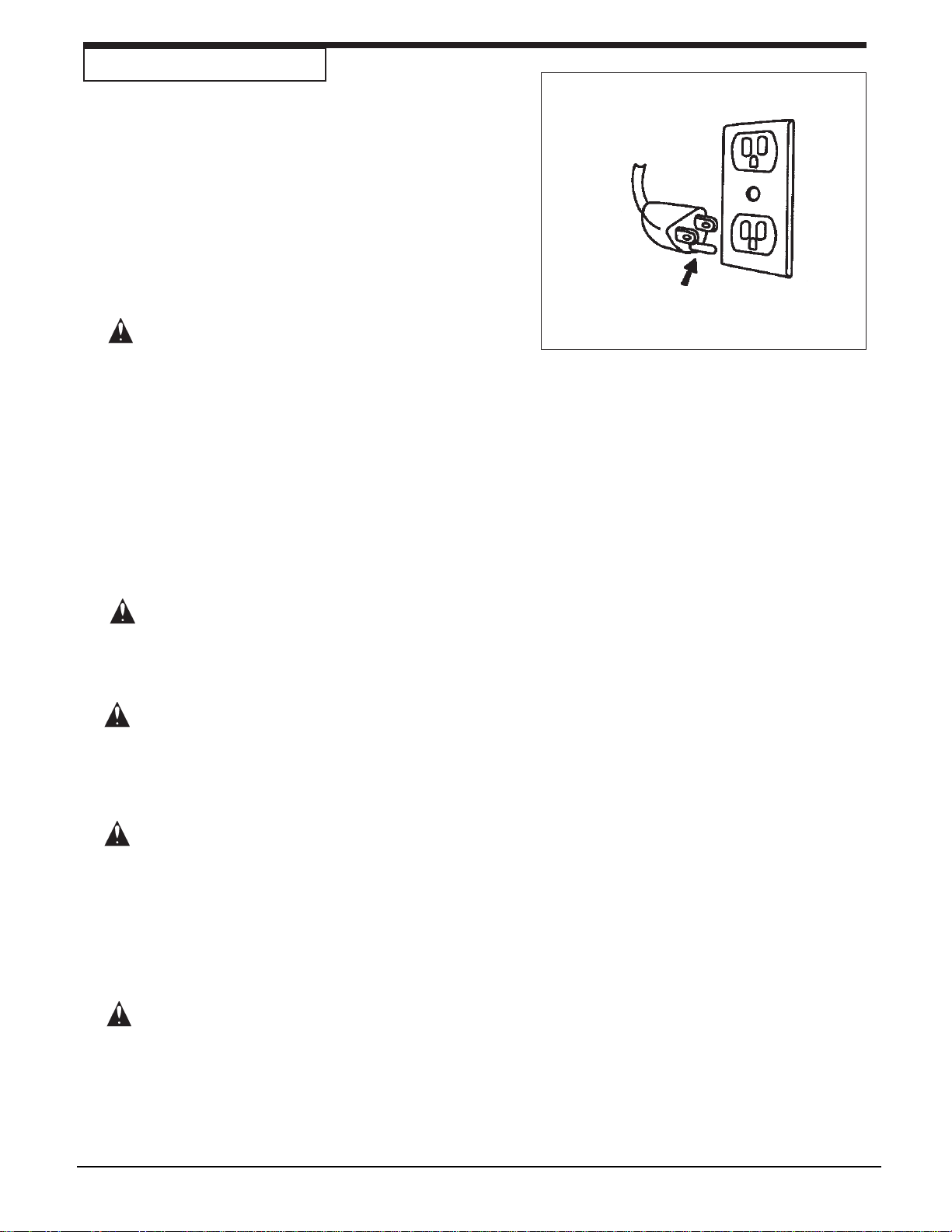

The machine has a plug as shown in figureA.
WARNING: Always use this machine with anAC
three-conductor electrical system connected to
the electrical ground. Replace any worn, cut or
damaged cords. Replace any damaged plugs,
receptacles or connector bodies.
WARNING: Do not cut, remove, or break the
ground terminal. Do not try to fit a three-termi-
nal plug into a receptacle or connector body
that does not fit the plug, see your Authorized
Clarke Dealer to get an authorized person to
make the connection.
WARNING: Do not move the machine over an
electrical cord. Always lift the cord over the
machine.
EXTENSIONCORDS:
Useonlyan approved extension cordwiththree conductors,
a plug with three terminals and a connector body with three
holes. This machine has a power cord with wire size 18
AWG (AWG meansAmerican Wire Gauge).
WARNING: If you use an extension cord, use an
extension cord with minimum wire size 16 AWG.
Do not use an extension cord longer than 50
feet. Do not join two extension cords.
FIGURE A
Grounded
Outlet Box
Grounding Blade
is longest of the
three blades

10 Clarke®Operator's Manual - D14 & D18
Figure2
Figure3
Figure5 Figure4
HOW TO ASSEMBLE THE MACHINE
Toassemblethemachine,followthisprocedure:
1. Removethebrushhousing,vacuumbags,hose,
wand,handle assembly, canister housing, and
tools from the carton.
2. Removethecanisterhousingandthebrush
housing from the plastic bags.
3. Install the canister housing on the brush housing.
To install the canister housing, follow this proce-
dure:
a. Positioncanisterhousingoverbrushhousing
(seefigure2).
b. Alignpivotairway(A)andcanister support
pivot(B)with openings (C andD) inbottomof
canisterhousing(seefigure2).
c. Lowercanisterhousingcompletelyontobrush
housing until pin clicks into place and latches
(seefigure3).
4. Install the handle assembly to the canister hous-
ing. To install the handle assembly, follow this
procedure:
a. Inserthandle tube in the upper canister
housing(seefigure4).
b. Lowerhandlecompletelyintocanisterhousing
until mark on handle tube is below flush (see
figure 5, item A). This insures the handle is
properlyseated.
c. Push handle latch into lock position (see
figure 5, item B).
CB
AD
A
BMarkon
handletube.

Clarke®Operator's Manual - D14 & D18 11
Figure7
Figure6
5. Install the wand assembly in the right rear canister
housing (see figure 6, item A).
6. Position wand handle so that handle is towards
the front of the machine (see figure 7, item A).
7. Attach hose to wand and canister (see figure 7).
To attach hose properly, depress lock on canister
(see figure 7, item B).
8. Snap thecrevice (B) andupholstery (C) tools into
thetoolretaineron rear of canister housing(see
figure6).
A
B
C
A
B
B

12 Clarke®Operator's Manual - D14 & D18
Figure9
THE CONTROLS
The Handle Release Pedal (See figure 8, item A)
Thehandle release pedal is onthe lower leftside of the
machine. Press the pedal to release the handle and start
the brush motor. The brush motor will not run unless the
ON/OFF switch is in the "I" position.
The ON/OFF Switch (See figure 9)
The ON/OFF switch is on handle. Put the switch in the
"I" position to start the vacuum motor. Put the switch in
the "O" position to stop the vacuum motor. Putting the
switch in the off position will also shut off the brush
motor.
The Height Adjustment (See figure 8, item B)
The height adjustment is located on the lower right side
of the machine. Press the front of the pedal with your
footwhen vacuuming shortercarpet. Press the back of
thepedalwithyourfootwhenvacuumingthicker,longer
carpet.
The Wand (See figure 8, item C)
The wand is in the holder in the back of the canister
housing. Thewandhasatelescopingfeature(seefigure
11). The crevice tool and the upholstery tools fit the end
of the wand. The wand has a suction control sleeve (see
figure10). Fornormalvacuuming keepsuctioncontrol
sleeveclosed. To reduce suction,whencleaningdrapes
orfurniture,opensuctioncontrolsleeve.
Figure11
Figure8
A
B
C
Figure10

Clarke®Operator's Manual - D14 & D18 13
Figure12
Figure13
Canister Door (Seefigure 12, item A)
The canister door release is in the upper part of the
canister housing. Lift to open door.
NOTE:Doorwillnotclose without a properly mounted
filterbag. See page 15for filter bagmounting instruc-
tions.
The Vacuum Indicator Light (See figure 12, item B)
The vacuum indicator light is on the top of the canister
housing. The indicator light comes on when the airflow to
thevacuummotor is obstructed.
NOTE:See page 17forintructionsonhow toremovean
obstruction.
The Cord Storage Hooks (See figure 13)
The cord storage hooks are on the back of the canister
housing. The lower cord hook is also a carrying handle.
Thelowercordhookrotatesto provide a quick cord
releaseandtoeasecordremoval.
A
B

14 Clarke®Operator's Manual - D14 & D18
HOW TO OPERATE THE MACHINE
CAUTION: To prevent damage to the machine,
do not allow large objects to be pulled into the
lower housing or the attachments.
NOTE: The machine comes with a filter bag installed
in the canister housing.
UsetheD14&D18 asacarpetcleanerorasanupholstery
cleaner. To operate the machine as a carpet cleaner,
followthisprocedure:
1. Removethepowercordfromthecordstorage
hooks, by rotating the lower cord hook 180° (see
figure14).
2. Connect the electrical plug to the electrical
outlet.
3. Put the ON/OFF switch in the "I" position (see
figure9).
4. Pressthe handle release pedal (see figure 8,
item A).
5. Pull the handle toward you to the best operating
position.
6. Movethemachineforwardandbackwardoverthe
carpet.
Tooperatethemachineas anupholsterycleaner, follow
thisprocedure.
1. Make sure the ON/OFF switch is in the "O"
position.
2. Push the handle forward until it locks in position.
NOTE: the machine comes with a crevice tool
attachment and an upholstery tool attachment.
Select the tool needed for the cleaning opera-
tion.
3. Removethewandfromthecanisterhousing.
4. Connect an accessory tool to the end of the
wand, or directly to the hose (see figures 15 and
16).
NOTE:Push button on wandhandletorelease
the hose from the wand (see figure 16, item A).
5. Put the ON/OFF switch in the "I" position.
6. Movethetooloverthearea to becleaned.
Figure14
Figure15
Figure16
A

Clarke®Operator's Manual - D14 & D18 15
MAINTENANCE
WARNING: To prevent injury, always remove
the electrical plug from the electrical outlet
before doing any maintenance or repairs to
the machine.
WARNING: Maintenance and repairs must be
done by authorized personnel only. Use only
genuine Clarke parts.
How To Change The Filter Bag
Themachineusesadisposablepaperfilterbag. Tochange
thepaperfilterbag,followthisprocedure:
1. Make sure the ON/OFF switch in the "O"
position and that the machine is disconnected
fromthepowersupply.
2. Openthefront of thecanister housing. To open
the canister housing, lift the release handle (see
figure17).
3. Graspcardboard inlet on both sides of thebag
(see points A and B on figure 19) and slightly
rotate and pull bag out.
5. Install a new filter bag. To install a new filter bag,
followthisprocedure:
a. Unfoldthefilterbag.
b. Hold the bag by the cardboard inlet.
c. Place the bottom of the cardboard inlet into
theslotunder the bag adaptor (see figure18,
item A)
d. Puttheopeningof thecardboardinlet overthe
bagadapter(see figure 18, itemB).
e. Make sure the cardboard is pushed all the way
onthe bag adapter(figure19)orthedoor will
not latch.
f. Close thecanister housing.
Figure17
Figure18
Figure19
AB
A
B

16 Clarke®Operator's Manual - D14 & D18
Figure20
Figure21
How To Change The Filter Cartridge
Change the filter cartridge whenever it is dirty or suction
performance decreases. To change the filter cartridge,
followthisprocedure:
1. Make sure the ON/OFF switch is in the "O"
position and the machine is disconnected from
thepowersupply.
2. Openthecanisterdoor.
3. Removethefilterbag.
4. Removethefiltercartridge(seefigure20).
5. Replacefiltercartridgeandfilterbag(seefigure
21).
CAUTION: Check the filter cartridge while
changing the paper bag. Replace the filter
cartridge when dirty or when the vacuum
suction performance drops off even with a
clean filter bag.

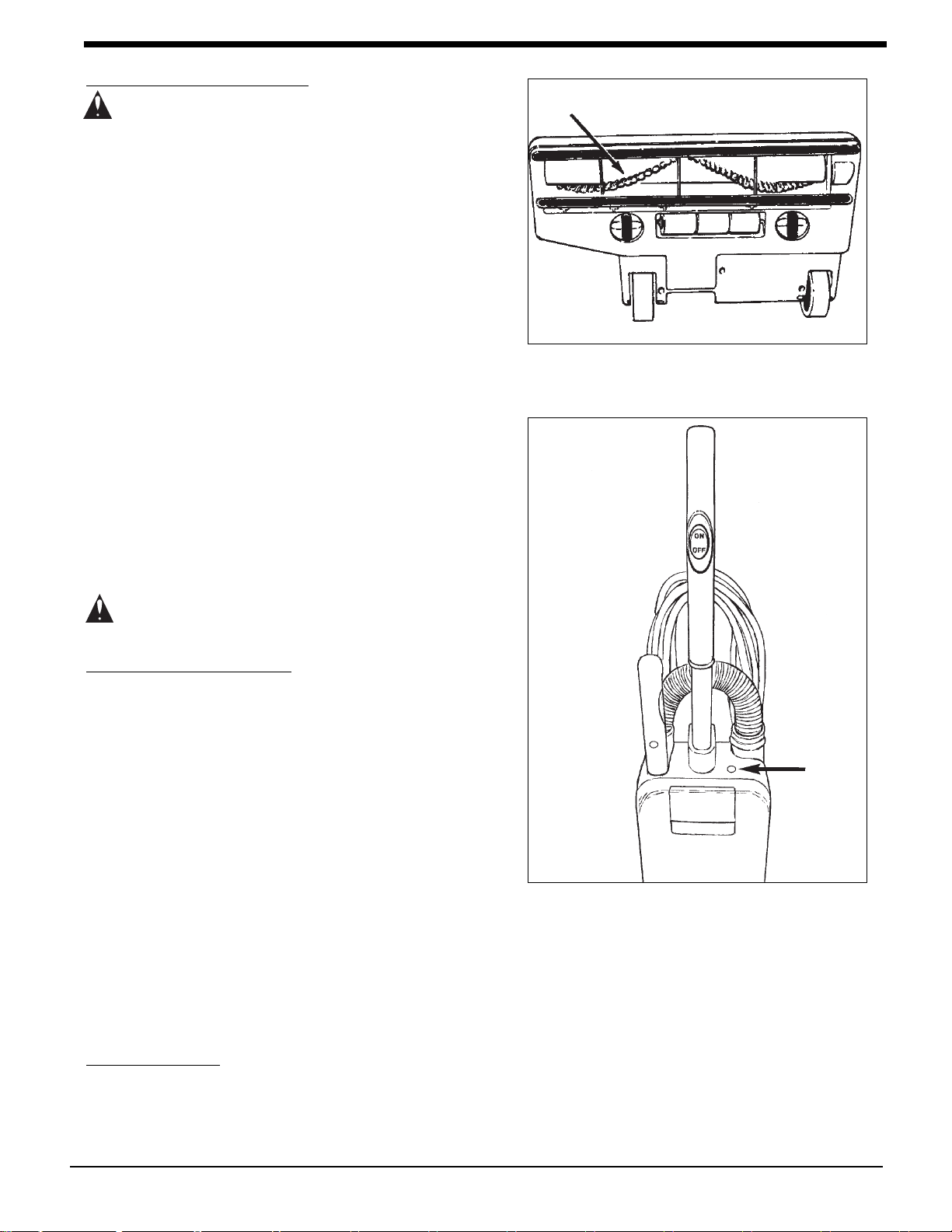

How To Replace The Brush
WARNING: To prevent injury, unplug machine
before cleaning or replacing brush. Brush
may start suddenly and cause injury.
1. Put the machine on its side.
2. Turn the knobs which secure the nozzle plate.
Seefigure22.
3. Lift the nozzle plate up to remove it.
4. Lift the brush assembly up to remove it.
5. Install the new brush assembly.
6. Install the nozzle plate.
7. Put the machine on its wheels.
WARNING: To reduce the risk of injury from
moving parts, unplug before servicing.
Figure22

Clarke®Operator's Manual - D14 & D18 17
Figure23
Figure24
How To Change the Drive Belt
WARNING: To prevent injury, unplug machine
before cleaning or replacing brush. Brush
may start suddenly and cause injury.
Tochangethedrivebelt,followthisprocedure:
1. Put the machine on its side.
2. Lift the nozzle plate up to remove it.
3. Lift the brush assembly up to remove it (see
figure23).
4. Removethedrivebeltfromthebrushpulley.
5. Removethedrivebeltfromthemotorshaft.
6. Putone end of the new drive belt around the
motorshaft.
7. Puttheotherend of the drivebeltaround the
brushpulley.
8. Install the brush assembly in the brush housing.
9. Install the nozzle plate.
10. Put the machine on its wheels.
WARNING: To reduce the risk of injury from
moving parts, unplug before servicing.
The Vacuum Indicator Light
Ifthevacuumindicatorlight(1)comeson,(seefigure
24) or the motor stops, do the following:
1. Put the ON/OFF switch in the "O" position (2).
2. Removetheelectricalplugfromtheelectrical
outlet.
3. Checkthe vacuumhose for an obstruction. If
there is an obstruction in the vacuum hose,
removetheobstruction.
4. Check the brush assembly in the lower housing.
If there is an obstruction in the brush assembly,
removetheobstruction.
5. Check the filter bag. If the filter bag is over 1/2
full, change or empty the bag.
6. Check the filter cartridge. If the filter is dirty,
changethefilter.
Thermal Overload
Athermal overload is usedto protect the vacuummotor.
Ifthemotorover heats,thethermaloverloadwill stop
the motor. If the motor stops, let the motor cool before
restarting the machine. Check filters. If the motor
continues to stop, consult an authorized service person.

18 Clarke®Operator's Manual - D14 & D18

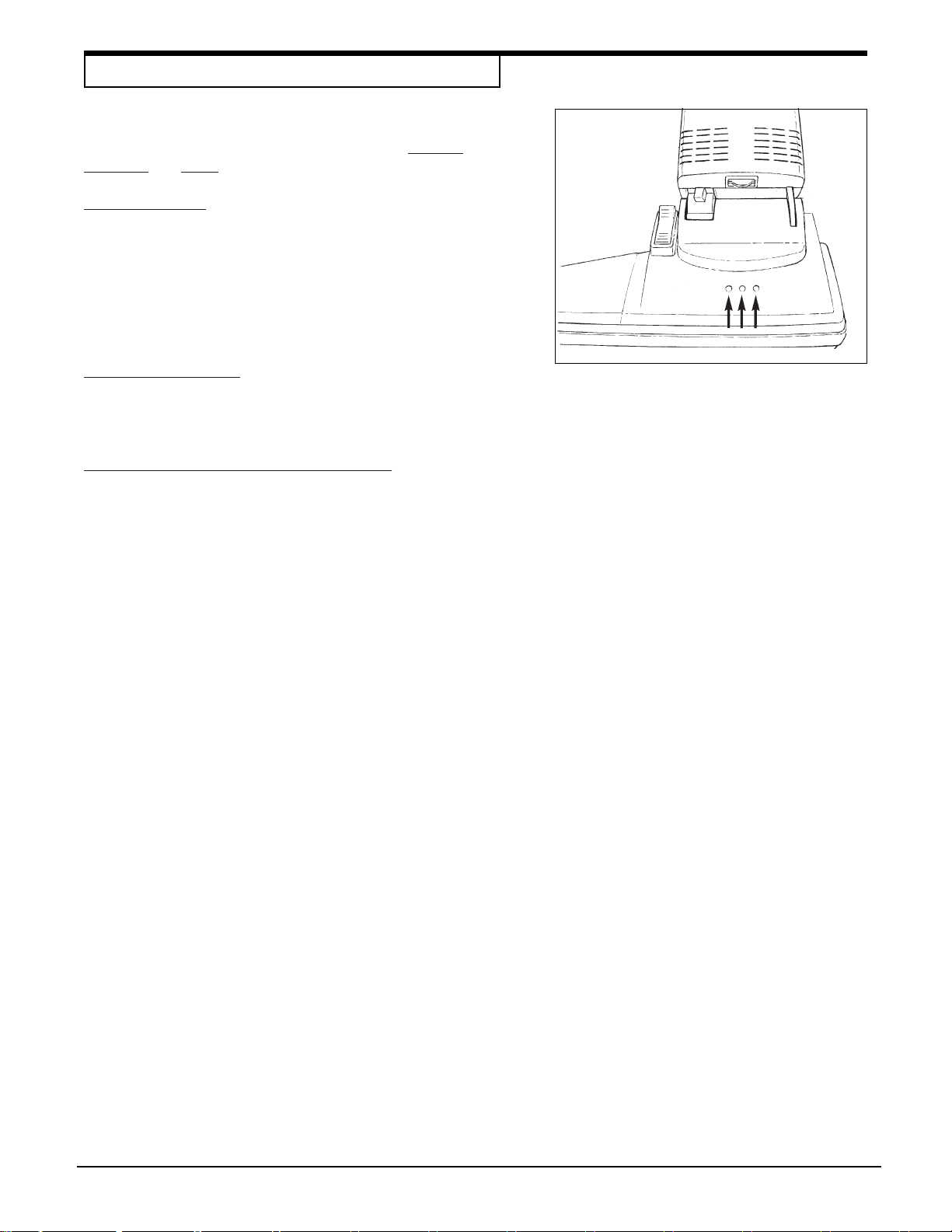

TheD14andD18uprightvacuumshave3brushperfor-
manceindicator lights (seefigure 25). They areGREEN,
YELLOWand RED. They work inthe following manner:
NormalOperation:
• The GREEN light is on when the brush drive motor is
on and the brush height setting is correct for the
carpet.
NOTE: It is normal for the red or yellow light to inter-
mittently turn on and off as high or low surfaces are
encountered.
BrushHeightTooHigh:
• The YELLOW light will continue to stay on when the
brush height is too high for the carpet. Lower the
brushheightsetting.
BrushHeight TooLoworBrush HasJammed:
• The RED light will continue to stay on when the brush
height setting is too low for the carpet. Raise the
brush height setting. The RED light will come on if the
brush is jammed.
• If the RED light is on continuously for 10 seconds, the
electronic safety stop will protect the brush motor by
turningitoff.
• Toresetthebrushdrivemotor,putthe operating
handlein the uprightposition. Turn the ON/OFF
switch to the off position. Restart the machine.
• If the brush height was too low, raise the brush height
setting.
• Ifthe brushwasjammed,unplugthe vacuum andclear
thebrush.
BRUSH PERFORMANCE INDICATOR LIGHTS
Figure25

Clarke®Operator's Manual - D14 & D18 19
D14 & D18
Section II
Parts and Service Manual
(70720A)

20 Clarke®Operator's Manual - D14 & D18
Clarke®
D14&D18
Drawing #1 Upper Canister Assembly 2/04
1
2
3
4
5
6
7
8
5
9
11 10
12
13
14
15
16
17
18 19 20
22
21
23 24 25
26
27
28 293031
32
33
34
35
36
37
38
39
40

Clarke®Operator's Manual - D14 & D18 21
1 53296A HandleTube 1
1A 53199A Handle, Left 1
1B 53207A Handle,Right 1
1C 53320A On/Off Switch 1
1D 53315A Pad, Soft Touch 1
1E 53318A Power Cord 1
1F 53233A Receptacle, Handle 1
2 53211A Canister, Rear 1
(incl. #4, 5, 6, 7, 28, 29, 30, 35, 36)
3 53234A Plug,Canister 1
4 53257A Pivot, Filter Bag Asm. 1
5 53347A Screw, M4 x 16 24
6 53213A Adaptor, Air Inlet Asm. 1
(incl. gaskets - 53307A & 53308A)
7 53258A Guide, Bag Collar 1
8 53212A Cover, w/Door Latch 1
950721B Bag, Paper (pkg. 10) 1
10 53272A Gasket, Door 1
11 53218A Door, Asm. Canister 1
(incl. #10, 12 & 13)
12 53330A Spring, Door Catch 2
13 53219A Latch, Canister Door 1
14 53215A Cover, Asm. Vac Motor 1
(incl. # 25 & 26)
15 53302A Exhaust Filter 1
16 53217A Cover, Exhaust Filter 1
17 53266A Cover, 2 pc. Vac Motor 1
18 53271A Spacer, Vacuum Motor 1
19 53324A Motor, Vac. 120V (incls. #53356A) 1
53358A Carbon Brush 2
20 Same as 17 - 2pc. Set 1
21 53270A Endcap, Vac Motor 1
22 53300A Filter Cartridge 1
23 53256A Channel, Airway Asm. 1
(incl. receptacle)
24 53306A Sound Insulation Set 1
25 53214A Latch, Canister to Brush Hsg. 1
26 53274A Pin, Canister to Brush Hsg. 1
27 53317A Interconnect Cord 1
28 53328A Spring, Air Valve 1
29 53240A Plunger, Spring 1
30 53264A Retainer, Air Valve 1
31 53252A Retainer, Tools 1
32 53220A Crevice Tool 1
33 53221A Upholstery Tool w/Brush 1
34 53262A Wand Assembly 1
35 53253A Handle, CordHook 1
36 53254A Swivel, Cord Hook 1
37 53255A Retainer, Hose 2
38 53290A Clamp,Asm. Handle 1
(incl. 53210A & 53273A)
39 53235A Bag Full Indicator 1
40 53225A Hose Assembly 1
NI 53567A O-Ring, Wand 1
NOTE: indicates a change has been made since the last
publication of this manual.
Ref.
No. Part No. Description No.
Req’d.
Clarke®
D14&D18
PartsList#1Upper CanisterAssembly2/06

22 Clarke®Operator's Manual - D14 & D18
Clarke®
D14&D18
Drawing#2BrushHousingAssembly2/04
12
3
4
5
6
7
8
9
8
10
11
12
13
14 14
15
16
17
18
19
20
21
22
23 24
25
26
27
28
29
30
31
32
33
37
13
34
35
36
13

Clarke®Operator's Manual - D14 & D18 23
1 53231A Cover Asm., Brush Hsg. 14" 1
53232A Cover Asm., Brush Hsg. 18" 1
2 (cover asm. include #2)
3 53245A Pedal, Brush Height 1
4 53242A Pivot Asm., Airway 1
(incl. 53236A; 53244A Bracket,
Airway Right; & 53243A Bracket,
Airway Left)
5 CotterPin 2
6 53259A HubCap 2
7 Axle Hub 2
8 53291A Spacer, Rear Wheel 4
9 53248A Rear Wheel 2
10 53227A Brush Housing Asm. 14" 1
53228A Brush Housing Asm. 18" 1
(incl. 53312A, 53313A, 53263A (18))
11 53267A Bumper 14" 1
53268A Bumper 18" 1
12 53331A Spring, Brush Height Shaft 1
13 53355A E-clipsM6 4
14 53284A Guide, Brush Height Shaft 1
15 53229A Rollers 3
16 53260A Brush Assembly 14" 1
53261A Brush Assembly 18" 1
17 53250A BottomPlate 14" 1
53251A BottomPlate 18" 1
18 53263A Tension Lever 2
19 53354A Belt 1
20 53350A Screw, Flathead M4 x 15 2
21 53286A Retainer, Door and Rollers 1
22 53282A Shaft, Rollers 1
23 53230A Cleanout Door Asm. 1
(incl. 53311A, 53278A& 53332A)
24 Screw, M5 - .8 x 24 2
25 Washer, M5 2
26 53348A Screw, M4 - .7 x 10 2
27 Washer, M4 2
28 53285A Bracket, Brush Motor 1
29 Nuts, M5 - .8 2
30 53325A Motor, Brush 120V 1
(incl. #26, 27, 28, 31 & 53298A)
31 Endcap, Brush Motor 1
32 53249A Pedal, Foot Latch 1
33 53326A Electronics 120V 14" 1
40732A Electronics 120V 18" 1
34 53275A Pin, Support Pivot 1
35 53333A Spring (include with #36) 1
36 53241A Support Asm., Canister Pivot 1
(includes #13, 34, 35)
37 53293A Rear Axle (includes #7) 1
NI 53570A Carbon Brush, Nozzle Motor 2
Part No. Description Qty.
Clarke®
D14&D18
PartsList#2BrushHousingAssembly7/04
Ref.
No.
