CRD 410
MANUAL FITTING INSERTER
OPERATIONS MANUAL
VERSION 1.2
LAST EDITED 05.01.2018
cleanroomdevices.com

2
Table of Contents
Title Page…………………………………………………………………………1
Table of Contents…………………………………………………………………2
1.0 General Product & Safety Information……………………………………...3
1.1 Product Information
1.2 Safety Information
2.0 Installation……………………………………………………………….….3
2.1 Jaw Installation
2.2 Nest Installation
3.0 Operation……………………………………………………………………5
4.0 Maintenance……………………………………………………………...…7
5.0 Product Specifications……………………………………………………....7
6.0 Durometer Scale…………………………………………………………….7
7.0 Warranty…………………………………………………………………......8
7.1 Warranty
7.2 Warranty Period

3
1.0 General Product & Safety Information
1.1 Product Information
The Fitting Inserter is designed to hold and locate soft tubing and push it onto fittings.
The minimum/maximum outside tube diameter is 1/16” to 3/8”
1.2 Safety Information
This product uses a geared lever action to insert fitting into tubing. Avoid placing
hands or fingers between jaws and nest.
2.0 Installation
Ensure all four (4) rubber suction feet are completely stabilized on your work surface prior to
using the unit.
2.1 Jaw Installation
Select the jaw set that corresponds to the tube OD being used.
Assemble jaw halves using 2 .250 x 1-1/2” dowel pins and compression spring.

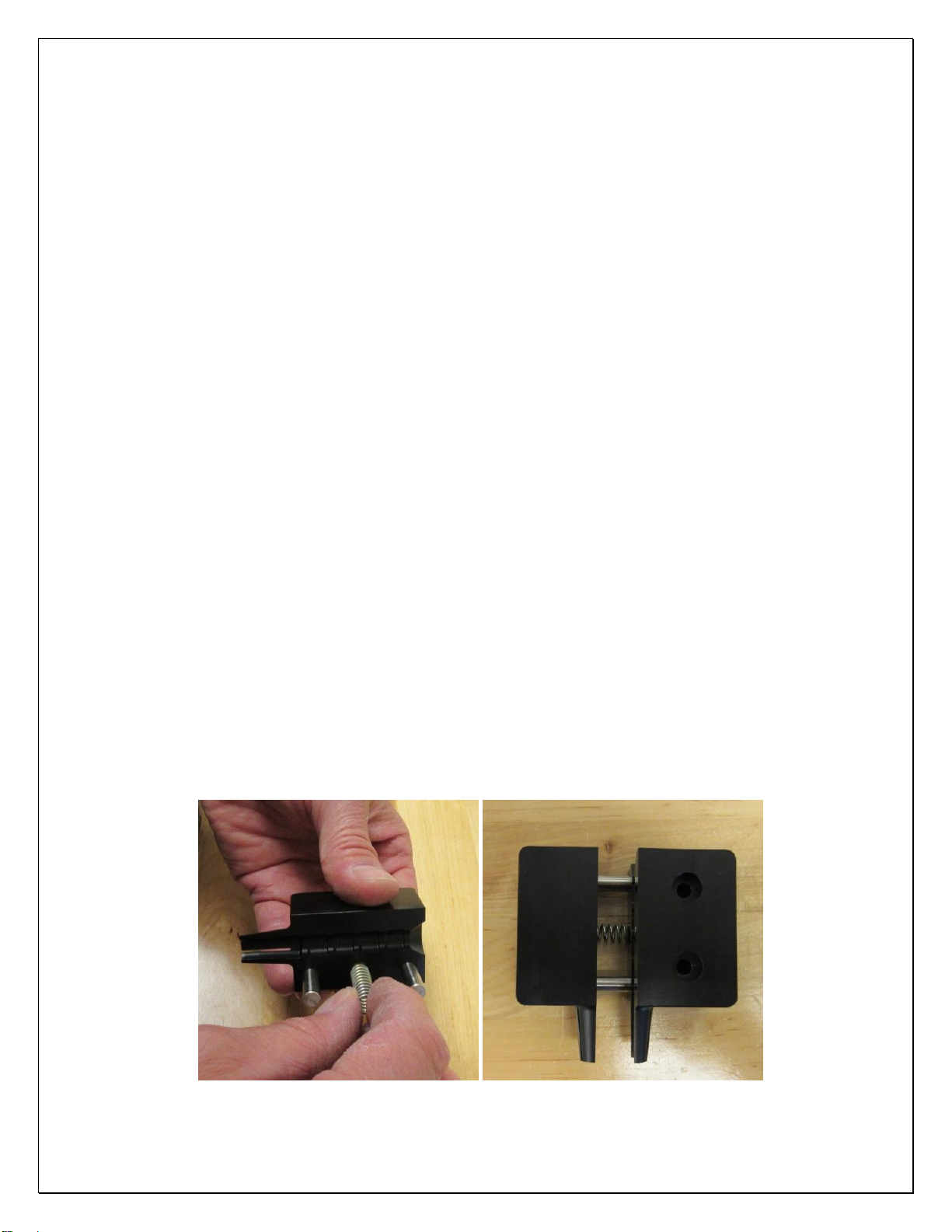

(Figure 1&2)
Figure 1 Figure 2

4
Slightly squeeze jaws together and place on the 2 dowel pins extending from thrust
plate. (Figure 3) Attach jaws using 2 10-24 x 1-3/8” socket head cap screws. (Figure 4)
Figure 3 Figure 4
2.2 Nest Installation
Select the nest set that corresponds to the fitting being used.
Rotate nest to fitting position desired and simply place on the four dowel pins.
Magnet holds nest in place. (figure 5)
Figure 5

5
3.0 Operation
Setting the Stop Gate
The stop gate allows for repeatable insertion of the tubing onto the fitting to a desired
position on that fitting. (halfway on, fully on up to shoulder, etc.) The stop gate is
adjusted via the thumb wheel. (Figure 6)
Figure 6
Loading Nest and Jaws
Ensure that the thrust lever is all the way back and the stop gate is in the upright
position.
Lock fitting into nest, ensuring the fitting is properly seated. (Figure 6)
Figure 6

6

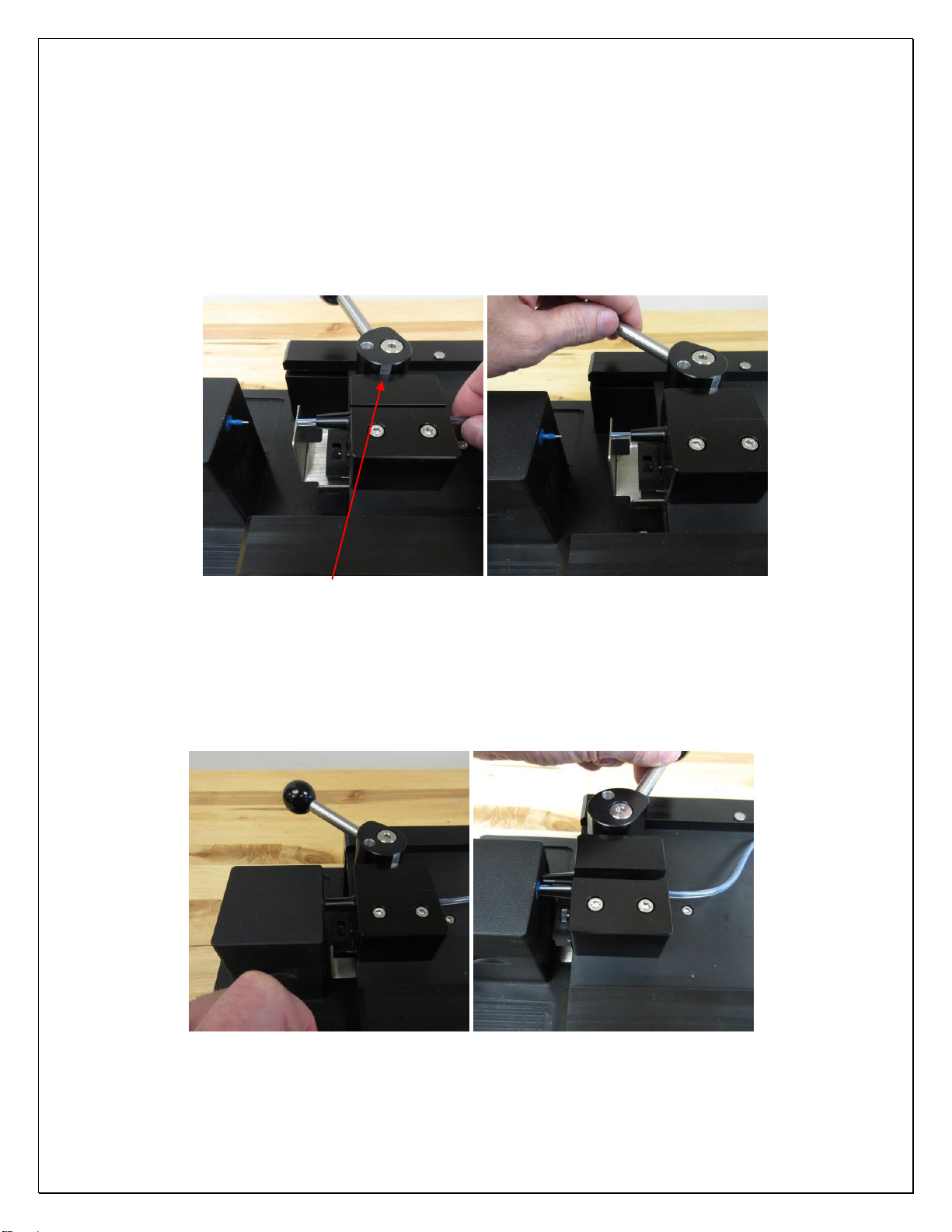

Open jaws to the semi open position by rotating cam until the flat is resting on the jaw
(Figure 7)
With jaws in the semi open position, insert tubing into jaws up to the stop gate and lock
in position with locking lever.
(Figures 7&8)
Figure 7 Figure 8
Pull thrust lever back until fitting is inserted to desired position. (Figure 9)
Open jaws and then push thrust lever partway forward so as to clear the stop gate.
(Figure 10)
Remove fitting from nest.
Figure 9 Figure 10

7
4.0 Maintenance
Wipe down outer surfaces with alcohol, septihol or mild detergents as required.
Once every three months check screws for tightness.
5.0 Product Specifications
Unit Weight
11 LBS / 4.99 KG
Overall Dimensions
14 in. lg. x 9 in. w. x 8.5 in. ht.
6.0 Durometer Scale
