Clean Water Systems 7500-REV4 User manual

7500-Rev4 Pro-Ox AIR Filter Installation Guide
Thank you for purchasing a Clean Water System! With proper installation and a
little routine maintenance your system will be providing iron free water for many
years.
Please review this start-up guide entirely before beginning to install your system
and follow the steps outlined for best results.
The Pro-OX Iron Filter media must be activated with a 1 cup of unscented liquid
chlorine bleach (such as Clorox) when first installing it. Read instructions for
more information. It is easy to do, but a critical step.
The Pro-OX media produces very small particles (fines) when the system is first
installed. Bring the water pressure up VERY slowly during the initial backwash by
opening inlet valve slowly to avoid pushing the media up into the control head.
Performing multiple backwashes at start-up is an important step.
You should also not bring any other systems online (i.e. softeners, filters, etc.) until
the Pro-Ox system is fully flushed. Depending on the water quality, this may take
several backwashes and a week or two of normal water use.
The Pro-OX media contains dust. Use paper mask and ventilate area to avoid
breathing dust when first pouring the media into the tank.
Minimum 30 PSI required. Maximum pressure 90 PSI.
For indoor installation. Protect from sunlight, rain, and freezing.
Questions?
Call us toll-free: 1-888-600-5426 or 1-831-462-8500
Email us: [email protected]
See more information on our website: www.cleanwaterstore.com/resources
Clean Water Made Easy
www.cleanwaterstore.com

Table of Contents
Packing Lists .................................................................................................................................................. 3
Pre-Installation.............................................................................................................................................. 4
Best Practices for Piping & Drain Installation: .............................................................................................. 4
How the Bypass Valve Works........................................................................................................................ 5
Installation of Your System in Copper or Metal Piping Systems:.................................................................. 5
How Your Pro-Ox Iron Filter Works .............................................................................................................. 6
Diagram of Typical Installation ..................................................................................................................... 6
Tank Assembly and Installation Instructions: ............................................................................................... 7
Programming Your Valve .............................................................................................................................. 9
Set Time of Day ........................................................................................................................................... 10
Set Date....................................................................................................................................................... 10
Start the First Backwash.............................................................................................................................. 11
Advanced Programming Mode ................................................................................................................... 12
Advanced Program Recommended Settings .............................................................................................. 13
Maintenance ............................................................................................................................................... 14
Exploded Parts View ................................................................................................................................... 15
7500-Rev4 Water Filters Limited Warranty ................................................................................................ 17

7500-Rev4 Pro-Ox-AIR Filter Installation & Startup Guide
3www.cleanwaterstore.com rev 12821
Packing Lists
All systems include:
7500-REV4 control valve, bypass valve, small tube of silicone grease, power supply, funnel for
adding media, top screen, start-up guide, and items included in one of the following options:
Find Your Size System to See What is Included:
What to Do if Your Tank is Not Level Out of the Box:
Your filter tank base is not glued to the bottom of your tank. Occasionally tank bases will become tilted
during shipment.
If you find that that your tank does not sit level on the floor, you can easily adjust it by holding the
empty tank and tap it on a concrete or solid floor once or twice to level it.
Pro-Ox Filter 0.75 cubic foot size
8” x 44” filter tank with distributor tube
9 lbs. filter gravel
56 lbs Pro-Ox media
10 lbs. Turbidex media
Pro-Ox Filter 1.0 cubic foot size
9” x 48” filter tank with distributor tube
12 lbs. filter gravel
70 lbs. Pro-Ox media
10 lbs. Turbidex media
Pro-Ox Filter 1.5 cubic foot size
10” x 54” filter tank with distributor tube
16 lbs. Filter gravel
112 lbs. Pro-Ox media
16 lbs. Turbidex media
Pro-Ox Filter 2.0 cubic foot size
12” x 52” filter tank with distributor tube
20 lbs. filter gravel
168 lbs. Pro-Ox media
20 lbs. Turbidex media

7500-Rev4 Pro-Ox-AIR Filter Installation & Startup Guide
4www.cleanwaterstore.com rev 12821
Pre-Installation
1. Review your packing list and make sure you have received all the parts before installation.
2. If you are going to be turning off the water to the house and you have an electric water heater, shut
off the power to the water heater before beginning installation in case water heater is accidentally
drained.
3. Pick a suitable location for your filter system on a dry level spot where it won’t be exposed to
freezing temperatures. A minimum of 20 PSI is required. Maximum pressure is 90 PSI.
4. Get all of your plumbing parts together before beginning installation, and make sure you have
received all of your packages before beginning or scheduling an installation. Installation typically
takes 3 to 5 hours. However, after installation the filter system must be allowed to run through a
complete backwash and rinse cycle.
Best Practices for Piping & Drain Installation:
1. Make sure to connect the Inlet from your water source and outlet, following arrows on control valve
bypass.
2. Make sure there is a working gate or ball valve before the system and also one after as well as a
bypass valve.

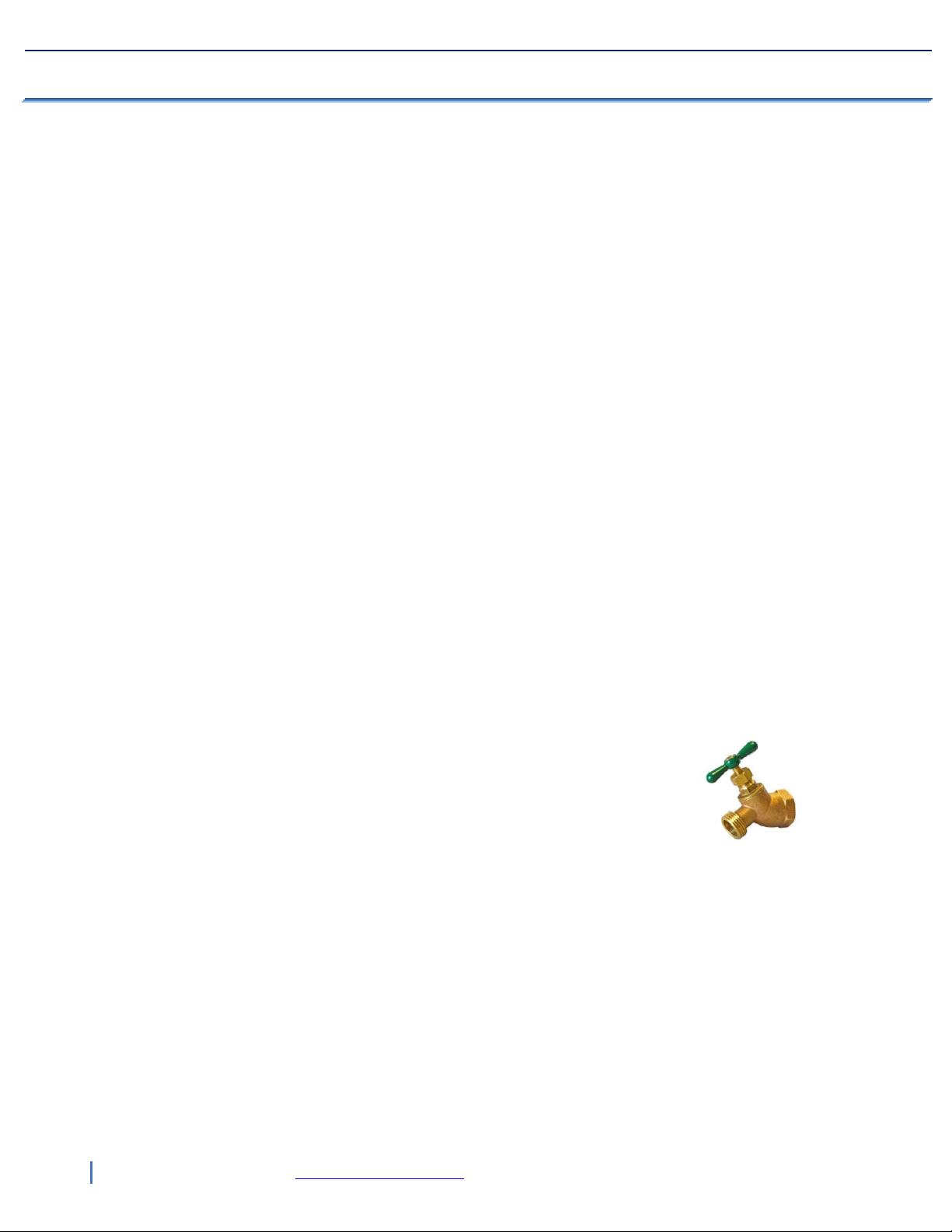

3. A hose bib (which is a faucet to which you can attach a garden hose) is strongly
recommended after your filter system and before the second ball valve. This
makes it easy to rinse your filter system on start-up and gives you a place to test
the water.
4. If you will be using copper piping, do not sweat the copper pipe directly on to the 7500-REV4 control
valve.
5. To connect drain line to drain, use an air-gap connection, so that if your sewer or septic tank backs
up, it cannot cross connect with the drain tubing.
6. The pipe connectors are 1’ male pipe thread but you can add a reducer to reduce to ¾” pipe with
common pipe fittings if needed.
7. Make sure bypass valves are closed (system is in bypass) when you first start installing and keep on
bypass until you are ready to start it up with the first backwash.

7500-Rev4 Pro-Ox-AIR Filter Installation & Startup Guide
5www.cleanwaterstore.com rev 12821

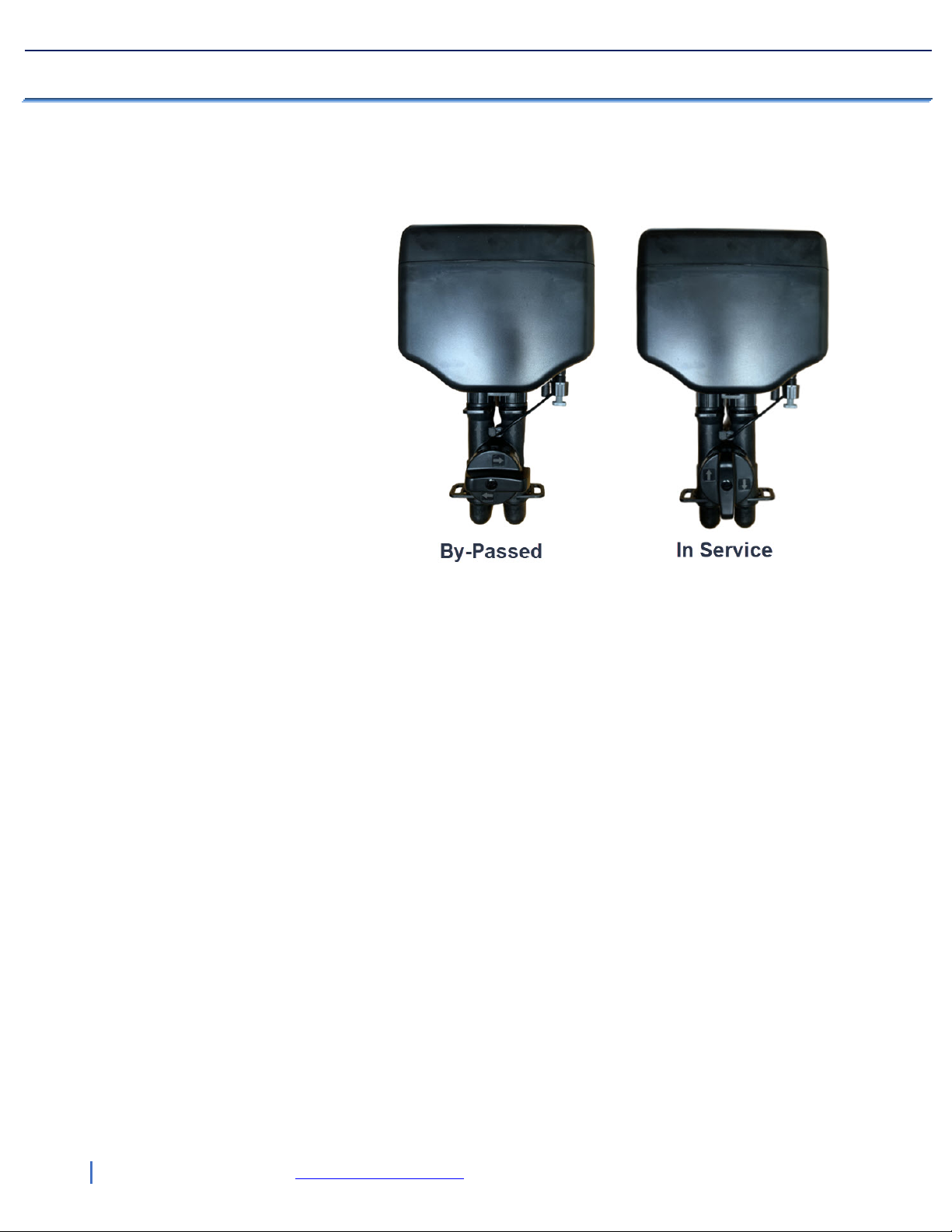

How the Bypass Valve Works
Turn knob so the valve is bypassed
when installing.
When you go to start up system turn
the bypass SLOWLY to let water in
and put in service.
Installation of Your System in Copper or Metal Piping Systems:
If your new filter system is to be installed in a metal (conductive) plumbing system, i.e., copper, or
galvanized steel pipe, the plastic components of the system will interrupt the electrical continuity of the
plumbing system.
As a result, any stray currents from improperly grounded appliances downstream or potential galvanic
activity in the plumbing system can no longer ground through the contiguous metal plumbing.
Some homes may have been built in accordance with building codes, which encouraged the grounding
of electrical appliances through the plumbing system.
Consequently, the installation of a bypass consisting of the same material as the existing plumbing, or a
grounded "jumper wire" bridging the equipment and reestablishing the contiguous conductive nature of
the plumbing system must be installed prior to your systems use.
This is simple and easy step to take if you are installing your water treatment system into copper piping.
A simple ground jumper wire with a pipe clamp can be purchased at any Home Center, or hardware
store etc. for a few dollars.

7500-Rev4 Pro-Ox-AIR Filter Installation & Startup Guide
6www.cleanwaterstore.com rev 12821
How Your Pro-Ox AIR Iron Filter Works
Water enters the top of the tank and flows down through
the media and up the distributor tube.
During backwash the flow of water is reversed and water
flows down the distributor tube and up through the
media, lifting and expanding the Pro-Ox media.
During the backwash the Pro-Ox is cleaned by the action of
the water flowing through it.
Diagram of Typical Installation

7500-Rev4 Pro-Ox-AIR Filter Installation & Startup Guide
7www.cleanwaterstore.com rev 12821
Tank Assembly and Installation Instructions:
1. Wrap the top of distributor tube with electrical or duct tape so that no
gravel or Pro-OX media will go down the distributor tube.
2. Add the filter gravel that came with your order. You want the gravel to
cover the bottom distributor screen before adding the Pro-OX media.
3. Next add Pro-OX media, then add the Turbidex media. Tank should be about 2/3rds full of media.
4. Remove tape from top of distributor tube. Be careful not to pull up distributor tube.
5. Add 1 cup of regular chlorine bleach and fill
tank completely with water. Allow media to
soak for 1 hour but 24 hours or more is OK.
6. Add a small amount of silicone grease to the
inner O-ring, where the distribution tube goes.
7. Next, install the top screen by inserting upwards and rotating to lock in place. (This is a funnel-
shaped plastic screen that locks into the bottom side of control valve.
8. Lubricate the main tank O-ring
with silicone grease and screw on
the 7500-Rev4 control valve
carefully. Do not use pipe-joint
compound, vegetable oil, Teflon
tape, or Vaseline or other greases
to lubricate tank threads.
9. Connect bypass assembly with 1”
pipe connectors to control valve
install black clips and make sure
valve is in bypass.
10. Insert meter cable into meter
cable port on bypass.

7500-Rev4 Pro-Ox-AIR Filter Installation & Startup Guide
8www.cleanwaterstore.com rev 12821
11. Install inlet and outlet piping (see flow arrows on valve) and hook up drain line tubing to drain.
12. If you are in earthquake zone, strap your backwash filter tank to wall with metal strapping.
13. Proceed to programming your 7500-Rev4 control valve timer and backwash frequency.
IMPORTANT: you must program the time and then start a backwash and rinse. The filter system must
be backwashed and rinsed several times before using. See following pages for instructions.

7500-Rev4 Pro-Ox-AIR Filter Installation & Startup Guide
9www.cleanwaterstore.com rev 12821
Programming Your Valve
How to Start a Manual Backwash: Press the Back / Regen button
Pressing “Back Regen” at any time results in an immediate manual regeneration.
Pressing and holding for 3 seconds, when system is locked, results in a delayed regeneration at the
preselected time.
Extended Power Outage Indicator
If power outage exceeds 3 days, the time-of-day indicator “_” will flash 12:12. The current time of day
needs to be re-set. All other set parameters remain stored in memory. The valve will resume to operate
from the point of the power outage.
Lockout Function
Keypad will lock after 5 minutes without use. To access the parameter changes, press and hold “Up” and
“Down” buttons simultaneously for 3 seconds to unlock.
NOTE: To start all you need to do is set current time and date. All
other parameters have been preset for you.

7500-Rev4 Pro-Ox-AIR Filter Installation & Startup Guide
10 www.cleanwaterstore.com rev 12821
Set Time of Day
1. If LOCK icon is lit, press, and hold both UP and
DOWN buttons for 3 seconds to unlock
keypad.
2. Then press the MENU/CONFIRM button to
enter the main menu.
3. Press DOWN button to scroll down to and
select “Set Time of Day”
4. Press the MENU/CONFIRM button again to change time of day (Hour will flash)
5. Adjust hour by using DOWN or UP buttons.
6. Press the MENU/CONFIRM button again to change minutes (Minutes will flash)
7. Adjust minutes by using DOWN or UP buttons.
8. Press Back/Regen
Set Date
1. If not in the main menu, press the MENU/CONFIRM button to enter the main menu.
2. Press DOWN button to select and scroll down to “Set Date”
3. Month: Press the MENU/CONFIRM button again to change time of day (Month will flash) and
adjust to current Month date by using DOWN or UP buttons.
4. Day: Press the MENU/CONFIRM button again to change Day date (Day date will flash) and
adjust to current day date by using DOWN or UP buttons.
5. Year: Press the MENU/CONFIRM button again to change Year date (Year date will flash) and
adjust to current Year by using DOWN or UP buttons.
6. Press BACK/REGEN button to save current date and go back to menu.
7. Continue to review and/or change the remaining settings (as follows)
Set Service Days This is the number of days between backwash. Set for every 1 to 7 days
depending on water quality. For example, the default setting is to backwash every 7 days. If you notice
pressure loss in the house after 4 days, then change setting to every 3 or 4 days.

7500-Rev4 Pro-Ox-AIR Filter Installation & Startup Guide
11 www.cleanwaterstore.com rev 12821
Set Regen Time This is the time your system will backwash. Default is 2:00 AM
Set Backwash Time Set for 10 minutes.
Set Air Draw Time Set for 10 minutes.
Set Fast Rinse Time Set for 8 minutes.
Review Regen Times This is number of times the system has backwashed. Just for reviewing.
Review Software Version Version 5.0
Start the First Backwash
1After programming, the system must be run
through 2 or 3 backwash/rinse regeneration
cycles to clean the new filter media.
2Start with both bypass valves in the Bypass
Position.
3Press the BACK/REGEN button once to enter the backwashing cycle.
4When the backwash icon is displayed, slowly open the bypass to a quarter position to make
the water flow into the tank and out the backwash drain line to drain.
5After several minutes open bypass valve completely.
6If possible, verify that the backwash flow corresponds with the size of your system below.
You can easily run the drain hose to a bucket and using a watch verify the flow rate in
gallons per minute. An adequate backwash is critical to properly clean the Pro-OX media.
Make sure you have a minimum of these flow rates in gallons per minute. For example, if
backwash water fills a 5-gallon bucket in 1 minute, you have 5 gallons per minute (GPM).
0.75 CF
5 GPM
1.0 CF
7 GPM
1.5 CF
10 GPM
2.0 CF
12 GPM

7500-Rev4 Pro-Ox-AIR Filter Installation & Startup Guide
12 www.cleanwaterstore.com rev 12821
7After the backwash, the system will automatically go into the fast rinse stage. The control
valve will return to service status (indicated by the up flowing meter on the left) after the
backwash and rinse are complete.
8Repeat the Regeneration (backwash and rapid rinse cycle) step 3 to 4 more times until you
see clear water through the drain line or your hose bib after the filter system.
Congratulations, you are done setting up your new system!
Advanced Programming Mode
Skip this for most applications as your filter system has already been set to correct modes.
1. Plug the RevV4 in and immediately press in sequence MENU/CONFIRM, then press
BACK/REGEN button, then press the DOWN button to enter the Advanced Programming Mode.
2. Press UP or DOWN buttons or to select the menu item to be changed
3. Note: If valve locks while programming, unplug power supply and repeat step above.
4. Press MENU/CONFIRM to enter the main menu
5. Press the UP or DOWN buttons to highlight each option.
6. Press MENU/CONFIRM to enter highlighted option.
7. Press the UP or DOWN buttons to adjust the value.
8. Press the MENU/CONFIRM to accept the changes.
9. Press BACK/REGEN button to advance to service status

7500-Rev4 Pro-Ox-AIR Filter Installation & Startup Guide
13 www.cleanwaterstore.com rev 12821
Advanced Program Recommended Settings
Screen View
Default Settings
Review Company Info
CWS 831-462-8500
Set Valve Model
62605
Set Language
English
Set Company Info
CWS 831-462-8500
Set Hour Mode
12 HR
Set Time of Day
Current time of day
Set Date
Current date
Set Program Type
Interlock
Set Regen Cycles
No. 4
Set Set Clear Data
Close
Set Regen Mode
A-06
Set Service Days
4
Set Regen Time
2:00 AM
Set Backwash Time
10 Minutes
Set Air Draw Time
10 Minutes
Set Fast Rinse Time
8 Minutes
Signal Output Mode
b-01
Set Service Alarm
Disabled
Review Regen Times
NA
Review Software Version
Ver. 5.0

7500-Rev4 Pro-Ox-AIR Filter Installation & Startup Guide
14 www.cleanwaterstore.com rev 12821
Maintenance
Every 5 to 10 years (in some cases it can last longer) remove control valve and empty the Pro-OX filter
media and replace with new media.

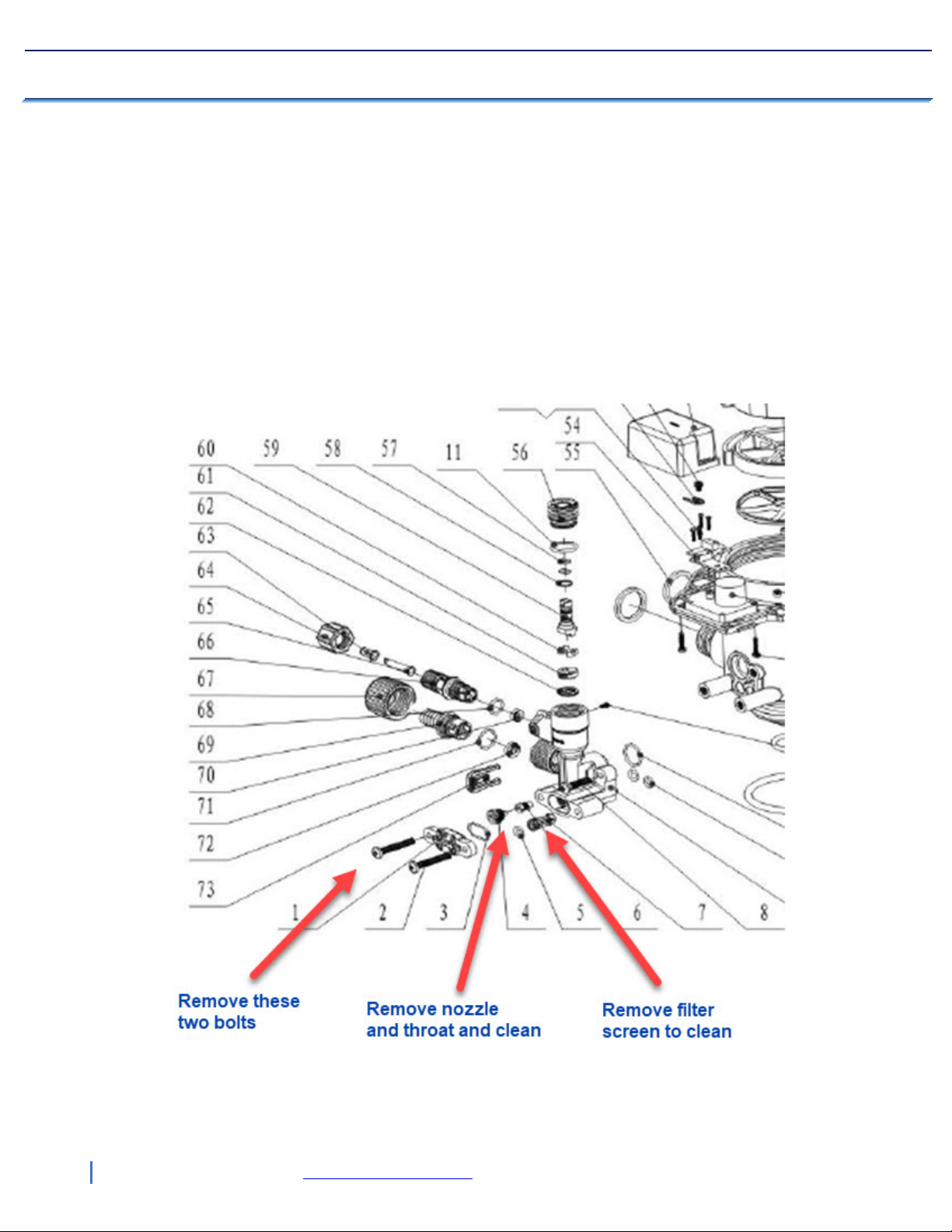

Once a year clean the nozzle and throat on the injector. Turn off water pressure to your system and
release any pressure by opening up a hose bib or faucet downstream of the filter system. Remove the
two bolts covering the injector.
Using small screwdriver remove the injector nozzle and throat and filter screen and clean with paperclip
and rinse in vinegar to remove any deposits.

7500-Rev4 Pro-Ox-AIR Filter Installation & Startup Guide
15 www.cleanwaterstore.com rev 12821
Exploded Parts View

7500-Rev4 Pro-Ox-AIR Filter Installation & Startup Guide
16 www.cleanwaterstore.com rev 12821

7500-Rev4 Pro-Ox-AIR Filter Installation & Startup Guide
17 www.cleanwaterstore.com rev 12821
7500-Rev4 Water Filters Limited Warranty
We warrant this water filter when installed according to factory recommendations, to be free from defects in materials
and workmanship as follows:
----------Limited Warranty----------
This water conditioner unit is comprised of the finest industry components available. Each individual component used in the
assembly of our equipment is covered by the original equipment manufacturer’s warranty. All components, except those
specifically listed below, are warranted for a period of one (1) year from date of installation to the original purchaser to be free
of defects in materials and workmanship subject to the manufacturer’s conditions and/or the conditions shown below.
----------Mineral Tanks----------
The fiberglass, polyglass or composite mineral tanks used in the assembly of this unit are warranted to be free of defects in
materials and workmanship for a period of ten (10) years on 6” – 13” size tanks, and five (5) years on 14” and larger size tanks
used for softener/filtration applications, subject to the manufacture’s conditions and/or the conditions shown below.
Warranty does not cover exposure to weather, freezing, fractures caused by external impact, or exposure to vacuum.
----------Control Valves----------
The CWS control valve is warranted to be free of defects in materials and workmanship for a period or five (5) years.
----------Conditions----------
1. This warranty only covers water conditioners installed for residential use. Water conditioners installed for
commercial or industrial applications are guaranteed for one (1) year from the date of installation.
2. Installation must be made in accordance with legal or local codes and manufacturer’s recommendations.
3. Failure must not result from exposure to weather, rodents, misuse, alteration, fire, lightning, power surges or neglect.
4. Water pressure must not exceed 100 PSI and water temperature must not exceed 100 degrees.
5. Subject to the above terms and conditions we will replace and/or repair, at our option, any parts of the water
conditioner found defective in materials and workmanship. Defective parts must be returned, freight pre-paid
for repair or replacement.
6. This warranty does not cover labor, shipping charges, damages caused by delays of consequential damages or
other causes beyond our control. Warranty does not cover pipes, fixtures or appliances. Warranty extends to
the actual water conditioner components only.
7. This warranty is to the original purchaser and is not transferable to any subsequent owner(s).
8. No other guarantees or warranty, expressed or implied, is applicable to our product. No repair or replacement
made under the terms of the warranty shall extend this warranty.
9. Any product returned to Clean Water Store without a valid return authorization number will be
rejected. Any product found to be defective will, at the sole discretion of Clean Water Store be
repaired or replaced. Clean Water Store is not responsible for shipping cost to the repair facility.
