Cleanmate TRANSFORMERS Series User manual

Introduction
Safety Introductions
Production Features
Main Unit and Accessories
Battery Connection

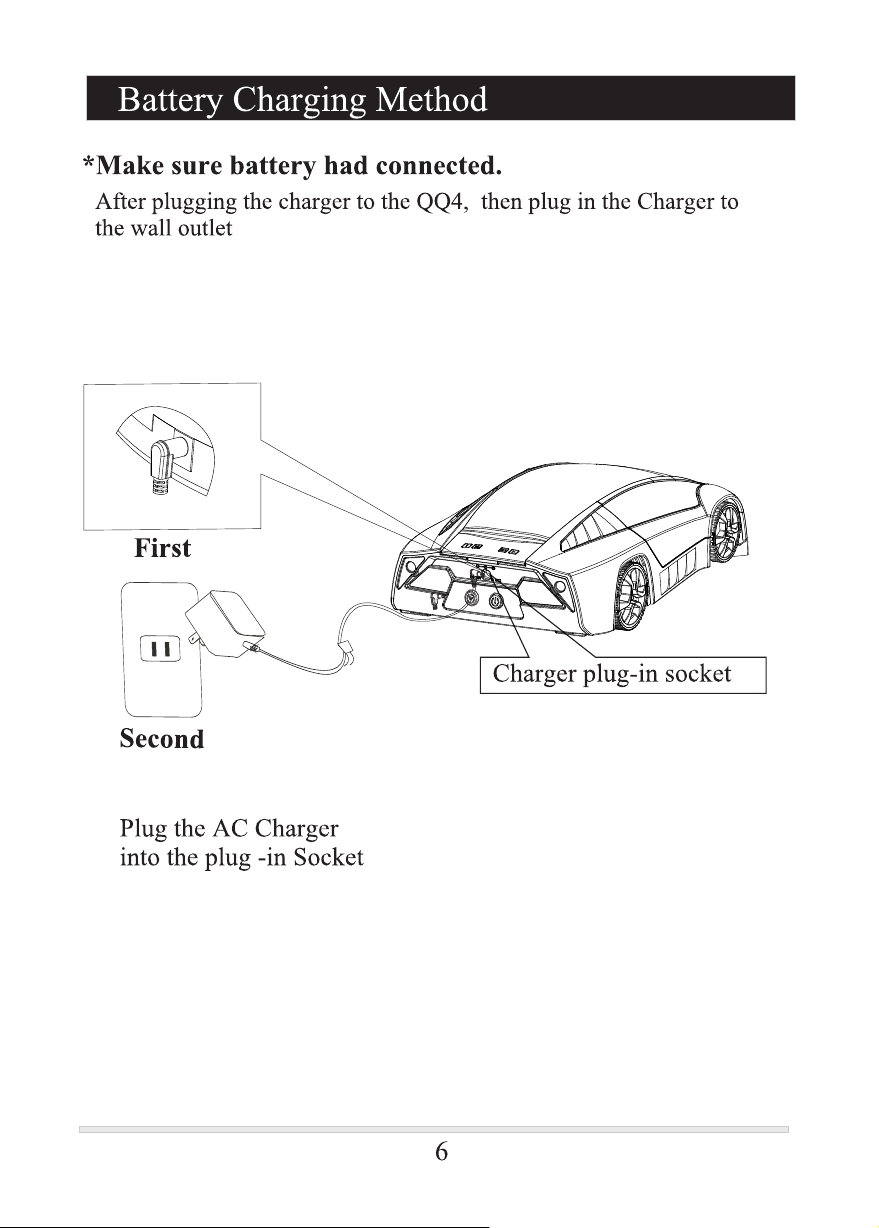

Battery Charging Method
Unit Operations and panel Display
Remote Control
Portable Cleaner Operations
Installing Accessories
Dust-bin Cleaning
Useful Tips
Specification
2
2
3
4
5
6
7、8、9
10
10、11
12
12、13
14、15
16
Table of Contents

2
This product is for indoor use only.
Only use factory supplied battery charger and genuine battery when you
operate the CleanMate.
It is a electrical device . Do not use it on wet floor or spill water on your
CleanMate.
Do not handle battery charger and battery with wet hand.
Do not sit or stand on your CleanMate.
Pay attention to toddlers & pets when using CleanMate in your house.
Do not use it to clean burning cigarette, or lit match, etc.
Do not use it to clean a floor with water or any other liquid.
Do not use it to clean a floor with bleach or any other chemicals.
Do not block the air vent of the CleanMate unit.
To achieve best cleaning result, remove large loose & fragile objects from
the floor (power cord, cable wire, phone cord clothing, long bind &
curtain drapes, loose rug fringes, etc).
Clean the debris tangled around brushes and wheels to avoid over loading it.
After each use, empty dust bin, clean filter and brushes to keep it at top
performance.
If you do not plan to use it for a long period of time, fully charge the battery
and then remove the battery from CleanMate unit and store it in a dry, cool
environment.
Please read all instructions. Save this manual for future references.
Web Support:
ays here to help
Email Support:

Working time setting
Remote control
holder.
Main power switch
Top Cover
Dust Bin
Portable vacuum
LED Panel
Charging Socket
Power switch
There are 2 unique features of this portable portable vacuum cleaner
installed in main unit. It can operate automatic or manually handheld.
High performance & low noise vacuuming for best cleaning result.
2 obstacle detection methods: No-collision (No-Impact) and
Soft-impact.
Side brushes for better cleaning along wall/furniture edges.
5 drop sensors to keep it from falling off stairs.
Spot cleaning with spiral movement pattern.
Cleaning a wide variety of floor types.
Low profile design enable it to clean under beds and other furnitures.
Build-in IR-dust-sensor. If detect dust, cleaner will force to
Spot-cleaning-pattern.
Remote control holder in main unit, easy to find.
Product Features
3

特性介绍
5
4
2
1
6
QQ4 Main unit
Remote control
Filter and HEPA
Rechargeable battery
Charger
Suction nozzle
User manual
Side Brush
(inside)
(HEPA+1)
x2(inside)
x1(inside)
x2 (Spare+1)
Main Unit and Accessories
3
4
Model: QQ4
USER MANUAL
★Ult rason ic dete ction t echno logy
★Por table v acuum c leane r insid e
★IR du st dete ction
Robotic Vacuum Cleaner
CleanMate
Model No.:QQ4
Series
R
7
8

5

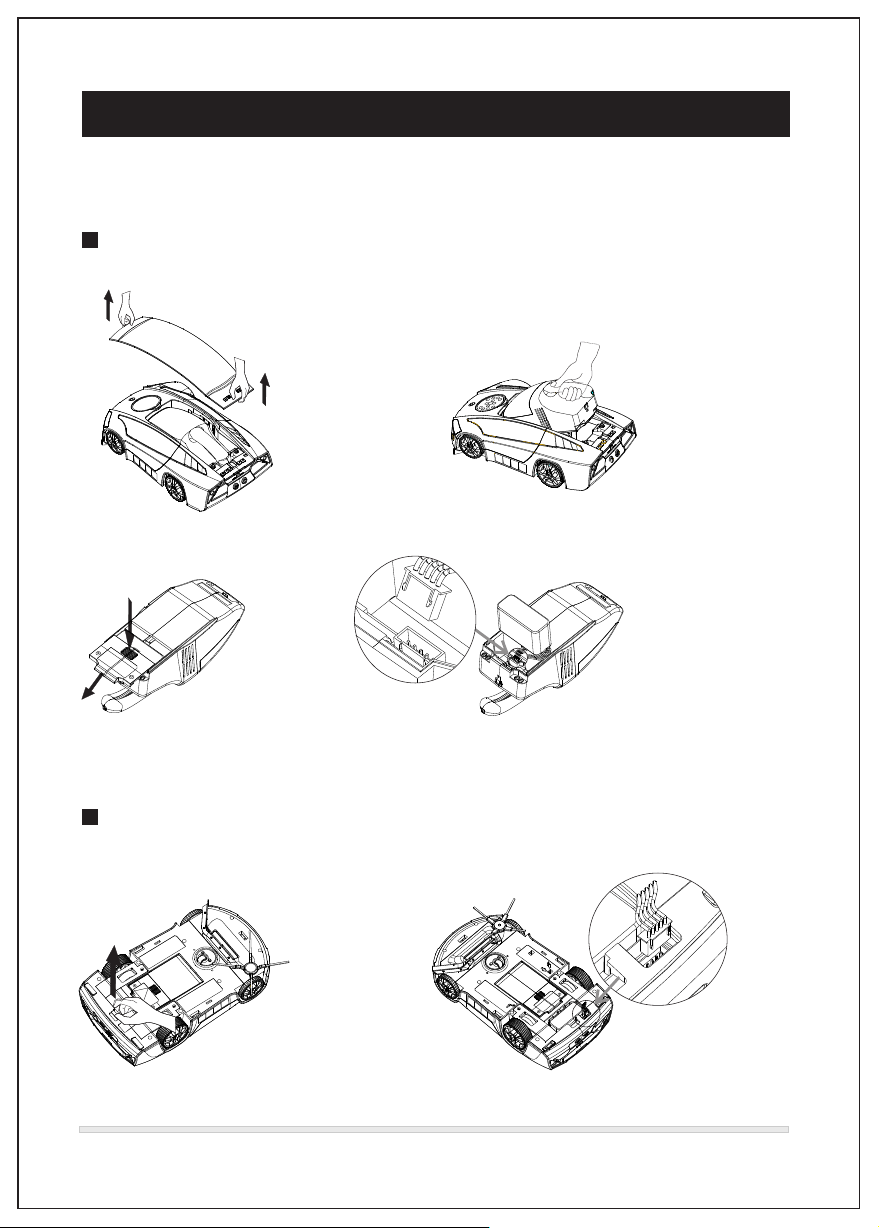

Please connect batteries of portable cleaner and main unit before
first use.
Portable cleaner battery connection
Fig 1.Take off the
top cover
Fig3.Depress and slide
backwards, take off
the battery cover
Fig 4.Connect battery and cover it
Attention to the direction of the connector.
Main unit battery connection
Take off the battery cover Connect battery and
cover it
Attention to the direction
of the connector.
Fig 2.Take out the
handy cleaner
Battery connection

7
Unit Operations and Panel Display
User can use timer to set up the maximum running time of QQ4
when you power on the QQ4. Default timer setting is 80 minutes.
User can change the timer setting in 10 minutes intervals with
one shot press the button (8 7 6 5 4 3 2 1 8)
QQ4 can remember the latest timer setting when user power it on
again.
1.Power-on indication light is solid Blue.
:Battery low indication blinking in Red.
:Timer, Moving Mode and error code indication.
Display
Button
2.During charging:
Blinking in Blue Battery charging is in progress.
Solid Blue Battery is fully charged
Operation timer:
Main Power Switch:
Press this power switch button once to power on the QQ4, and
press it again will start operation.
1.Timer:Please see above Button/operation timer.
123
4
5

8
”S”Shape Along Wall
Random
Spot
Dust sensoring
Spot
Dust sensoring
Force spot spiral cleaning
Unit Operations and Panel Display
2.Moving Mode: When you turn the QQ4 on, the default moving
pattern is set to Automatic mode. Users have the option to select
any of the following 4 moving patterns with the remote control:
3. Error Code: When the cleanmate QQ4 encountered an abnormal
problem, it shows one of the following error codes (1-8) on the
multi-function LED display. The red Error light will also be on.
“A” Automatic(automatically going through all patterns)
“b” Random(Special Bounce)
“C” S Shape
“d” Along Wall
MODE:A b C d
: Side brush problem
: Battery charging error
: Vacuum battery overheat
: Main unit battery overheat
: Front drop sensor error
: Unit lift off ground
: Left wheel problem
: Right wheel problem

Unit Operations and Panel Display

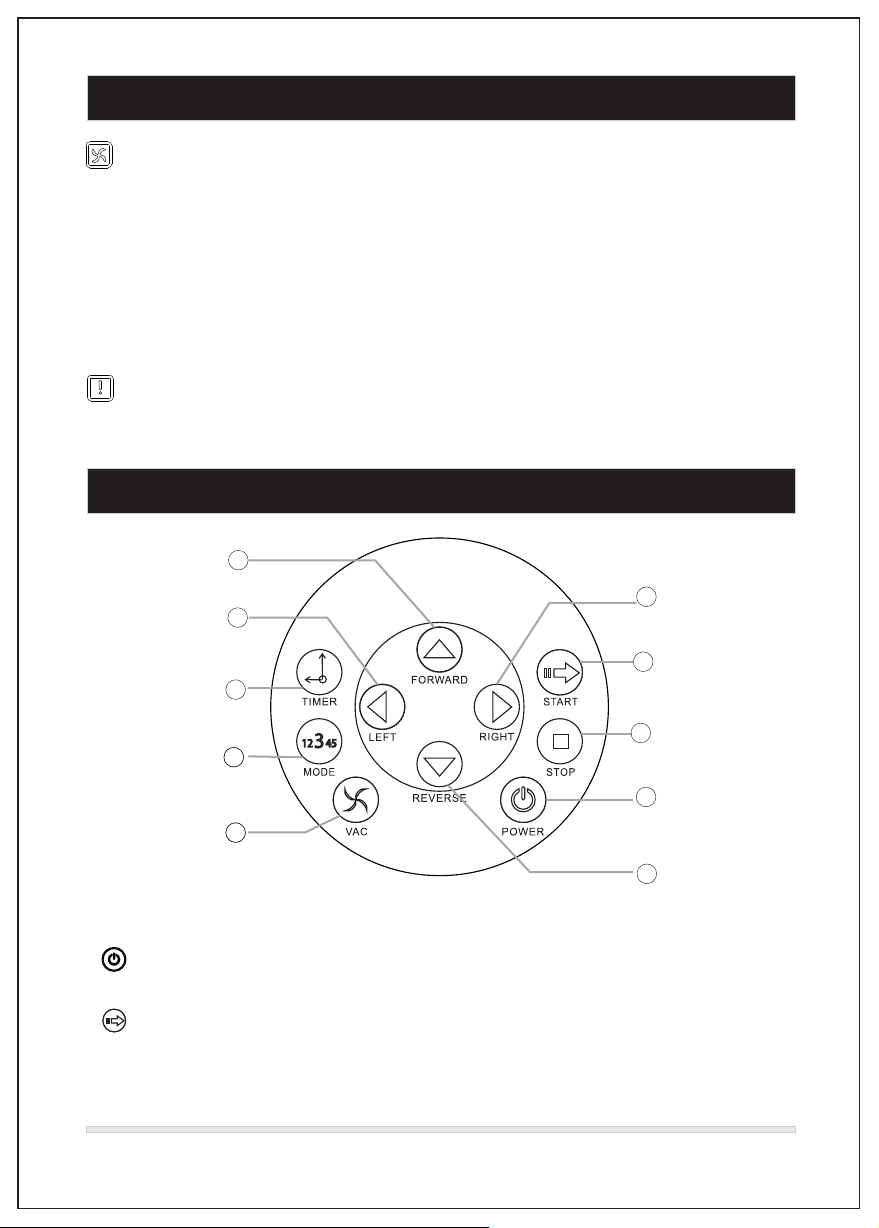

Remote control
9
1.Vacuum Fan indicator:
When the Cleanmate QQ4 is powered on, vacuum fan is on and
the corresponding Green indicator light is on. User can use rem
ote control to turn off the vacuum fan, and this Green indicator
will be off.
: Error indicator: When the Cleanmate QQ4 has an error this indicator
LED light will turn on in red. Please refer to the error code,
displayed in the timer number, for details.
2.During charging:
Blinking in Green-main battery charging is in progress.
Solid Green-Main Battery is fully charged.
8
4
6
7
1
5
4
3
4
2
POWER: Press “Power” button to power ON/OFF the Cleanmate QQ4
START: Press it once to start QQ4 cleaning.
1.
2.
Function of each Button:

Remote control
Portable cleaner operations
10
Press handle button
Fig1 Fig2
Timer: Set cleaning time from 10 min to 80 min (in 10 min
increment).Actual Cleanmate QQ4 running time varies
depending on battery power left.
VAC: Turn the vacuum motor on or off.
Stop: Press it once to stop QQ4.
MODE: Select one of the 4 cleaning patterns: “b”,”C”,”d”and”A”(Auto mode).
Auto mode is the default cleaning mode when QQ4 powered on QQ4
will automatically go through all the moving patterns in Auto mode.
About”b”,”C”,”d” detail, see page 8.
3.
FORWARD: When press Forward, QQ4 go forward and the suction fan is
working, until user release the keypad. If touched obstacle, QQ4will return.
5.
LEFT/RIGHT/REVERSE: Direction keys. If any direction key is pressed
and hold down, QQ4 will keep moving toward
that direction.
4.
6.
7.
8.

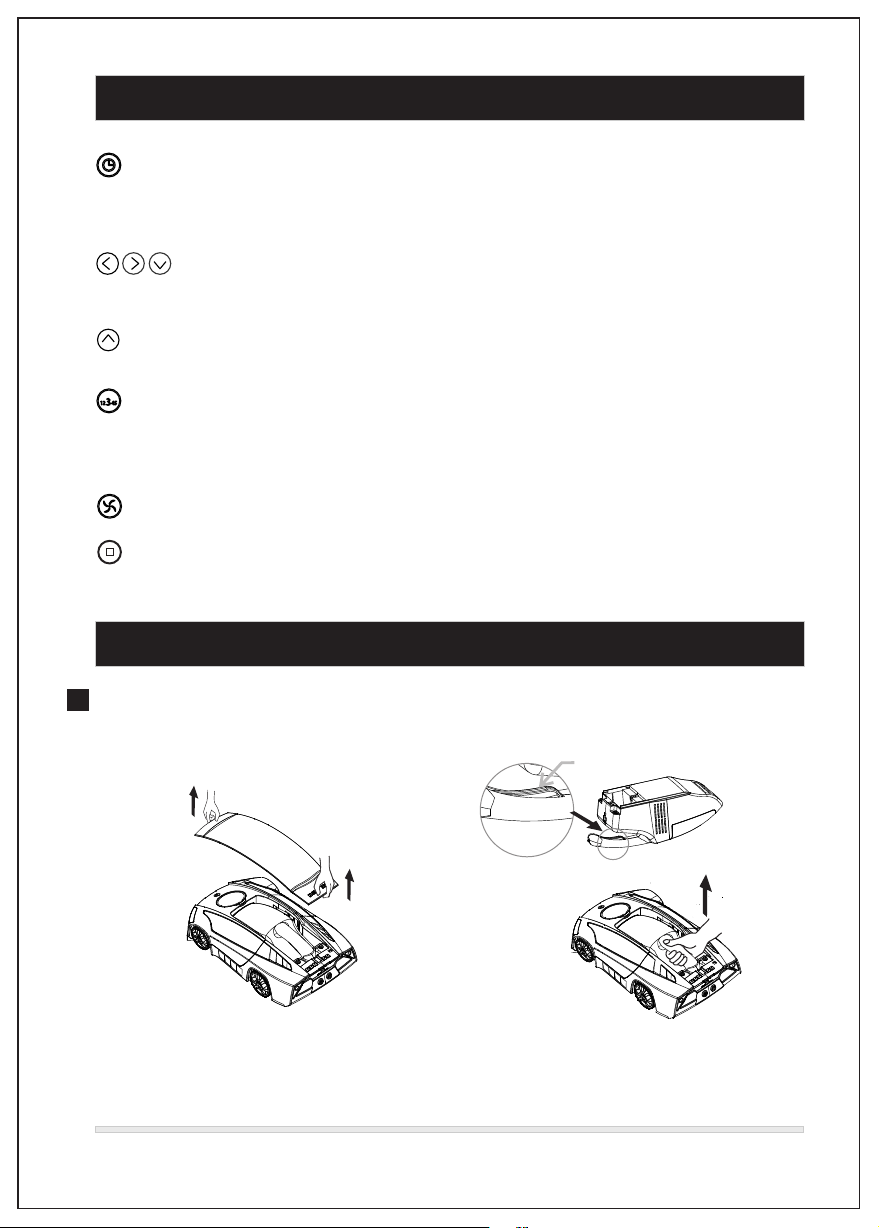

1Take out portable cleaner. Please see Fig1、2.

Portable cleaner operation
11
Fig4 Fig5 Fig6
Fig3
2
3
Turn on the power switch. Please see Fig3.

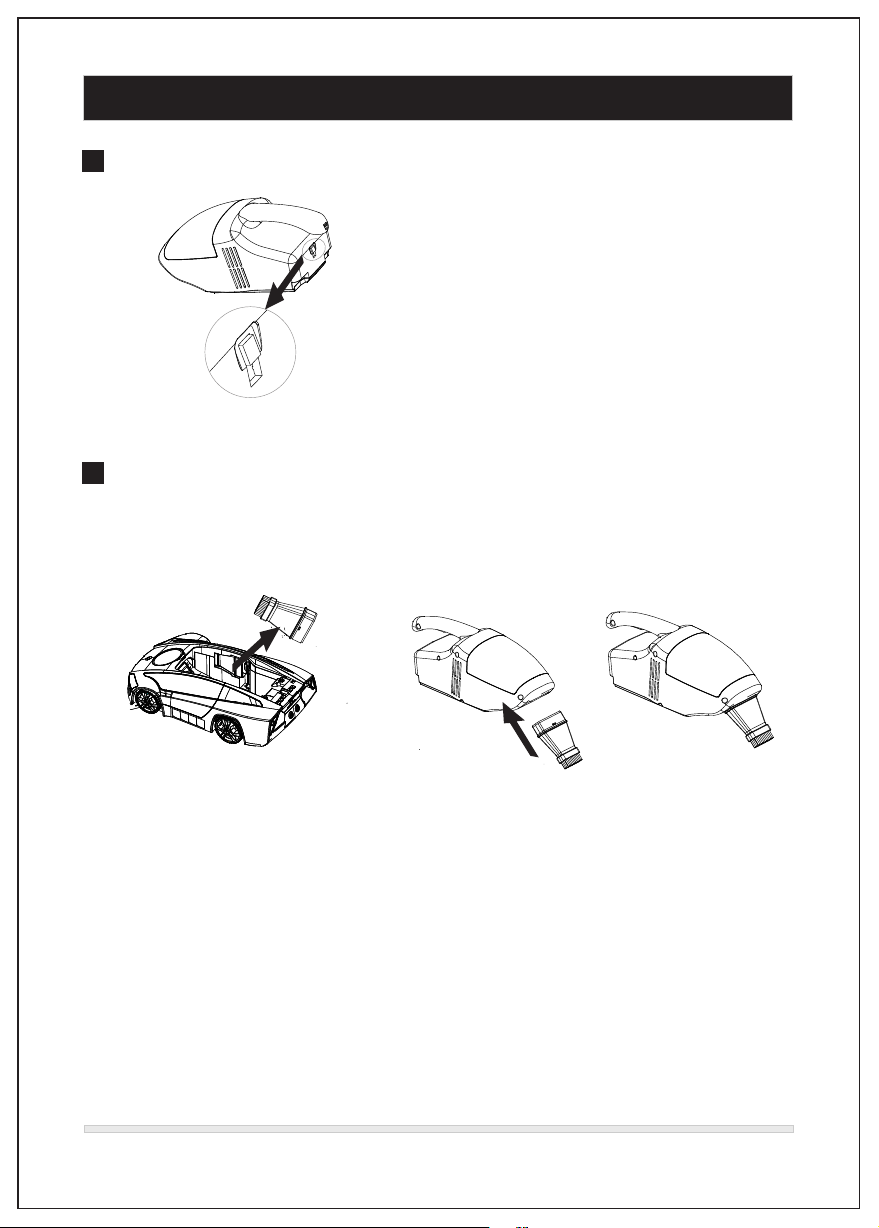

Use the Suction nozzle to clean corner or hair.
please see Fig4、5、6.
ON
OFF
Press hook to take nozzle

Side Brush Installation and Removal
Fig1 Fig2
Fig1 Fig2
Installing Accessories
Take out the dust-bin,please see Fig1.
Dust-bin cleaning
12
To remove the side
brush, firmly hold its
base and pull the brush
out.
To install the side brush,
push it down to mounting
hole until it clicks.
Fragrance Installation and Removal
The QQ4 has a compartment built into it for adding fragrance to the air as the
unit cleans. Any solid scent packet, insert, or dryer sheet can be used.
DO NOT use any type of Liquid or Oil Fragrance with this unit.
Fig1
1

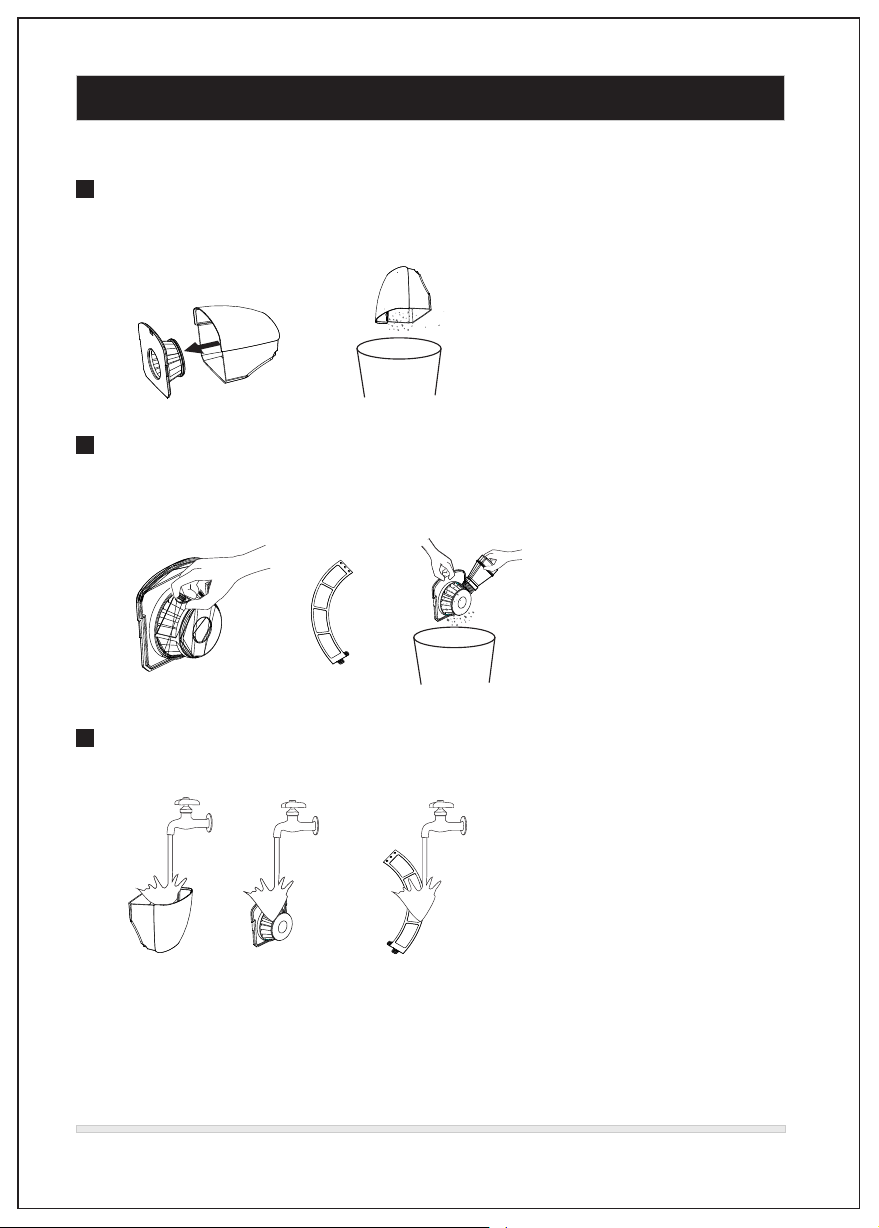

Dust-bin cleaning
Dump the debris, please see Fig2、3.
Fig3
Fig4 Fig5 Fig6
Fig2
Fig9
Fig7Fig8
13
Clean Filter and HEPA. Please see Fig. 4、5、6.
(Use the small brush of nozzle, Fig6)
Wash the dust-bin, HEPA and filter. Please see Fig7、8、9.
3
2
4

14
40cm
Remove vases, glasses, or small
lamps, etc.
Remove small items that might
obstruct QQ4 operation for faster
and better cleaning.
Fold the rug edges that have
loose ends under it
Useful Tips
Tip# 2:Leave enough clearance space(15"or more)for QQ4 to
operate
Tip#1: Prepare the cleaning area and remove large debris, loose
cables, wires, and items that can be easily tangles with brush or
knocked over.
Tip#3: Do not let loose edges of rugs, drapes, table cloths, etc to get
caught by QQ4brushes, Roll the loose edges of rugs underneath.

Useful Tips
QQ4 will make a
beeping sound when
jammed.
Clean the vacuum
entry
and prevent it from
QQ4
15
Take out portable cleaner
Tip# 4: Fixing jams: If some object gets caught with side brush,
turn the QQ4’s power off immediately. Remove anything that
caused the jam before using the cleaner again
Block off certain areas with objects to get better
cleaning result.

主体及附件
Obstacle avoidance Ultrasonic sensor
NiMH 12.0V Rechargeable, 1200mAh, 2Pcs,
2.5hours ofcharging time
Item Spec.
Input：100-24Vac,50-60Hz,Max.0.4A
Output：20Vdc，1000mA
Adapter/charger
Battery Type
Capacity of dust bin 0.35L
Moving speed 23-27cm/sec.(9-11 in/sec.)
Remote control IR Type, Reception 5-7m(16-23 FT)
Types of movement Random,Along wall,S-Shape,
Auto, Spot-sprial
Dimension 35(L)X20(W)X10(H)cm
Weight 2.2 Kg
Specification
16
Specification
