Congratulations… You have just purchased the
Most Remarkable Amplified Phone In The World! v407
CSC50
Amplified Telephone
Installation Guide
& User Manual
*** The CSC50 Phone is available in two
colors: Charcoal and Off-white.

2
Congratulations on your purchase of
the CSC50 Amplified Phone from
ClearSounds Communication.
The CSC50 Phone has been designed specifically to meet your needs, blending an array
of valuable features with simplicity and style. The CSC50 Phone is truly the Most Remark-
able Amplified Phone In The World!
This User’s Guide provides you with information to set-up and start using your CSC50
Phone. Please read these instructions thoroughly before using your telephone.
Keep this manual for future reference.
Please save your sales receipt as proof of purchase in the event you need warranty
service.
Please visit our web site at www.clearsounds.com to:
· Register your product
It’s easy! Click on the Warranty Registration Tab, Complete the form and click
“submit”. It’s that simple!
· Download additional manuals and troubleshooting tips
(See back cover for details on warranty service.)
If you need assistance, please contact our Customer Solutions Hotline at:
877-784-1690.

3
Table Of Contents
Components Page 5
Conditions For Use Page 6
Features & Functions
Top View Page 7
Left side, Right side & Back side Views Page 8
Handset & Bottom View & Care of Phone Pages 9-10
LCD Screen Page 10
Screen Display Page 10
Installation Steps
Phone mounting – desk & wall use Page 11-12
Installing the optional batteries Page 13
Setting the dialing mode Page 13
Programming ringer – volume & style Page 13-14
Programming memory dial buttons Page 15-16
CSC50 Phone Operation
Making & Receiving A Call
Using the handset Page 17
Using the speakerphone Pages 17-18
Using audio & telephone accessory jacks Pages 18-19
Using the amplification function Pages 19-20
Volume reset override Page 21
Outgoing speech volume Page 21
Last number redial Page 22
Flash button Page 22
Mute button Page 22
CSC50 Caller ID Operation
Viewing your Caller ID display Pages 22-23
Viewing incoming calls Pages 23-24
Turn off new calls / message waiting indicator Page 24
Remove call record(s) from Caller ID
A specific call record Page 25
All call records Page 25
Set call waiting/Caller ID Pages 25-26

4
CSC50 Miscellaneous Feature Setting
Set language Pages 26-27
Set area code / LDS code Page 27
LCD screen contrast Page 28
Date / Hour format Page 28
Adjust number size Page 29
Phone book
Add new number/name Page 20
Review /modify number/name Page 30
Delete number Page 30
Save number from Caller ID Page 30
Dial from the phone book Page 31
Recall/Delete one of the last 30 numbers
dialed Page 31
Auto On Hook Pages 31-32
Troubleshooting Guide Pages 32-33
Specifications Pages 33-34
FCC Regulatory Compliance Pages 34-35
Warranty and Service Pages 36
Table Of Contents

5
Components
Check to be sure you have all items that come with your telephone. You should have a
AC adapter
Owners manual
Telephone base unit
Telephone handset 6 ft long telephone line cord
8 inch short
telephone line
cord
Handset
coil cord
Wall plate adapter
(not shown)
Screwdriver
(not shown)
Figure #1

6
Conditions for Use
Important Safety Instructions
Read and understand the Installation Guide & User Manual. When using your telephone
equipment, basic safety precautions should always be followed to reduce the risk of fire,
electric shock and injury to person, including the following.
WARNING: The CSC50 Phone is capable of amplifying sounds to a loud volume. It is
important to instruct all potential users of its proper operation. It is advised to adjust the
volume control to the minimum level (Low) when not in use and alert other users that
hearing damage can potentially result from misuse.
WARNING: To avoid the possibility of electrical shock, do not use this product near water
(For example, near a bathtub, wash basin, kitchen sink or laundry tub, in a wet basement
or near a swimming pool) while in the bathtub or shower or when you are wet. If the phone
becomes submerged in water, do not attempt to retrieve it until after you have unplugged
the AC adapter from the electrical outlet and the line cord from the modular wall jack. Do
not plug the phone back in until it has dried completely.
WARNING: Avoid using the telephone during electrical storms. There may be a remote
risk of electric shock from lightning. If the electrical storm is present in your immediate
area, possibility of electrical shock exists.
WARNING: Do not use the phone if you suspect a gas leak in the area. The phone’s
electrical contacts could create a spark, which could ignite any heavy concentration of
leaking gas.
WARNING: Do not use liquid cleaners or aerosol cleaners on the telephone. Use a damp
cloth for cleaning.
WARNING: No telephone should ever be placed near an open radiator or heating regis-
ter.
WARNING: Occasionally a power surge can occur on electrical lines without warning. With
any electrical device that you plug into an outlet, it is suggested you use a surge protector.
Asurge protector will prevent power surges from damaging your telephone. Surge protec-
tors are simple devices available at your local hardware store.
PLEASE SAVE THESE INSTRUCTIONS

7
22
6
7
9
8
11
1 2
13
432152010
21
181415161719
23
24
Figure #2
Features & Functions
1. C (delete) button - page 10
2. (up) button - page 10
3. (down) button - page 10
4. OK (accept) button - page 10
5.
– Priority memory button - page 13
6. – Priority memory button - page 13
7. - Priority memory button - page 13
8. AMPLI – Amplification & tone
activation button - page 19-21
9. Volume control - page 19-20
10. Tone control - page 19-20
11. M1 – M8 One-Touch memory
dial buttons - page 13-14
12. PROG – Program (save) button - page 14
13. SPKR – Speakerphone button - page 17-19
14. – Headset button - page 18
15. MUTE button - page 12-22
16. FLASH button - page 22-25
17. REDIAL button - page 10
18. New calls / message waiting indicator
- page 10
19. In use indicator - page 10
20. Hook switch - page 10
21. Speaker - page 10
22. Caller ID Screen - page 10
23. Flashing incoming call indicator
(strobe light) - page 10
24. Lighted keypad - page 10

8
Features & Functions
1. Speakerphone volume adjustment - pages 17-18
2. Outgoing speech volume select switch (LO/NORMAL/HI) - pages 21-22
3. Ringer Volume select switch (HI/LO/OFF) - pages 12
4. Ringer / shaker / strobe select mode - pages 12-13
5. Phone line jack - pages 15
6. AC power adapter jack - pages 15
7. Volume reset override switch (ON/OFF) - pages 21
8. Optional bed shaker jack - pages 13
9. Optional Audio/Neckloop jack (3.5mm jack) - pages 18-19
10. Optional Telephone jack (2.5mm hands-free) - pages 18-19
Figure #3
1
Left side
Back
Right side
2
3
4
5678910

9
Figure #4
1. Handset Boost button - pages 20
2. Memory card to record speed dial numbers - pages 14
3. Dialing mode select switch (T/P) - pages 11
4. Battery compartment - pages 11
5. Phone keyholes (mounts) - pages 15-16
6. On/Off indicator light - pages 25
Handset
Bottom
12
5
4
Features & Functions
3
6

10
Your telephone should be cleaned when necessary, unplug your phone and use a slightly damp
cloth to wipe dirt from it. Unplug your phone and use a slightly damp cloth to wipe dirt from it. To
avoid damage, NEVER use an abrasive or strong solvent to clean any part of the phone. Keep
the phone out of direct sunlight. Avoid placing the phone in extremely humid conditions.
Care of Phone

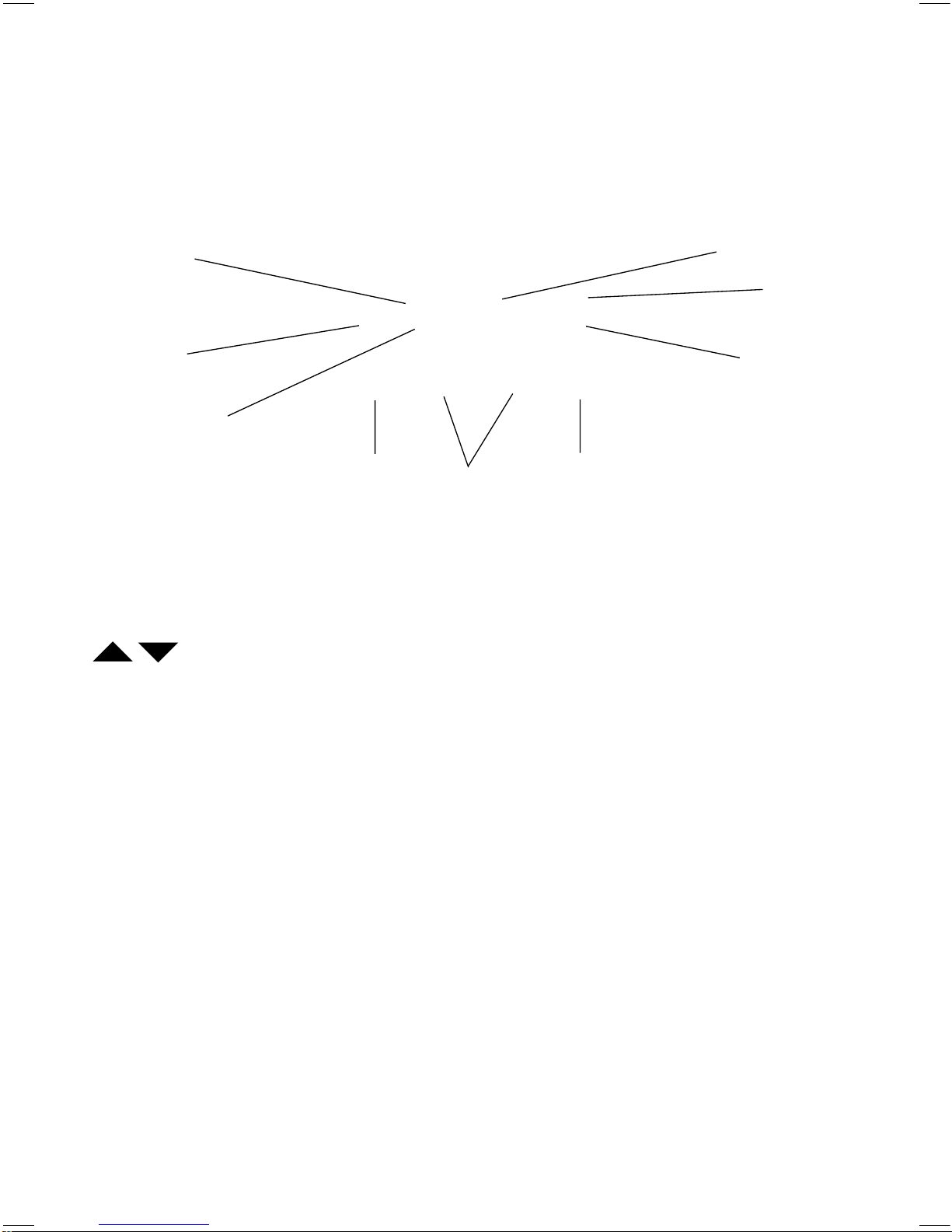

Figure #5
Screen example (on hook position)
1. Hours
2. Minutes
3. Power network icon
4. Number of calls
5. Validation button
6. UP / DOWN arrow buttons
7. Cancel / Clear button
8. Month
9. Day
12
3
4
5
6
7
8
9
OK button is used to confirm action or a choice on the screen.
“UP / DOWN arrow” buttons are used to highlight or scroll through the menu.
Cbutton is used to cancel or confirm an action/entry or clear a stored Caller ID call.
Your CSC50 phone’s LCD Screen displays different icons which icons which help you use
the telephone.
The telephone is powered by battery (+battery indicator).
The telephone is powered by AC adapter.
Memory storing is required.
Screen contrast level.
“Mute” is activated.
Speakerphone is activated.
Precede the CID call record number.
Show new records.
LCD Screen & Display

11
Installation Steps
Installation of your ClearSounds™CSC50Amplified Phone is easy. There are some basic
steps you need to take when you set-up your CSC50 Phone for the first time.
1. Check parts list. (See page #5 for complete list)
2. Install (4)AAAAlkaline batteries (not included). This provides power to the Caller ID
Screen.
3. Phone mounting installations.
4. Set the dialing mode.
5. Choose desktop or wall mount.
6. Set ringer and auxiliary alert.
7. Program your memory dial buttons.
INSTALLING THE OPTIONAL BATTERIES
The batteries are necessary in case of network power failure to save stored numbers in
memory and are required for the “Phone Book” use.
1. Begin by unplugging the AC adapter & line cord before installing new batteries.
2. Open the battery compartment door located on the bottom of your phone by un-
screwing the battery compartment door and removing it from the bottom of your
phone (screwdriver provided).
3. Insert correctly 4 AAA alkaline batteries (purchased separately) in the battery com-
partment (See figure #10). Be sure to observe battery polarity as imprinted on the
base of the compartment.
4. Replace the battery compartment door and screw back in place.
5. The batteries will last approximately 1 year before needing replacement.
BATTERY SAFETY
1. When replacing the batteries in your CSC50 phone, make sure to put the batteries
in correctly (See page above).
2. Never mix battery types (different chemistries, brands and/or fresh vs. used).
3. Never dispose of batteries in fire, as they could explode.
4. Remove worn-out batteries from equipment immediately and dispose of promptly.
5. Do not attempt to recharge a battery unless the battery specifically is marked
“rechargeable.” Dispose of immediately.
Figure # 10 – Installing the batteries

12
PHONE MOUNTING INSTALLATIONS
The telephone may be placed on a shelf or table, or may be fixed to a wall using the
mounting bracket.
Plug the AC Adapter into the AC power back on the back of your phone, then into an
electrical outlet or surge protector, if you are using one. NOTE: The adapter is required
for the telephone to work correctly. If the adapter is accidentally unplugged (or in case
of power failure) and if the batteries are dead or not installed, minimal restricted phone
features only will work on the phone (make a call or answer incoming call).
IMPORTANT: Please remove the clear plastic Caller ID tab. This film tab is only for display
and to protect your Caller ID display during shipping.
Desk / Table Use
1. Connect one end of the 6ft telephone cord to the line jack on the back of your
CSC50 Phone and connect the other end to a modular phone jack (RJ11C).
2. Connect the handset coil cord (curly cord) to the handset and to the telephone
(See figure #6).
3. Lift the handset and listen for a dial tone. If you hear a dial tone, your phone is ready
to use. If there is no dial tone, check all your cords to make sure they are plugged in
securely.
Wall Mount Use
1. Slide the handset hanger tab out and reverse its position (rotate it 180 degrees).
Slide it back into place so that the hook points up (See figure #7). This will keep the
handset from falling out of the cradle when it is mounted on the wall.
2. Plug the 8in short phone cord into the telephone jack on the CSC50, run phone cord
underneath wall plate adapter and through the opening.
3. Insert the Wall Plate adapter. Hold the wall plate adapter so that the raised mounting
pins line up with the phone’s keyholes on the CSC50. Once the holes are lined up,
push the wall plate adapter in towards the CSC50 and then slide the plate upwards
until it is securely seated on the phone. (See figure #8)
4. With the Wall Plate adapter installed, plug the 8 inch short cord into the jack on the
wall.
5. Holding the phone slightly above the mounting screws on the wall jack, push the
phone against the mounting screws so they are hooked into upper and lower key-
Figure #6 – Desk Installation

13
hole slots on the back of the phone. Slowly slide the phone down until it snaps into
place (See figure #9).
6. Connect the handset coil cord (curly cord) to the handset and to the telephone.
7. Lift the handset and listen for a dial tone. If you hear a dial tone, your phone is ready
to use. If there is no dial tone, check all your cords to make sure they are plugged in
securely.
SETTING THE DIALING MODE
Set the dial mode switch on the bottom of the phone to “T” if you have Touch Tone service,
or “P” for Pulse dialing if you have rotary dialing service. Default is set to the “T” dialing
switch mode (See figure #11).
Figure #7 – Reversing The Hook Figure #8 – Mounting The Wall Bracket
Figure #9 – Wall Installation
Figure #11 – Dialing mode switch

14
PROGRAMMING THE RINGER & AUXILIARY ALERT
Ringer Volume:
You can adjust the ringer volume of your CSC50 as high as 95+ dB. The ringer volume
adjustment is located on the right side of the telephone. The settings are OFF, LO, HI, (See
figure #12). Your phone comes with the ringer switched to HI. In additional to volume, you
can adjust the tone or melody of the ring.
Ring Style:
Your CSC50 Phone allows you to choose from four different ring tones. You can choose a
new one by changing the settings as follows:
In the hook position
1. Press the MUTE button to access the special features (See figure #13).
2. Using the or arrow buttons (below the Caller ID Display), highlight <<SET
PHONE>>.
3. Press the OK (green) button.
4. Using the or arrow buttons, scroll to select <<SET RING>>.
5. Press OK button.
6. There are four (4) ring tones available. To hear each ring, use the or
arrow button to highlight any one of the four and then press the OK button. Do this
with each one to find the best fit for you.
7. To save the ring tone, highlight the ring tone you want, and then press the Cbutton
three (3) times until you are back to the time and date display. Or after your selec-
tion, do nothing for 20 seconds and the ring type will automatically be saved for the
next incoming call.
Strobe & Optional Bed Shaker Ring Signaling:
Your ClearSounds™CSC50 Telephone incorporates several options to alert you that the
to alert you that the phone is ringing. The loud, adjustable Ringer as well as the bright
Strobe and optional Bed Shaker or any combination of these allow you to customize the
phone to fit your needs.
Figure #13 – Set The Ringer
: Off,
: Low,
: Hi
Figure #12– Ringer Volume Switch

15
Your CSC50 Phone is equipped with a bright STROBE light, which flashes a very bright
strobe when the phone rings (See figure #14). It’s almost impossible to miss telephone calls
when you select the Strobe Ringer.
If you purchased the optional Bed Shaker, simply plug it into the shaker jack (See figure
#11) and place it between your mattress and box spring. Caution: For safety and correct
functionality considerations, your CSC50 Phone can only be guaranteed when used with
our ClearSounds™ Bed Shaker, model CS-SHK.
A3-position switch located on the right side of the phone allows for the settings below (See
figure #16). NOTE: The loud ringer will be triggered unless you have turned it “OFF”.
PROGRAMMING MEMORY DIAL BUTTONS
These memory dial buttons are empty. Should you choose to use this feature you will
need to select the telephone numbers for each button. It is recommended you store these
numbers during installation.
Your CSC50 Phone allows you to program three Priority numbers and eight frequently
dialed numbers into memory for future use (30 digits maximum for each button). We
suggest you program the emergency numbers for your local Police, Fire Station, Doctor or
Hospital. NOTE: Do not program 911 into any memory buttons!
Figure #15 – Optional Bed Shaker Jack
Figure #16 – Auxiliary Alert Switch
Figure #14 – Strobe Ringer (Flashing incoming call indicator)
Bed Shaker & Strobe
Bed Shaker Only
Strobe Only

16
To program your one-touch memory dial buttons please follow instructions below:
1. Lift the handset.
2. Press the PROG (program) button (See figure #17).
3. Using the keypad, dial the number you would like to save, including “1” and the area
code (if applicable). (See figure #18.
4. Press one of the Priority or Memory Dial buttons (M1 – M8) located on top of the
phone (See figure #19). Each button can be programmed (or reprogrammed using
the same procedure) for a phone number.
5. The Caller ID Screen will display <<SAVE OK>> (See figure #20).
6. To register your stored phone numbers, use the phonebook insert card located
under the base.
NOTE: Numbers will be lost if the phone is not receiving any power, either through the
phone line, batteries, AC adapter during a storm, power outage or if you disconnect the
phone. Entering a new number in the same location will automatically erase the previous
number.
NOTE: keypad is lighted for easier dialing.
If at any time you have questions about your telephone please contact our ClearSounds
Customer Service Department at: 1-800-965-9043.
Figure #20
LCD Display
Figure #17
Program Button
Figure #19
Memory / Priority Buttons
Figure #18
Telephone Keypad

17
CSC50 Phone Operation
MAKING AND RECEIVING A CALL
Making A Call Using The Handset
1. To make a call, lift the handset, listen for a dial tone and adjust your Volume & Tone
Settings. (See pages 19-21 for details on the amplification functions)
2. To dial a number you can:
a. Dial a number from the keypad
b. Press one of the Priority or Memory dial buttons (See pages 15-16 for instructions
on programming Priority/Memory Dial Buttons)
c. Dial from your Phone Book or Caller ID (See pages 29-31 for instructions on setting
up your Phone Book.)
3. On completion of the call, carefully replace the handset in the cradle.
Receiving/Answering A Call Using The Handset
1. When the phone is ringing, simply lift the handset and speak.
2. Adjust your Volume and Tone Settings if needed (See pages 19-21 for assistance)
3. On completion of the call, carefully replace the handset in the cradle.
USING THE SPEAKERPHONE
Your CSC50Amplified Phone is also a full Speakerphone that offers volume adjustment up
to +15dB. This allows you to hear and speak hands-free.
Making A Call Using The Speakerphone
1. Press the “SPKR” (speakerphone) button for dial tone.
2. Adjust the volume to fit your needs. Move the Volume Adjustment Switch located to
the left side of the telephone beside the speaker (See figure #21).
3. To dial a number you can:
a. Dial a number from the keypad
b. Press one of the Priority or Memory dial buttons (See pages 15-16 for instructions
on programming Priority/Memory Dial Buttons.)
c. Dial from your Phone Book or Caller ID (See pages 29-31 for instructions on setting
up your Phone Book.)
4. On completion of the call, press the “SPKR” button again.
Figure #21 – Speakerphone Volume Control

18
Receiving/Answering A Call Using The Speakerphone
1. Press the “SPKR” (speakerphone) button while the phone is ringing to answer.
2. Adjust the volume to fit your need (Same as above).
3. On completion of the call, press the “SPKR” button again.
Switch between Handset and Speakerphone
While on a handset call, press the “SPKR” button and replace the handset in the cradle.
While on a speakerphone call, lift the handset.
NOTE: The In-Use Indicator (See page #7, No 19) will light up if the phone a phone is in
use.
USING AUDIO AND TELEPHONE HEADSET ACCESSORY JACKS
Your CSC50 Amplified Phone is equipped with both an Audio and Telephone Headset
Jack, providing total flexibility and multi-functionality (See figure #22). Both the Audio &
Headset jacks are amplified, allowing you to adjust both the tone and volume. (See pages
19-21 for instructions on the amplification features.) These jacks accommodate a variety of
optional accessories including Neckloops, Headphones, Earbuds, Silhouettes, Cellular
Accessories and Cochlear Patchcord* (not included).
*Caution: Before plugging any cord into your Cochlear processor, you should consult with
your implant manufacturer.
Audio/Neckloop Jack
Using the 3.5mm stereo/mono jack allows you to listen through your Neckloop or Headset
while speaking into the handset or speakerphone.
Telephone Headset Jack
Using the 2.5mm stereo jack that can accommodate many hands-free headsets allows for
total hands-free operation as you listen and speak through your hands-free headset.
Making A Call:
1. Plug your Neckloop, Headphones, Headset or other jack accessory into the Audio/
Neckloop Jack or Headset Jack.
2. Press the (headset) button for dial tone (See figure #23).
Figure #22
Audio & Telephone Headset Jack Location
Audio Jack
(only) Telephone headset
Jack

19
3. Dial the number and wait for someone to answer.
a. If you are using the 3.5mm Audio/Neckloop Jack, and want to speak into the
handset, lift the handset and speak into it. Adjust your volume. On completion
of the call, carefully replace the handset in the cradle.
b. If you are using the 3.5mm Audio/Neckloop Jack, and want to speak into the
speakerphone, press the “SPKR” speakerphone button for hands-free opera-
tion, and talk into the speakerphone (the conversation will be heard through
both your audio equipment and over the speakerphone). Adjust your volume.
On completion of the call, press the “SPKR” speakerphone button.
c. If you are using the 2.5mm Headset Jack for hands-free communication, leave
the handset in the cradle, and talk into the headset microphone. Adjust your
volume. On completion of the call press the headset button.
Receiving/Answering A Call:
1. Plug your accessory into the Audio/Neckloop Jack or Headset Jack.
2. If using the audio jack, press the “SPKR” or lift handset.
3. If using the headset jack, press the (headset) button while the phone is ringing
to answer the call.
4. Depending on whether you are using the 3.5mm Audio/Neckloop Jack or 2.5mm
Telephone Headset Jack follow the directions above (A, B or C)
Using the Amplification Function
The CSC50 Phone has an “AMPLI”button that controls the loudness and tone of the
handset. Without pressing the “AMPLI” button, you are able to amplify the handset up to
30 dB of amplification. Once the “AMPLI” button is pressed, an extra level of amplification
is added providing 30 to 50 dB of gain and tone control.
Voice Amplification and Tone
Your CSC50 Phone is equipped with a specialized amplification function designed to fit
your needs. You can adjust the volume and tone (sound frequency range) of the incoming
voice by simply adjusting Volume and Tone Controls. To use the specialized amplification
boost and tone control features, follow these directions.
1. Once you have dialed the phone or answered a call, press the “AMPLI” (amplify)
button (See figure #24). This turns the incoming voice amplifier ON. When the ampli-
fier is ON, you will see the red light on the left side of the “AMPLI” button light up.
i.e. “AMPLI”
Figure #23 – Audio / Headset Jack Button

20
2. Adjust the volume and tone to fit your needs by adjusting the VOLUME (See figure
#25) and TONE (See figure #26) controls until you find the right levels for you. The
Volume Control increases sound volume. Slide the Volume Control to the right
to increase the volume and slide it to the left to decrease the volume. The Tone
Control allows you to fit your specific hearing needs. Slide the Tone Control to the
left to boost the lower frequency range. Slide the Tone Control to right to boost the
high frequency range. This allows individuals with BOTH high frequency and low
frequency hearing loss to use the CSC50 Phone.
3. For additional, situational amplification, press and hold the HANDSET BOOST but-
ton located just below the earpiece on the inside of the handset (See figure #27). By
pressing and holding this additional handset boost button, you get an extra 10 dB
gain of amplification.
IMPORTANT NOTE: The Handset Boost button is designed to be used when listening
only. When you are ready to speak, release the button. Press it again when the extra
amplification is necessary. Failure to release the button when speaking will result in the
other party not hearing you. Use this additional handset boost button (See figure #27) for
the following reasons:
a. The caller has a very soft speech
b. There is a lot of background noise
c. You are in a noisy environment
d. The connection on the phone line is weak
CAUTION: This telephone can produce very high (loud) sound levels. Repeated incre-
mental exposure to amplification levels greater than 18 dB may be harmful to people
without hearing loss. Always adjust the volume control to the minimum setting after using
the phone and alert other users that hearing damage can potentially result from misuse.
Figure #24 – Amplify Button Figure #25 –Volume Control Figure #26 – Tone Control
Figure #27– Handset Boost Button
